IPEG-E80F-IRW1
Details
Edge Lineup cameras are now in 4K!

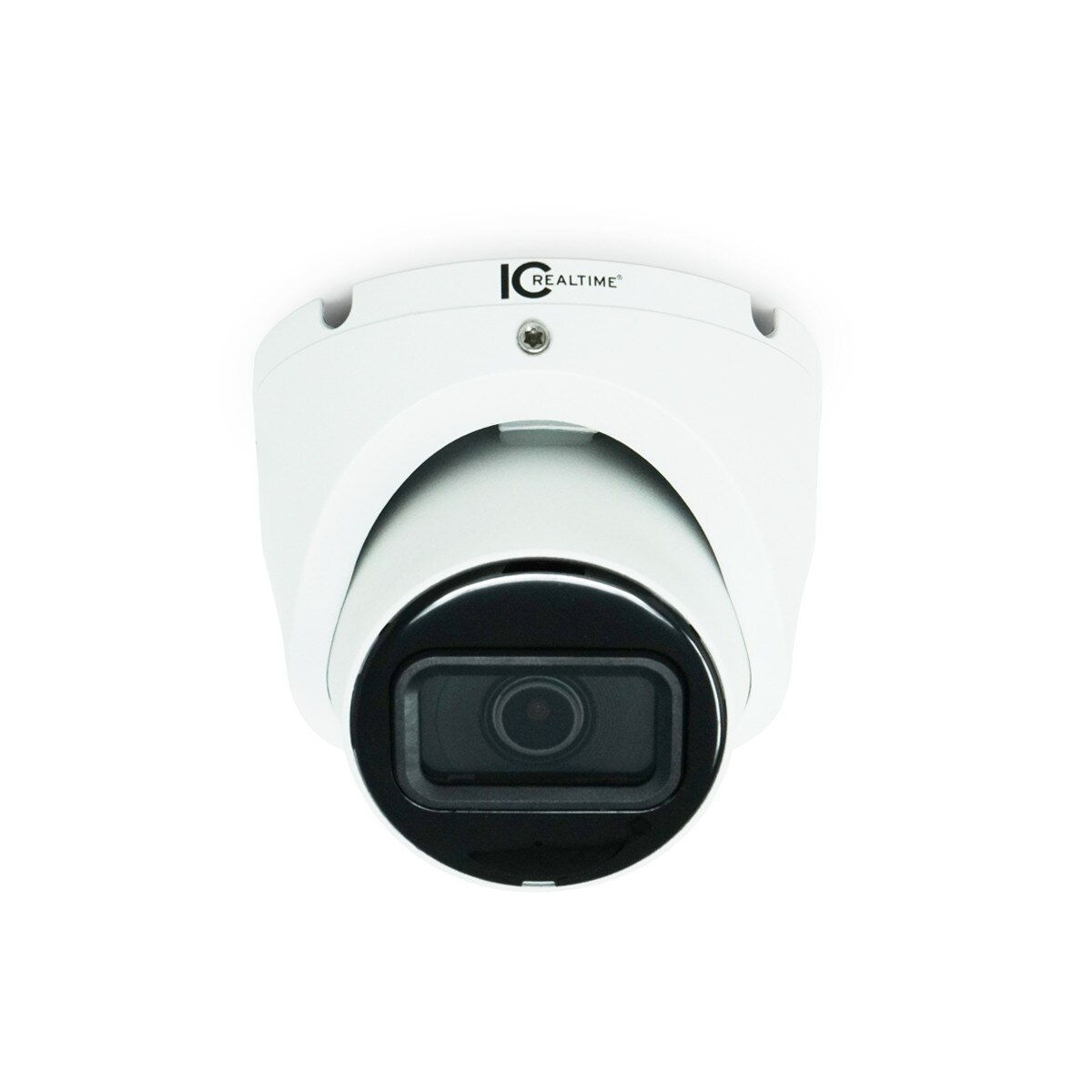

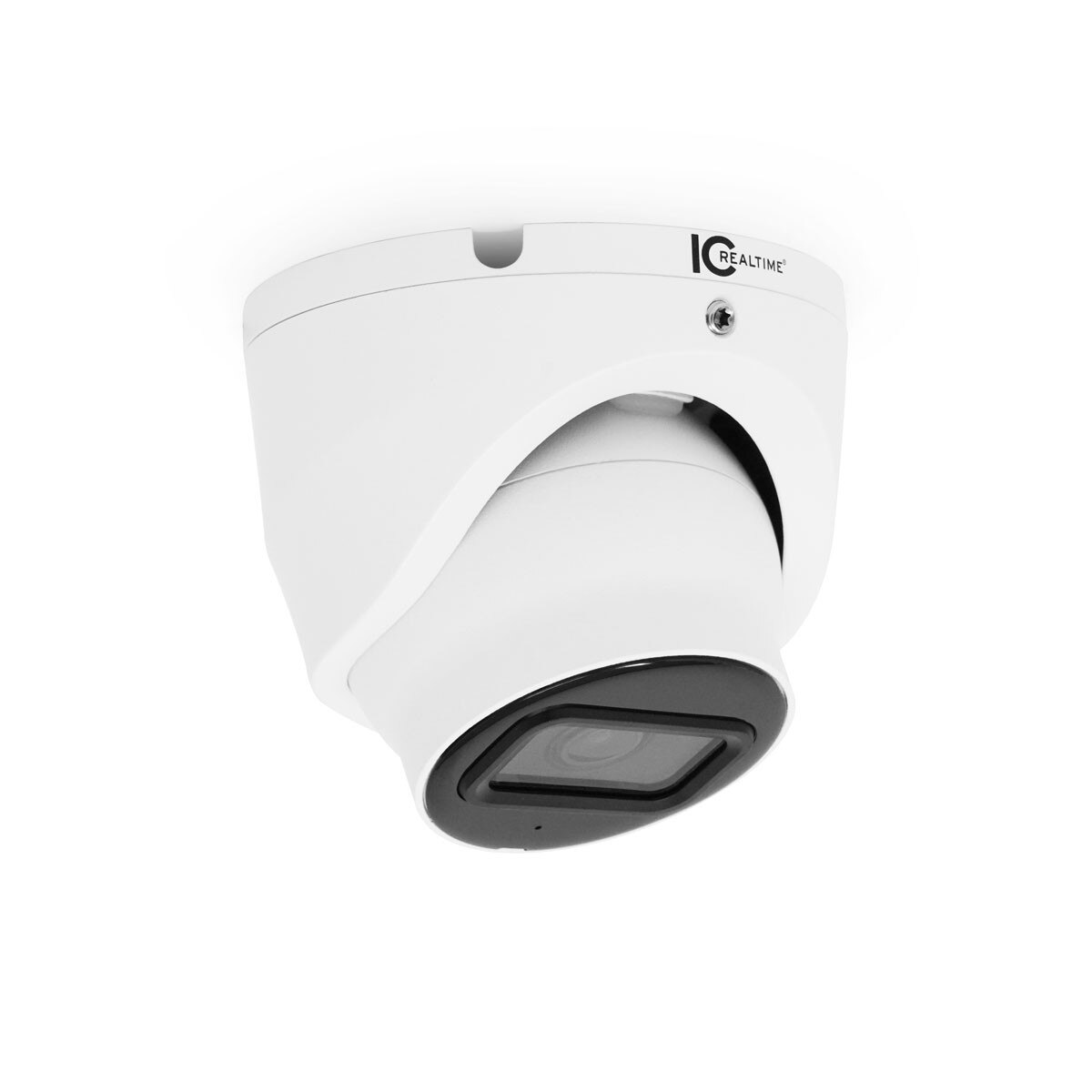

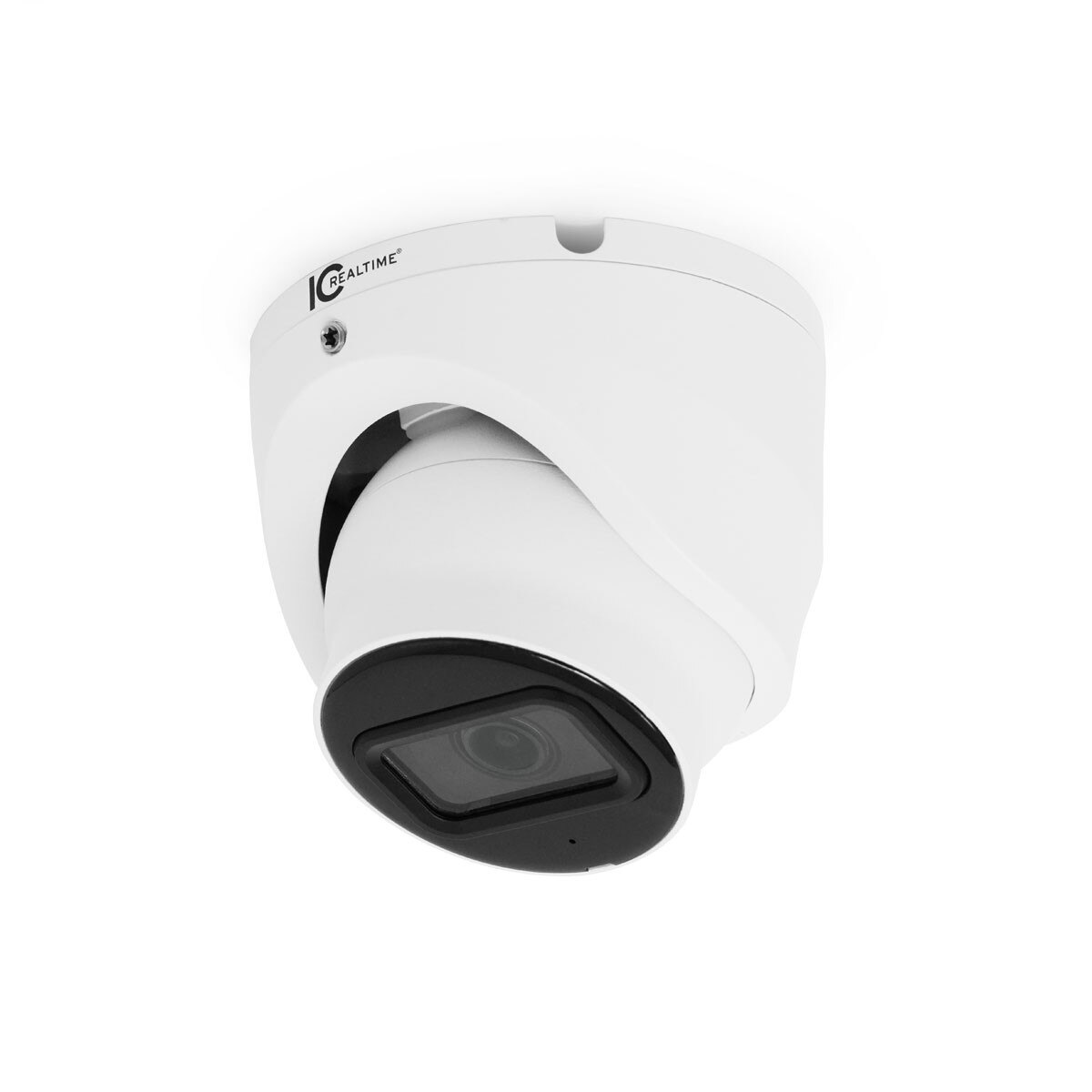

IC Realtime introduces the IPEG-E80F-IRW1, an eyeball turret network camera designed to deliver high-quality surveillance with unbeatable price-to-performance. Featuring a 1/2.7" CMOS image sensor, this camera provides crystal-clear 8MP (3840 × 2160) resolution at 15 frames per second, ensuring detailed, ultra-high-definition video. The compact design, measuring 3.4" × 3.7", offers a sleek and unobtrusive installation while maintaining robust performance. With a 105° angle of view and a 2.8 mm fixed lens, the camera is ideal for wide-area monitoring, capturing a broad field of vision.
The IPEG-E80F-IRW1 supports H.265 video compression, reducing bandwidth usage and storage requirements without sacrificing video quality. Its Digital Wide Dynamic Range (DWDR) enhances image clarity in difficult lighting conditions, while 3D Noise Reduction (3DNR) ensures clear, sharp images even in low-light environments. Built-in infrared (IR) capabilities allow the camera to capture footage in complete darkness, with a maximum IR distance of 98 feet, ensuring reliable nighttime monitoring.
This camera is built for durability, with an IP67 rating that guarantees protection against water and dust, making it suitable for both indoor and outdoor use. Power options include Power over Ethernet (PoE) for simplified installation or 12V DC for traditional setups. Additionally, the IPEG-E80F-IRW1 is ONVIF S and T compliant, ensuring compatibility with a wide range of third-party devices and systems.
Equipped with a built-in microphone, the camera captures high-quality audio alongside video, providing an extra layer of security. As part of IC Realtime’s Edge lineup, the IPEG-E80F-IRW1 is covered by a 7-year warranty and backed by the company’s renowned technical support, offering long-term reliability and peace of mind.
For those seeking a compact, powerful, and feature-rich surveillance solution, IC Realtime’s IPEG-E80F-IRW1 is an excellent choice, combining advanced image quality with smart, durable design.
Made in South Korea and conforms to the Trade Agreements Act (TAA)
Specifications
| Camera | |
| Image Sensor: | 1/2.7" CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) |
| RAM/Rom: | 16MB/ 256MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.04 Lux@F2.0 (Color, 30 IRE) 0.004 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| Illumination Distance: | 98.4 ft (30 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 1 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.4 |
| Angle of View: | Horizontal:105°; vertical: 56° |
| Close Focus Distance: | 3.28 ft (1.0 m) |
| DORI - Detect: | 245 ft |
| DORI - Observe: | 140 ft |
| DORI - Recognize: | 48 ft |
| DORI - Identify: | 24 ft |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Streaming Capability: | 2 Streams |
| Resolution: | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 ×1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 ×1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D NR |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower) |
| Mirror: | Yes |
| Iris Control: | Fixed aperture |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; PCM |
| Network | |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Compatibility: | ONVIF (Profile S/Profile T); CGI; P2P |
| Max. User Access: | 6 (Total bandwidth: 48 M) |
| Edge Storage: | FTP |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now |
| Interface | |
| RS485: | N/A |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Memory Slot: | N/A |
| Electrical | |
| Power Supply: | 12V DC/PoE (802.3af) |
| Power Consumption: | Basic: 2.3 W (12V DC); 3.1 W (PoE) Max. (ICR + H.265 + max. resolution + Main Stream + DWDR + IR on): 4.6 W (12V DC); 5.6 W (PoE) |
| Environmental | |
| Operating Conditions: | –40 °F to 131 °F (–40 °C to +55 °C)/Less than 95% RH |
| Storage Conditions: | –40 °F to 131 °F (–40 °C to +55 °C)/Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Metal |

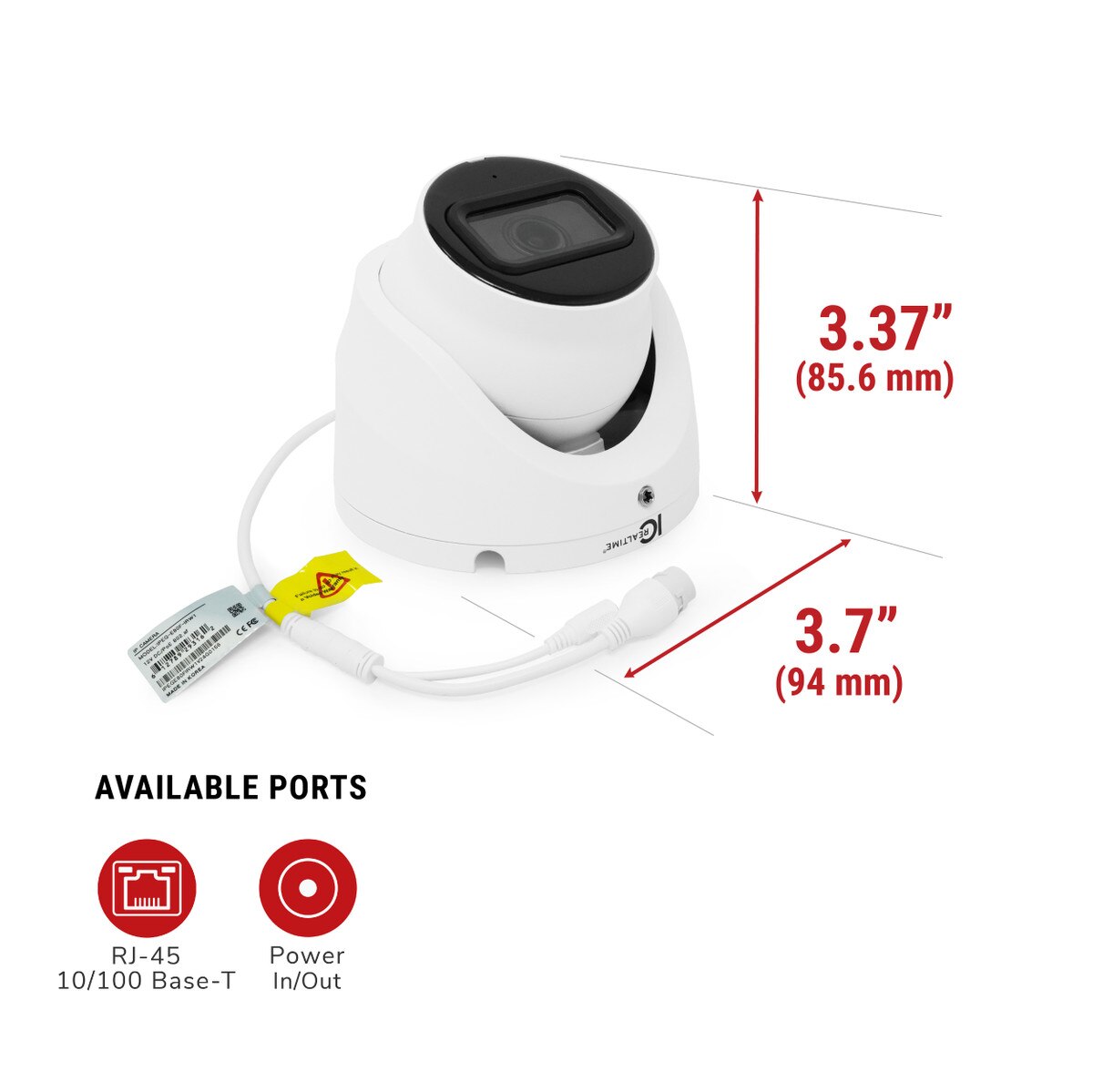

| Dimensions: | 3.4" × Φ3.7" (85.6 mm × Φ94.0 mm) |
| Gross Weight: | 0.95 lb (0.43 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
