MNT-GB-PLATE-1
Details

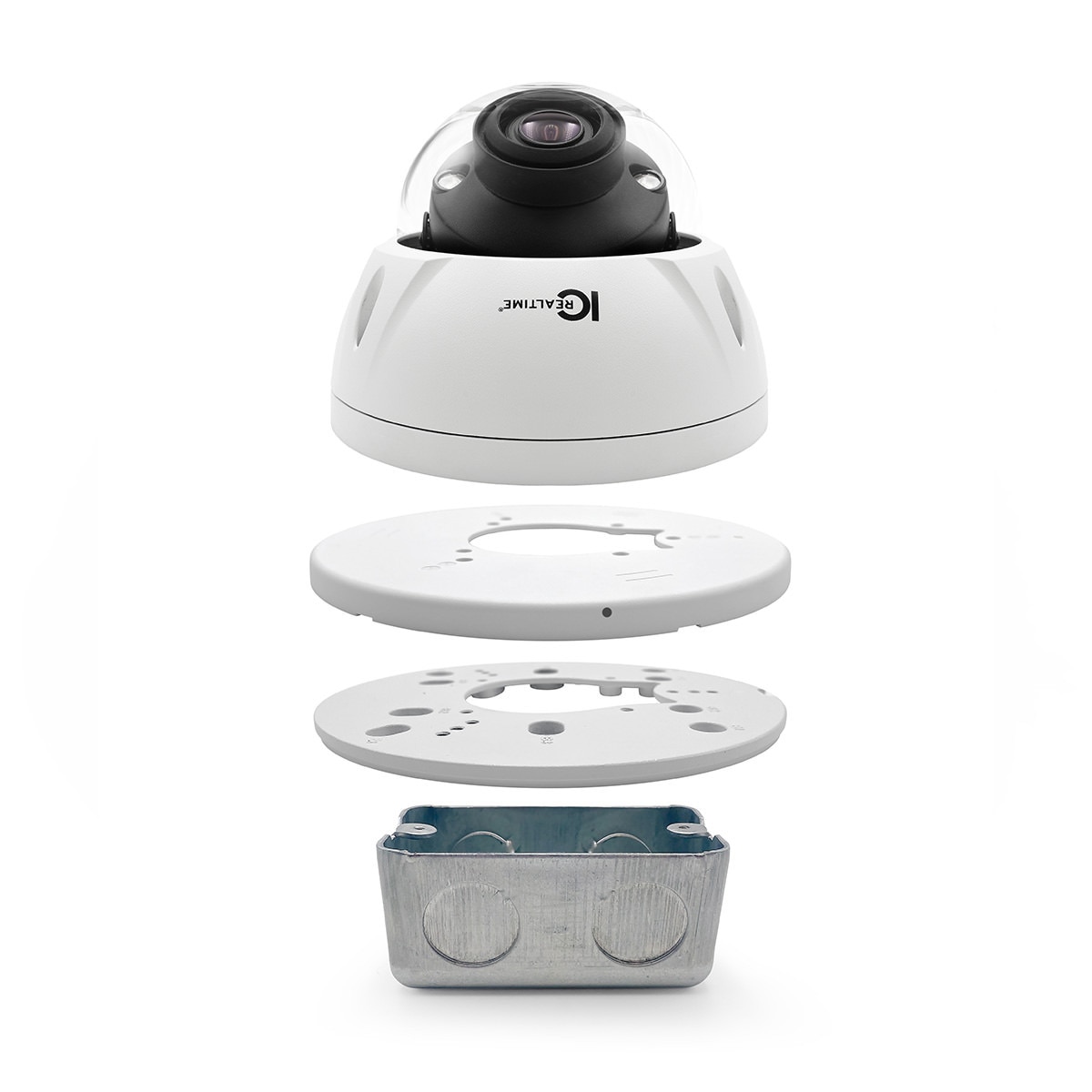

IC Realtime knows time is money for installers, and that every client expects indoor camera installations to look clean, neat and professional. So in our 20-year tradition of bringing real-world support to busy camera integrators, we are proud to offer MNT-GB-PLATE-1, a new No-Drill non-weatherproof security camera junction box adapter plate for standard electrical gang boxes to fit our dome cameras, This pre-drilled mounting plate makes camera junction box installation easier & more time-efficient.
- Sturdy cast aluminum alloy base plate
- 6.06” in diameter x 0.33” thick
- No-Drill direct gang box mounting
- Fits 4" standard single or double gang square or an octagon electrical junction boxes
- Large contoured cable access hole

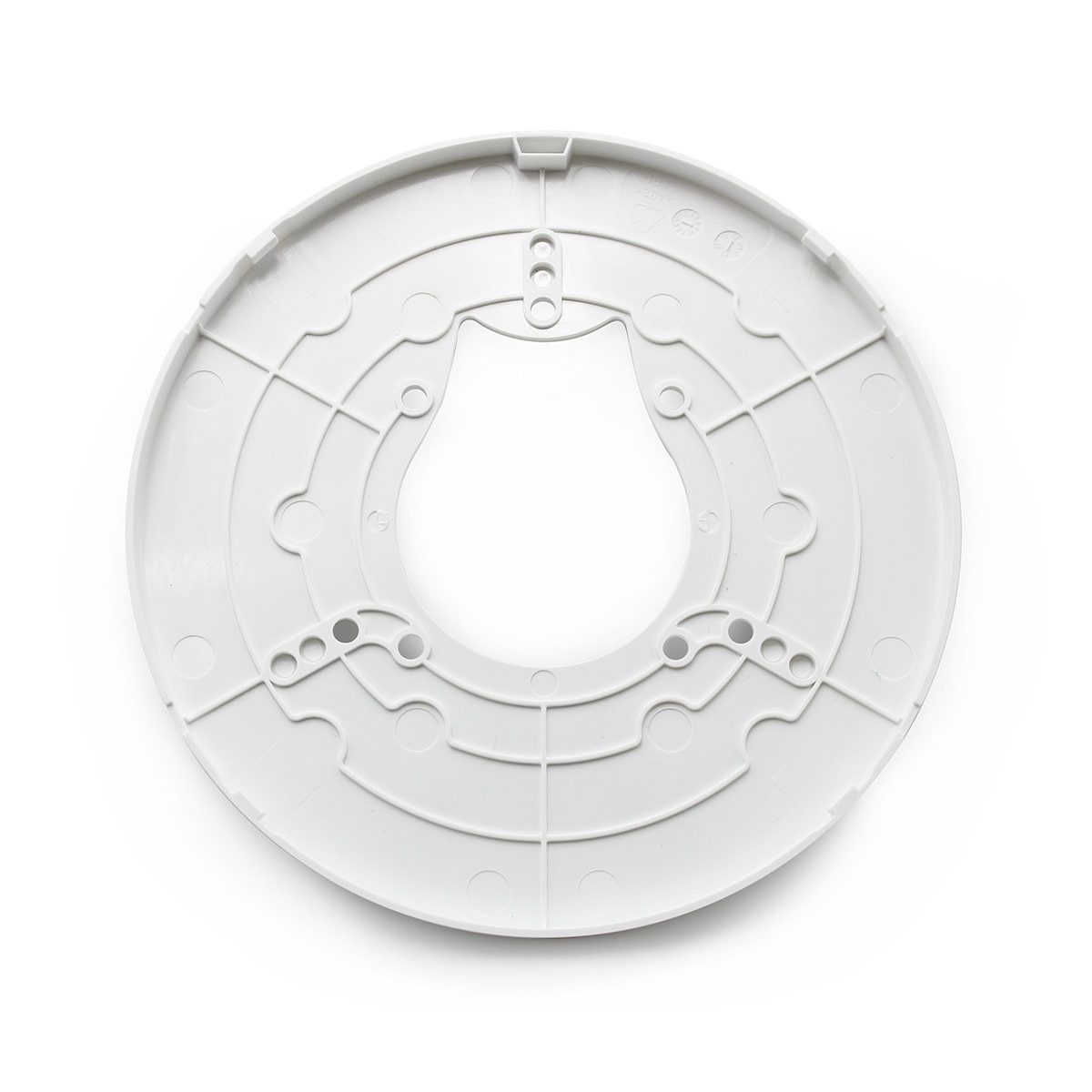

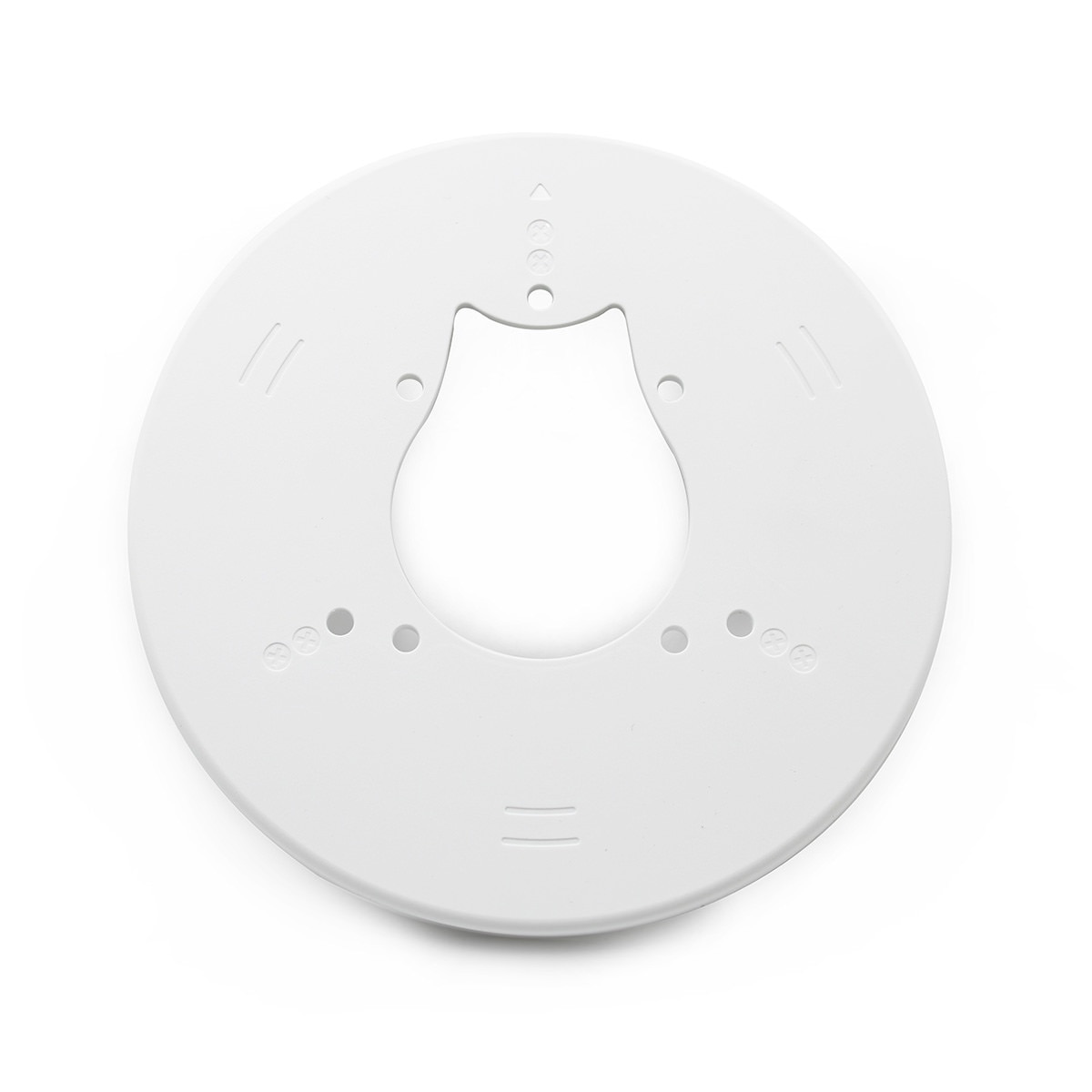

- Paintable white ABS top trim plate for a neat installation

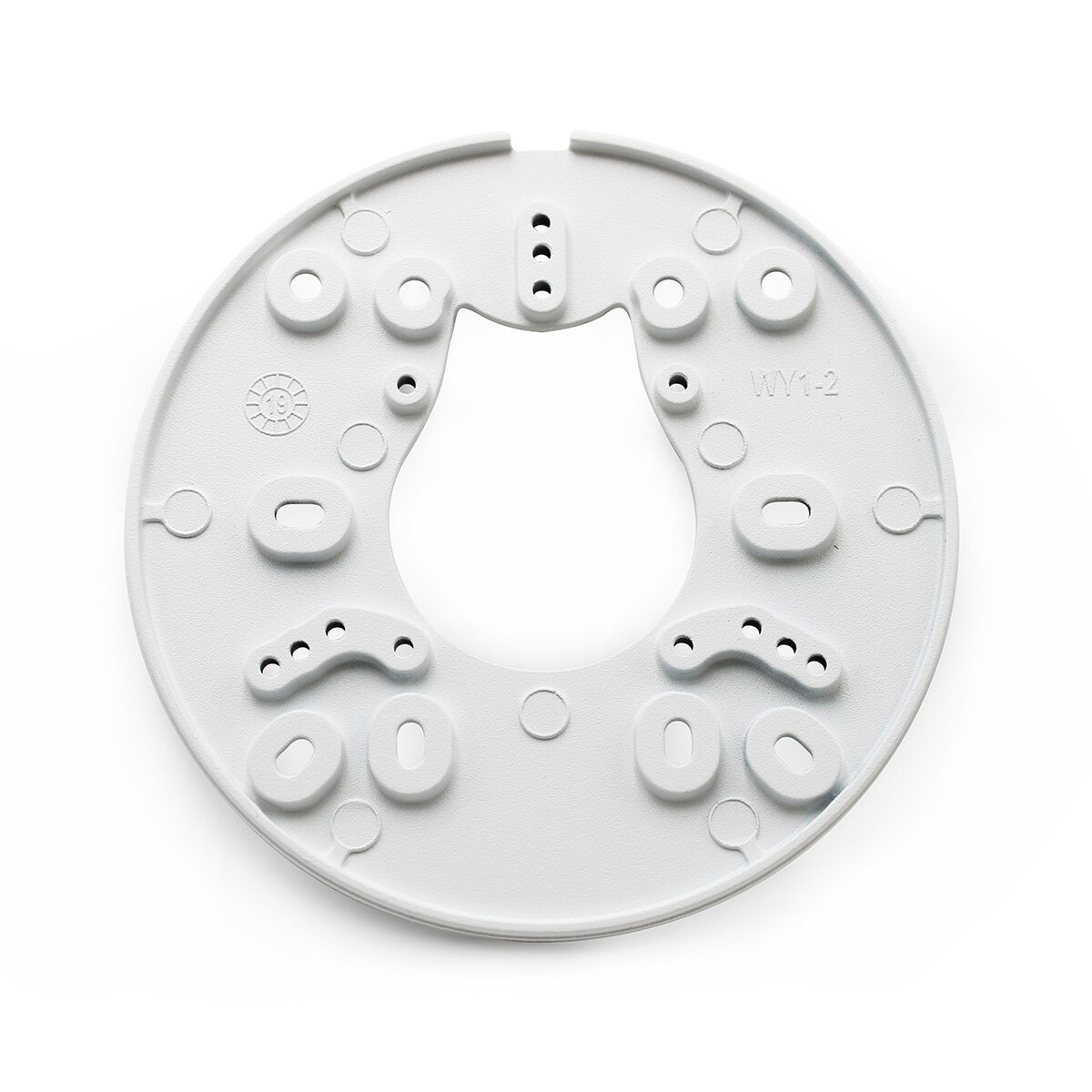

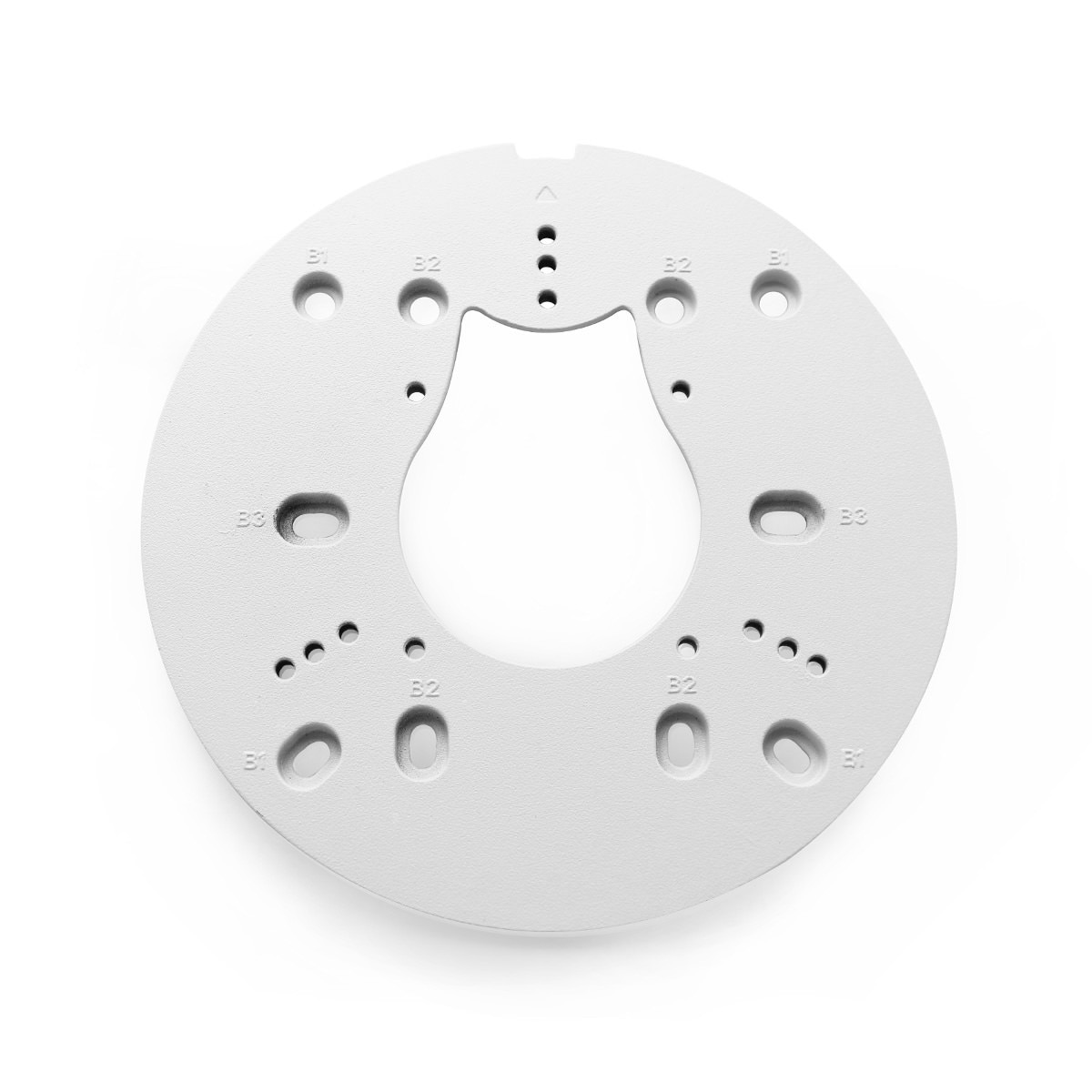

- Four concentric pre-drilled camera base hole patterns
- Concentric hole patterns match the four IC Realtime dome camera bases

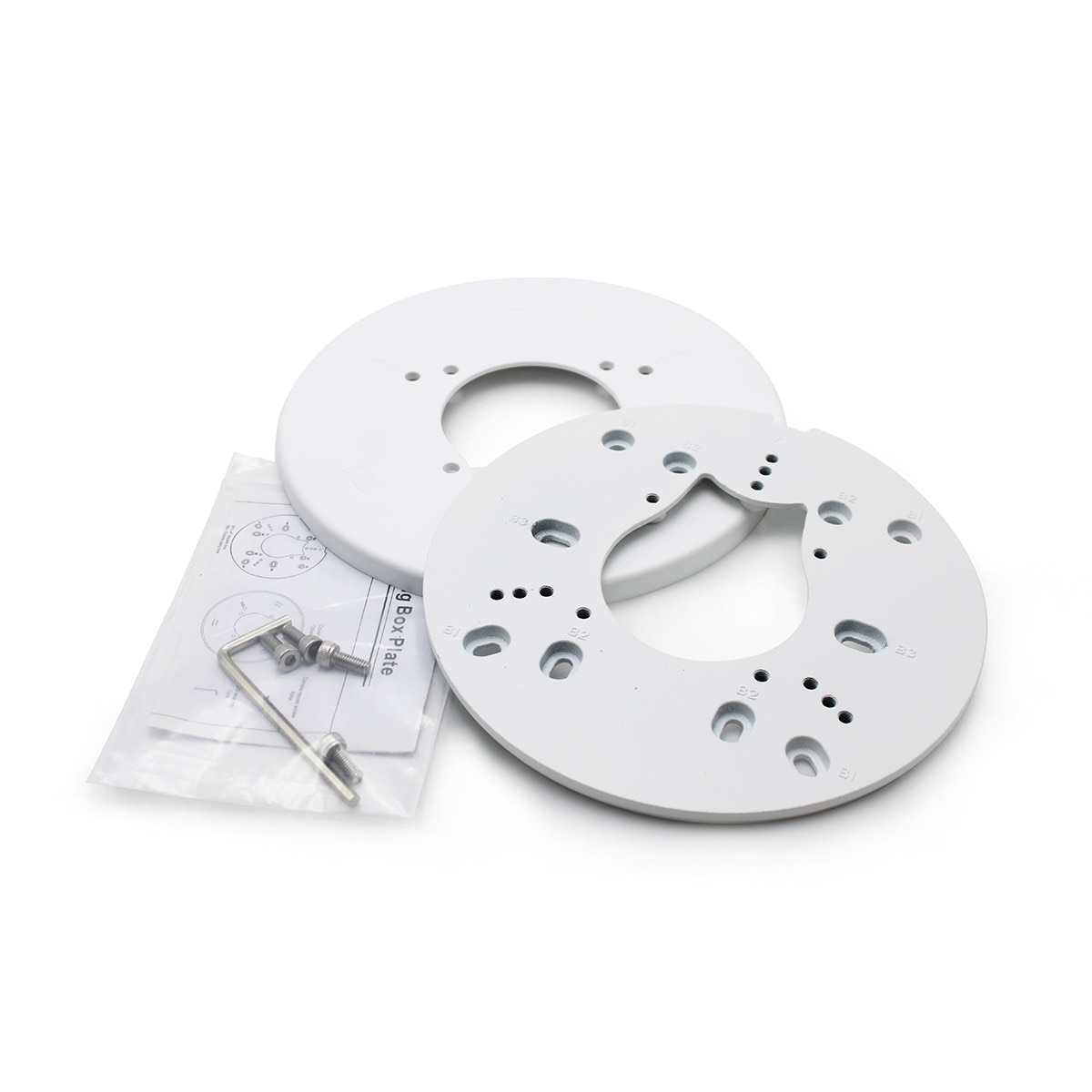

- 4 Camera Mount Screws & wrench included
The next time you're ordering dome cameras for indoor gang box installation, ask your factory rep or distributor for a matching MNT-GB-PLATE-1 for each dome camera mount. Using an MNT-GB-PLATE-1 under each camera will speed installation and leave them with the clean, professional interior finish your clients expect.
Specifications
| Environmental | |
| Operating Conditions: | 40ºC~60ºC(-40°F~140°F) |
| Operating Humidity: | 0~90% RH |
| Construction | |
| Casing: | Aluminum alloy + ABS |
| Dimensions: | 140mmx39.5mm (φ5.51”x1.56”) |
