MNT-JUNCTIONBOX-1
Details

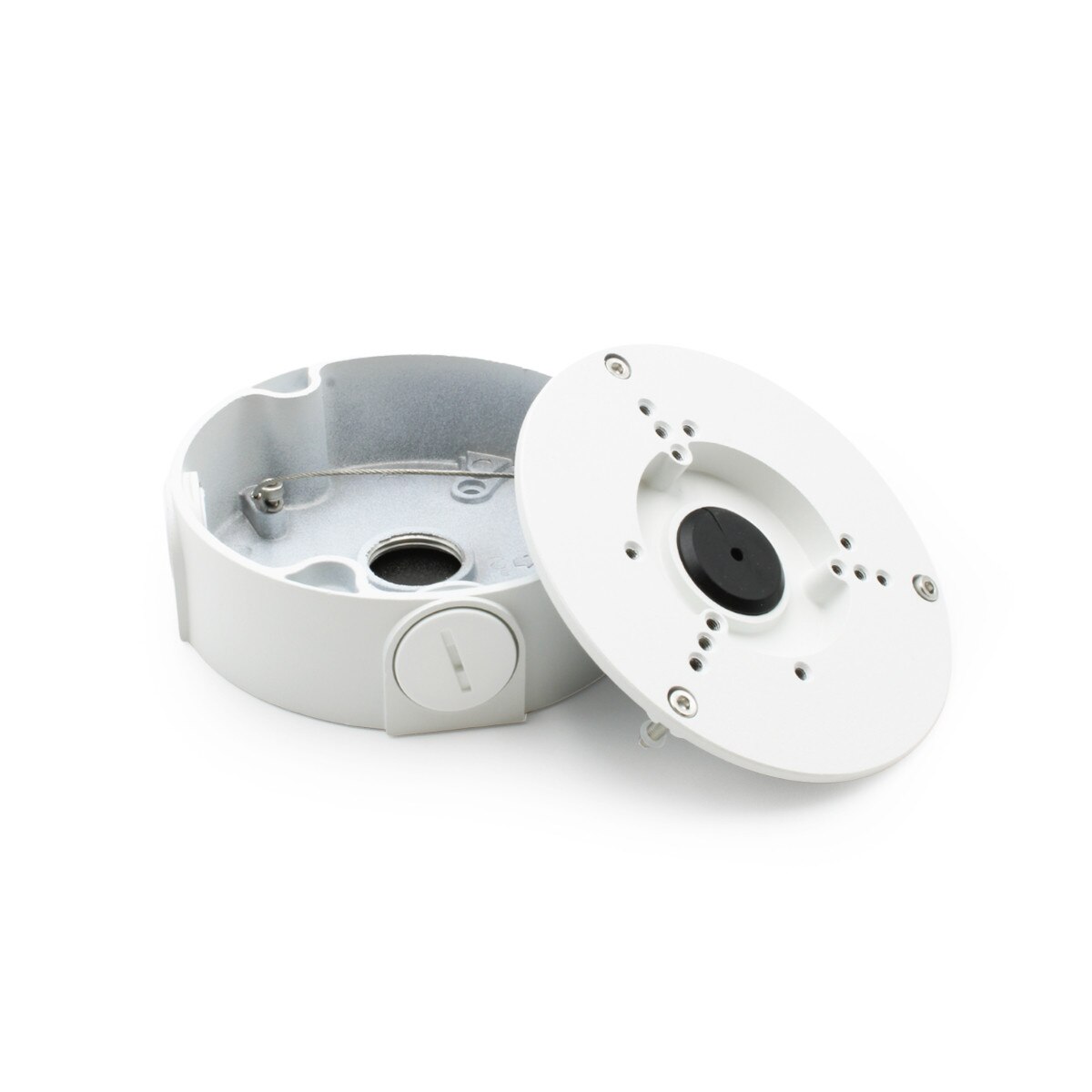

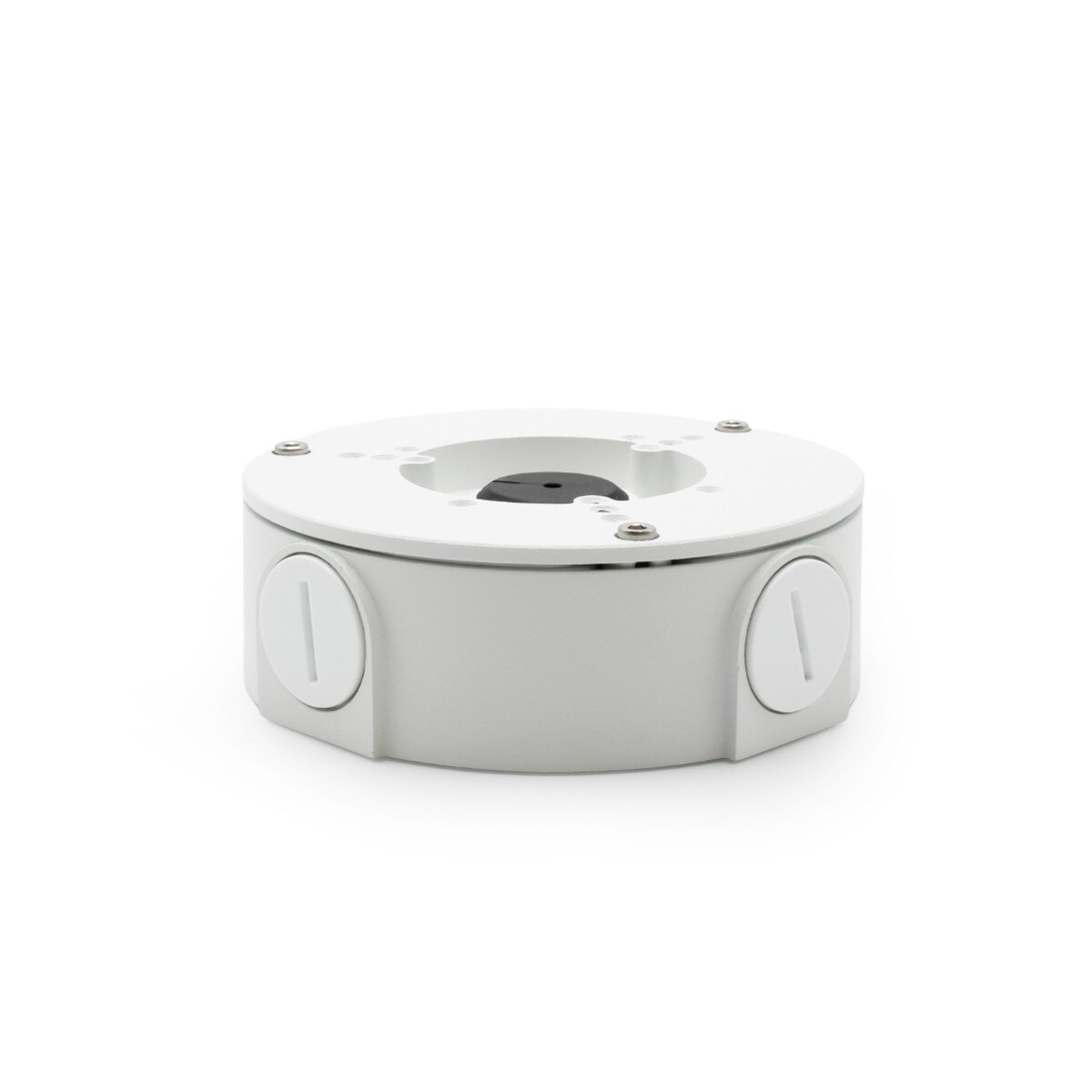

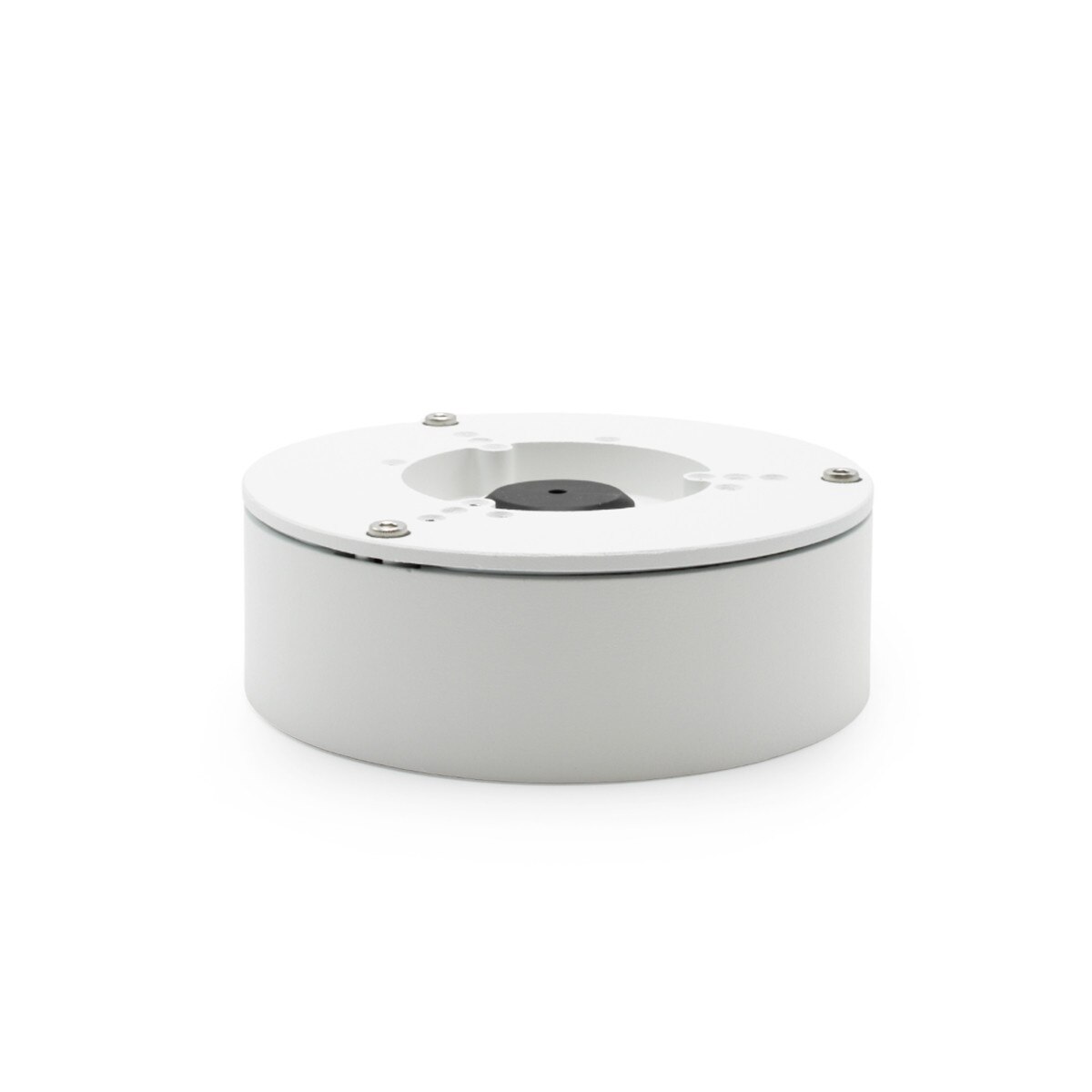

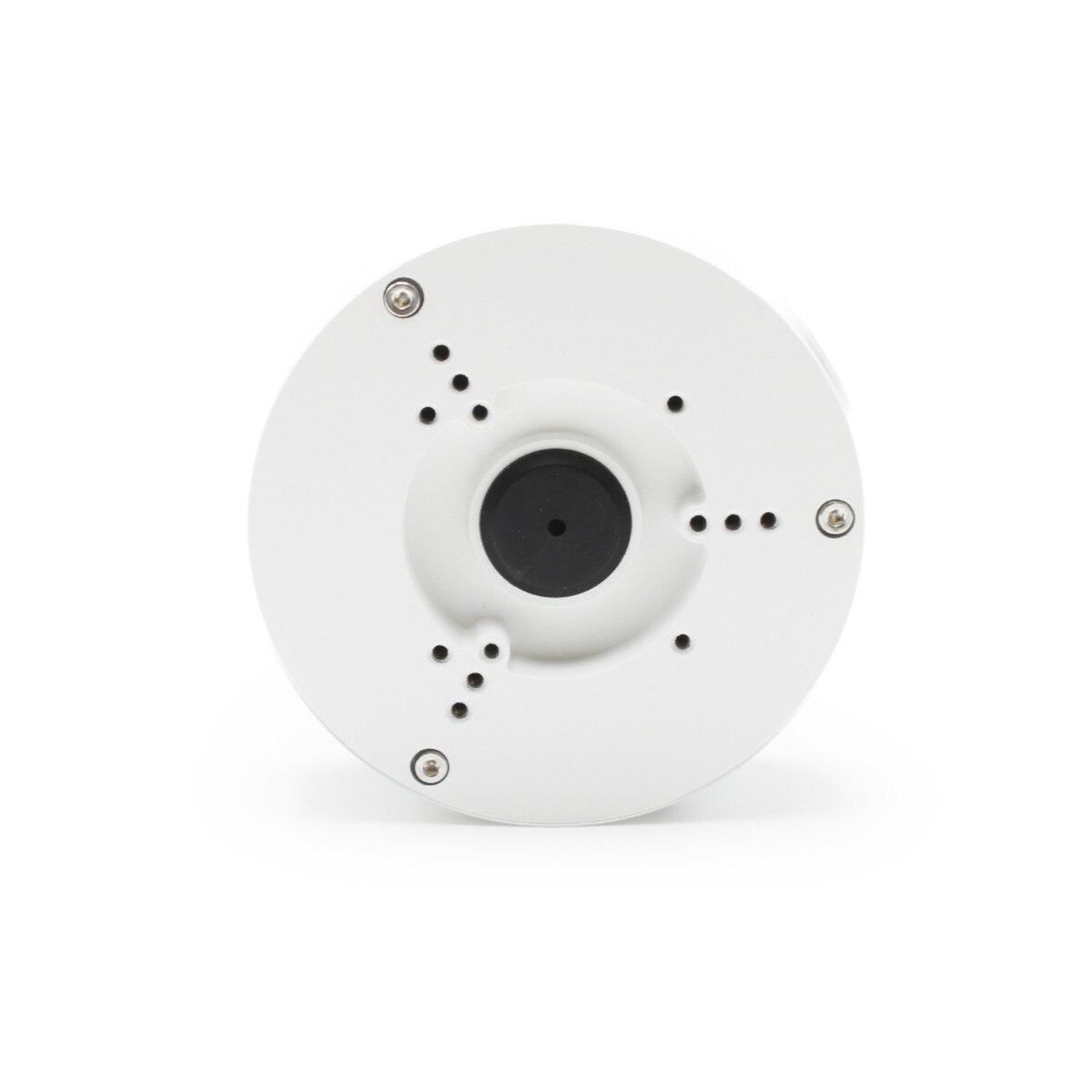

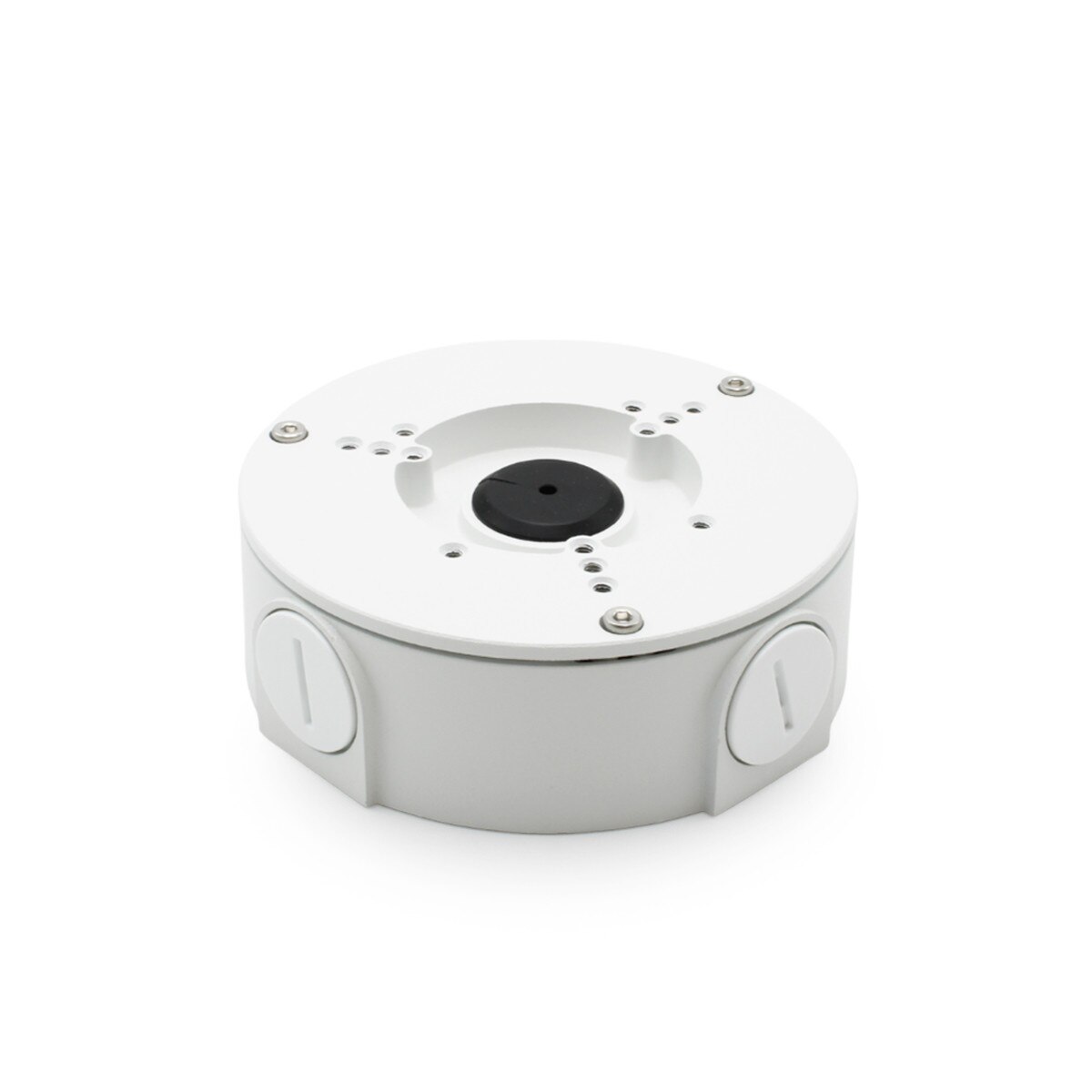

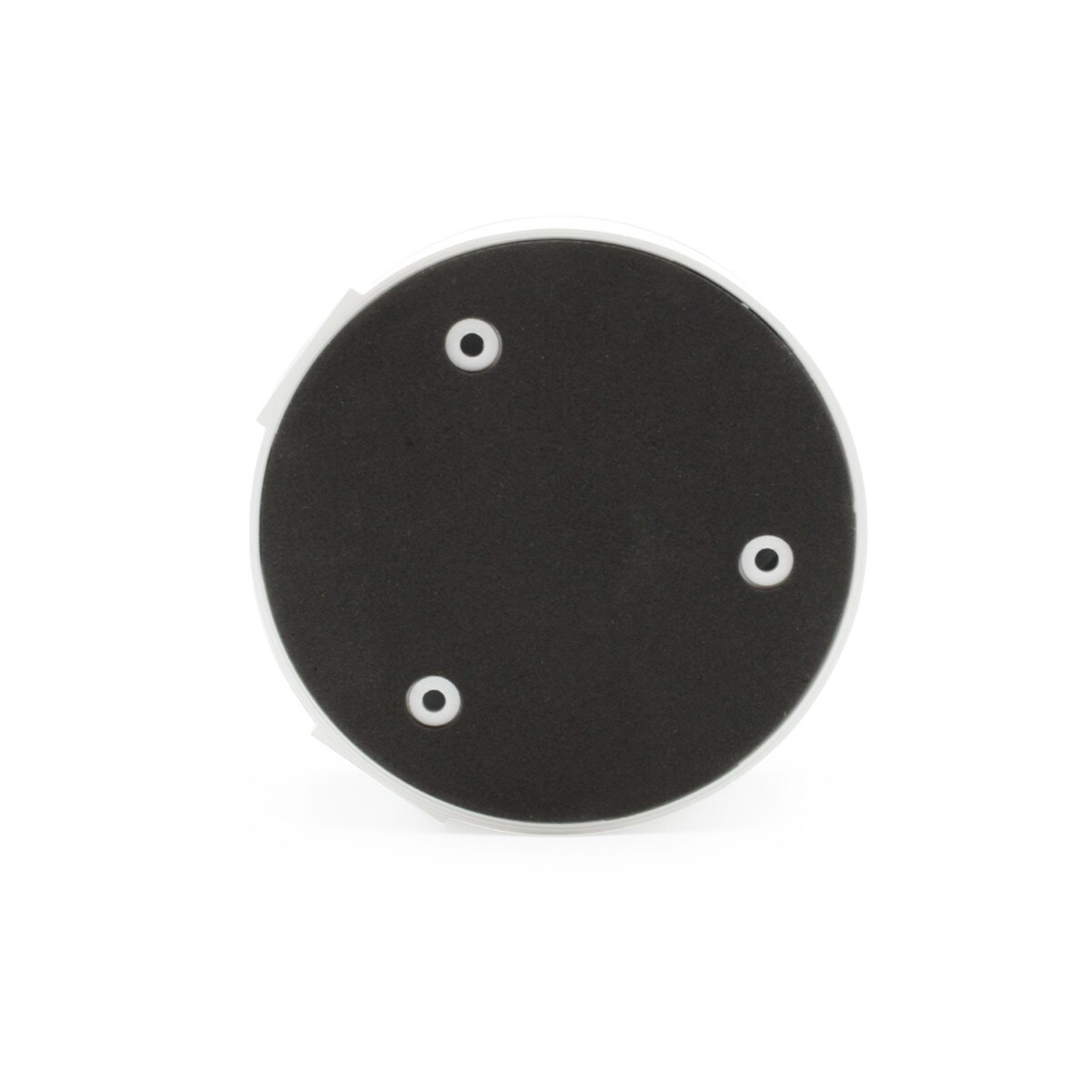

IC Realtime makes camera installations easy with “screwdriver fit” weatherproof cast metal junction boxes. MNT-JUNCTION BOX -1 fits many of our 3-hole, triangle-patterned round base cameras. It has 2 side & 1 rear/base 3/4” threaded access ports, measures 4.88"×1.6", and comes in color-matched white and Factory Black to fit your installation.
Specifications
| Network | |
| Compatibility: | Mini Domes And Round Base Bullets. See Product compatibility list. |
| Environmental | |
| Operating Conditions: | -40°F ~ 140°F (-40ºC ~ 60ºC) |
| Operating Humidity: | 0~90% RH |
| Storage Conditions: | -40°F ~ 140°F (-40ºC ~ 60ºC) |
| Ingress Protection: | IP66 |
| Construction | |
| Casing: | Aluminum & SECC |
| Dimensions: | Ø4.89"×1.61" (Ø124.3 mm×41.0 mm) |
