IPEG-E80F-IRW2
Details

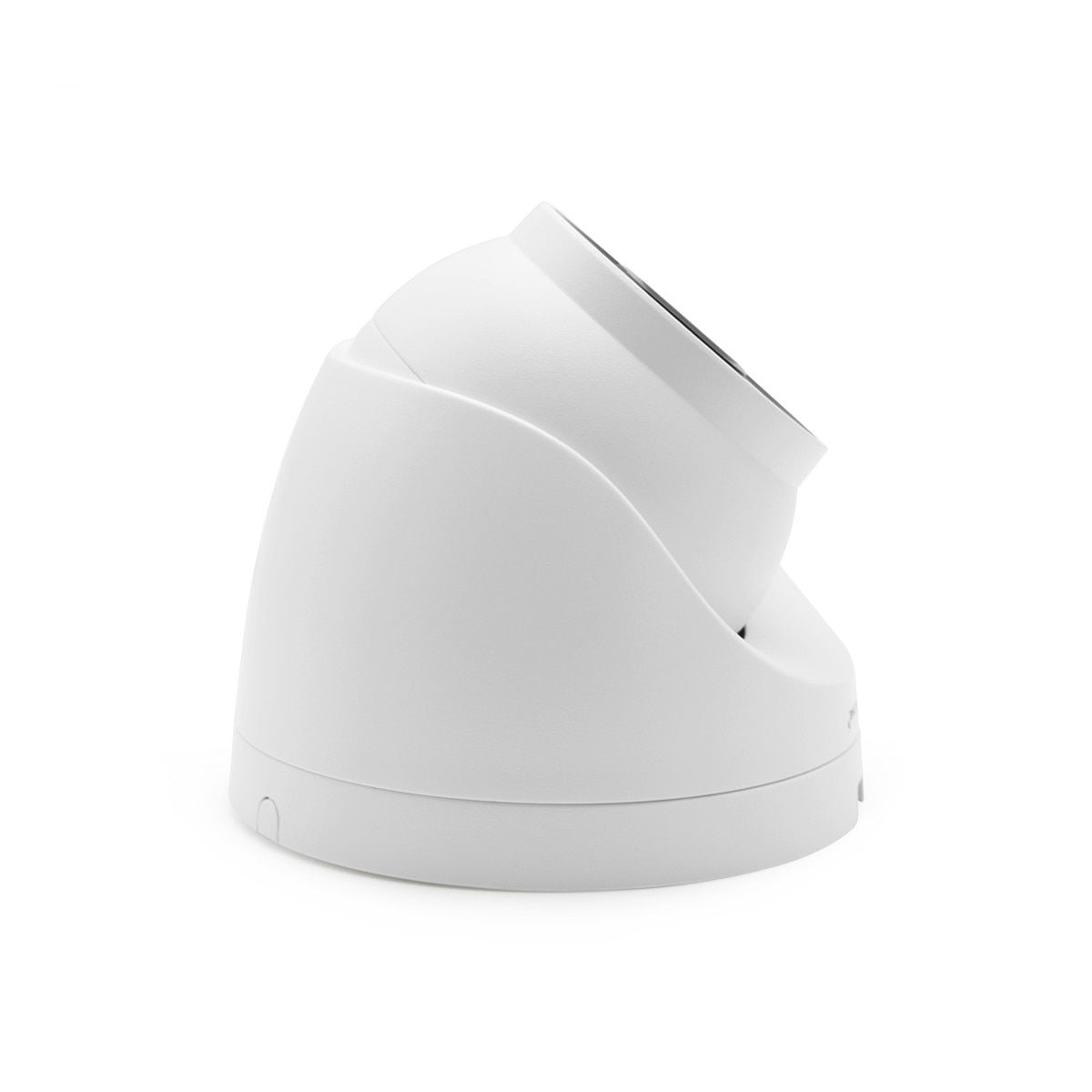

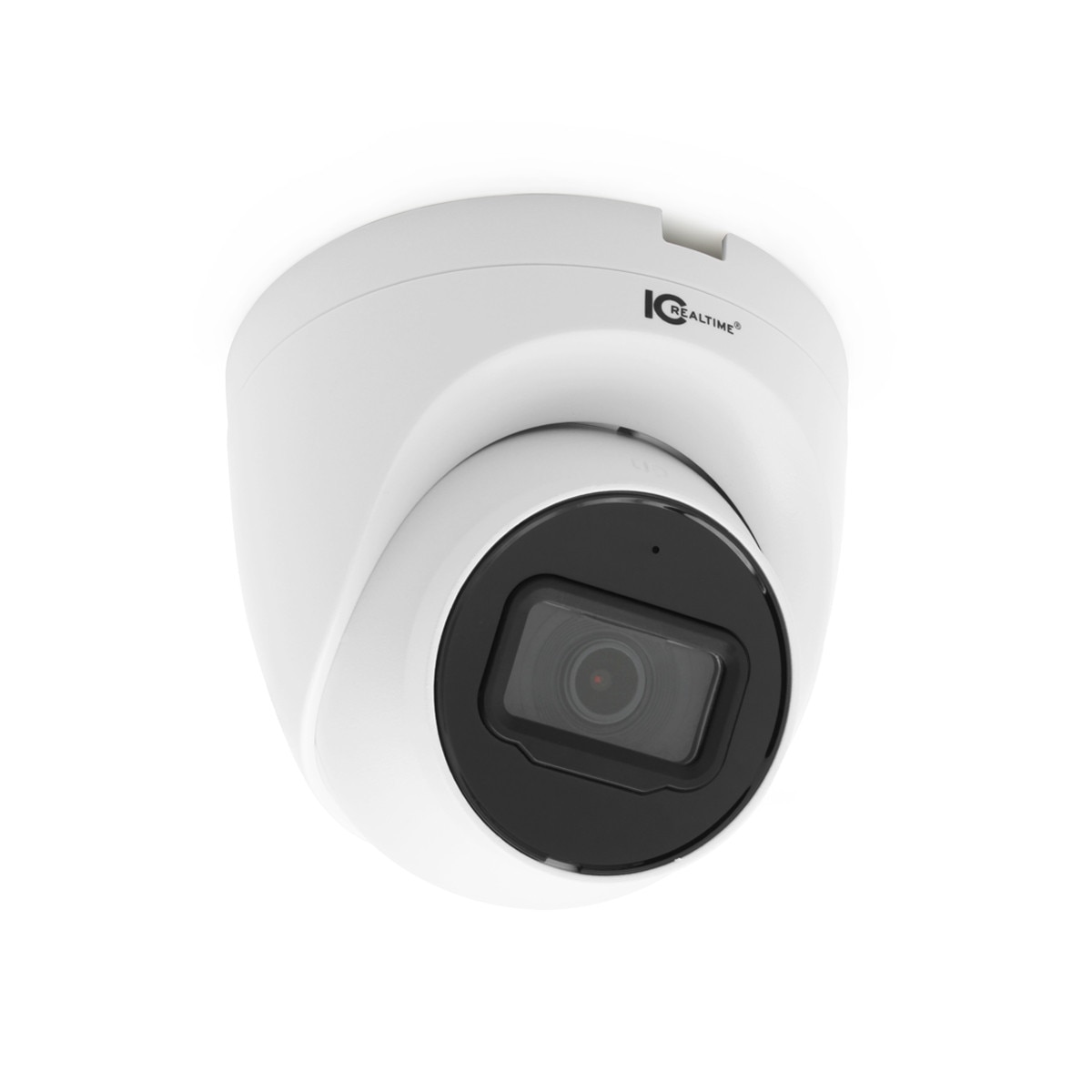

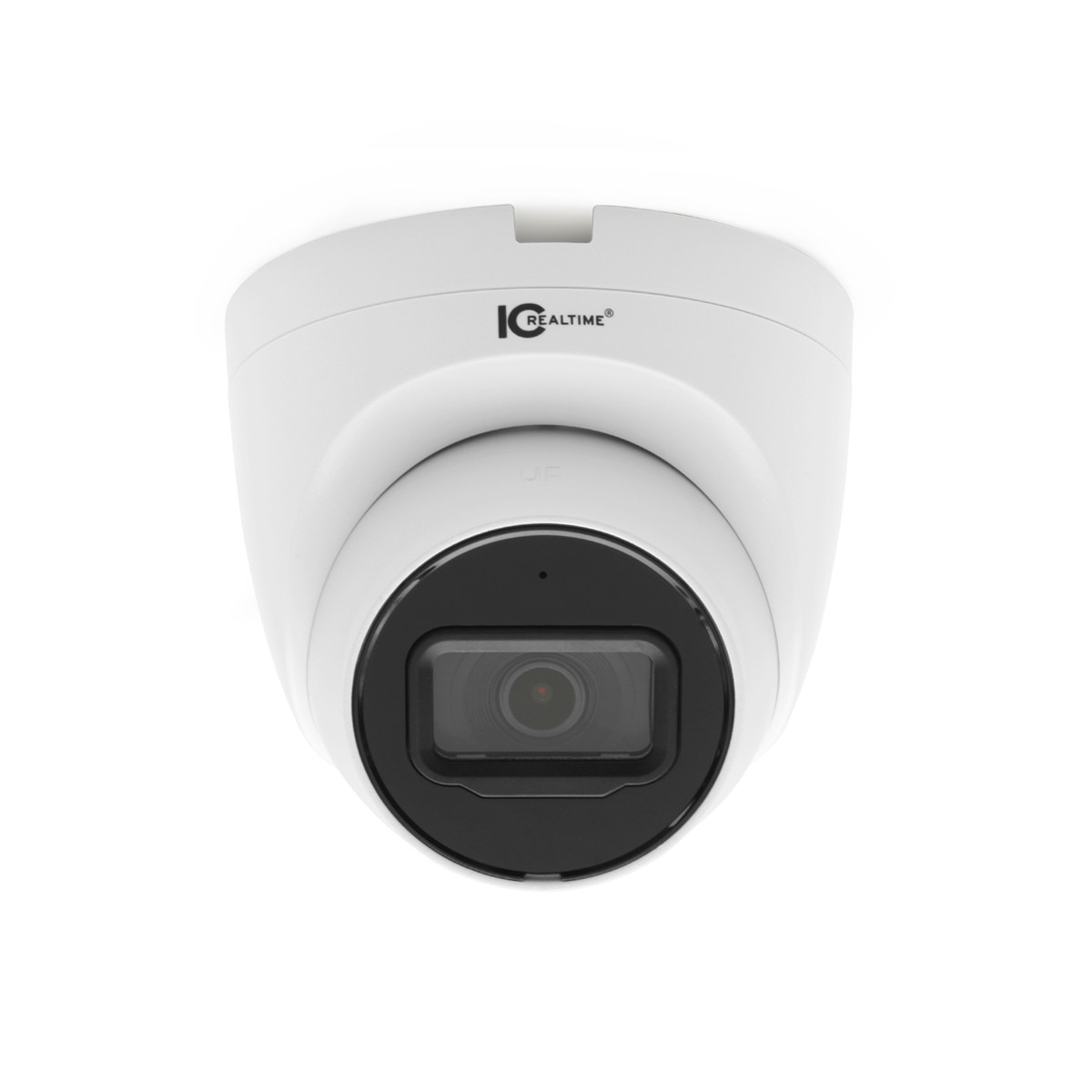

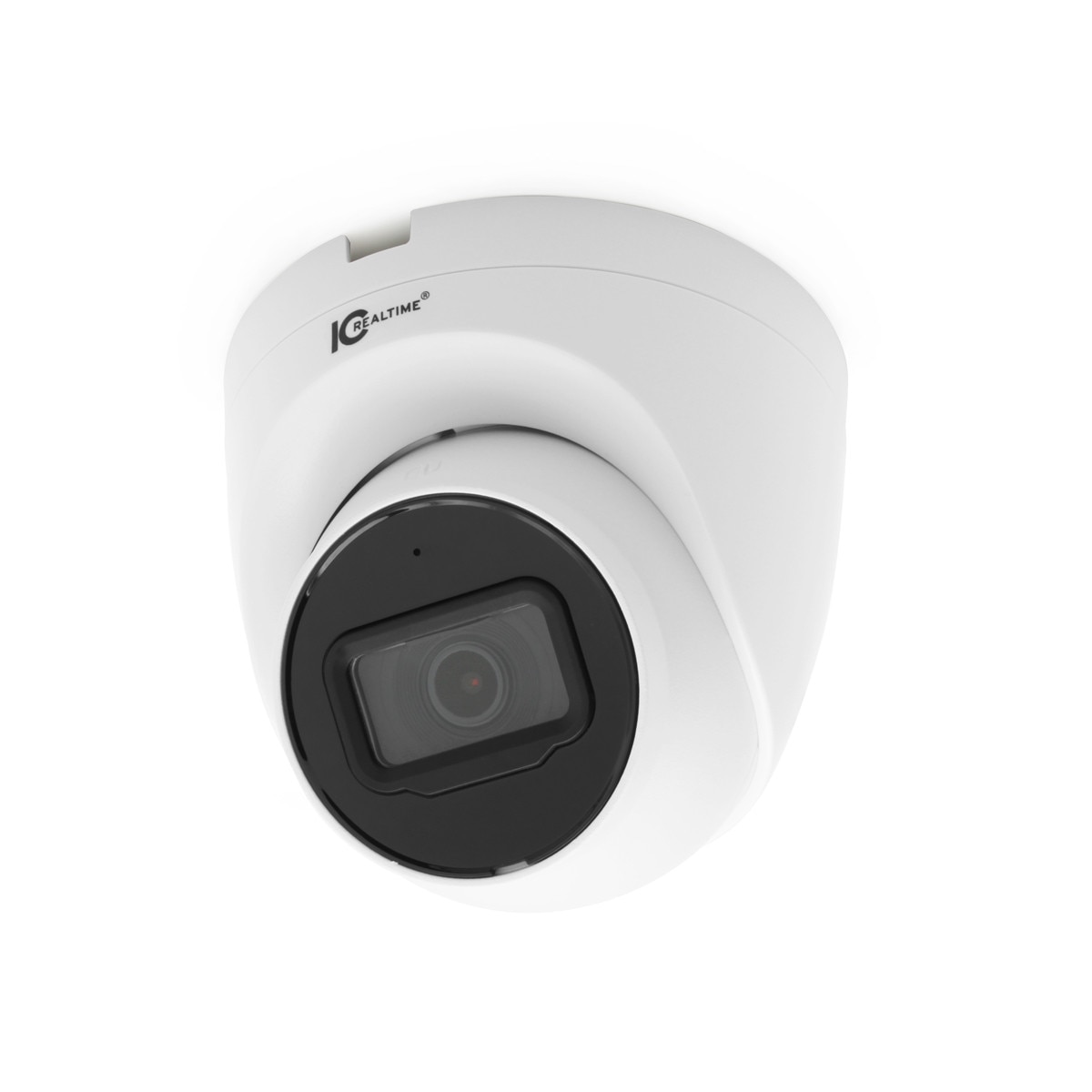

Introducing the IPEG-E80F-IRW2, a powerful new IP camera in IC Realtime’s budget-conscious Edge lineup. Designed for performance-driven deployments that demand clarity, intelligence, and reliability without inflated costs, this turret-style “eyeball” camera blends professional-grade imaging with smart functionality in a compact, rugged form factor.
At its core, the IPEG-E80F-IRW2 is built around an 4K/ 8MP sensor delivering ultra-clear 3840 x 2160 resolution, capturing video at 15 frames per second. Its 1/2.7” CMOS sensor excels in low-light environments, delivering high image definition even when the lighting drops. Integrated Smart IR provides powerful night vision up to 98 feet, while a built-in microphone captures audio to enhance situational awareness. Engineered to withstand the elements, the camera is IP67 rated and supports Power over Ethernet for simplified installation.
The IPEG-E80F-IRW2 is equipped with advanced imaging features like 120dB Wide Dynamic Range, 3D Digital Noise Reduction, Highlight Compensation, and Backlight Compensation, ensuring detail-rich footage in every lighting condition. Dual-stream encoding using H.265 and H.264 enables efficient bandwidth management without compromising quality.
What sets this model apart is its onboard video analytics. With Perimeter Protection capabilities like Tripwire and Intrusion detection, it recognizes and classifies human and vehicle movement, reducing false alarms and delivering actionable alerts. Intelligent Motion Detection filters events with the same advanced classification, distinguishing real threats from background activity.

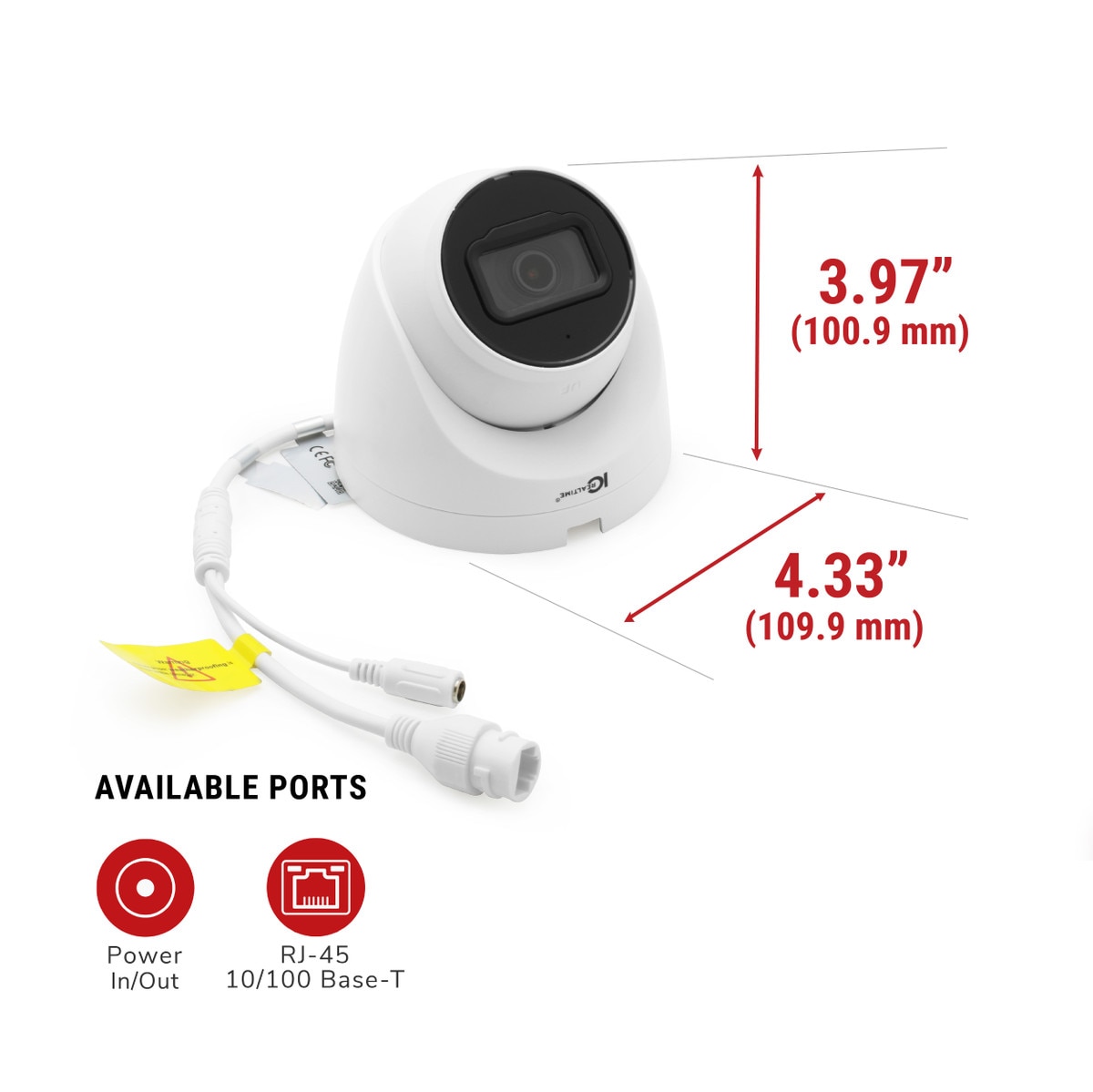

Sized at just 3.97" × Φ4.33" (100.9 mm × Φ109.9 mm) and weighing only 0.82 lb (0.37 kg), this camera offers a discreet profile that’s easy to install and integrate into any environment. Power consumption remains low and efficient, peaking at just 4.5W on 12VDC or 5.4W via PoE.
Fully compatible with IC Realtime’s IC Now desktop platform and the IC View+ mobile app for both iOS and Android, the IPEG-E80F-IRW2 offers seamless access and control from anywhere. It’s backed by IC Realtime’s industry-leading 7-year warranty and supported by expert U.S.-based technical assistance, ensuring long-term confidence with every deployment.
For projects that demand intelligent surveillance without breaking the budget, the IPEG-E80F-IRW2 delivers—performance, protection, and peace of mind, all in one.
Specifications
| Camera | |
| Image Sensor: | 1/2.7" CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) |
| RAM/Rom: | 128MB/ 256MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.009 lux@F2.0 (Color, 30 IRE) 0.0009 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | 98.4 ft (30 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 1 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F2.0 |
| Angle of View: | Horizontal:106°; vertical: 56° |
| Close Focus Distance: | 4.27 ft (1.3 m) |
| DORI - Detect: | 288 ft |
| DORI - Observe: | 115 ft |
| DORI - Recognize: | 57 ft |
| DORI - Identify: | 28 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect (Secondary filter for Human and Vehicles) |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+; Smart H.264+ |
| Resolution: | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 ×1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 3840 × 2160@(1–20 fps)/ 2688 × 1520@ (1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/ 704 × 480@(1–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Backlight Compensation: | BLC / HLC / 120 dB WDR |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D NR |
| WDR: | 120 dB WDR |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; PCM |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); P2P |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (Total bandwidth: 48 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Memory Slot: | Micro SD card (support max. 256 GB) |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + max IR + IVS): 4.5 W (12 VDC); 5.4 W (PoE) |
| Environmental | |
| Operating Conditions: | –40 °F to 131 °F (–40 °C to +55 °C)/Less than 95% RH |
| Storage Conditions: | –40 °F to 131 °F (–40 °C to +55 °C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal+ Plastic Cover |
| Dimensions: | 3.97" × Φ4.33" (100.9 mm × Φ109.9 mm) |
| Gross Weight: | 1.23 lb (0.56 kg) |

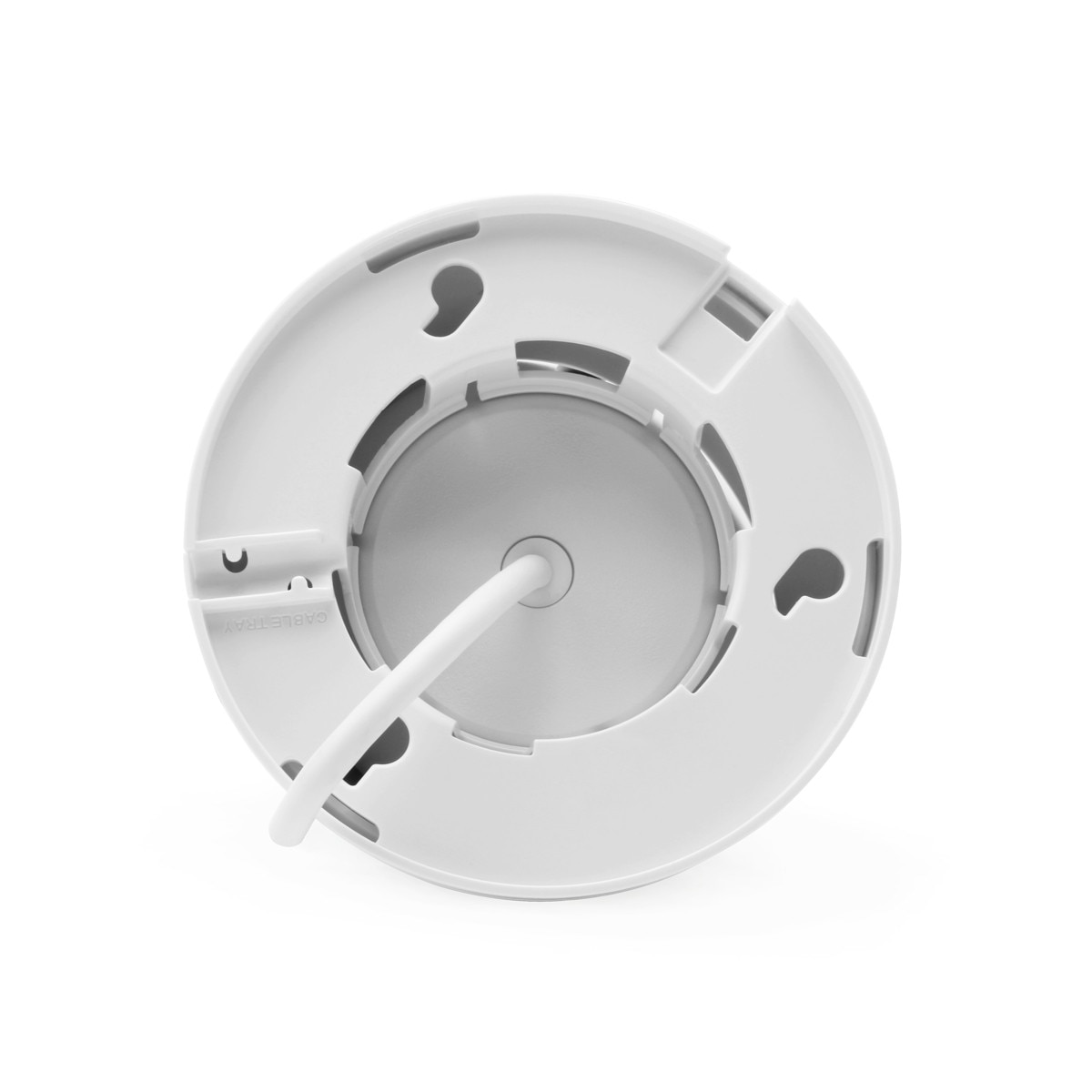

| Mounting Pan/Tilt/Rotation: | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
