HDEG-E50F-IR-M2
Details

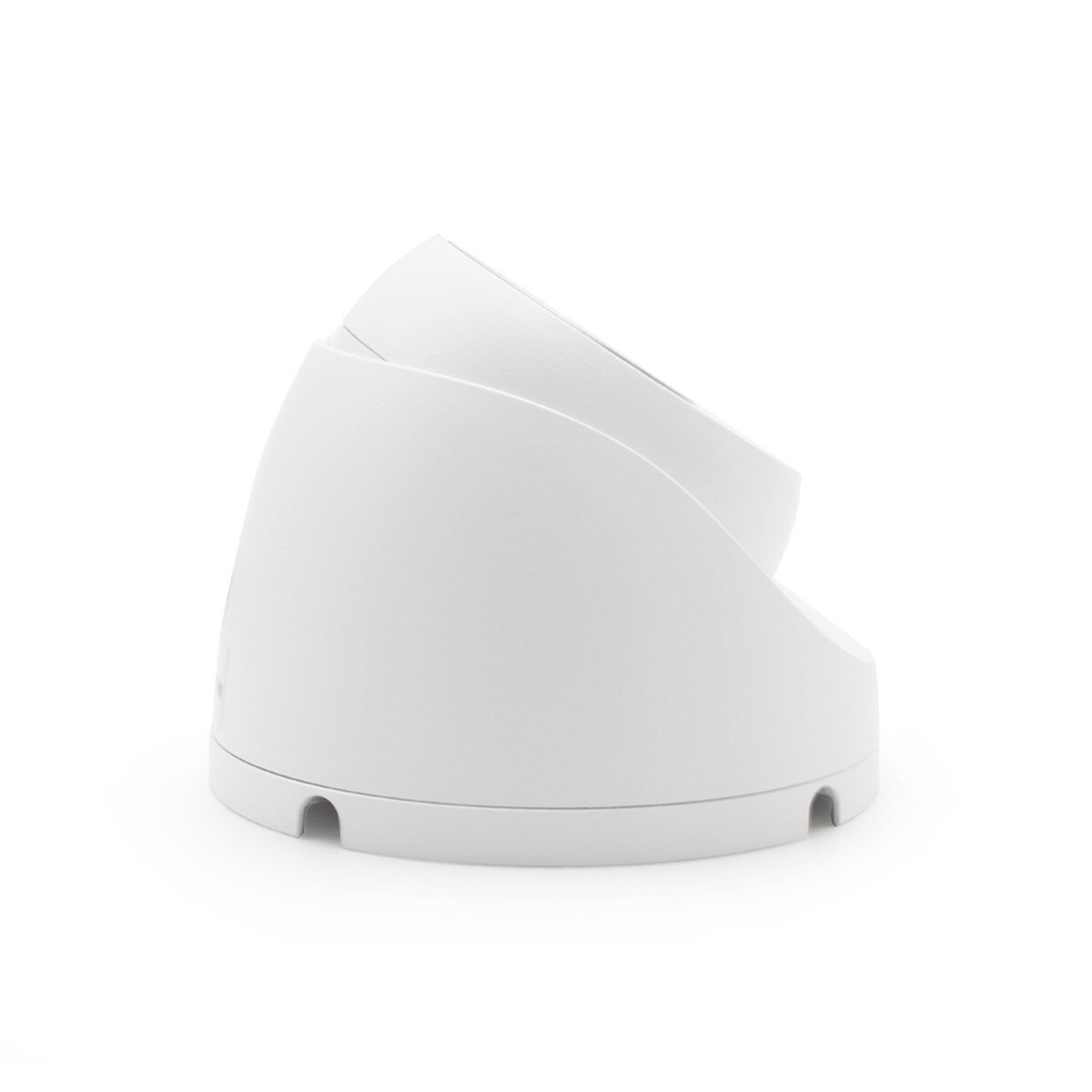

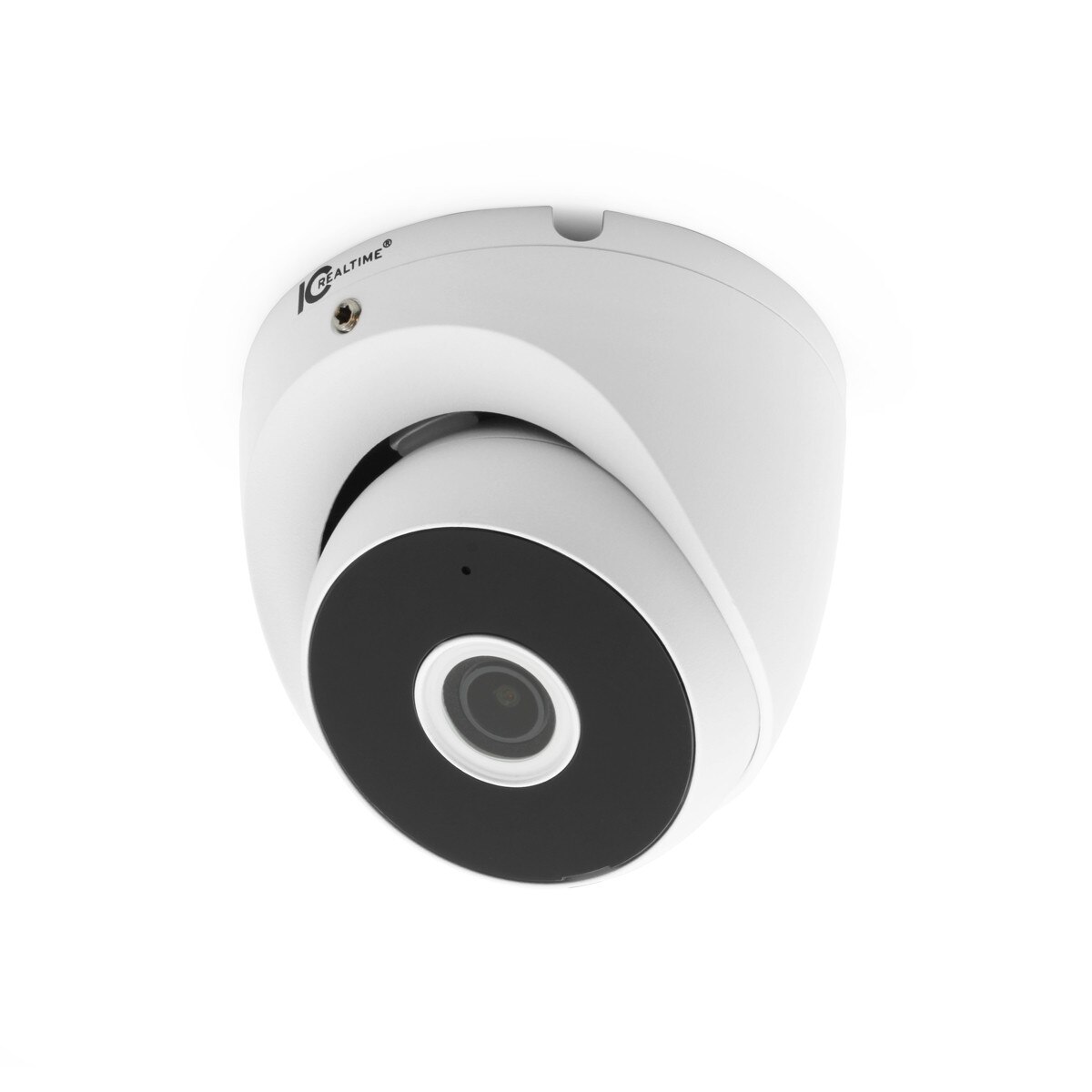

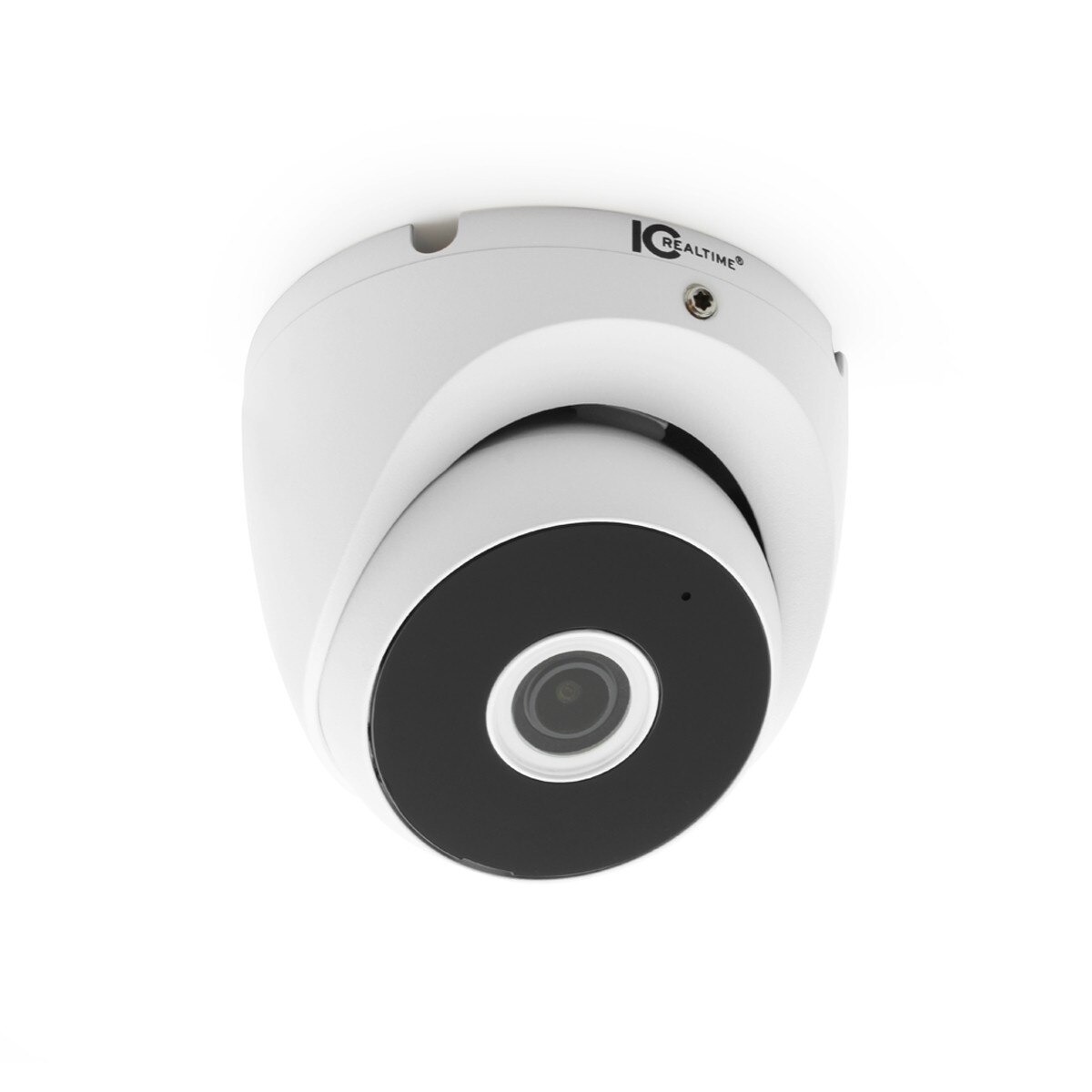

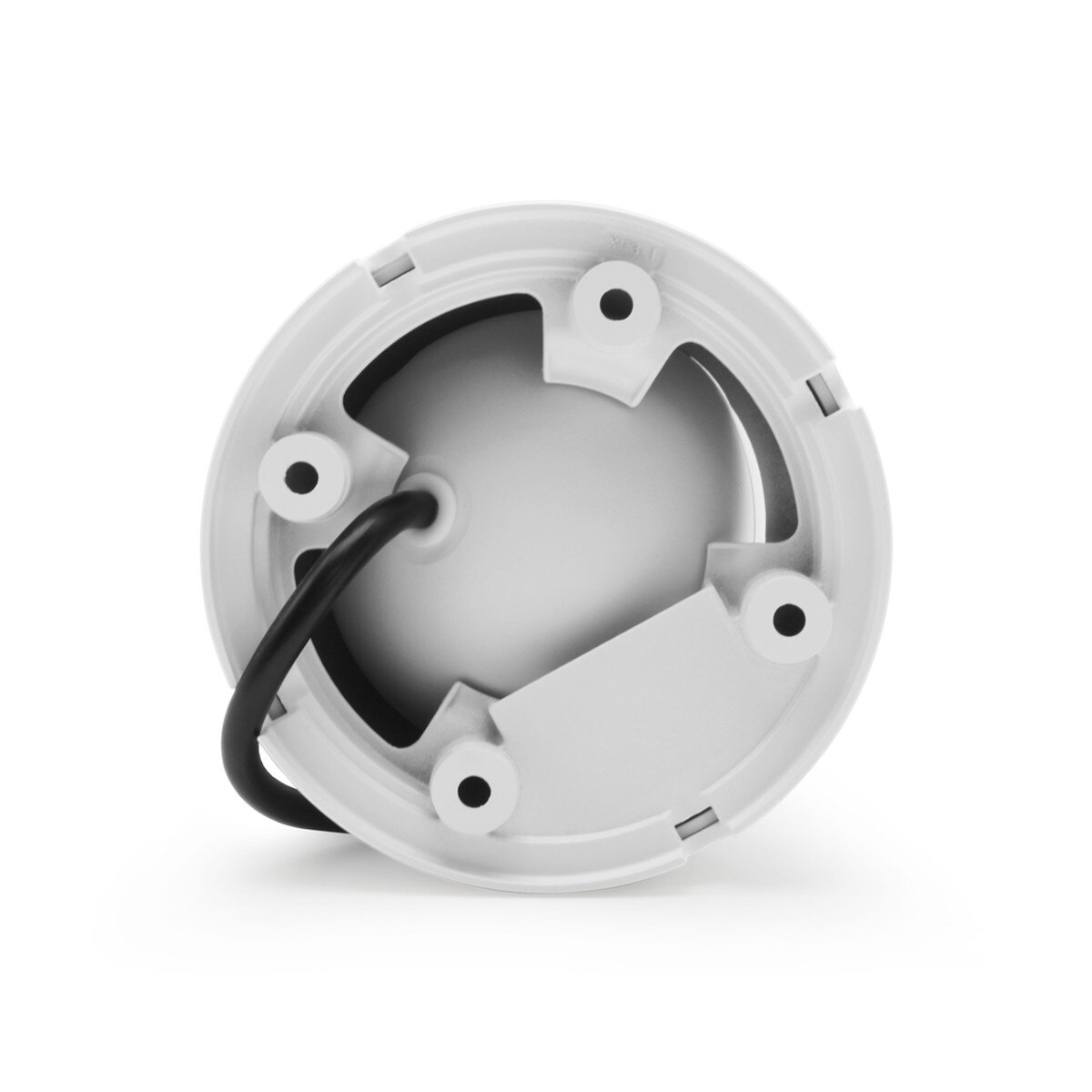

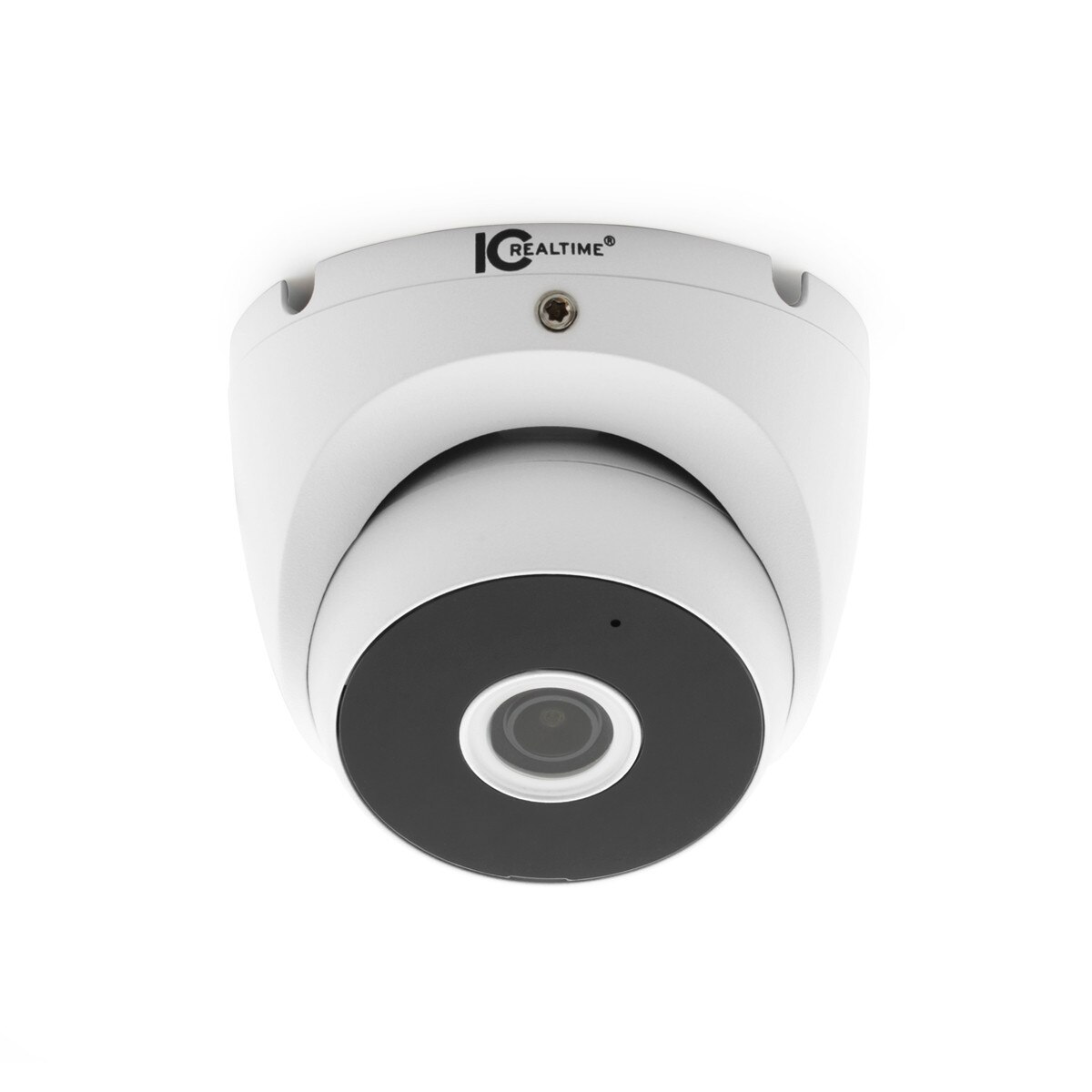

Introducing the HDEG-E50F-IR-M2, the latest Fixed Focal Eyeball Turret Camera in IC Realtime’s cost-effective Edge lineup. This Coaxial AVS Camera is equipped with a 2.8 mm fixed lens, providing a wide 125° horizontal angle of view to cover more area with fewer cameras. Its advanced 1/2.7” CMOS image sensor captures sharp, high-definition video with vibrant clarity, even in low-light conditions. Supporting a smooth 25 fps at 5MP resolution in a 16:9 video output format, this camera ensures seamless video quality for real-time monitoring and recording. With a compact size of φ3.7" × 3.07", it fits discreetly into any environment.
Low-light performance is further enhanced by Starlight technology and Smart IR, enabling the camera to provide clear visibility up to 66 feet in complete darkness. Its 120dB Wide Dynamic Range (WDR) ensures optimal image quality in scenes with both bright and dark areas, eliminating overexposure and underexposure.
Built to withstand harsh conditions, the HDEG-E50F-IR-M2 is IP67-rated for superior resistance to dust and water ingress. A built-in microphone adds audio capability, capturing essential sound details to complement the high-quality video. The camera’s BNC port supports multiple coaxial video output formats, including AVS, TVI, AHD, and CVBS, ensuring compatibility with a variety of systems.
Powered by a 12V DC power supply with ±30% tolerance and consuming a maximum of 3.7W (with IR on), this camera delivers efficient and reliable performance. When paired with IC Realtime’s HDVR systems, the HDEG-E50F-IR-M2 integrates seamlessly with the IC Now desktop platform and the IC View+ mobile app for iOS and Android, providing flexible and user-friendly remote access.
Backed by IC Realtime’s industry-leading 7-year warranty and exceptional U.S.-based technical support, the HDEG-E50F-IR-M2 represents the perfect balance of cutting-edge technology and dependable performance.
Specifications
| Camera | |
| Image Sensor: | 1/2.7” CMOS |
| Effective Pixels: | 2880 (H) × 1620 (V) (5MP, 16:9) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
| Illumination Distance: | 66 ft (20 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.6 |
| Angle of View: | Horizontal: 125° Vertical: 106° |
| Focus Control: | Fixed |
| Close Focus Distance: | 3.0 ft (0.9 m) |
| DORI - Detect: | 3.0 ft (0.9 m) |
| DORI - Observe: | 73.5 ft |
| DORI - Recognize: | 73.5 ft |
| DORI - Identify: | 18.4 ft |
| Video | |
| Resolution: | 5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080);960H (960 × 576/960 × 480) |
| Frame Rate: | AVS: NTSC: 5MP@25 fps; 4MP@30 fps; 1080P@30 fps PAL: 5MP@25 fps; 4MP@25 fps; 1080P@25 fps AHD: NTSC: 4MP@25 fps; PAL: 4MP@25 fps; TVI: NTSC: 4MP@25 fps; PAL: 4MP@25 fps; CVBS: NTSC: 960H PAL: 960H |
| Backlight Compensation: | BLC / HLC / DWDR |
| Gain Control: | AGC |
| Noise Reduction: | 3D NR |
| Smart IR: | Supported |
| Mirror: | Off/On |
| Privacy Masking: | Off/On (8 areas, rectangle) |
| WDR: | DWDR |
| Interface | |
| Video Interface: | 1 BNC port Video output formats: AVS/ TVI/ AHD/ CVBS (Toggled by using OSD) |
| RS485: | N/A |
| Audio I/O: | Built -in Microphone |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC 12V ±30% |
| Power Consumption: | Max. 3.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | –40°F to +140°F (–40°C to +60°C); < 95% * Start up should be done at above –40°F (–40°C) |
| Storage Conditions: | –22°F to +140°F (–30°C to +60°C); < 95% (non-condensation) |
| Ingress Protection: | IP67 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Aluminum |
| Dimensions: | φ3.7" × 3.07" (φ94 mm × 78 mm) |
| Gross Weight: | 0.73 lb (0.33 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
