HDEG-E50F-IR-M3
Details

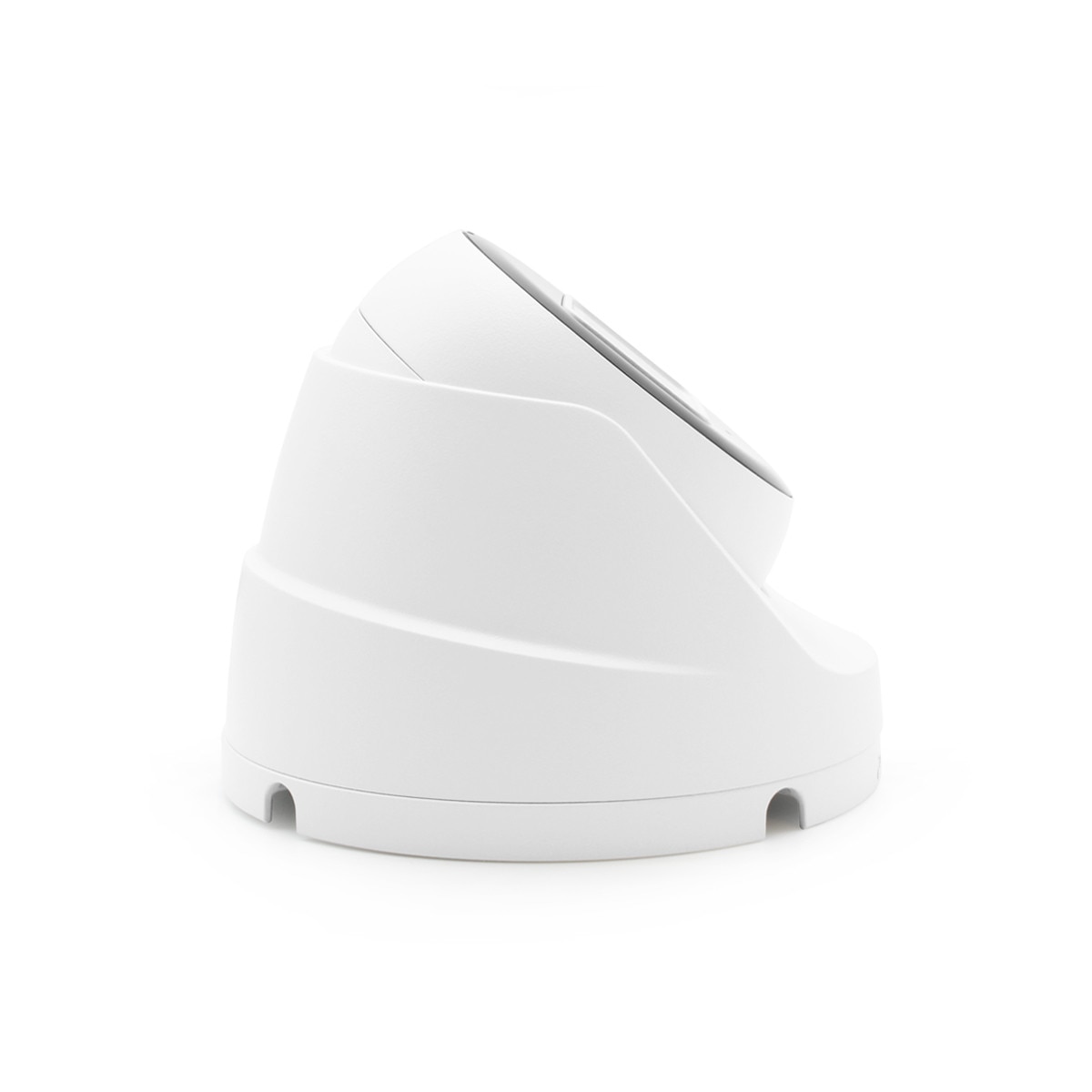

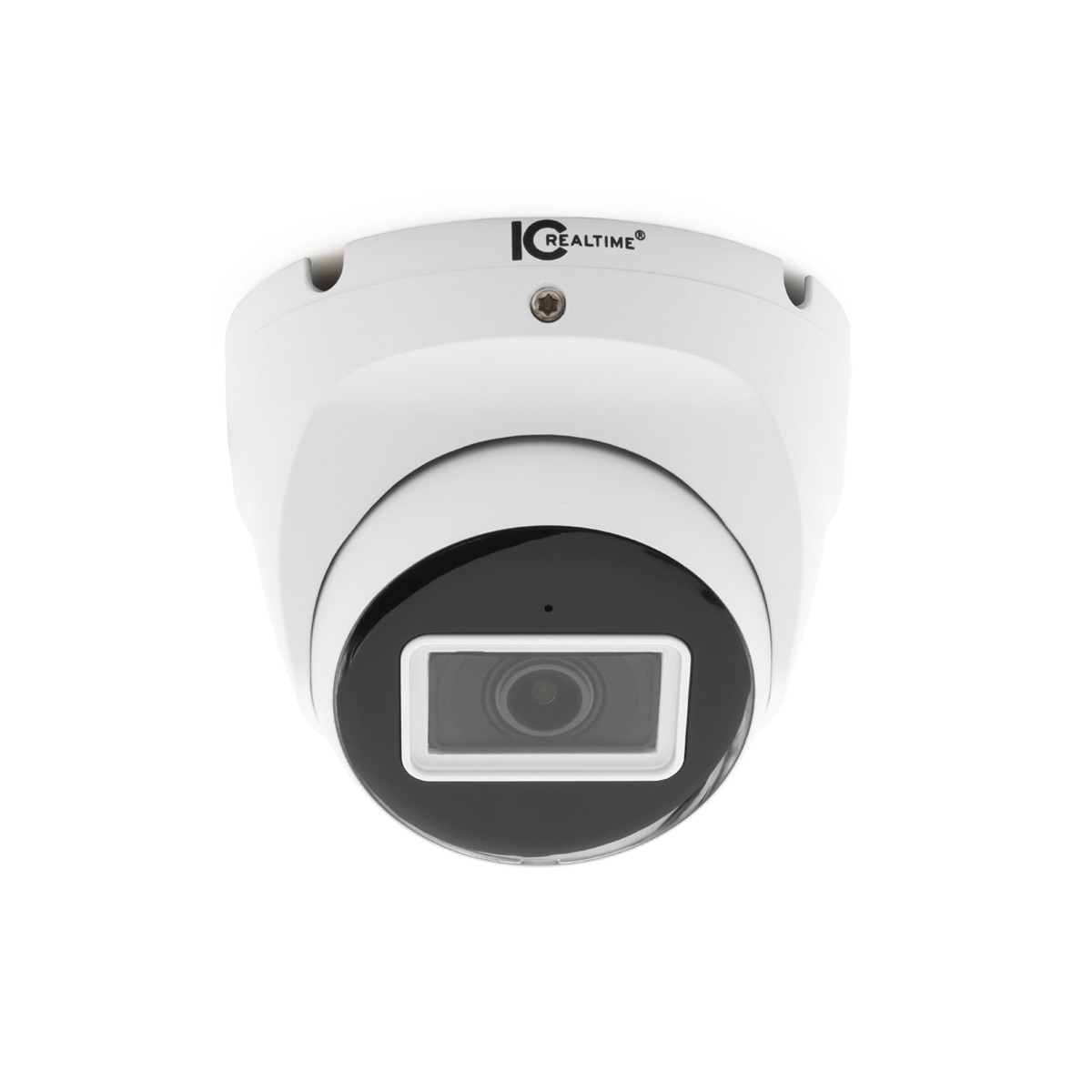

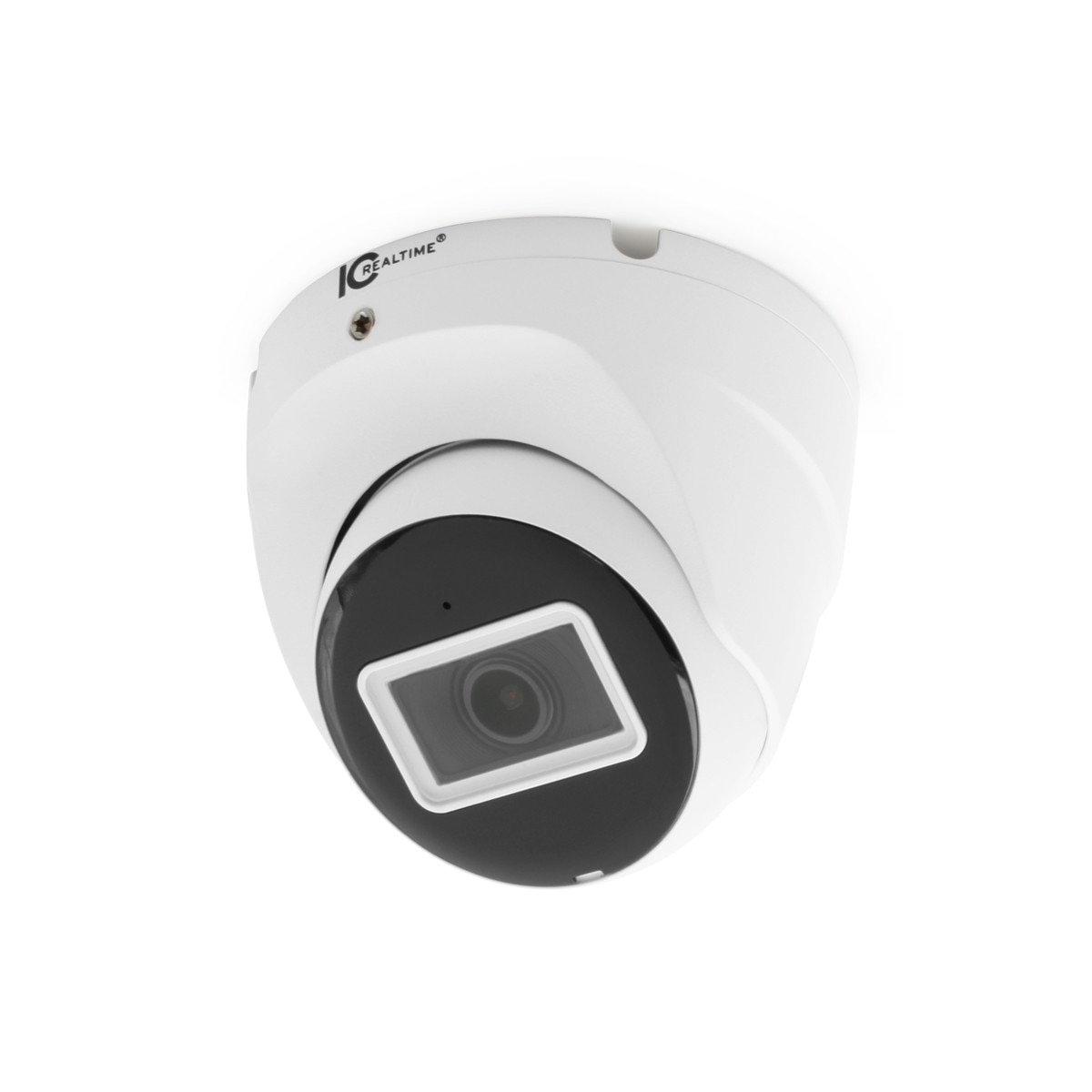

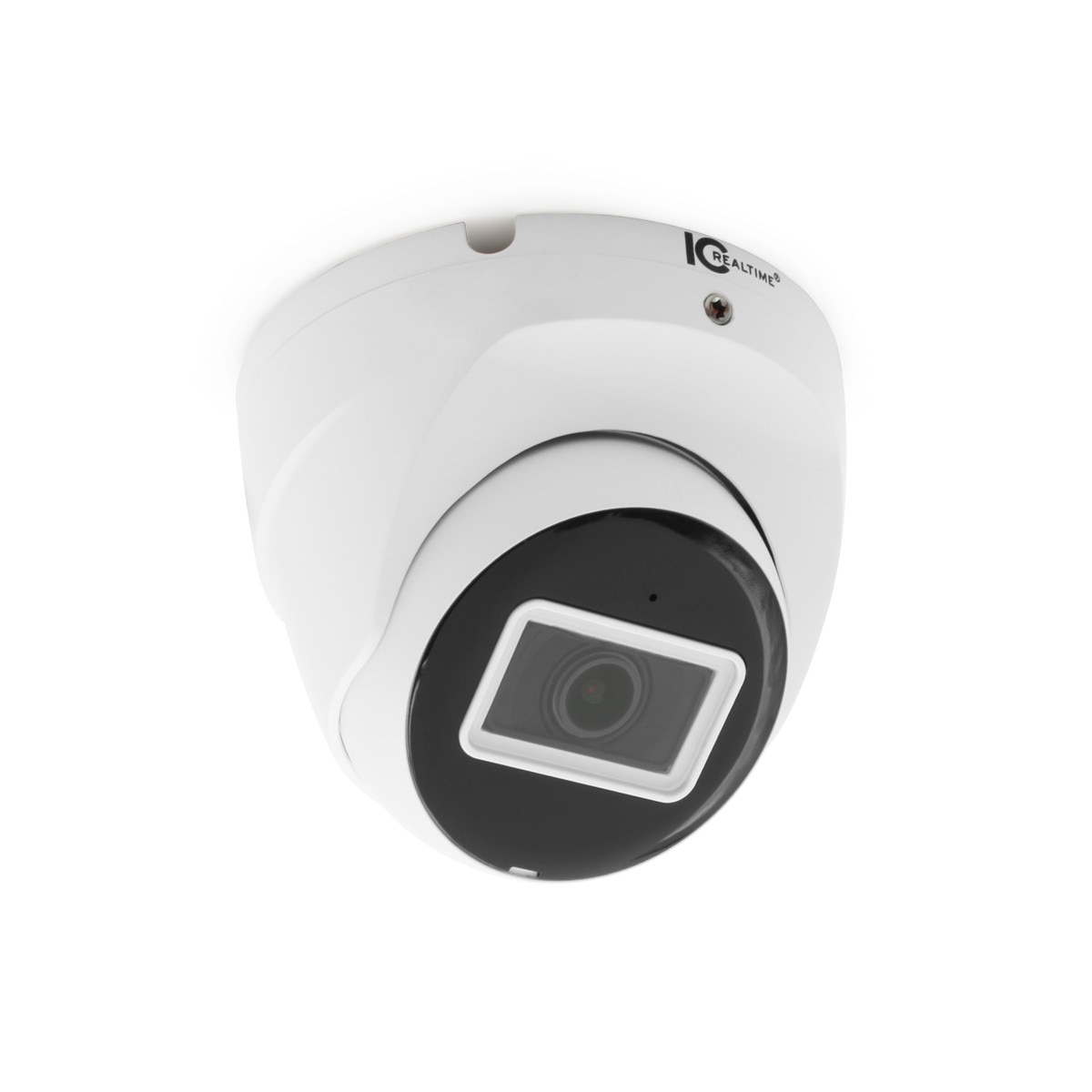

Introducing the HDEG-E50F-IR-M3 from IC Realtime — a powerful addition to the Edge Lineup, designed to deliver uncompromising performance and versatility in coaxial surveillance. This compact eyeball turret camera offers crystal-clear 5MP resolution (2880 × 1620) in a cinematic 16:9 format, capturing up to 25 frames per second with vivid clarity. Equipped with a 2.8mm lens and an ultra-wide 106° horizontal field of view, it provides expansive coverage with minimal blind spots, making it ideal for both residential and commercial installations.
Low-light performance is exceptional with a color sensitivity of 0.02 lux@F2.0 and black & white sensitivity down to 0.002 lux@F2.0, achieving full darkness imaging with 0 lux when its 98 feet of smart IR illumination activates. A built-in microphone ensures audio capture alongside video, further enhancing situational awareness.
The HDEG-E50F-IR-M3 supports multiple video output formats — AVS, TVI, AHD, and CVBS — offering flexibility across legacy and modern coaxial systems. Powered by 12VDC with a max consumption of just 3.7W (IR on), it's as efficient as it is capable. With true DWDR (Digital Wide Dynamic Range), the camera maintains image balance even in challenging lighting environments.
When paired with an IC Realtime HDVR recorder, the camera seamlessly integrates with IC Now for desktop viewing and management. It’s also fully compatible with IC View+ on iOS and Android, enabling on-the-go monitoring with ease. Backed by IC Realtime’s industry-leading 7-year warranty and supported by exceptional US-based technical service, the HDEG-E50F-IR-M3 is a coaxial camera that sets a new standard in reliability and performance.
Low-light performance is exceptional with a color sensitivity of 0.02 lux@F2.0 and black & white sensitivity down to 0.002 lux@F2.0, achieving full darkness imaging with 0 lux when its 98 feet of smart IR illumination activates. A built-in microphone ensures audio capture alongside video, further enhancing situational awareness.
The HDEG-E50F-IR-M3 supports multiple video output formats — AVS, TVI, AHD, and CVBS — offering flexibility across legacy and modern coaxial systems. Powered by 12VDC with a max consumption of just 3.7W (IR on), it's as efficient as it is capable. With true DWDR (Digital Wide Dynamic Range), the camera maintains image balance even in challenging lighting environments.
When paired with an IC Realtime HDVR recorder, the camera seamlessly integrates with IC Now for desktop viewing and management. It’s also fully compatible with IC View+ on iOS and Android, enabling on-the-go monitoring with ease. Backed by IC Realtime’s industry-leading 7-year warranty and supported by exceptional US-based technical service, the HDEG-E50F-IR-M3 is a coaxial camera that sets a new standard in reliability and performance.
Specifications
| Camera | |
| Image Sensor: | 5 MP CMOS |
| Effective Pixels: | 2880 (H) × 1620 (V) 5MP, 16:9 |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | 98.43 ft (30 m) |
| Illumination On/Off Control: | Auto;Manual |
| Illumination LEDs: | 3 (IR light) |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 106°; V: 56° |
| Close Focus Distance: | 3.28 ft (1.0m) |
| DORI - Detect: | 216.54 ft |
| DORI - Observe: | 86.61 ft |
| DORI - Recognize: | 43.31 ft |
| DORI - Identify: | 21.65 ft |
| Video | |
| Resolution: | 5MP (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate: | AVS NTSC: 5MP@25 fps; 5M@10 fps; 4M@30 fps; 1080P@30 fps PAL: 5MP@25 fps; 5M@12.5 fps; 4M@25 fps; 1080P@25 fps AHD: NTSC: 4MP@30 fps; PAL: 4MP@25 fps; TVI: NTSC: 4MP@30 fps; PAL: 4MP@25 fps; CVBS: NTSC: 960H PAL: 960H |
| Day/Night: | Auto (ICR) / Manual |
| White Balance: | Auto;Area white balance |
| Gain Control: | Auto;Manual |
| Noise Reduction: | 2D NR |
| Mirror: | Supported |
| Iris Control: | Fixed |
| WDR: | DWDR |
| Interface | |
| Video Interface: | 1 BNC port Video output formats: AVS/ TVI/ AHD/ CVBS |
| Audio I/O: | Built -in Microphone |
| Electrical | |
| Power Supply: | DC 12V ±30% |
| Power Consumption: | Max. 3.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions: | –40°F to +140°F (–40°C to +60°C); < 95% * Start up should be done at above –40°F (–40°C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Aluminum |

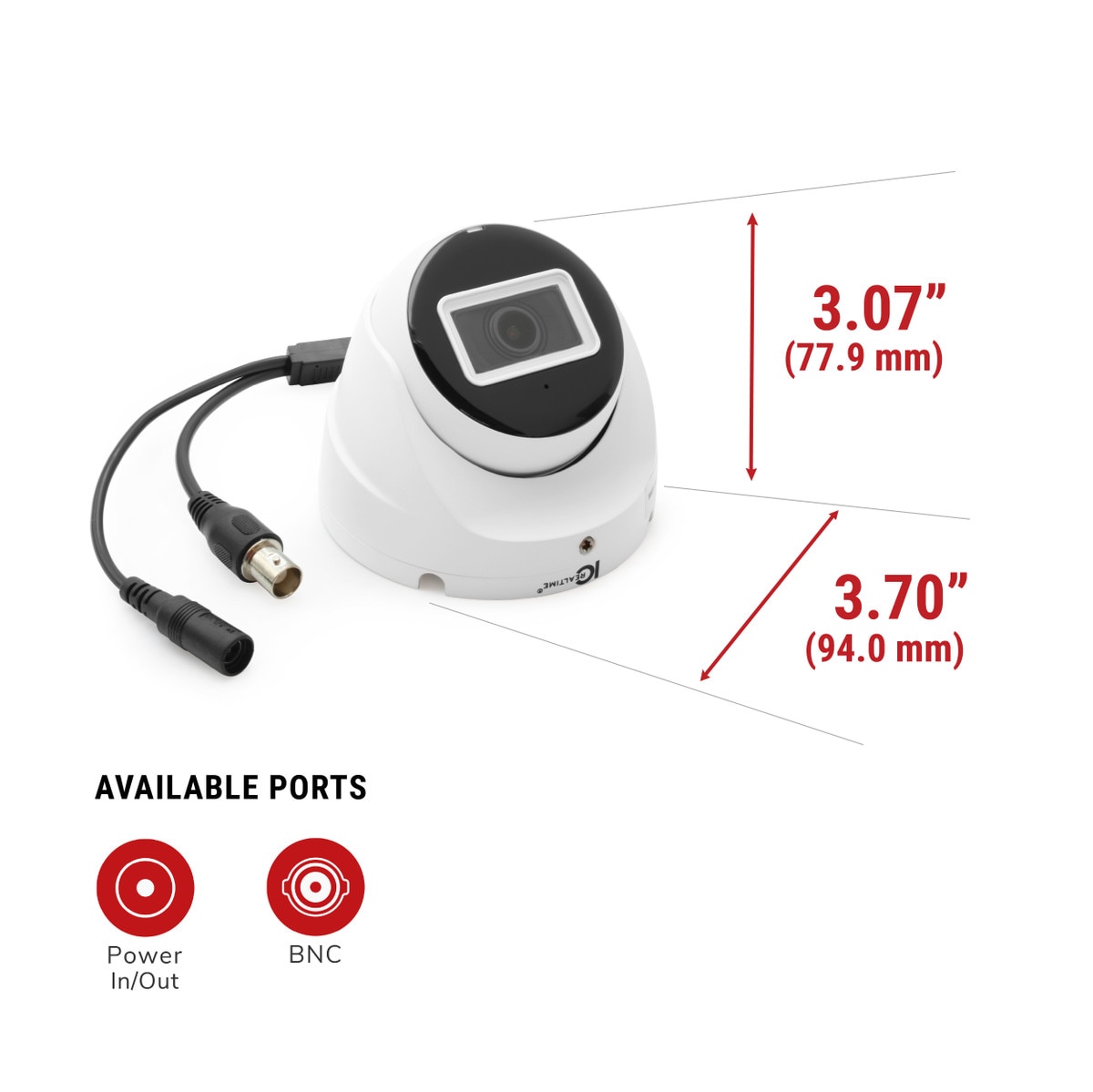

| Dimensions: | φ3.7" × 3.07" (φ94 mm × 77.9 mm) |
| Gross Weight: | 0.79 lb (0.36 kg) |

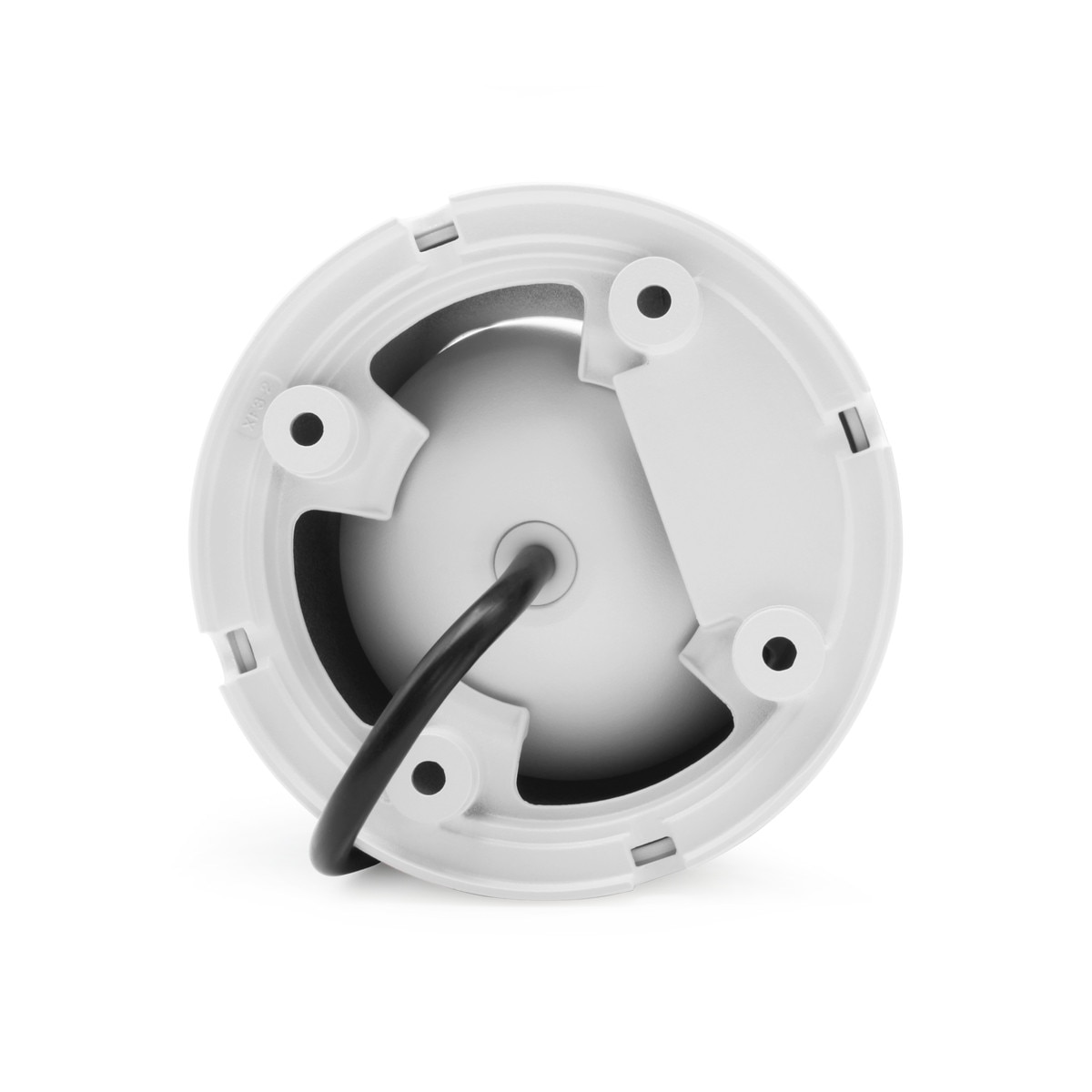

| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
