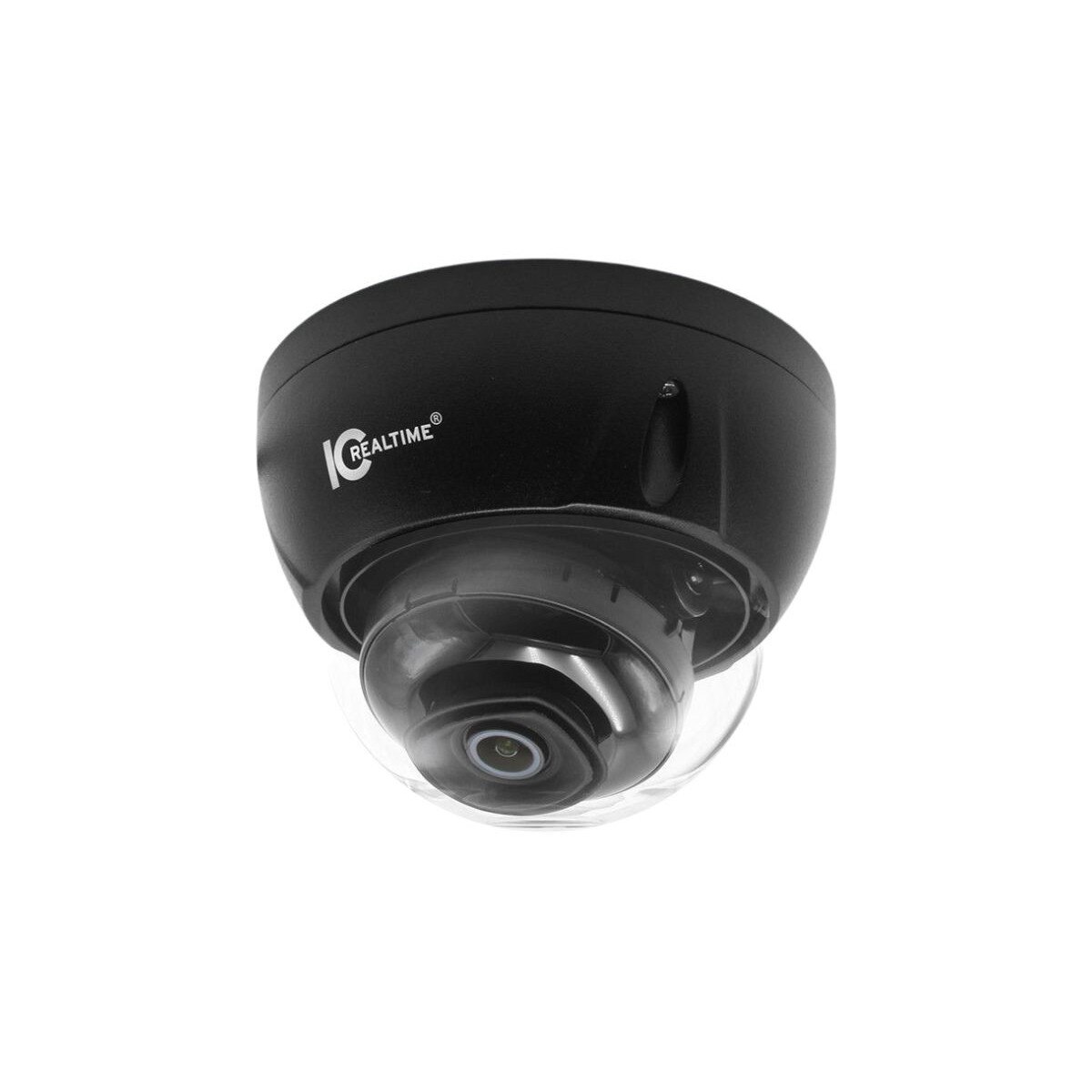

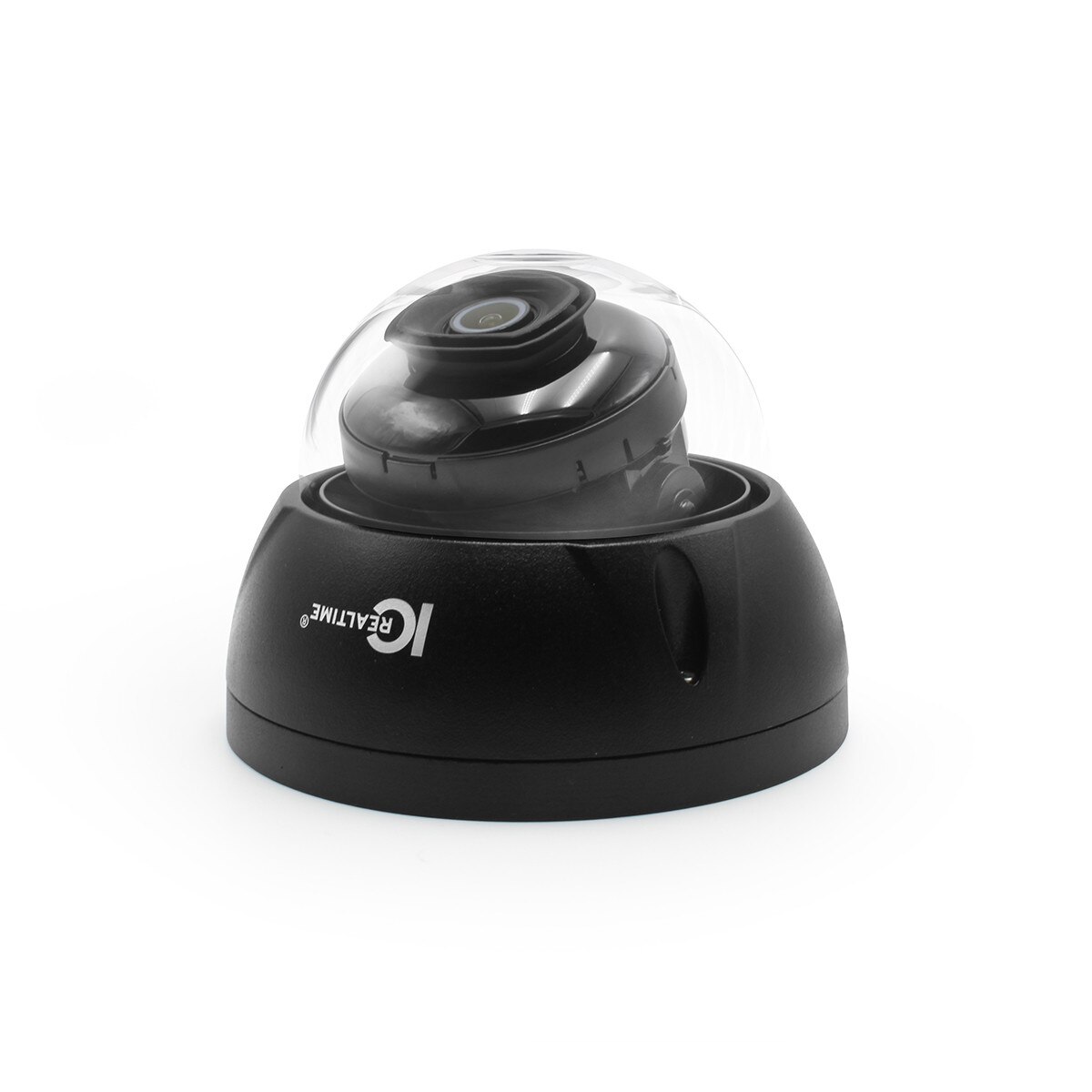

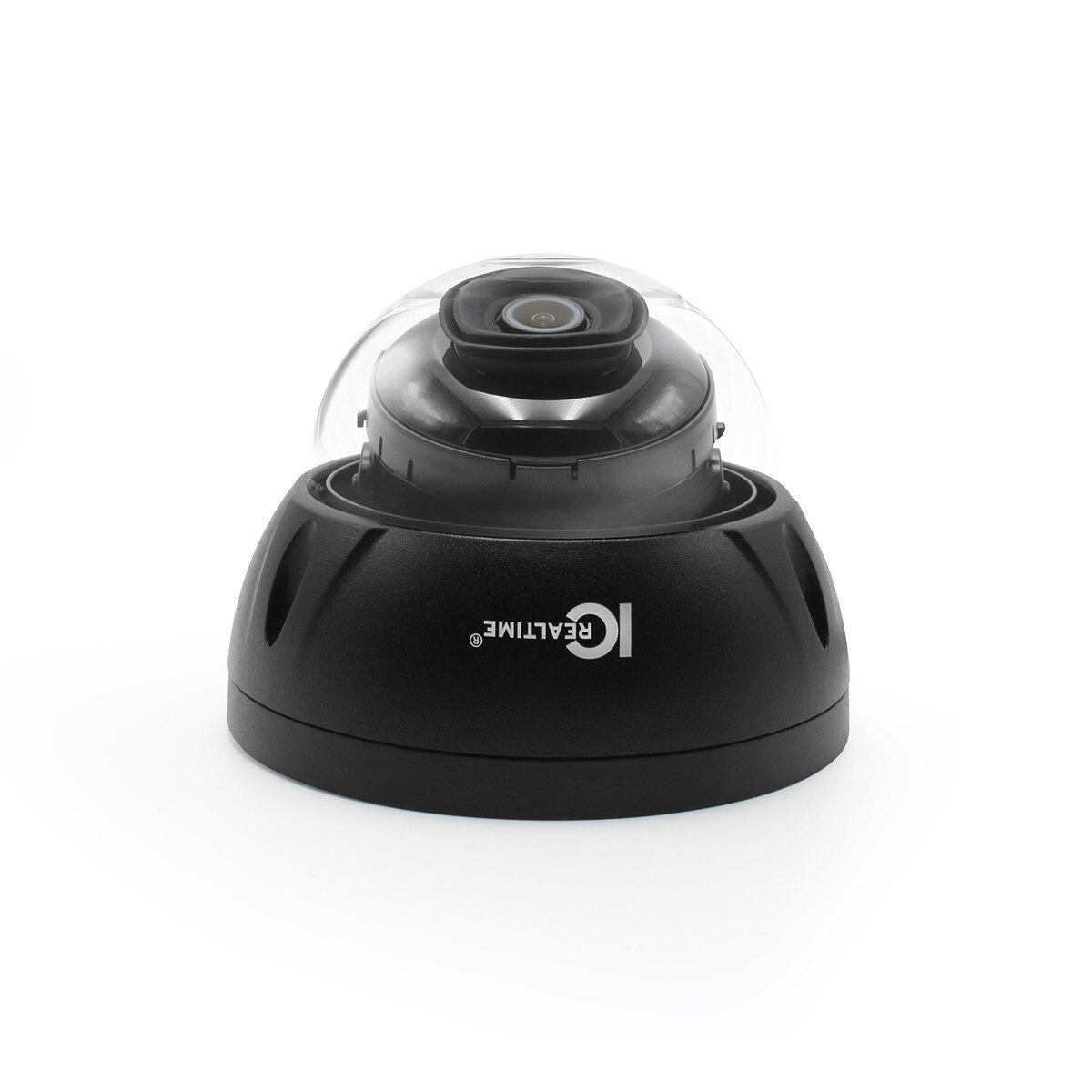

IC Realtime's South Korean-made, TAA compliant IPMX-D20F-IRB2 black dome security camera is a great example of the Max Series philosophy - the perfect balance between compact "mini dome" camera size, high-end features, and an excellent price point. This small black dome has both IC Realtime's legendary auto exposure suite for video quality and our advanced Intelligent Video System and IMD detection capabilities in a factory black IK10 impact-resistant /  IP67 weatherproof dome case that is less than 4.5" in diameter and less than 3.25" tall.

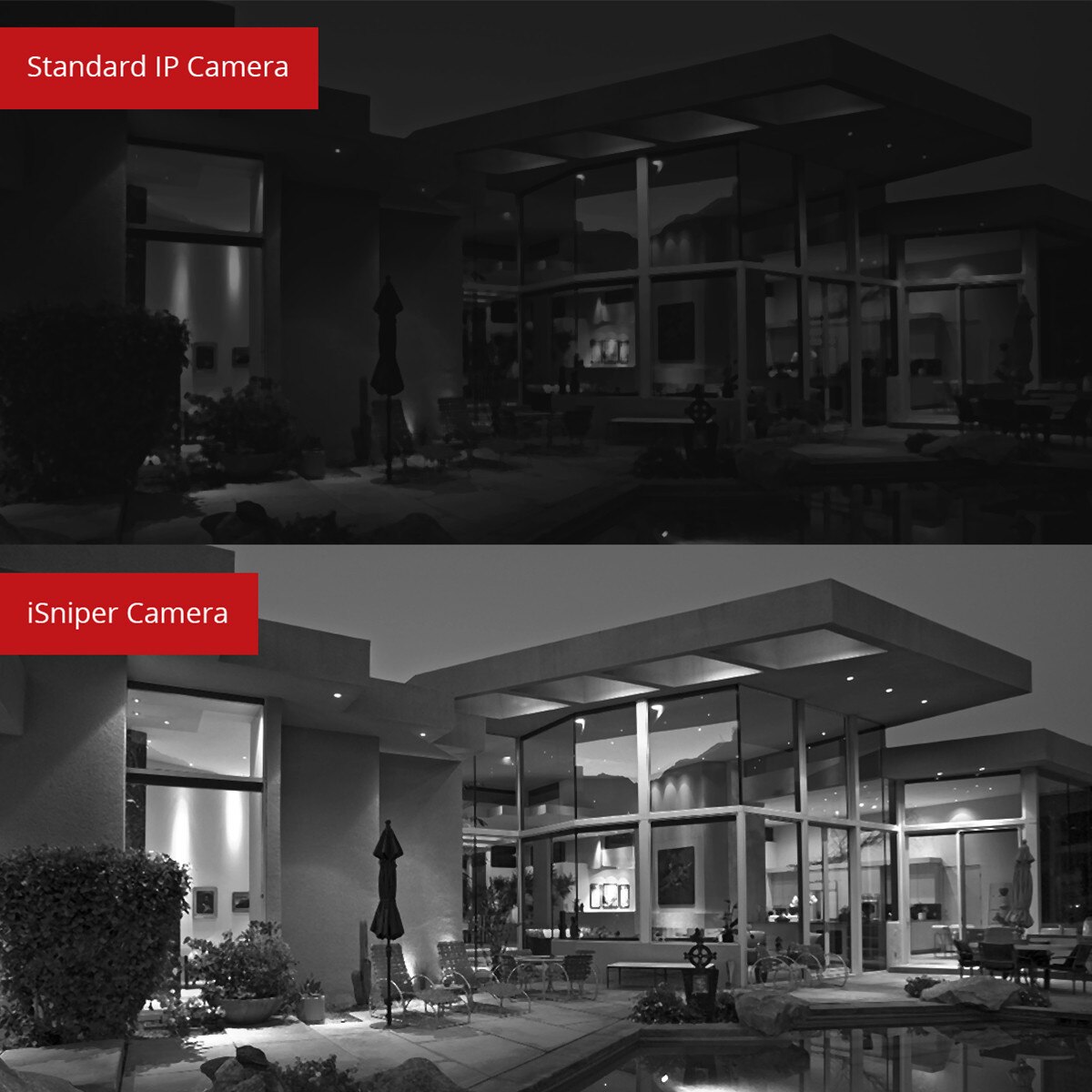

Experience has shown us that a 2.8mm medium wide-angle lens with a 106° wide x 57° high Field of View is most useful for a fixed-lens camera, and the 2.8mm we install in the IPMX-D20F works perfectly. Behind that lens, this 1080p camera comes equipped with IC Realtime's extraordinary 2 Megapixel STARVIS (StarVision) Starlight 1920(H) x 1080(V) chipset that delivers full-color video down to an unbelievable 0.002Lux, then at 0 Lux with SmartIR night vision out past 160 feet. Combined with 120db of Wide Dynamic Range, this compact dome delivers clear and complete coverage even in total darkness.

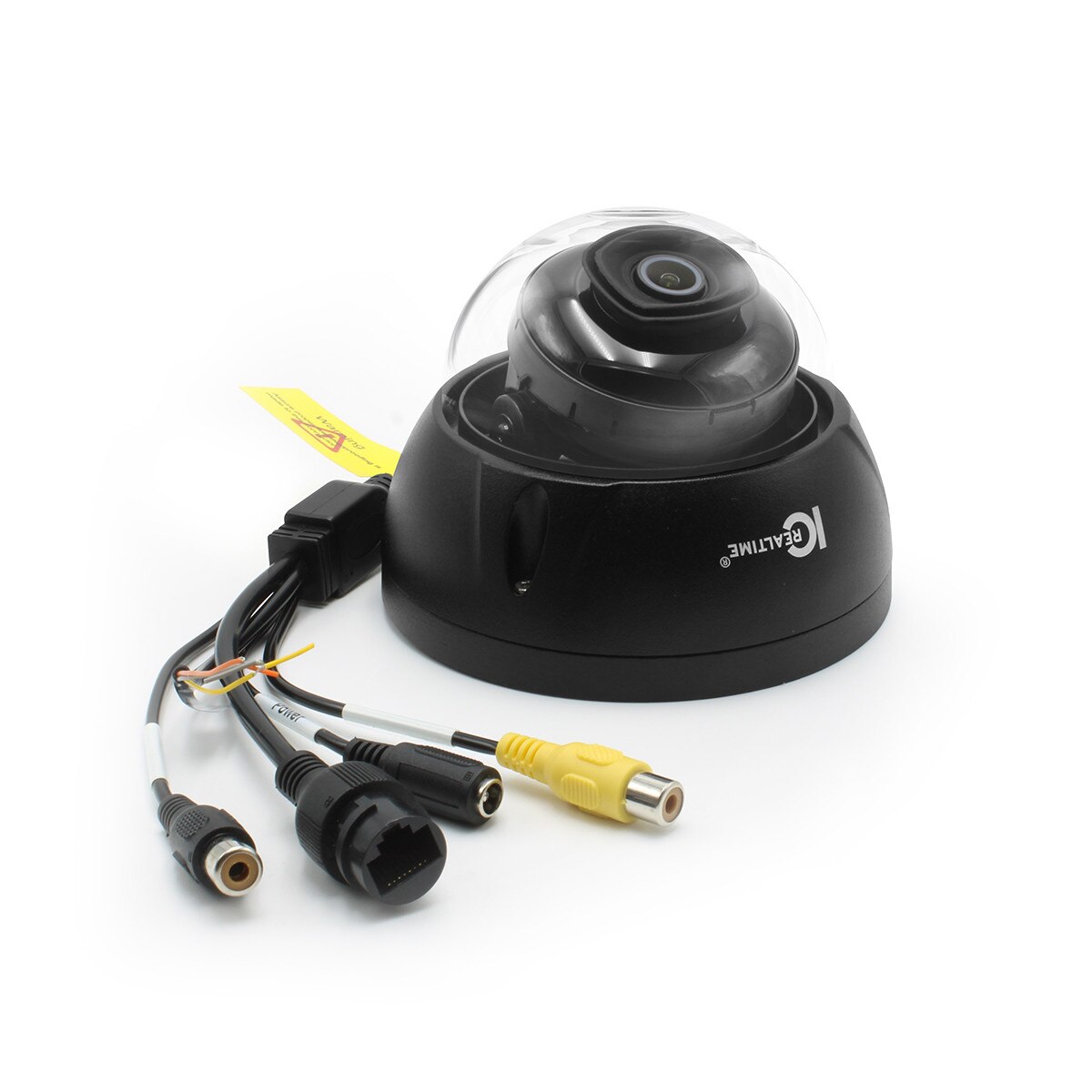

Where audio performance is imperative, such as in entryways or on gates, the IPMX-D20F 'brings it" with two RCA jacks on the network pigtail for audio in/out capabilities to accommodate on-site two-way audio. Audio is encoded on the IPMX-D20F's video stream, so no extra wiring is required to complete audio and video observation and intercom systems interaction.  The IPMX-D20F's external interface capabilities also include alarm I/O capabilities with 1 channel In @ 5mA 5VDC and 1 channel Out @ 12VDC/300ma.

The IPMX-D20F can set up its own built-in IMD and IVS Smart Functions like tripwire, intrusion, with Perimeter Protection while eliminating 95% of false alerts. The IPMX-D20F's own internal human and vehicle tripwire and intrusion/recognition capabilities work combo with any of IC Realtime's FlexSmartAi NVRs, delivering excellent D.O.R.I. numbers and an astounding level of intelligent functions and performance for its size and price point.

Underneath all these advanced FlexSmartAi features the IPMX-D20F is still a tough, reliable IC Realtime commercial quality video security tool. High-rate video and audio streams are efficiently handled by the camera's High-Efficiency Video Encoding (H.265) and HTML5 compliance for easy, secure login using any browser and reduced network loads and video storage requirements. For local video storage, the IPMX-D20F has an internal 256Gb SD card slot and runs on less than 7 watts of easy install POE power or on 12VDC. The IPMX-D20F's damage-resistant dome design can operate in a wide -40°F to +140°F temperature range (did someone say walk-in freezer?)

When it comes to big-time performance, don't be fooled by IPMX-D20F-IRW's tiny but tough black metal outer shell, because inside under its impact-resistant acrylic dome beats the heart and brain of a video security giant.
