MNT-JUNCTIONBOX-6-B
Details

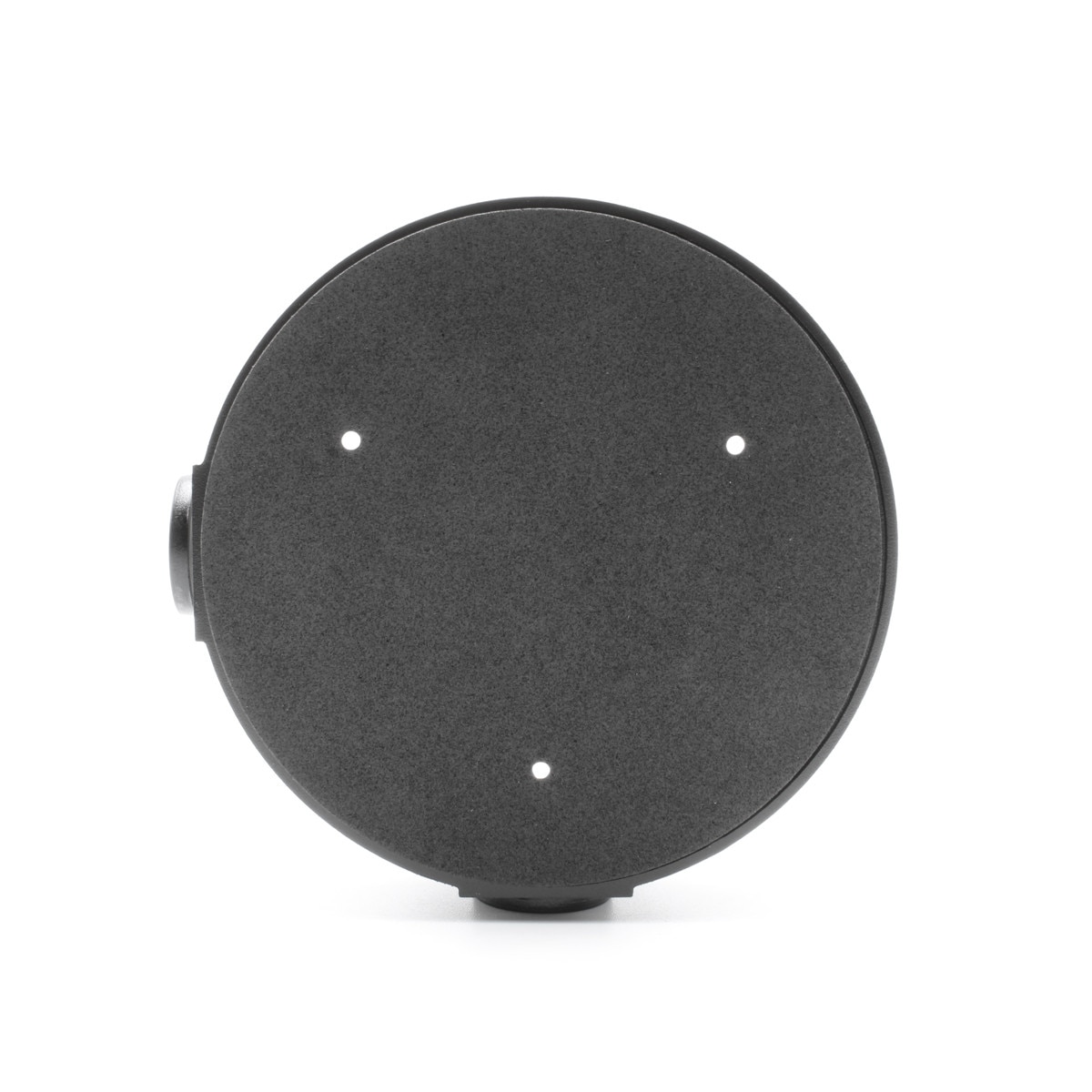

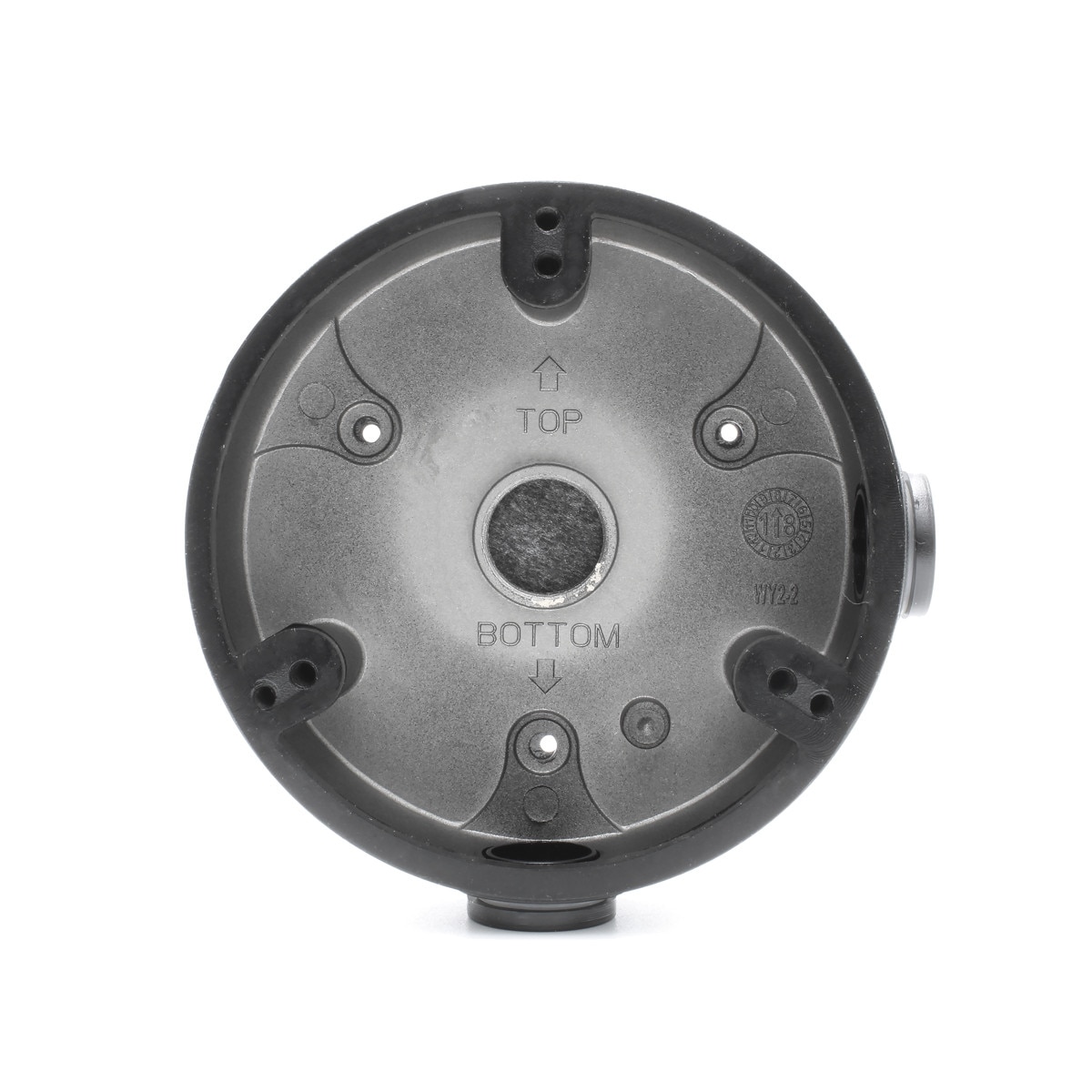

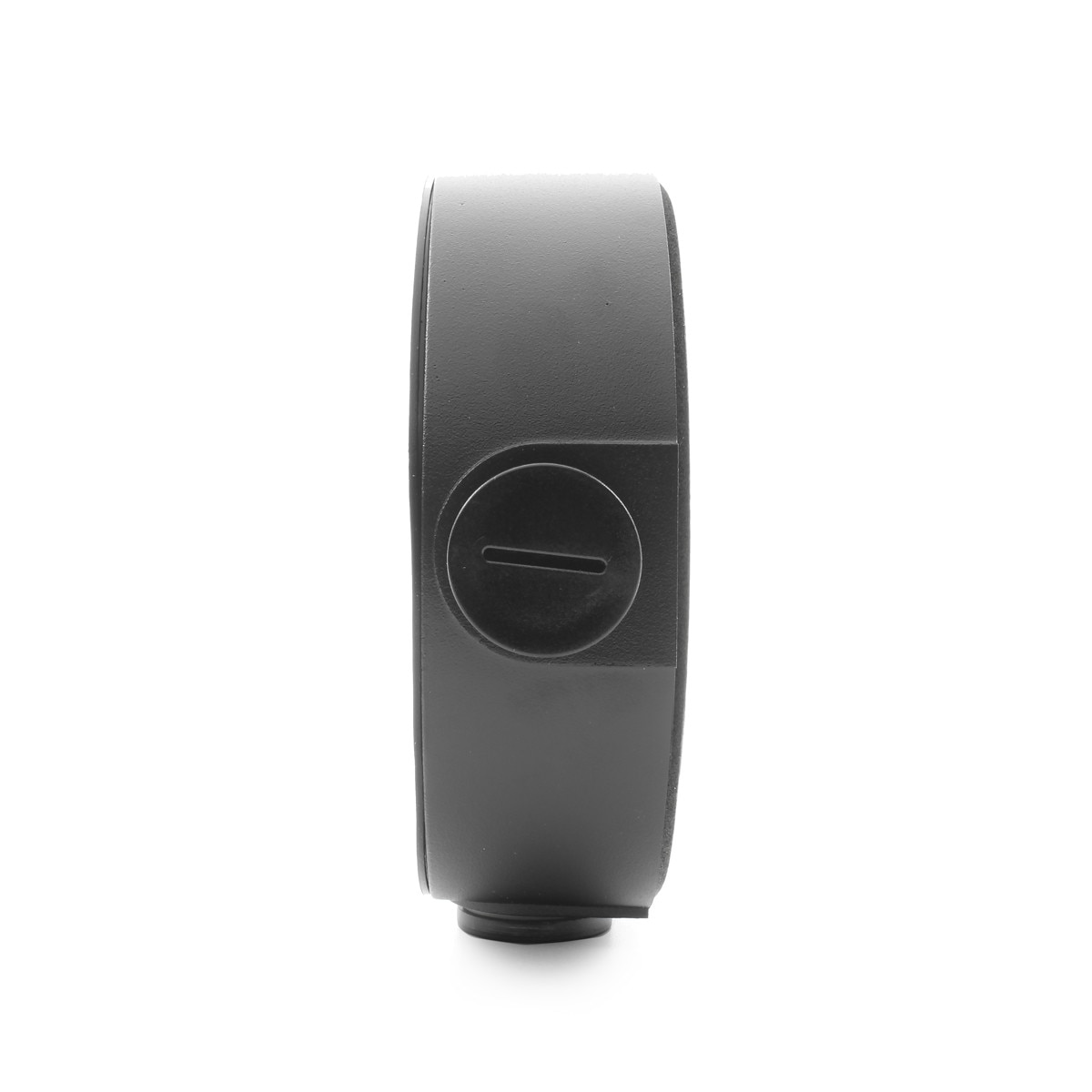

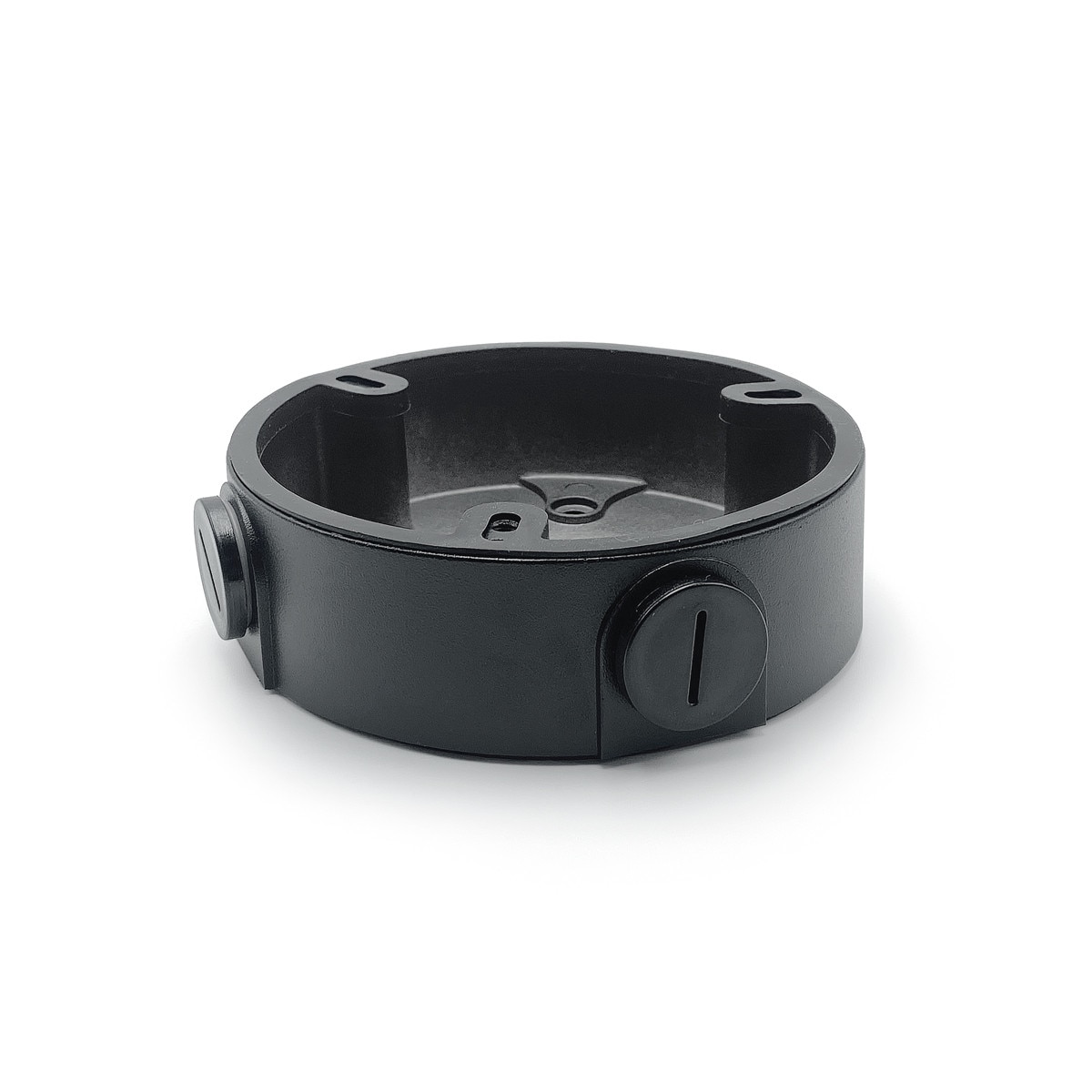

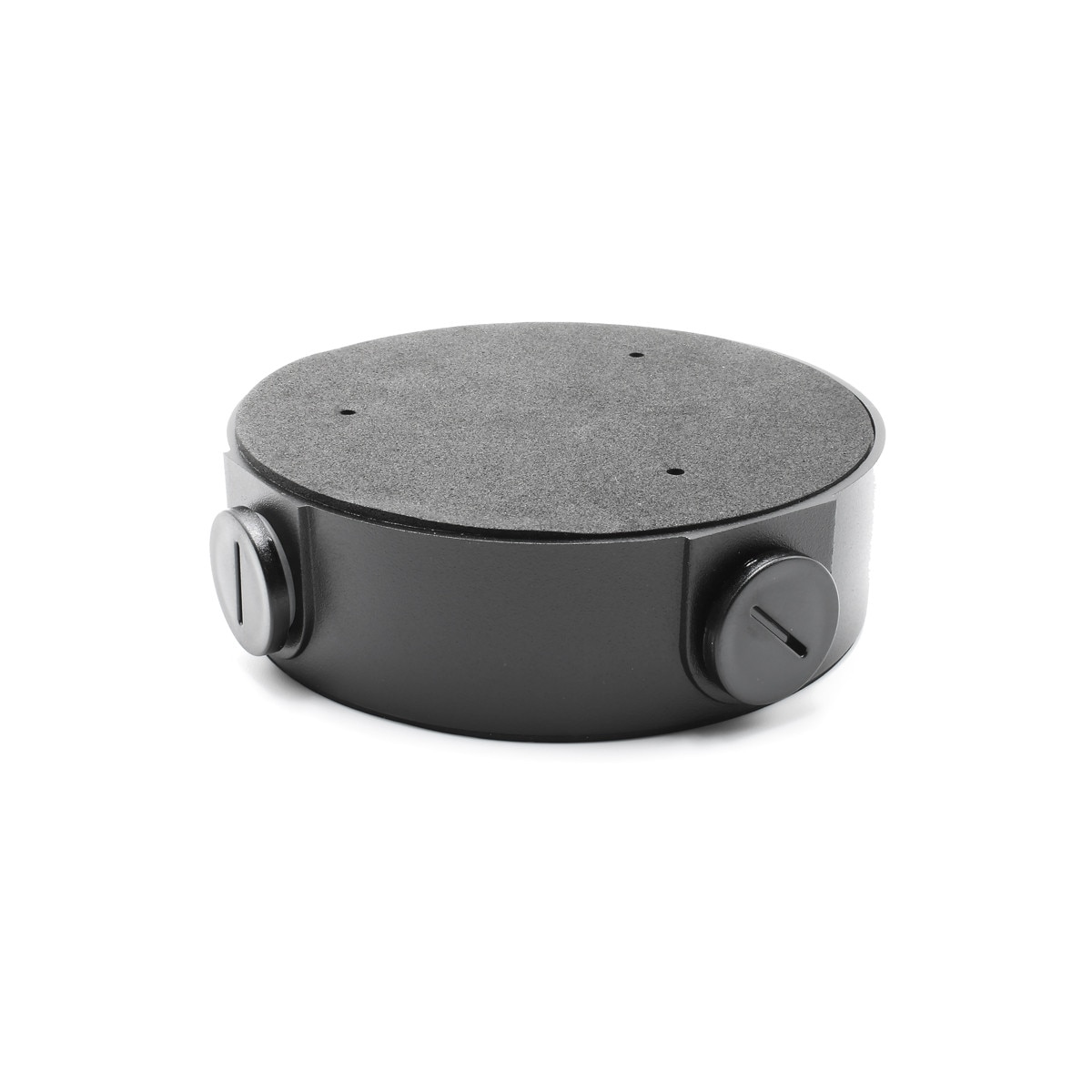

If your next camera installation involves a black medium-sized IP or HDAVS dome camera either indoors or outdoors, our new MNT-JUNCTION BOX-6-B lets you leave the spray paint in the truck and do a quick & color-matched & weatherproof surface installation. This cast aluminum black camera junction box has a center 1/2" NPT port and 3 triangular pre-drilled mounting holes on the rear base for thru-wall wire runs and two side 1/2" NPT ports with removable screw-in caps and comes with a camera base gasket and mounting hardware. The 3 cast-in mounting tabs are pre-drilled to accommodate a wide variety of IC Realtime dome cameras and the black finish exactly matches our black finished cameras. There is plenty of room inside the 4.33” diameter x 1.34” high j-box for your weather-sealed camera pigtail connections. Fits multiple 3 hole black IP & HDAVS dome camera bases.
Specifications
Network | |
Compatibility: | Medium-sized dome cameras such as ICIP-D2001 And D3010 series |
Construction | |
Casing: | Aluminum |
Dimensions: | 110.0mmx34.0mm (4.33”x1.34”) |
