IPFX-E40V-IRW1
Details

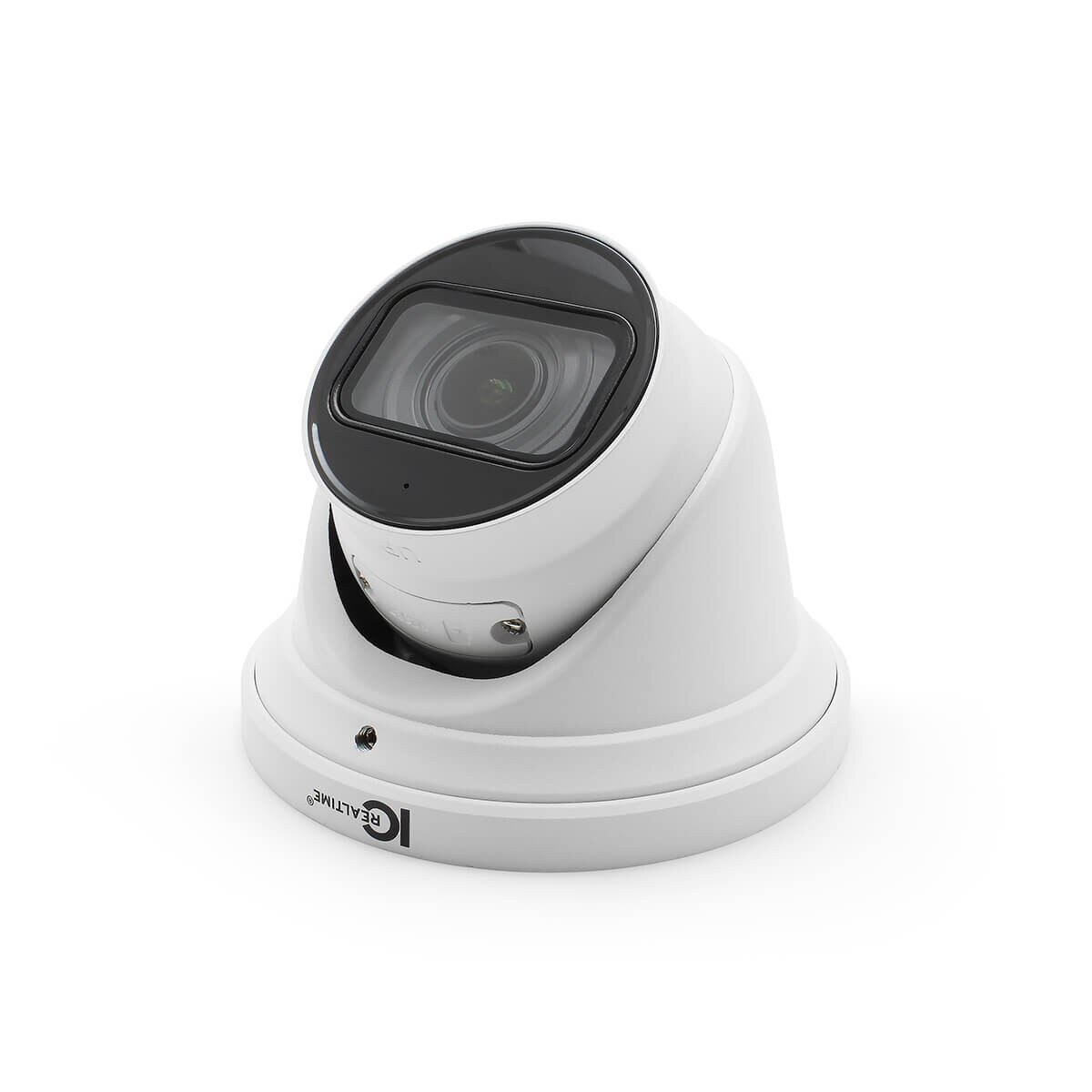

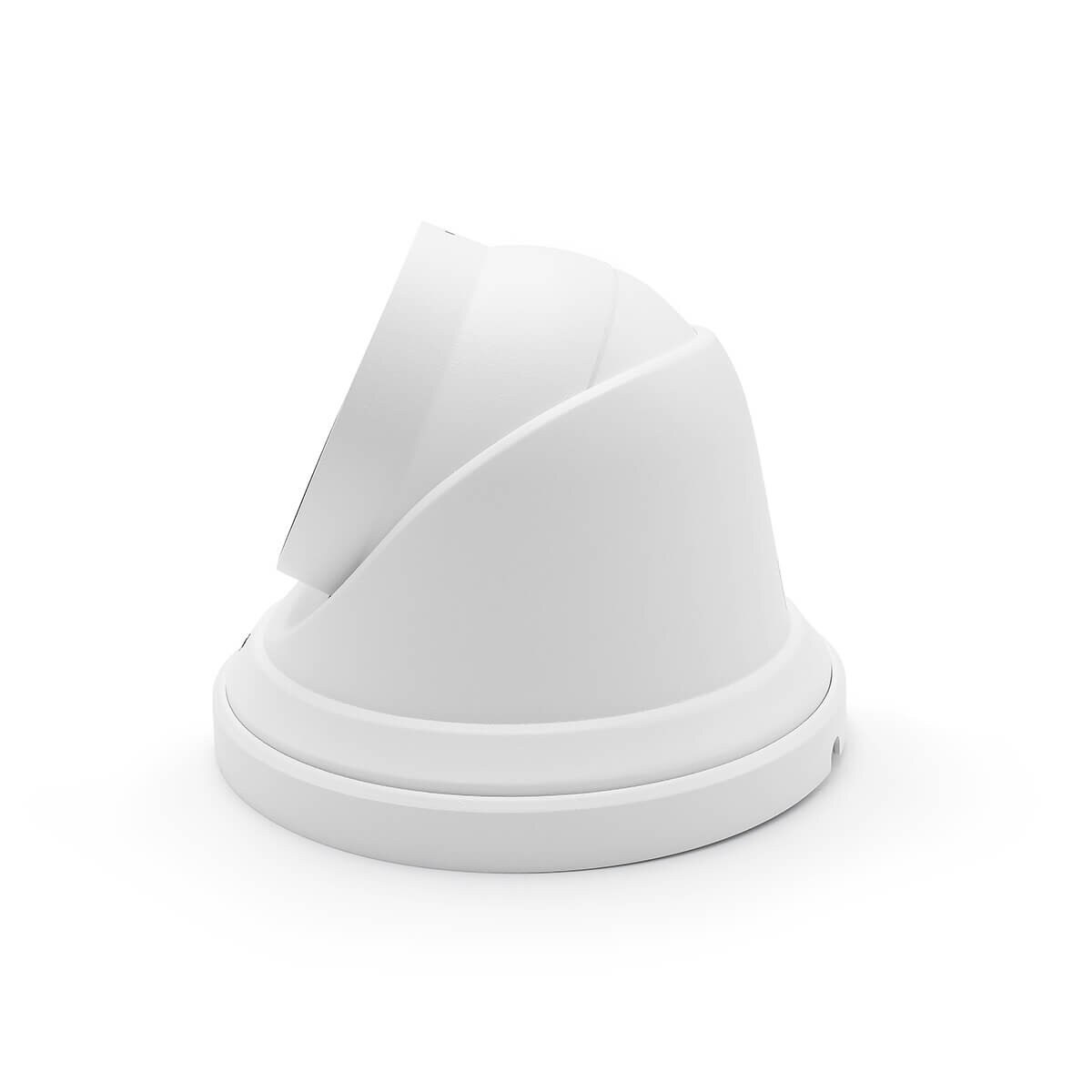

IC Realtime's new IPFX-E40V-IRW1 is an excellent example of the saying, "Good things come in small packages." But for the E40V, IC Realtime would have to change "good" to "smart. " This vandal-resistant IR dome camera is part of our new FlexSmartAi camera family that adds built-in brains into an already excellent, full metal cased 4mp motorized zoom, IP turret dome camera design.
Turret domes are the perfect blend of bullet camera installation ease and vandal dome toughness, and IC Realtime has sold thousands of them dating back to the old analog days. The new E40V carries on that proud legacy as a state-of the-art, IP67 weatherproof metal case PoE IP camera.
Of course, as an IC Realtime camera, E40V has our trademark super-sharp video quality, a 2.7mm – 13.5mm power zoom auto-focus lens that gives 104°–27° horizontal FOV, and darkness-defeating 0.005 Lux@F1.5 low light sensitivity supplemented in total darkness by 130+ feet of Smart IRs.
As expected in an IC Realtime camera, E40V comes equipped with our complete suite of auto exposure and video management systems, including 120db WDR, 3D Digital Noise Reduction, Smart H.265+ video stream compression, and ONVIF Profile S & G compliance, plus CGI and P2P compatibility.
As a FlexSmartAi camera, E40V takes those standard IC Realtime advantages to a whole new & smarter level, with a built-in microphone, Ai enhanced motion detection, perimeter control, and business intelligence features already built-in. IC Realtime's dependable new E40V is now ready to be the "go-to" IP camera for dealers & installers bidding new installations or upgrading older IP systems.
The E40V's intelligence also makes it the perfect "eyes" for our new FlexSmartAi recorders. They will automatically recognize & use E40V's high pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi face & vehicle recognition features.
IC Realtime's IPFX-E40V-IRW1 may be our newest UL listed, FlexSmartAi IP turret dome. Still, it proudly continues IC Realtime's broad compatibility tradition, cutting edge performance, vandal & weather resistant reliability, market-beating video quality, and easy installation.
IPFX-E40V-IRW1 - like every product in the IC Realtime Video Ecosystem - is ready to help you win your next security camera system bid.
Reach out to your IC Realtime factory rep toll-free at (866) 997-9009 or call your favorite IC Realtime distributor. Even become a registered IC Realtime dealer to access!
IPFX-E40V-IRW1 and all IC Realtime gear & B2B services via your Dealer Portal or ICR Companion app.
Turret domes are the perfect blend of bullet camera installation ease and vandal dome toughness, and IC Realtime has sold thousands of them dating back to the old analog days. The new E40V carries on that proud legacy as a state-of the-art, IP67 weatherproof metal case PoE IP camera.
Of course, as an IC Realtime camera, E40V has our trademark super-sharp video quality, a 2.7mm – 13.5mm power zoom auto-focus lens that gives 104°–27° horizontal FOV, and darkness-defeating 0.005 Lux@F1.5 low light sensitivity supplemented in total darkness by 130+ feet of Smart IRs.
As expected in an IC Realtime camera, E40V comes equipped with our complete suite of auto exposure and video management systems, including 120db WDR, 3D Digital Noise Reduction, Smart H.265+ video stream compression, and ONVIF Profile S & G compliance, plus CGI and P2P compatibility.
As a FlexSmartAi camera, E40V takes those standard IC Realtime advantages to a whole new & smarter level, with a built-in microphone, Ai enhanced motion detection, perimeter control, and business intelligence features already built-in. IC Realtime's dependable new E40V is now ready to be the "go-to" IP camera for dealers & installers bidding new installations or upgrading older IP systems.
The E40V's intelligence also makes it the perfect "eyes" for our new FlexSmartAi recorders. They will automatically recognize & use E40V's high pixel density and tripwire & intrusion capabilities to max out recorder-based FlexSmartAi face & vehicle recognition features.
IC Realtime's IPFX-E40V-IRW1 may be our newest UL listed, FlexSmartAi IP turret dome. Still, it proudly continues IC Realtime's broad compatibility tradition, cutting edge performance, vandal & weather resistant reliability, market-beating video quality, and easy installation.
IPFX-E40V-IRW1 - like every product in the IC Realtime Video Ecosystem - is ready to help you win your next security camera system bid.
Reach out to your IC Realtime factory rep toll-free at (866) 997-9009 or call your favorite IC Realtime distributor. Even become a registered IC Realtime dealer to access!
IPFX-E40V-IRW1 and all IC Realtime gear & B2B services via your Dealer Portal or ICR Companion app.
Made In South Korea And Conforms To The Trade Agreements Act (TAA) *as of July 2021*
Specifications
| Camera | |
| Image Sensor: | 1/3” 4 Megapixel progressive CMOS |
| Effective Pixels: | 2688 (H) ×1520 (V) |
| RAM/Rom: | 128MB/ 512MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005 Lux@F1.5 |
| Illumination Distance: | 40 m (131.2 ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized vari-focal |
| Mount Type: | φ14 |
| Focal Length: | 2.7 mm–13.5 mm |
| Max. Aperture: | F1.5 |
| Angle of View: | Horizontal: 104°–27° Vertical: 55° –15° |
| Close Focus Distance: | 0.8 m (2.6 ft) |
| DORI - Detect: | 210ft-728ft |
| DORI - Observe: | 84ft- 291ft |
| DORI - Recognize: | 42ft- 145ft |
| DORI - Identify: | 21ft- 72ft |
| Intelligence | |
| IVS: | Support |
| Advanced Intelligent Functions: | Intelligent Motion Detect Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle) |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)0 x 480) / CIF (352 x 288 /352 x 240) |
| Frame Rate: | Main stream:2688 × 1520@1–25/30 fps Sub stream: 704 × 576 @1–25 fps/ 704 × 480 @ 1–30 fps Third Stream: 1280 × 720@1–25/30 fps |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Mirror: | Off / On |
| Privacy Masking: | Up to 4 areas |
| Audio | |
| Compression: | G.711a; G.711Mu; G726; AAC |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Compatibility: | ONVIF (Profile S/Profile G); CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (Total bandwidth: 64 M) |
| Edge Storage: | FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iOS, Android |
| Interface | |
| Audio I/O: | Built-in MIC |
| Memory Slot: | 256GB Micro SD |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | <8.3W |
| Environmental | |
| Operating Conditions: | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |

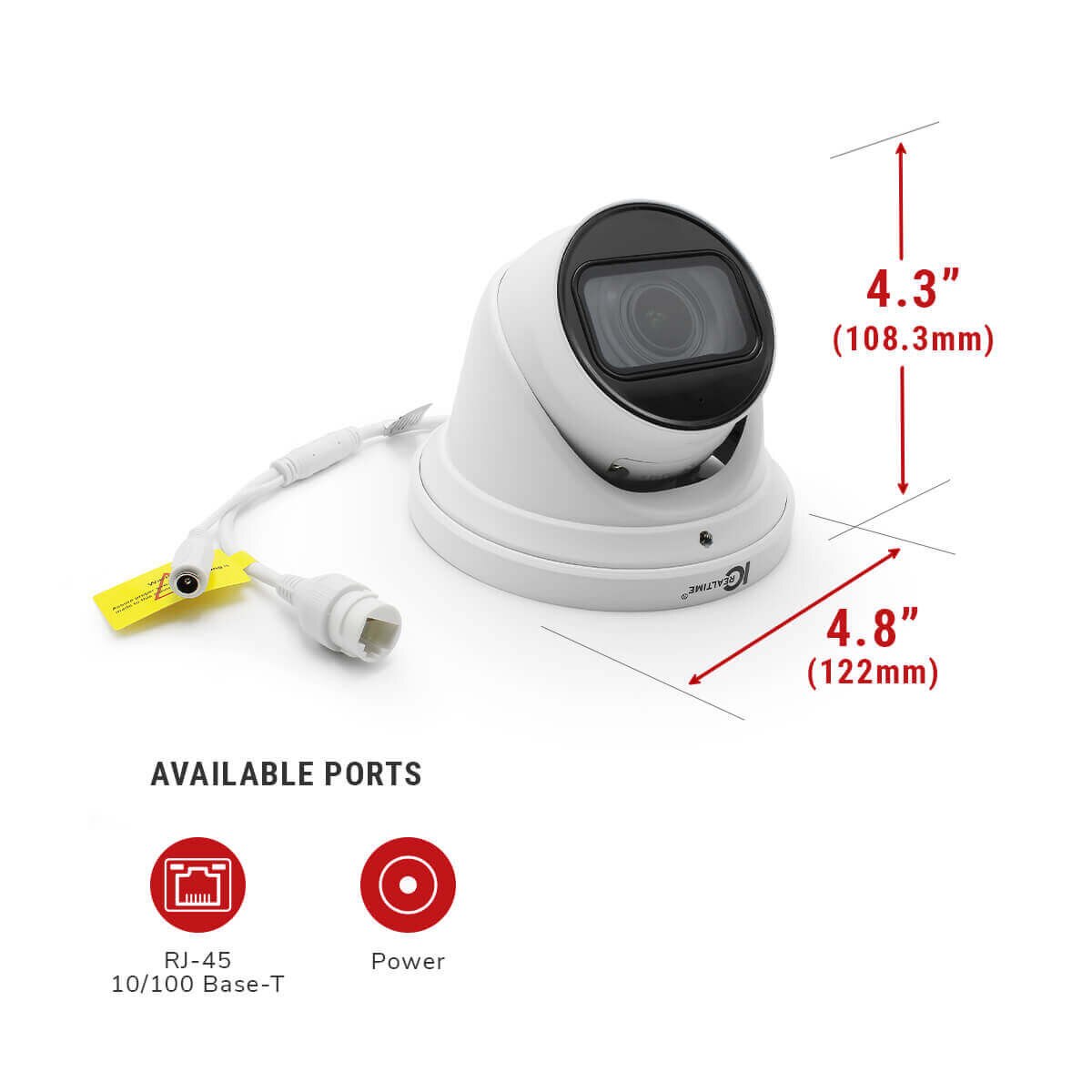

| Dimensions: | 108.3 mm × 122 mm (4.3" × 4.8") |
| Gross Weight: | 828 g (1.8 lb) |
| Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
