IPEL-E40V-W2-LED
Details
24/7 Color, Elite Performance

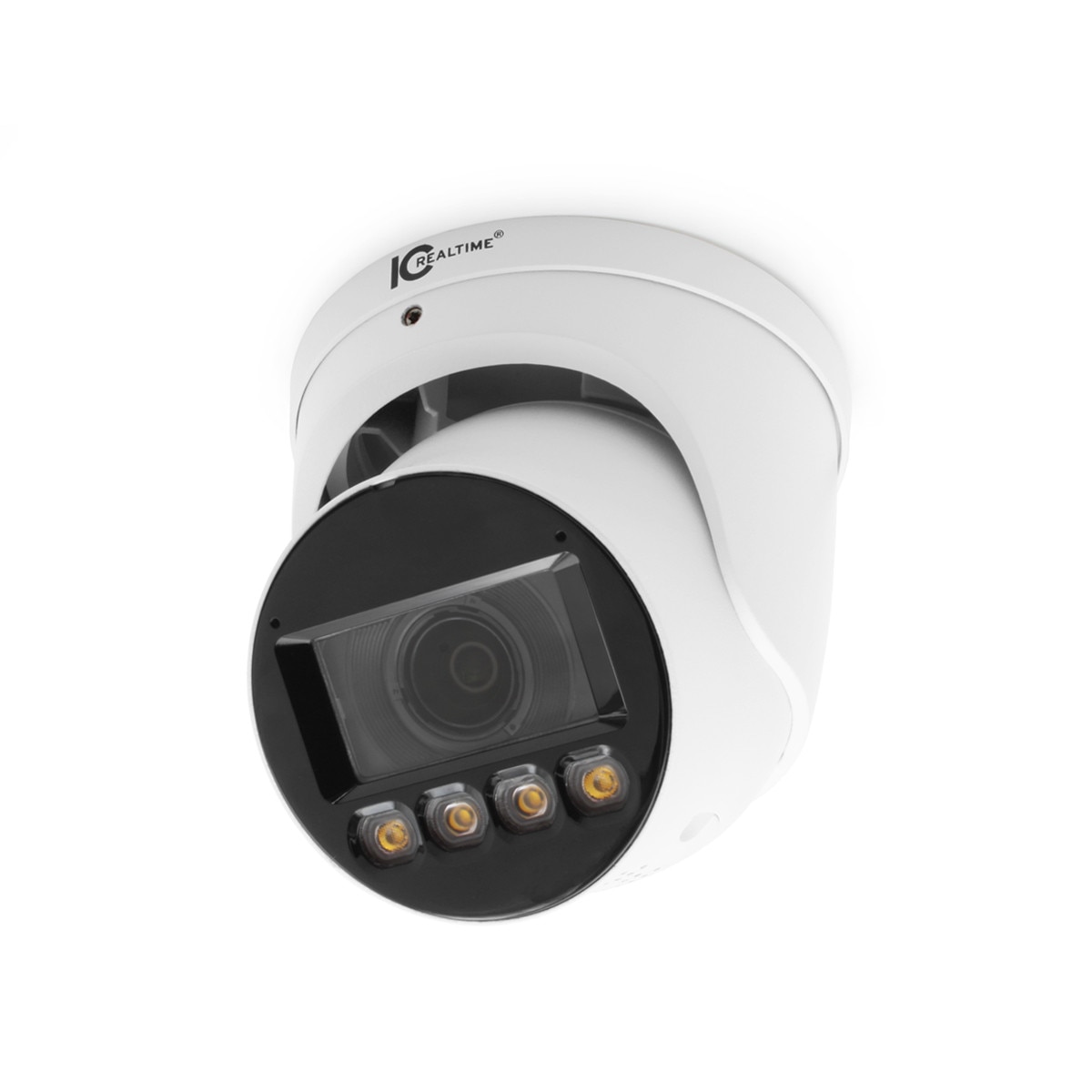

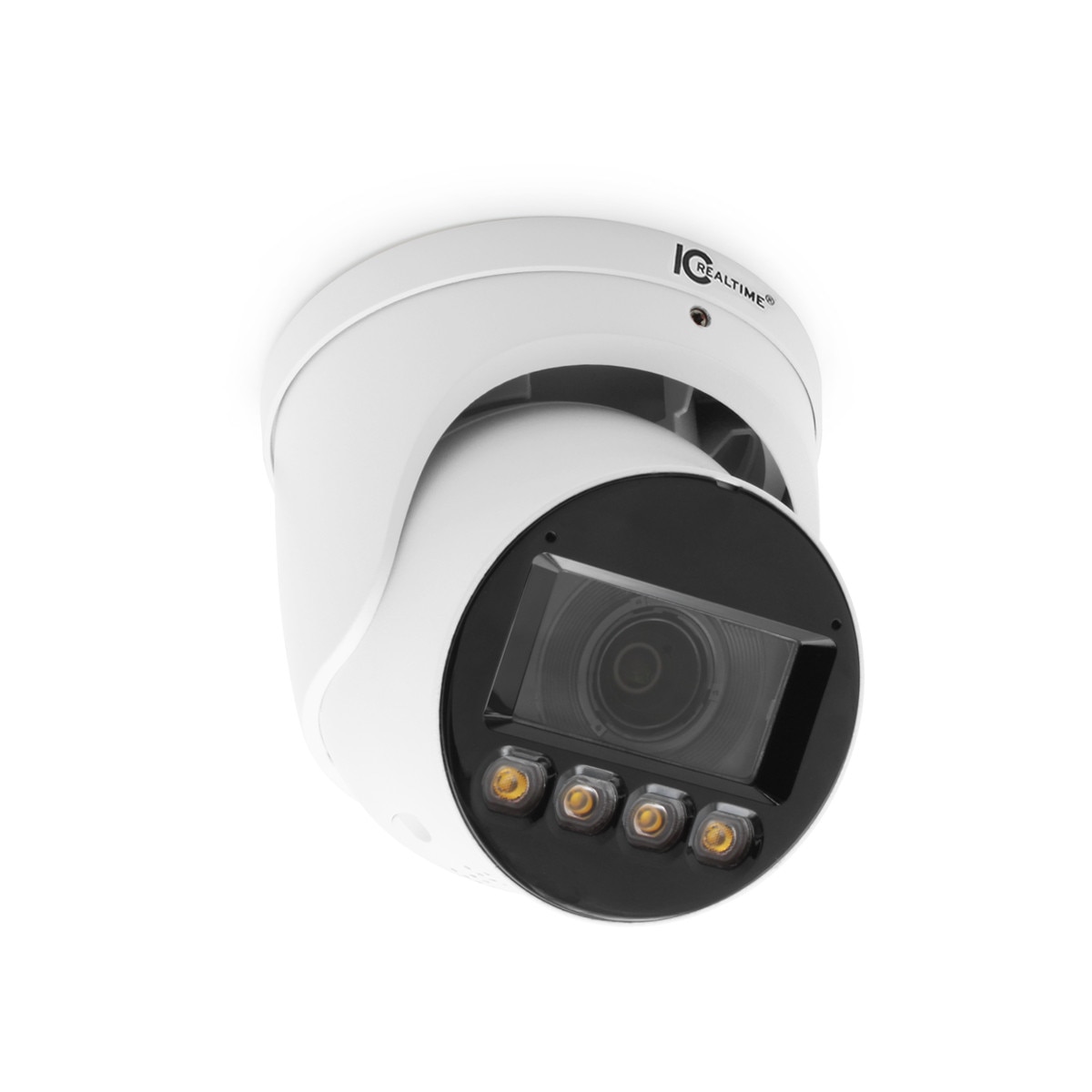

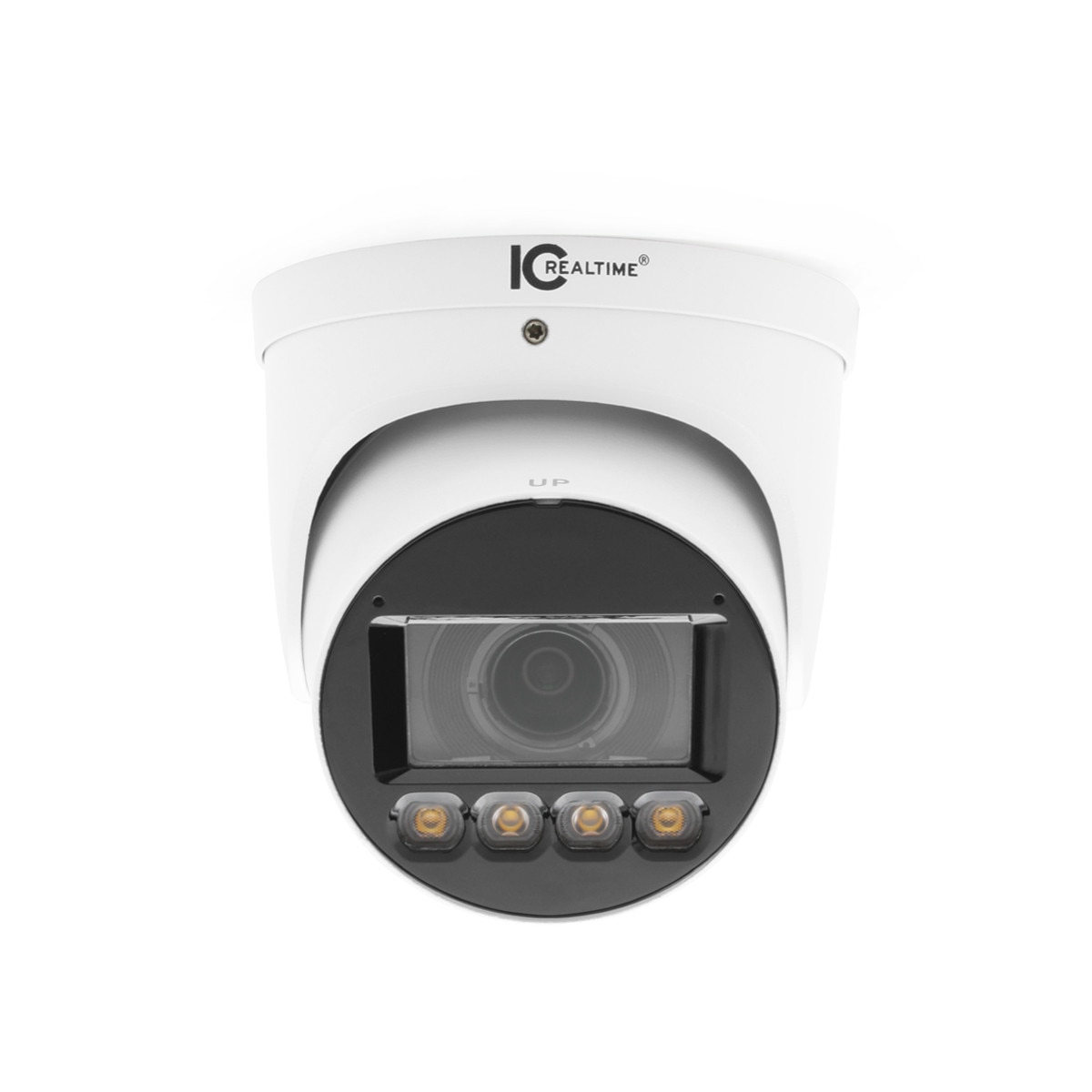

The IC Realtime IPEL-E40V-W2-LED is the newest addition to the Elite lineup, embodying superior 24/7 color imaging and intelligent security in a compact eyeball turret form factor. Equipped with a 2.7-12mm motorized varifocal lens, this camera provides a flexible field of view between 104.7° and 56.1°, delivering vivid 4MP resolution at 2688 × 1520 and a smooth 30 fps. The advanced CMOS image sensor enhances low-light performance, providing crisp images even in minimal illumination. With the added benefit of H.265 support, this camera optimizes storage efficiency while maintaining high-quality video.
A standout feature of the IPEL-E40V-W2-LED is its warm light LEDs, designed for 24/7 full-color imaging that captures details up to 164 feet, even in total darkness. The camera’s robust WDR technology (140dB) ensures precise, high-quality footage in challenging lighting conditions. Built to withstand harsh environments, this IP67-rated camera is both dustproof and waterproof, making it ideal for demanding outdoor installations. Its sleek 4.80" × 5.02" form factor makes it a discreet yet powerful addition to any security setup.
On-board intelligence transforms the IPEL-E40V-W2-LED into a proactive security solution. Integrated Perimeter Protection features virtual tripwire and intrusion box technology that accurately classifies human and vehicle objects, minimizing false alerts. Paired with an IC Realtime NVR, the camera enables smart searches that streamline reviewing recorded footage, adding ease to security management. Its Intelligent Motion Detect 2.0 also leverages advanced filtering to focus on relevant human and vehicle motion, increasing detection accuracy.
Engineered for versatile powering, the IPEL-E40V-W2-LED supports 12 VDC, PoE+ (802.3at), and ePoE, allowing redundant power configurations that ensure continued functionality if one source fails. Operating efficiently with a power draw of 9.3W on 12 VDC and 11.1W on PoE, this model also complies with ONVIF (Profiles S/G/T), facilitating integration with third-party systems.
Designed to support up to 512GB of local microSD storage, this camera provides ample space for recorded footage, enhancing retention capabilities for long-term storage needs. The IPEL-E40V-W2-LED integrates seamlessly with the IC Now desktop platform and is compatible with the IC View+ mobile app, available on iOS and Android, allowing you to monitor your property from anywhere. IC Realtime stands behind this camera with a 10-year warranty and dedicated US-based tech support, ensuring that the IPEL-E40V-W2-LED is a dependable choice for high-performance, intelligent surveillance.
Specifications
| Camera | |
| Image Sensor: | 1/1.8” CMOS |
| Effective Pixels: | 2688 (H) ×1520 (V) 4 Megapixels |
| RAM/Rom: | 256MB/ 1GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.0005 Lux@F1.0 |
| Illumination Distance: | Distance up to 164ft (50 m) |
| Illumination On/Off Control: | Auto / Manual/ Zoom Priority |
| Illumination LEDs: | 4 (Warm White) |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Motorized vari-focal |
| Mount Type: | Module |
| Focal Length: | 2.7 mm–12 mm |
| Max. Aperture: | F1.0 (Constant) |
| Angle of View: | H: 104.7°–56.1° V: 54.9°–31.4° |
| Close Focus Distance: | 4.9 ft (1.5 m) |
| DORI - Detect: | 213 ft- 365 ft |
| DORI - Observe: | 85 ft- 146 ft |
| DORI - Recognize: | 42 ft- 73 ft |
| DORI - Identify: | 21 ft- 36 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion, Fast Moving |
| Advanced Intelligent Functions: | Perimeter Protection-Tripwire; Intrusion, Fast Moving (These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect 2.0- Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change. Supports Object Search with compatible NVRs. Video Metadata, Face Detection & People Counting |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 2688 × 1520 (1 fps–25/30 fps) Sub Stream: D1 (1 fps–25/30 fps) Third Stream: 1080p (1 fps–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–16384 kbps H.265: 12 kbps–16384 kbp |
| Backlight Compensation: | BLC / HLC / WDR (140dB) |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Iris Control: | Auto |
| WDR: | WDR (140dB) |
| Audio | |
| Compression: | PCM; G.711a; G.711Mu; G.726; G.723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Compatibility: | ONVIF(Profile S/ Profile G/ Profile T);CGI;P2P |
| Max. User Access: | 20 Users (Total bandwidth: 80 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (Max. 512 GB); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-In Dual Mic and Speakers, 1 Audio In/ Out (RCA ports) |
| Alarm I/O: | 2 channel in: wet contact, 5mA 3V–5V DC 1 channel out: wet contact, 300mA 12V DC |
| Memory Slot: | Micro SD card (Max. 512 GB) |
| Electrical | |
| Power Supply: | 12 VDC/PoE+ (802.3at)/ePoE; Redundant power- The camera can be powered by PoE and 12V adapter for redundancy (if one of the power sources fails, the camera will still function) |
| Power Consumption: | Basic: 2.7 W (12 VDC); 3.7 W (PoE) Max. (H.265+ warm light+ intelligence on + three streams): 9.3 W (12 VDC); 11.1 W (PoE) |
| Environmental | |
| Operating Conditions: | –22°F to +140°F (–30°C to +60°C )/less than 95% |
| Storage Conditions: | -40°F to +140°F (-40°C to +60°C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |

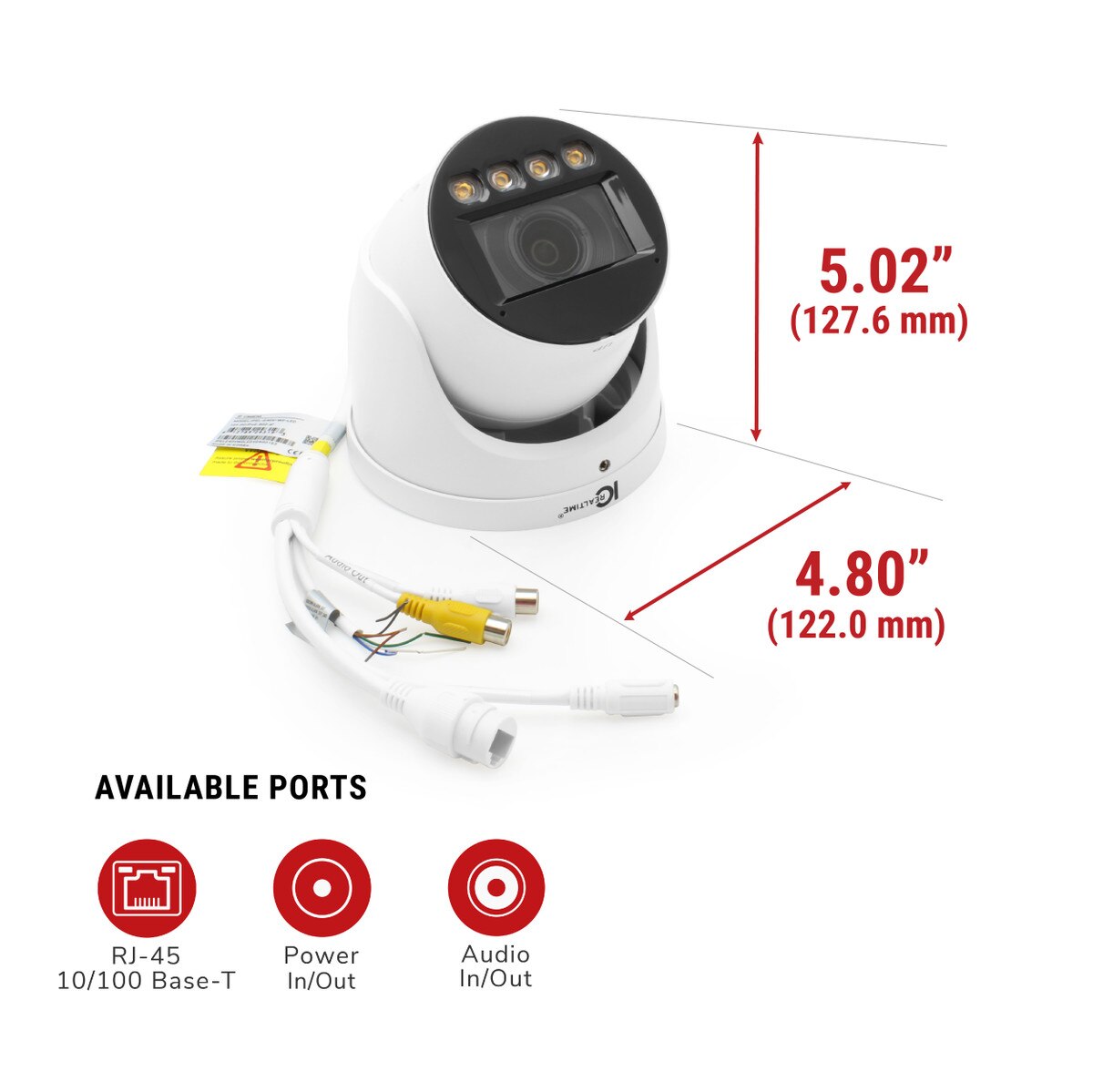

| Dimensions: | 4.80" × 5.02" (Φ122.0mm × 127.6 mm) |
| Gross Weight: | 3.24 lb (1470 g) |
