IPEG-D40V-IRW3
Details

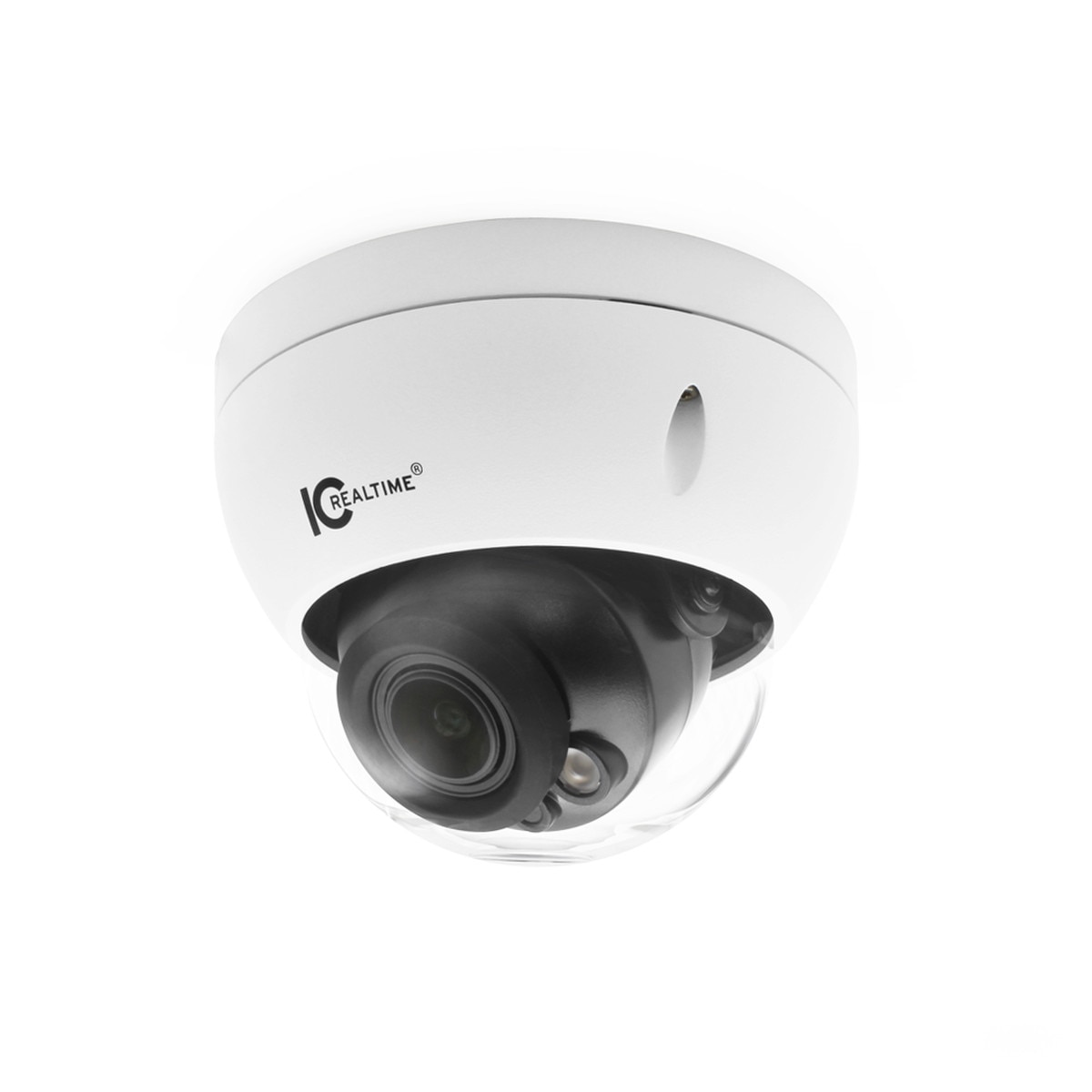

IC Realtime expands its Edge series with the IPEG-D40V-IRW3, a 4MP vandal-proof dome camera designed to deliver powerful performance, precision optics, and smart analytics—all in a compact, durable form factor. Built with a rugged metal housing measuring just 3.68 inches tall and 4.80 inches in diameter, this camera is purpose-engineered for environments where strength and clarity are non-negotiable.
The camera features a high-performance 1/2.9" CMOS sensor, delivering crisp 4MP resolution at 30 frames per second. Its motorized 2.7–13.5mm varifocal lens allows users to fine-tune the horizontal angle of view from 104° to 29°, making it ideal for both wide-area coverage and targeted detail capture. Even in low-light conditions, Smart IR with up to 131 feet of infrared illumination ensures clear night vision, while 120dB Wide Dynamic Range and Backlight Compensation handle lighting extremes with ease.
Built for endurance and efficiency, the IPEG-D40V-IRW3 supports both Power over Ethernet and 12VDC input, and includes a built-in microphone and support for up to 256GB of onboard microSD storage. With its IP67 weather rating and IK10 vandal resistance, this dome camera stands up to tough conditions while maintaining sleek aesthetics. H.265 compression technology keeps bandwidth and storage demands to a minimum, and full ONVIF compliance ensures seamless third-party integration.

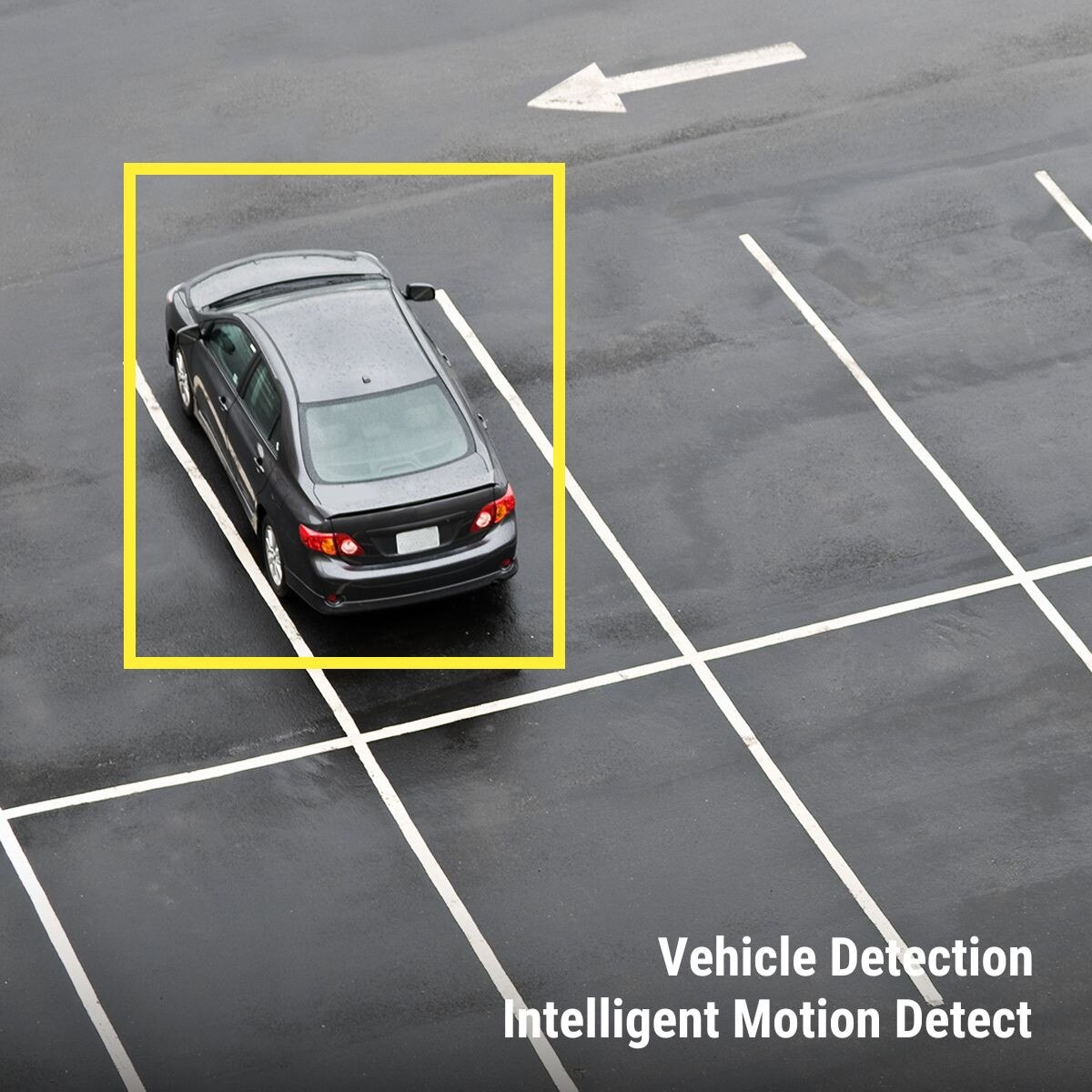

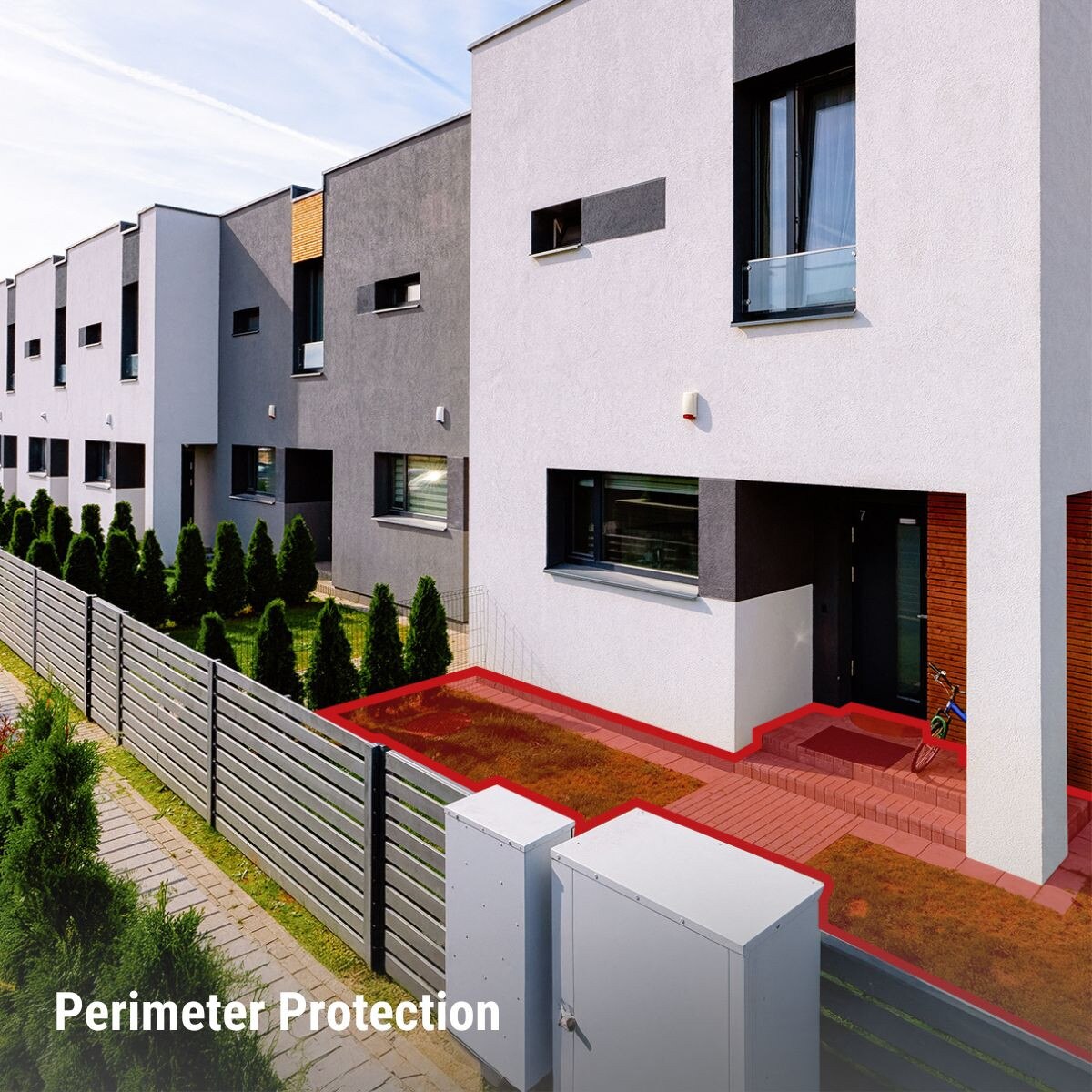

This camera is more than just hardware—it's intelligent surveillance at its finest. With advanced motion detection that distinguishes between people and vehicles, along with perimeter protection powered by virtual tripwire and intrusion zones, users can rely on accurate alerts and event triggers. Paired with an IC Realtime NVR, it unlocks intelligent search functions for fast, focused playback and incident review.
Whether managed from the IC Now desktop platform or monitored remotely through the IC View+ mobile app for iOS and Android, the IPEG-D40V-IRW3 offers intuitive control and robust performance. It’s backed by IC Realtime’s industry-leading 7-year warranty and supported by a trusted U.S.-based technical team.
Built to adapt, built to protect—the IPEG-D40V-IRW3 is a smart choice for high-security installations that demand flexibility and resilience.
Specifications
| Camera | |
| Image Sensor: | 1/2.9" CMOS |
| Effective Pixels: | 2688 (H) ×1520 (V) (4 Megapixels) |
| RAM/Rom: | 128 MB/ 128 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance: | 131.0 ft (40 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 (IR LED) |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized varifocal |
| Mount Type: | φ14 |
| Focal Length: | 2.7 mm–13.5 mm |
| Max. Aperture: | F1.5 |
| Angle of View: | Horizontal: 104°–29°, Vertical: 54°–16° |
| Close Focus Distance: | 2.6 ft (0.8 m) |
| DORI - Detect: | 209 ft-688 ft |
| DORI - Observe: | 83 ft- 275 ft |
| DORI - Recognize: | 41 ft-137 ft |
| DORI - Identify: | 20 ft- 68 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion(These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+, Smart H.264+ |
| Resolution: | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 4MP, 2688 × 1520@(1–20 fps )/2560 × 1440@ (1-25/30 fps) Sub Stream: stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control: | 3D DNR |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) |
| Mirror: | Supported |
| Privacy Masking: | Off / On (4 Area, Rectangle) |
| Iris Control: | Fixed |
| WDR: | WDR (120dB) |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; PCM |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. User Access: | 6 (Total bandwidth: 36 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Microphone |
| Memory Slot: | Micro SD card (support max. 256 GB) |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | Basic: 2.3 W (12 VDC); 3.2 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 6.4 W (12VDC); 7.6 W (PoE) |
| Environmental | |
| Operating Conditions: | -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH |
| Storage Conditions: | -40°F to +140°F (-40°C to +60°C) |
| Ingress Protection: | IP67 |
| Vandal Resistance: | Ik10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 3.68" × Φ4.80" (93.4 mm × Φ122 mm) |
| Gross Weight: | 1.46 lb (0.66 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
