MNT-REC1-V2
Details
Product Description

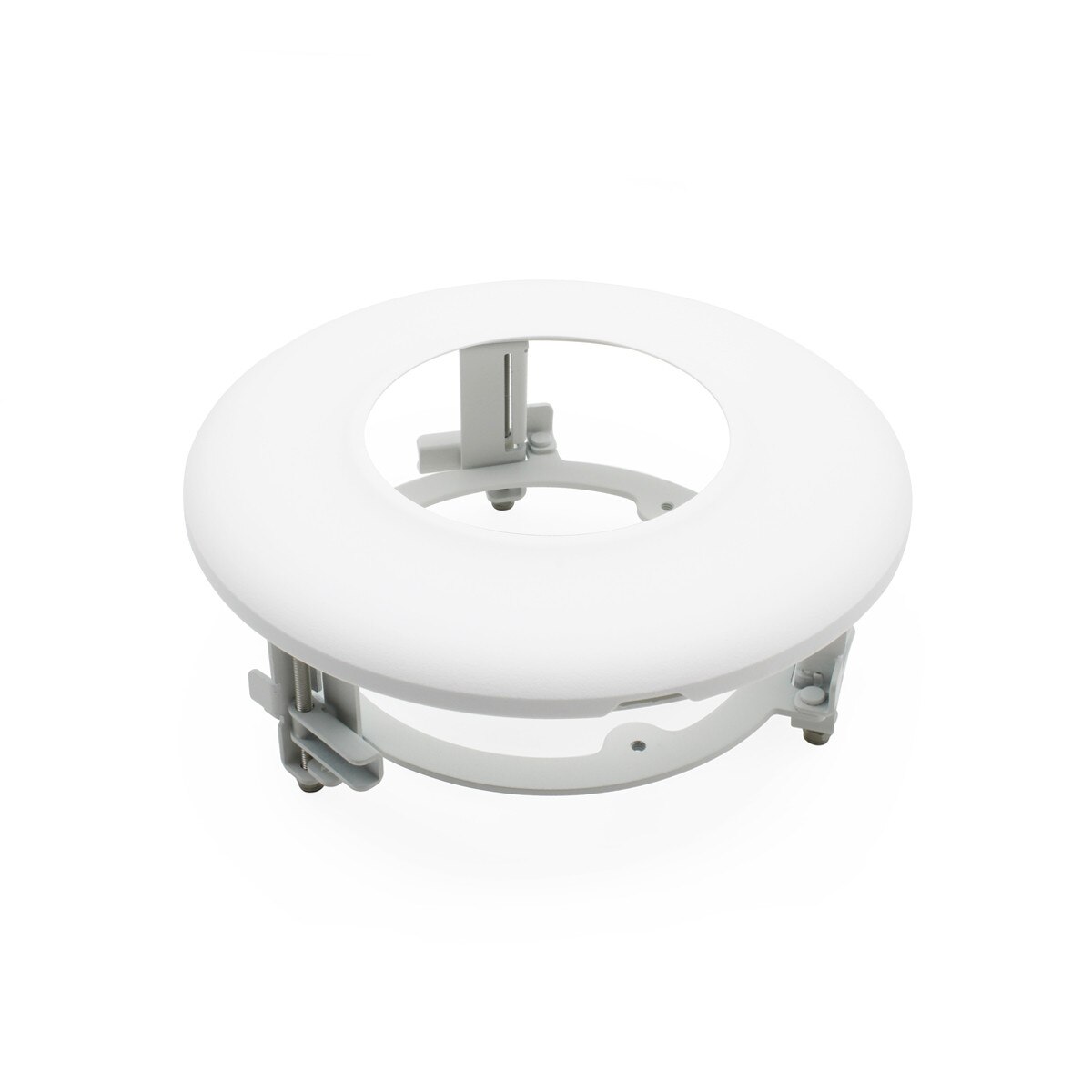

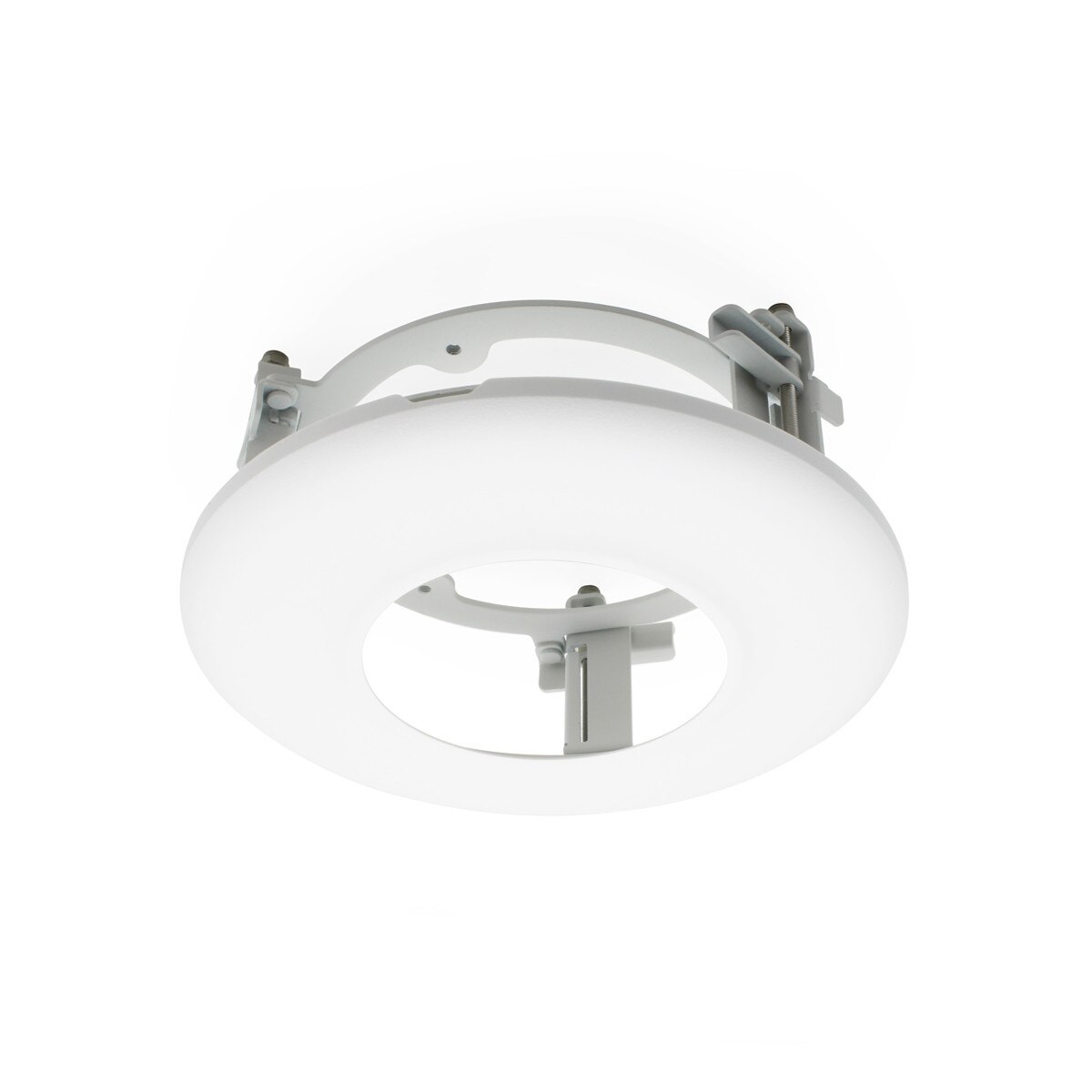

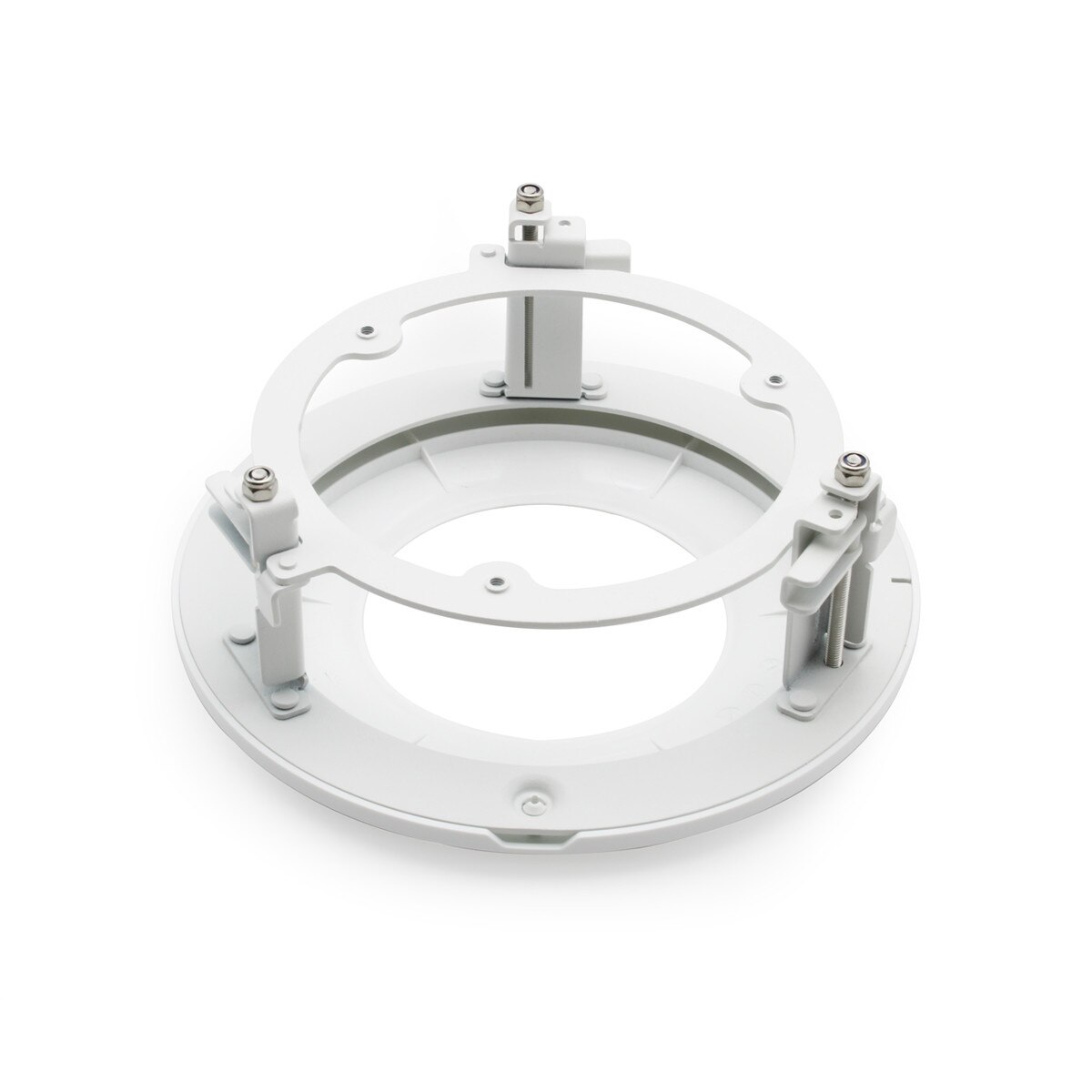

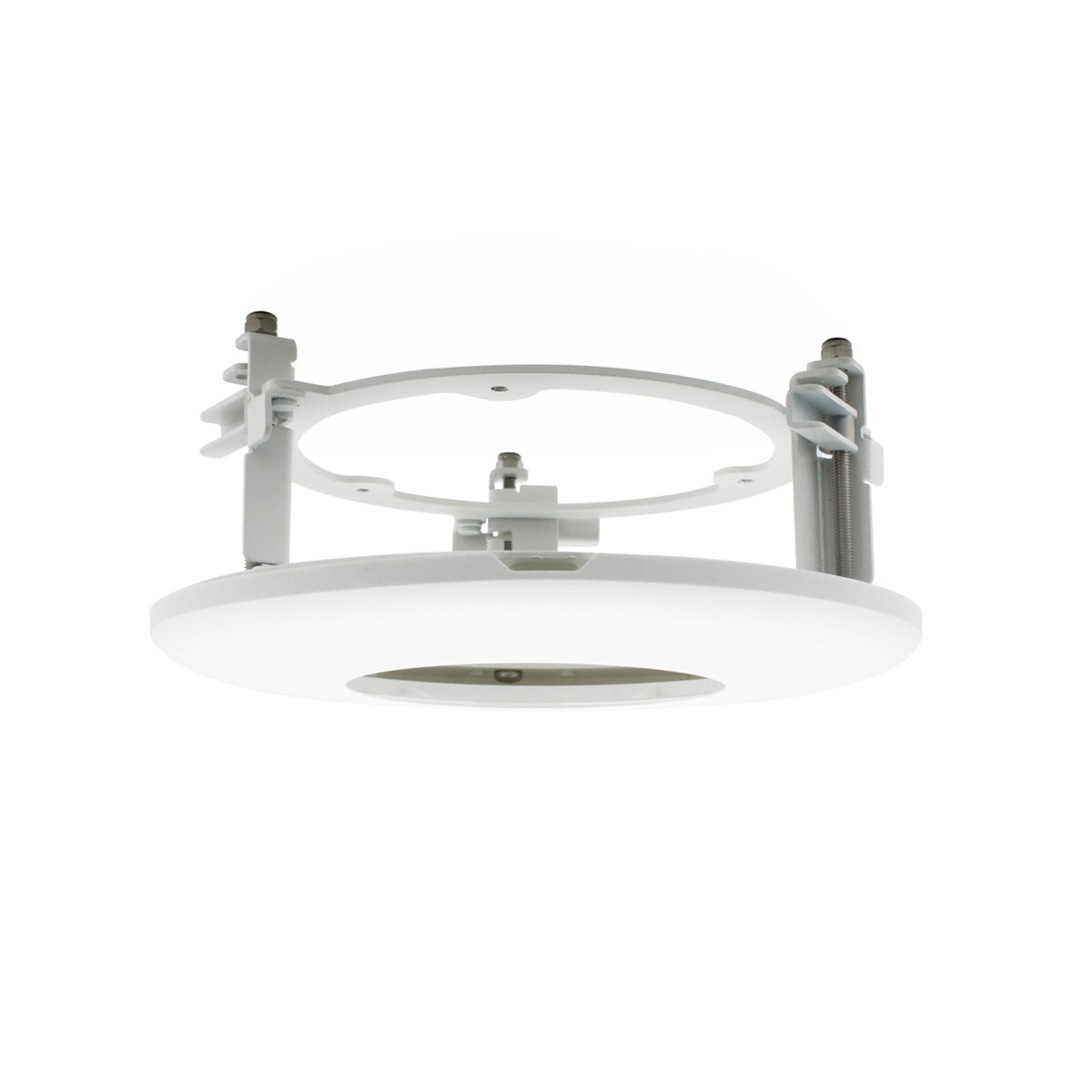

MNT-REC1-V2 — Recessed Ceiling Mount for Dome Cameras
Recessed ceiling mount bracket for dome cameras. Designed for a clean aesthetic finish, simple installation, and easy maintenance.
Overview
The MNT-REC1-V2 is a recessed ceiling mount bracket engineered for mid-sized dome cameras. It delivers a sleek, in-ceiling look while keeping installation and service straightforward.
Purpose
Ideal for integrators who need discreet camera installs, this bracket simplifies mounting while maintaining durability and a professional finish.
Key Benefits
- Clean, aesthetic recessed appearance
- Fast install with included screws and wrench
- Securely supports mid-sized dome cameras
- Quick disassembly for easy maintenance
Quick Specs
Material
SECC & PC
Dimensions
Ø6.80" × 2.88" (Ø172.7 mm × 73.2 mm)
Weight
0.68 lb (0.31 kg)
Load Bearing
2.20 lb (1.0 kg)
Color
White
Operating Temp
-40°F ~ 140°F (-40°C ~ 60°C)
Humidity
0 ~ 90% RH
Package Contents
Bracket, 3 × M4 screws, S3.0 wrench, Install guide
Applications
- In-ceiling installs for dome cameras
- Offices, retail, hospitality, residential
- Discreet security setups
- New construction or retrofit projects
FAQ
What cameras fit this mount?
It supports mid-sized dome cameras (see compatibility list).
Why use recessed mounting?
For a clean, low-profile aesthetic that hides hardware.
Is hardware included?
Yes — screws, wrench, and guide are included.
What’s the load rating?
Supports up to 2.20 lb (1.0 kg).
What environments is it rated for?
Operates from -40°F to 140°F (indoor applications).
