HDEG-E50F-DI-M1
Details

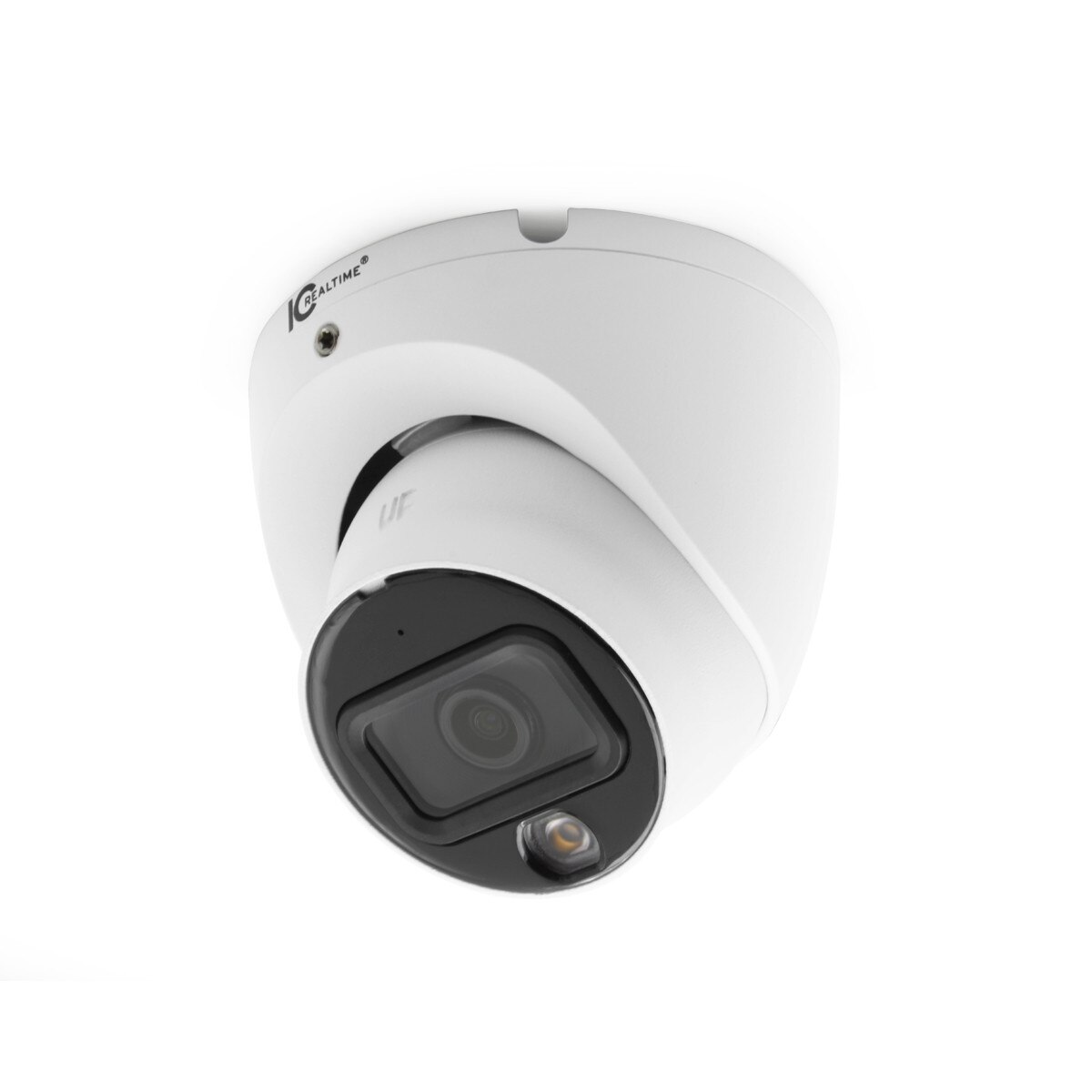

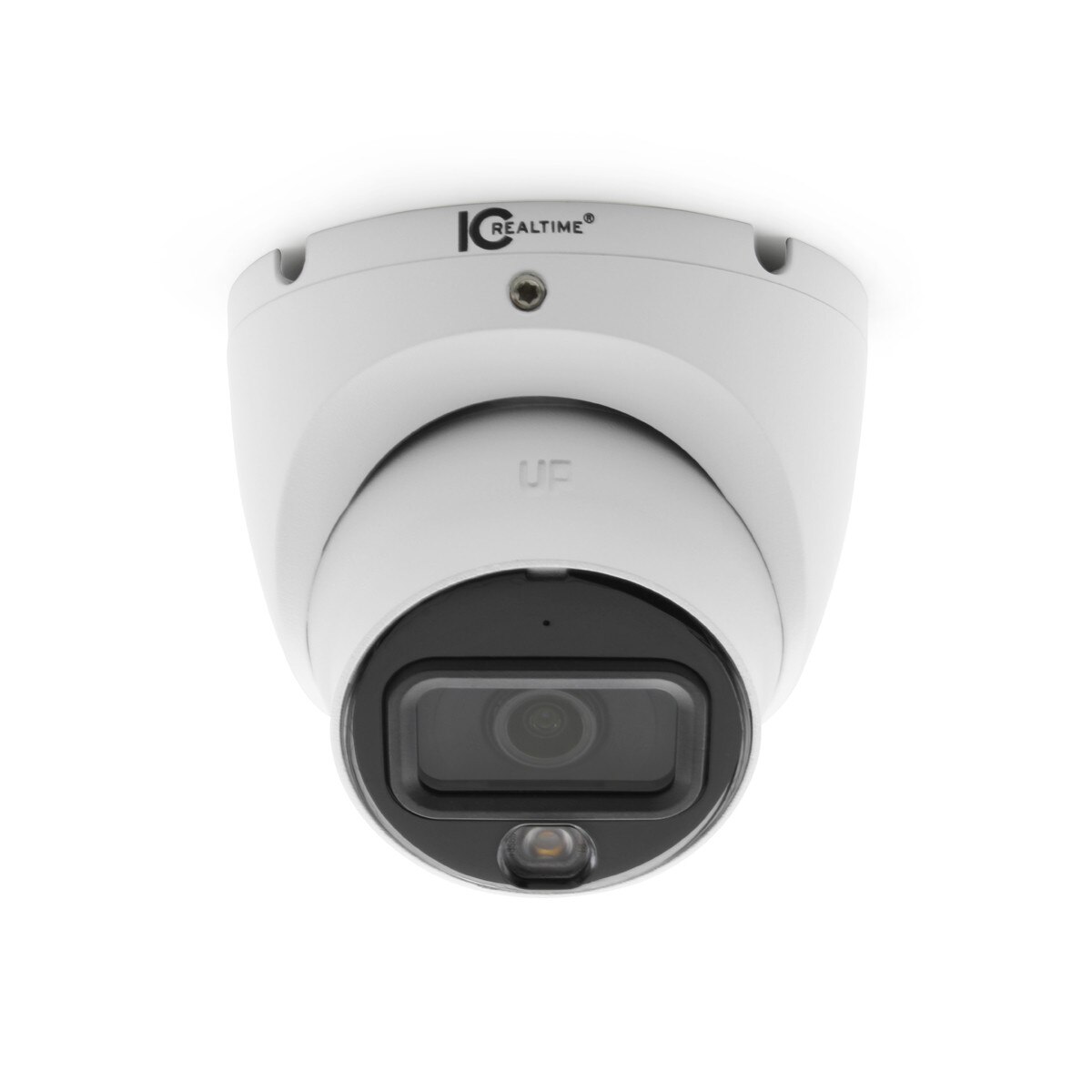

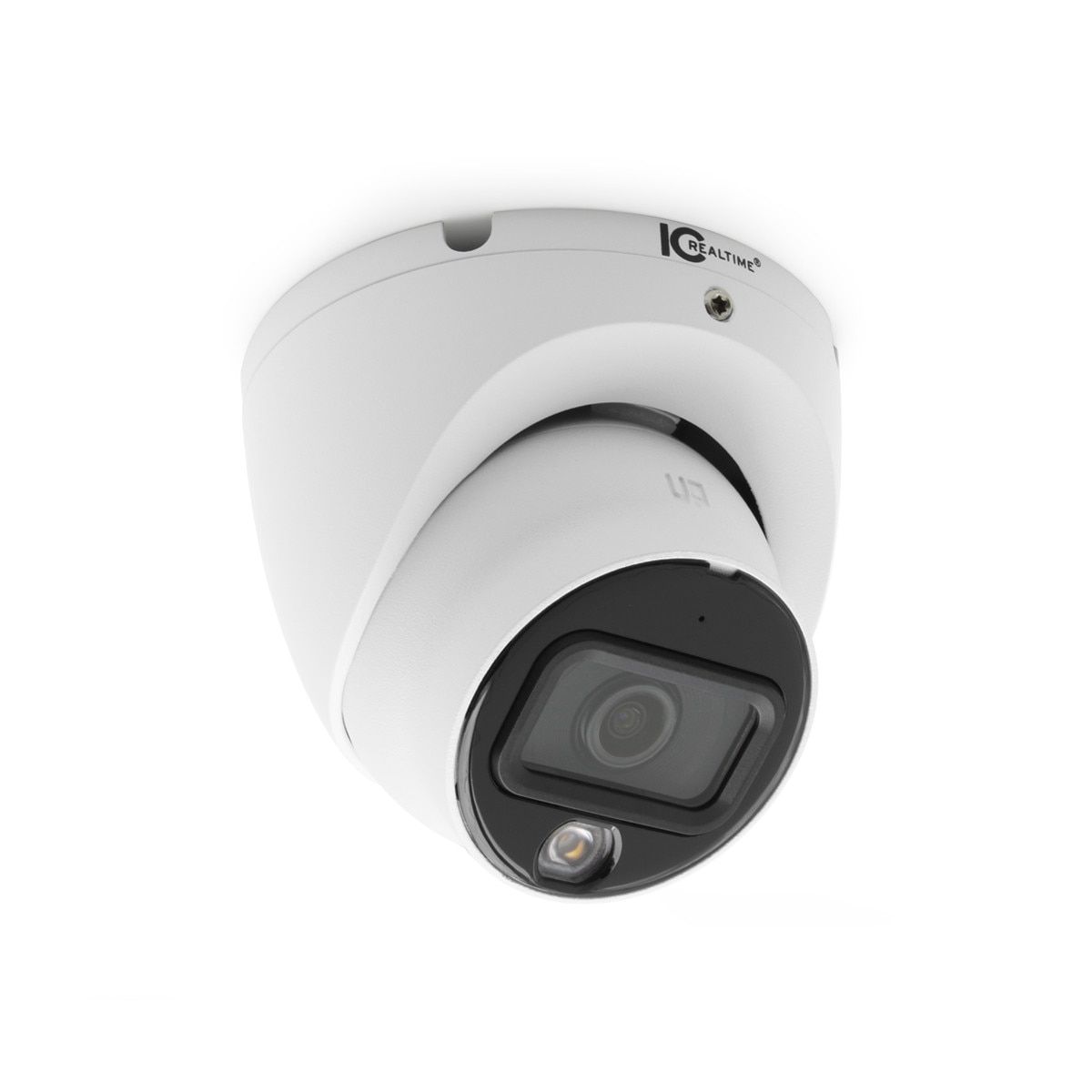

Introducing the latest addition to IC Realtime’s coaxial Edge lineup—the HDEG-E50F-DI-M1. This compact yet powerful Eyeball Turret Camera redefines clarity, reliability, and adaptability, ensuring it meets the demands of modern coaxial surveillance.
At the heart of the HDEG-E50F-DI-M1 is its 5 Megapixel CMOS image sensor, delivering crisp, high-definition images with low-light sensitivity. The 2.8mm fixed lens offers a wide 106° angle of view, capturing every detail within its 16:9 aspect ratio frame (2880 × 1620) at a smooth 25 frames per second. With dimensions of just 3.70" x 3.37", this camera provides professional-grade performance in a compact form factor.
Designed with Smart Dual Illumination technology, this camera is equipped with both IR and warm light LEDs. During low-light conditions, the HDEG-E50F-DI-M1 operates in IR mode to maintain unobtrusive visibility. However, when a target is detected (in conjunction with IC Realtime’s HDVR Intelligence), it switches to white-light illumination, delivering up to 65 feet of full-color footage for critical nighttime applications.
Engineered for durability, the HDEG-E50F-DI-M1 is IP67-rated, ensuring robust protection against dust and water ingress. Its DWDR (Digital Wide Dynamic Range) capability optimizes image clarity in challenging lighting conditions. Additionally, the built-in microphone captures high-quality audio, enhancing situational awareness and providing a comprehensive security solution.
With AVS, AHD, TVI, and CVBS support, the HDEG-E50F-DI-M1 offers consistent performance and easy integration into many existing coaxial surveillance systems with its multi-format output.
When paired with IC Realtime’s HDVR systems, this camera becomes a gateway to advanced surveillance features, including seamless integration with the IC Now desktop platform and the IC View+ mobile app for iOS and Android. This compatibility allows for flexible monitoring and management from virtually anywhere.
Specifications
| Camera | |
| Image Sensor: | 5 Megapixel CMOS |
| Effective Pixels: | 2880 (H) × 1620 (V) (5MP, 16:9) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | White Light/ IR Distance: 65.62 ft (20 m) |
| Illumination On/Off Control: | WL Mode; IR Mode Smart Dual Illumination Supported* (With appropriate HDVR and firmware) |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | Horizontal: 106° Vertical: 56° |
| Focus Control: | Fixed |
| Close Focus Distance: | 4.27 ft (1.3 m) |
| DORI - Detect: | 183 ft |
| DORI - Observe: | 73 ft |
| DORI - Recognize: | 36 ft |
| DORI - Identify: | 18 ft |
| Video | |
| Resolution: | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate: | AVS: NTSC: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps PAL: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps AHD: NTSC: 4MP@25 fps PAL: 4MP@25 fps TVI: NTSC: 4MP@25 fps PAL: 4MP@25 fps CVBS: NTSC: 960H PAL: 960H |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC; HLC; DWDR |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 2D NR |
| Smart IR: | Auto(ICR)/Color/B/W |
| Privacy Masking: | Off/On (8 areas, rectangle) |
| Iris Control: | Fixed |
| WDR: | DWDR |
| Interface | |
| Video Interface: | 1 BNC port Video output formats: AVS/ TVI/ AHD/ CVBS (Toggled by OSD) |
| RS485: | N/A |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC 12V ±30% |
| Power Consumption: | Max 3.1 W (12 VDC, Illuminators on) |
| Environmental | |
| Operating Conditions: | –40 °F to +140 °F (–40 °C to +60 °C); < 95% (non-condensation) |
| Storage Conditions: | –40 °F to +140 °F (–40 °C to +60 °C); < 95% (non-condensation) |
| Ingress Protection: | IP67 |
| Construction | |

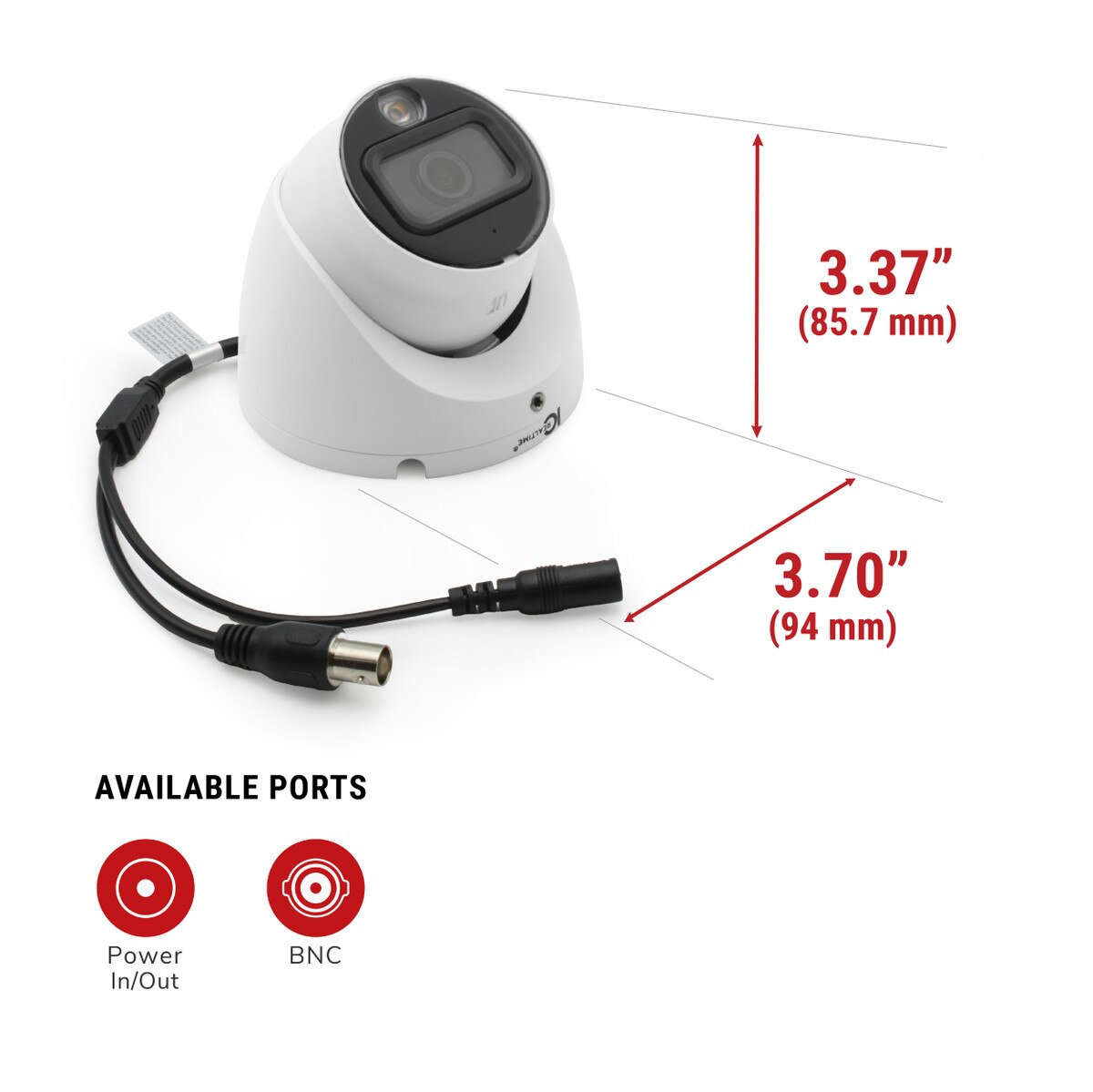

| Dimensions: | φ3.70" × 3.37" (φ94.0 mm × 85.7 mm) |
| Gross Weight: | 0.95 lb (0.43 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
