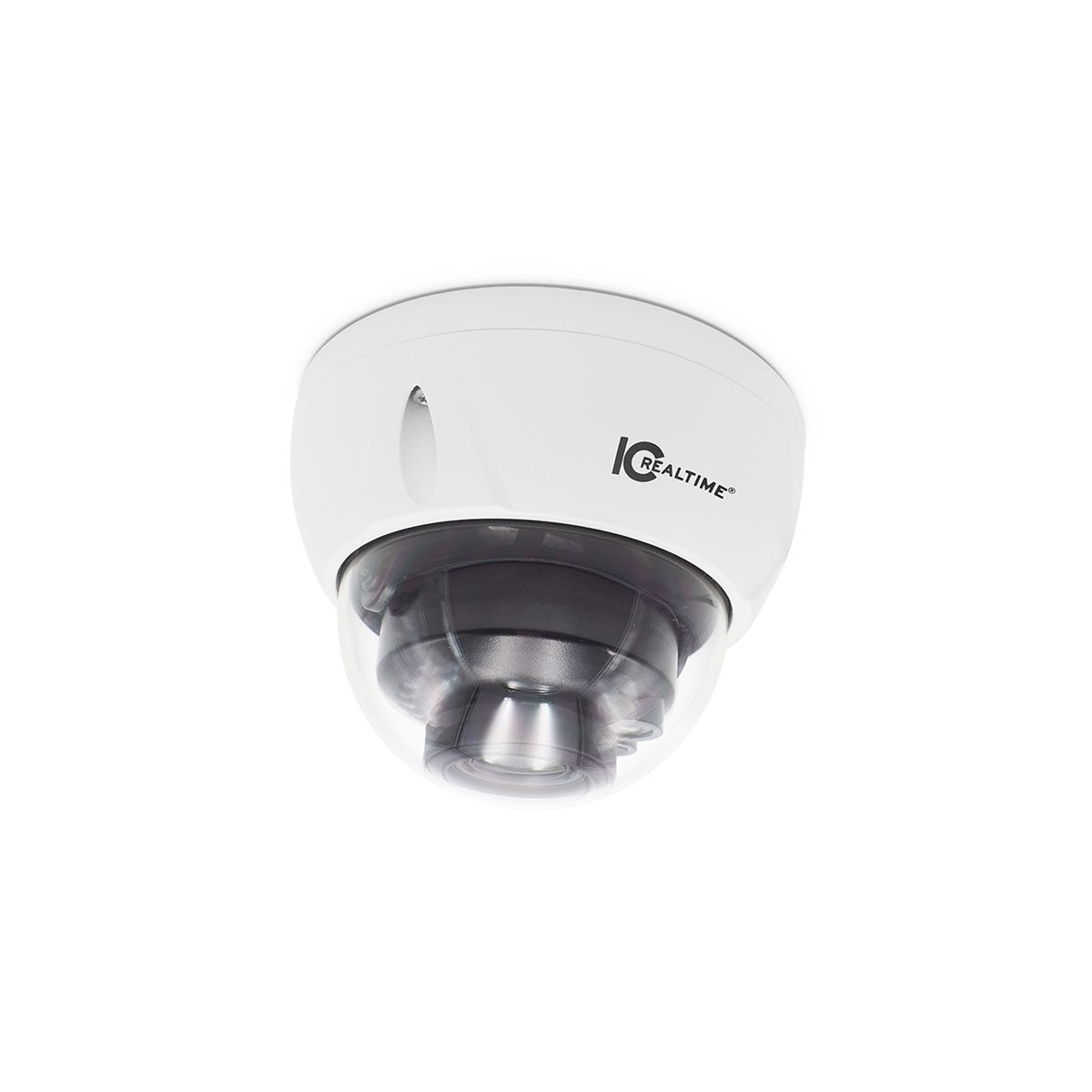

IPFX-D40V-IRW2
Details

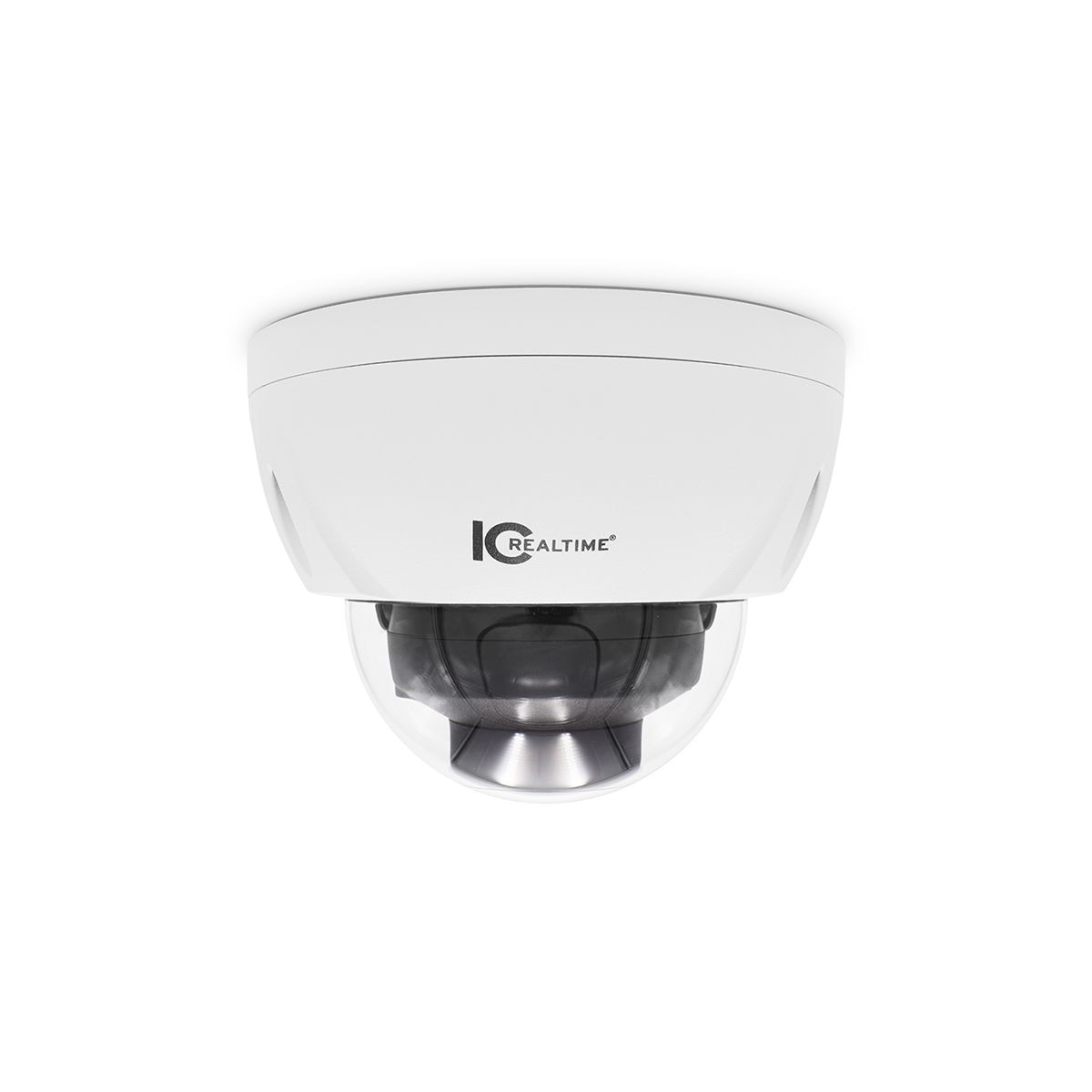

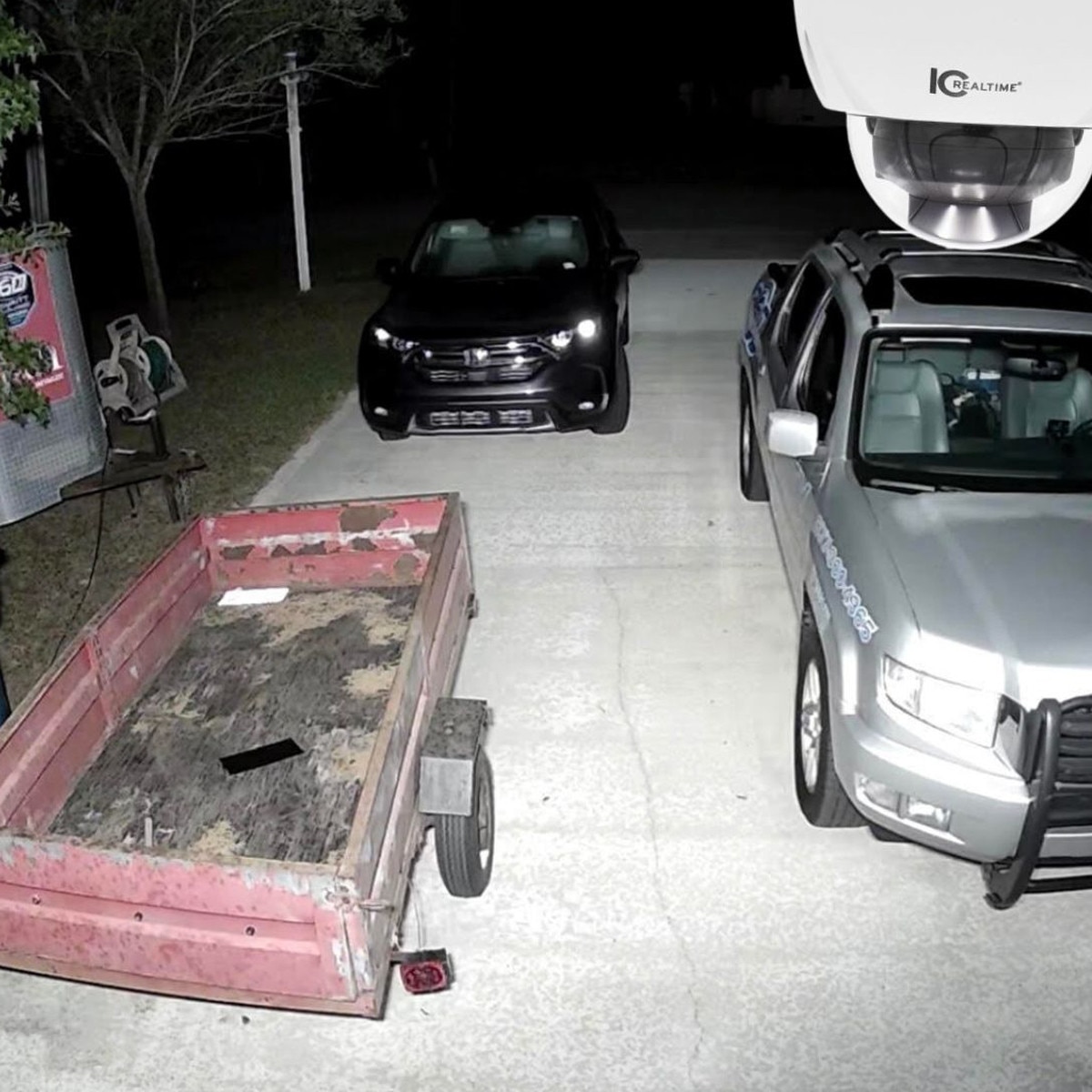

The IPFX-D40V-IRW2 is another variant of IC Realtime’s cutting edge FlexSmartAi 4MP dome camera that utilizes the latest generation of our Starlight video chipset. This massive 2.7” CMOS video sensor offers incredible 0.005 Lux@ low light performance and then controls the D40V’s 130+ feet SmartIR illumination for dependable video footage even in 0.00 lux darkness. The D40V is made in South Korea and TAA compliant, putting more government-funded jobs in your bid range.
Its adjustable view makes the D40V ideal for retail, commercial, school, and residential video security installations. With a remotely variable 2.7-13.5mm motorized zoom lens, the D40V’s field of view is variable from a wide 104° at 2.7mm to a tight 28° at full 13.5mm zoom. D40V’s flexibility enables you to dial in the perfect shot right from the NVR’s local monitor, through our free ICRSS PC or Mac software, or in the palm of your hand using the IC View or Dash app.

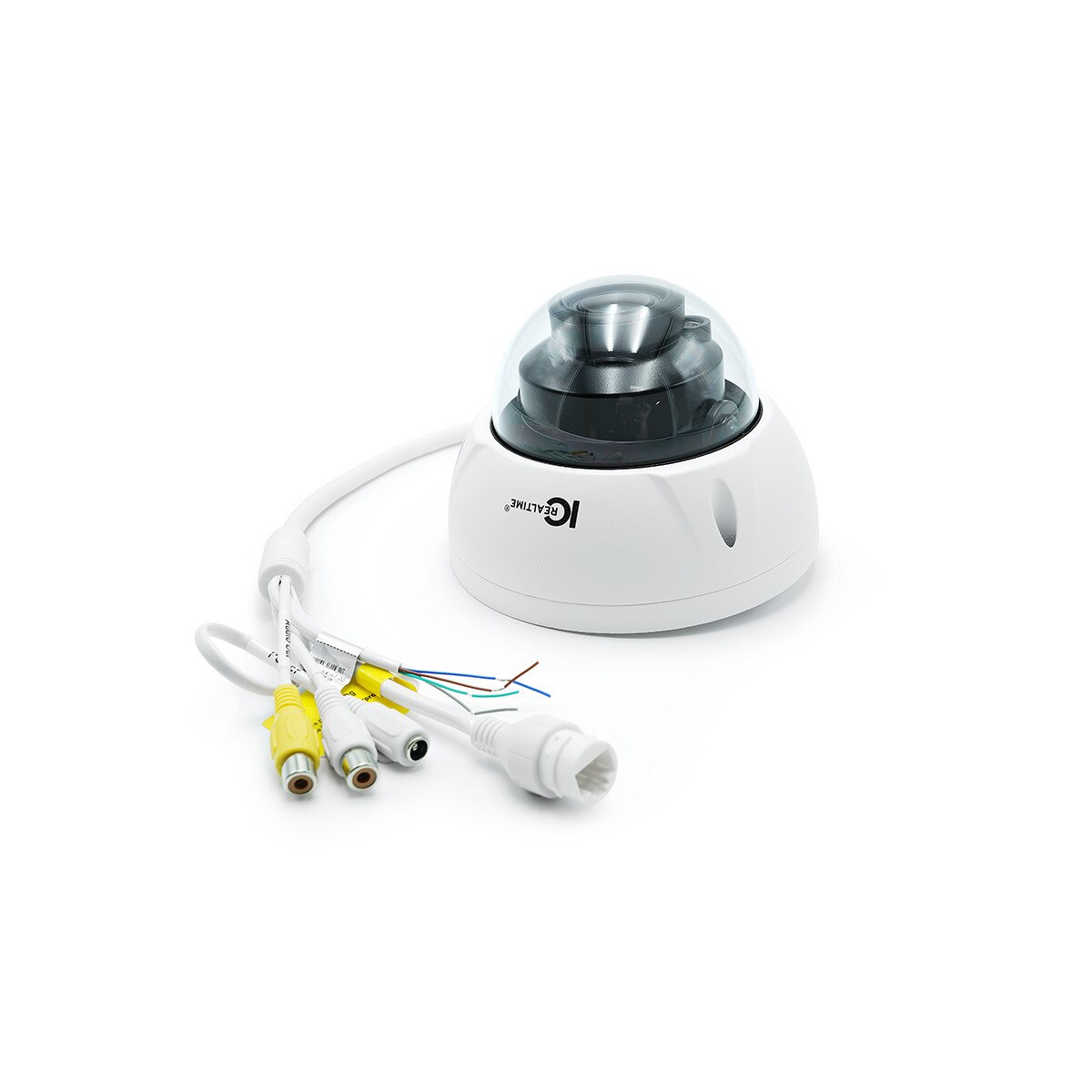

There are both alarm ports (In @ 5mA 5VDC/Out @ 300mA 12VDC) and audio in & out RCA jacks right on the camera pigtail. These ports give the ability for audio monitoring and alarm system interface.
The IPFX-D40V’s native 4MP (2688 x 1520) resolution enables highly defined video. The camera’s FlexSmartAi system enhances both camera and NVR based intelligent motion detection (IMD) and IVS tripwire performance, using deep learning & AI-enhanced detection for 90% fewer false alarms.
The IPFX-D40V uses scene-adaptive H.265 compression for flexible, multi-frame reference structure intelligent noise reduction and video compression, saving up to 70% of bandwidth and storage compared with standard H.265. The D40V also enables local recording with an internal 256 Gb SD card slot and is ONVIF / PSIA / CGI and P2P compatible. Where 9.8 watts of PoE power is not available, the D40V can be powered by 12VDC, and the D40V carries multiple electromagnetic & electrical certifications, including UL & FCC.
Tolerant of wide voltage variations, the D40V’s advanced power system allows for ±25% input voltage tolerance for the most unstable conditions and outdoor applications and carries a 2KV lightning rating. Its metal case complies with IP67 weatherproofing and IK10 impact rating making it capable of withstanding the equivalent force of 11 lbs. of force dropped from a height of 15.75 inches.
IC Realtime exists to help our dealers succeed & grow by selling & installing only the best video security gear. Every product in the IC Realtime Video Ecosystem has is designed to help you win your next security camera job. Call your local IC Realtime distributor, or call your IC Realtime factory rep toll-free at (866) 997-9009. A factory product specialist will do a no-obligation, live online demo to show you the D40V, and answer all your questions.
Ask about IC Realtime’s industry-leading warranties, our U.S. based Tech Support, and our concierge-level Dealer Program. Registered dealers have their own factory rep and complete access to everything IC Realtime online via their own Dealer Portal or in our new ICR Companion app. To see the IPFX-D40V-IRW2 and IC Realtime’s complete B2B product line check us out at https://www.icrealtime.com
Specifications
| Camera | |
| Image Sensor: | 1/2.7”4Megapixel progressive CMOS |
| Effective Pixels: | 2688(H) x 1520(V) 4 Megapixels |
| RAM/Rom: | 128MB / 512MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005 Lux@F1.5 (Color, 30IRE) 0.0005 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on) |
| Illumination Distance: | Distance up to 40m (131ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized |
| Mount Type: | Board-in |
| Focal Length: | 2.7-13.5mm |
| Max. Aperture: | F1.5 |
| Angle of View: | Horizontal: 104°–27° Vertical: 55° –15° Diagonal: 124° –31° |
| Focus Control: | Motorized |
| Close Focus Distance: | 2.6 ft )0.8 m) |
| DORI - Detect: | 64m (210ft) / 222m (728ft) |
| DORI - Observe: | 25.6m (84ft) / 88.8m (291ft) |
| DORI - Recognize: | 12.8m (42ft) / 44.4m (145ft) |
| DORI - Identify: | 6.4m (21ft) / 22m (72ft) |
| Intelligence | |
| IVS: | Tripwire, Intrusion (50 objects max) |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream (2688 × 1520@1–25/30 fps) Sub Stream (704 × 576@1–25 fps/704 × 480@1–30 fps) Third Stream (1280 × 720@1–25/30 fps) |
| Bit Rate Control: | CBR/ VBR |
| Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| WDR: | 120dB |
| Audio | |
| Compression: | G.711a; G.711Mu; G726; AAC |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability: | ONVIF(Profile S/Profile G); CGI; P2P; Milestone |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (Total bandwidth: 64 M) |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD Card 256GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | IOS; Android |
| Interface | |
| Video Interface: | N/A |
| Audio I/O: | 1-channel Input (RCA port) 1-channel Output (RCA port) |
| Alarm I/O: | 1 channel in: 5mA 3V–5V DC 1 channel out: 300mA 12V DC |
| Memory Slot: | Micro SD Card 256GB |
| Electrical | |
| Power Supply: | 12V DC/PoE (802.3af) |
| Power Consumption: | <8.5W |
| Environmental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |

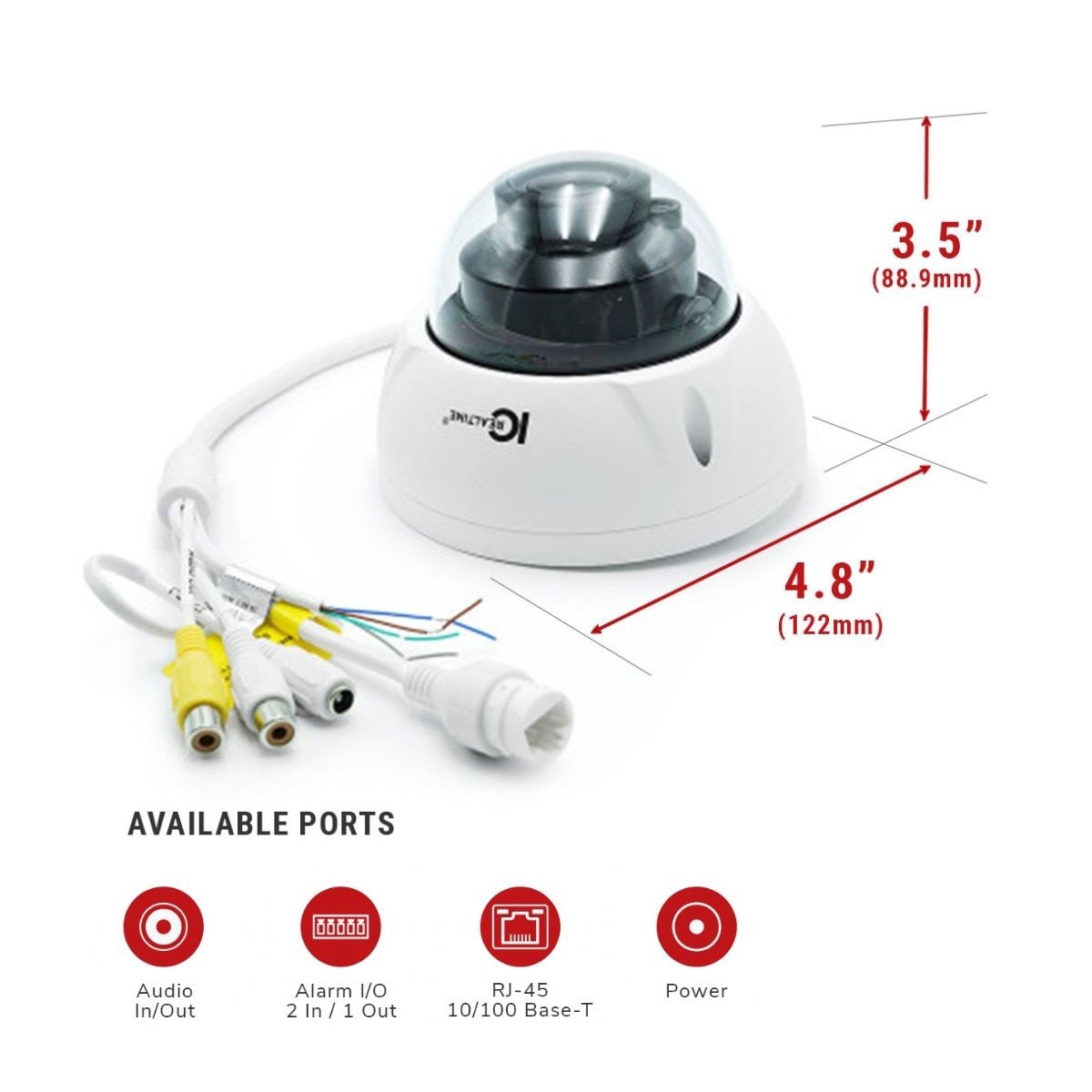

| Dimensions: | 122 mm × 88.9 mm (4.8" × 3.5") |
| Gross Weight: | 1.5 lb (663 g) |
| Mounting Pan/Tilt/Rotation: | Horizontal: 0°–355°; vertical: 0°–75°; rotation: 0°–355° |
