IPMX-E40F-W2-LED
Details
Product Description
IPMX-E40F-W2-LED — 4MP Pro Full-Color Turret with Advanced AI
Premium full-color eyeball camera built on a large STARVIS™ sensor with extended warm LED illumination and a pro-grade AI suite for smarter, brighter security.
Overview
The IPMX-E40F-W2-LED elevates 4MP full-color performance with superior low-light imaging, long-range warm LEDs, and integrated mic & speaker. Advanced analytics deliver actionable insights in a compact, installer-friendly turret.
Purpose
Designed for demanding deployments that need clear color video at night, live communication, and smarter AI events—while reducing service calls with reliable hardware and flexible power.
Key Benefits
- Superior low-light clarity from 1/1.8" STARVIS™ CMOS
- Full-color coverage at night with warm LEDs up to 98 ft (30 m)
- AI Features: iMD 2.0, Perimeter Protection, Intrusion and Tripwire
- Installer-friendly reliability with redundant power and expanded edge storage
Quick Specs
Image Sensor
1/1.8" 4MP STARVIS™ CMOS
Min. Illumination
0.0005 lux
Lens
2.8 mm fixed
LED Range
Warm LEDs to 98 ft (30 m)
WDR
120 dB
Frame Rate
4MP @ 30 fps
Audio
Built-in mic
AI Features
iMD 2.0, Perimeter Protection, Intrusion and Tripwire
Storage
microSD up to 256 GB
Ingress
IP67
Power
12VDC / PoE
Weight
0.93 lb (0.42 kg)
Applications
- 24/7 full-color surveillance for commercial & residential sites
- Analytics-driven deployments: retail, parking, smart city
- High-security projects requiring reliability & intelligence
FAQ
What makes this a “Pro” full-color turret?
A larger STARVIS™ sensor, long-range warm LEDs and a robust AI suite deliver premium performance in one compact camera.
How far do the LEDs reach?
Up to 98 ft (30 m) for full-color imaging at night.
What AI features are included?
iMD 2.0, Perimeter Protection, Intrusion and Tripwire.
Is it suitable for mission-critical installs?
Yes—redundant power options and up to 256 GB edge storage enhance reliability.
Specifications
| Camera | |
| Image Sensor: | 1/1.8” CMOS (i-Sniper Pro) |
| Effective Pixels: | 2688 (H) ×1520 (V) |
| RAM/Rom: | 128MB /256 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.0005 lux@F1.0 |
| S/N Ratio: | > 56 dB |
| Illumination Distance: | Distance up to 98 ft (30 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 (Warm White) |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | Module |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.0 |
| Angle of View: | Horizontal: 112°, Vertical: 60° |
| Close Focus Distance: | 6.56 ft (2 m) |
| DORI - Detect: | 189.96 ft (57.9 m) |
| DORI - Observe: | 76.12 ft (23.2 m) |
| DORI - Recognize: | 38.06 ft (11.6 m) |
| DORI - Identify: | 19.03 ft (5.8 m) |
| Intelligence | |
| IVS: | Tripwire, Intrusion |
| Advanced Intelligent Functions: | People Counting, loitering detection, people gathering, and parking detection, Smart abandoned object/ missing object, Video Metadata, Face Detection & People Counting. Perimeter Protection: Tripwire; Intrusion, Fast Moving Intelligent Motion Detect 2.0 |
| Video | |
| Compression: | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) |
| Streaming Capability: | 2 streams |
| Resolution: | 4M (2560 × 1440); 3M 2304 x 1296); 1080p (1920 × 1080); 720p (1280× 720); D1 (704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240) |
| Frame Rate: | Main stream: 2688 × 1520@(1–20 fps)/ 2560 × 1440@ (1–25/30 fps) Sub stream1: 704 × 576@(1–25 fps)/ 704 × 480@(1–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Day/Night: | Color/B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 2DNR/3DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| WDR: | DWDR |
| Audio | |
| Compression: | PCM; G.711a; G.711Mu; G.726; G.723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability: | ONVIF(Profile S/ Profile G/ Profile T);CGI;P2P |
| Max. User Access: | 20 Users (Total bandwidth: 48 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (Max. 256 GB); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Memory Slot: | Micro SD card (Max. 256 GB) |
| Electrical | |
| Power Supply: | 12 VDC; PoE |
| Power Consumption: | Basic: 2.0 W (12 VDC); 2.5 W (PoE) Max. (H.265+ intelligence on + WDR + illuminator intensity): 5.3 W (12 VDC); 6.4 W (PoE) |
| Environmental | |
| Operating Conditions: | –40 °F to +140 °F (40 °C to +60 °C ) |
| Operating Humidity: | ≤95% (RH), non-condensing |
| Storage Conditions: | –40 °F to +140 °F (40 °C to +60 °C ) |
| Storage Humidity: | ≤95% (RH), non-condensing |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Inner core: Metal; Cover: Plastic |

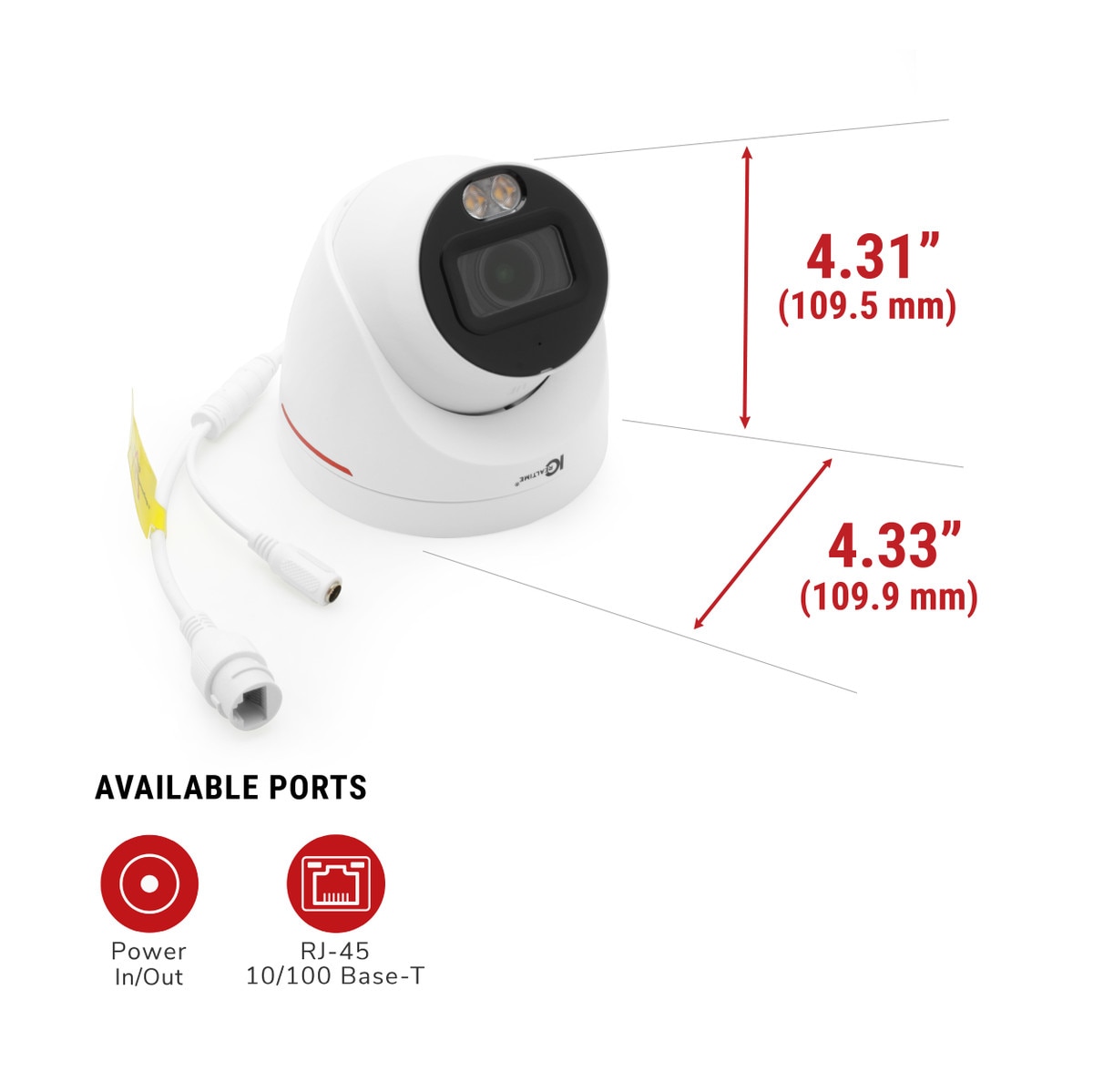

| Dimensions: | 4.31" × Φ4.33" (109.5 mm × Φ109.9 mm) |
| Gross Weight: | 1.30 lb (0.59 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–90° Rotation:0°–360° |
