IPMX-B40F-ADW1
Details
IC Realtime’s new IPMX-B40F-ADW1 is not only the newest member of our 24/7 Starlight Color camera series, it has Active Deterrence capabilities that can challenge intruders - even in your own voice - when you can’t be there to do it yourself. The camera also has audio surveillance capabilities and even 2-way communication skills with a built-in mic & speaker. They even have audio in/out jacks to integrate with gate & door systems and alarm in/out ports to integrate with alarm systems.
AN AWESOME CAMERA…
IPMX-B40F-ADW1 is part of our 24/7 Starlight Color series. These new cameras use our latest Starlight video chipsets and a wide aperture lens to stream state-of-the-art color video down to 0.003 Lux - darker than a moonless night, and 140+ft of full-spectrum LEDs for color images even in total darkness.
… THAT DOES MORE THAN JUST WATCH
Active Deterrence activation can be set to instantly notify you by push or app notification or email when someone sets it off and can be set to challenge intruders by illuminating its police-style red & blue flashing lights, and/or a siren to warn them away. You can even do that in your own voice by recording a customizable verbal warning or speaking directly to them with 2-way talk through the phone app.
SMART ENOUGH FOR ACCURATE DETECTIONS
Equipped with IC Realtime’s Artificial Intelligence human & vehicle detection with Intelligent Motion Detect and Perimeter Protection, the new IPMX-B40F-ADW1 already knows what to look for to detect intruders. And when detection occurs, the camera marks the NVR’s channel's recording timeline at the event time so you can roll back that channel & review the footage.
Taking security cameras to the next level has been IC Realtime’s development tradition for over 2 decades. Our cameras have always been state-of-the-art, unblinking witnesses that observe & deter mischief around your home & business. Now the IPMX-B40F-ADW1 Active Deterrence IP bullet can do more than just observe - it can actively step in to deter intrusion.
AN AWESOME CAMERA…
IPMX-B40F-ADW1 is part of our 24/7 Starlight Color series. These new cameras use our latest Starlight video chipsets and a wide aperture lens to stream state-of-the-art color video down to 0.003 Lux - darker than a moonless night, and 140+ft of full-spectrum LEDs for color images even in total darkness.
… THAT DOES MORE THAN JUST WATCH
Active Deterrence activation can be set to instantly notify you by push or app notification or email when someone sets it off and can be set to challenge intruders by illuminating its police-style red & blue flashing lights, and/or a siren to warn them away. You can even do that in your own voice by recording a customizable verbal warning or speaking directly to them with 2-way talk through the phone app.
SMART ENOUGH FOR ACCURATE DETECTIONS
Equipped with IC Realtime’s Artificial Intelligence human & vehicle detection with Intelligent Motion Detect and Perimeter Protection, the new IPMX-B40F-ADW1 already knows what to look for to detect intruders. And when detection occurs, the camera marks the NVR’s channel's recording timeline at the event time so you can roll back that channel & review the footage.
Taking security cameras to the next level has been IC Realtime’s development tradition for over 2 decades. Our cameras have always been state-of-the-art, unblinking witnesses that observe & deter mischief around your home & business. Now the IPMX-B40F-ADW1 Active Deterrence IP bullet can do more than just observe - it can actively step in to deter intrusion.
Specifications
| Camera | |
| Image Sensor: | 1/2.7”4 Megapixel progressive CMOS |
| Effective Pixels: | 2688 (H) × 1520 (V) |
| RAM/Rom: | 128MB/ 512MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.003 Lux @ F1.0 |
| Illumination Distance: | Up to 131.2 ft (40 m) |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Fixed-focal |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.0 |
| Angle of View: | Horizontal:103°; vertical: 53°; |
| Close Focus Distance: | 3.9 ft (1.2 m) |
| DORI - Detect: | 221ft |
| DORI - Observe: | 88ft |
| DORI - Recognize: | 44ft |
| DORI - Identify: | 22ft |
| Intelligence | |
| IVS: | Tripwire, Intrusion (50 objects max) |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) |
| Frame Rate: | Main stream: 2688 × 1520@1–25/30 fps Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps Third stream: 1280 × 720@1–25/30 fps |
| Bit Rate Control: | CBR /VBR |
| Bit Rate: | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Day/Night: | Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | OFF/ON (4 areas) |
| Region of Interest: | Yes (4 areas) |
| Flip: | 0°/90°/180°/270° (Supports 90°/270° with 1920 × 1080 resolution and lower) |
| WDR: | 120dB |
| Audio | |
| Compression: | G.711a; G.711Mu; G726 |
| Network | |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Max. User Access: | 20 Users (Total bandwidth: 64 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (max. 256 GB); NAS |
| Web Viewer: | Chrome, IE, Edge, Safari, Firefox |
| Management Software: | Smart ICRSS |
| Smart Phone: | iOS, Android |
| Interface | |
| Audio I/O: | Built-in Microphone; Audio In/ Out (RCA ports) |
| Alarm I/O: | 1 channel in: 5mA 3V–5V DC 1 channel out: 300mA 12V DC |
| Memory Slot: | Micro SD card max. 256 GB |
| Electrical | |
| Power Supply: | 12V DC/PoE (802.3af) |
| Power Consumption: | Basic power consumption: 2.8W (12V DC); 3.4W (PoE) Max. power consumption (H.265 + warm LED + IVS + siren + red and blue lights flashing): 8.1W (12VDC); 9.7W (PoE) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than 95% RH |
| Storage Conditions: | –40°F to +140°F (–40°C to +60°C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |

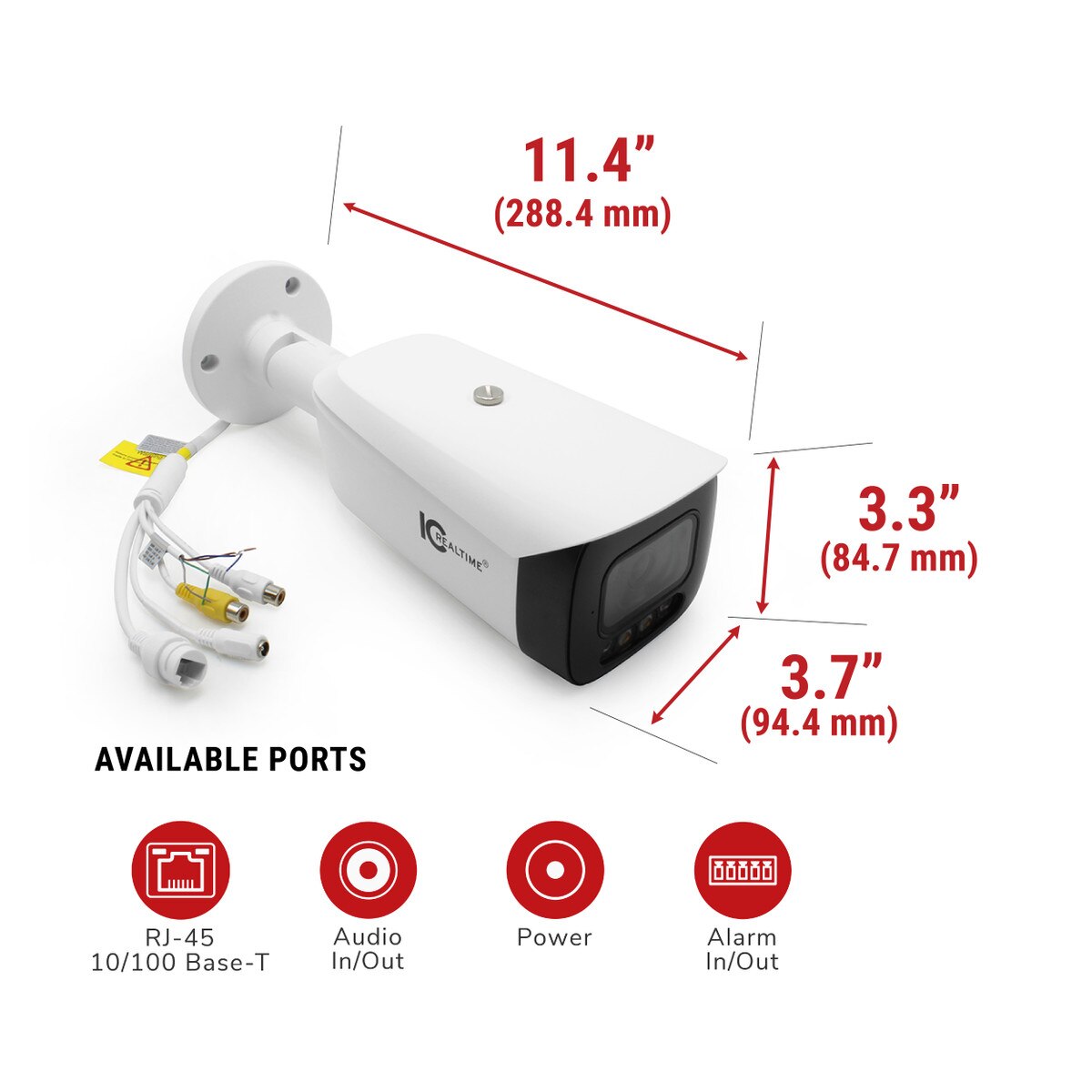

| Dimensions: | 11.4" × 3.7" × 3.3" (288.4 mm × 94.4 mm × 84.7 mm) |
| Gross Weight: | 2.7 lb (1.23 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
