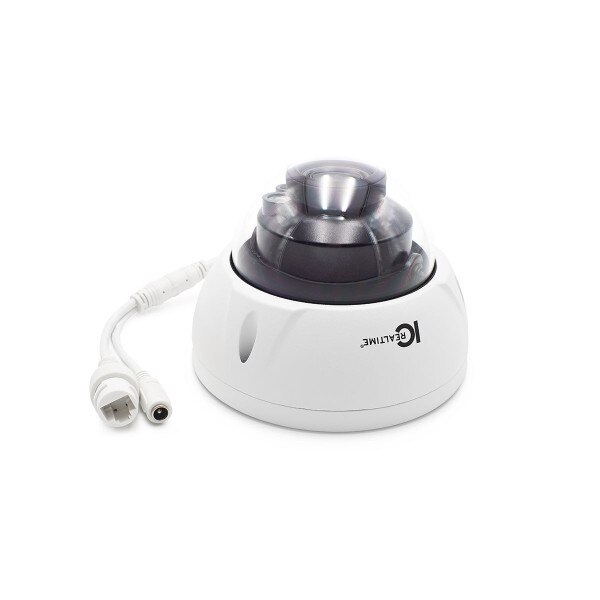

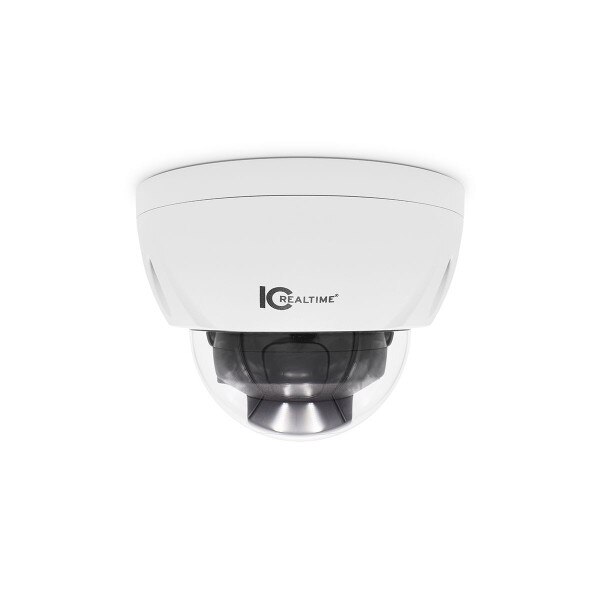

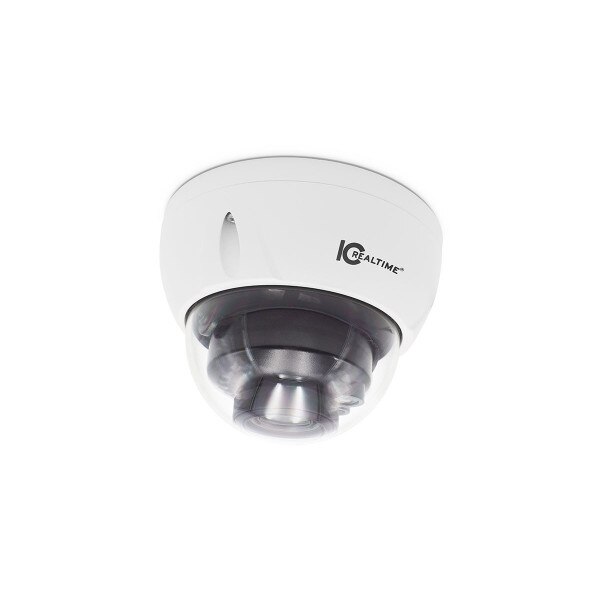

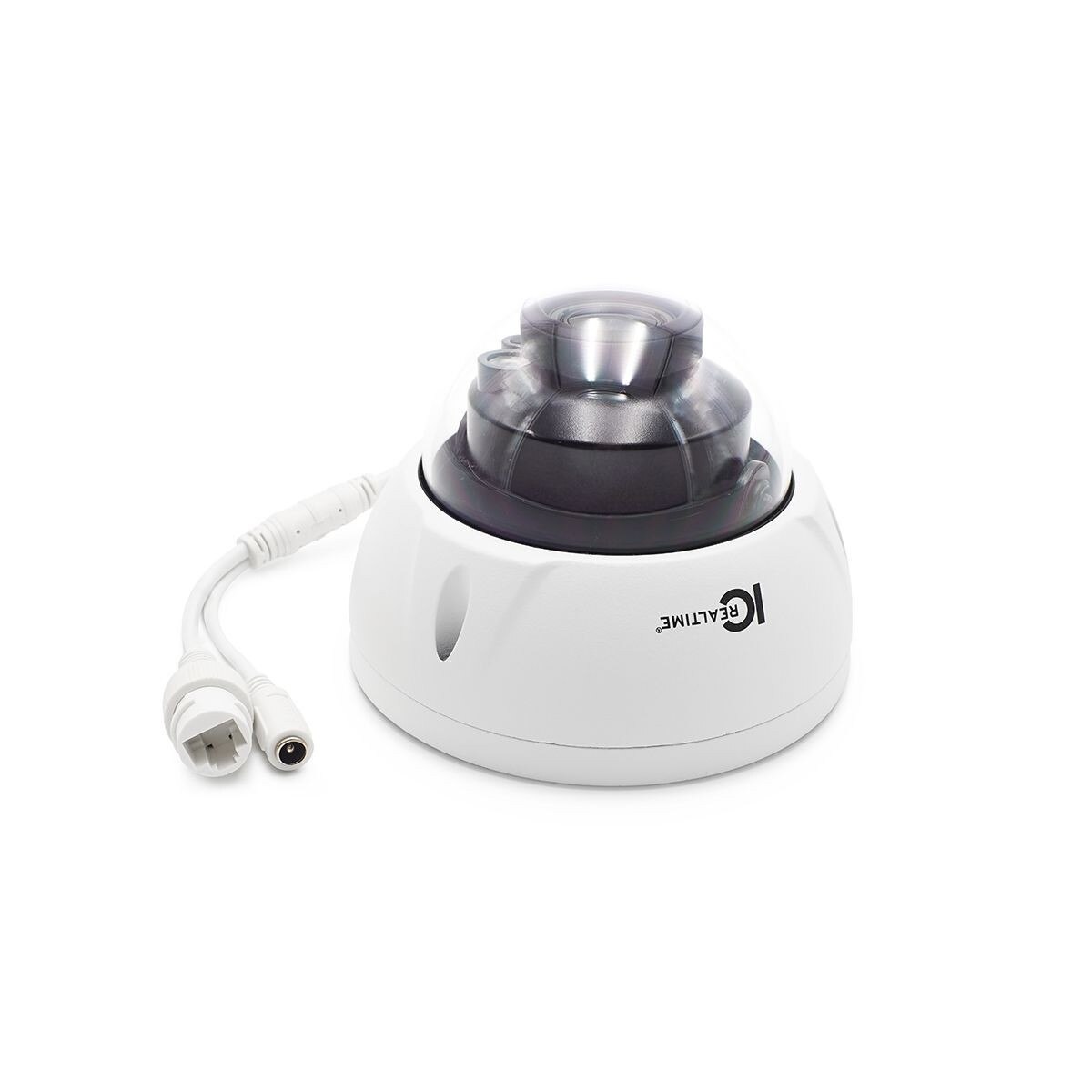

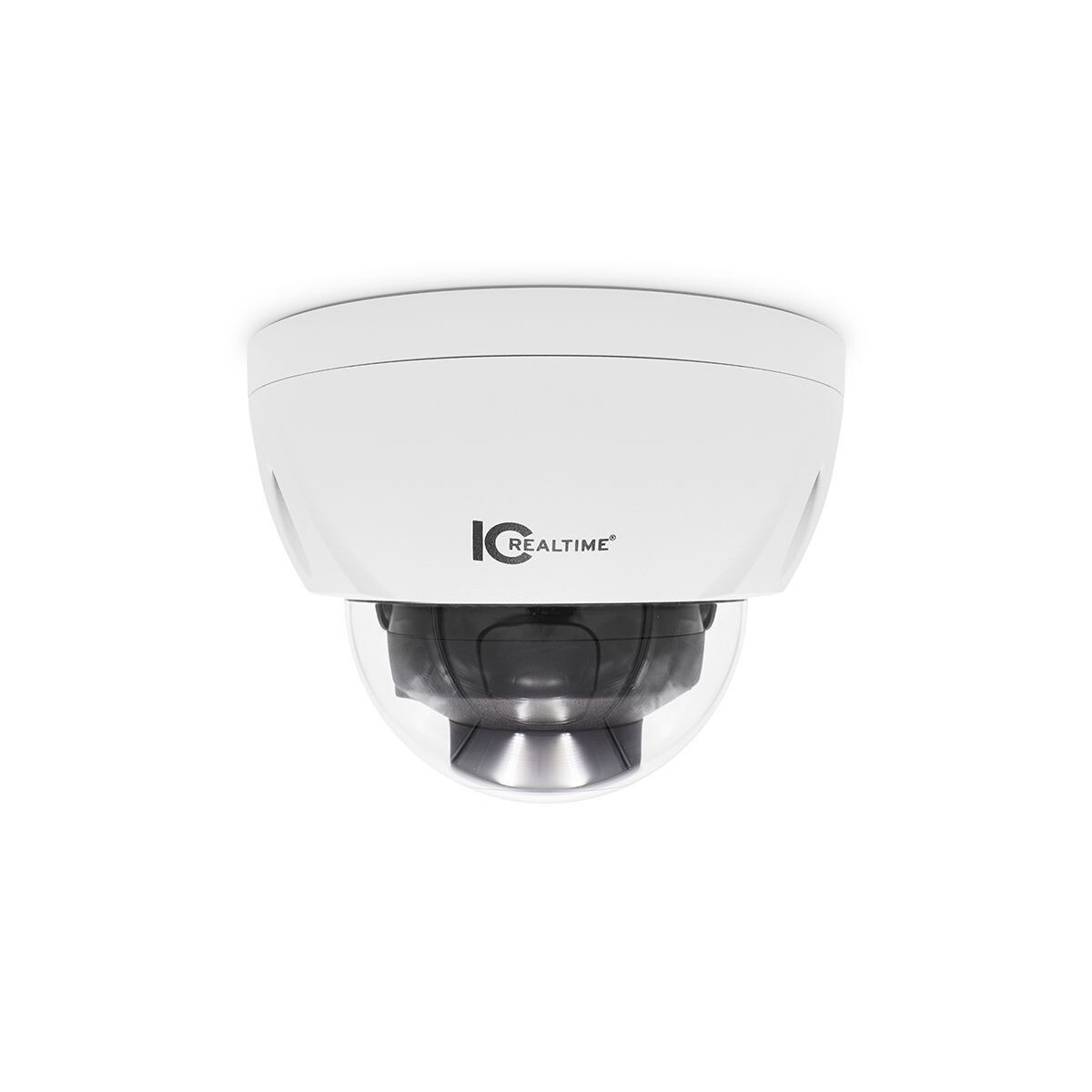

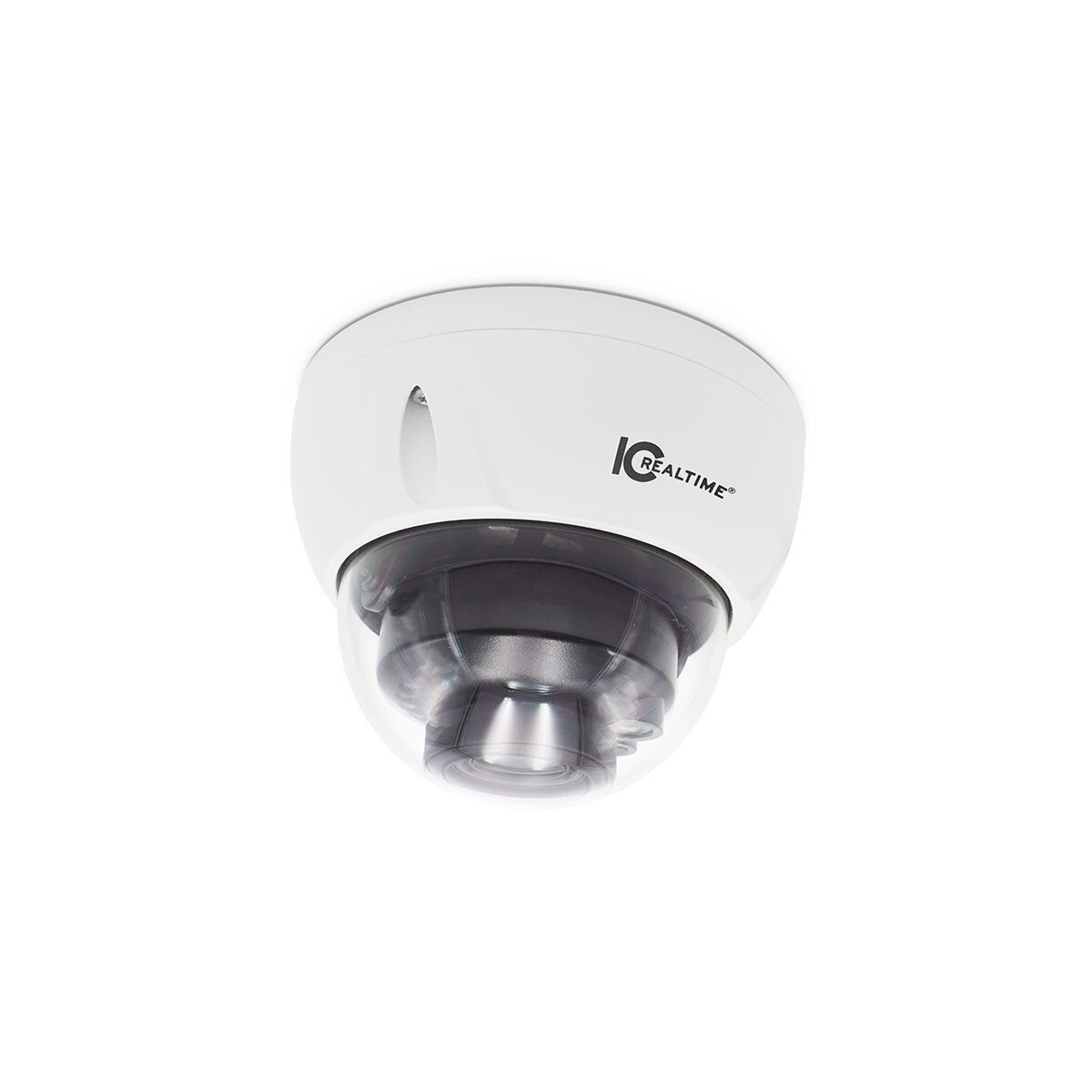

Introducing the new 2022 version of IC Realtime's most advanced 4K powerhouse vandal dome - the IPFX-D80V-IRW2. This vandal-resistant dome camera is the newest update of the current IPFX-D80V-IRW1, which is already one of our most advanced cameras. Although it looks unchanged from the outside, the camera’s “guts” have been re-designed & upgraded with a new Starlight sensor chip for amazing low-light performance, and the camera’s Ai skill sets have been optimized to render & record highly detailed images for the most accurate facial & vehicle identification possible.
IPFX-D80V-IRW2’s camera-based human detection and business intelligence functions are now AI-supplemented, taking them to the next level with the ability to analyze & directly report human movements to perform people counting or record an individual’s appearance details & facial attributes. With this update, IC Realtime once again demonstrates our contention that  Intelligent video surveillance is the perfect use for 4K Ultra High Definition.

The IPFX-D80V-IRW2's 8MP new Starlight sensor chip continues the V 1.0 model’s 4K UHD pixel density & resolution, but this new 2.0 version now delivers full Starlight color performance down to .004 lux before switching to grayscale down to .0004 lux, supplemented with 130+ feet of auto-activated Smart IRs. This defines state-of-the-art UHD night vision, delivering dependable, detailed coverage even in complete darkness - outside or indoors.  This densely-packed sensor chip acquires its photons through an autofocus power zoom 2.7mm – 12mm varifocal lens system that gives a zoom-dependent 110.4°– 45° wide field of view. IPFX-D80V also comes equipped with IC Realtime's industry-leading 120db WDR and 3D Digital Noise Reduction auto exposure and video management systems for UHD-sharp details.

IC Realtime’s FlexSmartAi system empowers a deep learning algorithm that enhances IVS motion detection, and the camera’s 8MP pixel density allows more data points for high accuracy frame-by-frame analysis. This adds up to a 90% reduction in false detection alerts.
Stream management becomes even more vital with 4k video streams, so the IPFX-D80V utilizes IC Realtime's H.265+ video stream compression. This part of the FlexSmartAi system uses a scene-adaptive video codec that uses adjacent multi-frame references and applies intelligent noise reduction to fill in missing pixels for the complete video picture while simultaneously managing streaming bit rates. This level of frame-by-frame video management and high-speed analysis & compression means storage requirements are reduced by up to 70% compared to standard H.264 and less network load.

ePOE uses advanced 2D-PAM3 coding modulation to deliver 2600+ ft.@ 10Mbps, or 300 meters at the speed of 100Mbps @ 980+ ft. via Cat 5 or coaxial cable and supports PoE power. ePoE is a new digital signal format that enables reliable long-distance power & data streams between IP cameras and network switches. It both simplifies construction and wiring and improves connection reliability.  The IPFX is one of our most advanced cameras, making it perfect for complete forensic evidence recording & post-incident review capabilities. The audio I/O ports and  The IPFX-D80V also includes audio in/out ports that will encode audio in the camera’s output stream to eliminate audio wiring hassles and also has alarm I/O ports for alarm system integration & triggering that can be set up for IPFX-D80V's IVS detection alerts when defined in its IVS "tripwire" rules, providing court-admissible forensic video when digital watermarking is enabled.

Beyond its audio & UHD video features, IPFX-D80V's commercial-grade features include 12VDC local power capability in case 10w of PoE isn't available, supports an internal 256Gb mSD card, and is IP67 weather-rated. Of course, the IPFX-D80V is ONVIF, P2P, and CGI compatible and is UL listed. All IC Realtime cameras & recorders are protected by multiple layers of authorization & password protections to ensure security on both the device & network levels. Network traffic is always encrypted in both directions, and our IP security devices meet or exceed cybersecurity standards and are updated regularly.

If you are looking for the industry’s best 4K UHD video quality, easy installation, and vandal & weather resistant reliability IC Realtime’s new IPFX-D80V-IRW2 fits the bill perfectly. Seeing is believing, so call your local IC Realtime distributor or your IC Realtime factory rep toll-free at (866) 997-9009 for a live, no-obligation online demo to see the amazing IPFX-D80V-IRW2 for yourself.
