IPEL-D12V-IRW2

(0) No Reviews yet
SKU: IPEL-D12V-IRW2
Jump to Product Specs

Details

IPEL-D12V-IRW2: 4K AND BEYOND
A few years back, when 4K was first introduced, it seemed impossibly data-intensive for standard commercial deployment, and the required video chipsets were so expensive and delicate that using them for security cameras would just be too complex & would cost way too much. At that point in 4K technology, only studio-level cameras made economic sense. Artificial intelligence was the same way - amazingly capable but just way beyond available (and affordable) commercial video technologies.

THAT WAS THEN.
THE NEW IPEL-D12V-IRW2 IS NOW.

IC Realtime's new D12V quite simply the highest resolution and most advanced FlexSmartAi camera we have ever produced. If you are looking for the best 4K Ultra High Definition (UHD) dome security camera in the world,  you have found it. It's hard to know where to begin when listing the D12V's advanced features, but let's start with the amazing 12-megapixel sensor chip at the heart of the camera.

12MP 1/1.7" UHD EXTREME RESOLUTION VIDEO CHIPSET
The pixel density required for 4K ultra high resolution is at the cutting edge of commercial camera technology, and the D12V's delivers with 4000 horizontal  × 3000 vertical pixels. That's a 12 million pixel grid arrayed across a 1/1.7 "CMOS video chip that the camera's sensor management software scans at 25 to 30 Frames Per Second (FPS) to achieve its astonishingly clear, full-motion video.

POWERED ZOOM LENS
A video chip this excellent demands a great lens to feed it an optically sharp image for maximum resolution, and the D12V's 2.8mm (medium wide angle) to 12MM (medium telephoto) power zoom lens is the perfect match, achieving a variable 103°–44°  horizontal field of view. Zoom control is easily accomplished with an on-screen pop-up menu or via phone app control.

NIGHT VISION WITH BRAINS
D12V uses the FlexSmartAi - integrated Smart IR technology to constantly regulate the intensity of its 3 large IR LED illuminators and adjust the camera's advanced autoexposure settings. This means D12V achieves both maximum image clarity and a night vision range of over 130 feet.

ADVANCED VIDEO CONTROL FEATURES & THEN SOME
Of course, like all IC Realtime professional-grade cameras, D12V has every video enhancement & control function we could jam in, including Digital Wide Dynamic Range control, 3D Video Noise Reduction, image rotation, advanced Highlight & Backlight control, court-admissible Digital Watermarking.... you get the idea.

EXTREME DETECTION & RECOGNITION
D12V's hyper-dense pixel field & resolution means unparalleled detection capabilities. The camera's built-in FlexSmartAi capabilities are the best we have ever offered, and due to the 12 million pixel "data points" provided in each frame, the D12V's D.O.R.I. ratings are off the chart - for example, at the lens's 12mm optical telephoto setting, dependable facial recognition range is over 65 feet!

ADVANCED CAMERA FlexSmartAi SUITE
From facial detection to Metadata tagging for later quick search & retrieval, from people counting & queue management, from ANPR license plate recognition to vehicle & driver detail detection (car make & model, color) the new D12V is ready to make it happen. Its advanced Deep learning capabilities include abandoned object & missing object detection, and IVS Tripwire & Perimeter Protection algorithms cut false alarms by over 90%. D12V's built-in Face Detection & capture capabilities can even analyze facial expressions! Simply put, the new D12V has IC Realtime's latest & most complete FlexSmartAi suite built-in.

4K RESOLUTION AT LOW DATA STREAM LOADS
To stream it's impressive 4K video, the D12V uses our most advanced Ai-assisted H.265 video compression codec, achieving an ultra-low bit rate of 32 kbps–14080 kbps. D12V can stream both SMART H.264+ with Scalable Video Coding (SVC) for added detail & depth and HVEC H.265+, our exclusive AI-enhanced compression for maximum NVR compatibility.

A VIDEO STREAM FOR EVERY NEED
Not every video feed needs to be 4K, so to manage video efficiency and minimize the effects of mobile bandwidth restrictions, the D12V can stream five adjustable streams, of which 3 can be full HD video. Region Of Interest (ROI) can be assigned for each stream to allow specific areas to be more closely monitored.

BUILT-IN CYBERSECURITY
D12V ensures cybersecurity with encrypted video transmissions and encrypted SD card storage, multi-stage password & access level controls, and trusted protection settings for maximum access & stream protections.

SMALL CASE, BIG CAMERA
Despite the D12V's cutting edge capabilities, at a little over 5" in diameter and 6.25" tall, it is no larger than a standard mid-sized dome security camera, and its metal case and Lexan dome are both IP67 weatherproof with an operating range of –40°F to +140°F and rugged with an IK10 vandal-resistant rating.

WIDE POWER OPTIONS & GREAT CONNECTIONS

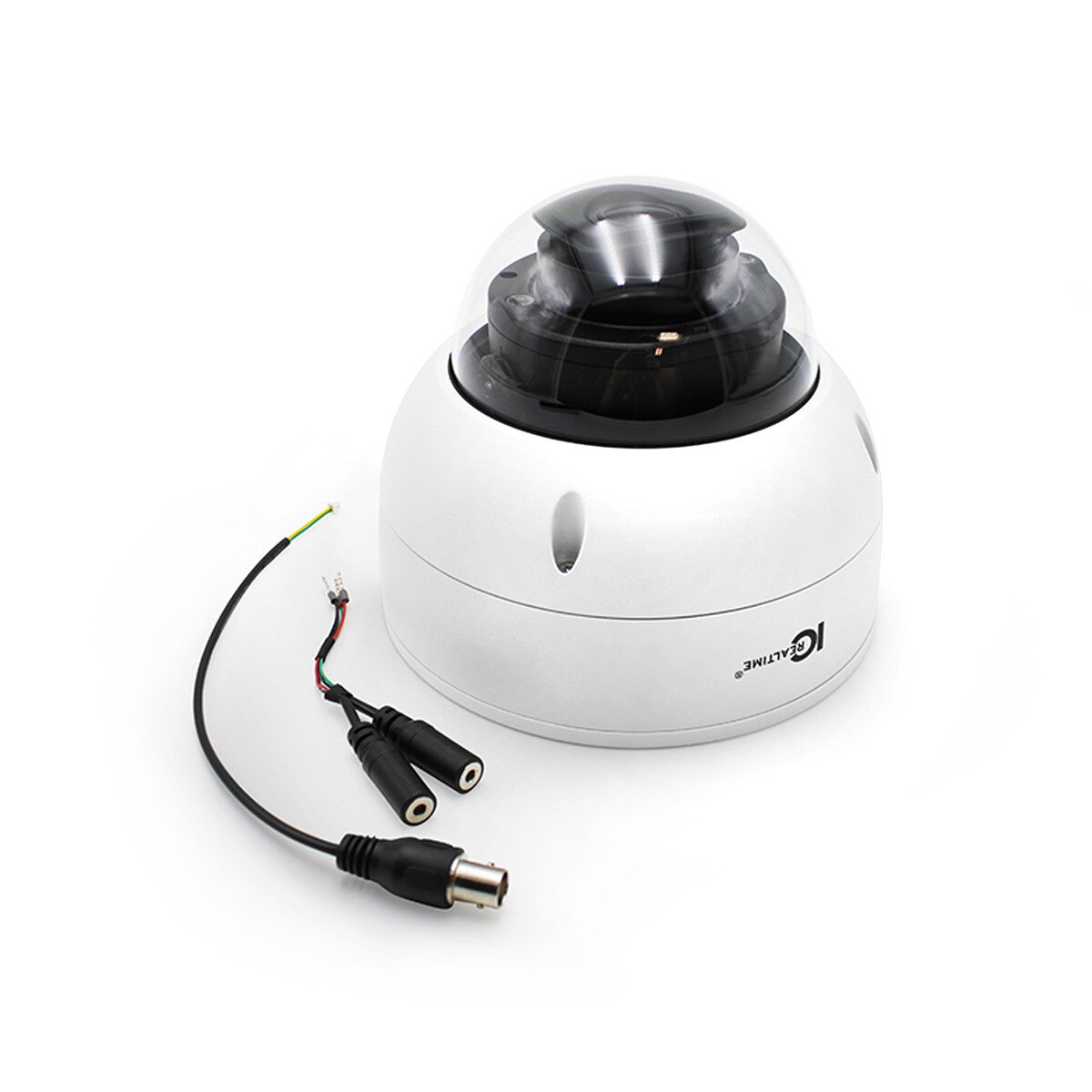

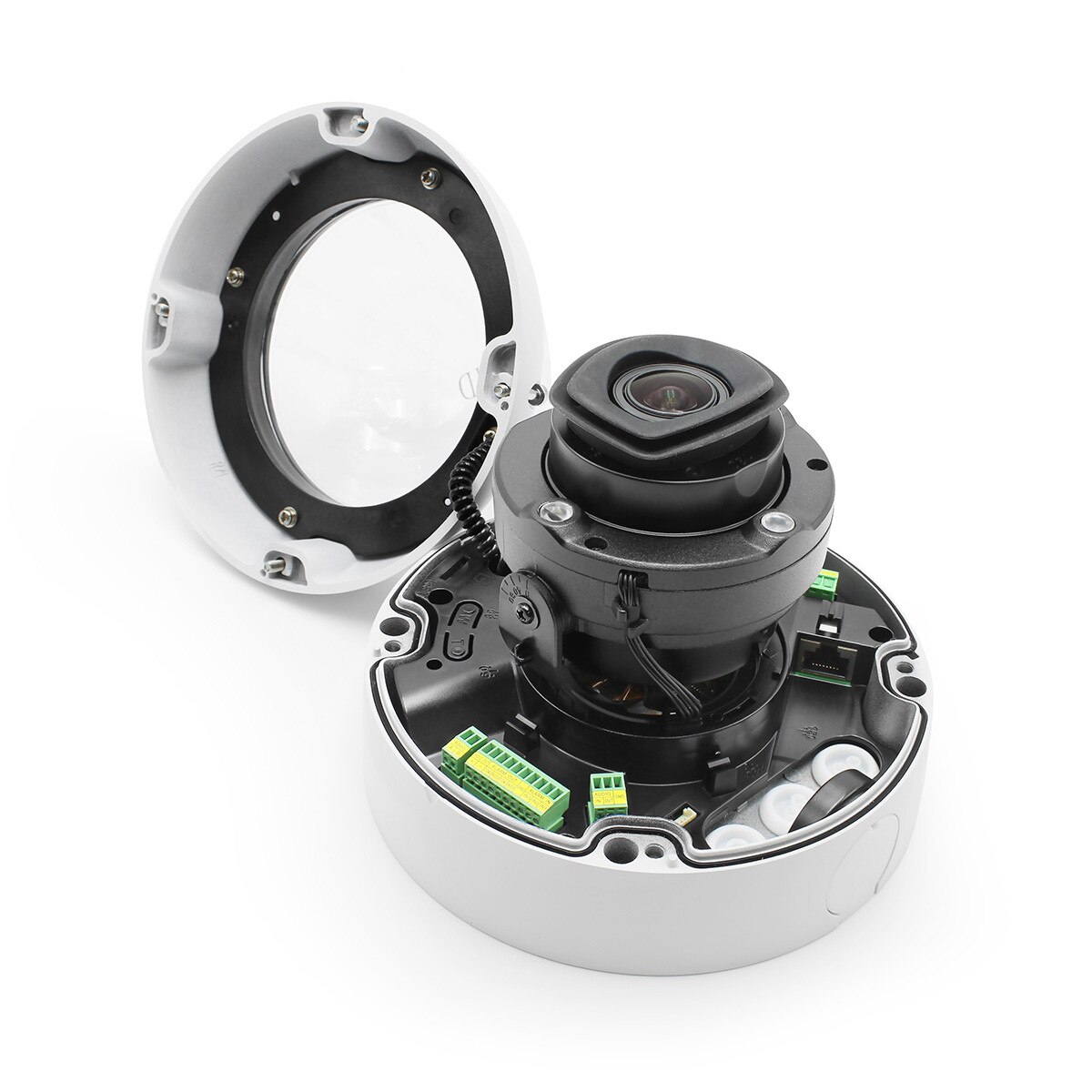

D12V is of course POE+(802.3a) and ePoE capable for easy one-cable connection, and it is also flexible enough to be locally powered if required with 24VAC or 12VDC power at 2 amps. D12V also boasts 3 alarm in and 2 alarm out ports, an audio in & out port; RS-485 control port, a BNC connector, and an internal SD card slot that supports up to a 256Gb SD card. D12V is ONVIF (Profiles S/ G/ T) and UL & FCC certified.

READY FOR TODAY & TOMORROW
Future-proofing is part of the task when designing a cutting-edge video camera system. IC Realtime's new IPEL-D12V-IRW2 has the flexibility to meet every one of today's 4K demands with the features and reliability to perform & deliver long into the future. It's hard to understand how incredible this camera s without seeing it for yourself, so contact your IC Realtime distributor or talk to a Factory Product Specialist today for an online demo and even arrange a no-risk onsite 30-day trial.

To see the complete IC Realtime Video Ecosystem, including the D12V and our amazing Dash line of prosumer video doorbells, yard light & personal reality indoor "intercams" for the home. Call 866-997-9009 or visit icrealtime.com.
