IPEG-E20F-IRW5
Details

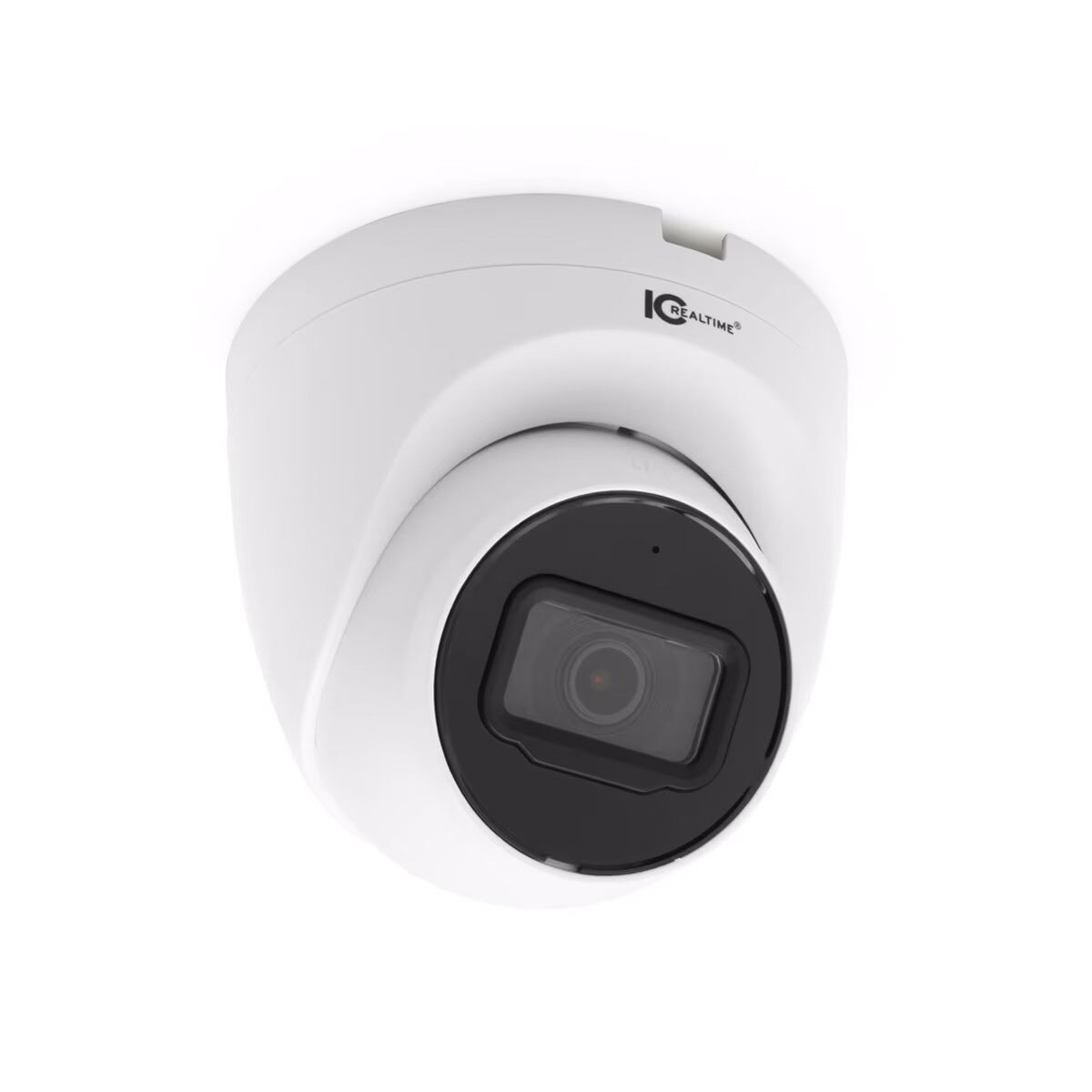

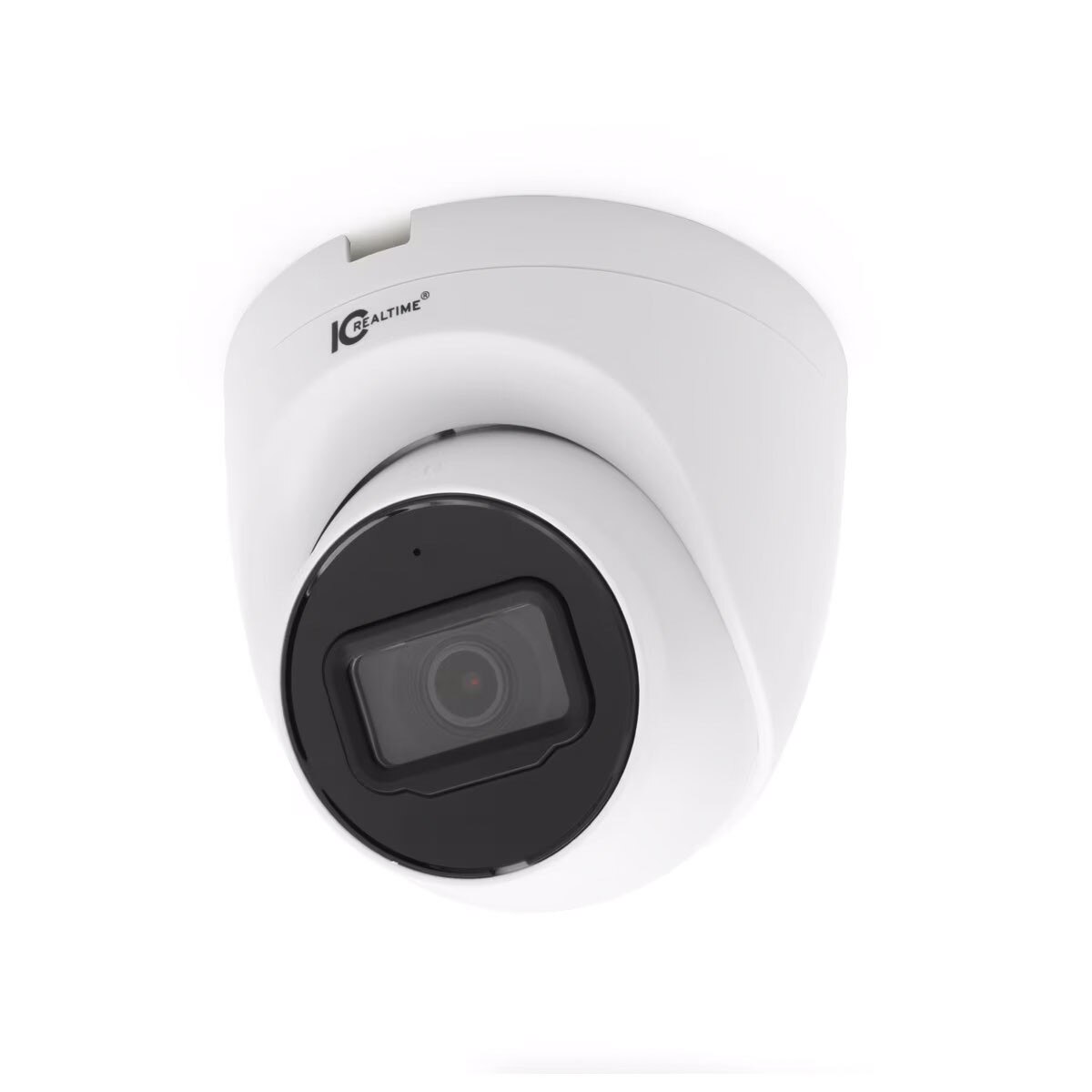

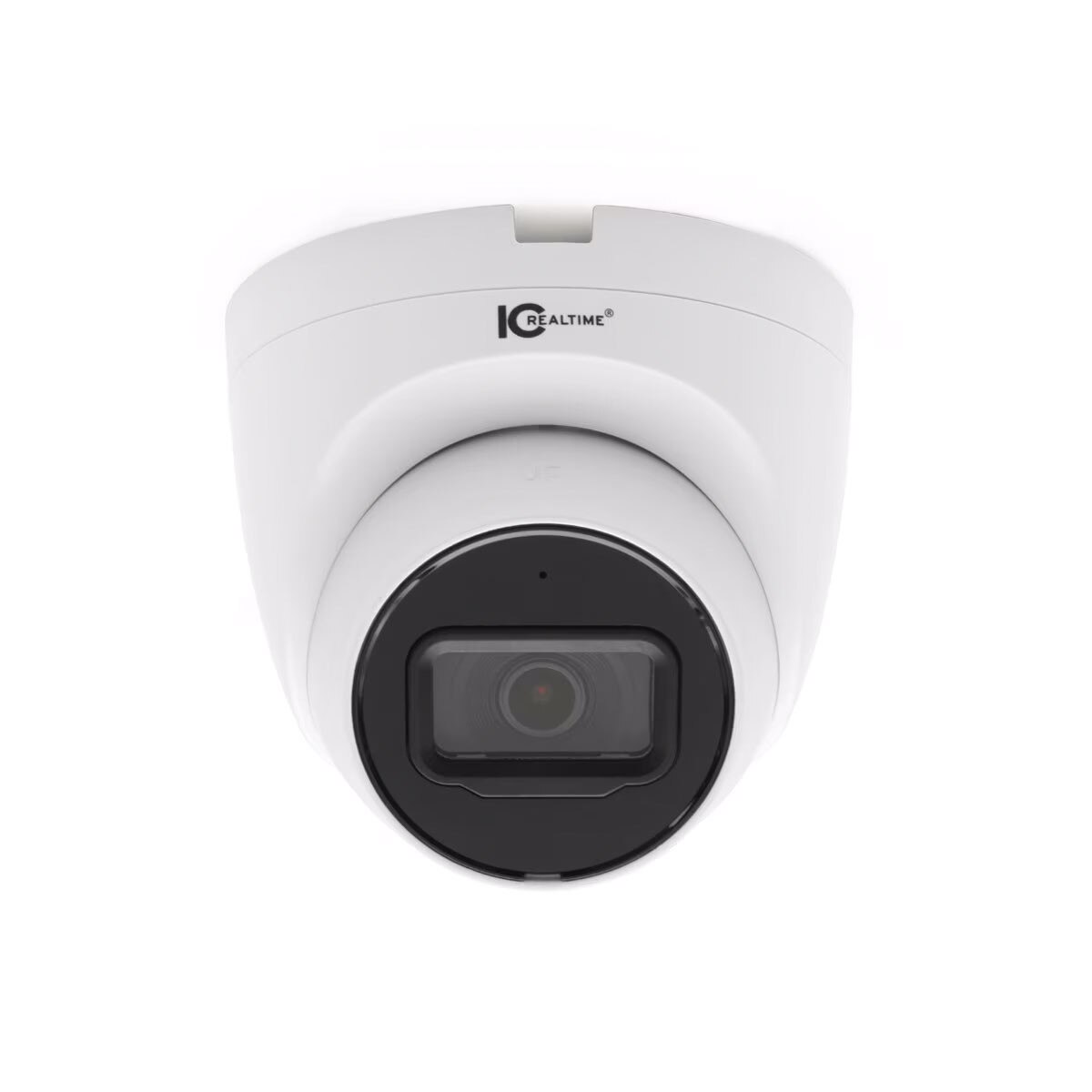

IC Realtime introduces the IPEG-E20F-IRW5, a smart and compact eyeball turret dome camera that brings high-performance surveillance to the cost-effective Edge lineup. Engineered for reliability and clarity, this 2MP IP camera is built around a 1/2.8” CMOS sensor, delivering crisp 1080p video at 30 frames per second with support for advanced H.265 compression to optimize bandwidth and storage efficiency.
Housed in a discreet, weather-resistant dome measuring just under 4.5 inches in diameter, the IPEG-E20F-IRW5 features a fixed 2.8mm lens that offers a broad 107° angle of view—ideal for covering wide areas with minimal equipment. Enhanced night vision is made possible through Smart IR with an illumination range of up to 98 feet, while features like 120dB Wide Dynamic Range and Backlight Compensation ensure excellent image clarity in challenging lighting conditions.
Designed for flexibility, this camera supports both Power over Ethernet and 12VDC power options and includes a built-in microphone along with support for onboard microSD storage up to 256GB. The camera’s IP67 rating ensures durability in harsh outdoor conditions, while ONVIF compliance provides seamless integration with third-party NVRs.
Equipped with intelligent motion detection and advanced filtering, the IPEG-E20F-IRW5 is capable of distinguishing between human and vehicle activity for more accurate alerts. Perimeter protection features such as virtual tripwire and intrusion zones help enhance situational awareness, and when paired with an IC Realtime NVR, users benefit from intelligent event classification and search for faster investigations.
This camera integrates effortlessly with the IC Now desktop platform and is fully compatible with the IC View+ mobile app on both iOS and Android, allowing remote viewing and management from anywhere. With a 7-year warranty and access to IC Realtime’s outstanding U.S.-based technical support team, the IPEG-E20F-IRW5 offers unmatched reliability, smart features, and unbeatable value in a compact form factor.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1/2.8" CMOS |
| RAM/Rom: | 128 MB/ 128 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | Distance up to 98.43 ft (30 m) |
| Illumination On/Off Control: | Auto; Manual |
| Illumination LEDs: | 1 (IR LED) |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 107°; V: 56° |
| Close Focus Distance: | 2.30 ft (0.7 m) |
| DORI - Detect: | 144.03 ft |
| DORI - Observe: | 57.41 ft |
| DORI - Recognize: | 28.87 ft |
| DORI - Identify: | 14.44 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion(These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream), Smart H.265+; Smart H.264+ |
| Resolution: | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto; natural; street lamp; outdoor; manual; regional custom |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Supported |
| Privacy Masking: | 4 areas |
| Iris Control: | fixed |
| WDR: | WDR (120dB) |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. User Access: | 6 (Total bandwidth: 36 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Interface | |
| Audio I/O: | Built-in MIC |
| Alarm I/O: | N/A |
| Memory Slot: | Micro SD card (support max. 256 GB) |
| Electrical | |
| Power Supply: | 12 VDC/PoE (802.3af) |
| Power Consumption: | Basic: 2.1 W (12 VDC); 2.4 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Inner core: Metal, Cover: Plastic |
| Dimensions: | 3.97" × Φ4.33" (100.9 mm × Φ109.9 mm) |
| Gross Weight: | 1.23 lb (0.56 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
