IPEG-D20F-IRW5
Details

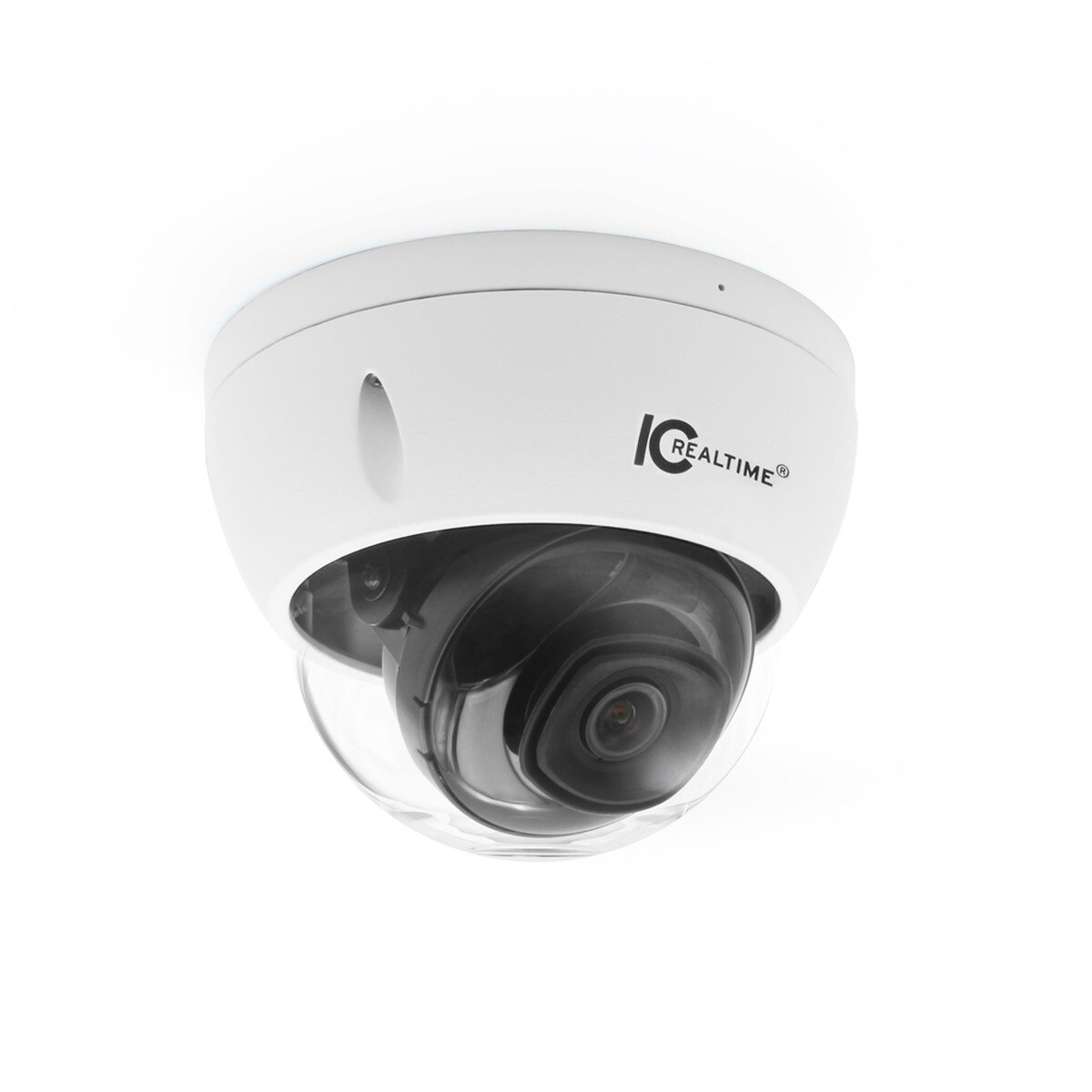

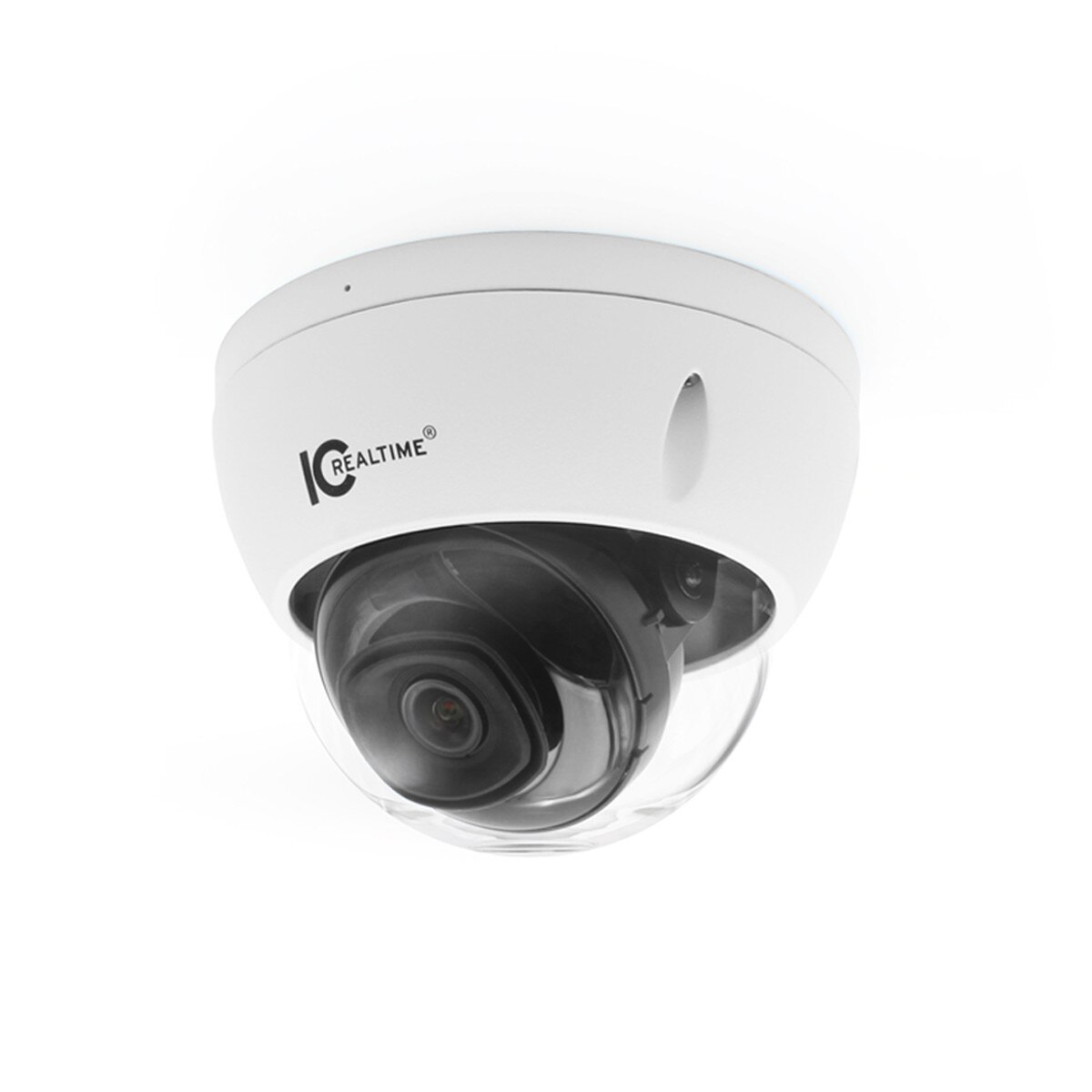

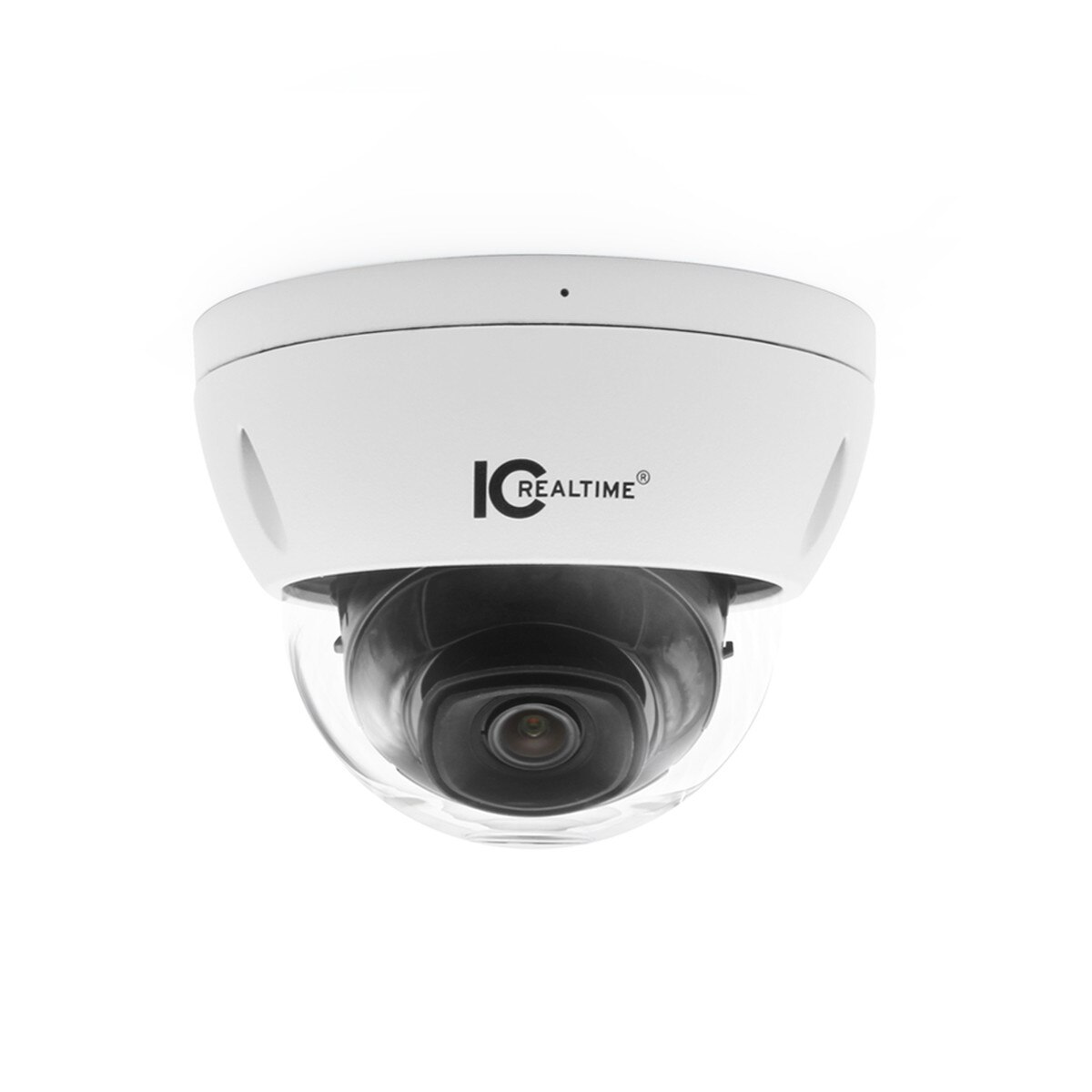

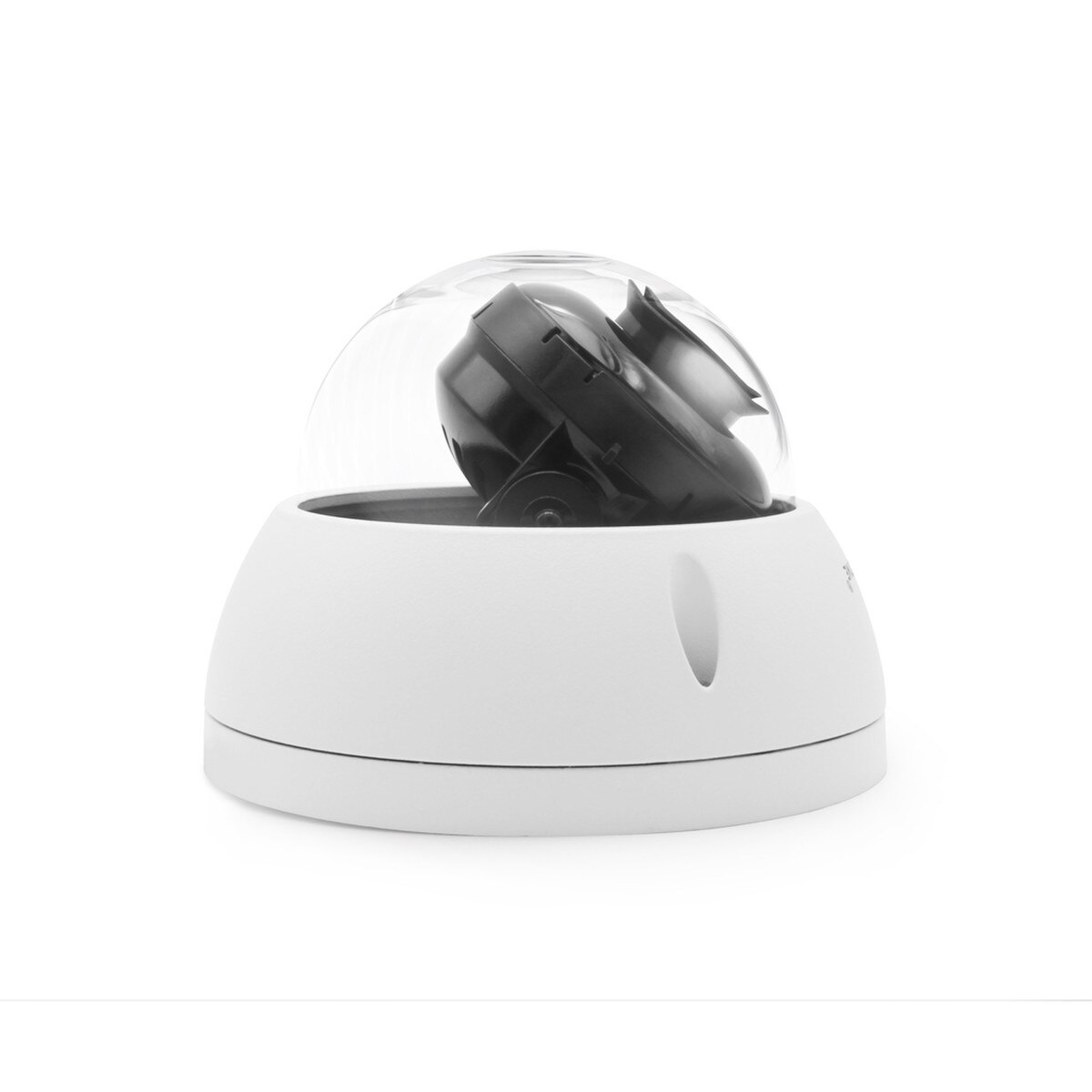

IC Realtime adds muscle to its Edge lineup with the IPEG-D20F-IRW5, a compact yet robust vandal-proof dome camera engineered for high-performance video security in demanding environments. Measuring just over 4 inches in diameter, this low-profile IP camera combines discretion with durability, making it an ideal solution for both indoor and outdoor installations where resilience and image clarity are critical.
At the heart of the IPEG-D20F-IRW5 is a 1/2.8” CMOS sensor delivering crisp 2MP full HD video at 30 frames per second. Its fixed 2.8mm lens provides a 106° angle of view, perfectly suited for wide-area monitoring with minimal blind spots. Backed by Smart IR technology with a range of up to 98 feet, along with 120dB Wide Dynamic Range and Backlight Compensation, this camera captures clear, usable footage in challenging lighting conditions—day or night.
Engineered to withstand the elements and impacts alike, the IPEG-D20F-IRW5 features an IP67 weatherproof and IK10 vandal-resistant housing. It supports both Power over Ethernet and 12VDC, includes a built-in microphone, and offers up to 256GB of local storage via microSD. ONVIF compliance ensures easy integration into existing systems, while its Intelligent Motion Detection (iMD) capabilities allow advanced filtering for human and vehicle recognition. Perimeter Protection tools like virtual tripwire and intrusion zones provide actionable alerts and, when paired with an IC Realtime NVR, enable intelligent event search with remarkable precision.
Fully compatible with the IC Now desktop software and the IC View+ mobile app for iOS and Android, the IPEG-D20F-IRW5 gives users seamless access and control from anywhere. Backed by IC Realtime’s industry-leading 7-year warranty and expert U.S.-based technical support, this dome camera delivers trusted security with lasting value.
Designed to take on the elements—and everything else—the IPEG-D20F-IRW5 brings smart surveillance and unmatched durability to the Edge series.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920 (H) × 1080 (V) |
| RAM/Rom: | 128 MB/ 128 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | Distance up to 98.43 ft (30 m) |
| Illumination On/Off Control: | Auto; Manual |
| Illumination LEDs: | 3 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 106°; V: 56° |
| Close Focus Distance: | 2.30 ft (0.7 m) |
| DORI - Detect: | 144.03 ft |
| DORI - Observe: | 57.41 ft |
| DORI - Recognize: | 28.87 ft |
| DORI - Identify: | 14.44 ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion(These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream), Smart H.265+; Smart H.264+ |
| Resolution: | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control: | Manual;Auto |
| Noise Reduction: | 3D NR |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Supported |
| Privacy Masking: | 4 areas |
| Iris Control: | fixed |
| WDR: | WDR (120dB) |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; PCM |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. User Access: | 6 (Total bandwidth: 36 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in MIC |
| Memory Slot: | Micro SD card (support max. 256 GB) |
| Electrical | |
| Power Supply: | 12 VDC/PoE |
| Power Consumption: | Basic: 1.9 W (12 VDC); 2.5 W (PoE) Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 4.7 W (12 VDC); 5.6 W (PoE) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |

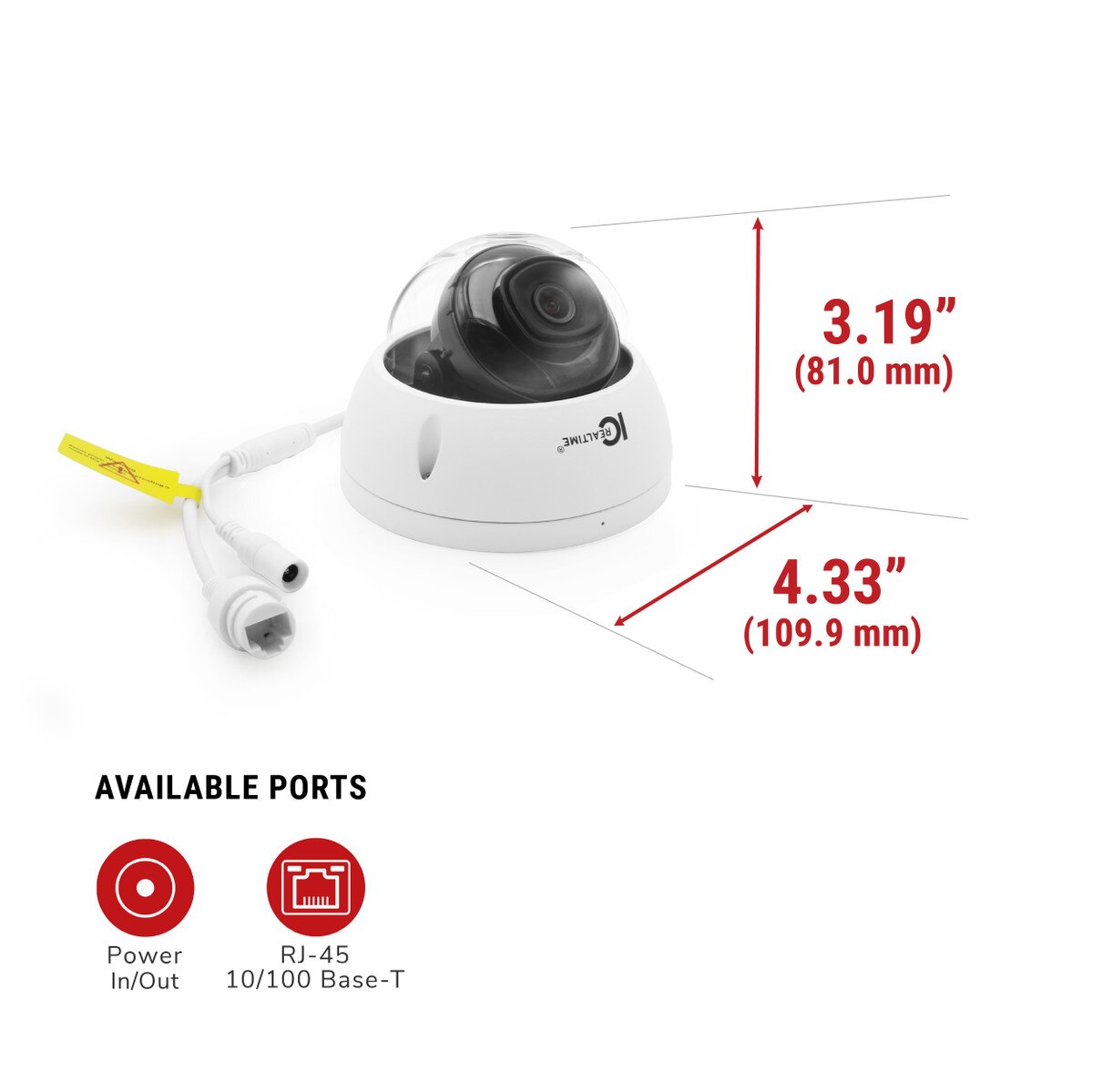

| Dimensions: | 3.19" × Φ4.33" (81.0 mm × Φ109.9 mm |
| Gross Weight: | 1.08 lb (0.49 kg) |
