IPEG-B20F-IRW5
Details

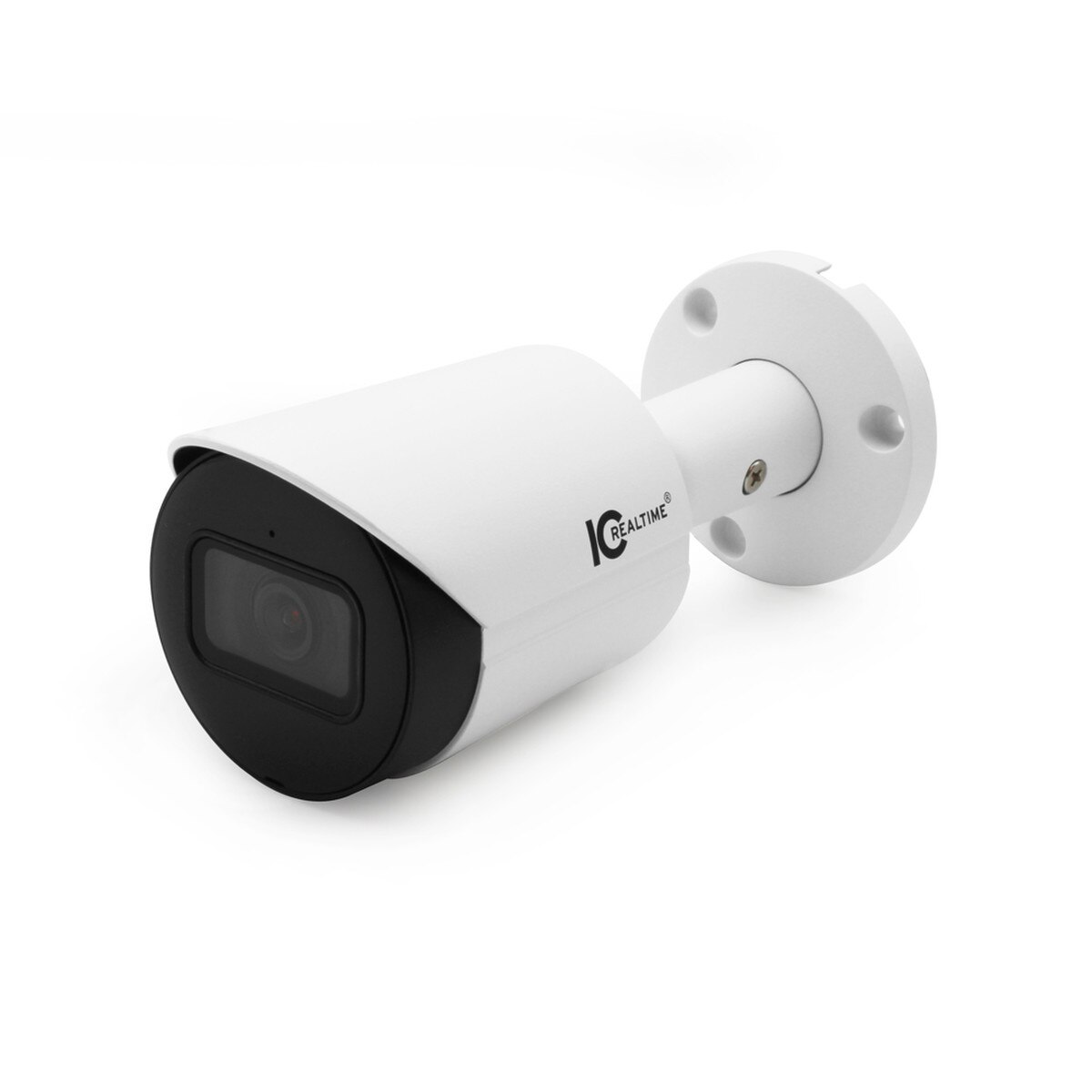

IC Realtime introduces the IPEG-B20F-IRW5, the newest addition to its Edge series of budget-conscious, high-performance IP cameras. Built with a compact bullet form factor—measuring just 6.54 inches long—the IPEG-B20F-IRW5 is engineered for efficiency, delivering professional-grade surveillance without compromise.
At the core of this mini bullet camera is a 1/2.8” CMOS sensor, producing sharp 2MP video at 30 frames per second. A fixed 2.8mm lens provides a wide 107° angle of view, making it ideal for covering large areas with a single device. With Smart IR technology and infrared range up to 98 feet, the IPEG-B20F-IRW5 ensures reliable visibility even in total darkness. Enhanced imaging features such as 120dB Wide Dynamic Range and Backlight Compensation allow it to perform exceptionally in variable lighting environments, while its IP67-rated housing offers durable protection against dust and water.

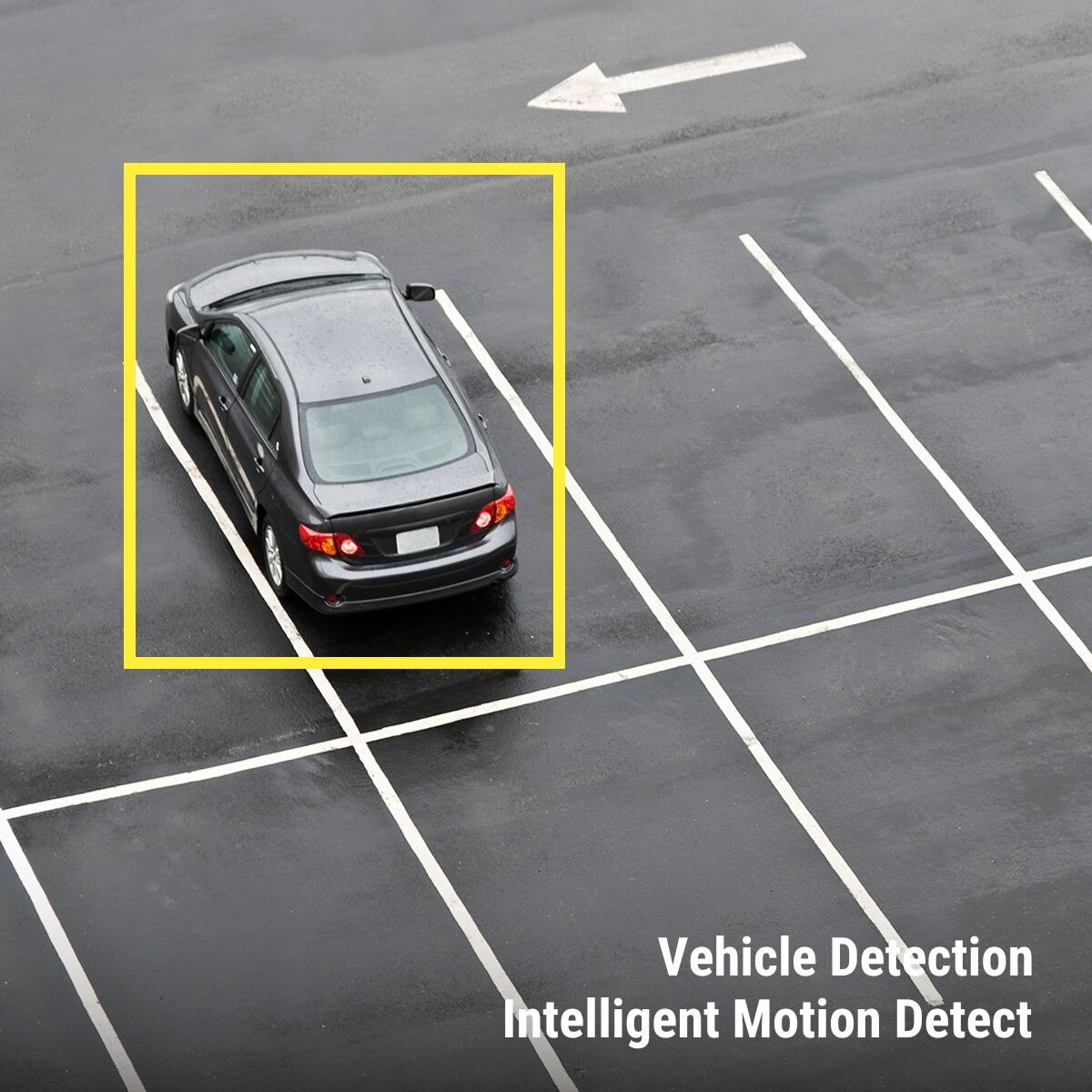

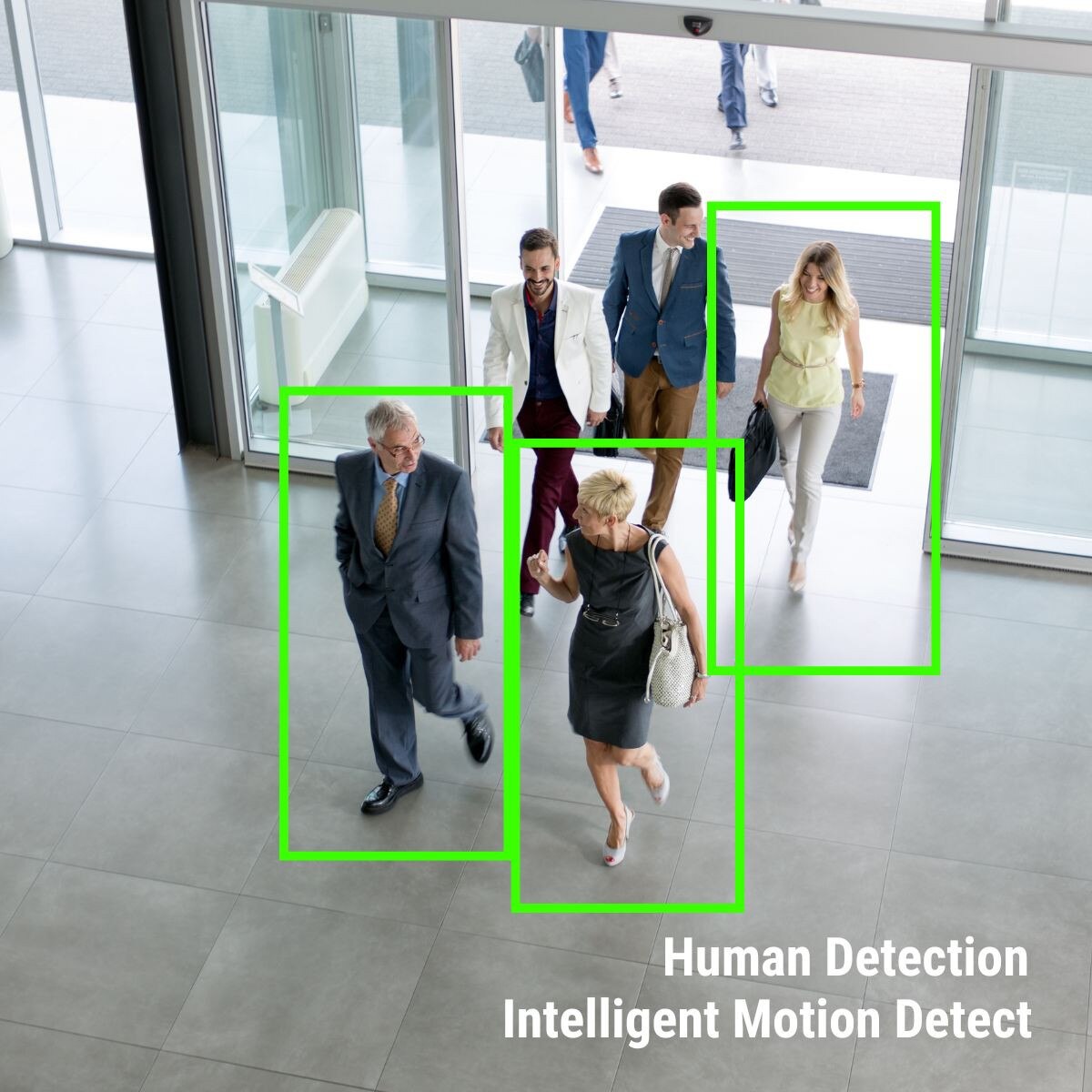

This ONVIF-compliant camera supports Power over Ethernet or 12VDC power and comes equipped with a built-in microphone and onboard microSD card storage up to 256GB. Its Intelligent Motion Detection system includes advanced human and vehicle filtering, along with Perimeter Protection tools like virtual tripwire and intrusion zones—features that integrate seamlessly with IC Realtime NVRs to enable fast, intelligent event search and response.
The IPEG-B20F-IRW5 is fully compatible with the IC Now desktop platform and the IC View+ mobile app on both iOS and Android, offering users complete control and visibility from virtually anywhere. As with all IC Realtime products, this camera is backed by a 7-year warranty and supported by dedicated U.S.-based technical experts committed to delivering exceptional service.
Efficient, intelligent, and ready for deployment—the IPEG-B20F-IRW5 delivers big performance in a small package, redefining what’s possible in affordable surveillance.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920(H) x 1080(V), 2 Megapixels |
| RAM/Rom: | 128MB /128 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | Distance up to 98.43 ft (30 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 1 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | M12 |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Close Focus Distance: | 2.3 ft (0.7 m) |
| DORI - Detect: | 144ft |
| DORI - Observe: | 57ft |
| DORI - Recognize: | 28ft |
| DORI - Identify: | 14ft |
| Intelligence | |
| IVS: | Tripwire; Intrusion |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire; Intrusion(These functions support the classification and detection of vehicle and human objects) Intelligent Motion Detect |
| Video | |
| Compression: | H.265; H.264; H.264B; MJPEG (Sub stream only) |
| Resolution: | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576@ (1–25 fps)/ 704 × 480@ (1–30fps) |
| Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control: | Auto; manual |
| Noise Reduction: | 3D NR |
| WDR: | WDR (120dB) |
| Audio | |
| Compression: | G.711a; G.711Mu; PCM; G.726 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability: | ONVIF (Profile S/Profile T); CGI |
| Max. User Access: | 6 (Total bandwidth: 36 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Memory Slot: | Micro SD card (support max. 256 GB) |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af) |
| Power Consumption: | Basic: 2.1 W (12 VDC); 2.4 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal + plastic |

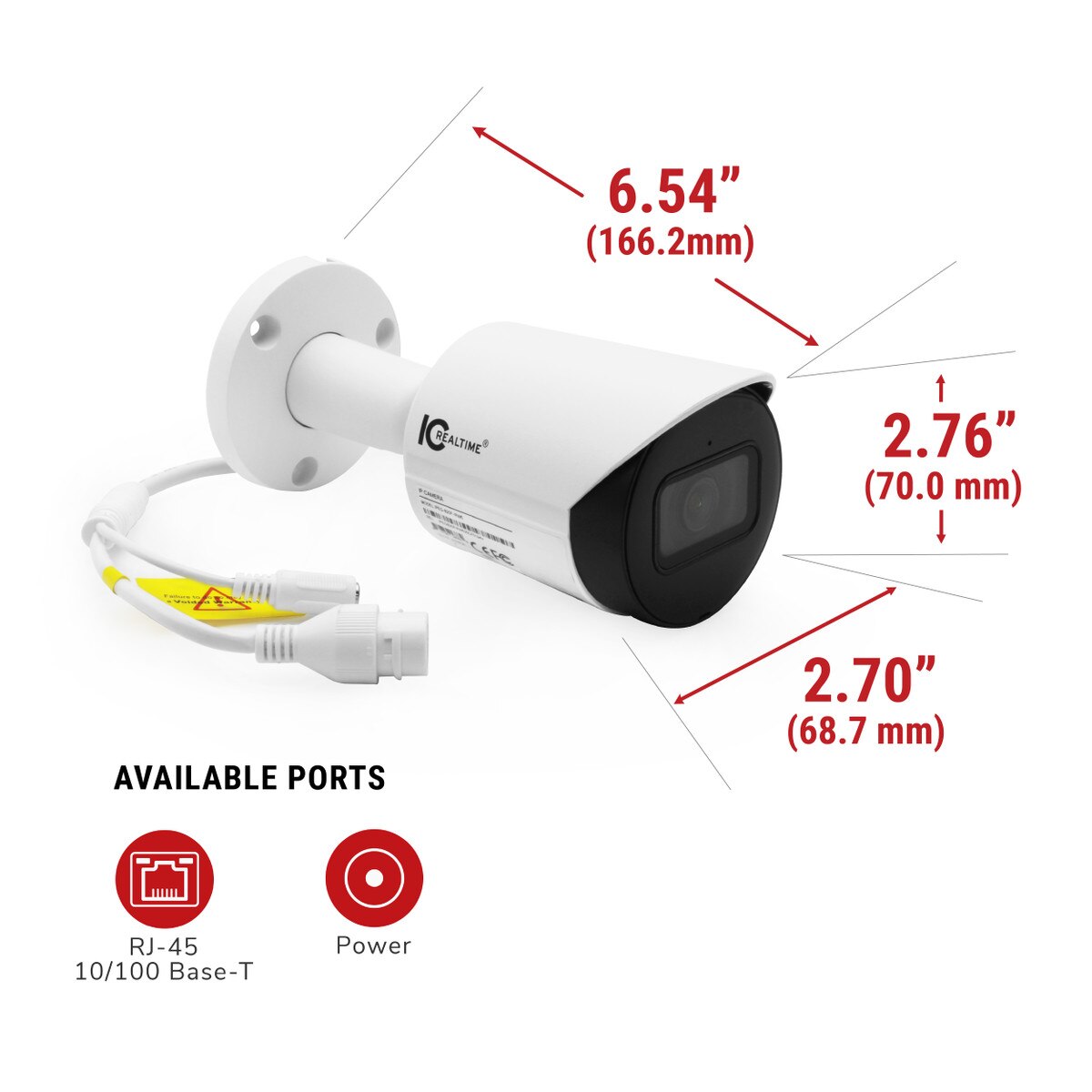

| Dimensions: | 6.54" × 2.76" × 2.76" (166.2 mm × 70 mm × 70 mm) |
| Gross Weight: | 1.3 lb (0.59 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
