HDEG-E80V-IRM1
Details

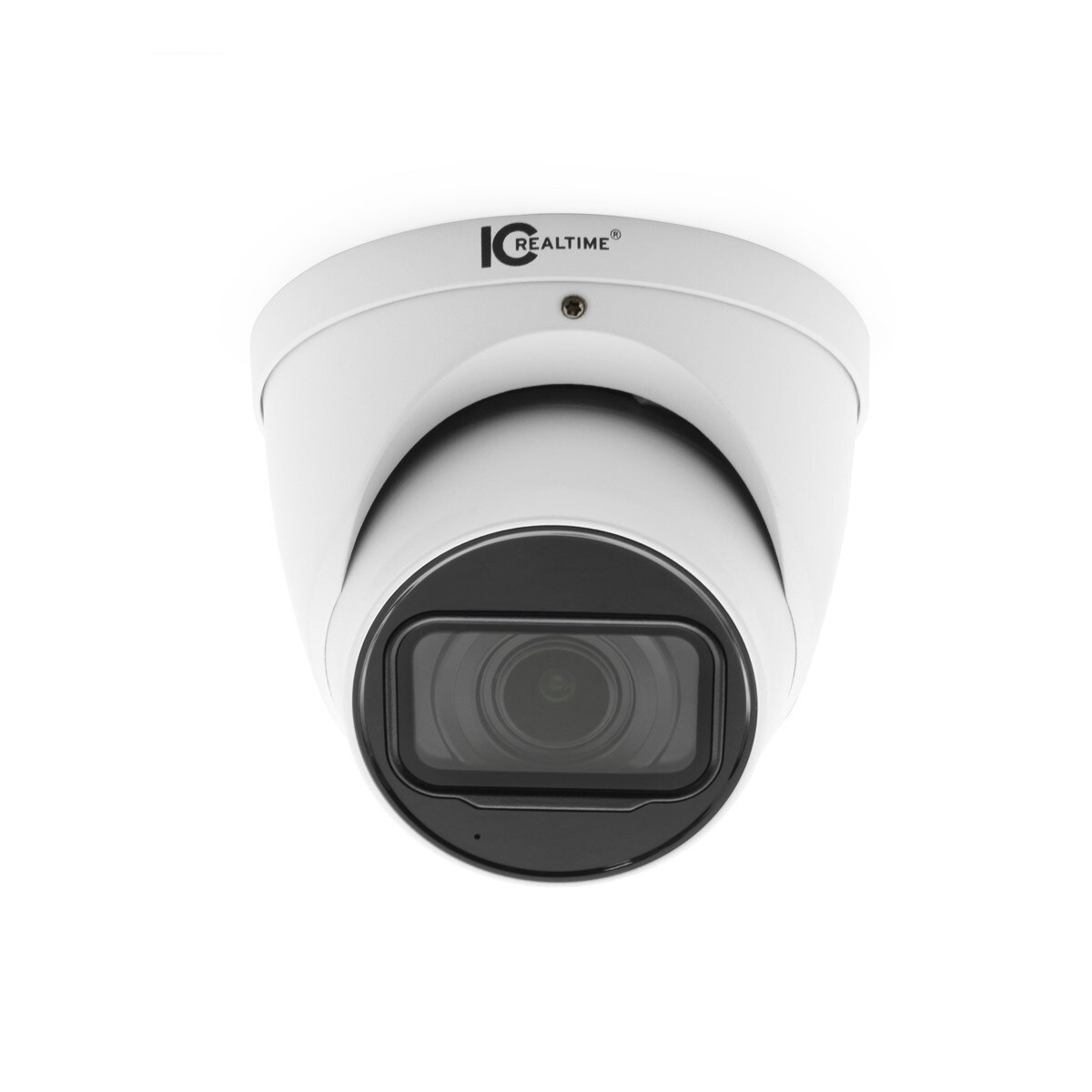

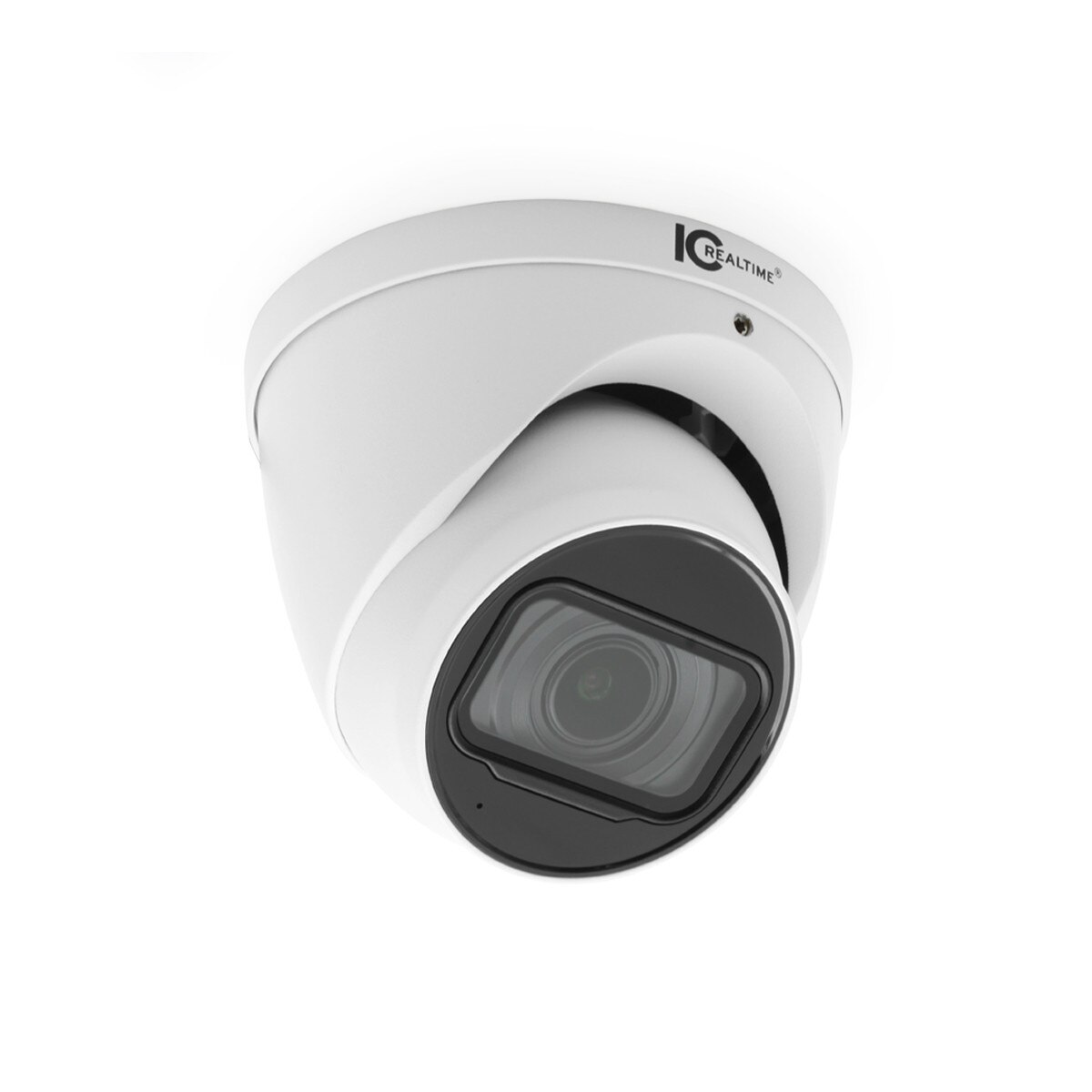

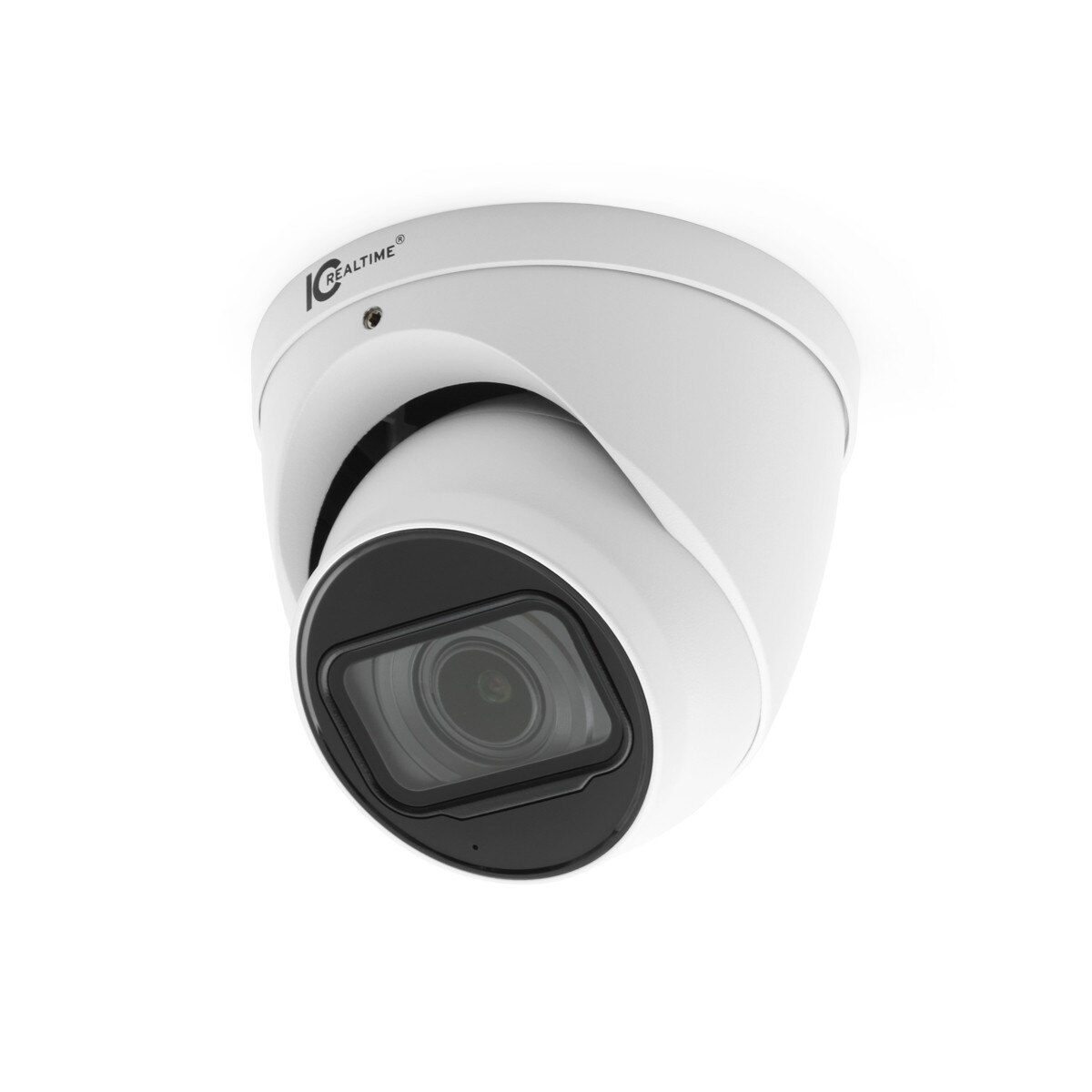

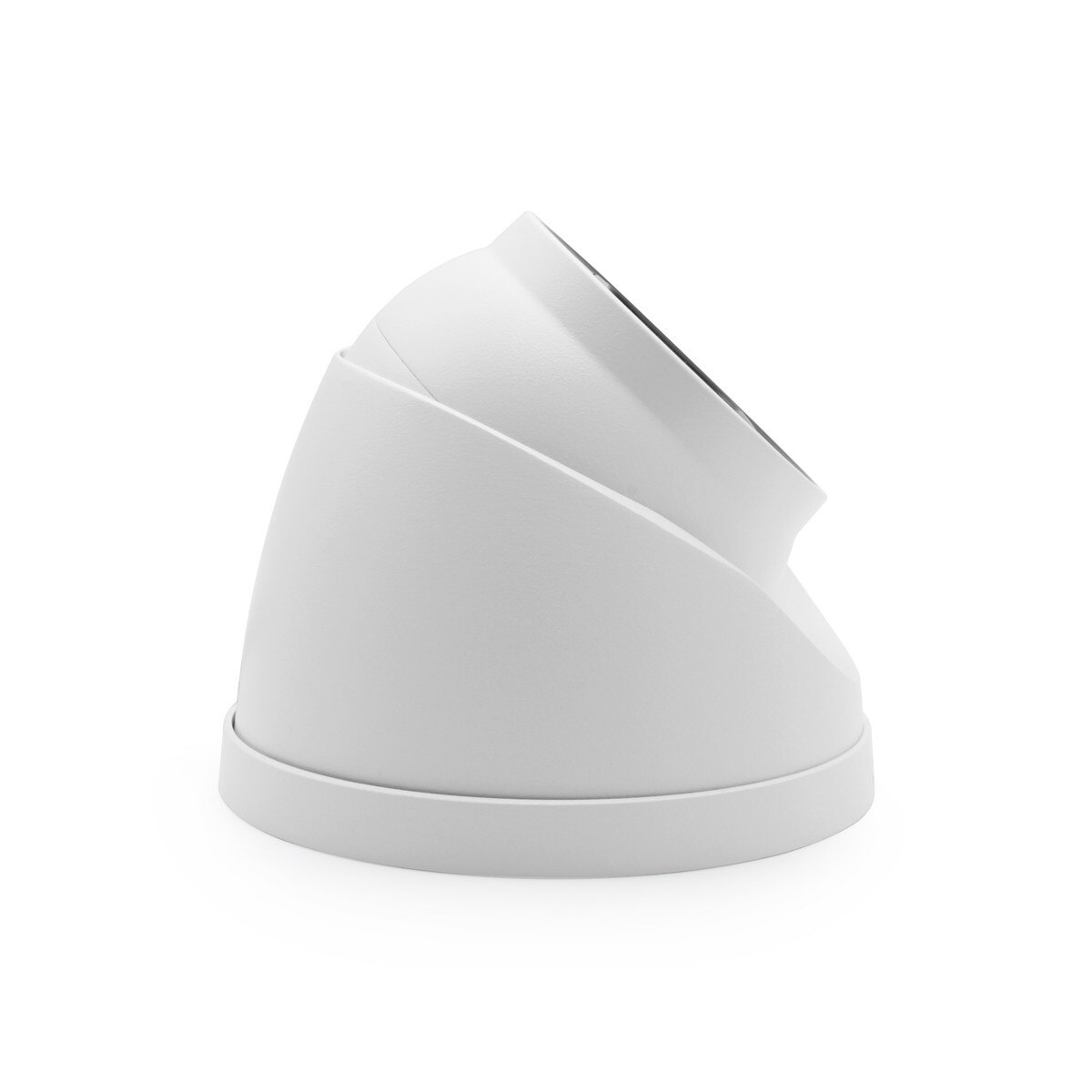

Bring 4K resolution to your HDVR coax systems with the HDEG-E80V-IRM1, the latest Eyeball Varifocal Turret Camera in IC Realtime’s renowned Edge lineup. Designed for versatility and image quality, this advanced Coaxial AVS Camera sets a new benchmark in surveillance technology.
The HDEG-E80V-IRM1 features a motorized varifocal lens with a range of 2.7 mm to 13.5 mm, offering a customizable field of view from 114° to 32°. Powered by an 8MP 4K CMOS image sensor, the camera delivers stunningly detailed visuals at a resolution of 3840 × 2160 and a smooth frame rate of 15 fps. Compact yet robust, it measures 4.80" × 4.13" to fit seamlessly into a variety of installations.
Low-light performance is exceptional, with the camera’s Smart IR technology providing visibility up to 196 feet in complete darkness. The combination of 120dB Wide Dynamic Range (WDR), HLC-Pro, and Super Adapt ensures that the HDEG-E80V-IRM1 performs reliably under challenging lighting conditions, delivering clear and balanced images.
Built to withstand the elements, the camera is IP67-rated for superior protection against dust and water. It also features a built-in microphone, enhancing the overall surveillance experience. The camera’s versatility extends to its connectivity, with a single BNC port supporting AVS, TVI, AHD, and CVBS video output formats.
The HDEG-E80V-IRM1 operates on a stable 12V DC power supply with a ±30% tolerance, ensuring consistent performance. When integrated with IC Realtime’s HDVR systems, it unlocks a suite of advanced features, including compatibility with the IC Now desktop platform and the IC View+ mobile app for iOS and Android. This allows for effortless monitoring and management from virtually any device.
Backed by IC Realtime’s industry-leading 7-year warranty and exceptional U.S.-based technical support, the HDEG-E80V-IRM1 represents a perfect blend of cutting-edge technology and reliable performance. Elevate your surveillance system with the HDEG-E80V-IRM1 and experience the next level of security innovation.
Specifications
| Camera | |
| Image Sensor: | 8 Megapixel CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) 8MP/4K |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.01 lux@F1.5 (Color, 30 IRE) 0.001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | 196 ft (60 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2x IR LED |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized Vari-focal |
| Mount Type: | φ14 |
| Focal Length: | 2.7 mm–13.5 mm |
| Max. Aperture: | F1.5 |
| Angle of View: | Horizontal: 114°–32° Vertical: 58°–17 |
| Focus Control: | Auto Focus |
| Close Focus Distance: | 4.27 ft (1.3 m) |
| DORI - Detect: | 279 ft - 918 ft |
| DORI - Observe: | 918 ft- 367 ft |
| DORI - Recognize: | 56 ft- 183 ft |
| DORI - Identify: | 27 ft- 91ft |
| Video | |
| Resolution: | 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480) |
| Frame Rate: | AVS: NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps AHD: NTSC: 4K@15 fps PAL: 4K@15 fps TVI: NTSC: 4K@15 fps PAL: 4K@15 fps CVBS: NTSC: 960H PAL: 960H |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC; HLC-Pro; WDR |
| White Balance: | Auto;Area white balance |
| Noise Reduction: | 3D NR |
| Defog: | Electronic defog |
| Digital Zoom: | 4x |
| Mirror: | Off/On |
| WDR: | 120 dB |
| Interface | |
| Video Interface: | 1 BNC port Video output formats: AVS/ TVI/ AHD/ CVBS (Toggled by OSD) |
| RS485: | N/A |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC 12V ±30% (It is recommended to use a single power adapter to supply the power for one camera) |
| Power Consumption: | Max 7.9W (12 VDC, IR on) |
| Environmental | |
| Operating Conditions: | –22 °F to +140 °F(–30 °C to +60 °C); < 95% (non-condensation) |
| Storage Conditions: | –22 °F to +140 °F(–30 °C to +60 °C); < 95% (non-condensation) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | Φ4.80" × 4.13" (Φ122.0 mm × 104.8 mm) |
| Gross Weight: | 1.63 lb (0.74 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
