HDEG-B80F-DI-M1
Details

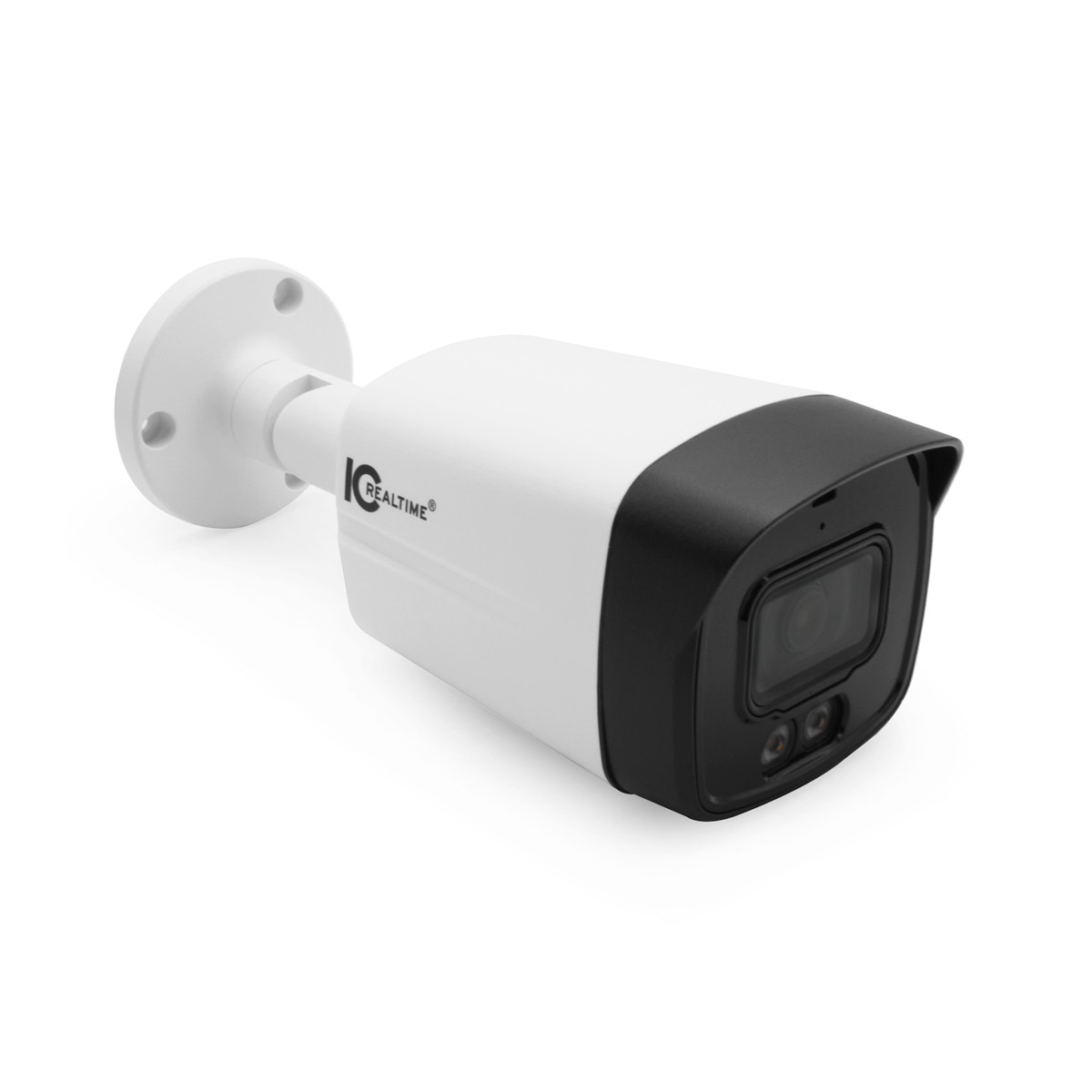

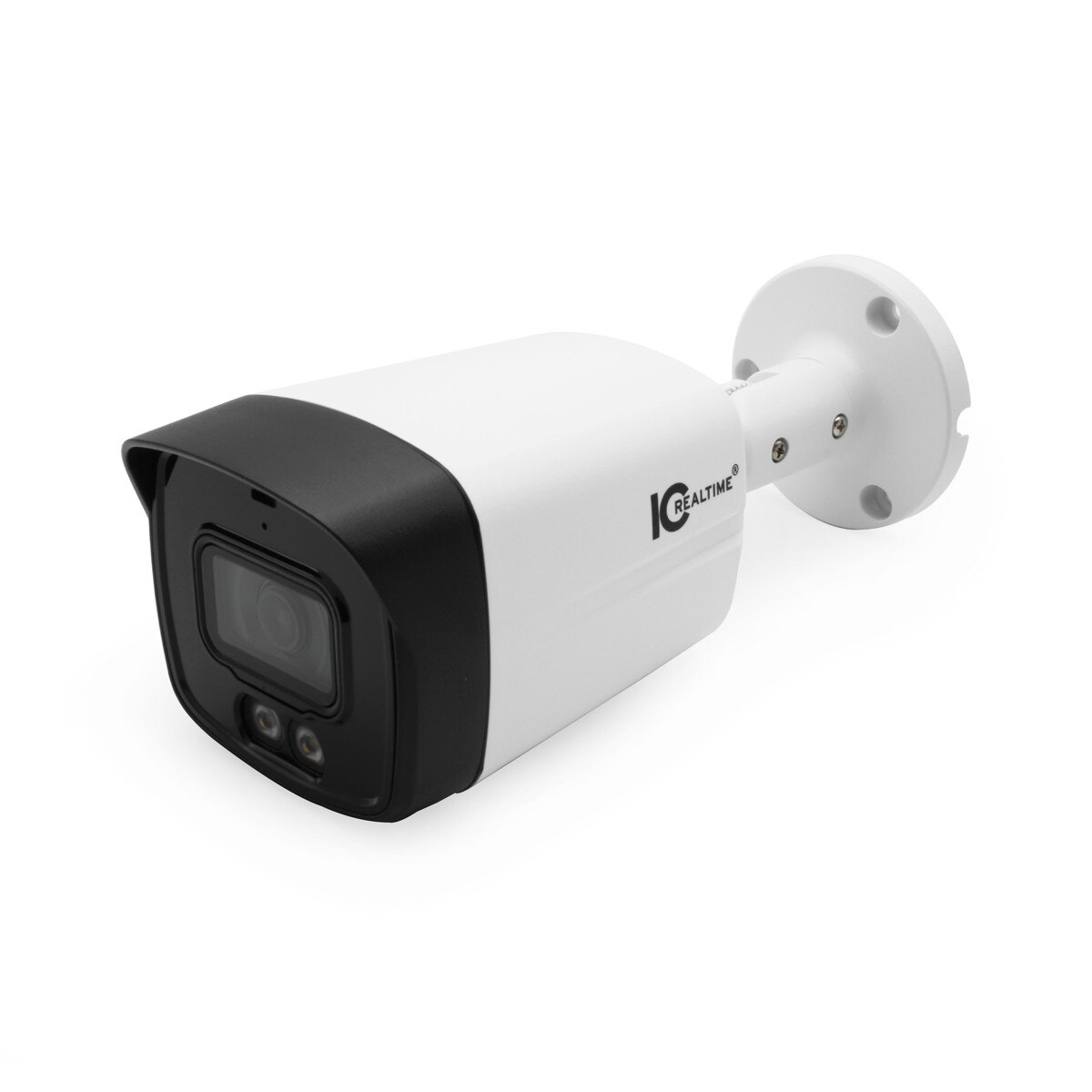

IC REaltime's HDEG-B80F-DI-M1 is a bullet HD-AVS offering a premium solution for high-performance coaxial surveillance, offering 3840 × 2160 (4K) resolution at 15fps for crystal-clear footage. Its multi-format output, supporting AVS, CVBS, AHD, and TVI, ensures compatibility with a wide range of systems, making integration seamless. Featuring 120 dB true Wide Dynamic Range (WDR), the camera excels in challenging lighting conditions by balancing exposure for both bright and shadowed areas. Additionally, 3D Noise Reduction (3DNR) minimizes image distortion in low-light environments, providing clear, detailed video.

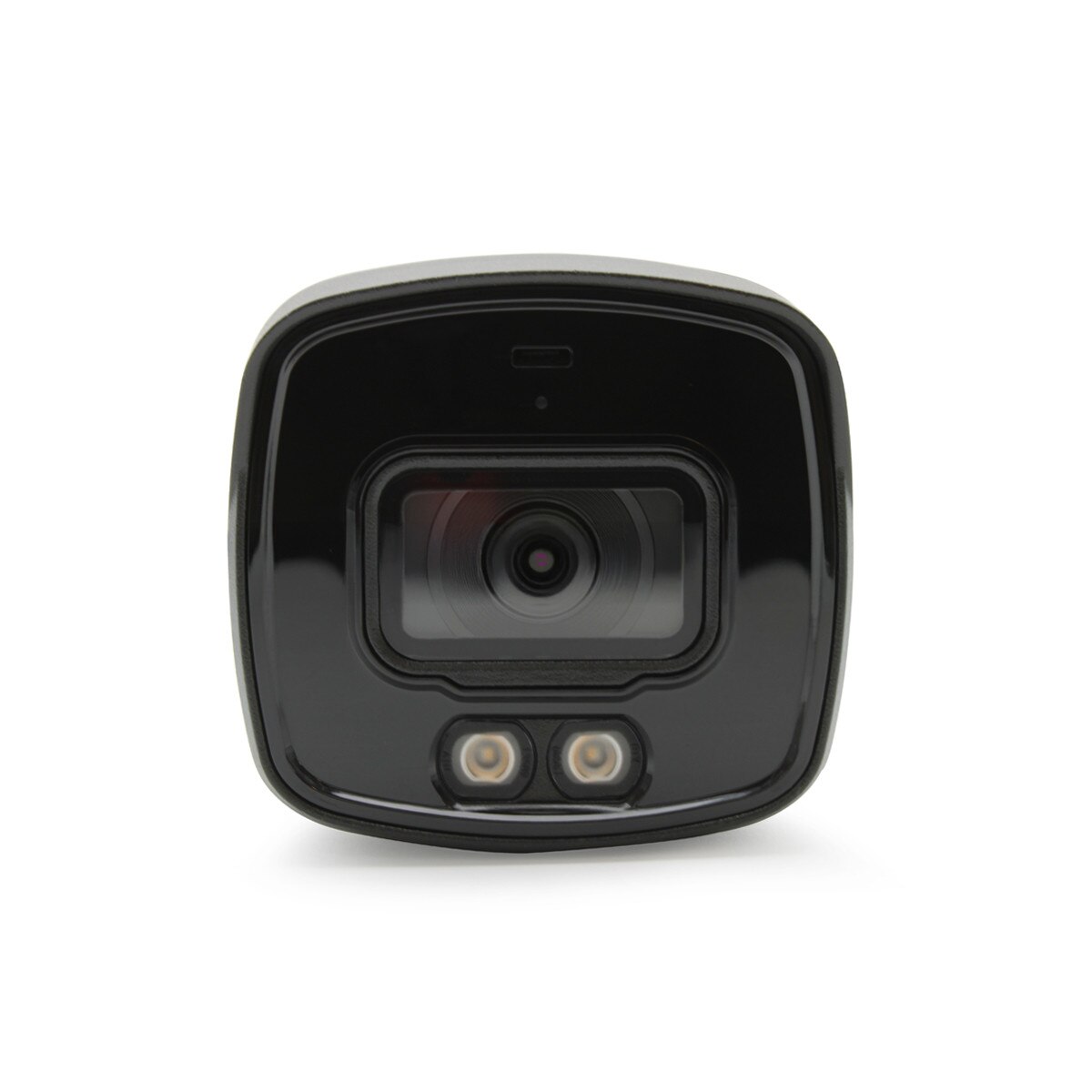

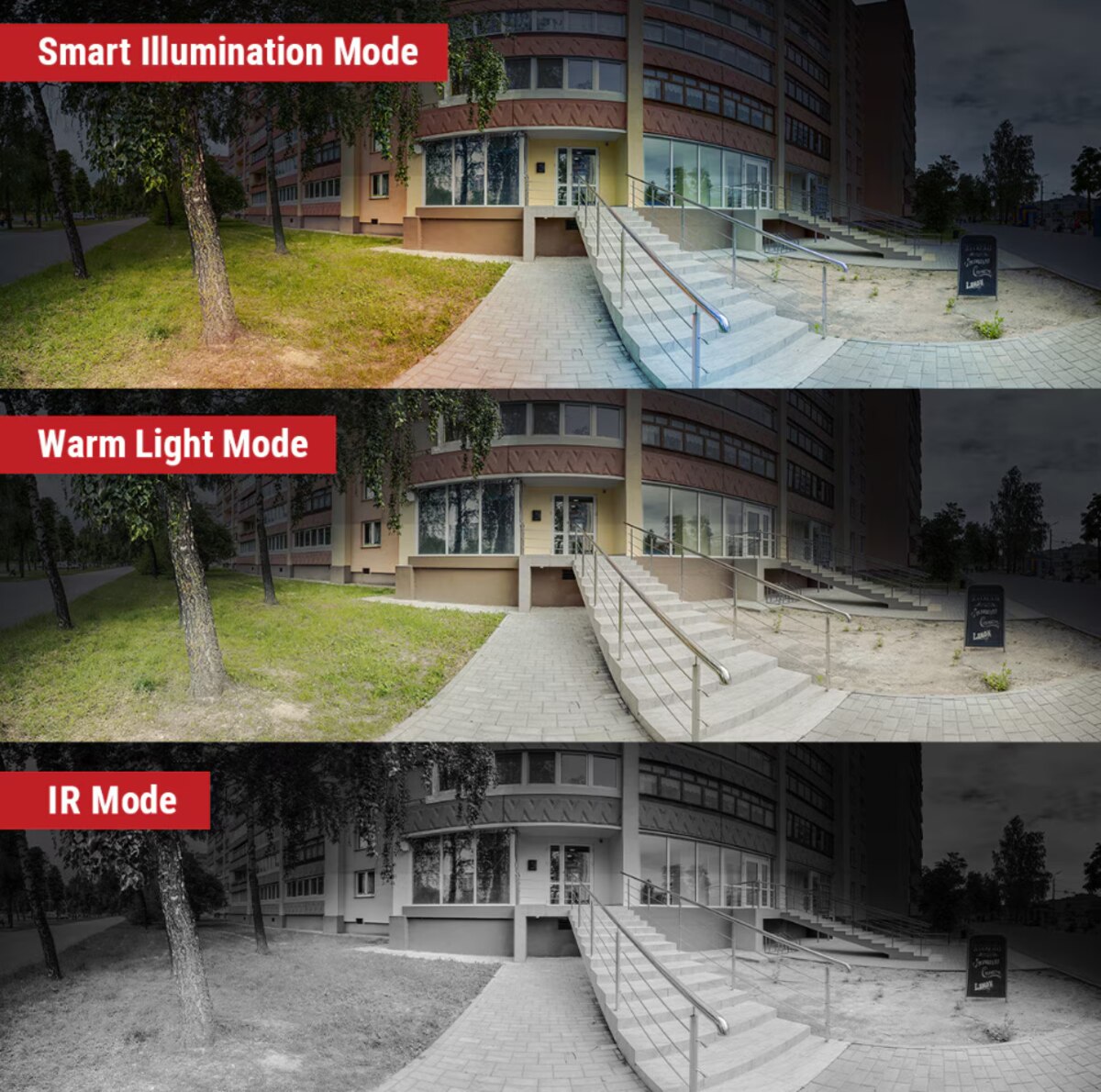

Equipped with Super Adapt technology, the HDEG-B80F-DI-M1 intelligently adjusts its settings for optimal performance, regardless of the environment. The 2.8 mm fixed lens delivers a broad field of view, while the built-in microphone enhances surveillance by capturing audio alongside the video feed. One of the key features of this model is its Smart Dual Illumination technology. It starts in infrared (IR) mode for night vision, but when an intelligent rule detects motion or activity, the white light activates, providing full-color imaging for more detailed observation. The camera’s detection range extends up to 131 feet, ensuring extensive coverage day or night.
Designed to withstand harsh environments, the camera is IP67-rated for dust and water resistance, making it suitable for both indoor and outdoor use. It operates on a reliable 12V DC power supply with ± 30% electrical tolerance, allowing for stable performance even during voltage fluctuations. Additionally, the HDEG-B80F-DI-M1 is backed by a 10-year warranty and comes with excellent technical support, ensuring long-term reliability and peace of mind.
With its 4K resolution, advanced features, and rugged design, the HDEG-B80F-DI-M1 offers an exceptional solution for comprehensive surveillance in any setting.
Specifications
| Camera | |
| Image Sensor: | 4K CMOS |
| Effective Pixels: | 3840 × 2160 (8MP) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | 131.23 ft (40 m) |
| Illumination On/Off Control: | White Light Mode; IR Mode, Smart Dual Illumination Supported* (With appropriate HDVR and firmware) |
| Illumination LEDs: | 2x IR LED, 2x Warm Light LED |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Fixed-focal |
| Mount Type: | M12 |
| Focal Length: | 2.8mm |
| Max. Aperture: | F2.0 |
| Angle of View: | Horizontal: 106° Vertical: 56° |
| Close Focus Distance: | 4.27 ft (1.3 m) |
| DORI - Detect: | 288 ft |
| DORI - Observe: | 115 ft |
| DORI - Recognize: | 57 ft |
| DORI - Identify: | 28 ft |
| Video | |
| Resolution: | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate: | AVS: NTSC:4K@15 fps;5M@25 fps;4M@30fps;1080p@30 fps PAL: 4K@15 fps; 5M@25 fps; 4M@25fps;1080p@25 fps AHD: NTSC: 4K@15 fps PAL: 4K@15 fps TVI: NTSC: 4K@15 fps PAL: 4K@15 fps CVBS: NTSC: 960H PAL: 960H |
| Backlight Compensation: | BLC; HLC; WDR; HLC-Pro |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D NR |
| Smart IR: | Supported |
| WDR: | 120 dB |
| Interface | |
| Video Interface: | 1 BNC port Video output formats: AVS/ TVI/ AHD/ CVBS (Toggled by OSD) |
| RS485: | N/A |
| Audio I/O: | Built-in Mic |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC 12V ±30% |
| Power Consumption: | Max 5.7 W (12 VDC, Illuminators on) |
| Environmental | |
| Operating Conditions: | –40 °F to +140 °F (–40 °C to +60 °C); < 95% (non-condensation) |
| Storage Conditions: | –40 °F to +140 °F (–40 °C to +60 °C); < 95% (non-condensation) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal front cover + plastic rear cap+ metal bracket |

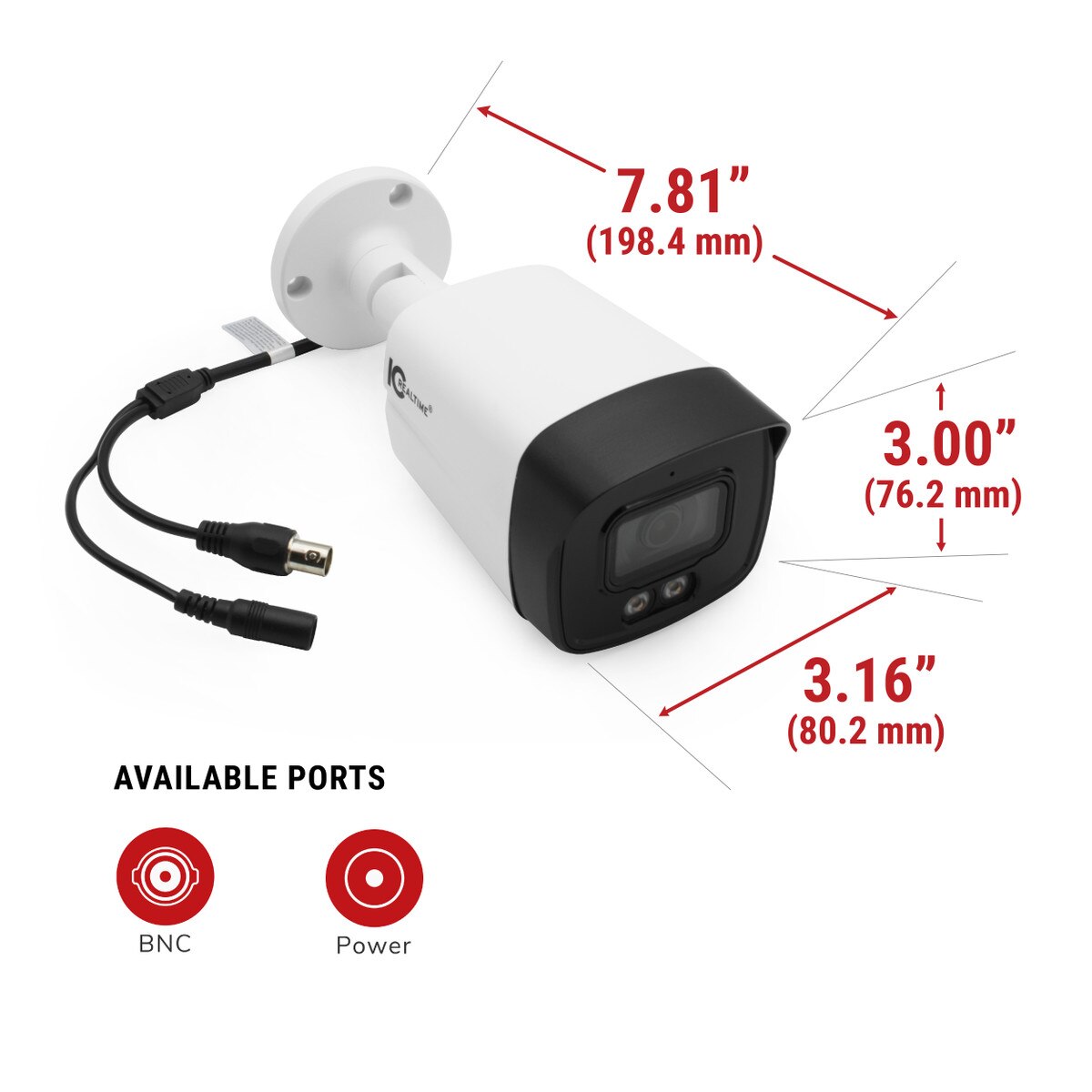

| Dimensions: | 7.81" × 3.16" × 3.00" (198.4 mm × 80.2 mm × 76.2 mm) |
| Gross Weight: | 1.06 lb (0.48 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
