HDEG-B50F-DI-M1

(0)No Reviews yet
SKU: HDEG-B50F-DI-M1
Jump to Product Specs

5MP HD-AVS Indoor/Outdoor Mid-size Bullet. Fixed 2.8MM Lens (125°). 131 Feet OF DUAL Illumination. 12VDC. BUILT-IN M...

25 fps@5MP (16:9 format) | 2.8 mm fixed lens
AVS/CVBS/AHD/TVI multi-format output
DWDR | 3DNR | Super Adapt
IP67 Rated | Built-in mic | 12V DC ± 30%
Smart Dual Illumination | Max. distance 131 feet

Details

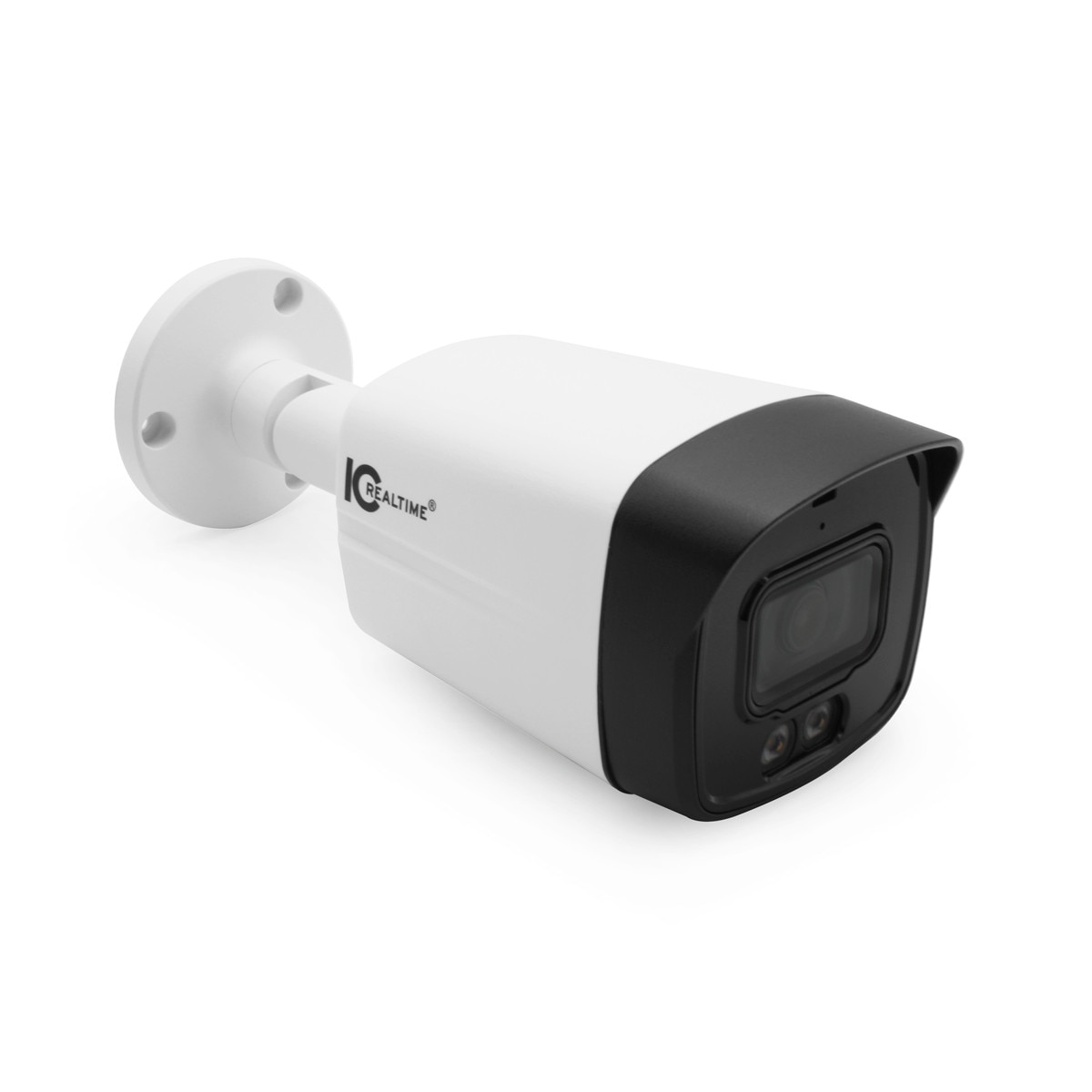

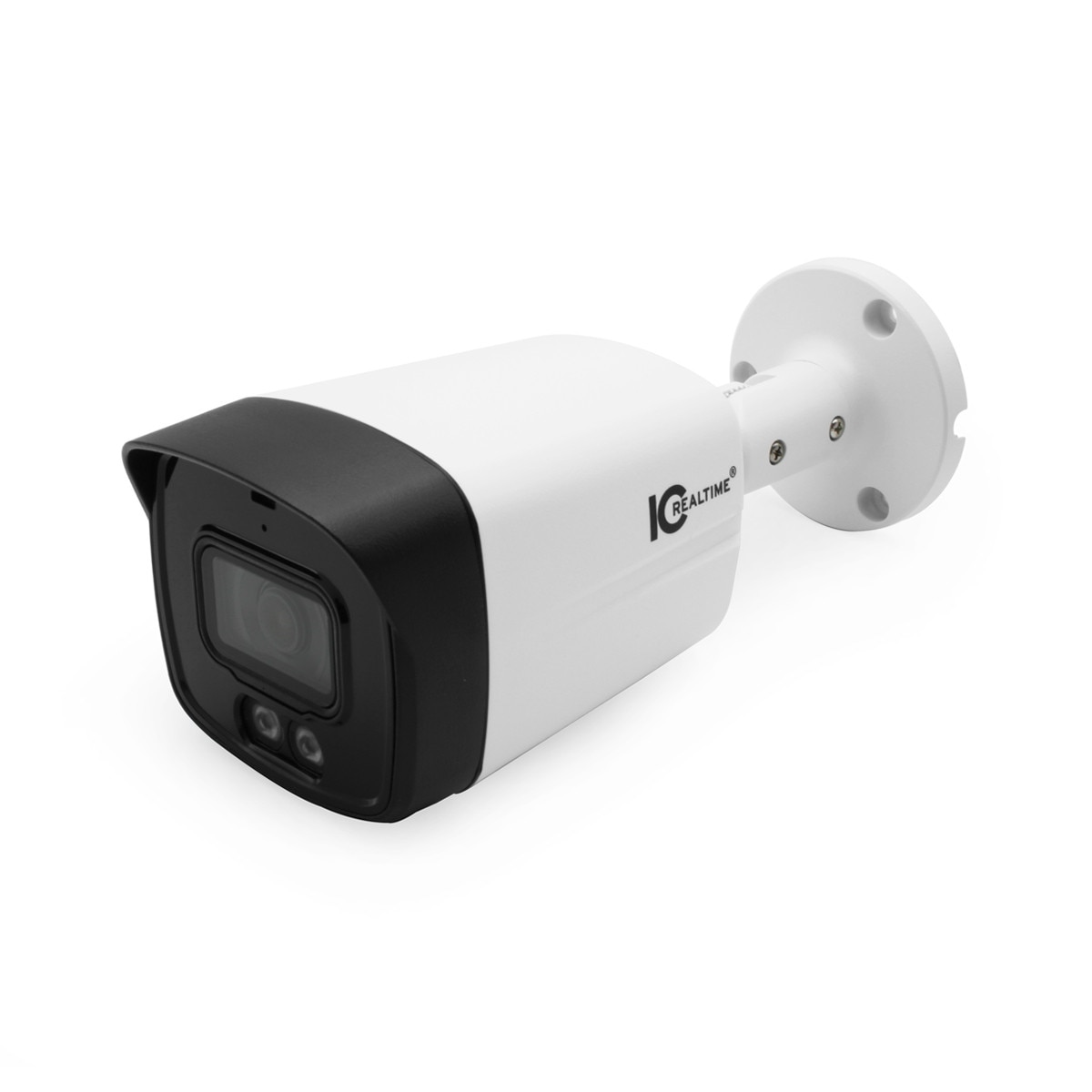

IC Realtime’s HDEG-B50F-DI-M1 bullet coaxial camera delivers exceptional surveillance performance with a 5MP resolution at 25 frames per second in a wide 16:9 format (2880 × 1620), ensuring sharp, clear video quality. Designed for versatility, the camera supports AVS, CVBS, AHD, and TVI multi-format output, making it compatible with a wide range of systems. It features Digital Wide Dynamic Range (DWDR), allowing it to capture balanced images in challenging lighting conditions, while 3D Noise Reduction (3DNR) minimizes image distortion in low-light settings, providing clear and reliable footage at all times.

With Super-Adapt technology, the HDEG-B50F-DI-M1 intelligently adjusts to its environment, optimizing image clarity and performance without manual intervention. The camera is equipped with a 2.8 mm fixed lens, offering a broad field of view ideal for wide-area coverage. For enhanced surveillance, the built-in microphone captures audio, ensuring that both sound and video are recorded for comprehensive security monitoring.

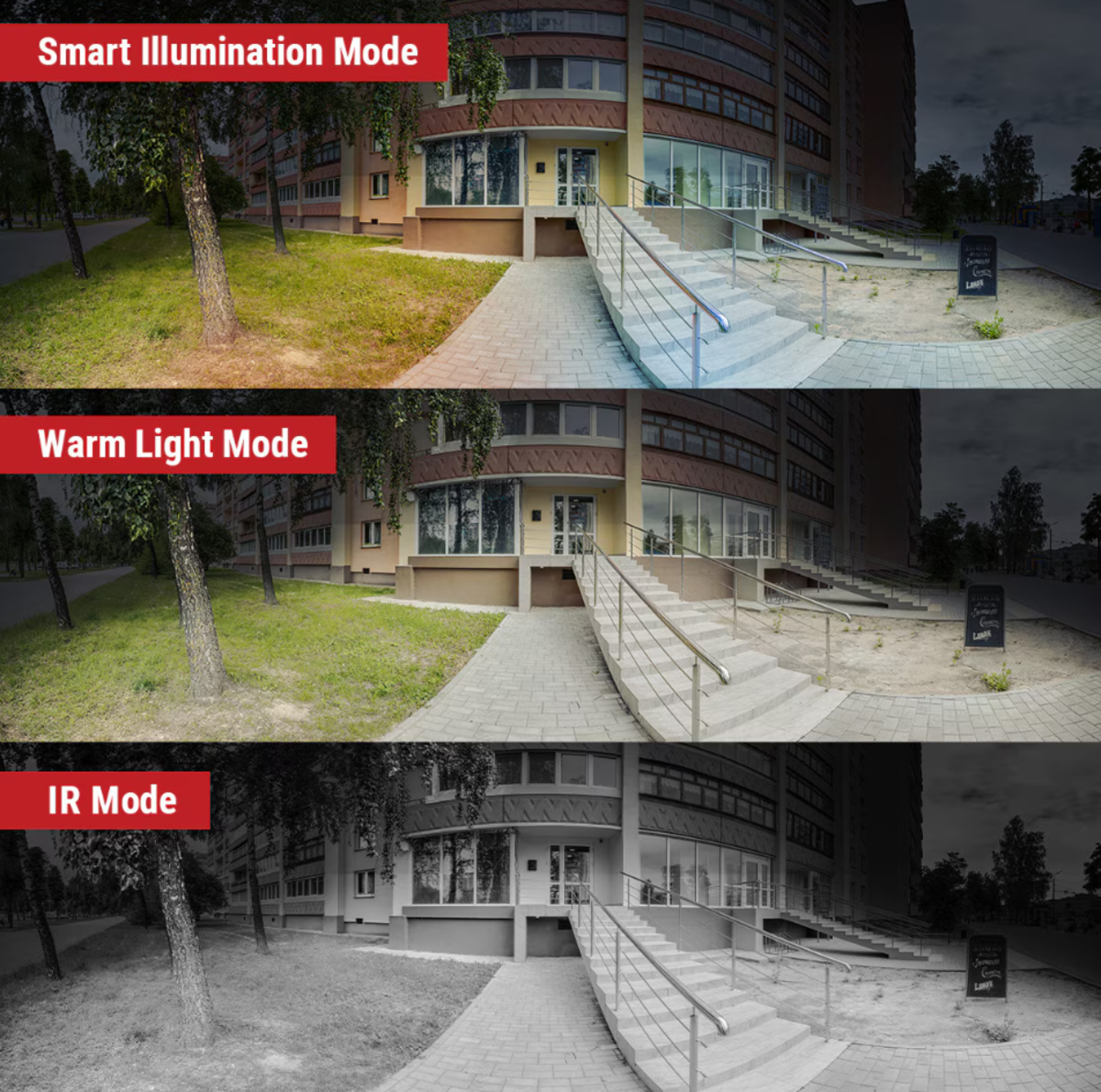

One of the standout features of this camera is its Smart Dual Illumination. Operating in infrared (IR) mode by default for low-light environments, it seamlessly switches to full-color imaging when motion is detected by its intelligent rule system, automatically activating its white light to provide detailed, color-rich footage. This system is effective up to a maximum distance of 131 feet, ensuring thorough coverage both day and night.

Built for durability, the HDEG-B50F-DI-M1 is IP67 rated, making it dust-tight and waterproof, ideal for both indoor and outdoor installations in harsh environments. It operates on a reliable 12V DC power supply with ± 30% electrical tolerance, offering stable performance even with fluctuating power conditions. Backed by IC Realtime’s 10-year warranty and supported by their excellent technical assistance, the HDEG-B50F-DI-M1 guarantees long-term reliability and peace of mind for all your security needs.

With advanced technology and a robust design, IC Realtime’s HDEG-B50F-DI-M1 is the perfect solution for those looking to elevate their surveillance systems with smart, high-quality monitoring.

Specifications

Camera
Image Sensor: 5 Megapixel CMOS
Effective Pixels: 2880 (H) × 1620 (V) (5MP, 16:9)
Scanning System: Progressive
Minimum Illumination: 0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance: White Light/ IR Distance: 131.23 ft (40 m)
Illumination On/Off Control: White Light Mode; IR Mode,
Smart Dual Illumination Supported* (With appropriate HDVR and firmware)

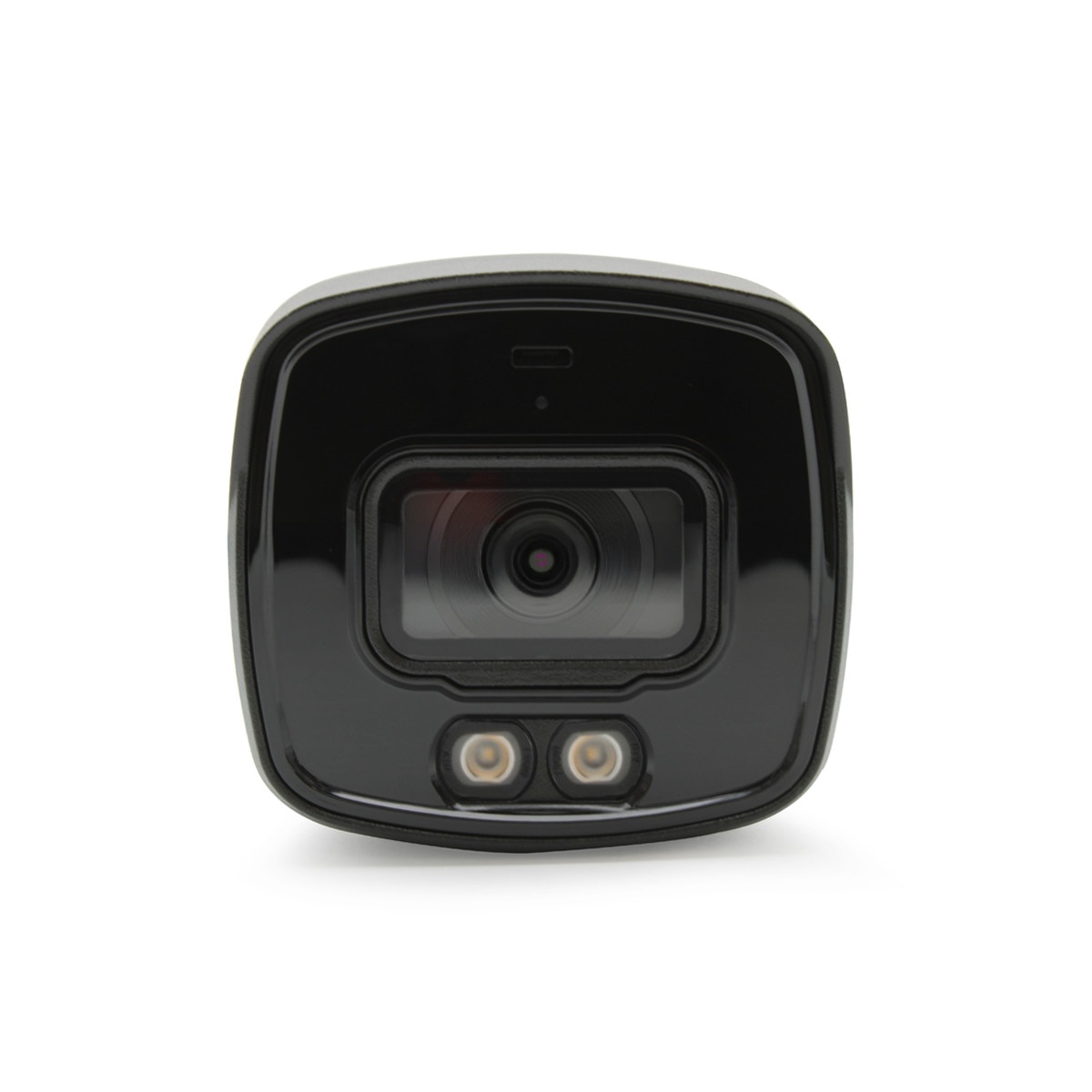

Illumination LEDs: 1x IR LED, 1x Warm Light LED
Camera Illumination Type: IR and White Light
Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: Horizontal: 106°
Vertical: 56°
Focus Control: Fixed
Close Focus Distance: 4.27 ft (1.3 m)
DORI - Detect: 183 ft
DORI - Observe: 73 ft
DORI - Recognize: 36 ft
DORI - Identify: 18 ft
Video
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate: AVS:
NTSC: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps
PAL: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps

AHD:
NTSC: 4MP@25 fps
PAL: 4MP@25 fps

TVI:
NTSC: 4MP@25 fps
PAL: 4MP@25 fps

CVBS:
NTSC: 960H
PAL: 960H
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: BLC; HLC; DWDR
Gain Control: Auto / Manual
Noise Reduction: 2D NR
Smart IR: Auto(ICR)/Color/B/W
Privacy Masking: Off/On (8 areas, rectangle)
Iris Control: Fixed
WDR: DWDR
Interface
Video Interface: 1 BNC port
Video output formats: AVS/ TVI/ AHD/ CVBS
(Toggled by OSD)
RS485: N/A
Audio I/O: Built-in Mic
Alarm I/O: N/A
Electrical
Power Supply: DC 12V ±30%
Power Consumption: Max 4.5 W (12 VDC, Illuminators on)
Environmental
Operating Conditions: –40 °F to +140 °F (–40 °C to +60 °C); < 95%
(non-condensation)
Storage Conditions: –40 °F to +140 °F (–40 °C to +60 °C); < 95%
(non-condensation)

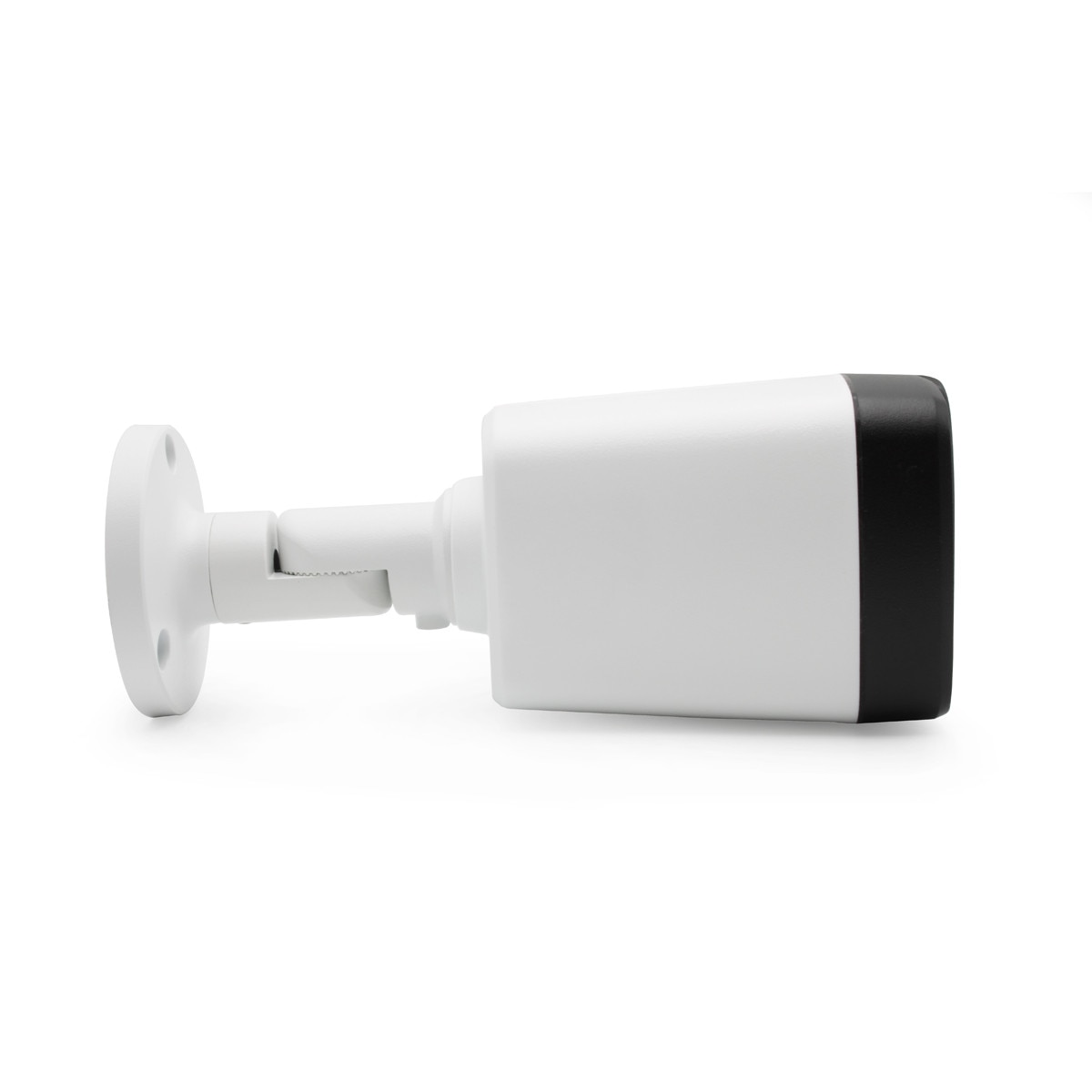

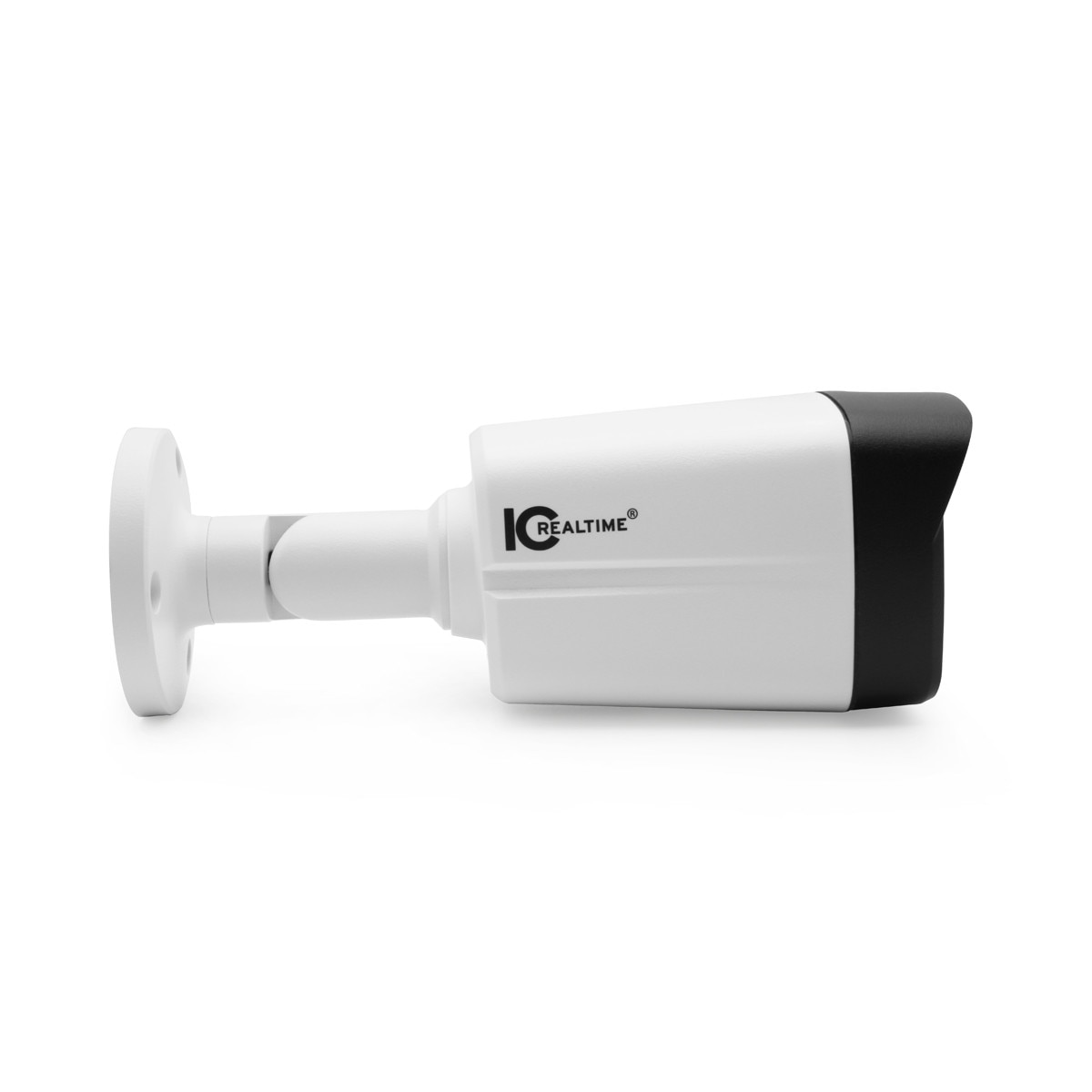

Construction
Casing: Metal front cover + plastic rear cap+ metal bracket

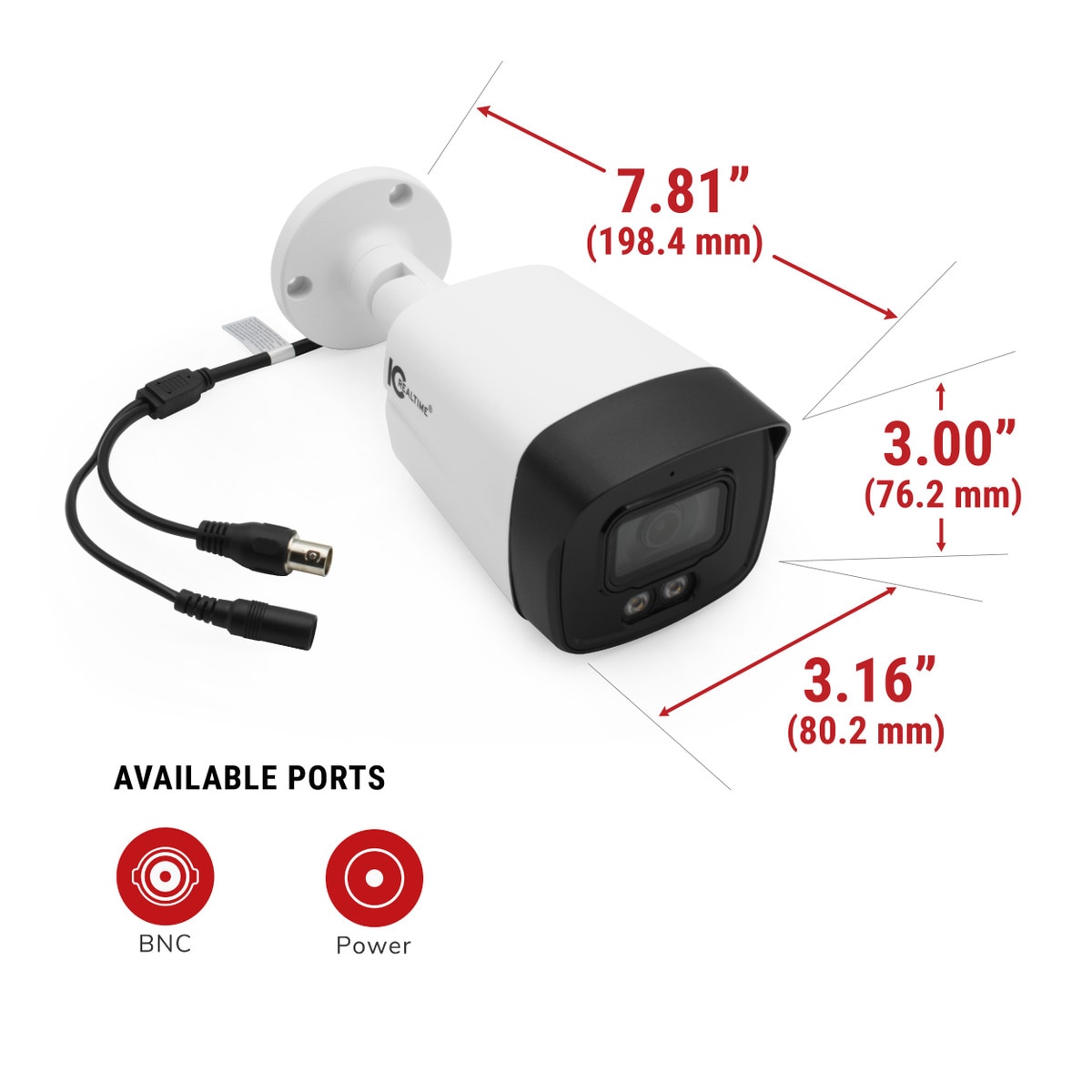

Dimensions: 7.81" × 3.16" × 3.00"
(198.4 mm × 80.2 mm × 76.2 mm)
Gross Weight: 0.93 lb (0.42 kg)

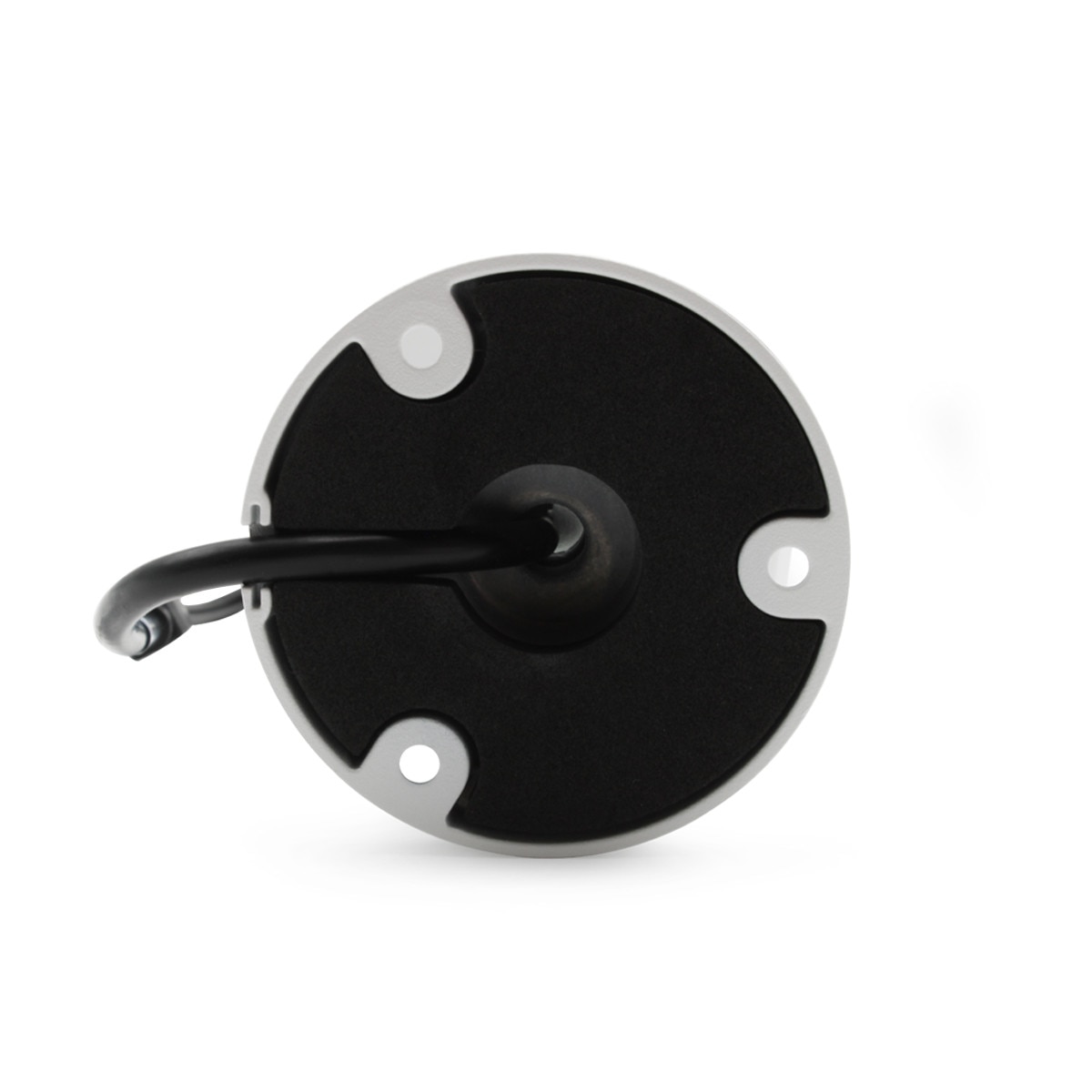

Mounting Pan/Tilt/Rotation: Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
