PWR-POE-8

(0)No Reviews yet
SKU: PWR-POE-8
Jump to Product Specs
8 Port Full Gigabit PoE Switch 90W Max.
Layer two commercial switch
Supports PoE power management
Port 1 supports Hi-PoE 60W power supply
MAC auto learning and aging | MAC address capacity is 16K
Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
RJ45 port supports 10/100 Mbps self-adaptation
Discontinued Item, USE PWR-POE-8-V3
Back

Details

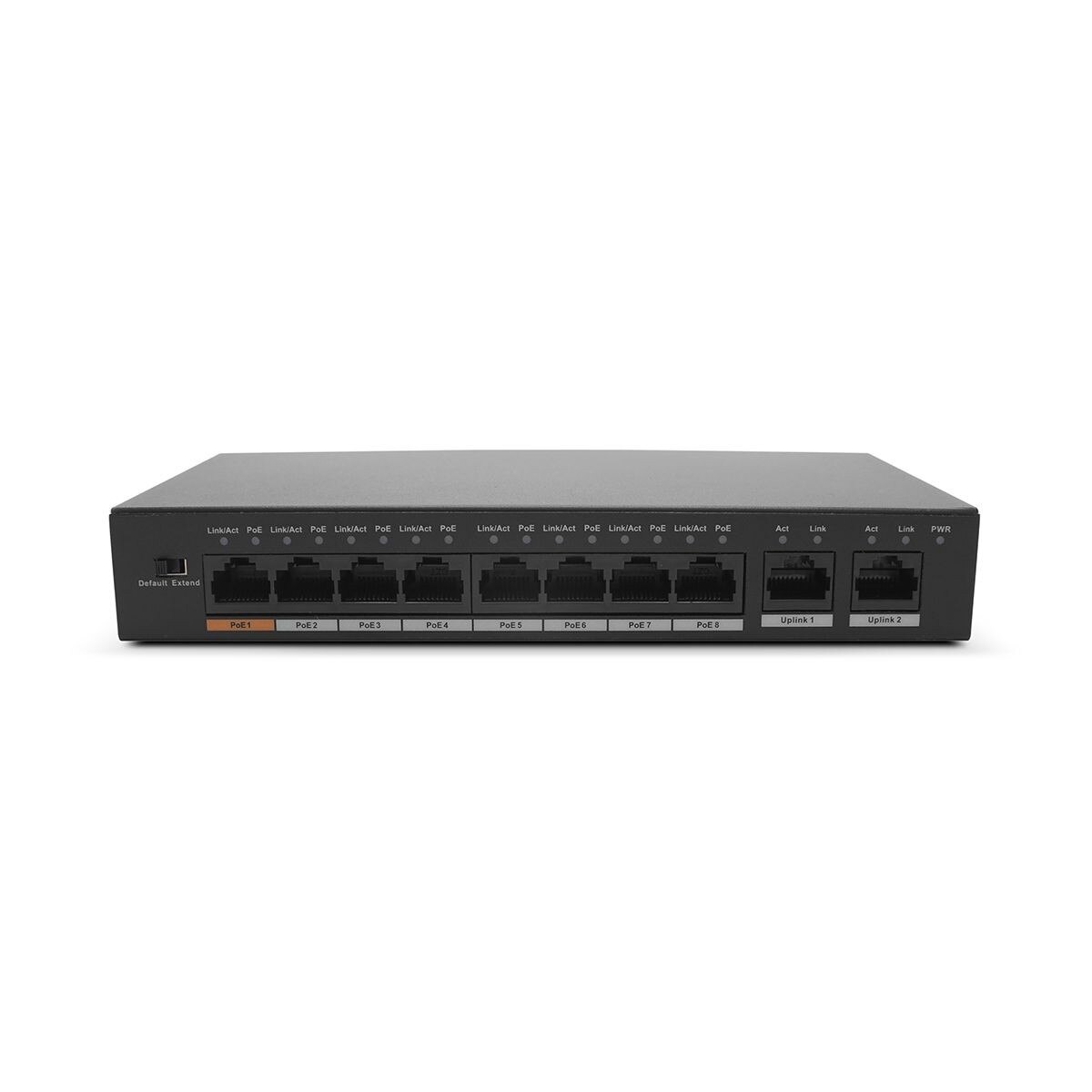

The PWR-POE-8 is an 8-port ethernet switch, which supports 250 meters long distance PoE transmission.

 It provides 8*10/100Mbps PoE ports and 2*10/100/1000Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.
Back

Specifications

Network
Ethernet: 8*10/100Mbps PoE ports2*10/100/1000Mbps ports
Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Electrical
Power Supply: DC 48~57V power adapter
Power Consumption: Port1≤60W, Port2-8≤30W, Total≤96W
Environmental
Operating Conditions: -10°C~55°C
Operating Humidity: 5%~95%
Construction
Dimensions: 190mm×100mm×30mm
