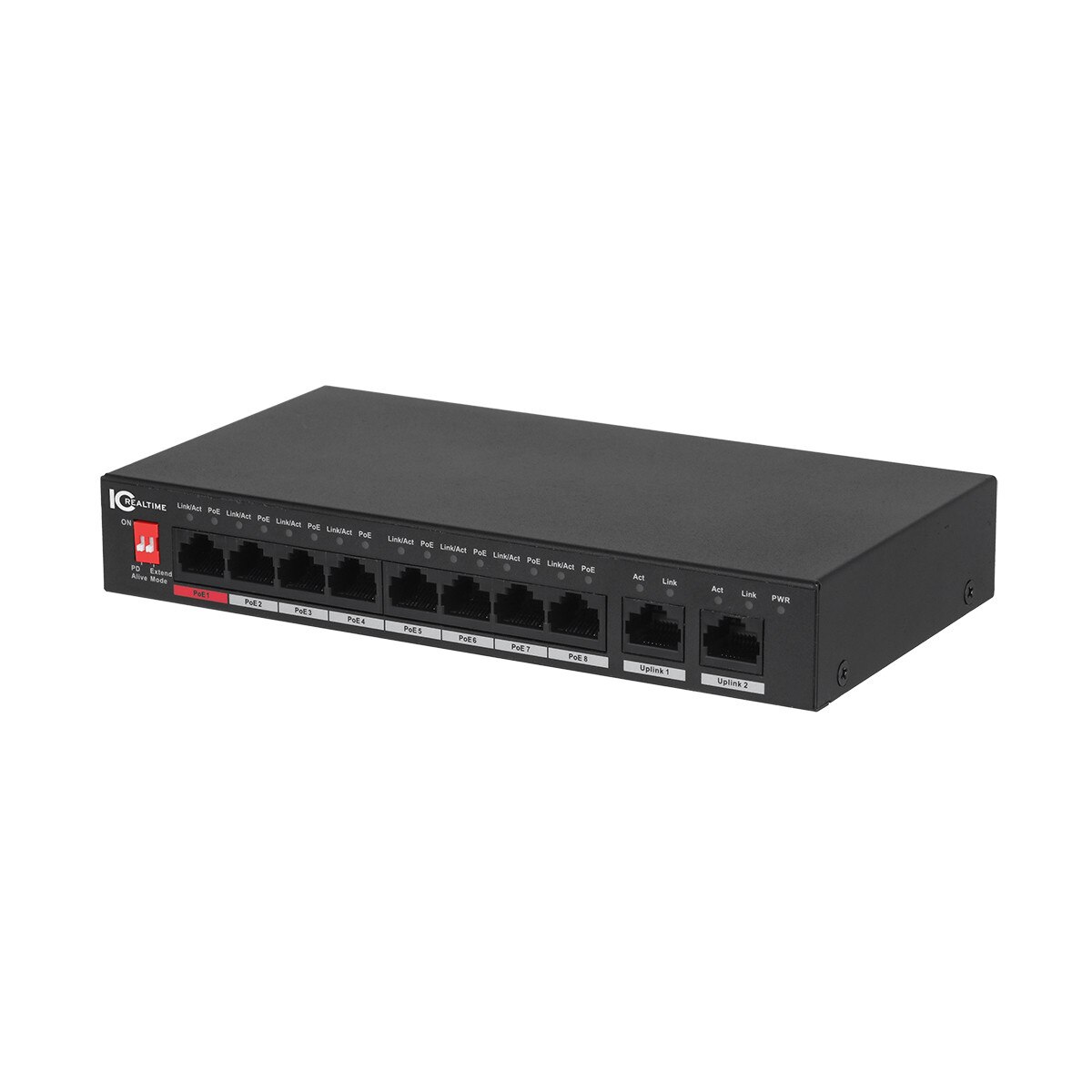

If you are installing a network switch for POE cameras, IC Realtime’s new PWR-POE-8-V3 is, without a doubt, one of the best network camera integration solutions we have ever offered. This POE switch has the features and capacity to make it any camera integrator’s first choice where a remote POE switch is required.
HIGH POWER & LONG DISTANCE POE
Don’t let PWR-POE-8-V3’s compact 7.5” x 4” x 1.25” size fool you. With a total of 96 watts of POE power, it can power up to 8 cameras and drive POE power over 800 feet to reach remote camera locations. The red highlighted Port 1 can even provide up to 90 watts of High POE (802.3bt) for a power-hungry PTZ camera.
CAMERA POWER MANAGEMENT & AUTO-REBOOT
We all know POE cameras can freeze up or drop out from power blips or other random reasons, resulting in unhappy users or a service call for a simple camera reset/reboot. PWR-POE-8-V3 reduces or eliminates this annoying issue with 2 features that will both intelligently monitor attached cameras & adjust for power fluctuations to prevent camera power issues, and automatically attempt to reboot any unresponsive cameras.

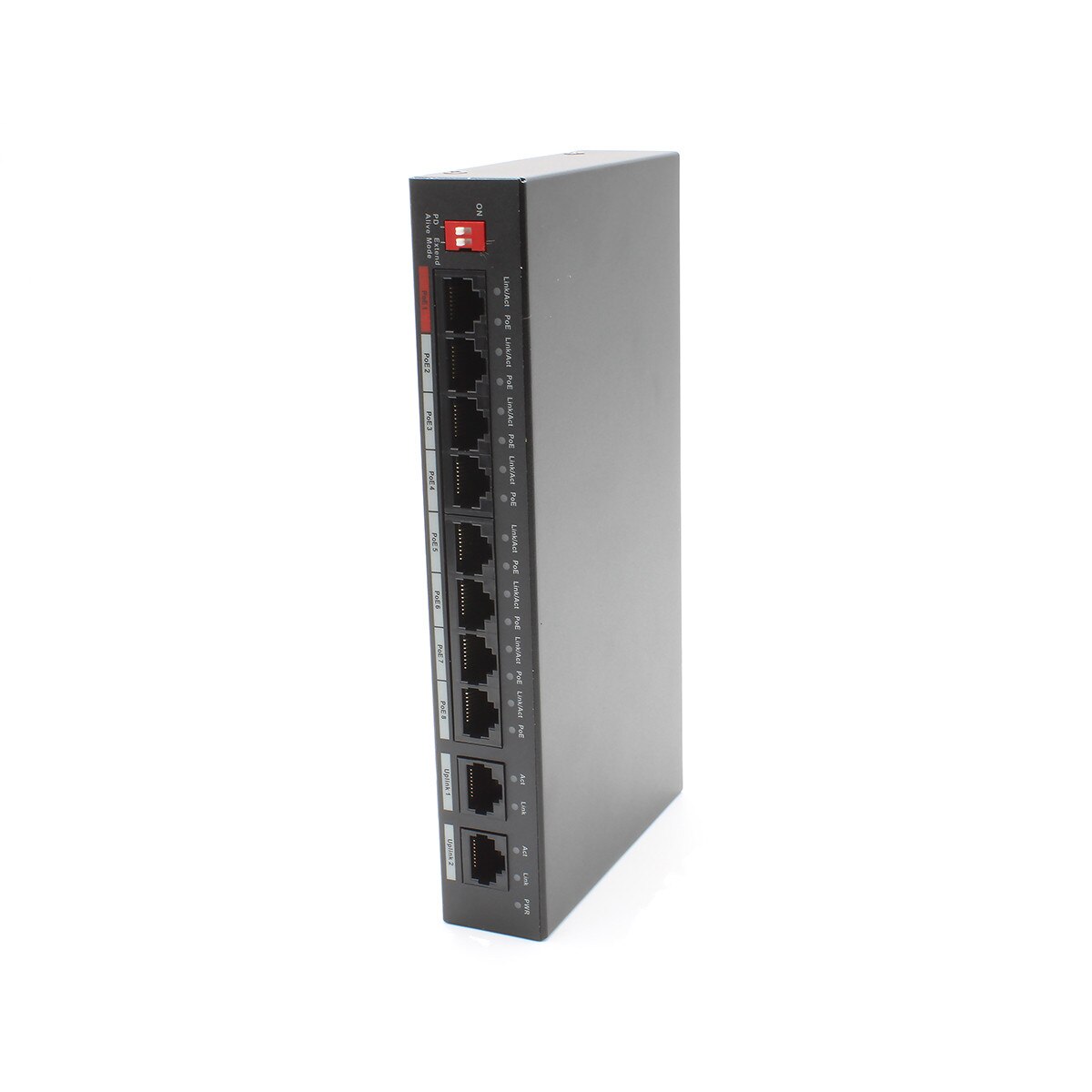

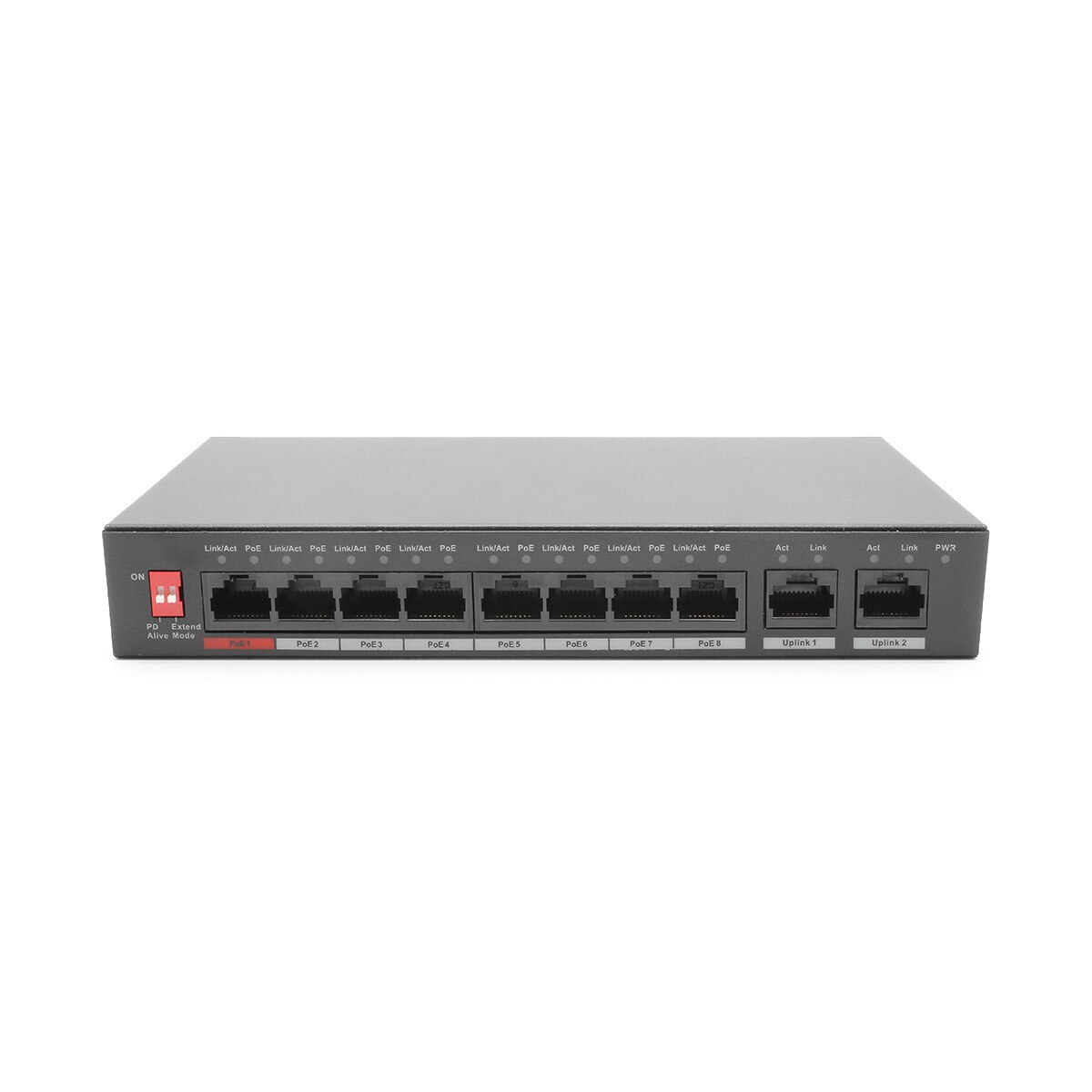

8 CAM PORTS + 2 UPLINK PORTS
Avoiding datastream choke points between IP cameras & the NVR means smoother streaming and the capacity to dependably use greater resolution cameras with higher streaming rates. While the 8 10/100 Mbps (PoE) camera ports can assure solid camera-to-switch rates, to speed the rest of the route to the network & back to the NVR, the new PWR-POE-8-V3 has dual 10/100/1000 Mbps uplink ports to double thruput. Both ports can also be set by DIP switch to an extended mode for greater range (but at a lower speed) when needed.
THE PERFECT 8 PORT POE CAMERA SWITCH?
Is IC Realtime’s new PWR-POE-8-V3 just another 8 port POE switch? Far from it. This switch is optimized for IP cameras. In fact, PWR-POE-8-V3’s power & camera management features alone could justify upgrading working 8 port POE switches to a new PWR-POE-8-V3 on a distant or power problem-prone installation.
With PWR-POE-8-V3’s professional power capabilities, camera management skills, and video streaming capacity for even the most demanding installations, camera professionals would be pressed to find a better camera POE switch anywhere.
