NVR-716NS

(0) No Reviews yet
SKU: NVR-716NS-WEB
ITEM WEIGHT: 20
16 Channel 1U NVR - Integrated 16 Port POE Switch - Supports 8MP Resolution - 200Mbps throughput - H.264 - up to 12TB
16 Ch | Up to 8MP | 200Mbps Total
2 HDDs
16 PoE (IEEE802.3af/at) | 1 RJ-45 (10/100/1000Mbps)
2 USB | Alarm 4/2 | 1 HDMI / 1 VGA
ONVIF 2.4 CGI Conformant
1U | Desktop or Rack Shelf

Details

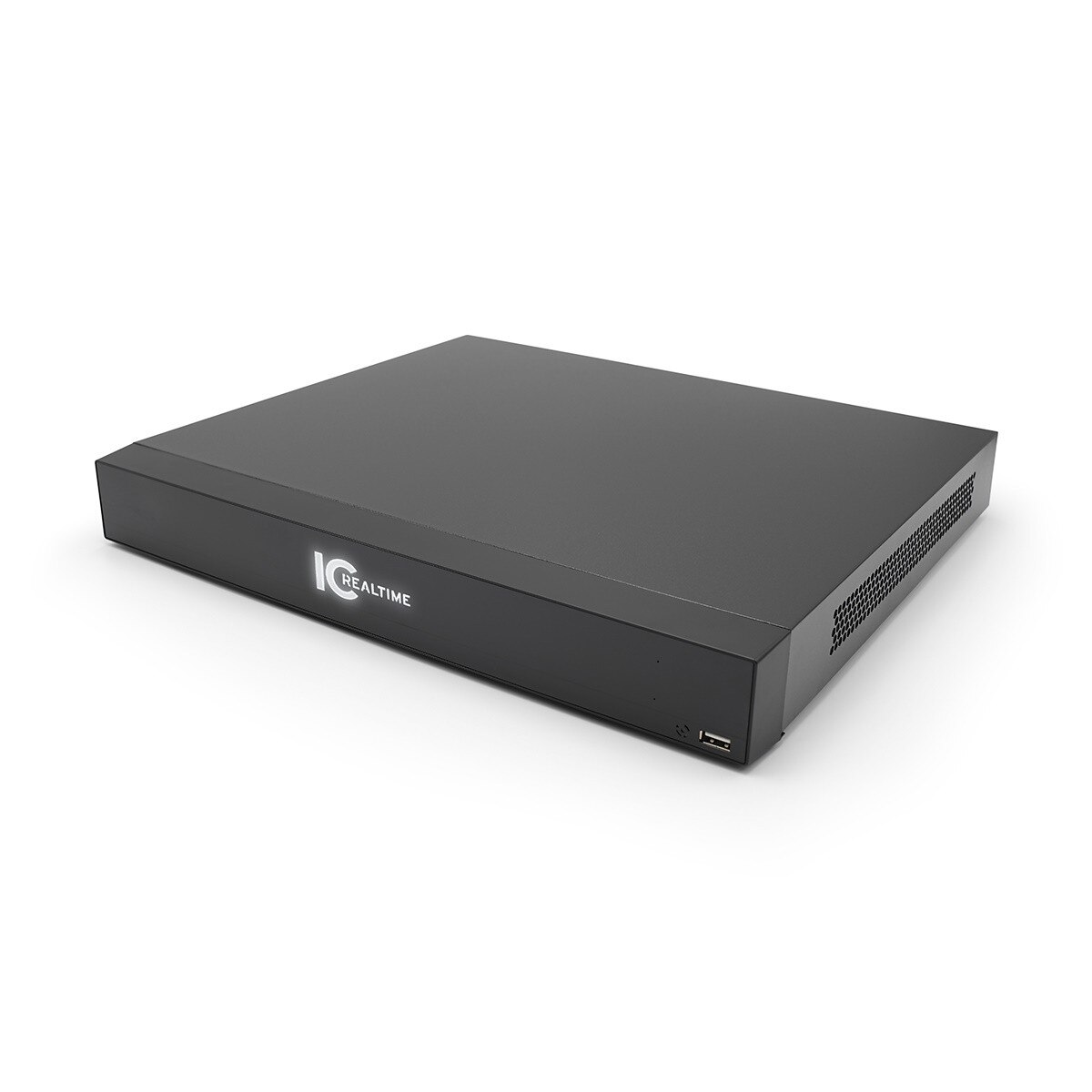

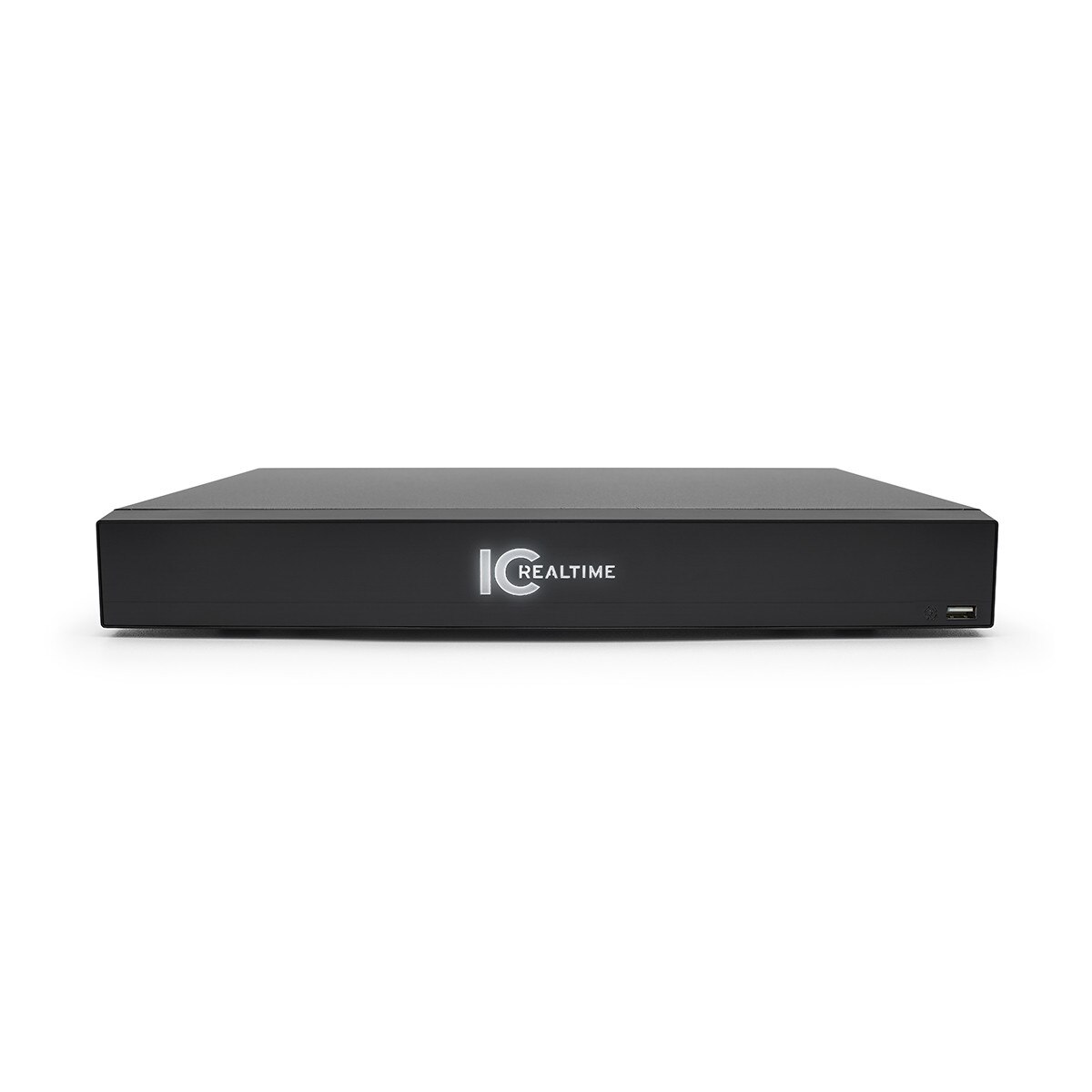

Affordable, small form factor 16 Channel IP Camera Network recorder for residential and small office use. The 700NS series of IC Realtime NVR's is the entry level for IP Camera storage devices. The 700NS footprint is about the size of a DVD player, while still having room for 2 full size HDDs, and a 16 port integrated POE switch.

Specifications

System
Main Processor: Quad-core embedded processor
Operating System: Embedded LINUX
Display
Display Interface: 1 HDMI, 1 VGA
Display Resolution: HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display: 1/4/8/9/16
OSD: Camera title, Time, Camera lock, Motion detection, Recording
HDMI Decoding: 2ch@4K 30fps 8ch@1080P 30fps
Video
IP Camera Input: 16 Channel
Trigger Events: Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Playback: 1 / 4 / 9 / 16
Search Mode: Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Audio
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
Recording
Record Compression: H.265/ H.264
Record Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
Record Rate: 200Mbps
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, Post-record: 10 ~ 300 sec
Storage
Internal HDD: 2 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode: Single
Network
Ethernet: 1 RJ-45 Port (10/100/1000Mbps)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search , Easy4ip
Compatability: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android
Interface
RS232: N/A
RS485: N/A
USB: 2 ports (1 USB2.0, 1 USB3.0)
Electrical
Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption: NVR: <13.2W (without HDD) PoE: Max 25.5w for single port, 130w in total
Enviromental
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa
Storage Conditions: -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH
Construction
Dimensions: 1U, 375mm x 327.5mm x 53mm (14.8" x 12.9" x2.1")
