NEMA BOX LG-HEATER

(0) No Reviews yet
SKU: NEMA BOX LG-HEATER
ITEM WEIGHT: 24
Heated Nema Encosure, FRP 18x16x8" w/120VAC
Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
NEMA Type 3R, 3RX / IP24 rated
Custom housing for various IC Realtime Recorders and Cameras
Fully gasketed raised Vented lid with removable filters & integral mounting flange
Aluminum mounting plate with surge protected duplex 120 VAC outlets
Thermostat Controlled Heating & Cooling System
*Special Order. Please contact IC Realtime for pricing and availability.

Details

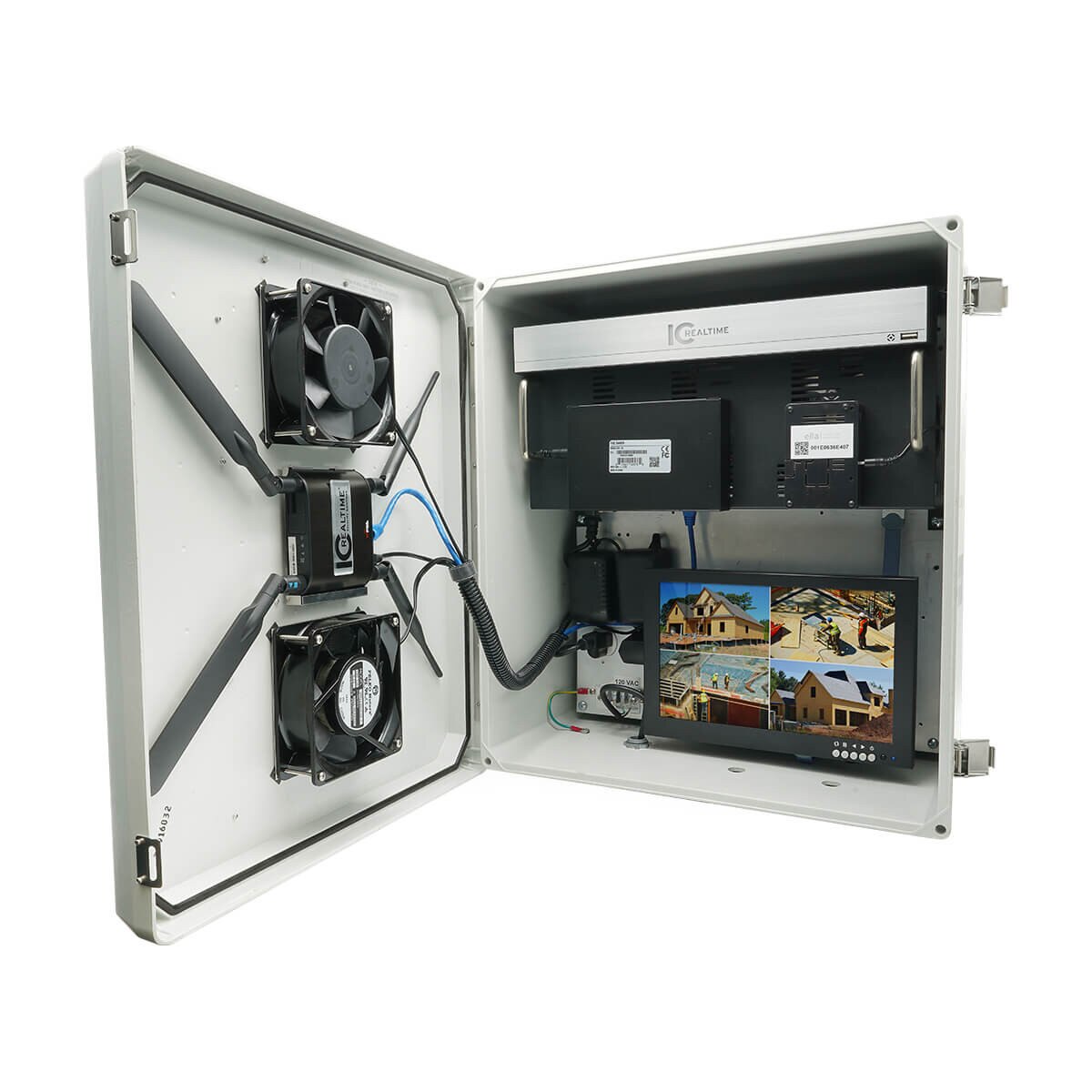

The NEMA BOX LG-HEATER is a fully customizable housing used with various IC Realtime recorders and cameras for the outdoor applications subjected to wide extreme hot and cold environments thanks to its 200 watt heating elements and two cooling fans. Constructed from molded fiberglass reinforced polyester, the enclosure is a rugged weatherproof design that is well suited for installations subjected to hard rain, heat or snow. Inside the box is a large aluminum mounting plate with four 120 VAC outlets to power internal devices.

Combined with your choice of IC Realtime cameras and recorders, the NEMA Box LG-HEATER is a fully weatherproof and vandal proof self-contained device with all required components (cooler, network equipment, power supply, UPS , and LCD monitor).

Specifications

Electrical
Power Supply: 120 VAC
Enviromental
Ingress Protection: NEMA Type 3R, 3RX/ IP24
Construction
Casing: Fiberglass Reinforced Polyester
Dimensions: 19.5 x 17.5 x 10 inches(49.5 x 44.4 x 25.4cm)
