NEMABOX-LG-H-AL

(0)No Reviews yet
SKU: NEMABOX-LG-H-AL
Jump to Product Specs

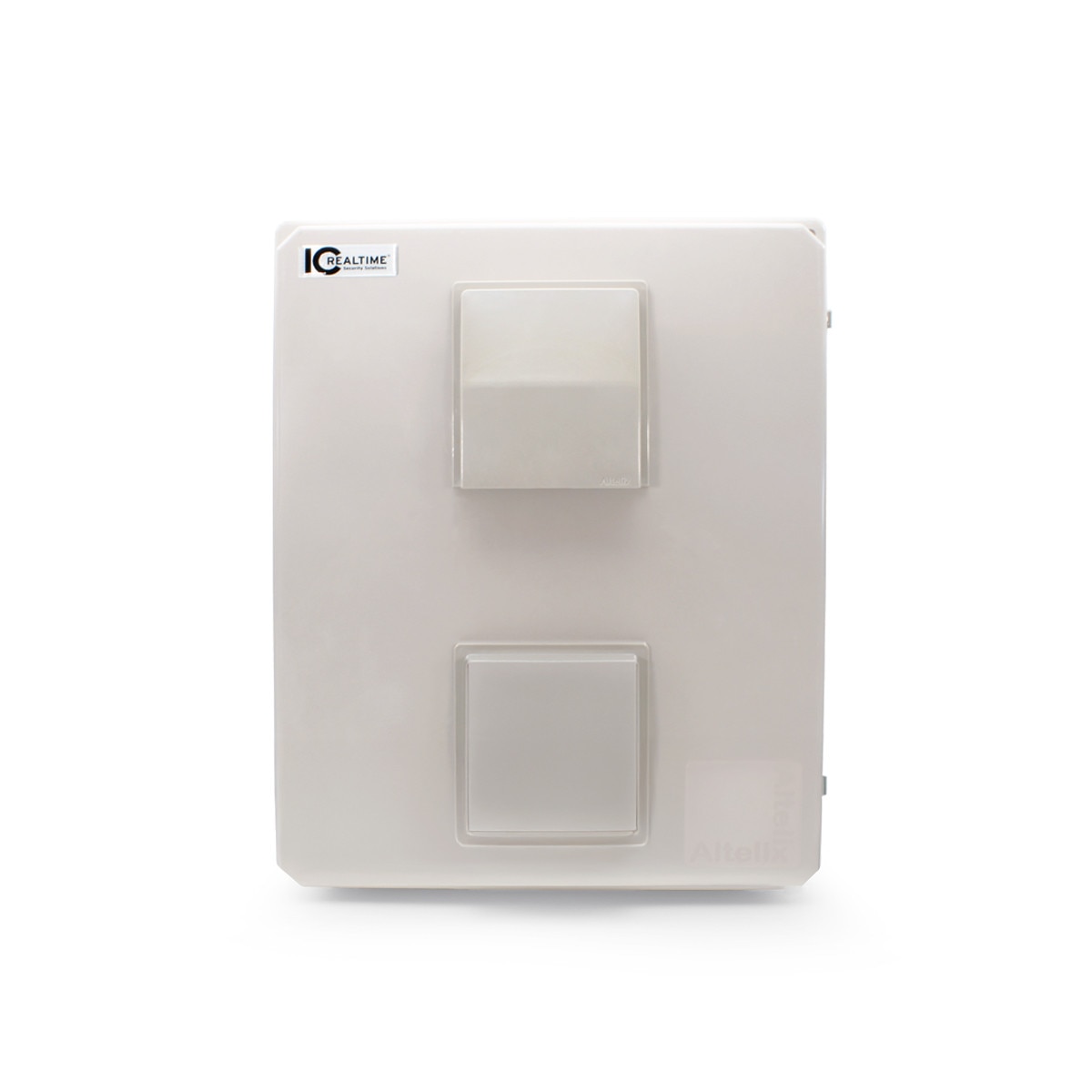

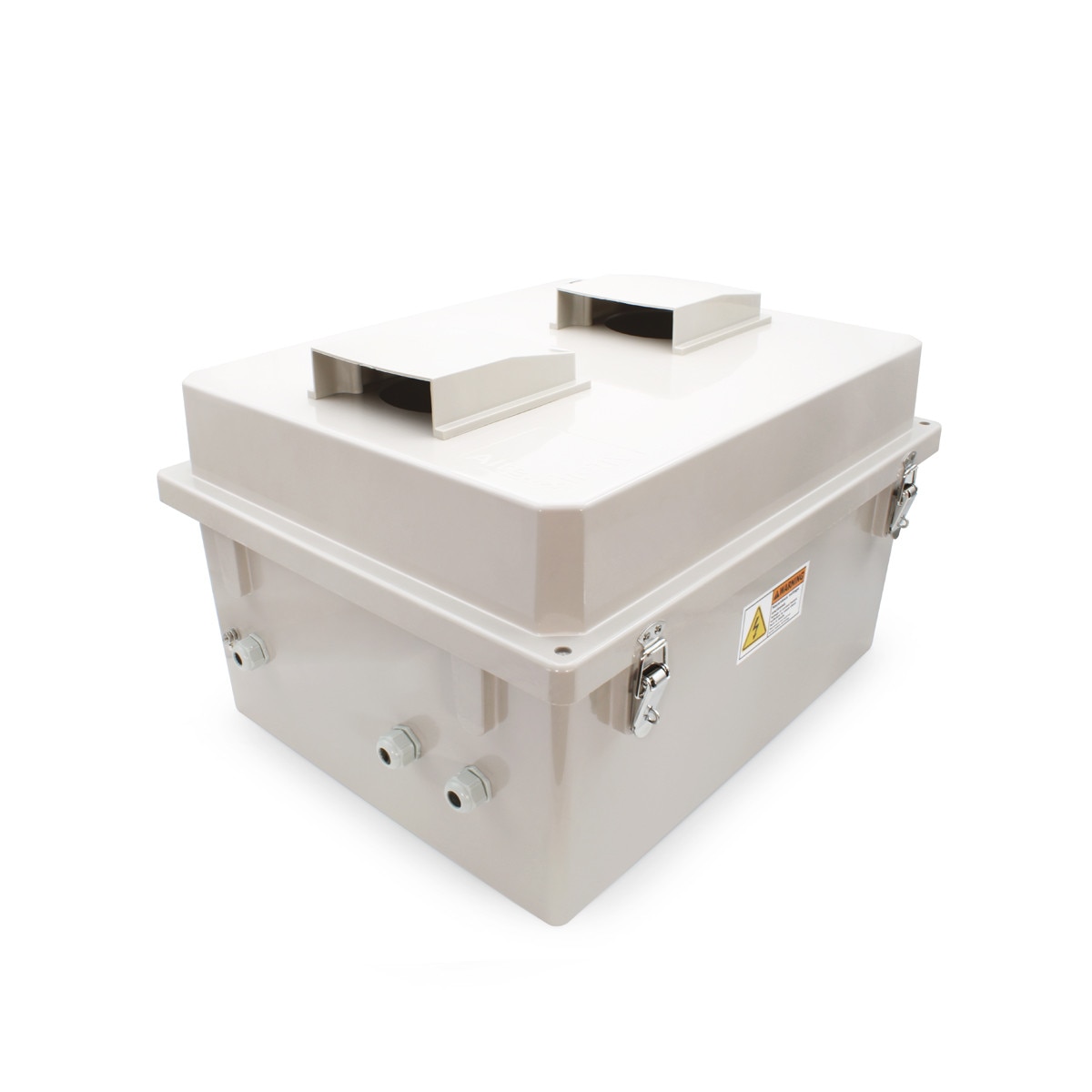

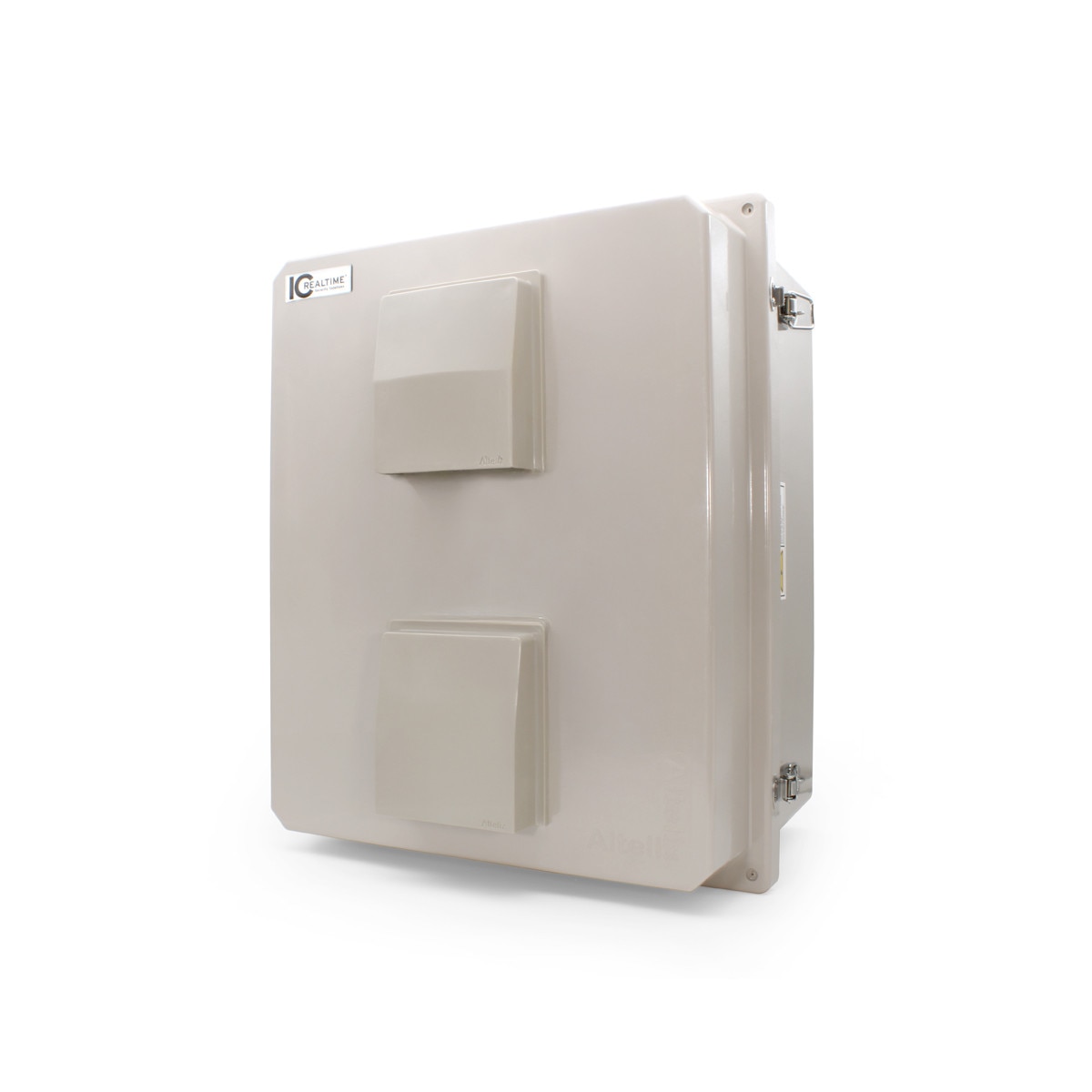

Large Heated NEMA Enclosure with Dual Cooling Fans and Aluminum Mounting Plate

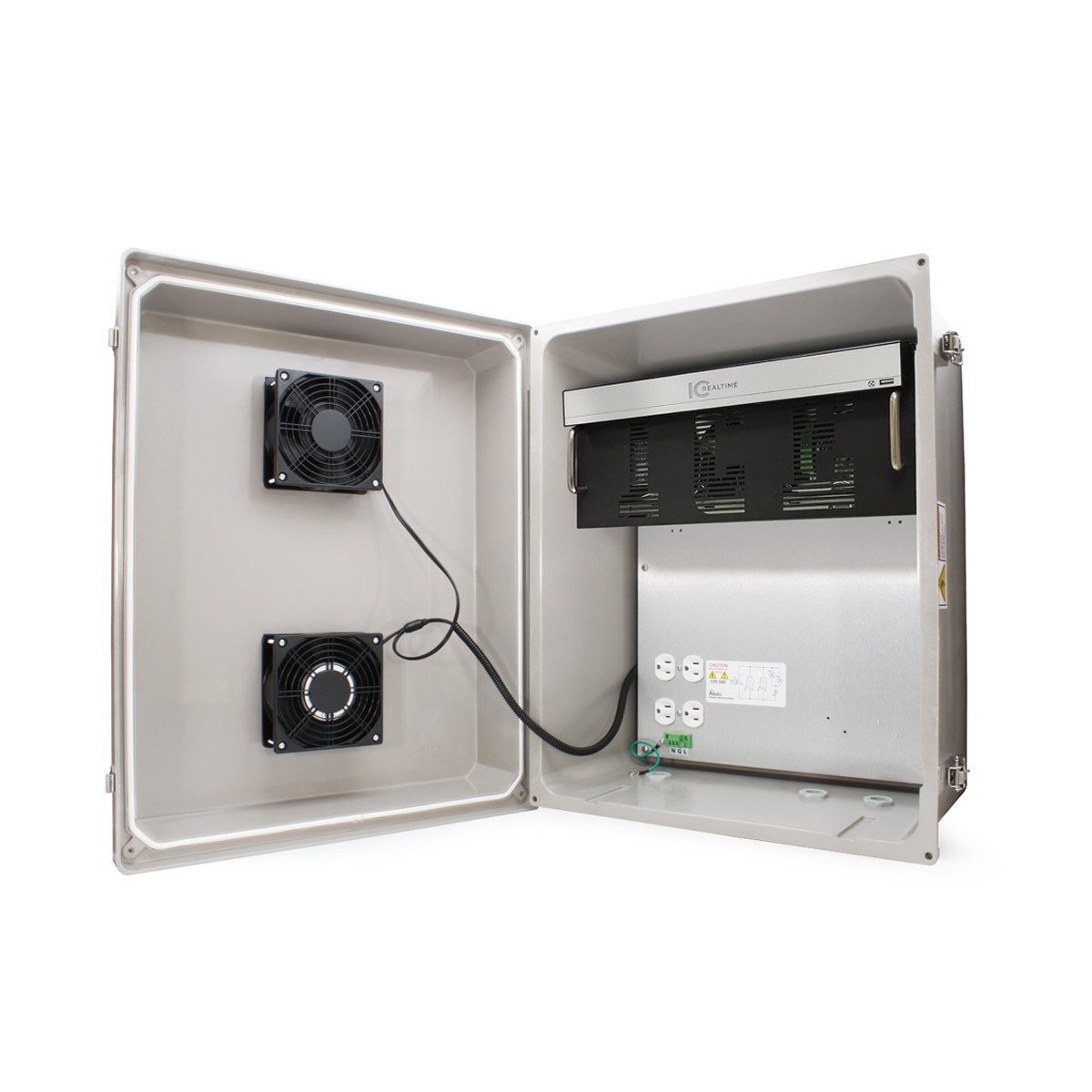

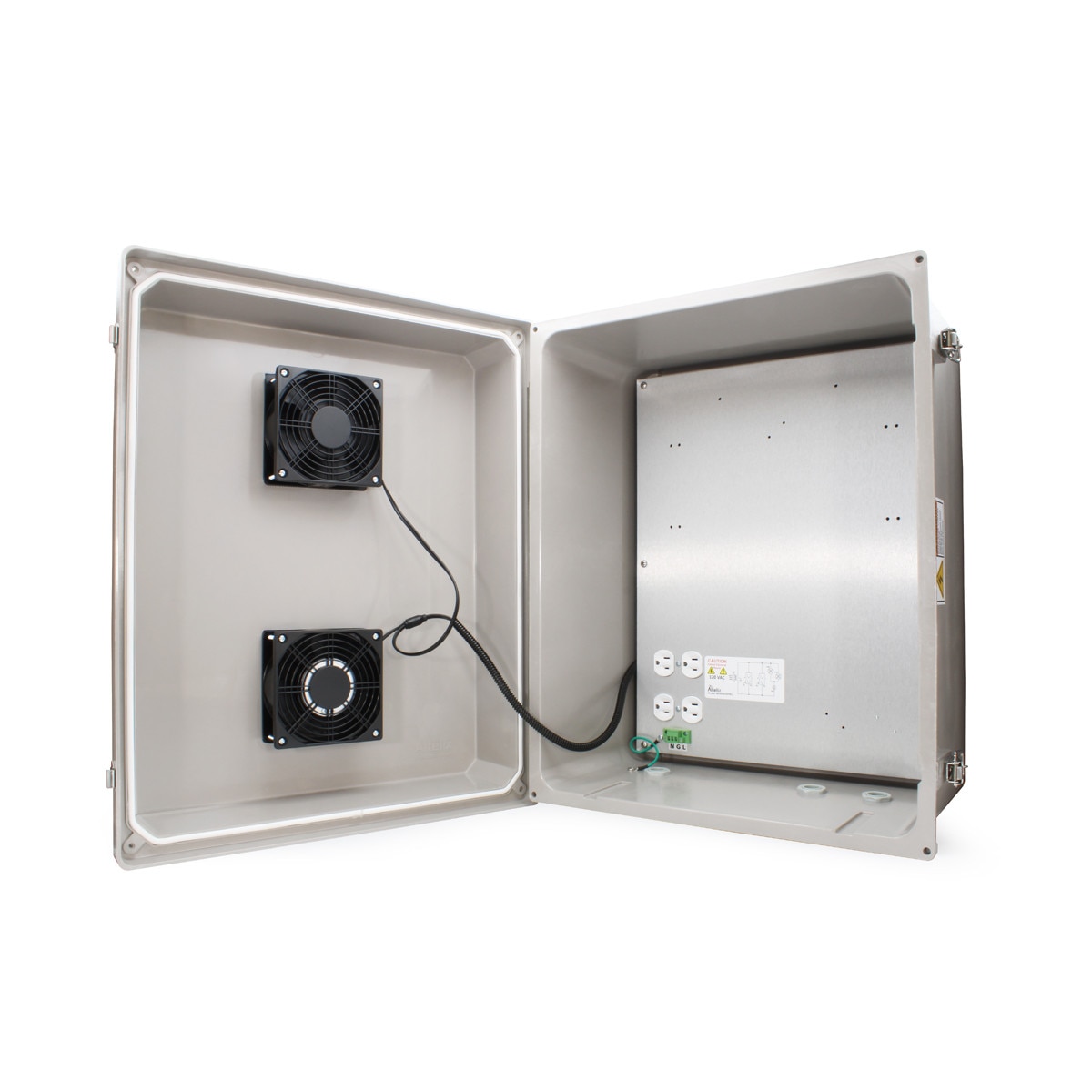

Dual Cooling Fans + 200W Heater - Keeps gear safe in extreme hot or cold climates
(4) Pre-Wired 120VAC Outlets - Plug-and-play power for recorders, cameras, or PoE equipment
Aluminum Mounting Plate - Easy customization and secure equipment installation
Extra Deep Lid - Increased clearance for bulky recorders or networking gear

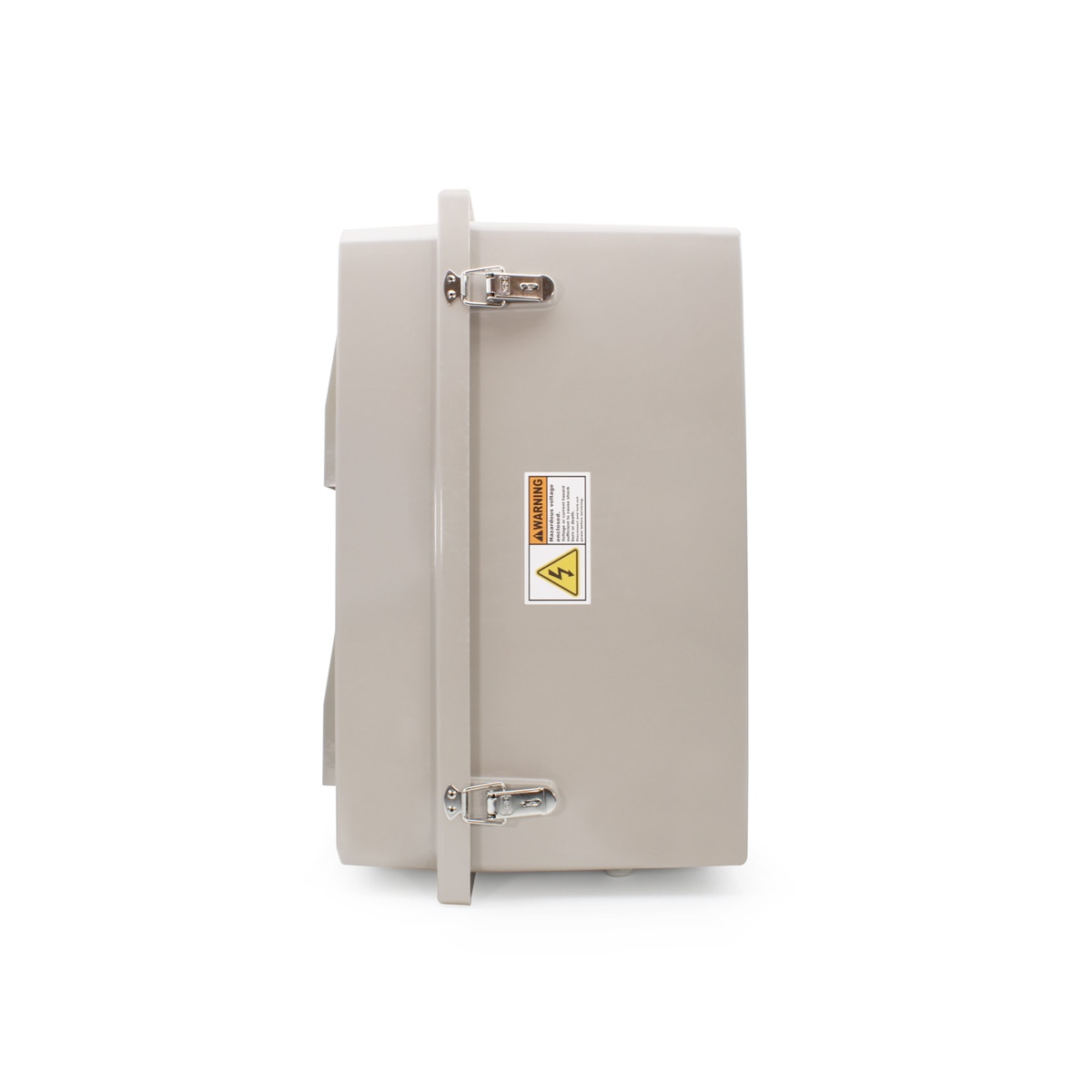

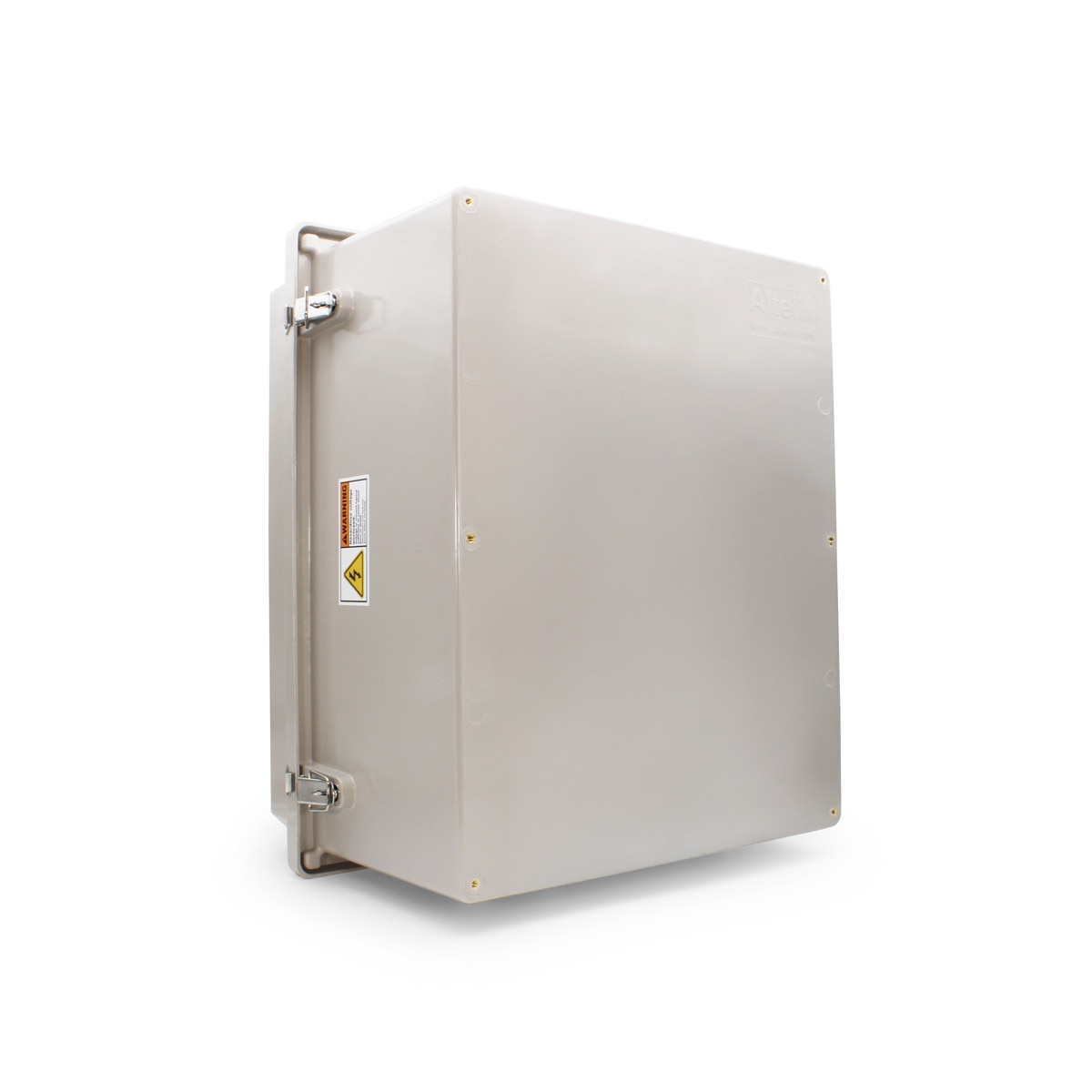

316 Stainless Hinges + Quick Release Latches - Corrosion-resistant and padlock ready
Fiberglass Reinforced Polyester (FRP) Housing - UV-stable, dent-proof, and RF-transparent
Back

Details

Product Description

NEMABOX-LG-H-AL

Climate-ready outdoor NEMA enclosure for recorders, networking devices, and power components. Dual thermostat-controlled cooling fans plus a 200W heater, pre-wired outlets, and extra interior clearance for demanding installs.

Overview

The NEMABOX-LG-H-AL protects critical equipment through heat and cold with automatic fan cooling and a built-in 200W heater. It’s built for integrators who need uptime in extreme climates without custom-build complexity.

Purpose

Replace ad-hoc housings with a plug-and-play enclosure that adds thermostat-controlled airflow, integrated heating, pre-wired power, and long-term durability—cutting install time and temperature-related callbacks.

Key Benefits

  • All-weather protection (hot, cold, rain, snow) for mission-critical gear
  • Automatic climate control: dual fans + 200W heater regulate internal temps
  • Faster installs via (4) pre-wired 120VAC outlets and quick-connect terminal block
  • Secure, serviceable access: stainless quick-release latches with padlock hasps

Quick Specs

Material
Fiberglass Reinforced Polyester (FRP)
Voltage / Max Load
120VAC / 15A
Cooling Fans
On 100°F (38°C), Off 79°F (26°C)
Heater
200W — On 43°F (6°C), Off 59°F (15°C)
Outer Dimensions
21.8 × 17.9 × 14.3 in (553 × 454 × 363 mm)
Inner Dimensions
18.7 × 14.7 × 9.5 in (475 × 374 × 241 mm)
Mounting Plate
0.08 in (2.0 mm) Aluminum, 18.7 × 14.8 in (475 × 378 mm)
Weight
21.6 lbs (9.9 kg)
Terminal Block
12–18 AWG
Rating
NEMA Type 3R, 3RX / IP24
Flame Rating
UL94-5V

Datasheet: DS-NEMABOX-LG-H-AL (NF201612VFHA1)

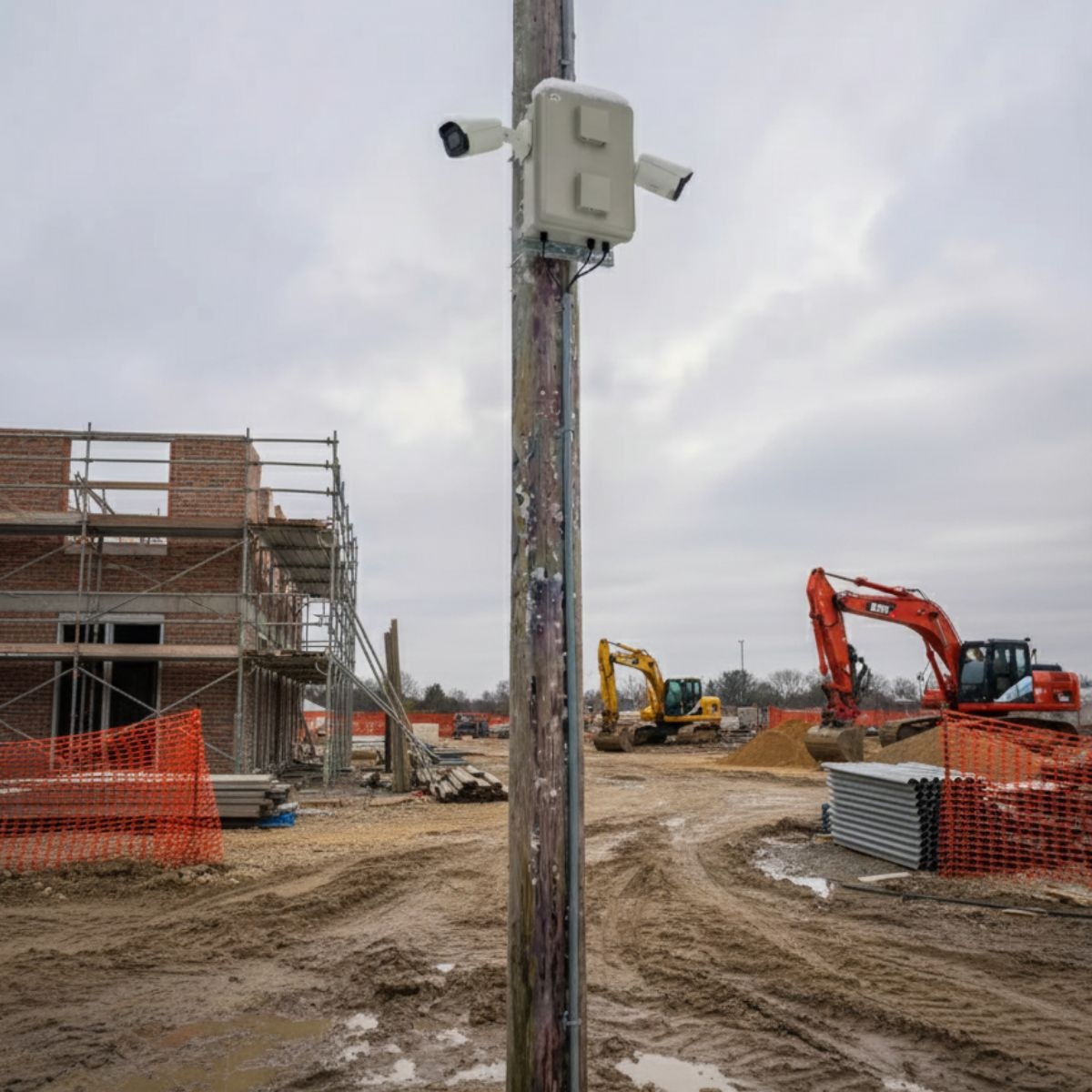

Applications

  • Extreme-climate outdoor recorder/NVR housing
  • Power & climate-controlled hub for surveillance deployments

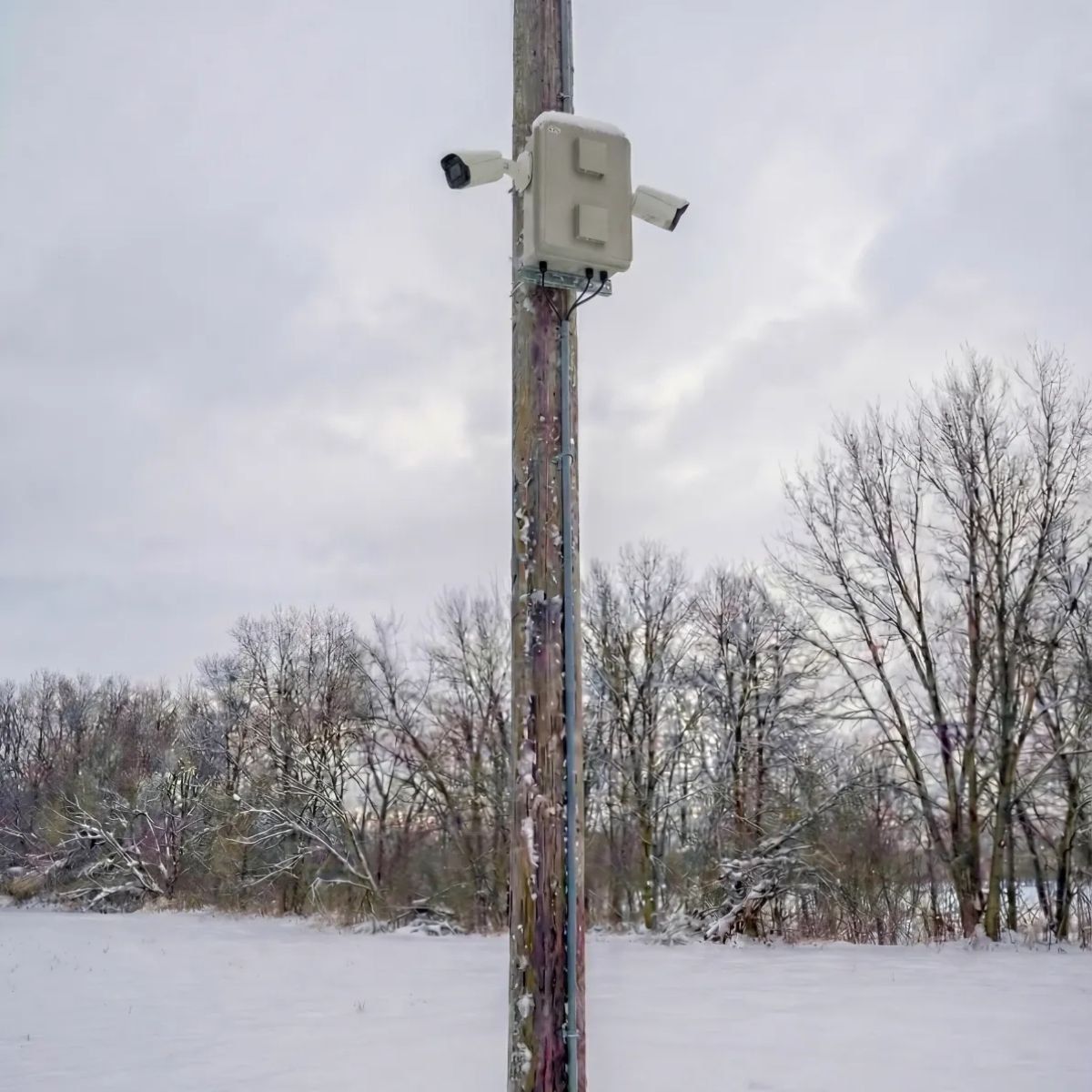

  • Protection for networking/PoE or wireless gear in snow, rain, or desert conditions

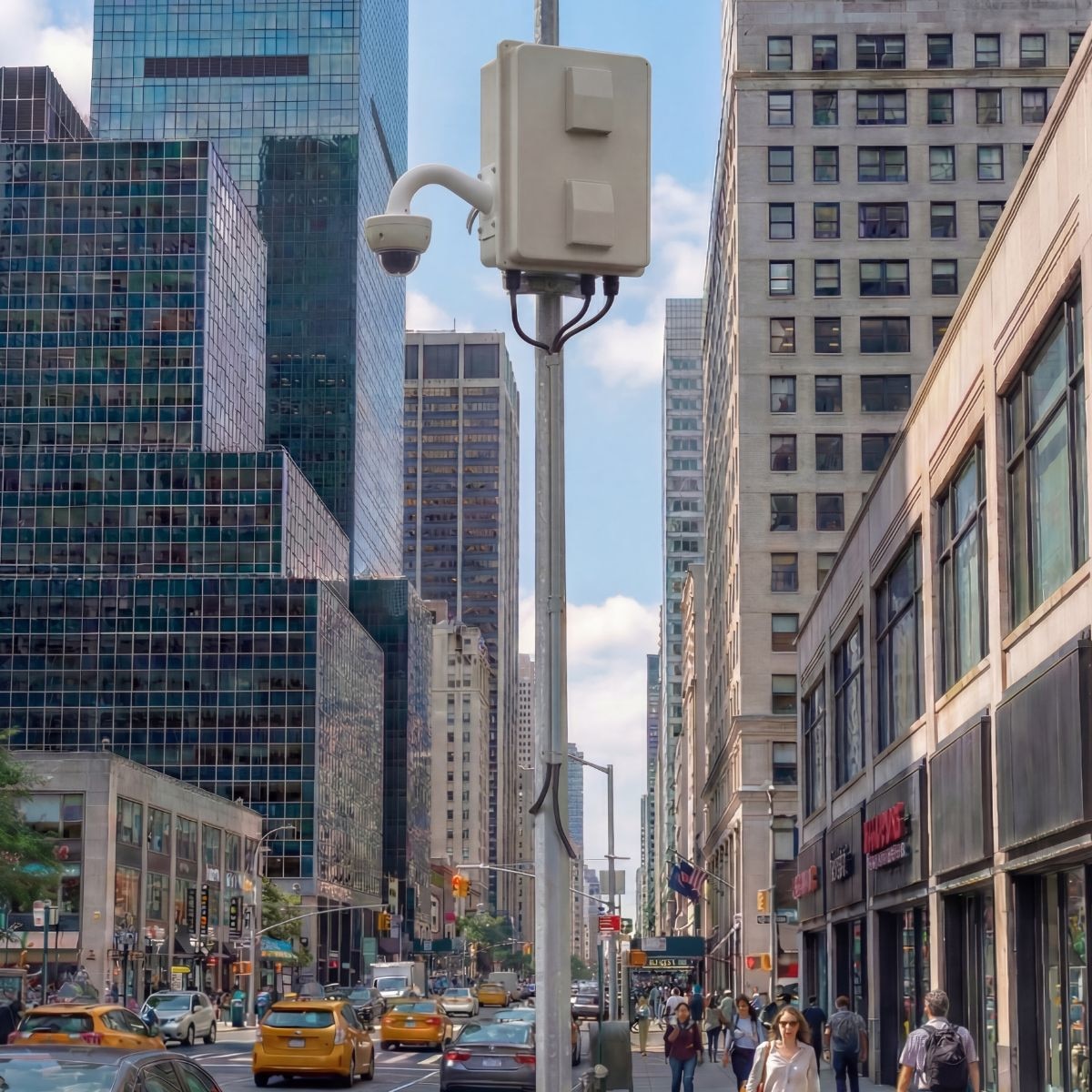

  • Smart city, utilities, and AV control in harsh environments

FAQ

What does this heated NEMA box do?

It protects surveillance or networking equipment outdoors, automatically heating or cooling to keep devices within their safe temperature range.

Why would I need this enclosure?

To ensure uptime in locations with extreme cold or heat, while simplifying installation and power distribution.

Can it be used in different setups?

Yes—supports recorders, PoE switches, wireless gear, and other sensitive electronics.

Does it come with hardware?

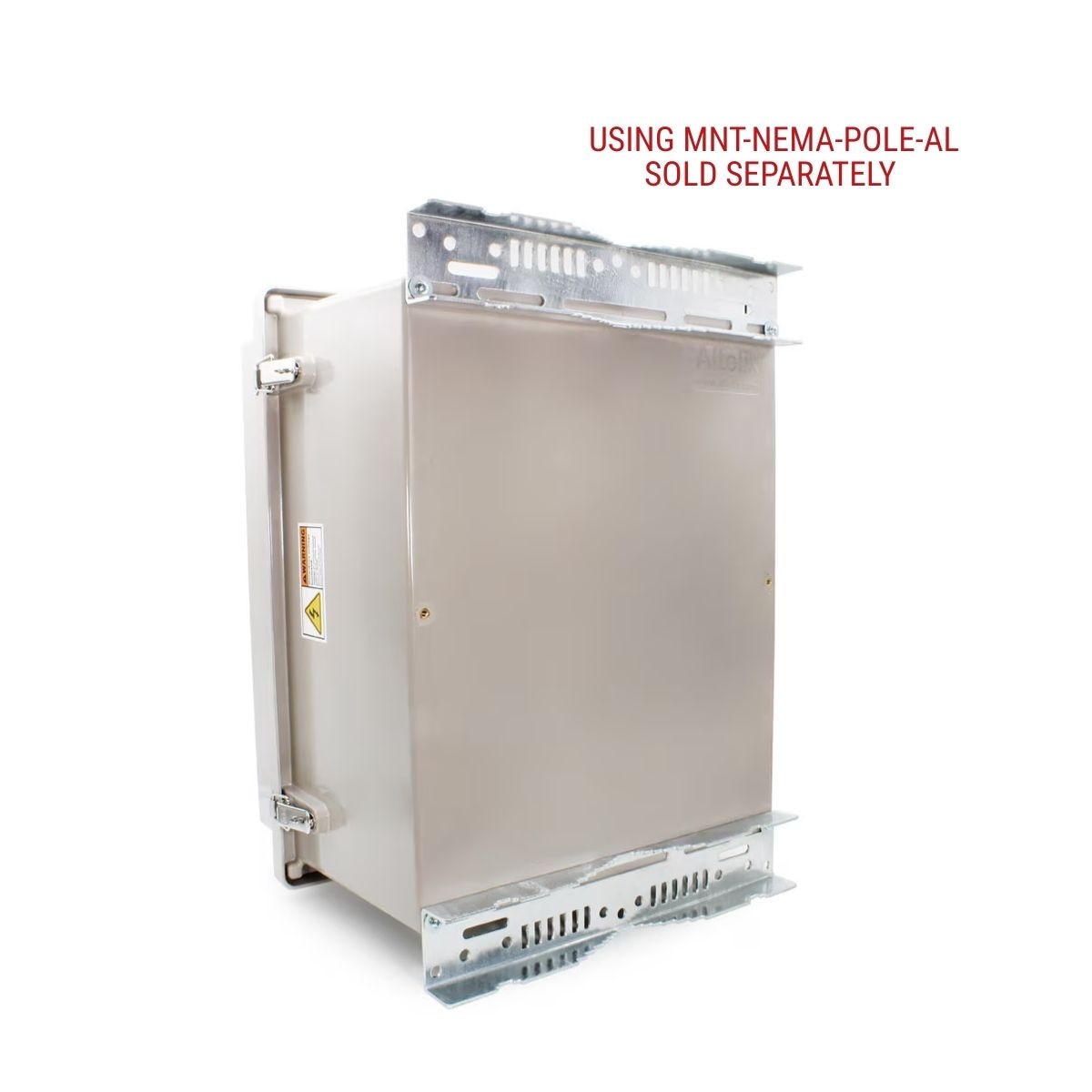

Yes—includes cable glands, stainless mounting feet, and pre-wired AC outlets. Pole-mount kits are available separately.

Is it universal?

Yes—RF-transparent FRP design is compatible with wired and wireless equipment.

What are the main benefits?

Year-round reliability, faster installs, and built-in climate control for long-term stability.

Back

Specifications

Electrical
Power Supply: 120 VAC
Environmental
Ingress Protection: NEMA Type 3R, 3RX/ IP24
Construction
Casing: Fiberglass Reinforced Polyester
Dimensions: 21.8 x 17.9 x 14.3 inches (55.3 x 45.4 x 36.6cm)
