MAIP-P2030SL5

(0) No Reviews yet
SKU: MAIP-P2030SL5
ITEM WEIGHT: 27
2MP IP Full Size Anti-Corrosion PTZ 30X Optical Zoom POE+ Basic IVS with Auto Object Tracking (Wall Mount Included)
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
4.5mm to 135mm | motorized varifocal | AoV 67.8 to 2.4
Max. 50/60fps@1080P
1ch audio in 1ch audio out | 7ch alarm in 2ch alarm out | 256GB mSD
IP68 | IK10 | 24VAC or PoE+ | Max. 20W
IVS | Auto Tracking | AGC | 120dB True WDR | HLC | BLC | Ultra DNR

Details

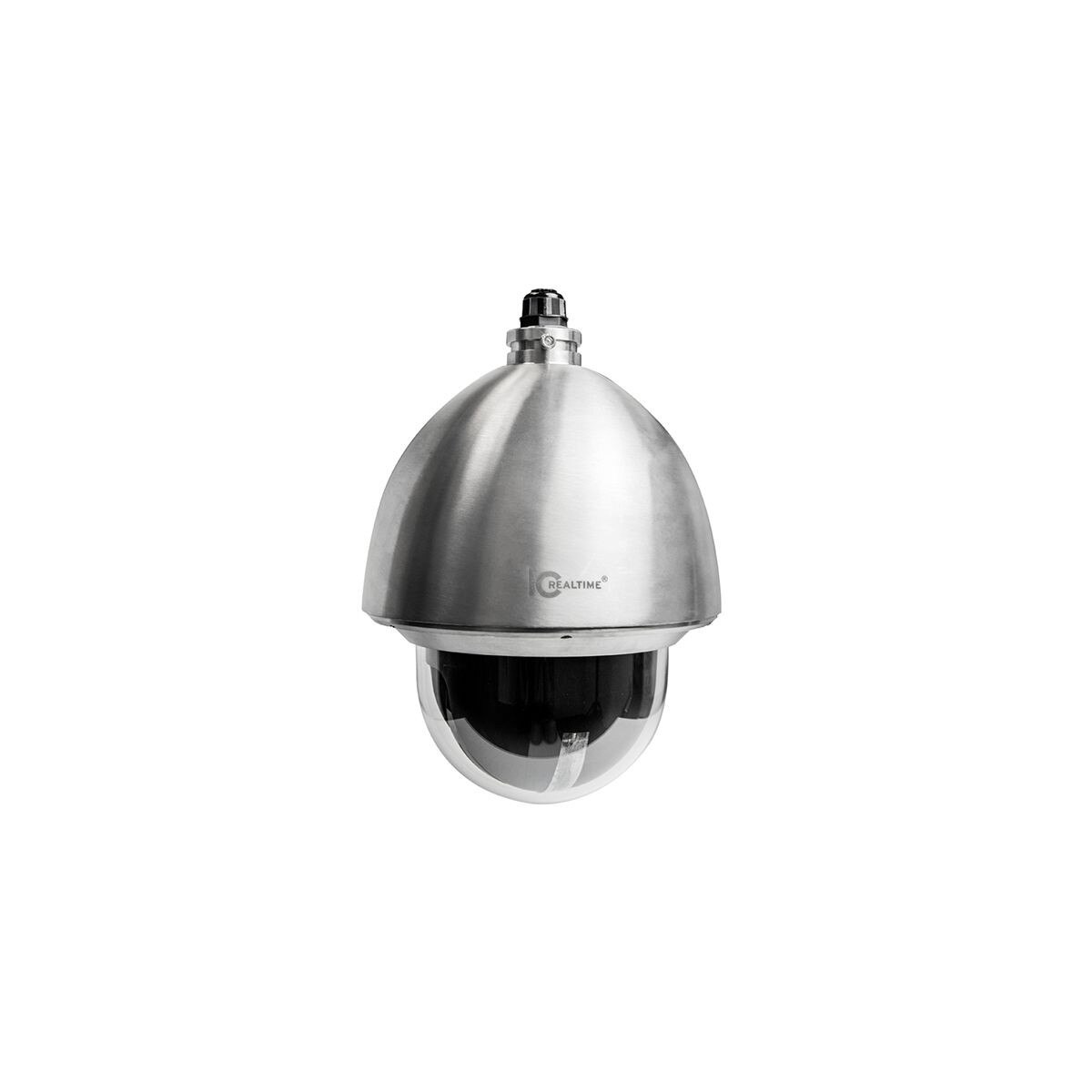

Rated for the toughest, most corrosive marine conditions - the MAIP Marine IP line of cameras. The MAIP-P2030SL5 is our latest camera designed for marine applications. It is a 2MP HD PTZ camera, constructed entirely out of stainless steel, this camera blocks the harshest and most abrasive environments from damaging the camera. The imager itself is a 1/2.8'' 2MP CMOS Starlight sensor producing the ultimate sharpness in video imaging, while also producing vibrant color in low light situations. Atop the imager sits a powered zoom block with a 4.5mm - 135mm motorized lens. An industry leading 30 times powered zoom. This camera also contains the latest Intelligent Video System from IC Realtime. This camera is capable of AI rules such as Tripwire, intrusion, Missing or Abandoned Object, and Face Detection.

Specifications

Camera
Image Sensor: 1/2.8 STARVIS CMOS
Effective Pixels: N/A
RAM/Rom: 512M / 128M
Scanning System: Progressive
Sync: N/A
Electronic Shutter Speed: Supported
Minimum Illumination: Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6
S/N Ratio: More than 55dB
IR Distance: N/A
IR On/Off Control: N/A
IR LEDs: N/A
PIR Sensor Range: N/A
Lens
Lens Type: N/A
Mount Type: N/A
Focal Length: 4.5-135mm
Max. Aperture: F1.6 - F4.4
Angle of View: H: 67.8 - 2.4 degrees
Focus Control: Auto/Manual
Close Focus Distance: 100 - 1000mm (3.94 - 39.37in)
DORI - Detect: 1862m (6109ft)
DORI - Observe: 744m (2441ft)
DORI - Recognize: 372m (1220ft)
DORI - Identify: 186m (610ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 endless; / Tilt: -20 ~ 90 & auto flip 180
Manual Control Speed: Pan: 0.1 ~ 300/s / Tilt: 0.1 ~ 200/s
Preset Speed: Pan: 600 degrees/s Tilt: 500 degrees/s
Presets: 300
PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Speed Setup: Human-oriented focal Length / speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: ICR-SD / Pelco-P/D (Auto recognition)
Time Task: N/A
OSD Menu: N/A
Wiper: N/A
Tracking Trigger Mode: N/A
Tracking Trigger Event: N/A
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection / Heat Map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main stream: 1080P / 1.3M / 720P(1 - 50/60fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1 - 25/30fps)
Bit Rate: H.265/H.264: 448K - 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto / ATW / Indoor / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): Supported
Digital Zoom: 16x
Mirror: N/A
Privacy Masking: N/A
Gamma Correction: N/A
Smear Effect: N/A
Iris Control: N/A
WDR: 120dB
Digital Slow Shutter: N/A
Audio
Compression: G.711a / G.711Mu / AAC / G.722 / G.726 / MPEG2-L2
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x
Wifi: N/A
Interoperability: ONVIF Profile S&G / API
Compatability: ONVIF Profile S&G / API
Streaming Method: Unicast / Multicast
Max. User Access: 20 users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 256GB
Smart Phone: N/A
Interface
Video Interface: 1 port (For adjustment only)
RS232: N/A
RS485: 1
Audio I/O: 1/1 channel In/Out
Alarm I/O: 7/2
Factory Reset: N/A
Memory Slot: Micro SD card 256GB
Electrical
Power Supply: AC24V/3A( +/- 25%) PoE+(802.3at)
Power Consumption: 13W (20W Heater on)
Enviromental
Operating Conditions: -40C ~ 70C (-40F ~ +158F) / Less than 95% RH
Operating Humidity: N/A
Ingress Protection: IP68
Vandal Resistance: IK10
Construction
Casing: 316L stainless steel
Dimensions: 222mm x 292mm
Gross Weight: 11.0kg (24.25lb)
