MAIP-D2416SL5

(0) No Reviews yet
SKU: MAIP-D2416SL5
ITEM WEIGHT: 8
2MP IP Indoor/Outdoor Full Size Anti-Corrosion Vandal Dome. I-Sniper. Varifocal 4.1-16.4mm Motorized Lens (92° - 32°)....
1/1.9 CMOS Starlight | 2MP | 60fps@2MP
4.1mm to 16.4mm | motorized varifocal | AoV 92 to 32
Max. IR length 164ft | Smart IR | 3 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 2ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC 24VAC or PoE+ | Max. 18W
IVS | AGC | 120dB True WDR | HLC | BLC | SSA | 3DNR
Discontinued Item, USE IPEL-D20V-IRS1

Details

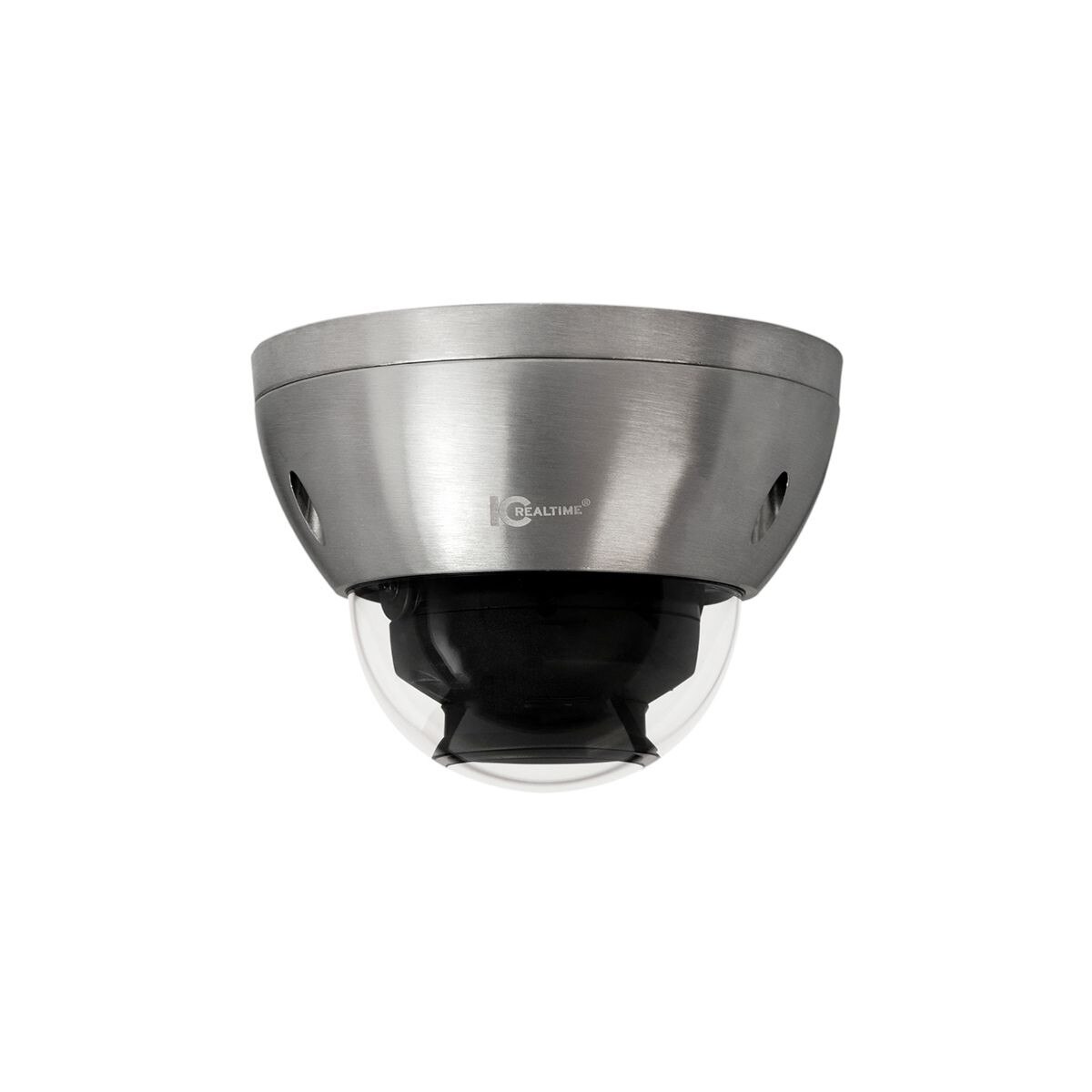

Rated for the toughest, most corrosive marine conditions - the MAIP Marine IP line of cameras. The MAIP-D2416SL5 is our latest camera designed for marine applications. It is a 2MP HD dome camera, constructed entirely out of stainless steel, this camera blocks the harshest and most abrasive environments from damaging the camera. The imager itself is a 1/1.9'' 2MP CMOS Starlight sensor producing the ultimate sharpness in video imaging, while also producing vibrant color in low light situations. Atop the imager sits a powered zoom, 4.1mm - 16.4mm motorized lens. This lens is fully controllable from any of our software interfaces, and the IR LED's allow for 164 feet of night time illumination. This camera also contains the latest Intelligent Video System from IC Realtime. This camera is capable of AI rules such as Tripwire, intrusion, Missing or Abandoned Object, Face Detection, People Counting, and Heat Map.

Specifications

Camera
Image Sensor: 1/1.9” 2 Megapixel progressive CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/Rom: 128MB/ 1024MB
Scanning System: Progressive
Minimum Illumination: 0.002 Lux @ F1.53 (Color, 1/3s, 30IRE)
0.01Lux @ F1.53 (Color, 1/30s, 30IRE)
0 Lux @ F1.53 (IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 50m (164ft)
IR On/Off Control: Auto / Manual
IR LEDs: 3
Lens
Lens Type: Motorized /Auto Iris (HALL)
Mount Type: Board-in
Focal Length: 4.1 ~ 16.4mm motorized
Max. Aperture: F1.53
Angle of View: H: 92˚ ~ 32˚ V:53˚ ~ 18˚
Optical Zoom: 16x
Focus Control: Motorized
Close Focus Distance: 1m
Intelligence
IVS: Tripwire, Intrusion, Object Abandoned / Missing
Advanced Intelligent Functions: Face Detection, People Counting, & Heat Map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Streaming Capability: Unicast / Multicast
Resolution: 1080P (1920×1080) / 1.3MP (1280×960) / 720P
(1280×720) / D1 (704×576 / 704×480) / VGA
(640×480) / CIF (352×288 / 342×240)
Frame Rate: Main Stream: 1080P (1 ~ 60fps)
Sub Stream: D1 (1 ~ 60fps)
Third Stream: 1080P (1 ~ 60fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 24 ~ 10240Kbps
H.265: 14 ~ 6144Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB) / SSA
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Smart IR: Support
Flip: 0°/90°/180°/270°
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)
WDR: 120dB
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP;
DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP;
Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Wifi: N/A
Interoperability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users /20 Users
Edge Storage: NAS
Local PC for instant recording
Micro SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: IOS, Android
Interface
Video Interface: 1 Port (for adjustment only
RS485: N/A
Audio I/O: 1 / 1 Channel In / Out
Alarm I/O: 1 Channel in: 5mA 5V DC
1 Channel out: 1A 30V DC / 0.5A 50V AC
Memory Slot: Micro SD card 128GB
Electrical
Power Supply: DC12V, AC24V, PoE+ (802.3at) (Class 4)
Power Consumption: Max 18W
Enviromental
Operating Conditions: -40° F ~ 140° F / -40° C ~ 60° C; Less than 95% RH
Storage Conditions: -40° F ~ 140° F / -40° C ~ 60° C; Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal; Meets NEMA 4× criteria
Dimensions: 6.4"×4.7" / Φ162.5mm×118.1mm
Gross Weight: 6.61lb / 3kg
