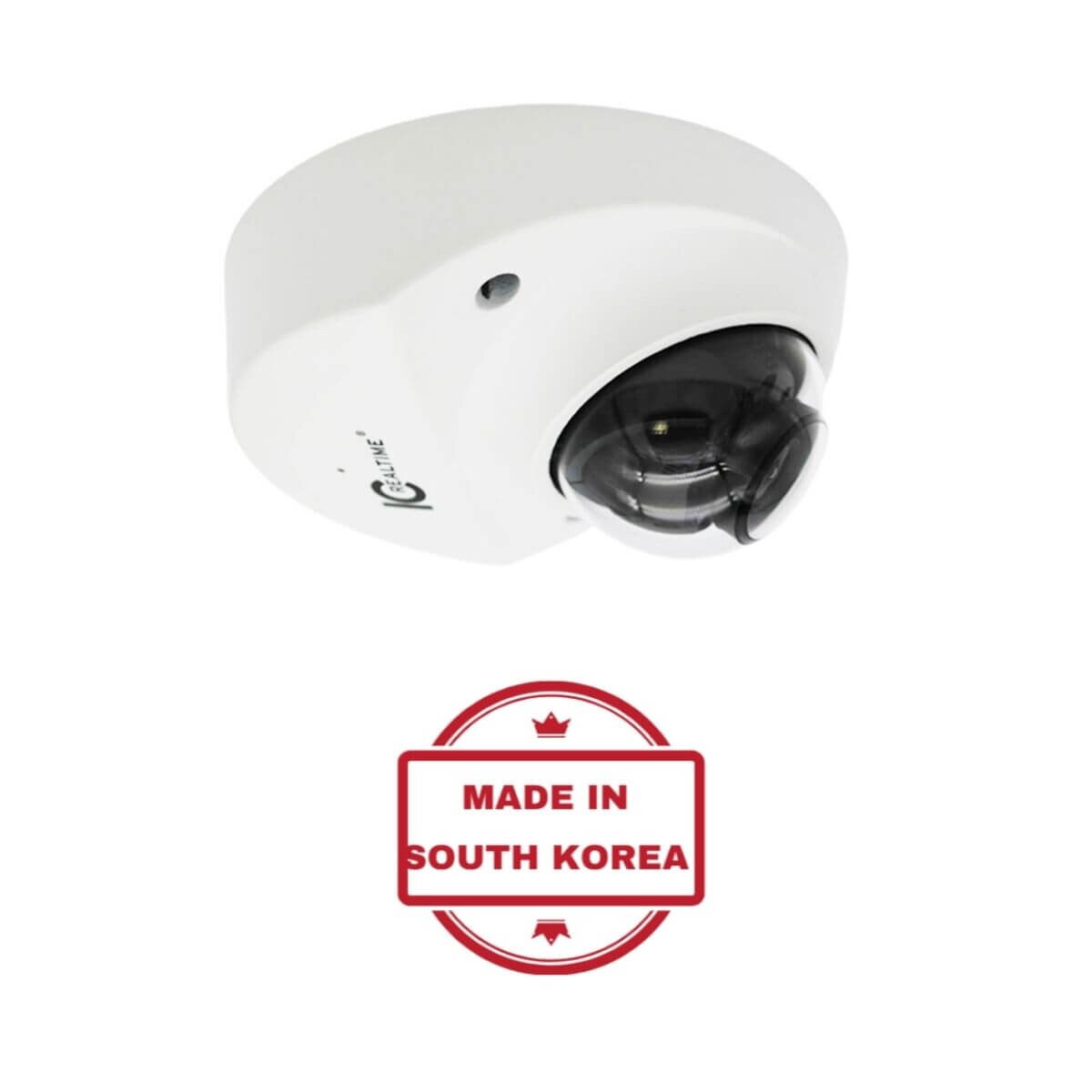

IC Realtime's IPMX-W20F-IRW2 is the most updated version of our classic 1080p wedge dome camera and part of our TAA compliant series of FlexSmartAi high-reliability cameras, now made in South Korea. W20F is one of the smartest & most versatile 2MP camera designs we have ever made. With its advanced Starlight video chipset and the latest version of our intelligent IVS tripwire & intrusion detection capabilities, the W20F is the perfect, cost-effective wedge dome for your next installation.

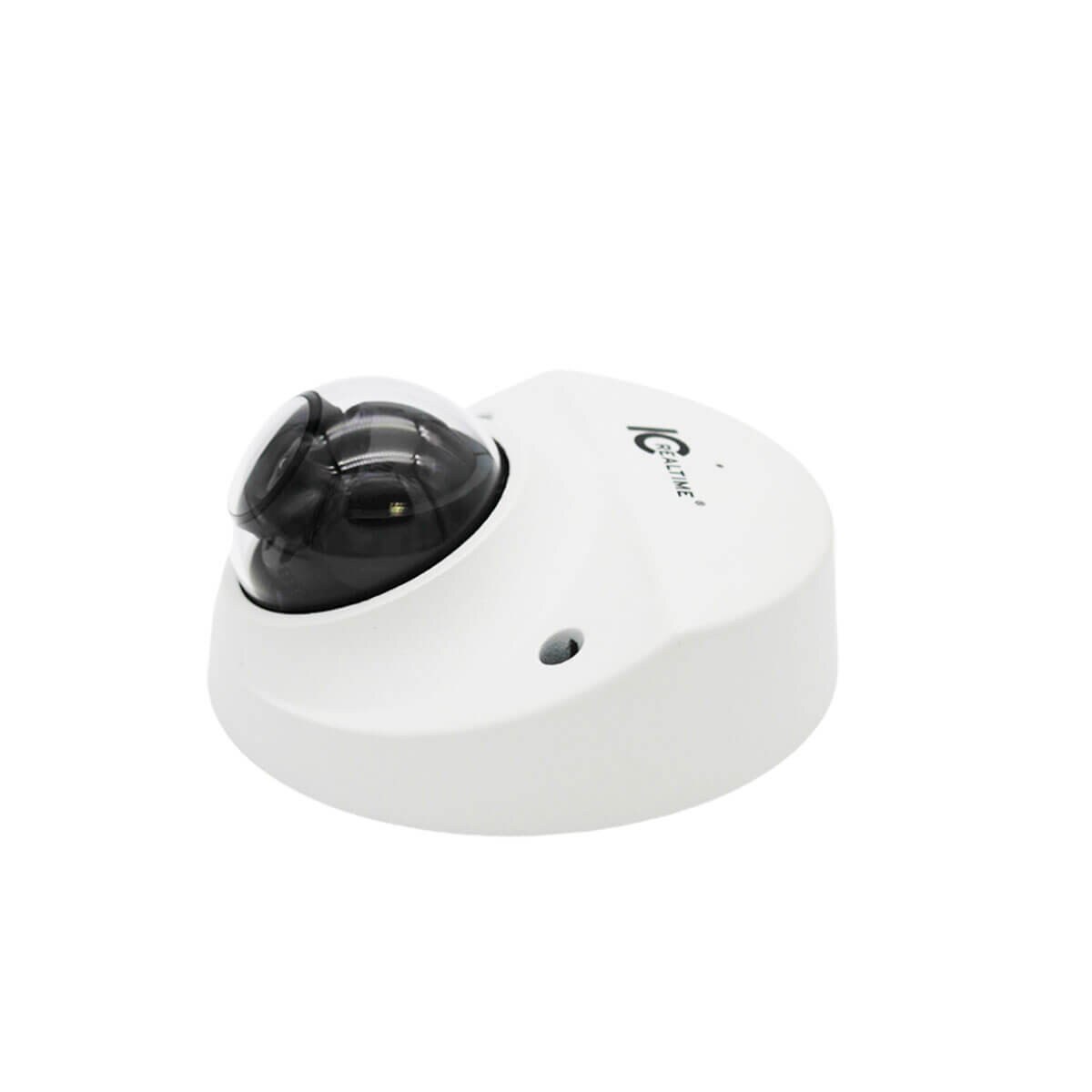

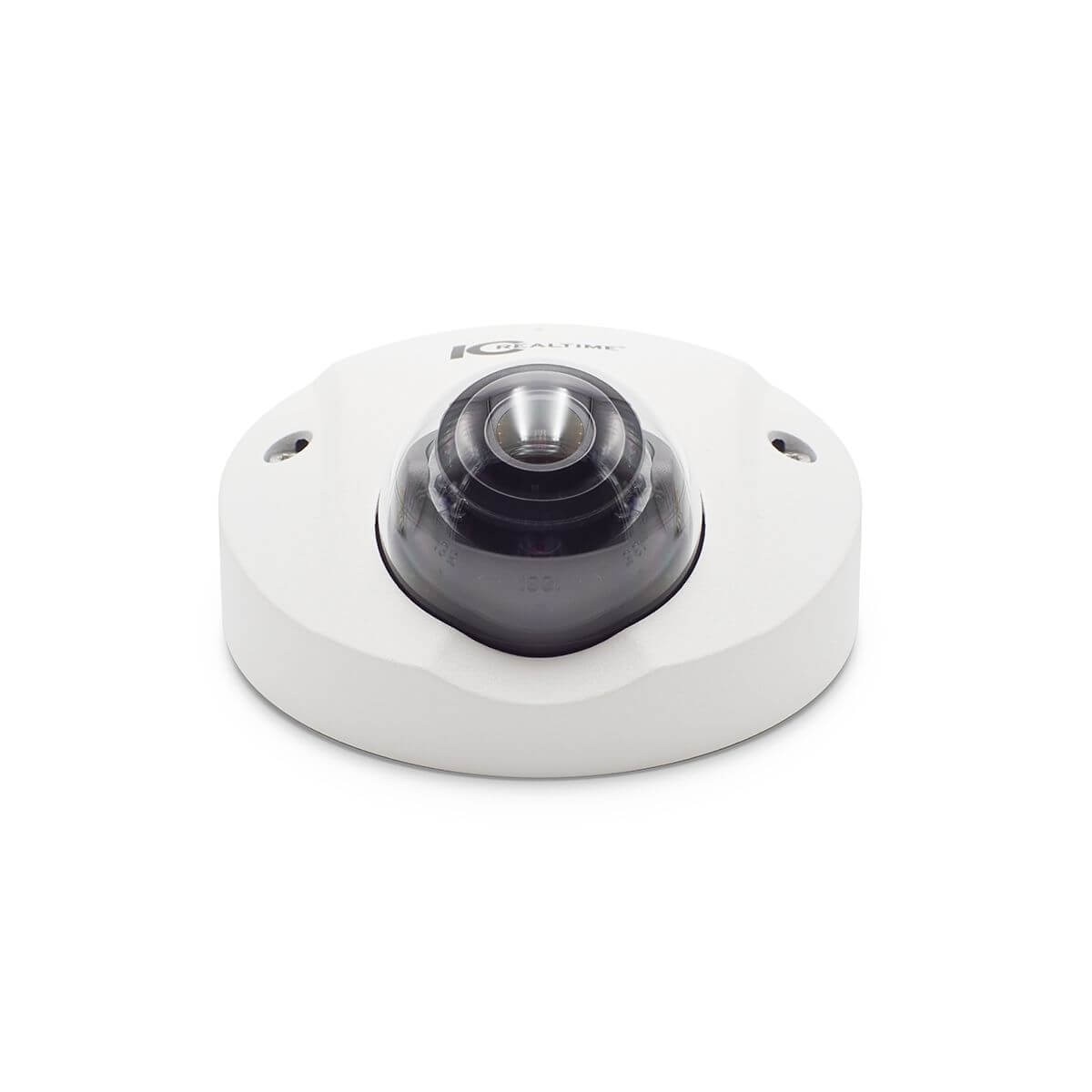

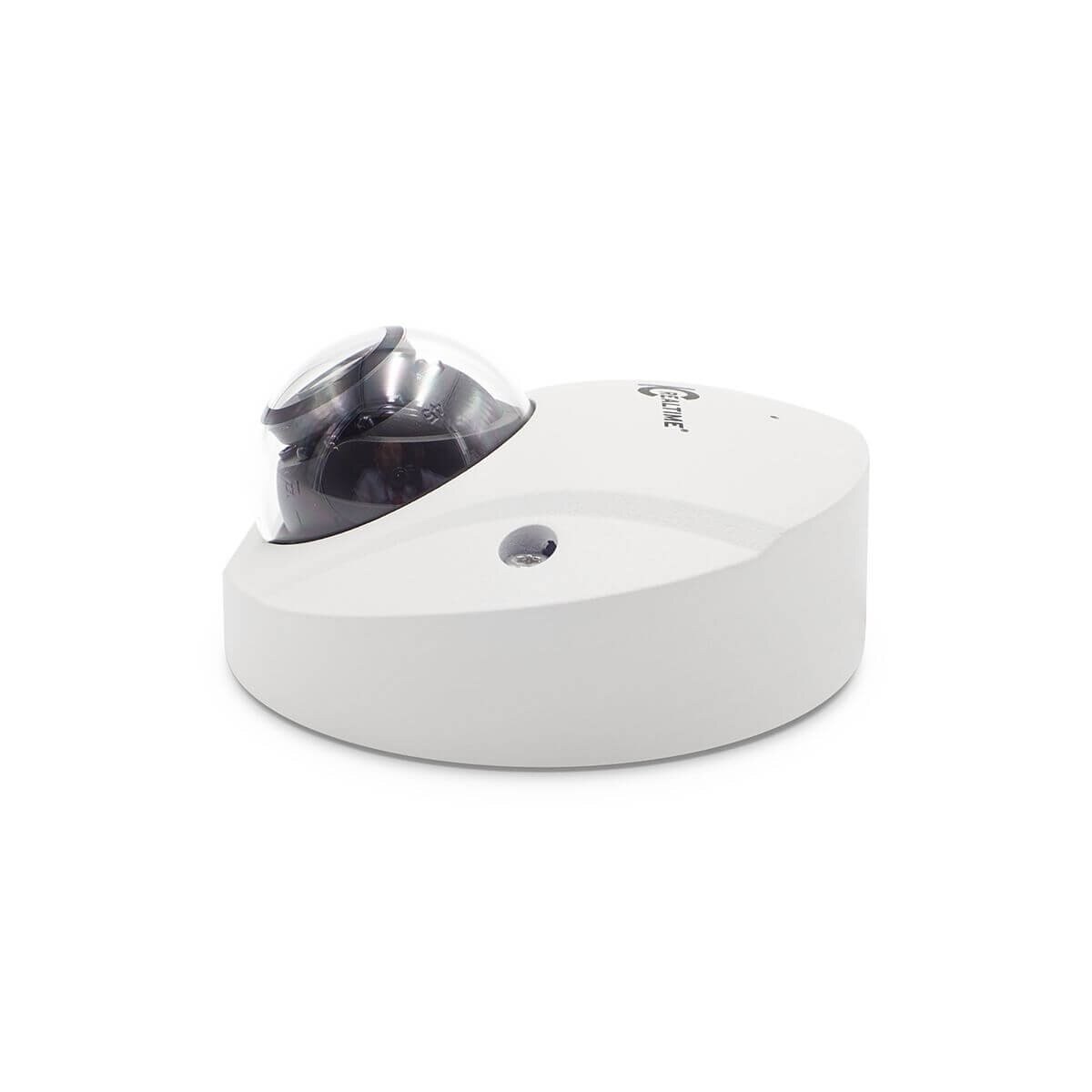

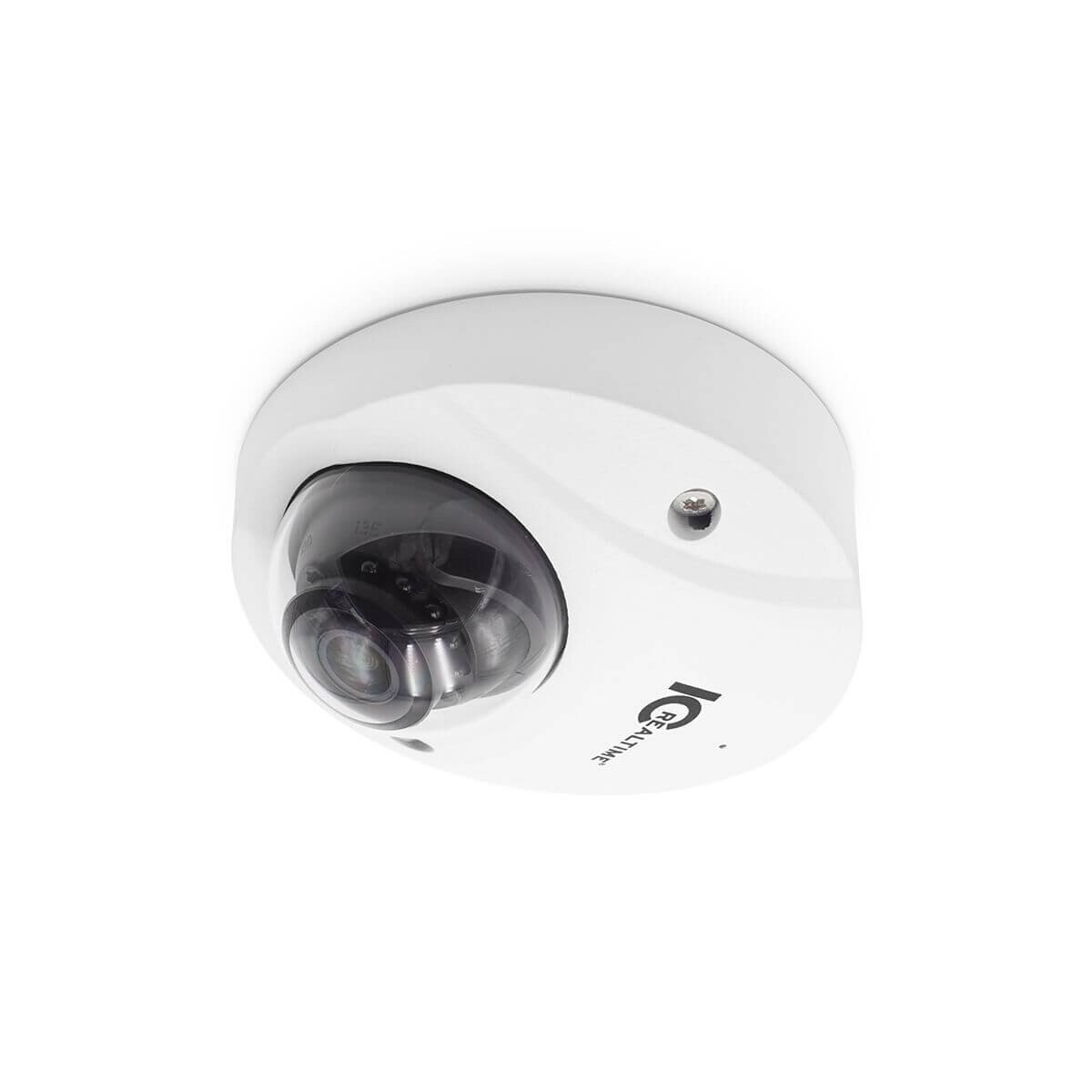

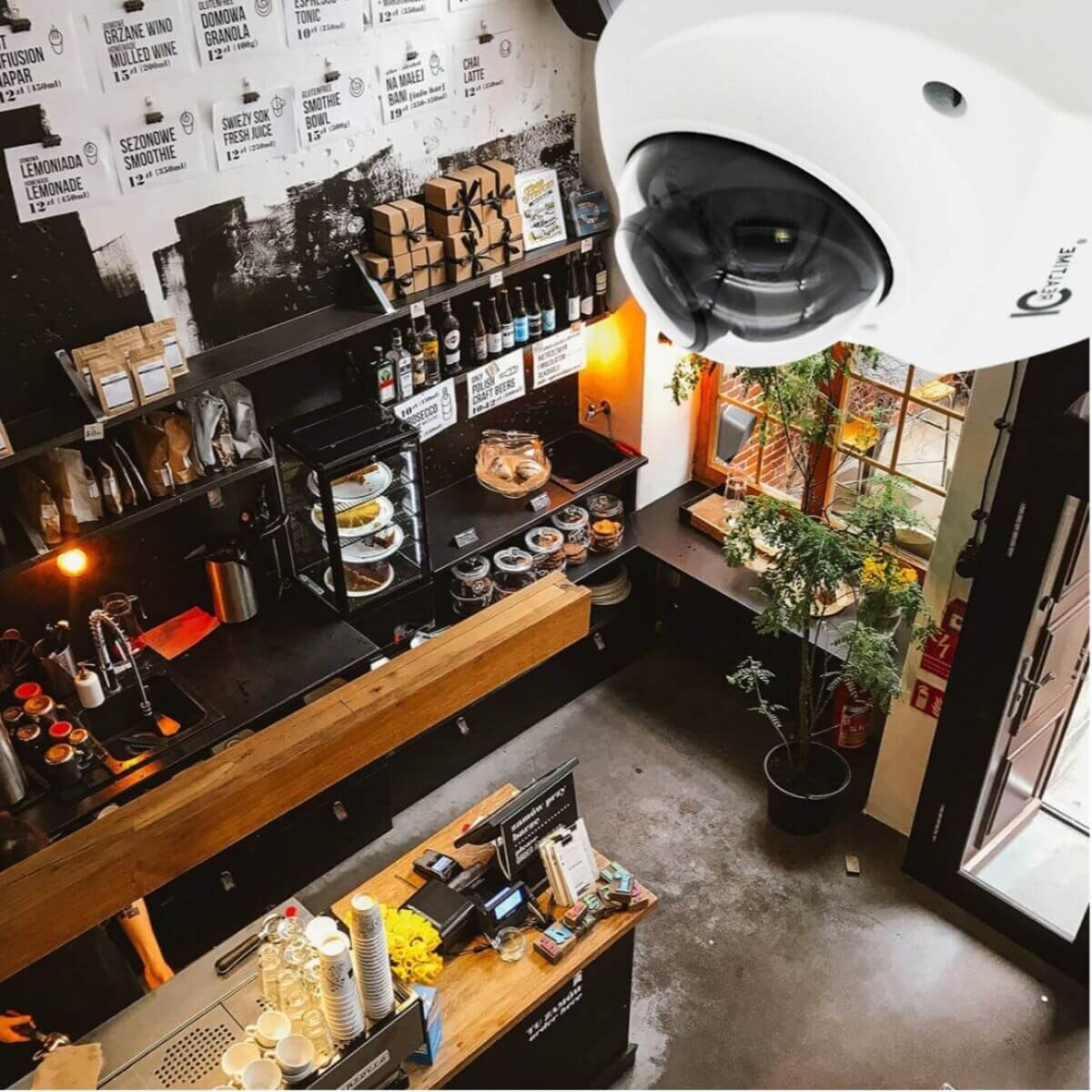

Wedge domes have a low profile and smooth outer casing, so they discretely blend into ceilings, ideal where a larger camera might seem obtrusive, like waiting rooms and houses of worship. That same low, rounded design also makes them suitable for tight clearance areas like stairways and safer for potential human impact situations like busses & trains.

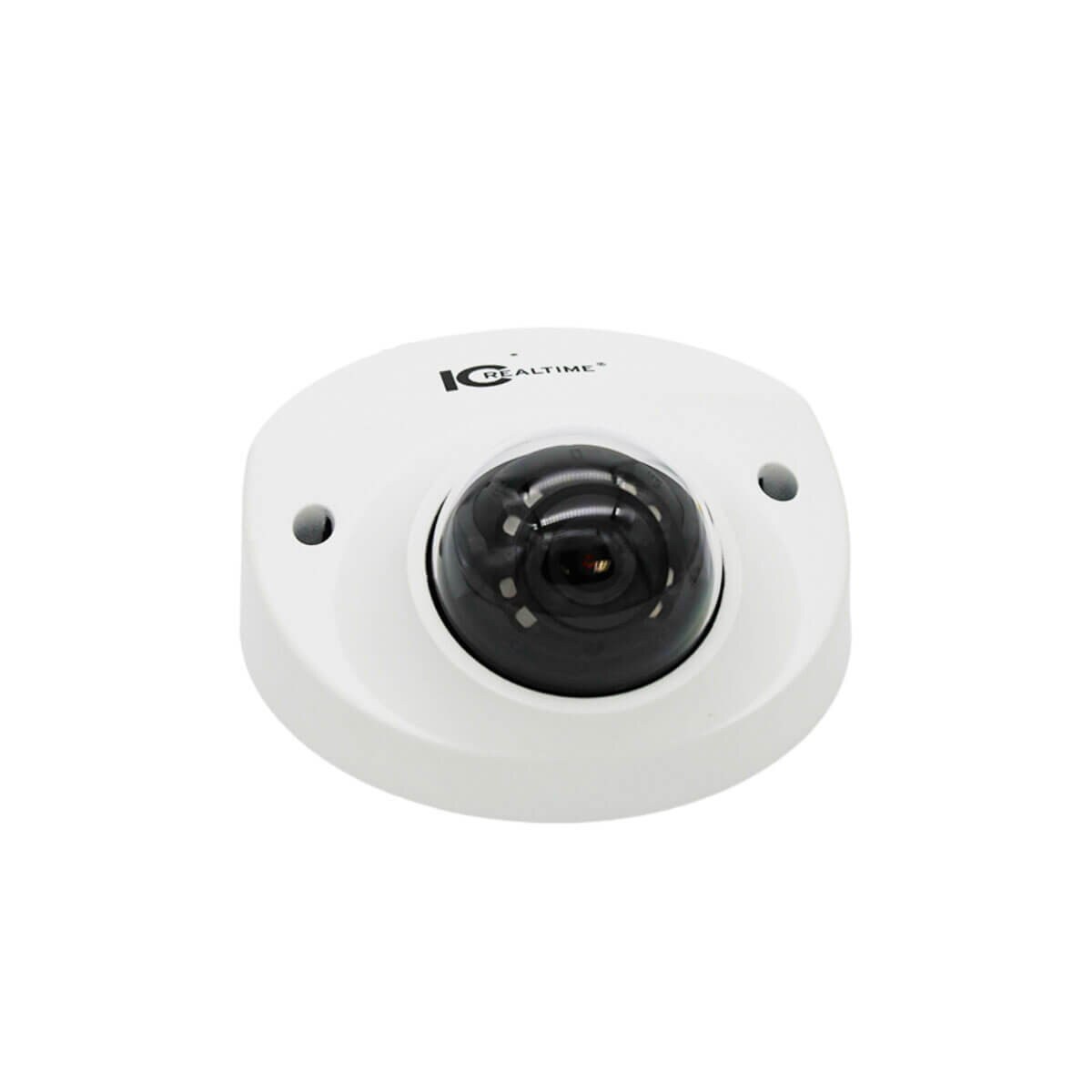

Comfortable inside or outside, the W20F is housed in an IK10 vandal-resistant cast aluminum casing with a thick impact-rated acrylic dome. It carries an IP67 weather-resistance rating, operating in a wide -40°F to +140°F temperature range, making W20F perfect for structure exterior or water exposed interior space like a work area or food storage spaces.

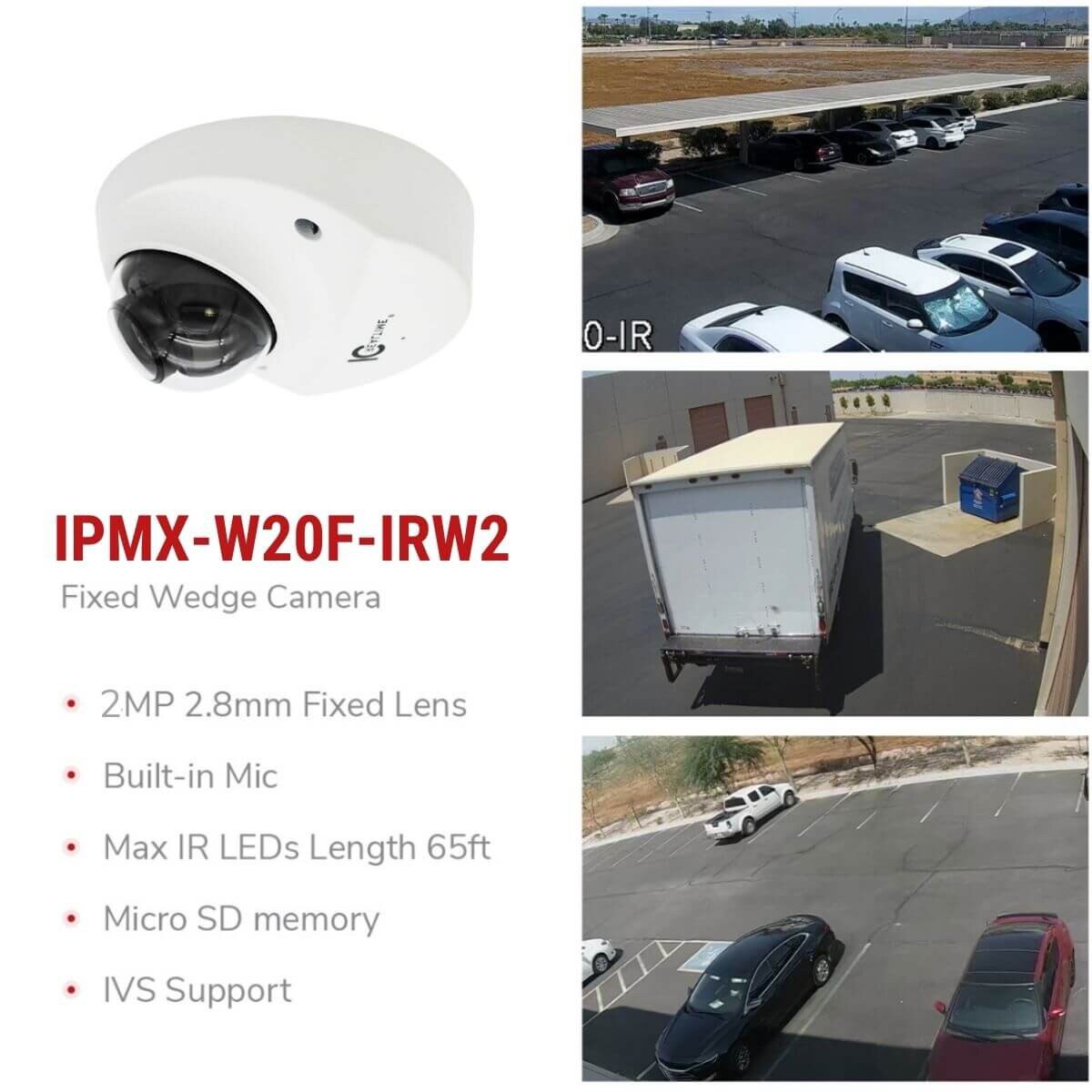

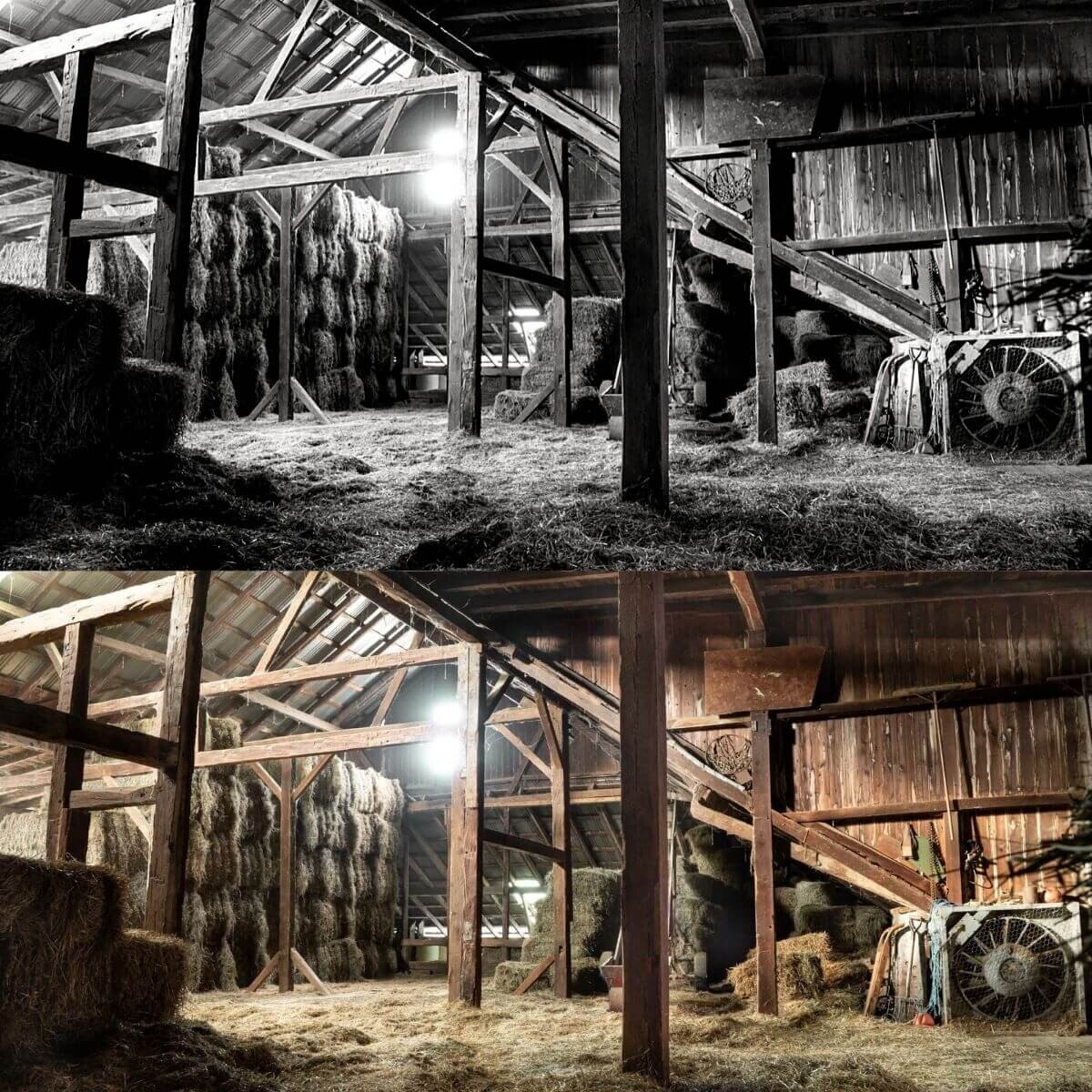

Inside the W20F is a tough outer dome is a 2.8mm medium wide-angle lens system with a 106° horizontal x 57° vertical Field of View and an ultra-sensitive 1920(H) x 1080(V) video sensor. It is optimized to remain in color down to .002 lux, from there down to 0.00 lux (total darkness), the W20F's SmartIRs kick on to reach out more than 160 feet. W20F is just as capable in bright sunlight or any other challenging light conditions due to its super-wide dynamic range (WDR) of 120db and IC Realtime's full video exposure controls, so its picture is always correctly exposed.

As a FlexSmartAi camera, W20F is as smart as it is competent. The W20F uses IC Realtime's Intelligent Video System (IVS) for the industry's most capable and accurate perimeter protection & object detection capabilities. These built-in FlexSmartAi detection skills enable enhanced camera-based tripwire, motion, and human and vehicle recognition capabilities that reduce false alarms by up to 90%.

Super capable on its own, W20F is also the perfect partner for IC Realtime's recorder based detection & recognition systems or as video "eyes & ears" for our "ella" intelligent encoding & interface appliance. W20F automatically works with Smart NVRs and through ella to access Intel's server-based Camio AI & deep learning & metatag systems to perform refined intelligent search, event extraction, and merging to event videos.

For audio pickup, the W20F comes with a sensitive built-in microphone. Audio is encoded & streamed with the video to provide full awareness security coverage. Since W20F is a FlexSmartAi camera, the same audio pickup can also be set to work as an IVS audio tripwire for alerts when unusual sounds are detected.

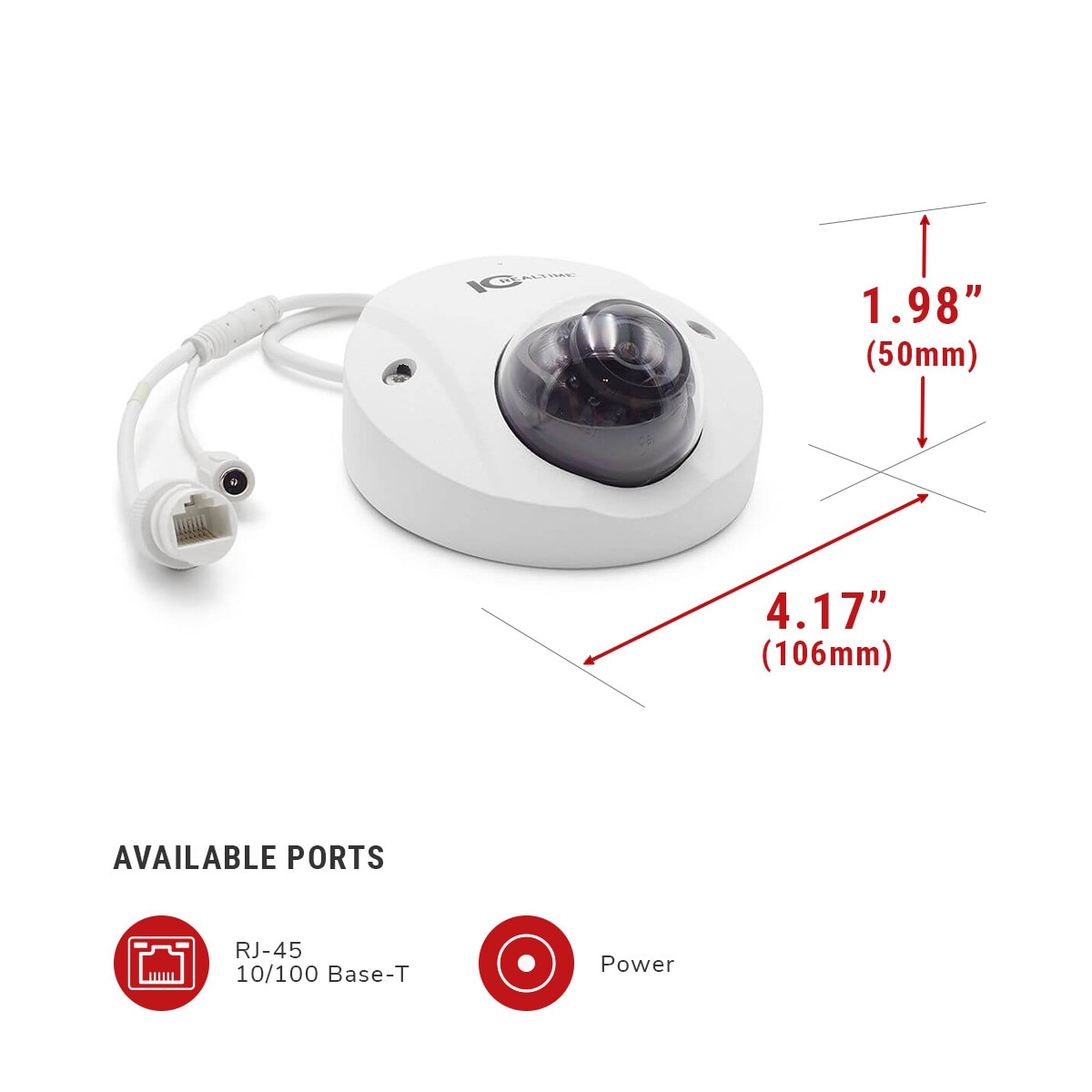

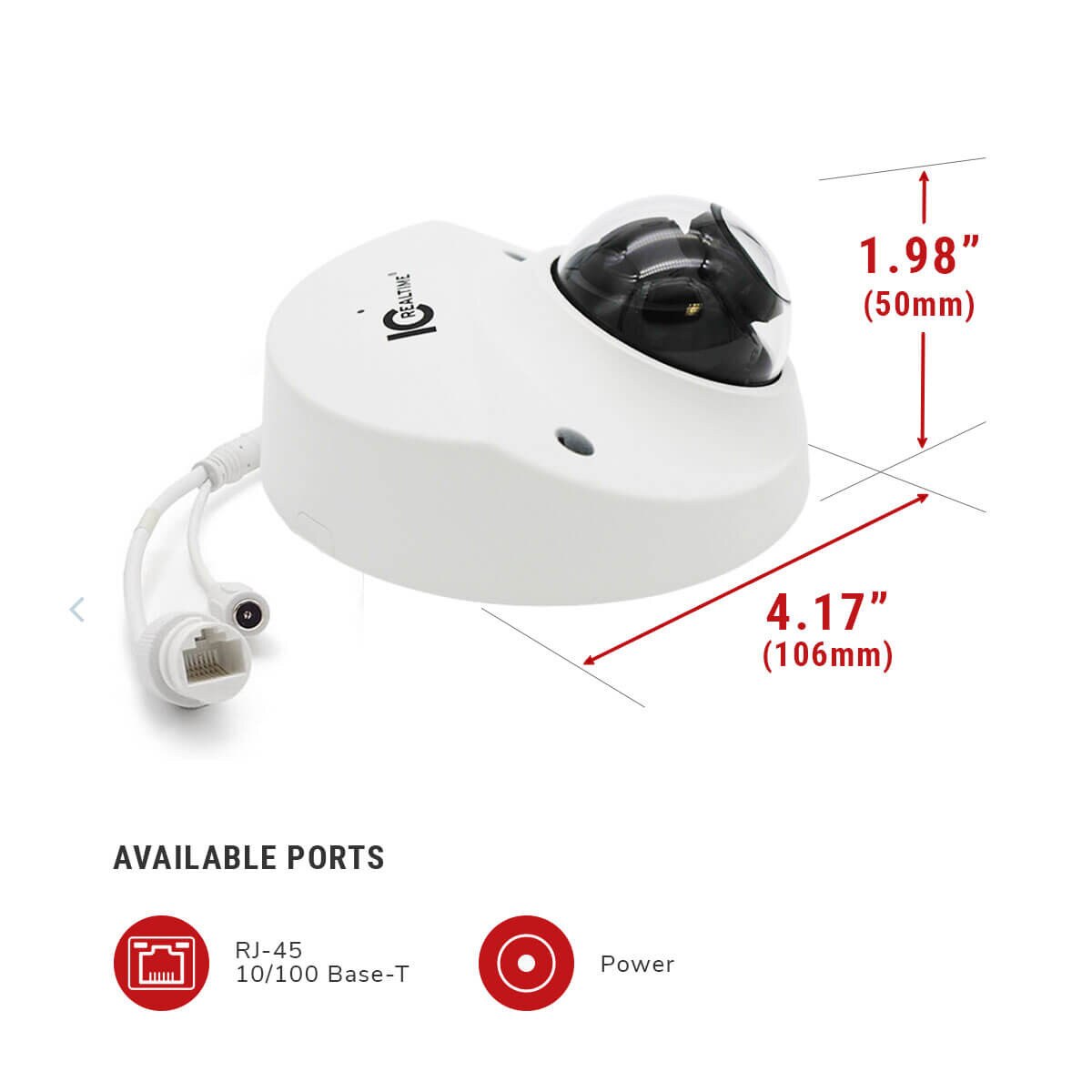

IC Realtime's smart & capable W20F is ONVIF (Profile S/Profile G), CGI & P2P compatible and uses scene-adaptive H.265 compression for maximum streaming speeds & storage capacity. An internal 256GB Micro SD slot enables on-camera recording, and W20F is PoE (802.3af) powered using under 6W or 12VDC where PoE is not available. When you expect FlexSmartAi advanced detection, brilliant imaging, and clear audio in any environment and need it in a low visibility/high-performance camera that's also TAA compliant, IC Realtime's IPMX-W20F-IRW2 is the cost-effective answer.
