IPMX-W20F-IRW1

(0) No Reviews yet
SKU: IPMX-W20F-IRW1
ITEM WEIGHT: 2
2MP IP Indoor/Outdoor Small Size Vandal Dome Fixed 2.8mm Lens (120 AOV) 60 ft IR POE AI
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
2.8mm | fixed | AoV 110
Max. IR length 66ft | Smart IR | 10 IR LEDs
Built-in mic | 128GB mSD
IP67 | 12VDC or PoE | Max. 4.5W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

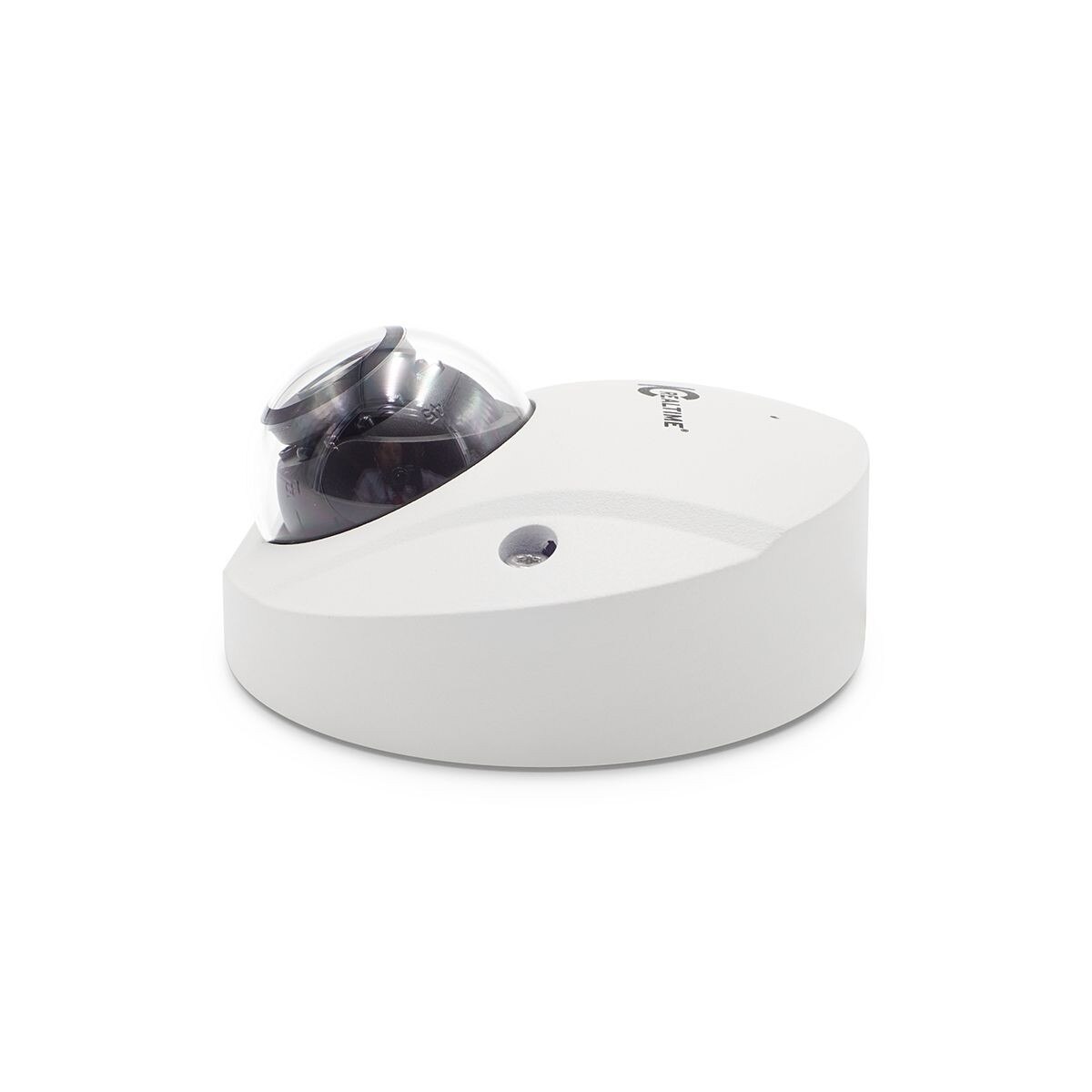

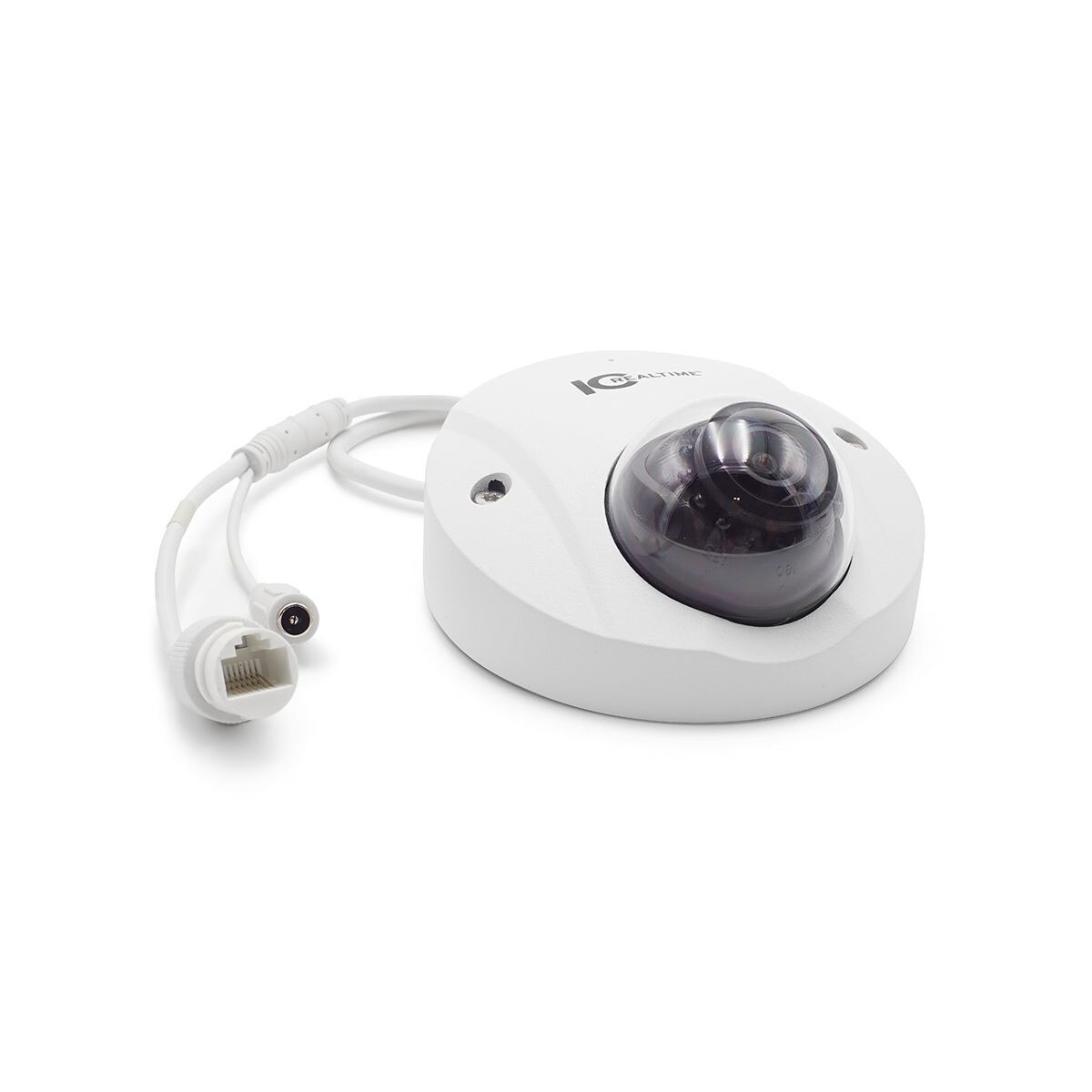

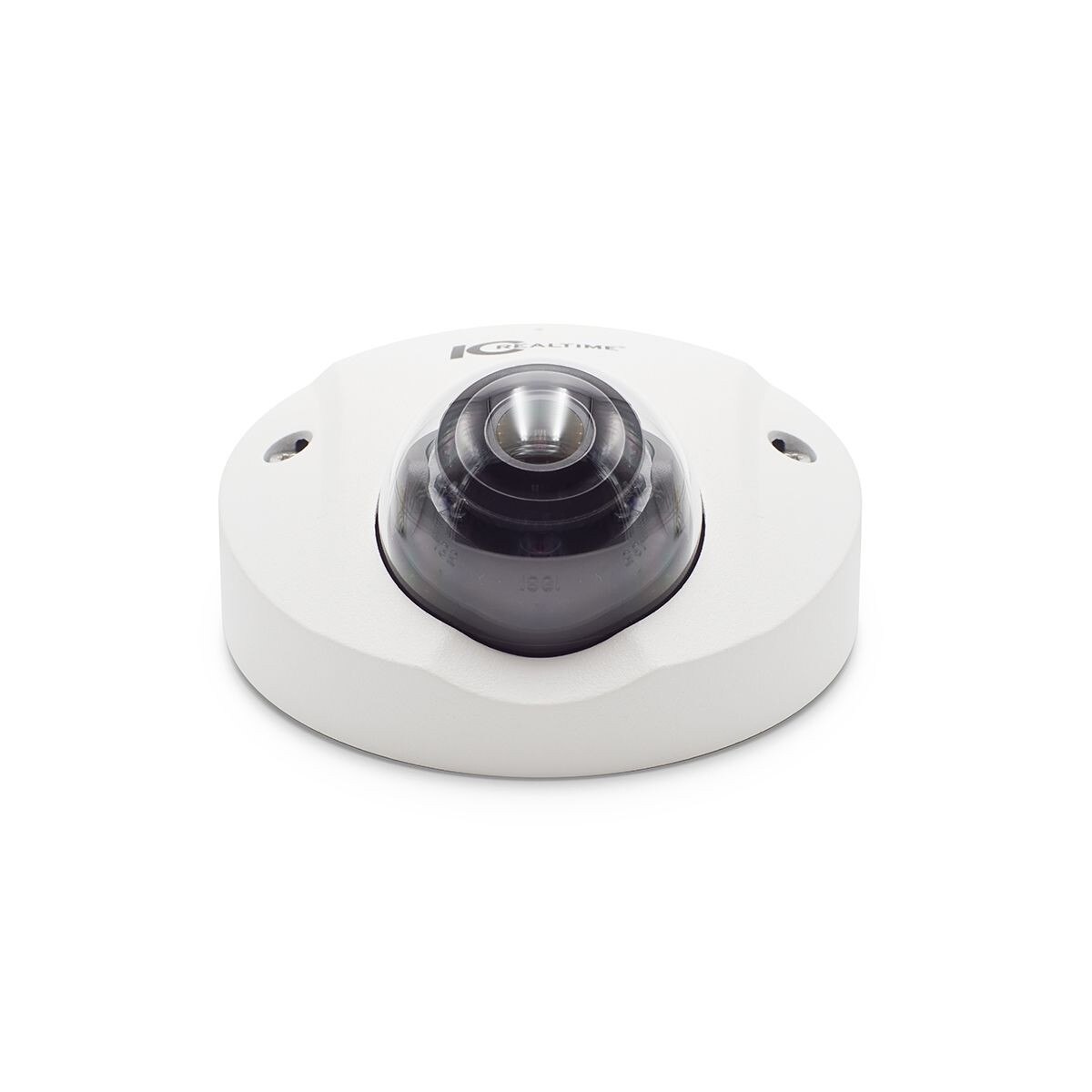

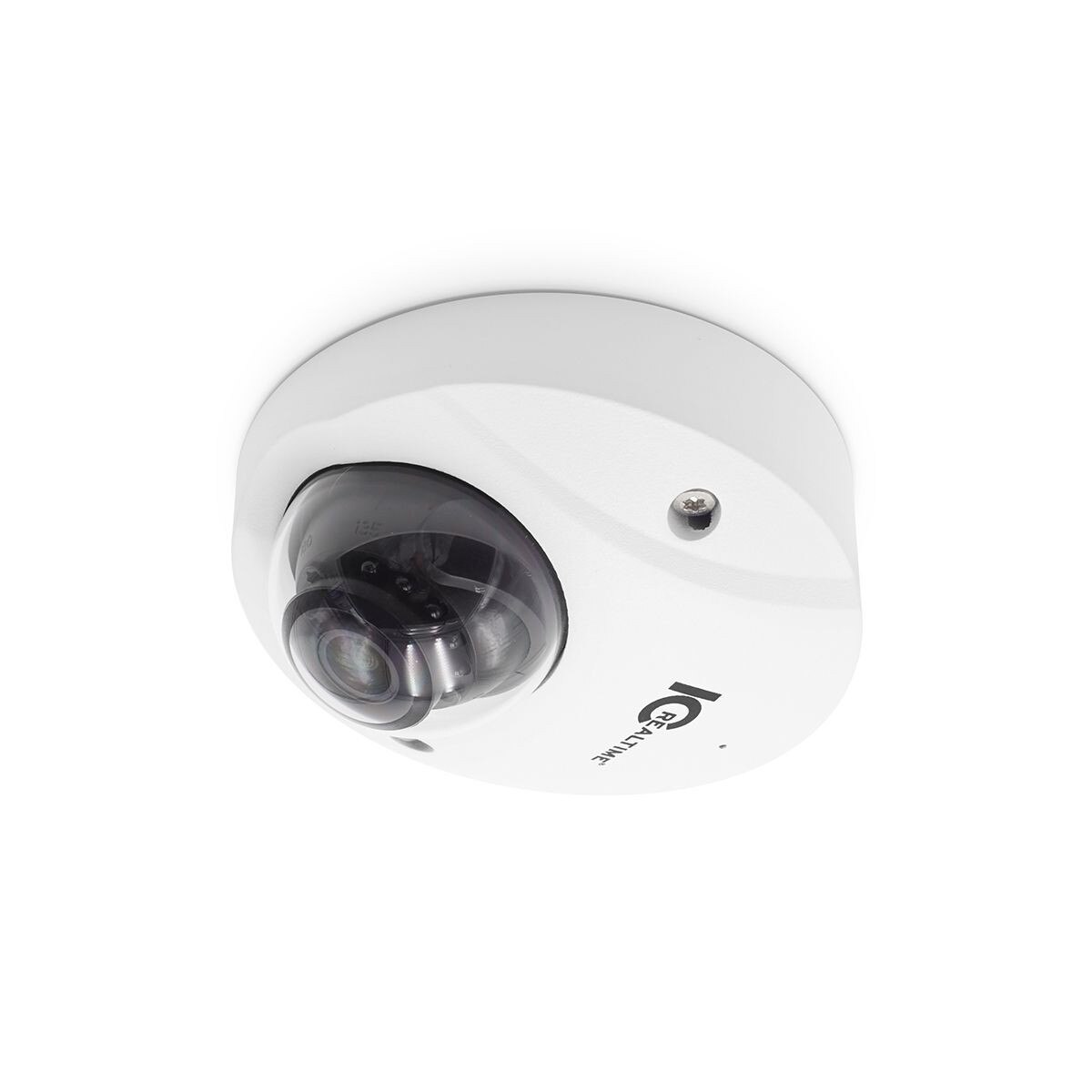

A favorite in the MAX line packing some big brain power now in a Wedge form factor- the IPMX-W20F-IRW1. This small form factor camera adopts a 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS sensor enabling 2 Megapixel video at up to 60FPS. This sensor sits atop a 2.8mm fixed lens, and is paired with IR LEDs capable of supplying illumination up to 66’. The image sensor itself has a strong 120 dB dynamic range, making this dome camera a ‘True WDR’ camera. The camera also supports audio with a built-in mic. The real magic of this camera lies in it’s AI (AdvancedIntelligence) suite of features, which includes: Tripwire,Intrusion, Abandoned/Missing, and Face Detection. With all of the above features packed into a small formfactor, this dome camera excels in a wide array ofinstallation environments including: retail outlets,commercial business, public venues, and even publicmunicipalities

Specifications

Camera
Image Sensor: 1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/Rom: 256MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.009Lux/F2.0( Color1/3s30IRE) 0.07Lux/2.0( Color1/30s30IRE) 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 20m (66ft)
IR On/Off Control: Auto/Manual
IR LEDs: 10
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8 mm
Max. Aperture: F2.0
Angle of View: H: 110 degrees V:58 degrees
Focus Control: Fixed
DORI - Detect: 44m (144ft)
DORI - Observe: 17m (56ft)
DORI - Recognize: 9m (30ft)
DORI - Identify: 4m (13ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 60 ; / Tilt:0 ~ 80 ; / Rotation:0 ~ 360
Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Face Detection
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Streaming Capability: 3 Streams
Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 1080P(1 - 50/60fps) Sub Stream: D1(1 - 50/60fps) Third Stream: 1080P(1 - 25/30fps)
Bit Rate: H.264: 24 - 9472Kbps
H.265: 14 - 5632Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: N/A
Audio I/O: Built-in Mic
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 4.5W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 106mm x 50.3mm (4.17in x 1.98in)
Gross Weight: 0.44kg (0.97lb)
