IPMX-D40F-IRW2

(0) No Reviews yet
SKU: IPMX-D40F-IRW2
ITEM WEIGHT: 2
4MP IP Indoor/Outdoor Small Size Vandal Dome Fixed 2.8mm Lens (104 AOV) 98 ft Smart IR Tnted Dome POE AI
1/3 CMOS | 2.8mm | 30fps@4MP
iMD Support | IVS Support

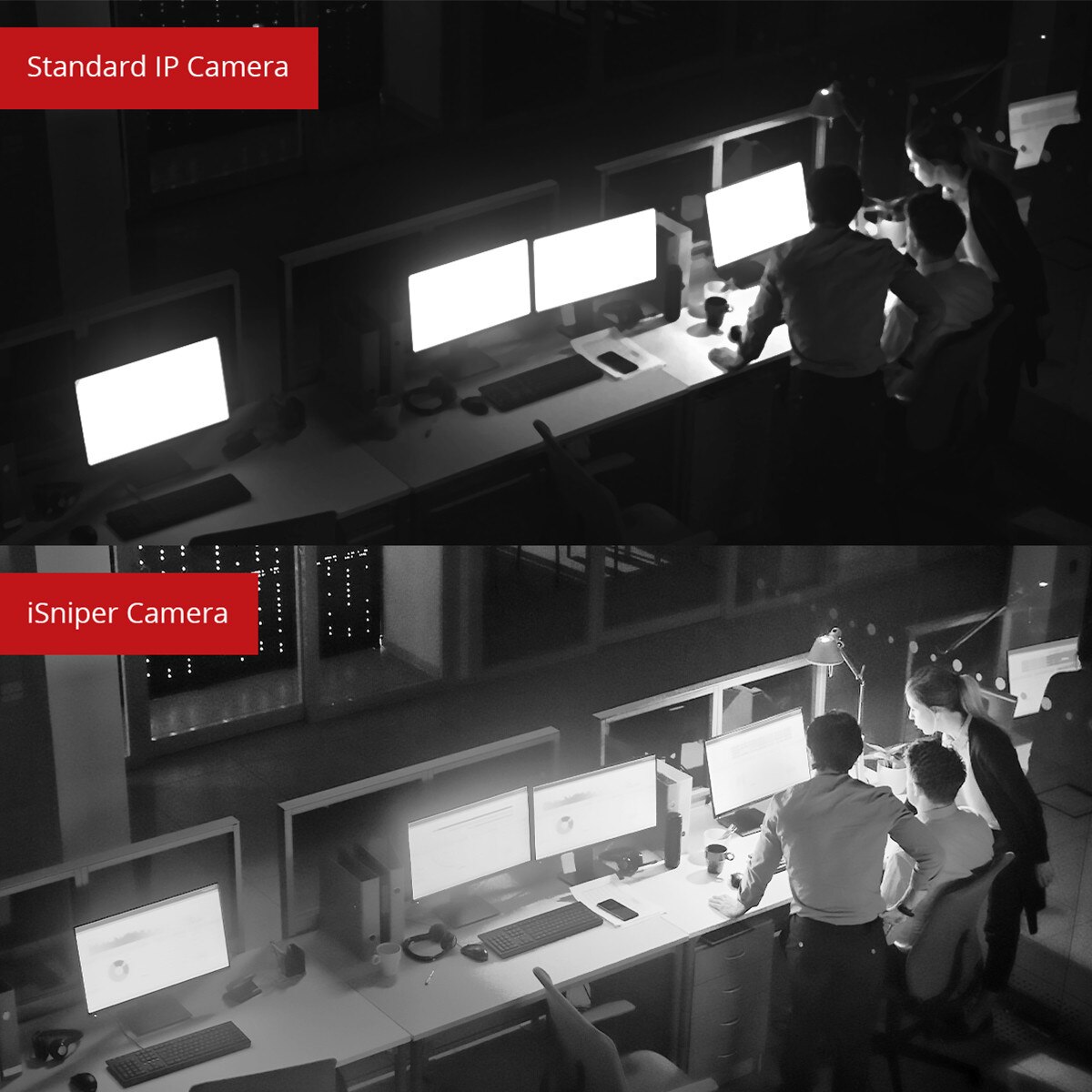

Max. IR length 164ft | Starlight | 18 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC or PoE | ePOE Support
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

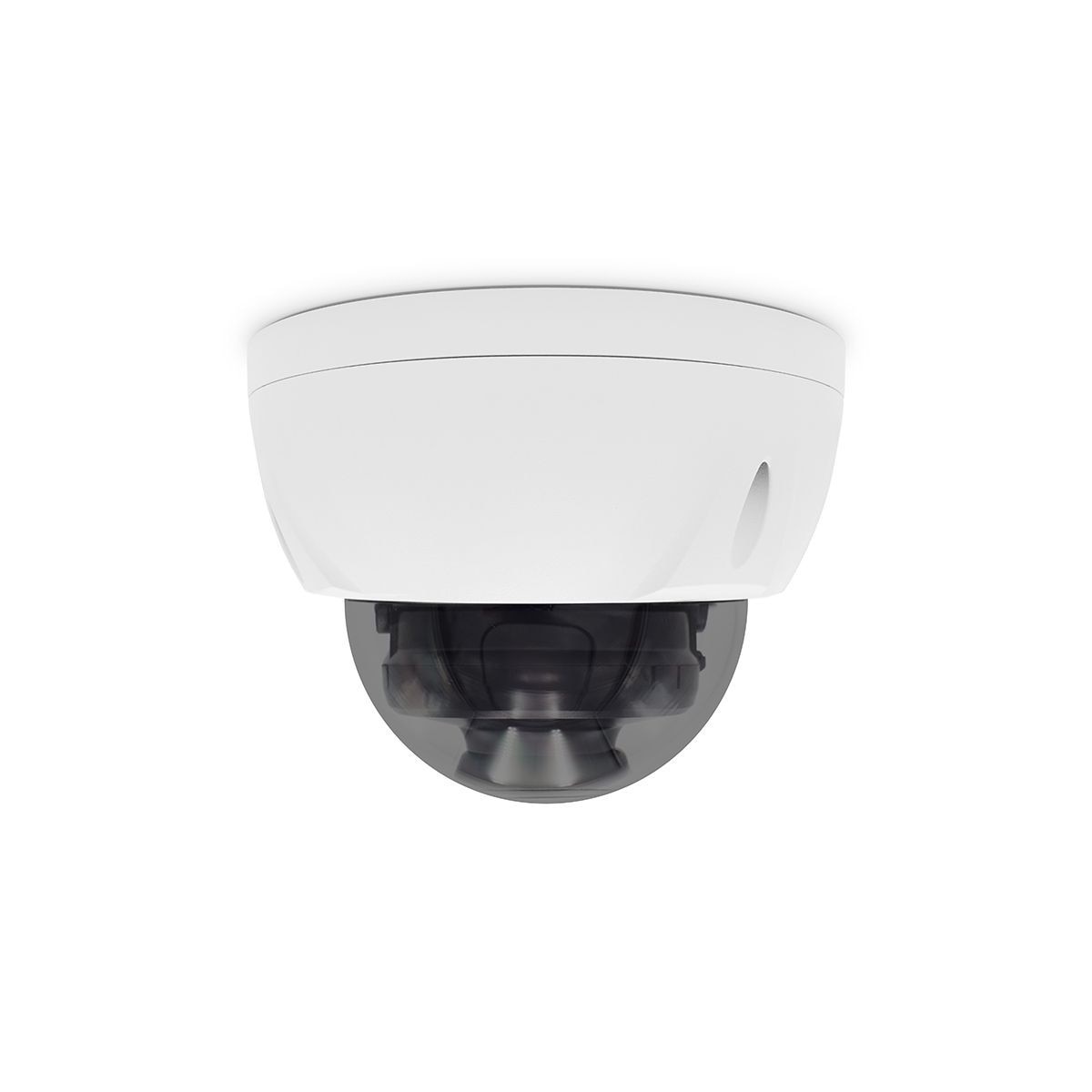

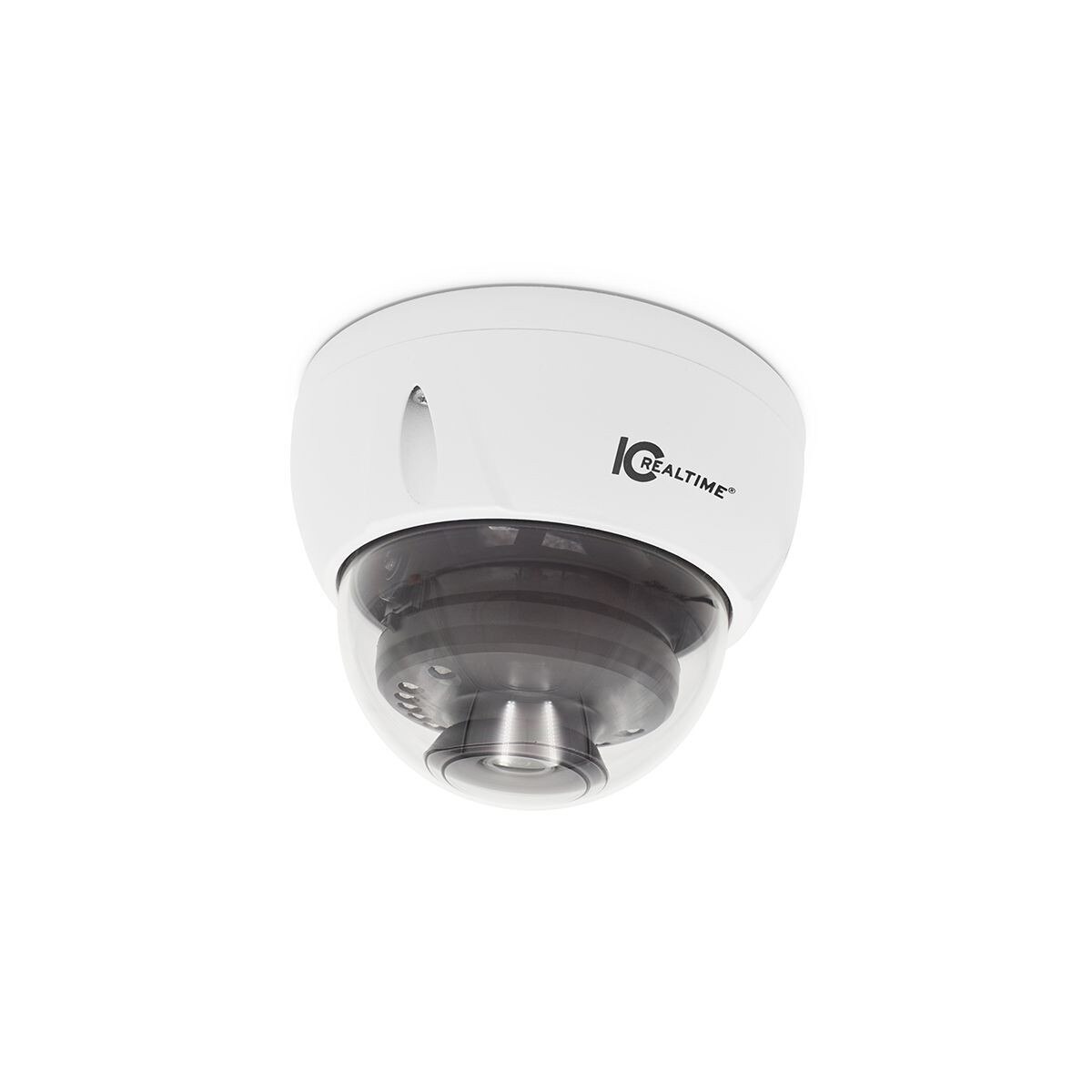

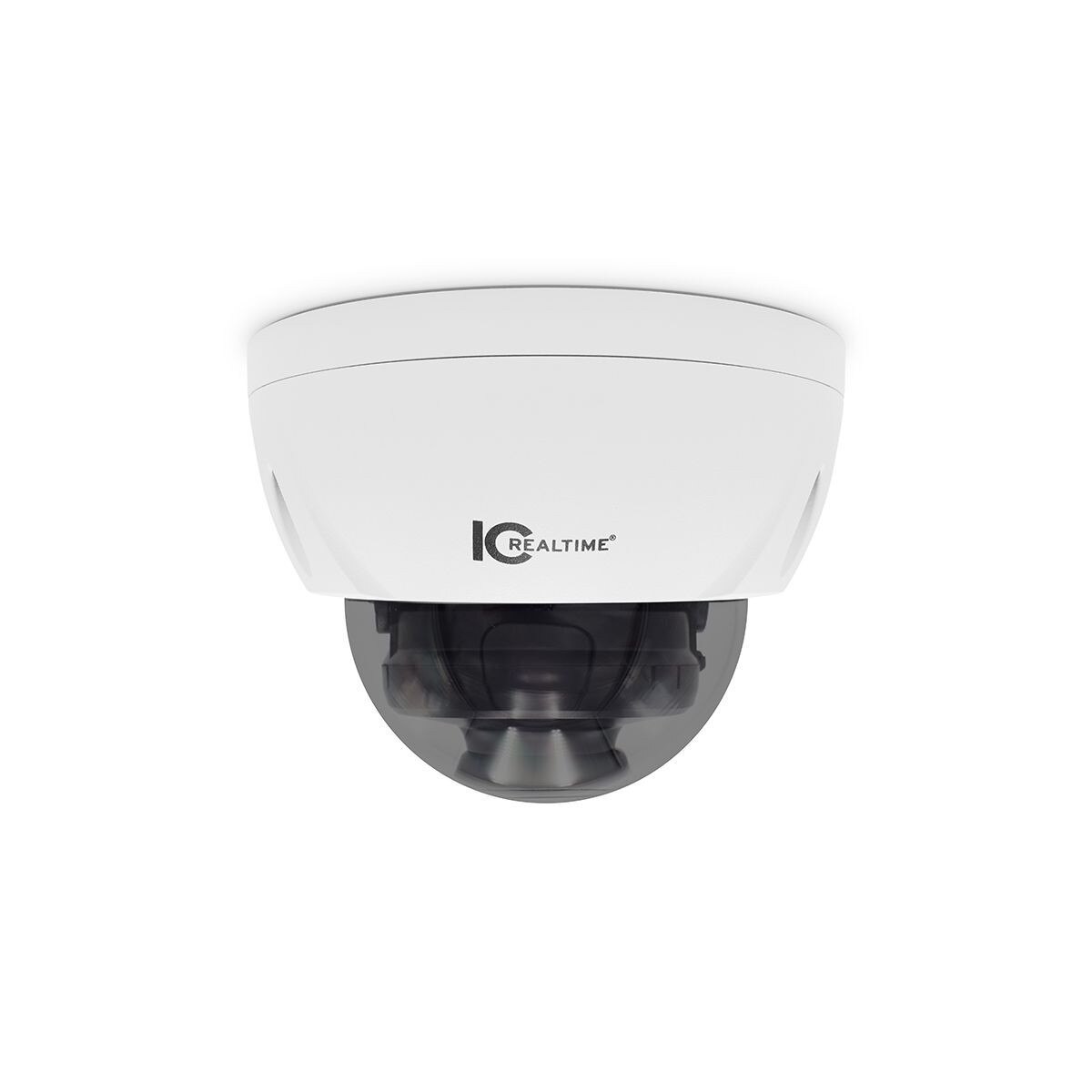

The IPMX-D40F-IRW2 is a small form factor dome camera adopting a 1/3” CMOS sensor capable of 4 Megapixel (2688×1520) video at up to 30FPS with H.265 encoding support. This sensor sits atop a 2.8mm fixed lens, and is paired with Starlight supported IR LEDs capable of supplying illumination up to 164’. The image sensor itself has a strong 120 dB dynamic range, making this dome camera a ‘True WDR’ camera.

The real magic of this camera lies in its AI (Advanced Intelligence) suite of features, which includes iMD (Intelligent Motion Detect) and IVS support. iMD allows a greater degree of accuracy thanks to its ability to discern human/ vehicle objects. Tripwire and Intrusion are also supported with IVS. In addition, the camera is IK10 and IP67 rated as well as ePOE supported, making it a great choice for outdoor installations.

Specifications

Camera
Image Sensor: 1/3 4 Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x 1520(V)
RAM/Rom: 128MB/ 512MB
Scanning System: Progressive
Minimum Illumination: 0.005 Lux@F1.6
S/N Ratio: More than 50dB
IR Distance: Distance up to 164’ (50 m)
IR On/Off Control: Auto/ Manual
IR LEDs: 3
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: Horizontal:103°; vertical: 55°; diagonal: 122°
Focus Control: Fixed
Close Focus Distance: 0.9m
DORI - Detect: 56m (184ft)
DORI - Observe: 22m (72ft)
DORI - Recognize: 11m (36ft)
DORI - Identify: 6m (20ft)
Intelligence
IVS: Tripwire, Intrusion
Advanced Intelligent Functions: iMD (Intelligent Motion Detect)
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability: 3 Streams
Resolution: 4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 720P(1 - 25/30fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 24K - 10240Kbps H.265: 14K - 9984Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16X
Flip: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Mirror: Off / On
Privacy Masking: Off / On (4 Area Rectangle)
WDR: 120dB
Audio
Compression: G.711a; G.711Mu; G726; AAC
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 (Total bandwidth: 64 M)
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 256GB
Web Viewer: IE, Firefox, Chrome, Safari
Management Software: SmartICRSS, DSS
Smart Phone: iOS, Android

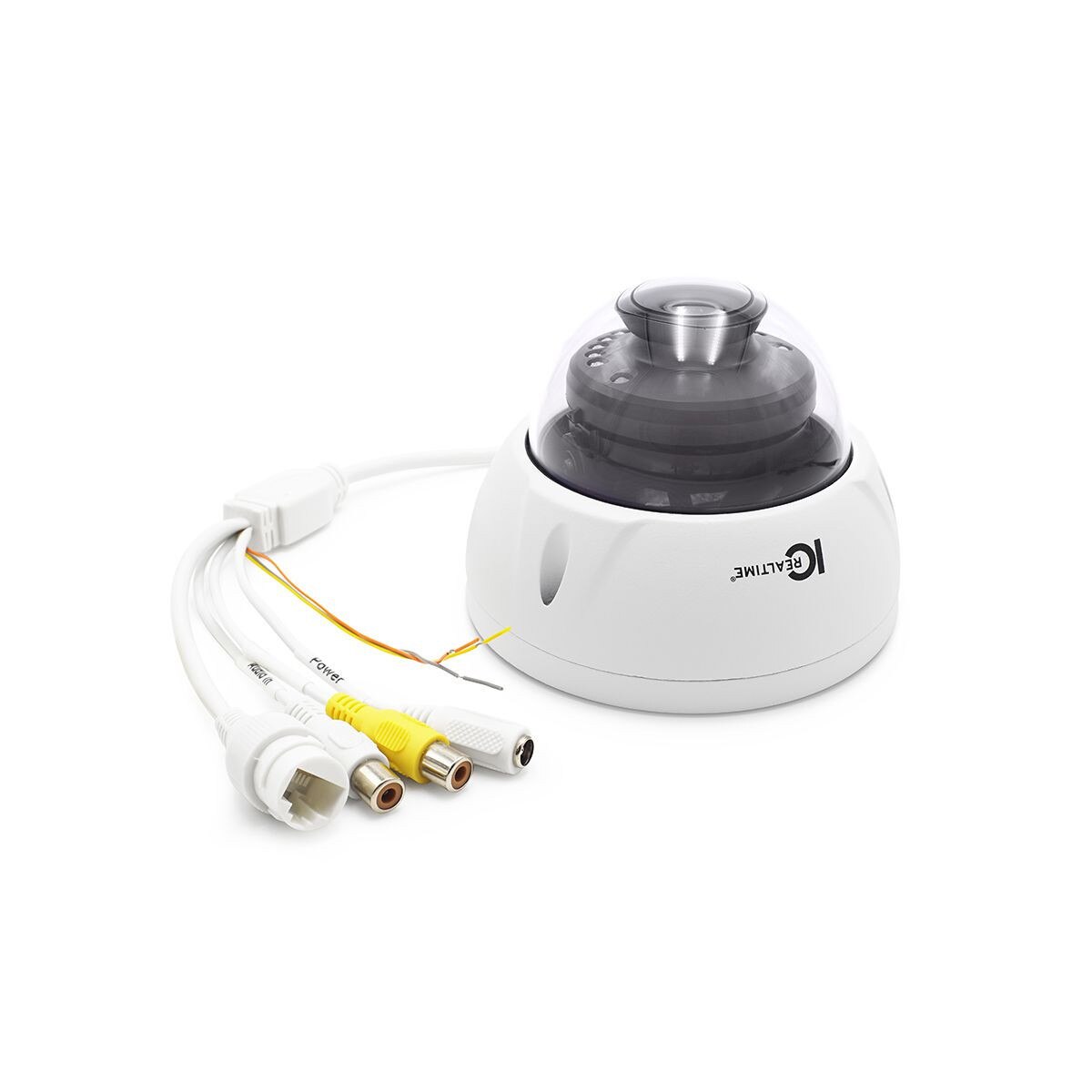

Interface
Video Interface: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC / 1 channel Out: 300mA 12VDC
Memory Slot: Micro SD Card 256GB
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
ePOE support
Power Consumption: <7.3W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
Gross Weight: 523 g (1.2 lb)
Mounting Pan/Tilt/Rotation: Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355°
