IPFX-P4032X-IRW1
Details
Every camera integrator has a workhorse IP-PTZ camera that offers their clients maximum performance at a cost-effective price point. For years, our FX Series P4030 was that stalwart IP PTZ at IC Realtime. Now the next generation is ready to take over - introducing the new & improved IPFX-P4032X-IRW1.
REFINED VIDEO PERFORMANCE
The previous model’s 30x telescopic zoom lens has been updated with an improved 32x (4.9 mm–156 mm) version that focuses on a larger 4MP STARVIS (StarVision) ultra low light chipset for color down to 0.005 Lux@F1.35 and a longer 490+ft. IR for excellent Nightvision range.
AI-ENHANCED DETECTION SKILLS
The new P4032X adds IC Realtime’s latest versions of AI-assisted Intelligent Motion Detection (IMD) and Perimeter Protection assets to its feature set. IC Realtime’s FlexSmartAi detection accuracy improves with every new generation, and the P4032X has all the evolved advantages of the latest version with Deep-learning-based auto tracking and Face Detection.
TOUGH & COMMERCIAL-GRADE

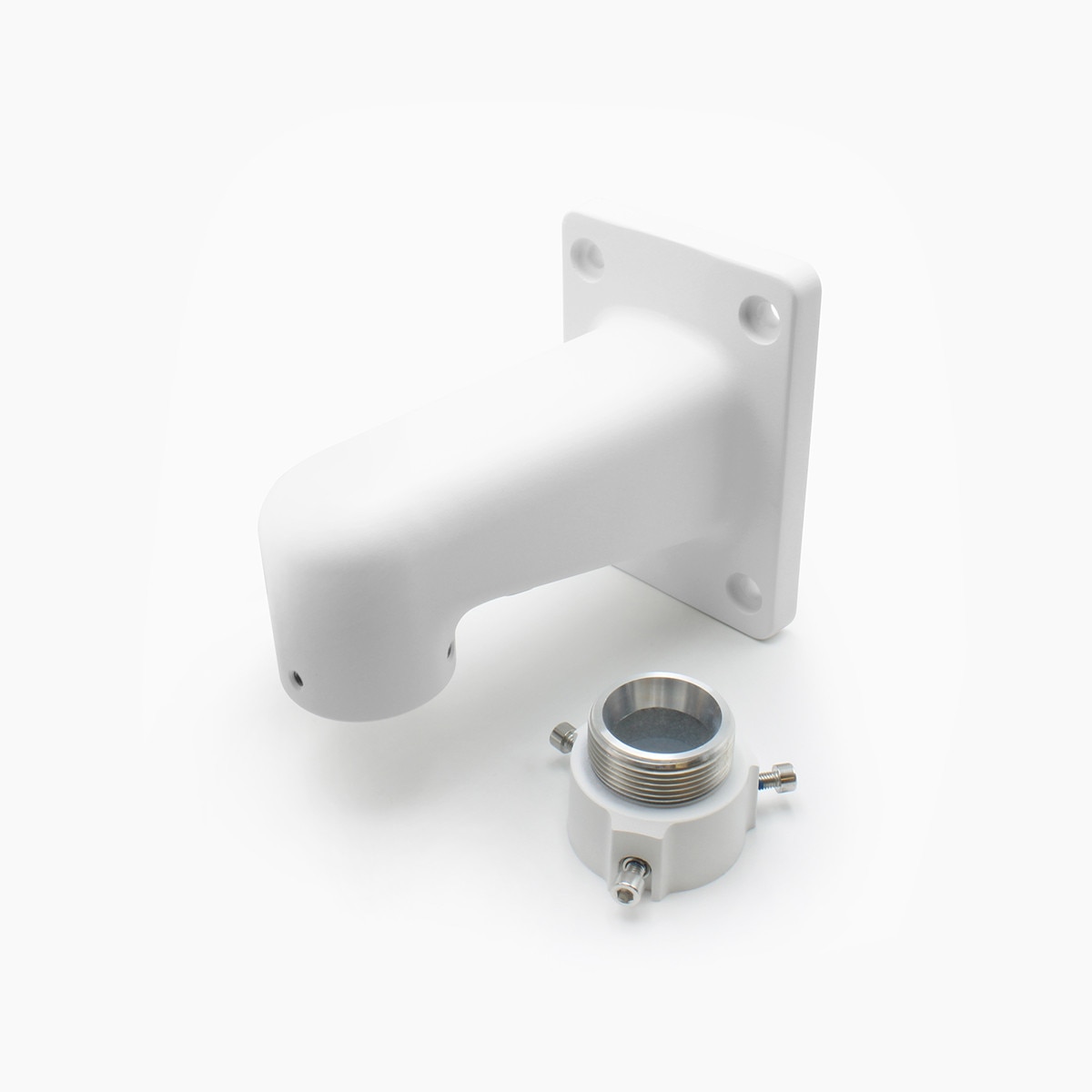

P4032X is built to maintain excellent performance with an IP67 weather rating and an IK10 vandal resistance factor. The included wall mount bracket is cast & tubular metal, and even the network interface has been upgraded as well with a much improved H.264/H.265 bitrate of 3 Kbps–20480 Kbps.
EASY INSTALLATION & INTEGRATION
The camera also includes a 24VAC local power supply where 23W of PoE+ power is not available on the CAT5/6 network line. And for alarm integration, the camera has 2/1 alarm leads and will encode audio using its I/O ports - both co-located on the camera’s power & interface pigtail for easy installation. And, of course, it can use all IC Realtime’s PTZ mounts & mounting accessories, including the ability to hang directly on our massive & weatherproof MNT-Box 2 with copious internal space for wire & power connections.
With the camera’s 10-year Limited Warranty, AI detection & auto-tracking and extreme STARVIS low light capabilities - combined with even better specs than the previous model - IPFX-P4032X-IRW1 is set to become the new “go-to” IP PTZ for professional video integrators.
REFINED VIDEO PERFORMANCE
The previous model’s 30x telescopic zoom lens has been updated with an improved 32x (4.9 mm–156 mm) version that focuses on a larger 4MP STARVIS (StarVision) ultra low light chipset for color down to 0.005 Lux@F1.35 and a longer 490+ft. IR for excellent Nightvision range.
AI-ENHANCED DETECTION SKILLS
The new P4032X adds IC Realtime’s latest versions of AI-assisted Intelligent Motion Detection (IMD) and Perimeter Protection assets to its feature set. IC Realtime’s FlexSmartAi detection accuracy improves with every new generation, and the P4032X has all the evolved advantages of the latest version with Deep-learning-based auto tracking and Face Detection.
TOUGH & COMMERCIAL-GRADE
P4032X is built to maintain excellent performance with an IP67 weather rating and an IK10 vandal resistance factor. The included wall mount bracket is cast & tubular metal, and even the network interface has been upgraded as well with a much improved H.264/H.265 bitrate of 3 Kbps–20480 Kbps.
EASY INSTALLATION & INTEGRATION
The camera also includes a 24VAC local power supply where 23W of PoE+ power is not available on the CAT5/6 network line. And for alarm integration, the camera has 2/1 alarm leads and will encode audio using its I/O ports - both co-located on the camera’s power & interface pigtail for easy installation. And, of course, it can use all IC Realtime’s PTZ mounts & mounting accessories, including the ability to hang directly on our massive & weatherproof MNT-Box 2 with copious internal space for wire & power connections.
With the camera’s 10-year Limited Warranty, AI detection & auto-tracking and extreme STARVIS low light capabilities - combined with even better specs than the previous model - IPFX-P4032X-IRW1 is set to become the new “go-to” IP PTZ for professional video integrators.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" STARVIS™ CMOS |
| Effective Pixels: | 2560 (H) × 1440 (V), 4 Megapixels |
| RAM/Rom: | 1GB / 4GB |
| Scanning System: | Progressive |
| Minimum Illumination: | Color: 0.005 Lux@F1.35 B/W: 0.0005 Lux@F1.35 0 Lux (IR on) |
| S/N Ratio: | ≥ 55 dB |
| Illumination Distance: | 492.13 ft (150 m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4 |
| Camera Illumination Type: | IR |
| Lens | |
| Focal Length: | 4.9 mm–156 mm |
| Max. Aperture: | F1.35–F4.4 |
| Angle of View: | H: 61.6°–2.1°; V: 35.1°–1.3° |
| Optical Zoom: | 32x |
| Focus Control: | Auto/Semi-Auto/Manual |
| Close Focus Distance: | 3.28 ft–4.92 ft (1 m–1.5 m) |
| DORI - Detect: | 10,236ft |
| DORI - Observe: | 4041ft |
| DORI - Recognize: | 2047ft |
| DORI - Identify: | 1023ft |
| PTZ | |
| Pan/Tilt Range: | Pan: 0°–360° endless Tilt: –15° to +90°, auto flip 180 |
| Manual Control Speed: | Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s |
| Preset Speed: | Pan: 400° /s; Tilt: 300° /s |
| Presets: | 300 |
| PTZ Mode: | 5 Patterns, Tour (up to 8 presets), scan |
| Power up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Preset/Tour/Pattern/Scanning |
| Protocol: | ICR-SD, Pelco-P/D (auto recognition) |
| Tracking Trigger Event: | Perimeter Protection |
| Intelligence | |
| IVS: | Tripwire, Intrusion, Abandoned/Missing |
| Advanced Intelligent Functions: | Perimeter Protection- Tripwire and intrusion (Supports human and vehicle recognition) Intelligent Motion Detect (Supports human and vehicle recognition) Face Detection |
| Video | |
| Compression: | H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
| Resolution: | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480);CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream 2: 720p (1–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps |
| Smart IR: | Zoom Prio/Manual/SmartIR |
| Flip: | 180° |
| Iris Control: | Auto/Manual/Fixed |
| WDR: | 120 dB |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
| Max. User Access: | 20 (total bandwidth 64M) |
| Edge Storage: | FTP; NAS |
| Web Viewer: | IE, Chrome, Edge, Safari, Firefox |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | Android, iOS |
| Interface | |
| Audio I/O: | 1 (Line in; bare wire)/1 (Line out; bare wire) |
| Alarm I/O: | 2/1 |
| Memory Slot: | Micro SD card (256G) |
| Electrical | |
| Power Supply: | DC 24 V/2.5 A ± 25% or PoE+ (802.3at) |
| Power Consumption: | Normal: 12W Max (AI, IR on): 20W |
| Environmental | |
| Operating Conditions: | -40° F ~ +158° F (-40° C ~ +70° C) / Less than 95% RH |
| Construction | |
| Dimensions: | 7.48" × 13.07" (190 mm × 332 mm) |
| Gross Weight: | 17.64 lb (8 kg) |
