SKU: IPFX-P4004-W1
Jump to Product Specs

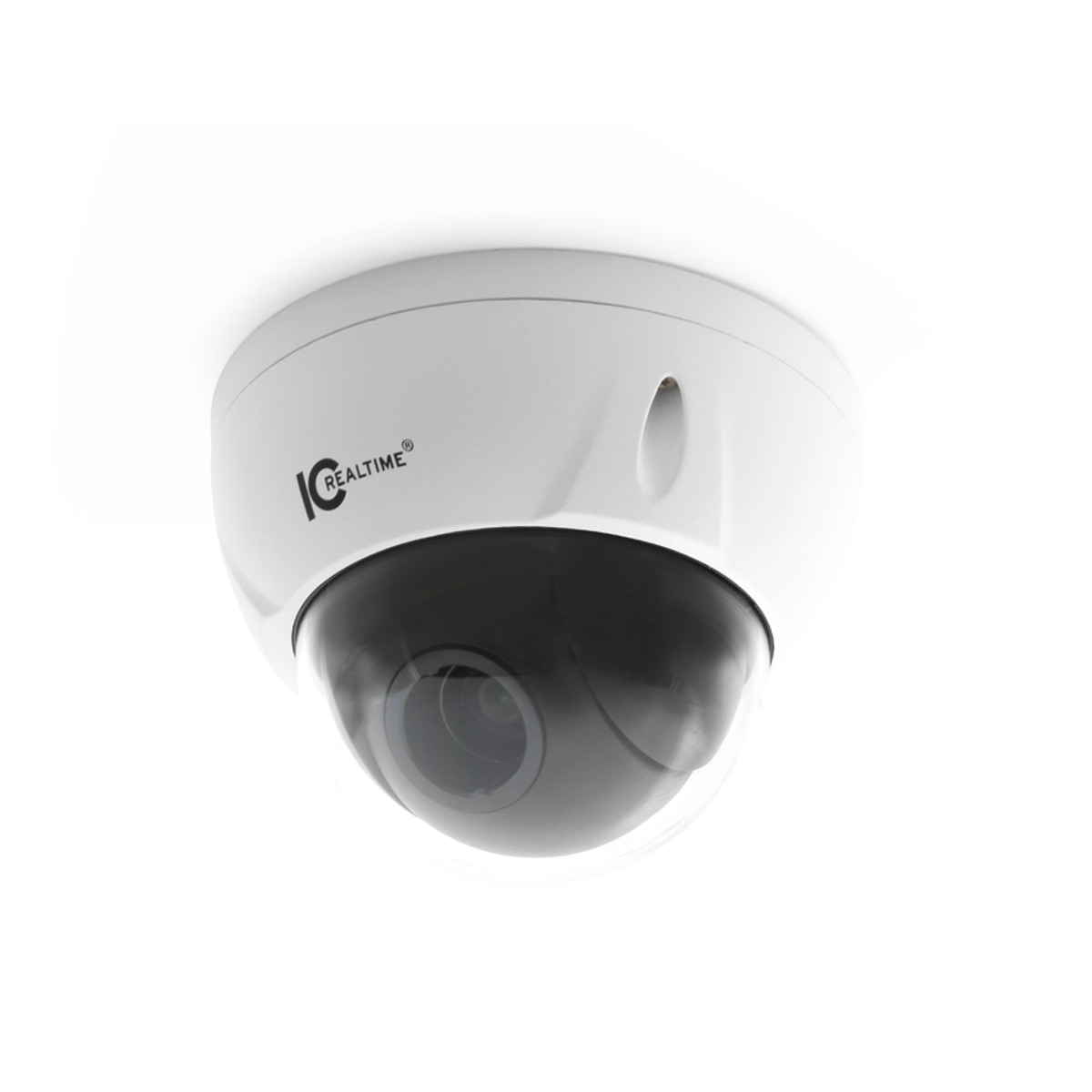

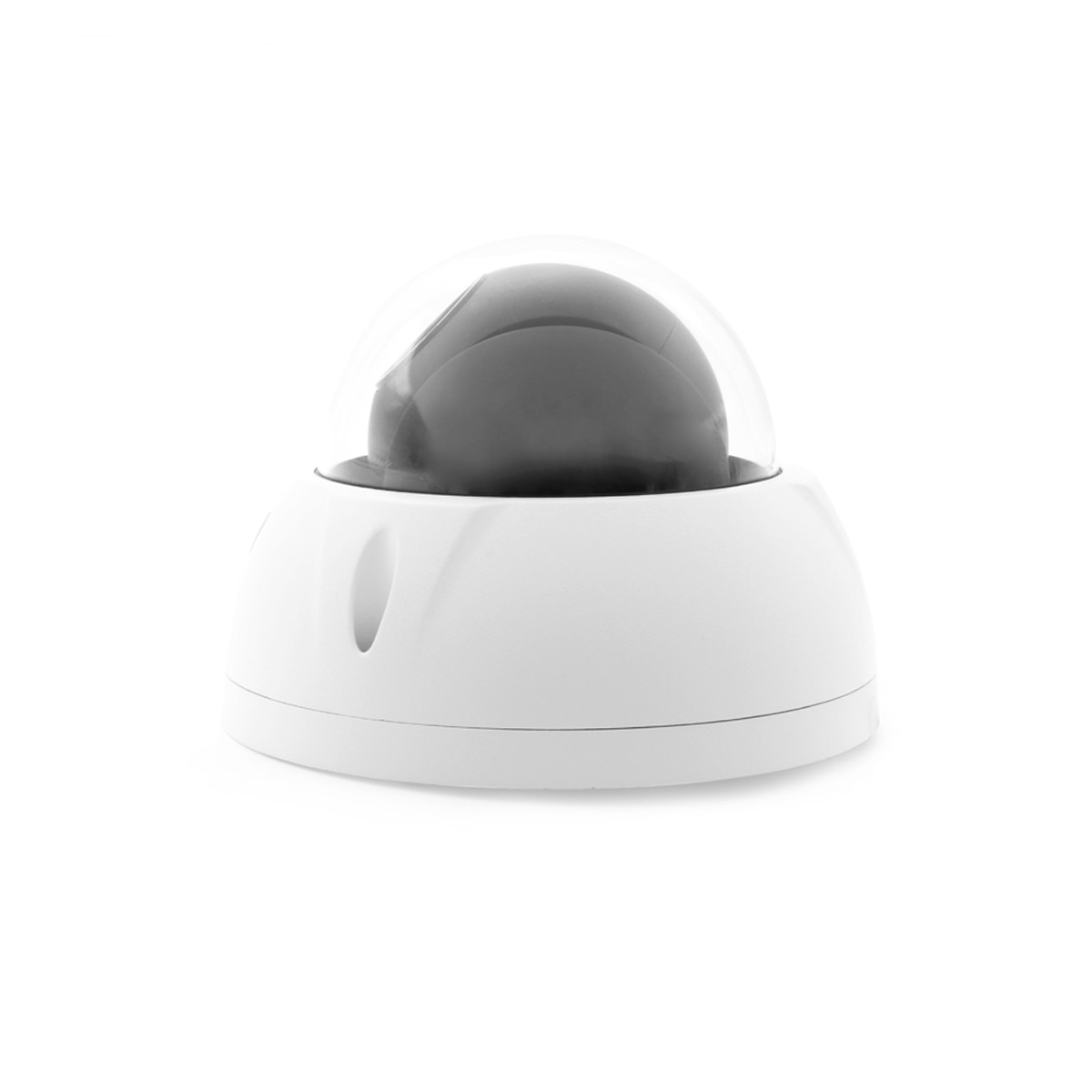

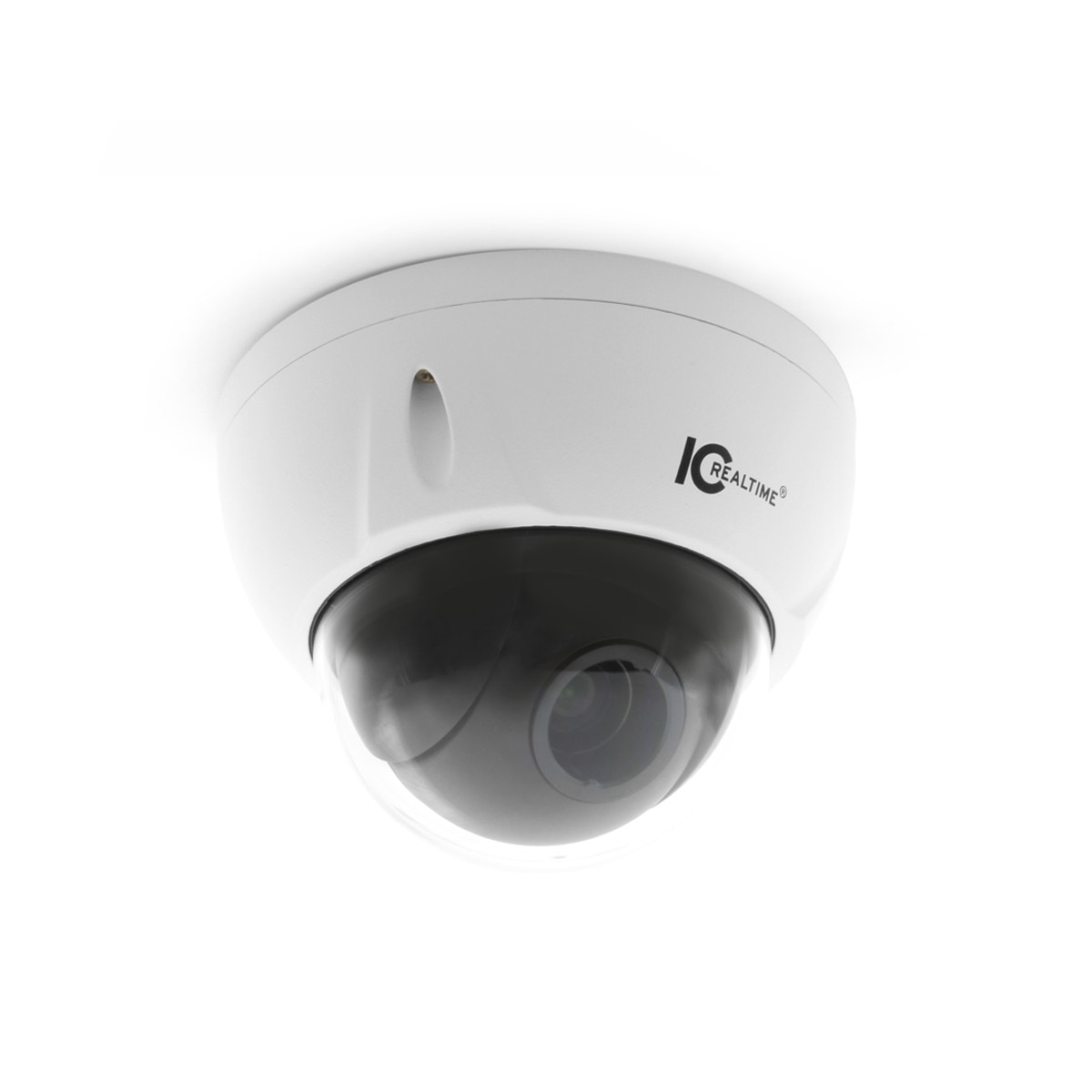

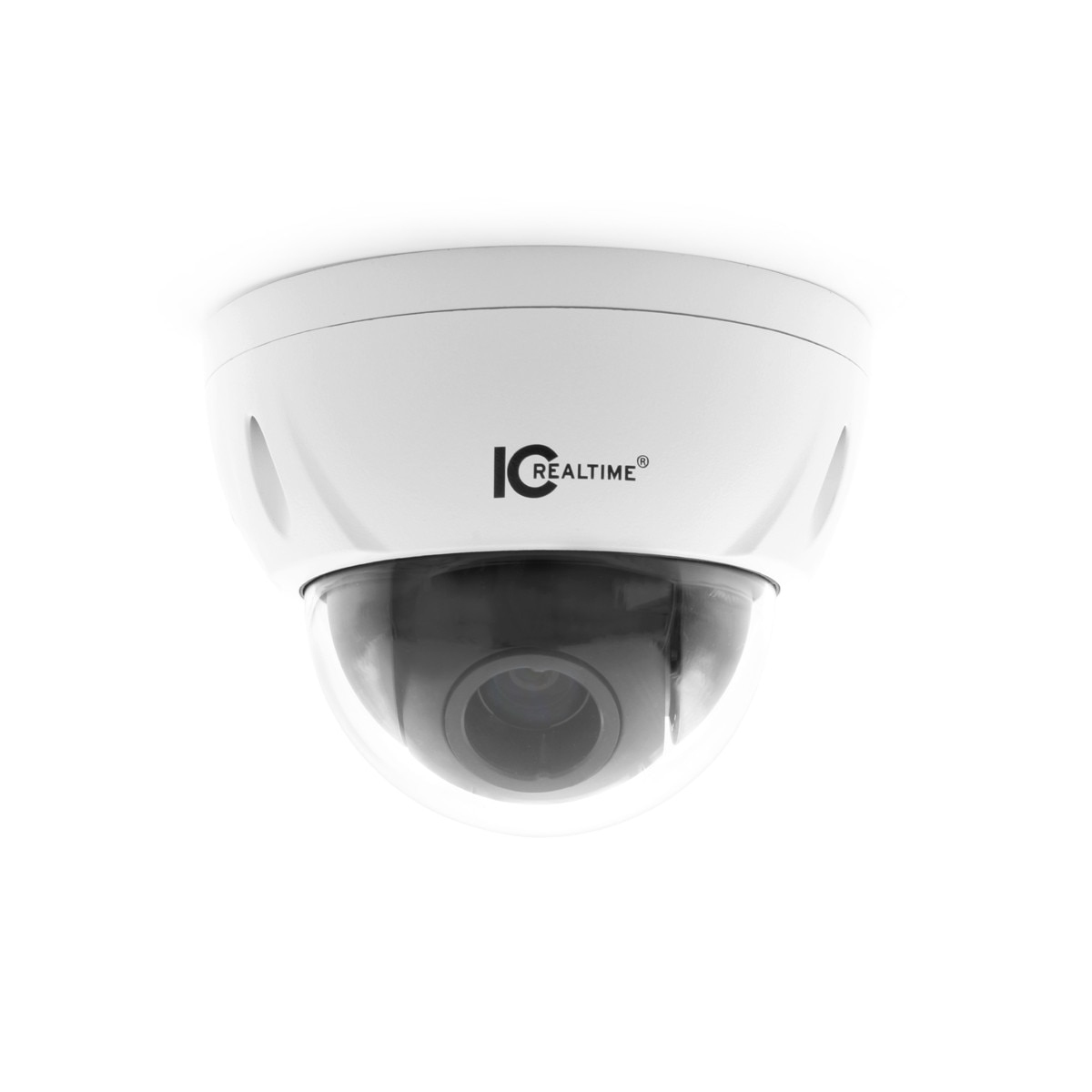

Size isn’t everything, and in this case, it’s actually a great advantage. Meet the IPFX-P4004-W1, IC Realtime’s new POE “mini PTZ” that directly replaces our popular but aging MPTZ-2. Despite its internal upgrades, this “nano” PTZ has remained under 5” in diameter. This will be a welcome update for dealers whose clients appreciate having PTZ coverage in a compact, tough & unobtrusive form factor no larger than a standard minidome camera.

While the MPTZ-2 was a 2MP camera, the new IPFX-P4004-W1 is equipped with a 4MP QHD CMOS sensor chipset with excellent low light 0.005 lux color range followed by grayscale rendition down to 0.0005 lux. Video quality is exceptional with Ultra WDR and despite its compact size, this little video champ delivers all the sharpness & image management you’d expect from IC Realtime. It also plays well with others with HTML5, ONVIF (profiles S, G & T) P2P, CGI, SDK compatibility.

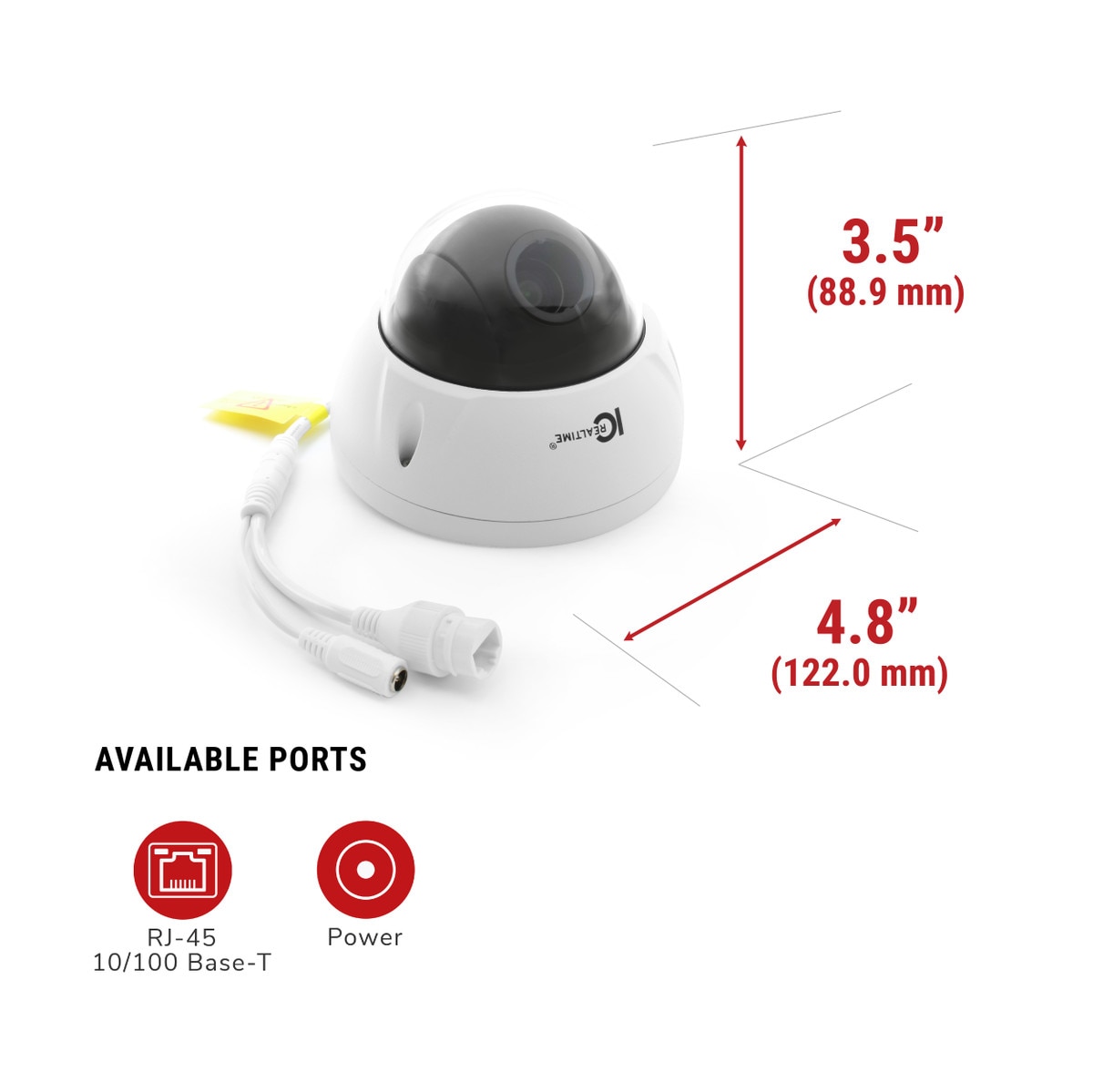

Bringing a 2.8-12mm (4x) power zoom lens system and tilt & left/right FOV aiming capabilities to a camera that’s only 4.8”x 3.5” seems almost impossible, but the new IPFX-P4004-W1 delivers bigtime. Its exposure automation matches that of IC Realtime’s big PTZ performance to deal with direct sunlight and sudden entrance door background glare to deliver flawless coverage over its zoom-dependant 90.3° to 29.4° field of view.

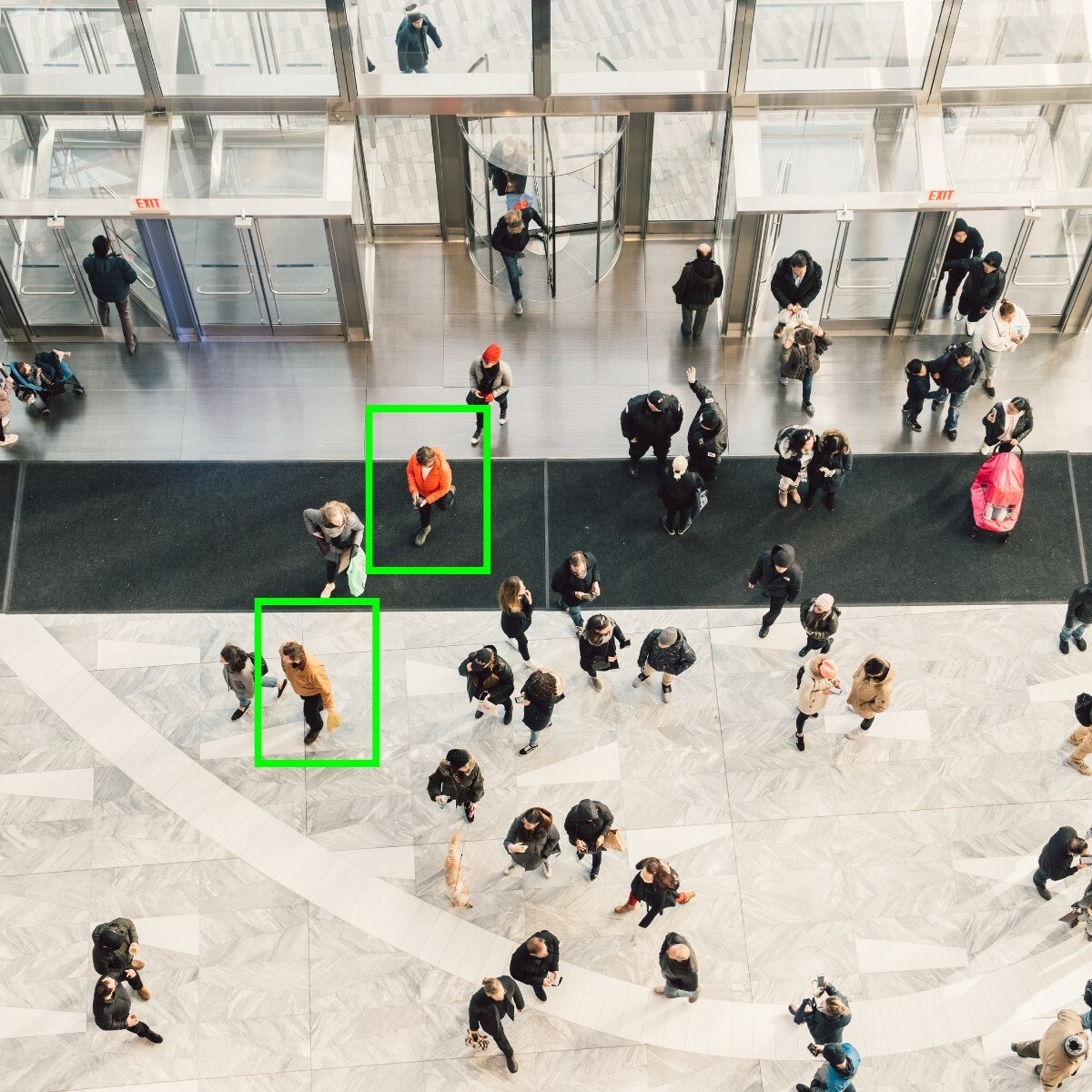

This little camera also includes most of the detection management skills or our full-size PTZs, including an improved version of IC Realtime’s algorithmic Intelligent Motion Detection (iMD) for better accuracy & fewer false alarms, and IPFX-P4004’s IVS implementation includes Tripwire, Abandoned/Missing Object, Intrusion, and Face Detection is also onboard. There’s even an internal mSD slot that takes cards up to 512Gb - that’s capacity for over half a terabyte of in-camera storage.

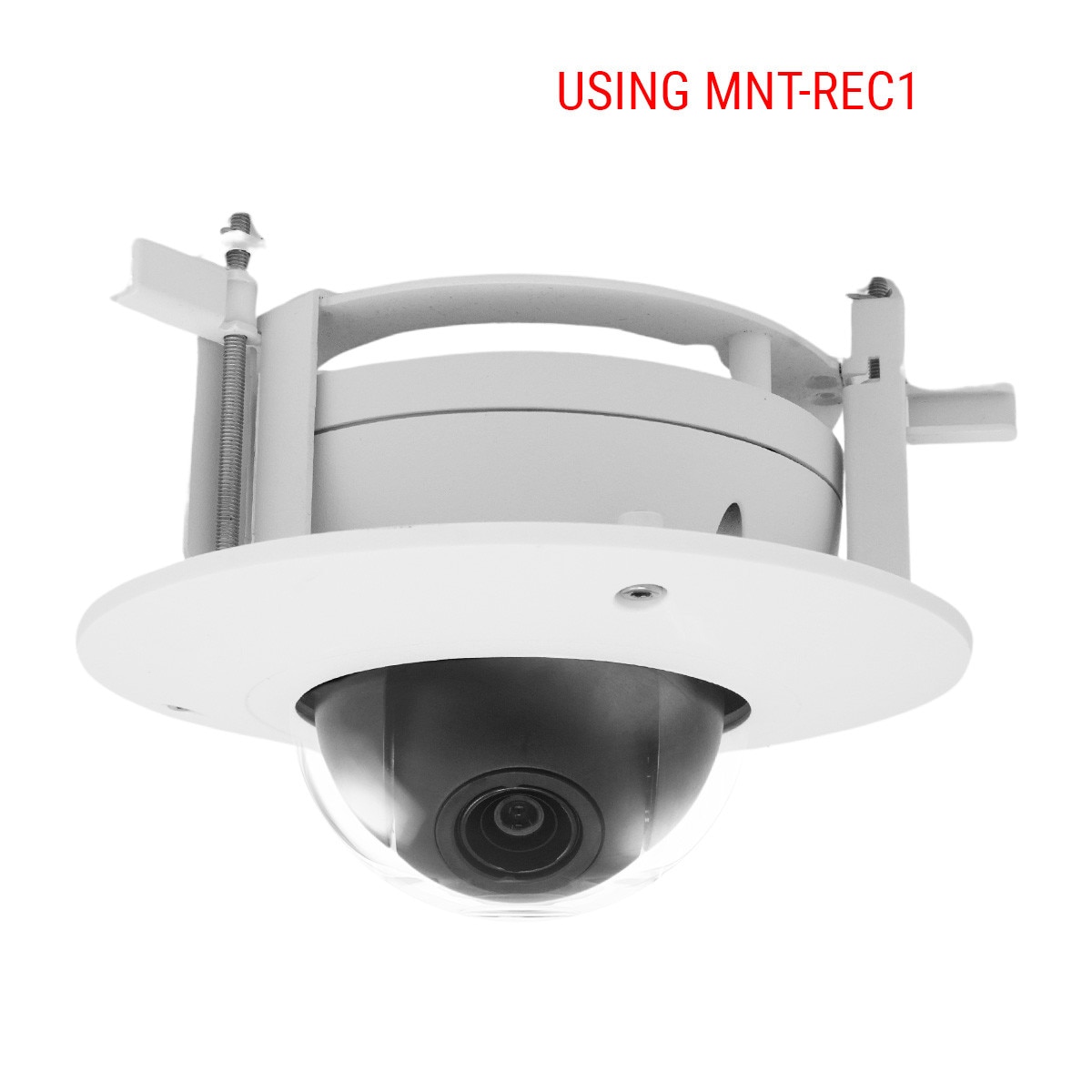

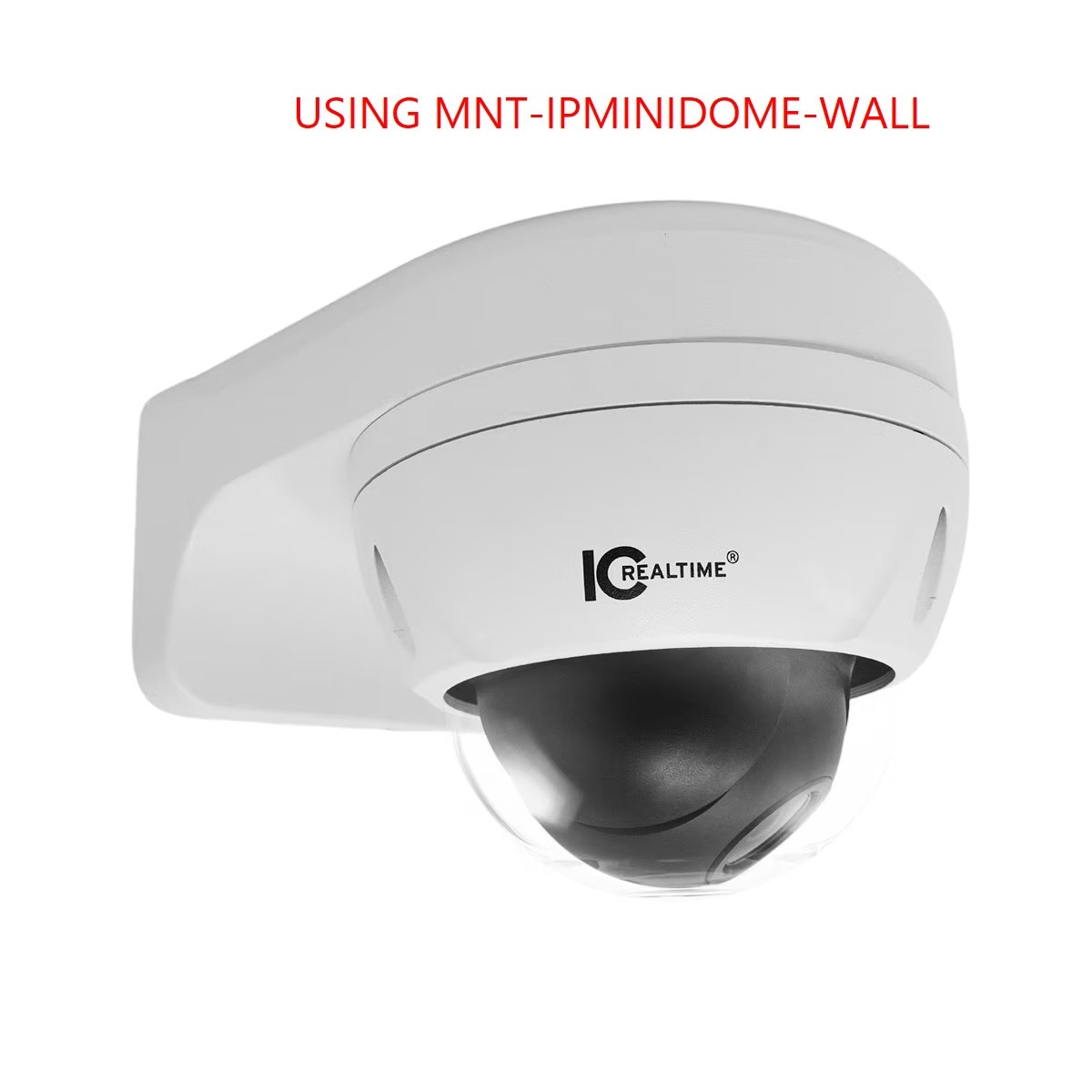

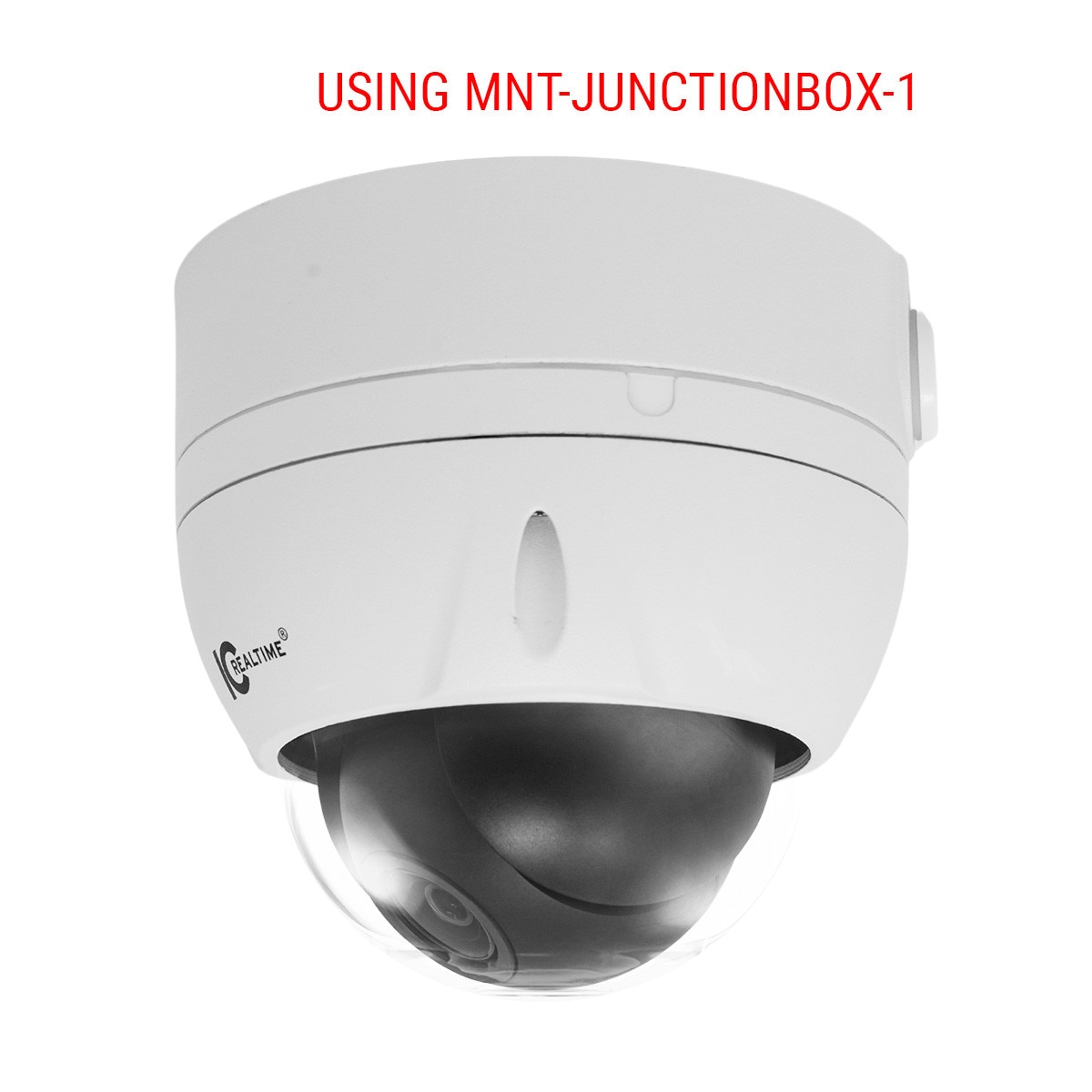

IPFX-P4004 is (802.3af) POE compliant and can run off 12VDC as well where POE isn’t available. This micro PTZ is IP66 weather resistant rated for outdoor use and tough enough to earn an IK10 impact protection rating. It can easily replace a standard IP dome camera and is just as easy to install. It also is a screwdriver fit for MNT-IPMINIDOME WALL, MNT-JUNCTION BOX 7, and even our MNT-REC1 recessed mount, making it extremely versatile.

With security cameras that spin & zoom shown as “standard equipment” in movies & media, fixed cameras - no matter how advanced - can seem a little underwhelming. When your client’s expectations are for something more, IC Realtime’s IPFX-P4004-W1 overwhelms their doubts, and its impressive app controllable PTZ coverage, low-light performance & brilliant QHD color streams delight their eyes. By Delivering PTZ performance where larger cameras just don’t cut it, this compact POE gem is truly the “little PTZ engine that could.”
