IPFX-P4004-IRW1
Details
Product Description

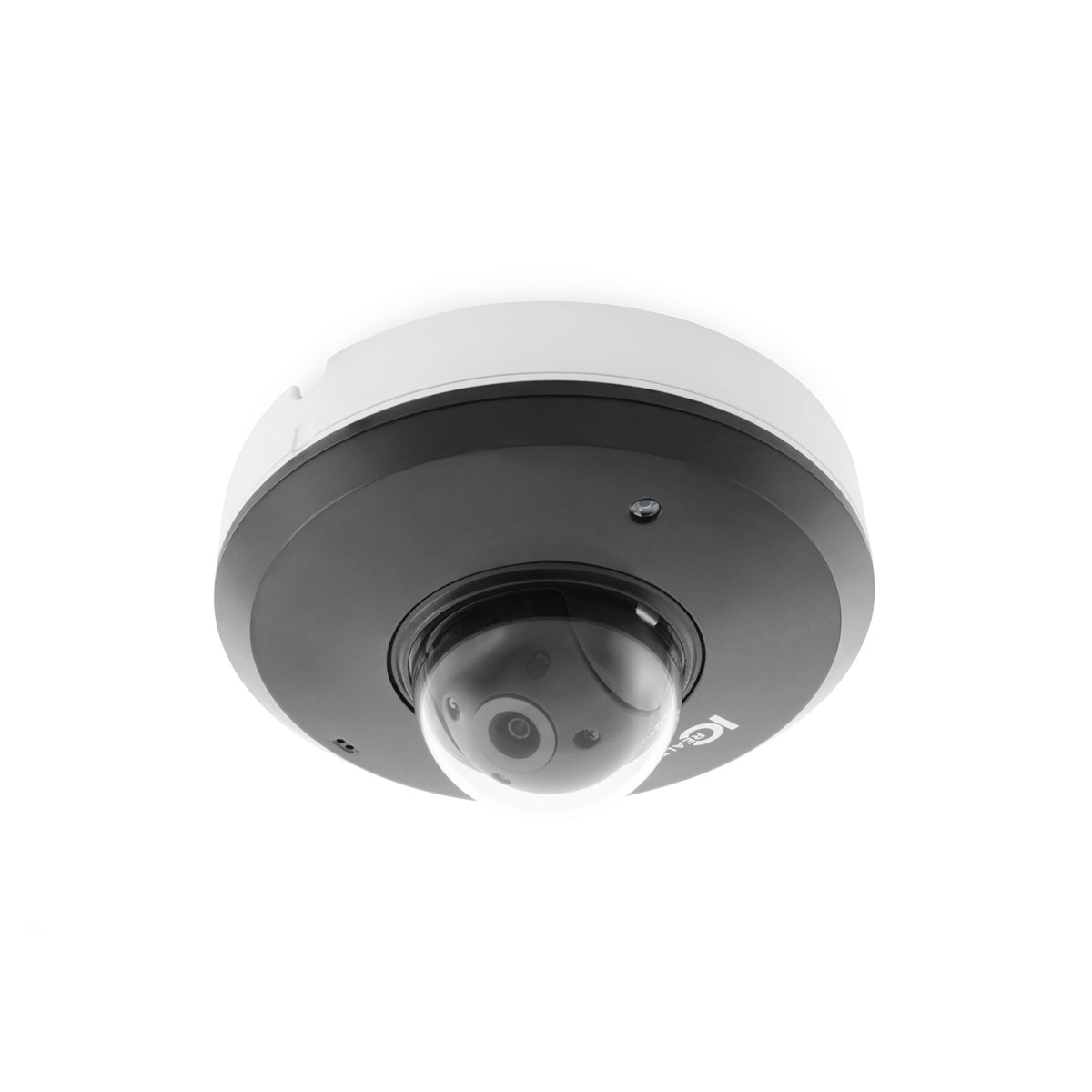

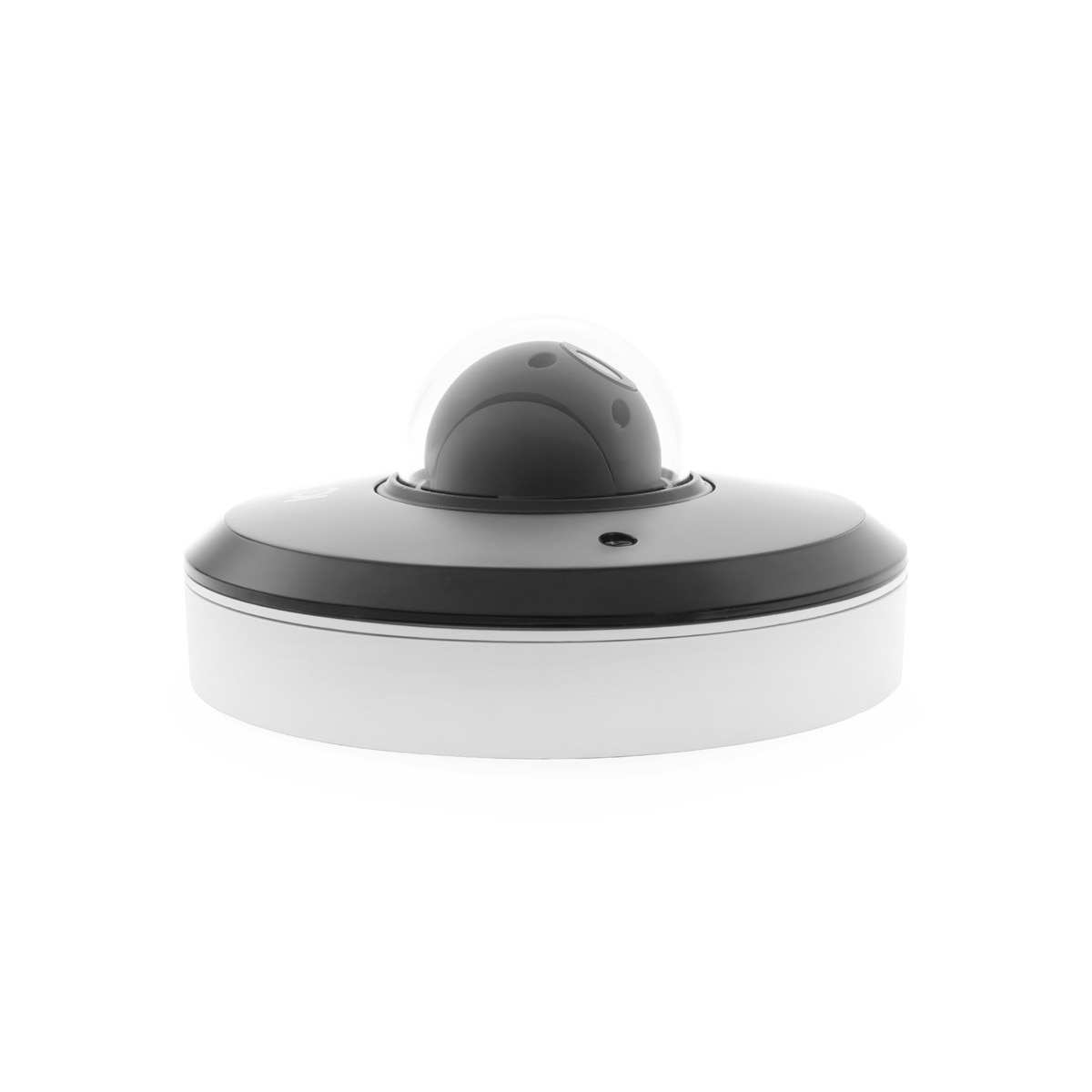

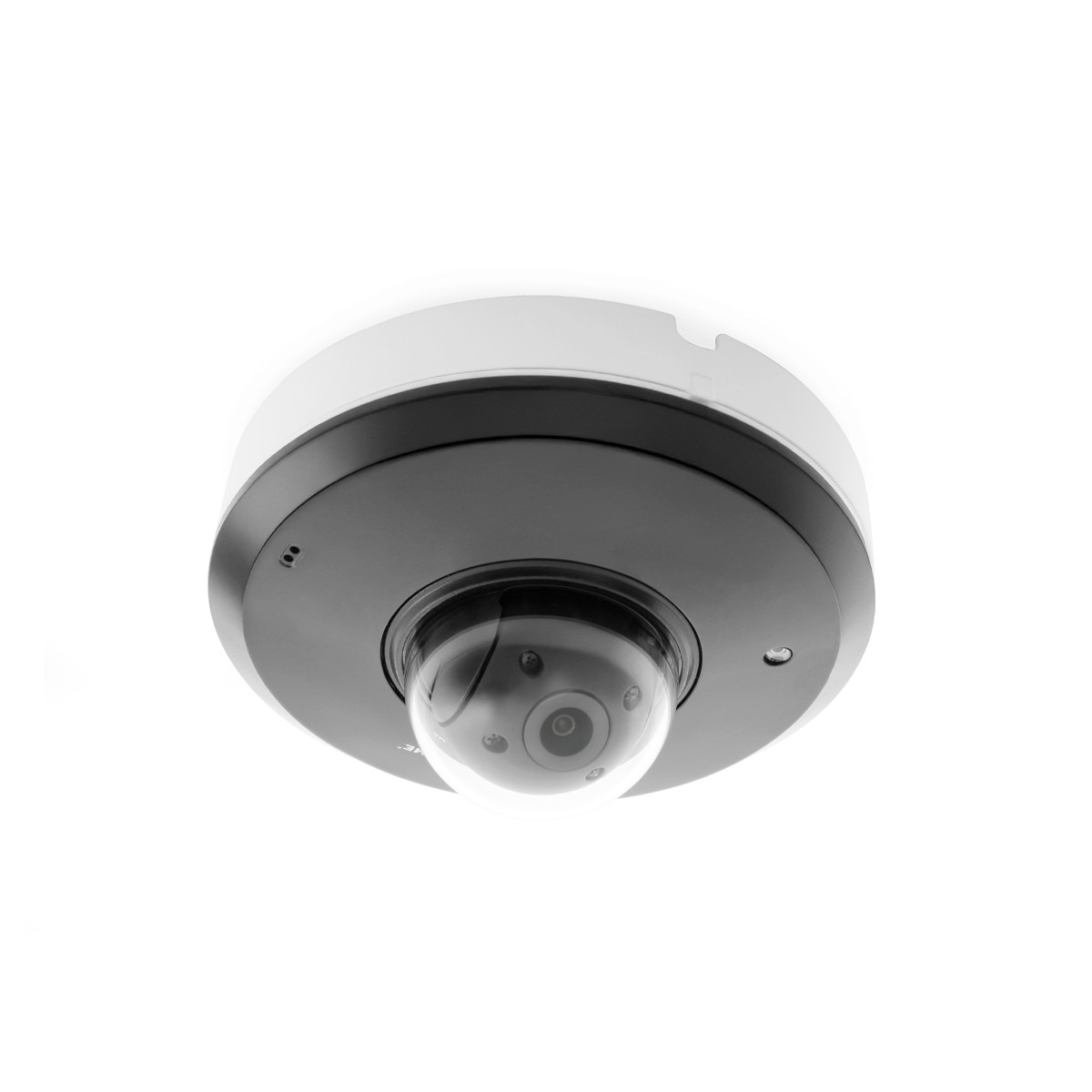

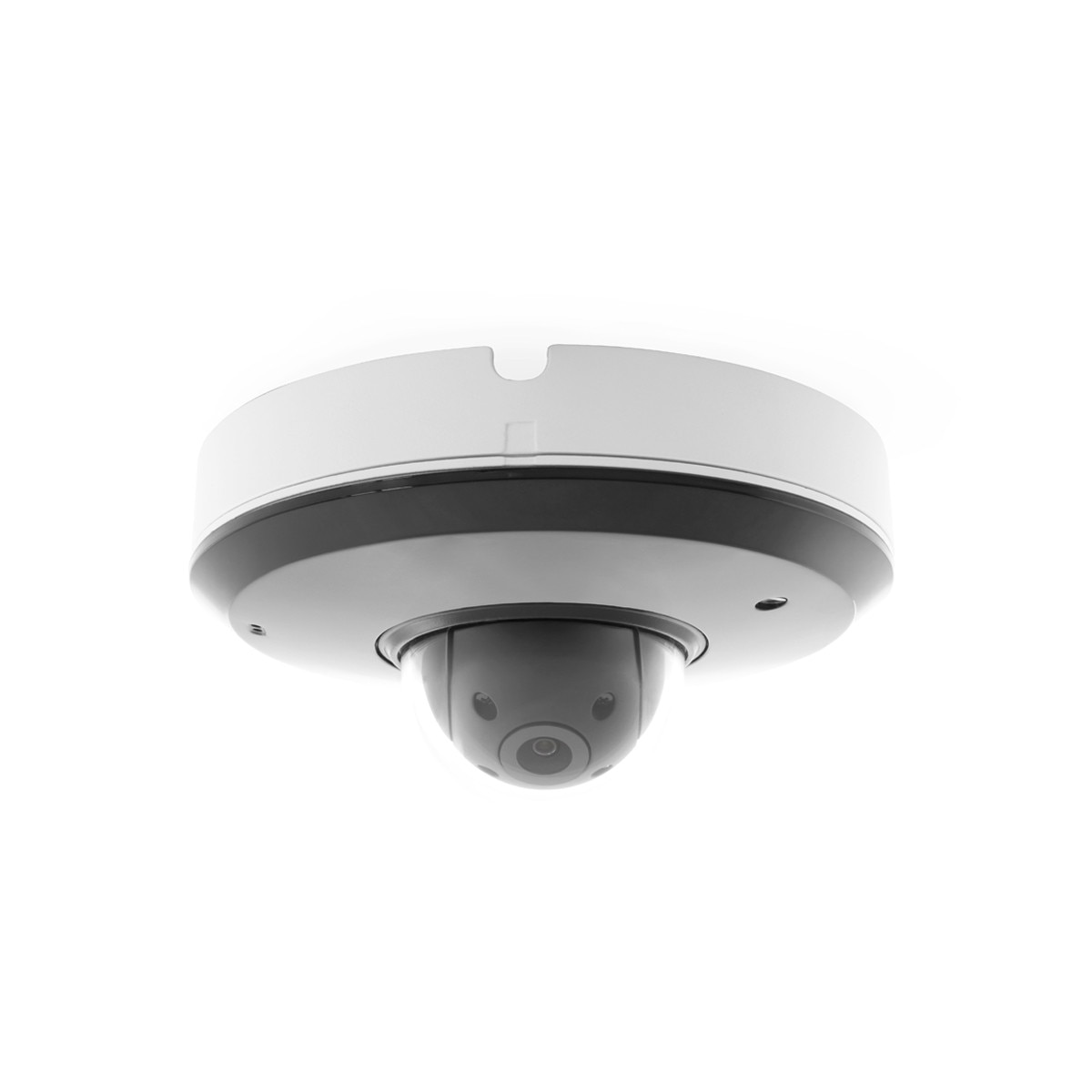

4MP Compact Starlight IR Mini-PTZ (4× Optical Zoom)
Overview
The IPFX-P4004-IRW1 is a compact, professional-grade mini-PTZ designed for applications that need movement, clarity, and AI analytics in a small footprint. It delivers 4MP resolution, smooth pan/tilt operation, and a 4× optical zoom lens that brings distant details into focus without distortion.
Powered by Starlight low-light technology and 65ft IR illumination, it captures clean, defined images even in challenging nighttime conditions. This mini-PTZ is engineered for residential and commercial sites where wide-angle domes aren’t enough, but full-size PTZs are too large or costly.
With built-in intelligent analytics, face detection, perimeter protection, and advanced iMD filtering, the IPFX-P4004-IRW1 provides reliable automation and alerting for modern installations.
Key Benefits
- Compact Mobility — 4× optical zoom for close-up clarity with pan/tilt coverage in a discreet mini-dome form; enhances—not replaces—fixed cameras.
- Low-Light Performance — Starlight sensor delivers color detail in low ambient light with 65ft IR illumination and 120 dB WDR for challenging lighting.
- AI Intelligence — Intelligent Motion Detection with human and vehicle filtering, IVS analytics, face detection, people counting, and perimeter protection.
- Installer-Focused Design — PoE single-cable convenience, metal housing with IP66 + IK08 protection, 300 presets, 8 tours, power-off memory, and IC Now / IC Now Pro compatibility.
Quick Specs
Resolution
2560 × 1440 (4MP)
IR Distance
65 ft (20 m)
Optical Zoom
4×
Pan Range
0°–355°
Tilt Range
5°–90°
AI Detection
Human / Vehicle iMD, Face Detection, People Counting
Analytics
Tripwire, intrusion, crossing fence, loitering, abandoned object
Network
PoE, ONVIF S / G / T
Storage
microSD up to 512GB
Protection
IP66, IK08
Applications
- Residential entrances
- Small business storefronts
- Parking areas and loading docks
- Interior commercial spaces
- Hallways and fence lines
- Sites needing zoom without full-size PTZ hardware
FAQs
Why choose a compact PTZ over a full-size PTZ?
A compact PTZ delivers movement and zoom without the bulk or cost of a large PTZ, making it ideal for homes, offices, and tight installation spots.
How far can it see at night?
The camera features 65 ft of IR night illumination, optimized for clear outlines and faces in complete darkness.
Does it reduce false alerts?
Yes. Intelligent Motion Detection filters for humans and vehicles, reducing false alarms from rain, trees, or shadows.
Can it store video onboard?
Yes. It supports microSD storage up to 512GB for standalone recording or backup.
Is it durable outdoors?
It’s rated IP66 and IK08, providing protection against harsh weather and vandalism.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 2560 (H) × 1440 (V), 4 Megapixels |
| RAM/Rom: | 256MB/ 512MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005 lux@F1.8 (Color, 30 IRE); 0.0005 lux@F1.8 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance: | 65.62 ft (20m) |
| Illumination On/Off Control: | Manual; SmartIR; Off |
| Illumination LEDs: | 3 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized Varifocal |
| Focal Length: | 2.8 mm–12 mm |
| Max. Aperture: | 2.8 mm–12 mm |
| Angle of View: | H: 96.9°–31.6°; V: 51.4°–17.8° |
| Optical Zoom: | 4x |
| Focus Control: | 0.66 ft– 1.64 ft (0.2 m–0.5 m) |
| Close Focus Distance: | 0.66 ft– 1.64 ft (0.2 m–0.5 m) |
| DORI - Detect: | 787 ft |
| DORI - Observe: | 311 ft |
| DORI - Recognize: | 157 ft |
| DORI - Identify: | 78 ft |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° to 355°; Tilt: 5° to 90° |
| Manual Control Speed: | Pan: 0.1°/s–70°/s; Tilt: 0.1°/s–30°/s |
| Preset Speed: | Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–40°/s |
| Presets: | 300 |
| Speed Setup: | Human-oriented focal Length/ speed adaptation |
| Idle Motion: | Preset; Tour |
| Protocol: | ICR-SD |
| Wiper: | N/A |
| Intelligence | |
| IVS: | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving, Parking detection; people gathering; |
| Advanced Intelligent Functions: | Perimeter Protection- Tripwire; Intrusion (Supports target filtering of vehicle and human objects) Intelligent Motion Detect- Advanced secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition changes. Face Detection- Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. People Counting- Tripwire: people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management |
| Video | |
| Compression: | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Streaming Capability: | 3 Streams |
| Resolution: | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/ 352× 240) |
| Frame Rate: | Main stream: 4M/3M/1080P/1.3M/720P @(1-25/30 fps) Sub stream1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 720p@(1–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H264: 96 Kbps–14,848 Kbps H265: 38 Kbps–8,960 Kbps |
| Day/Night: | ICR: Color; B/W; Auto; Electronic: Color; B/W; Auto |
| Backlight Compensation: | BLC / HLC / 120dB WDR |
| White Balance: | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control: | Auto; manual; gain prio |
| Noise Reduction: | 2D NR; 3D NR |
| Smart IR: | Supported |
| Flip: | 180° |
| Mirror: | Supported |
| WDR: | 120dB WDR |
| Audio | |
| Compression: | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 |
| Network | |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Protocol: | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability: | ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
| Max. User Access: | 20 (total bandwidth: 64 M) |
| Edge Storage: | Micro SD card (512 GB); FTP/ SFTP; NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Microphone; 1 channel Input (bare wire)/ 1 channel Output (bare wire) |
| Alarm I/O: | N/A |
| Memory Slot: | Micro SD card (512 GB) |
| Electrical | |
| Power Supply: | 12 VDC, 2 A ± 10% |
| Power Consumption: | Basic: 4 W; Max: 13 W (illuminator on) |
| Environmental | |
| Operating Conditions: | -22°F ~ +140°F (-30°C ~ 60°C) / Less than 95% RH |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK08 |
| Construction | |
| Casing: | Metal |

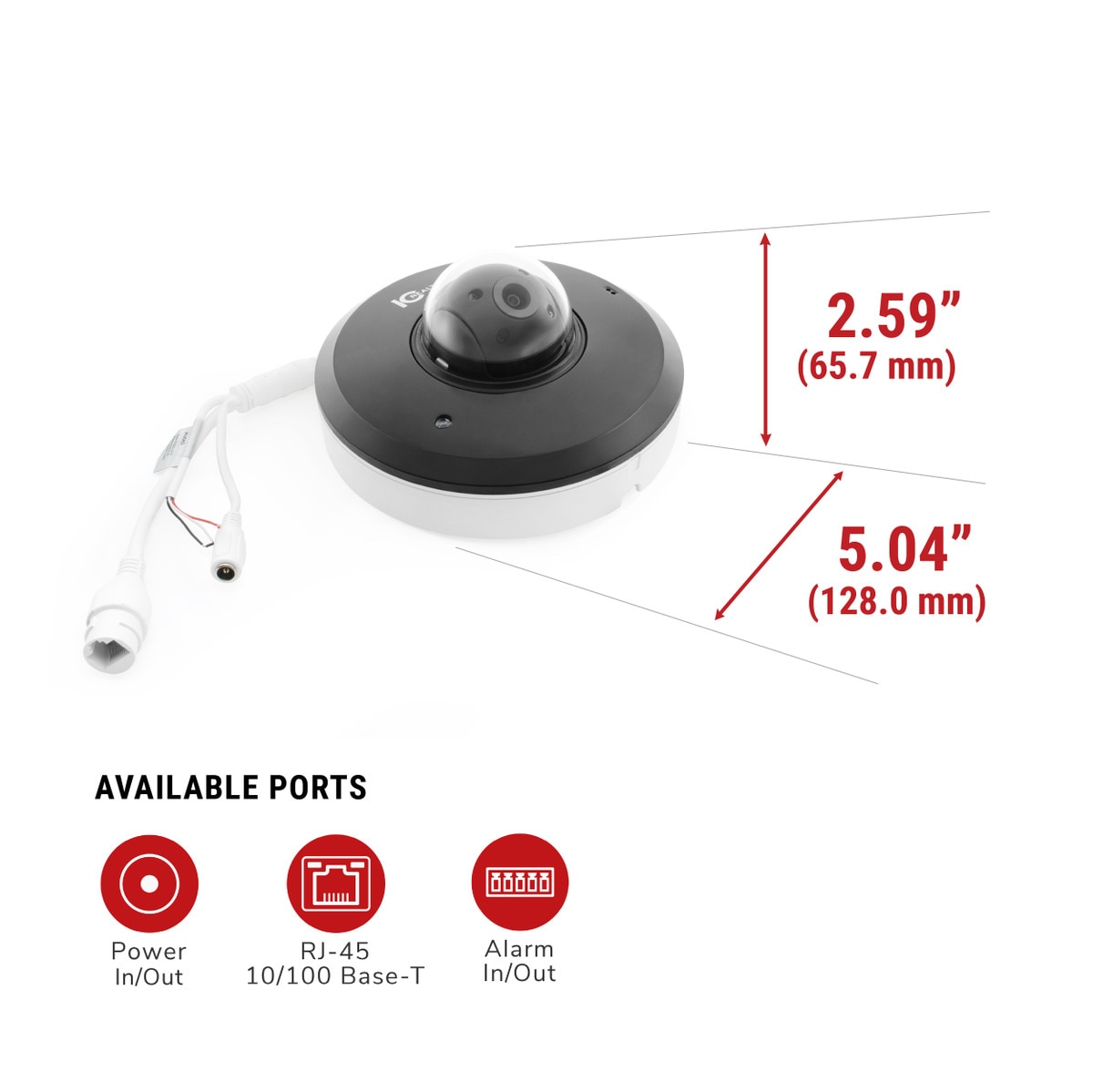

| Dimensions: | 2.59" × 5.04" (65.7 mm × Φ128.0 mm) |
| Gross Weight: | 1.54lb ( 0.7kg) |
