IPFX-D40V-IRW1

(0) No Reviews yet
SKU: IPFX-D40V-IRW1
ITEM WEIGHT: 3
4MP IP Indoor/Outdoor Mid Size Vandal Dome. Varifocal 2.7-12mm Motorized Lens (100° - 33°). 98 Feet Smart IR. PoE Capa...
1/3 CMOS | 4MP | 20fps@4MP
2.7mm to 13.5mm | motorized varifocal | AoV 104 to 28
Max. IR length 98ft | Smart IR | 2 IR LEDs
128GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 9W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR
Discontinued Item, USE IPFX-D40V-IRW2

Details

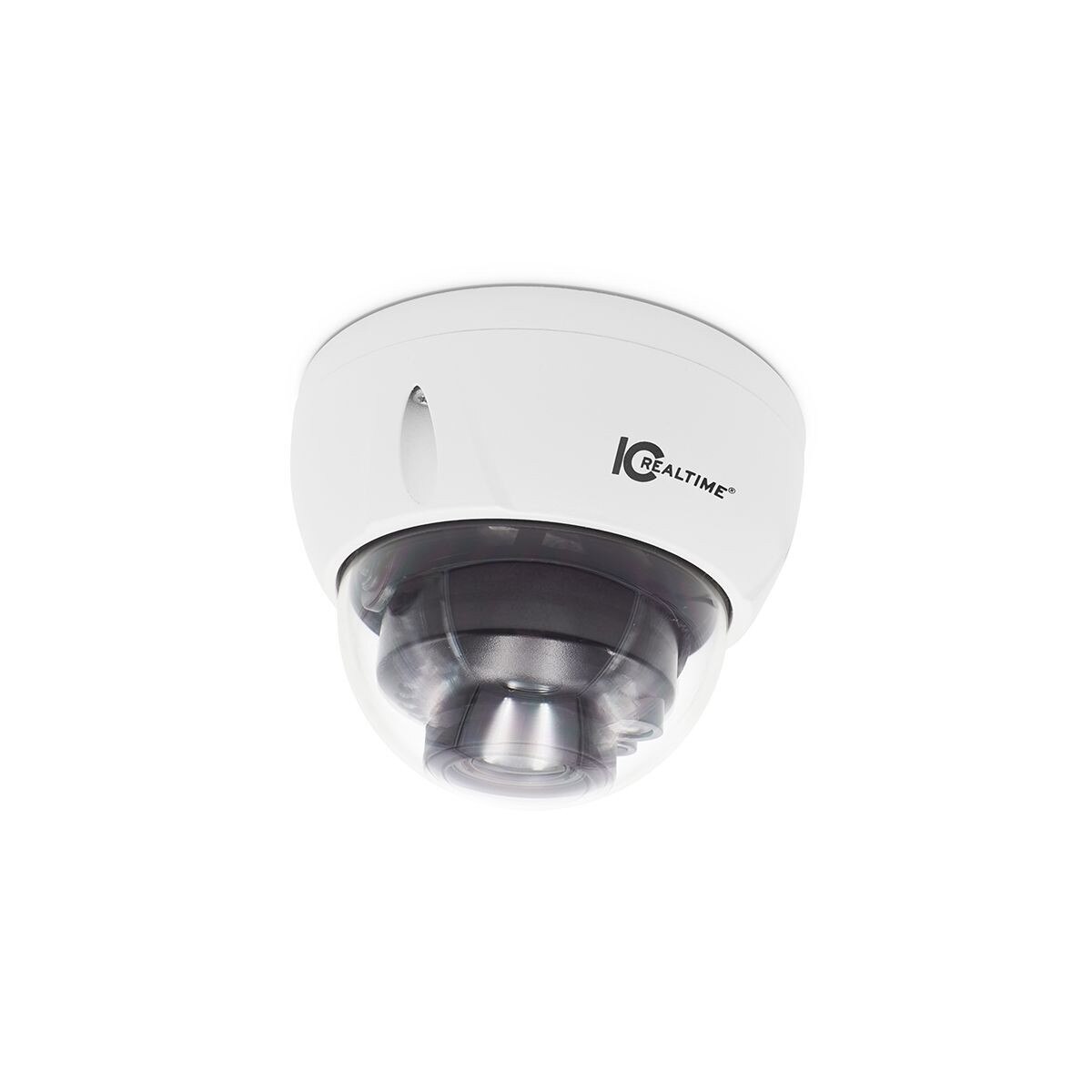

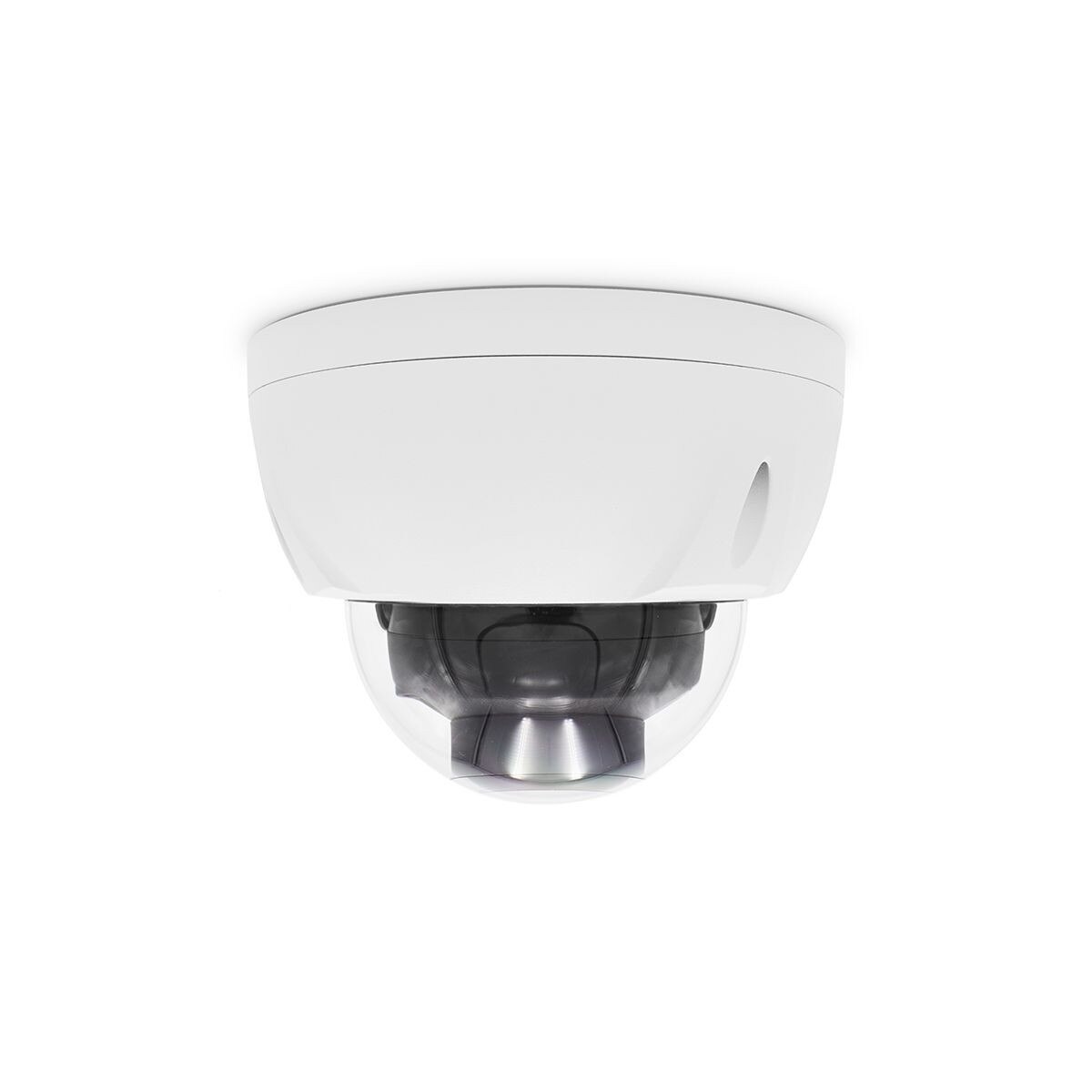

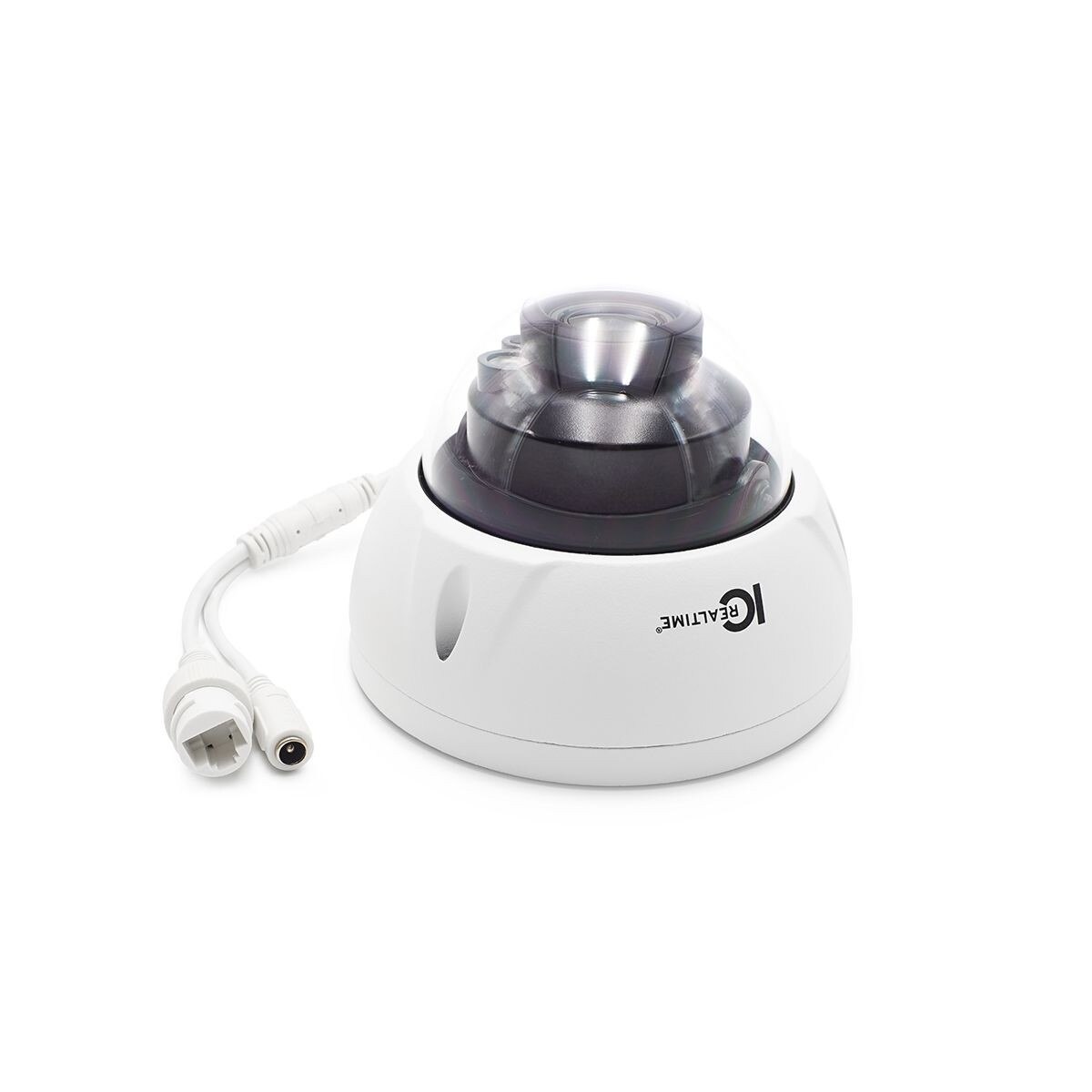

A little dome camera, packing some big brain power - the IPFX-D40V-IRW1. This small form factor dome camera adopts a 4MP, 1/3'' CMOS sensor enabling 4 Megapixel video at up to 30FPS. This sensor sits atop a varifocal 2.7mm - 13.5mm fixed lens, and is paired with IR LEDs capable of supplying illumination up to 98'. The image sensor itself has a strong 120 dB dynamic range, making this dome camera a 'True WDR' camera. The real magic of this camera lies in it's AI (Advanced Intelligence) suite of features, which includes: Tripwire and Intrusion. With all of the above features packed into a small form factor, this camera excels in a wide array of installation environments including: retail outlets, commercial business, public venues, and even municipalities can benefit from AI. Made in Korea

Specifications

Camera
Image Sensor: 1/3 4 Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x 1520(V) 4 Megapixels
RAM/Rom: 512MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.03Lux/F1.4 (Color1/3s30IRE) 0.3Lux/F1.4 (Color1/30s30IRE) 0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m (98ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 2
Lens
Lens Type: Motorized
Mount Type: Board-in
Focal Length: 2.7-13.5mm
Max. Aperture: F1.4
Angle of View: H:104 - 28 degrees V:55 - 16 degrees
Optical Zoom: 5x
Focus Control: Motorized
Close Focus Distance: 200mm (7.87in)
DORI - Detect: 64m (210ft) / 222m (728ft)
DORI - Observe: 26m (85ft) / 89m (292ft)
DORI - Recognize: 13m (43ft) / 44m (144ft)
DORI - Identify: 6m (20ft) / 22m (72ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ;/ Tilt:0 ~ 75 ;/ Rotation:0 ~ 355
Intelligence
Smart Function: Tripwire / Intrusion
Video
Compression: H.265/H.264H/MJPEG(Sub Stream)
Resolution: (2688 x 1520) / (2560 x 1440) / (2304 x 1296) / 1080P (1920 x 1080) / SXGA (1280 x 1024) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream: 4M (1 ~ 20fps)/3M(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 20/25fps)
Bit Rate: H.265: 12K - 8448Kbps H.264: 32K - 10240Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Off / On (4 Area Rectangle)
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users / 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: N/A
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12V PoE (IEEE802.3af)(Class 0)
Power Consumption: <9W(-ZS), <7W(-VFS)
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 122mm x 88.9mm (4.80inx3.50in)
Gross Weight: 0.54kg (1.19lb)
