IPFX-B40V-IRW2

(0) No Reviews yet
SKU: IPFX-B40V-IRW2
ITEM WEIGHT: 3
4MP IP Indoor / Outdoor Mid Size Bullet Varifocal 2.7-13.5mm Motorized Lens (104 - 28 AOV) 197 ft Smart IR POE Made in K...
1/3 CMOS | 4MP | 30fps@4MP
2.7mm to 13.5mm | motorized varifocal | AoV 104 to 28
Max. IR length 197ft | Smart IR | 4 IR LEDs
1ch audio in 1ch audio out | 256GB mSD
IP67 | 12VDC or PoE | Max. 9.8W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

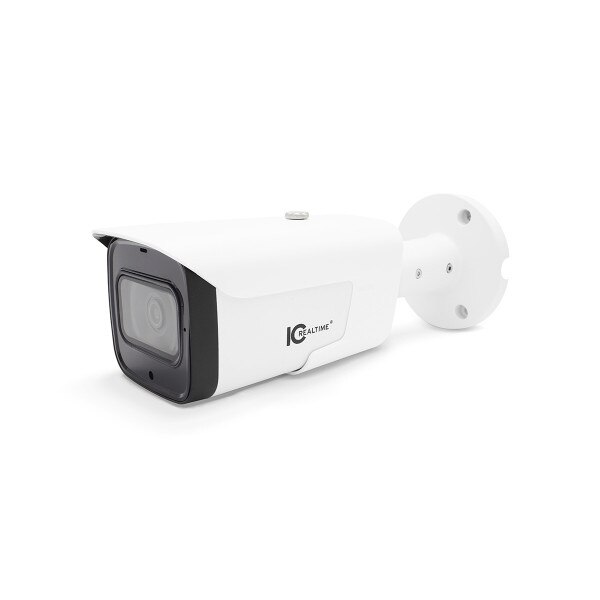

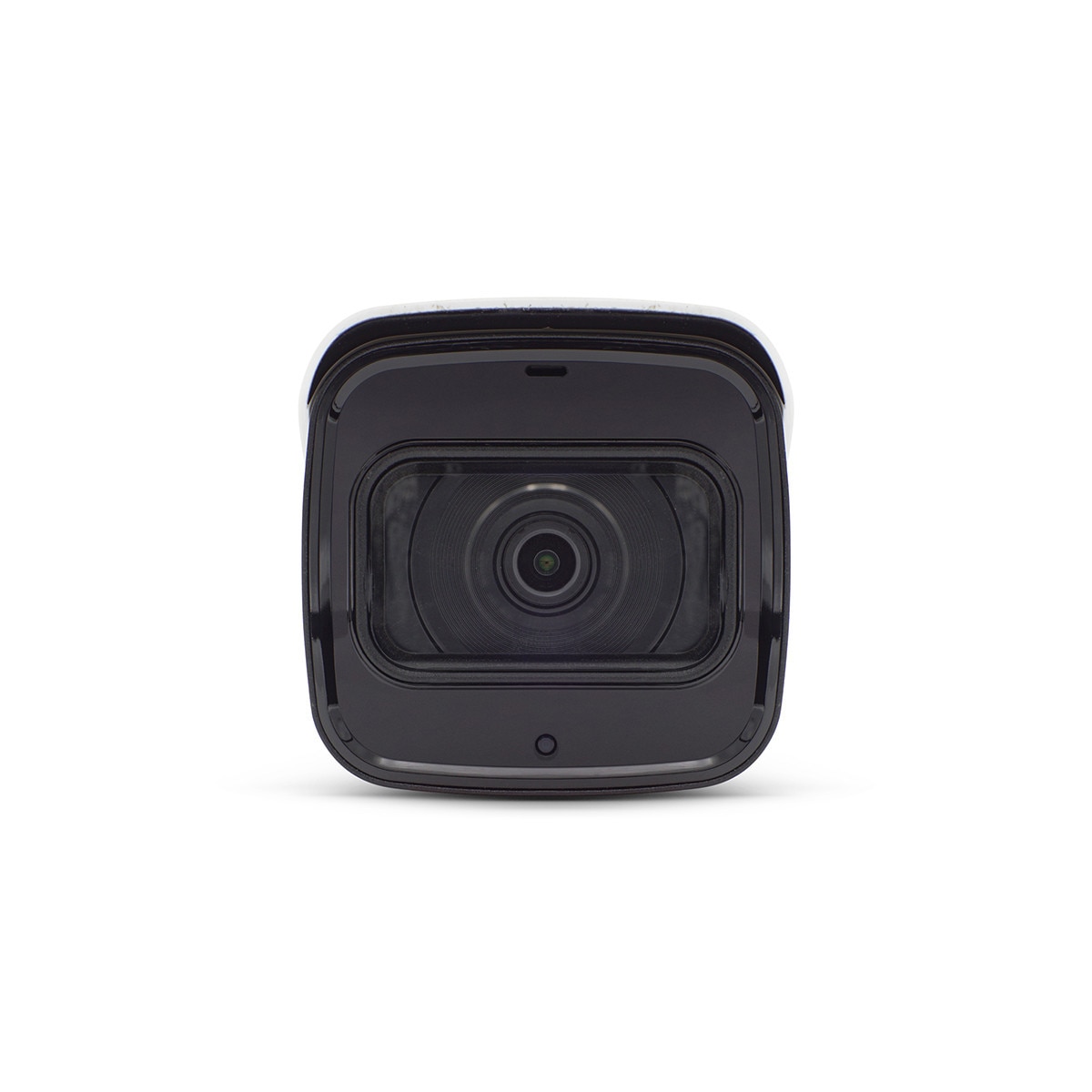

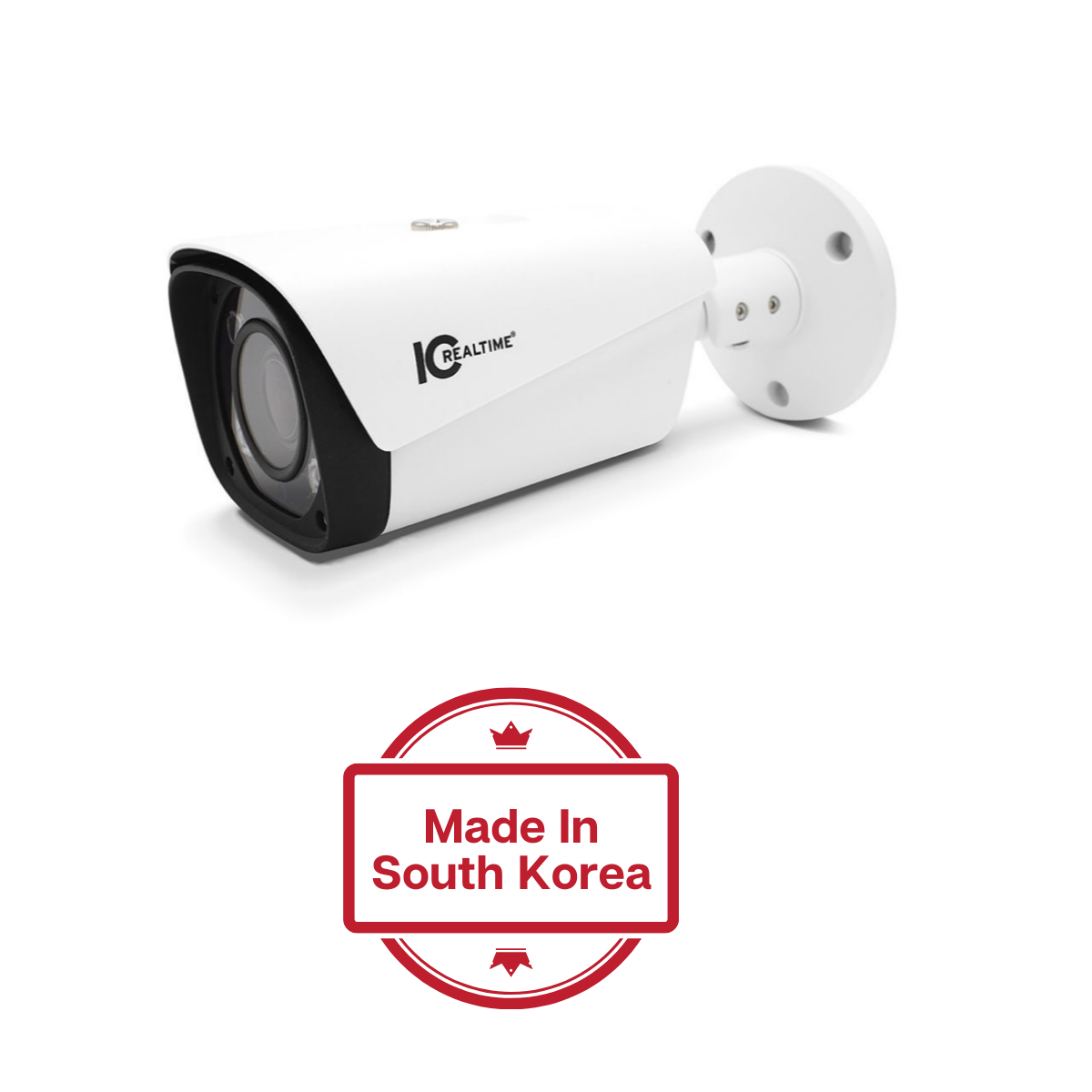

The IPFX-B40V-IRW2 is a 4MP bullet camera featuring our latest  generation of 1/3’’ CMOS sensors. It also has increased IR illumination up to ~197’.

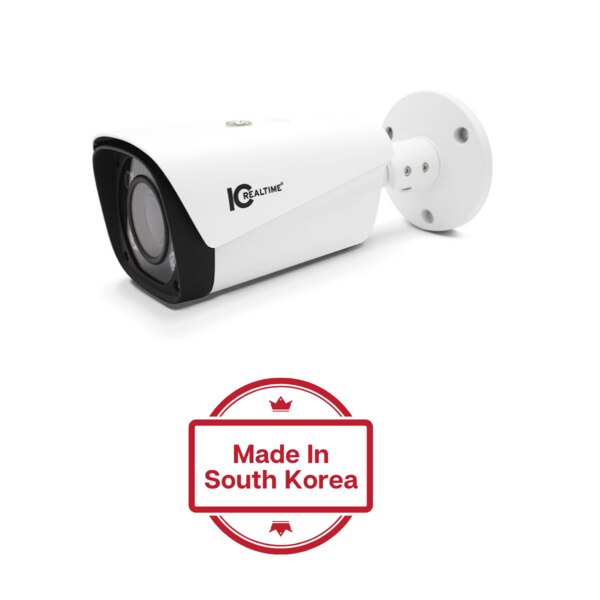

The camera also features a motorized, 2.7mm-13.5mm lens which  offers up a 28-104 degree horizontal field of view. The zoom  level is fully controllable directly from the camera interface,  enabling you to obtain the perfect shot. This makes the camera  well suited for exterior applications on commercial as well as  residential installations. Made in Korea

Specifications

Camera
Image Sensor: 1/3”4Megapixel progressive CMOS
Effective Pixels: 2688 (H) ×1520 (V)
RAM/Rom: 128 MB/512MB
Scanning System: Progressive
Minimum Illumination: 0.005 Lux@F1.5
IR Distance: 60 m (197 ft)
IR On/Off Control: Auto/Manual
IR LEDs: 4
Lens
Lens Type: Motorized vari-focal
Mount Type: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Angle of View: Horizontal: 104°–27°
Vertical: 55° –15°
Diagonal: 124° –31°
Close Focus Distance: 0.8 m (2.6 ft)
DORI - Detect: 64.0 m (210.0ft)/ 222.0 m (728.3 ft)
DORI - Observe: 25.6 m (84.0 ft)/ 88.8m(291.3 ft)
DORI - Recognize: 12.8 m (42.0 ft)/ 44.4 m(145.7 ft)
DORI - Identify: 6.4 m(21.0 ft)/ 22.2 m(72.8 ft)
Intelligence
IVS: Tripwire; Intrusion
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability: 3 streams
Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate: Main stream (2688 × 1520@1–25/30 fps)
Sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
Third stream (1280 × 720@1–25/30 fps
Bit Rate: H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: Yes
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest: Yes (4 areas)
Smart IR: Yes
Flip: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Privacy Masking: 4 areas
WDR: 120 dB
Audio
Compression: G.711a; G.711Mu; G726; AAC
Network
Ethernet: RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x;SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec
Streaming Method: Unicast / Multicast
Max. User Access: 20 (Total bandwidth: 64 M)
Edge Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Web Viewer: IE: IE8, IE9, IE11
Chrome
Firefox
Management Software: Smart ICRSS, DSS
Smart Phone: IOS; Android
Interface
Audio I/O: 1-channe Input(RCA port)
1-channel Output(RCA port)
Alarm I/O: 1 channel in: 5mA 3V–5V DC
1 channel out: 300mA 12V DC
Memory Slot: Micro SD Card (support max. 256 GB)
Electrical
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: <9.8W
Enviromental
Operating Conditions: -30°C to +60°C (-22°F to +140°F)/less than≤95%
Storage Conditions: -40°C to +60°C (-40°F to +140°F)
Ingress Protection: IP67
Construction
Casing: Metal

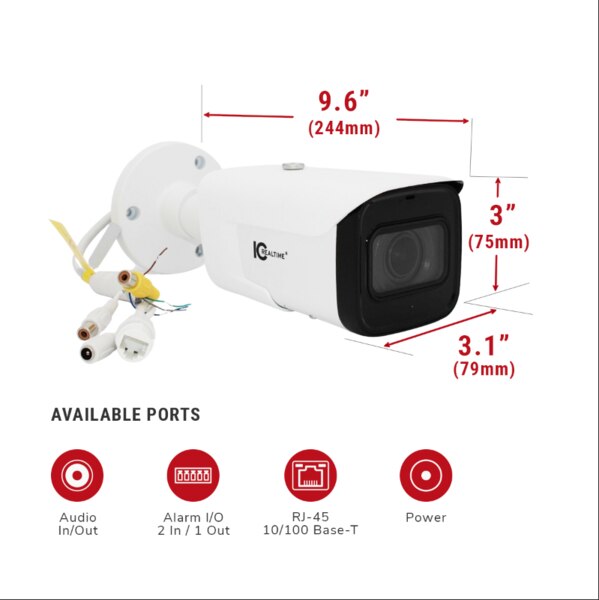

Dimensions: 244.1 mm × 79.0 mm × 75.9 mm
(9.6" × 3.1" × 3.0")
Gross Weight: 1090 g (2.4lb)
Mounting Pan/Tilt/Rotation: Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°
