IPEL-M80F-IRW2

(0) No Reviews yet
SKU: IPEL-M80F-IRW2
Jump to Product Specs

Details

YOUR OWN NASA PANORAMA CAMERA
The latest panoramic shots from the Mars Rover are amazing, but they take days to produce and require supercomputers to assemble. At IC Realtime, we deliver that same sweeping 180° x 90° view capability right here on earth with our new IPEL-M80F-IRW2, IC Realtime's newest "PanoramaCam."
This next-generation, 4 lens FlexSmartAi camera seamlessly splices the live views from its four integrated 2MP super-low light cameras into a complete 180° full-motion color view, in real-time, down to 0.005 Lux and low-light full detail B/W down to an unbelievable 0.0005 Lux.

ONE INSTALL, ONE WIRE, FOUR CAMERAS
Beyond its astonishing video capabilities, the M80F has a practical & installation efficiency advantage for professional video integrators: its 4 integrated 2MP cameras can replace a stack of single-view cameras or - in some cases - even a PTZ camera and still provide a total 180°of  unbelievable coverage for a wide area like an entire building side or back alley, a whole hallway end-to-end, or an entire parking lot, warehouse aisle or greenhouse row.

WIDER LENSES

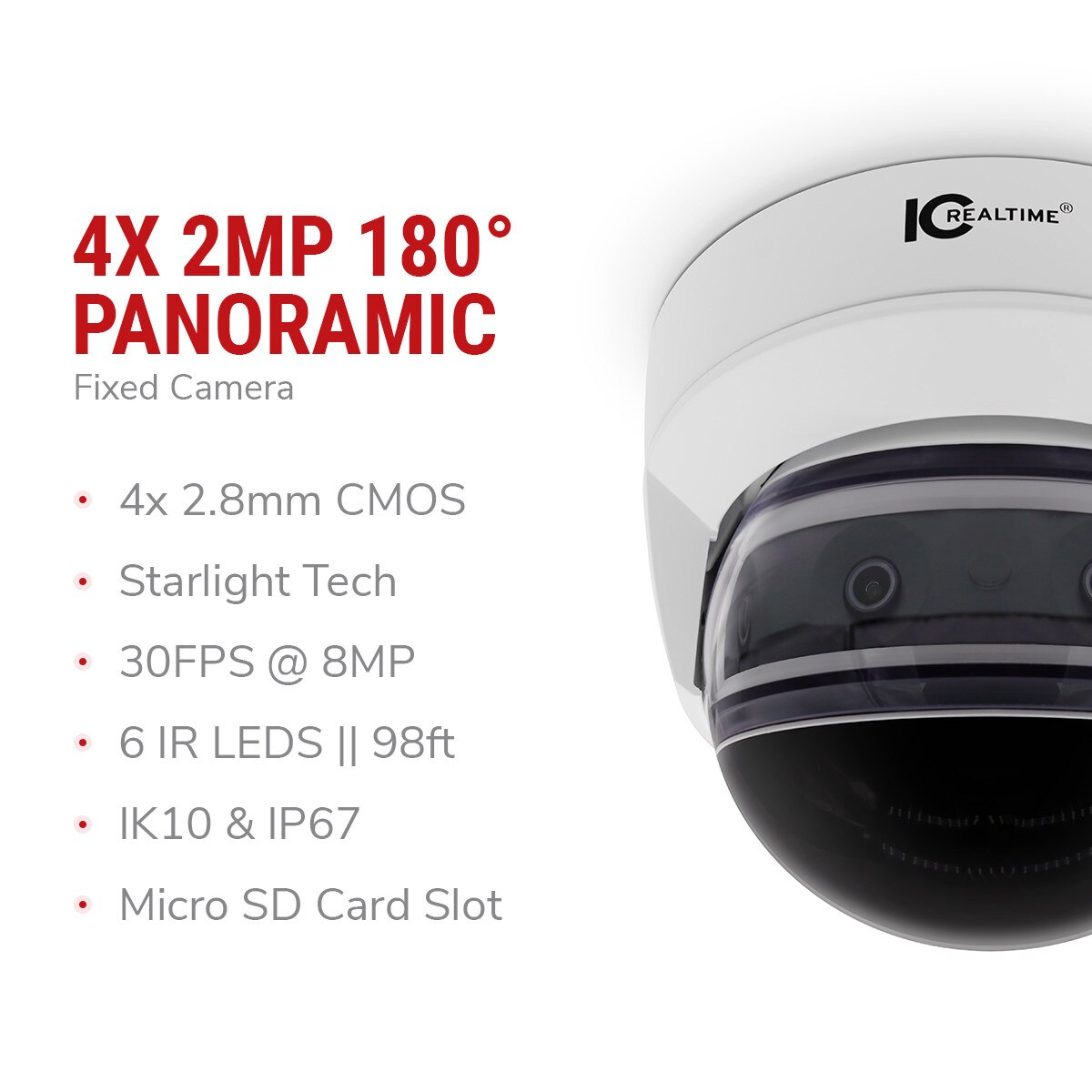

This next generation of our 4 camera M80F series features an even wider 2.8mm lens system in each camera that provides a wider native FOV for smoother overlap & cleaner video stitching that minimizes or eliminates video artifacts.

BETTER VIDEO CHIPS
Every chipset we use is commercial-grade, but our new generation of exceptional low light StarVison video sensors are - no pun intended - "night and day" better. Now enhanced by our super Wide Dynamic Range and our latest AI-enhanced video management suite, M80F delivers full color on all 4 cameras down to 0.005 Lux, sharp B & W to 0.0005 Lux. Below it's 0.005 Lux color threshold, this 8MP camera's 180° continuous panoramic view is supplemented by 95+ Ft of SmartIR nightvision in total darkness, for amazing D.O.R.I numbers of  Detect @ 126.6 ft / Observe @ 50.5 ft / Recognize @ 25.3 ft / Identify @ 12.8 ft.

AND BIGGER AI BRAINS.
M80F is part of IC Realtime's FlexSmartAi family, which means that the camera's AI performance leaps forward in every version. This new IRW2 version works even more closely with our FlexSmartAi recorders to analyze every video frame with advanced Artificial Intelligence & machine learning.  Advanced panorama-wide tripwire intrusion detection and IVS rules take on a whole new dimension with a 4 lens system like the M80F. and make this camera a detection powerhouse. Its expanded AI capabilities now include global people and vehicle counting, crowd  & traffic density mapping and can be set to send crowding & traffic density alerts and accomplish a host of other business intelligence functions.

WEATHER & VANDAL RESISTANCE BUILT IN

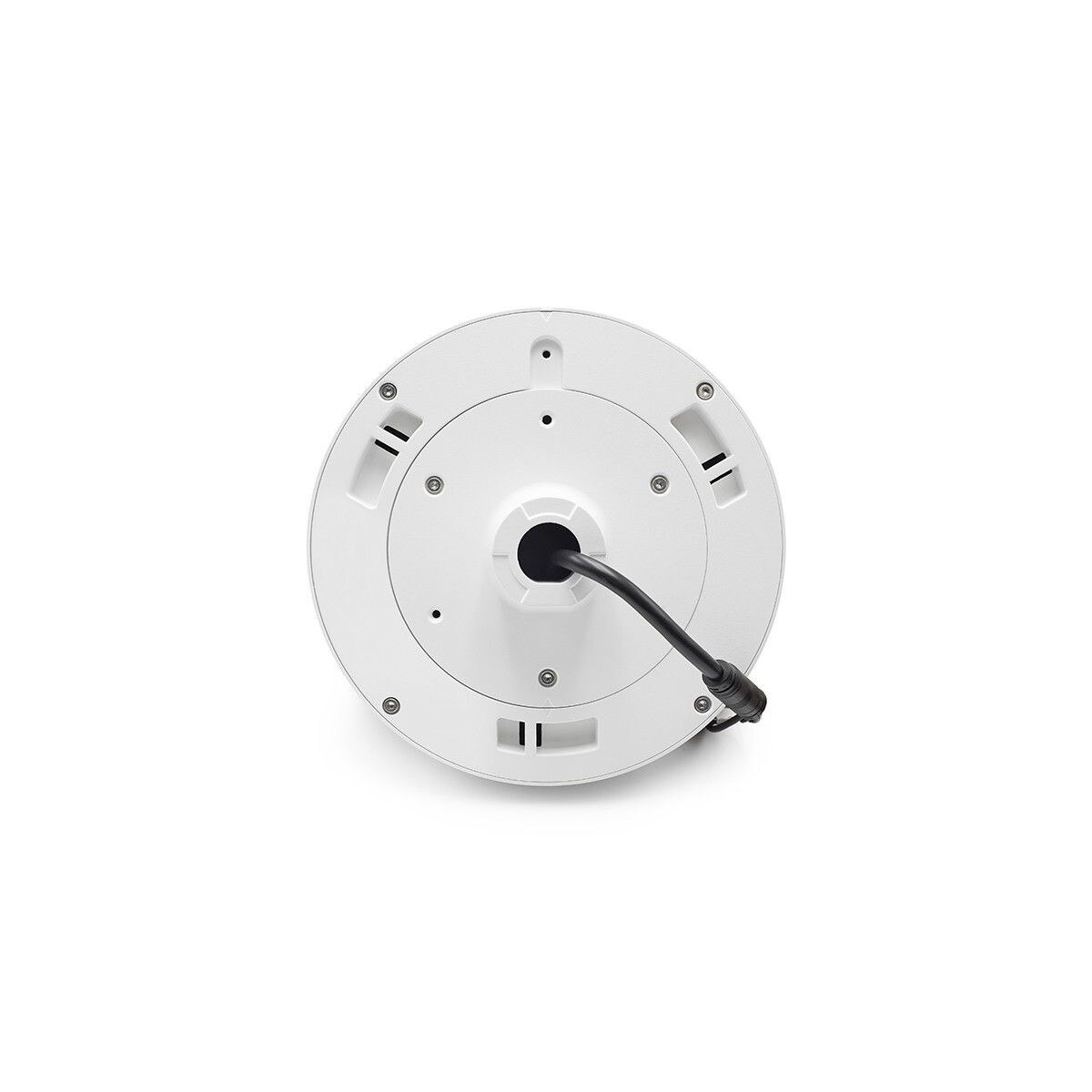

Magnificent video vistas aren't the only reason to love the M80F - this security tool is built with IK10 vandal resistance and IP67 water intrusion resistance for long-term dependability in any environment. The M80F is also easy to integrate to alarm & audio systems like gate & entry control systems with RCA jacks to support 1 Ch. Audio In/Out and 2 Ch. Alarm In/Out Ports on the network pigtail for easy installation. M80F's power specs match this flexibility as well - the M80F can run on PoE @ 14.9W (802.3at) or can be locally powered with 12.5W @ 12VDC / 14.3W @ 24VAC.

SPACE AGENCY VIDEO QUALITY
No need to spend the millions NASA did and wait years to get the same sweeping views and Ai analysis of your video world, IC Realtime's newest 4 camera M80F-IRW2 "Panorama Cam" is ready to do that for you today.  Call your local IC Realtime distributor, or call your IC Realtime factory rep toll-free at (866) 997-9009.  A factory product specialist will do a no-obligation, live online demo to show you the new IPEL-M80F-IRW2, and answer all your questions.

See the complete IC Realtime Video Ecosystem  - visit https://www.icrealtime.com/
