POE PLUS INJECTOR

(0)No Reviews yet
SKU: POE PLUS INJECTOR
Jump to Product Specs
PoE Injector For PoE Plus Cameras
1 PoE+ rated Port and 1 Uplink Port at 10/100/1000Mbps each
Up to 30W of power over ethernet
Surface or wall mount, can also be slotted side-by-side with multiple injectors
Built-in power supply for all-in-one design (uses standard included grounded AC cord)
Back

Details

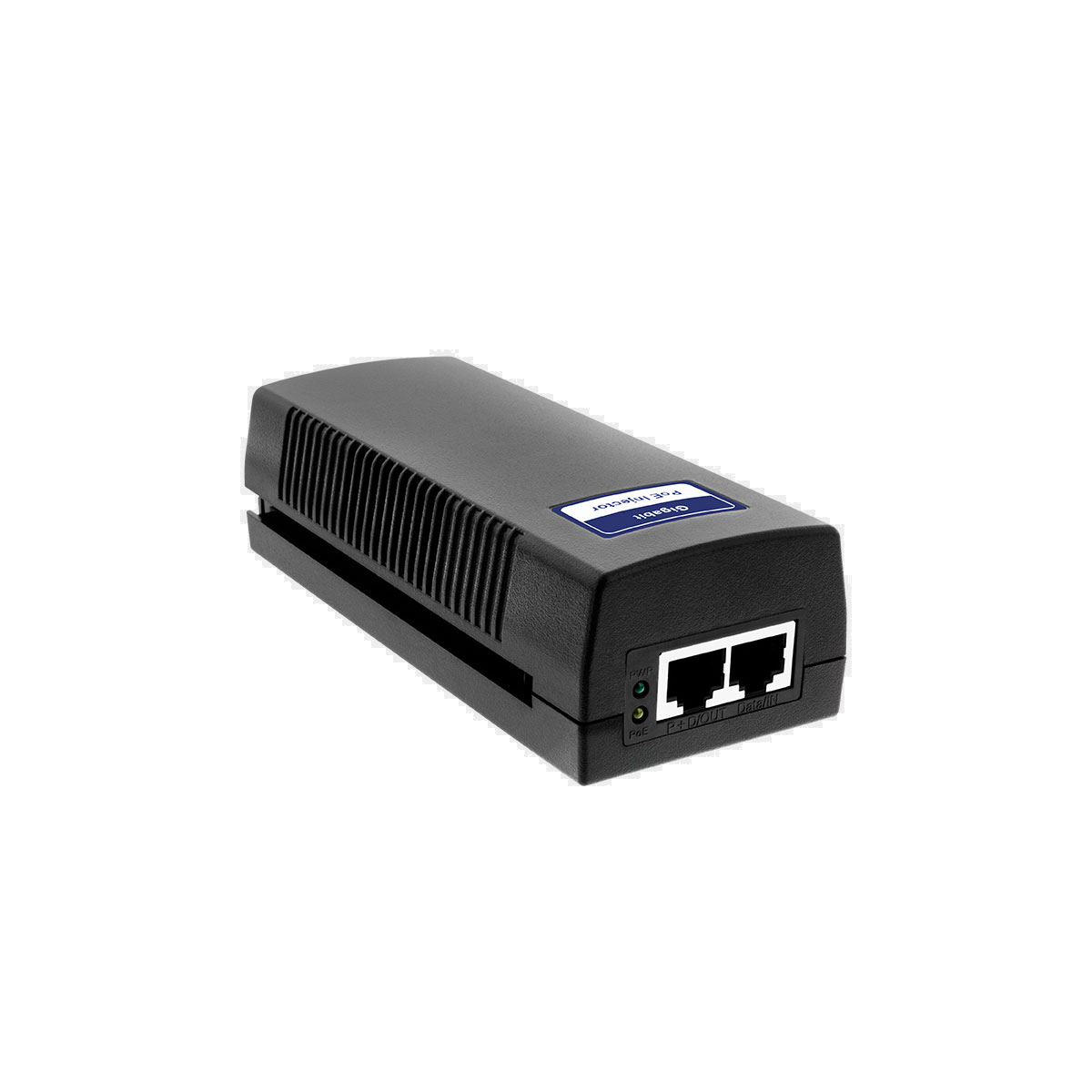

The POE PLUS INJECTOR is a single port, high-power 10/100/1000Mbps PoE+ Injector. It supplies up to 30W of remote power for IP cameras, wireless access points, VoIP phones, and other devices. It allows you to add additional ports to your PoE switch using a Cat-5 cable (sold separately). It can work with 10/100/1000Mbps Base-T networking devices.
Back

Specifications

Network
Protocol: IEEE 802.3at/af
Electrical
Power Supply: 100 ~ 240 VAC
Power Consumption: 0.8A @ 100-240 VAC
Environmental
Operating Conditions: 14°F to 113°F(-10° to 45 °)
Construction
Dimensions: 2.74″ x 1.6″ x 5.2″ (87.9 mm x 51.3 mm x 166 mm)
