IPEL-M60F-IRW1

(0) No Reviews yet
SKU: IPEL-M60F-IRW1
ITEM WEIGHT: 9
3X 2MP (6MP Total) IP 180° Panoramic Full Size Bullet. I-Sniper. 3X 3.6mm Fixed Lens (180°). 98 Feet Smart IR. PoE+ Ca...
Three 1/2.8 CMOS Starvis | 4.9MP | 30fps@4.9MP
3.6mm | fixed | AoV 180
Max. IR length 98ft | 8 IR LEDs
1ch audio in 1ch audio out | 2ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 24VAC or PoE+ | Max. 23W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

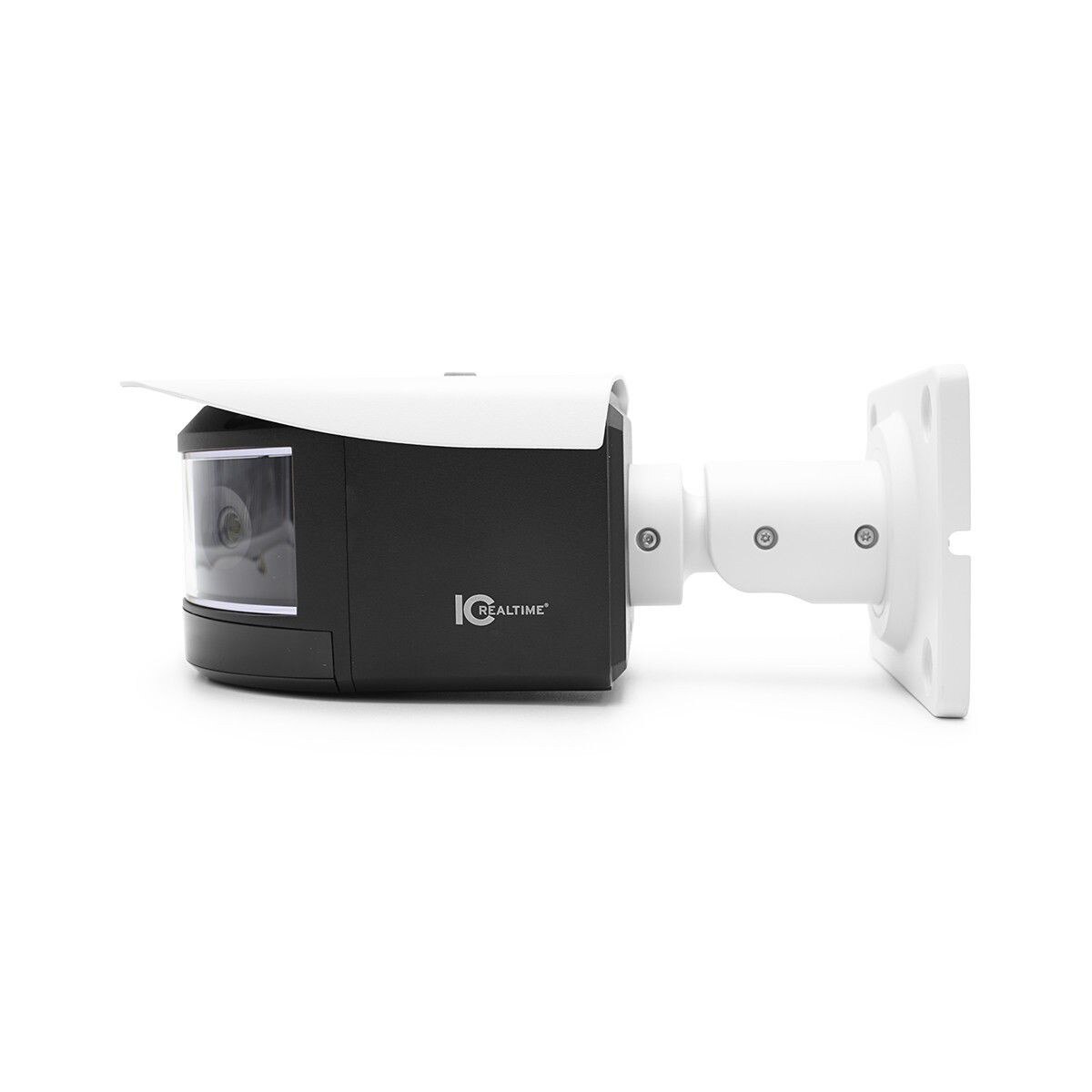

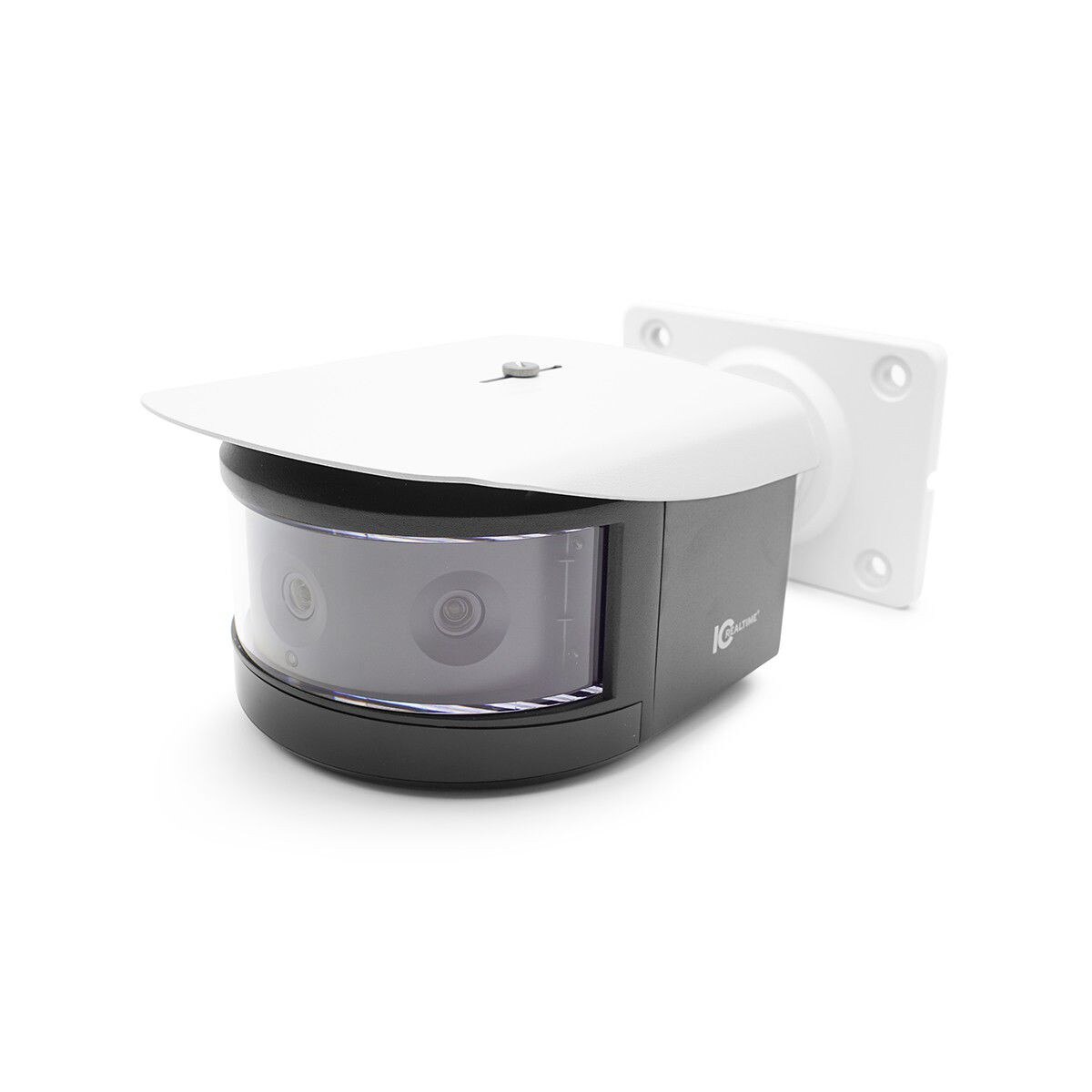

IC Realtime's unique 3 lens camera provides added flexibility for capturing wide area surveillance. Meet the IPEL-M60F-IRW1.

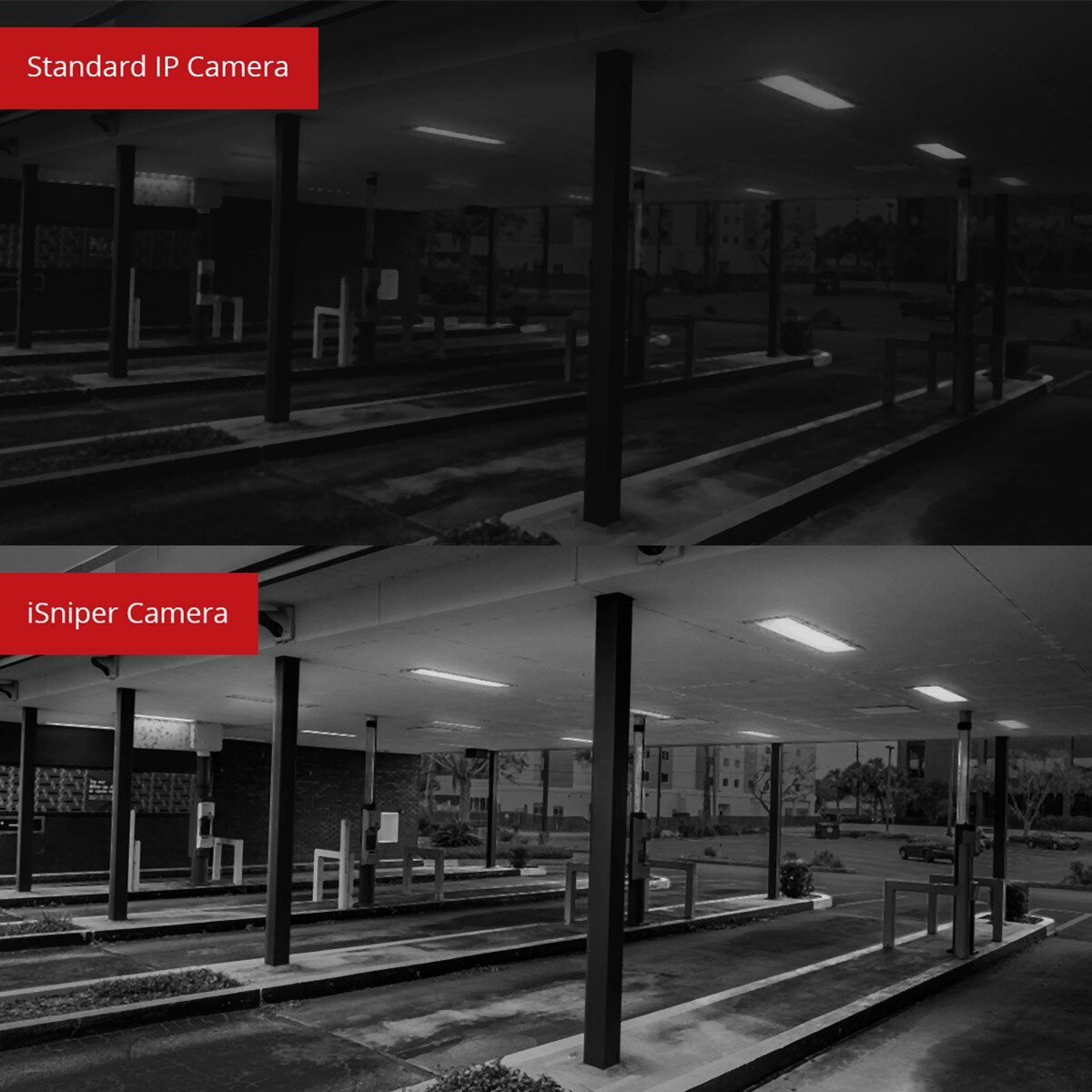

With three 2MP I-Sniper sensors working in unison, this camera creates a panoramic, 180° overview, allowing the camera to replace multiple single sensor cameras at a lower overall cost. Each sensor is the latest I-Sniper gen2 chipset which provides vibrant color at the lowest levels of illumination, and strong WDR capabilities.

Beyond this, the camera also supports the line of Advanced Intelligence notifications, including Tripwire, Intrusion, Missing and Added object. Future proof as well, this camera supports 3 video streams as well as H.264 and H.265 compression capabilities. Ideal applications for this camera include parking lots, schools, resorts and hotels.

Specifications

Camera

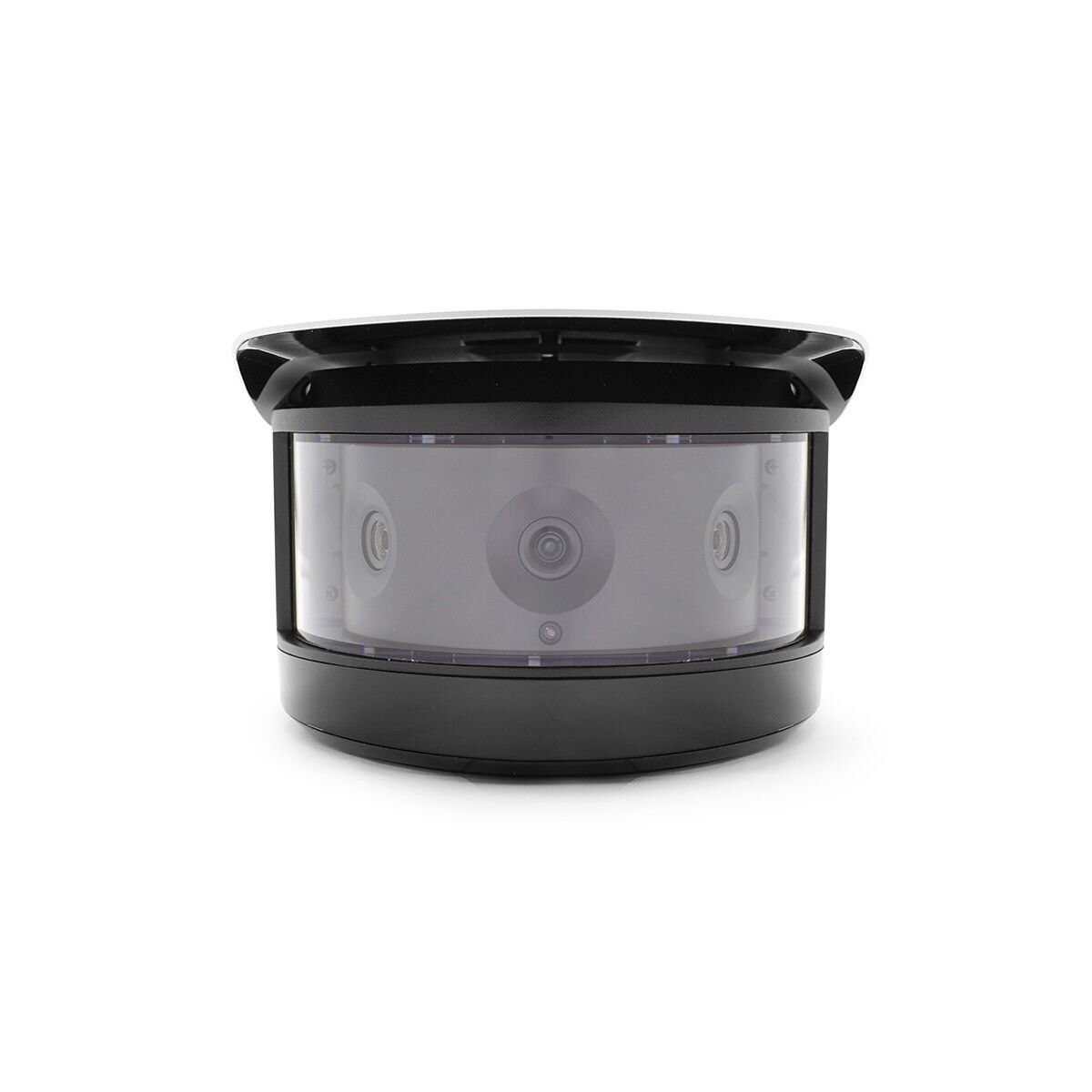

Image Sensor: Three 1/2.8 2 Megapixel progressive scan STARVIS. CMOS
Effective Pixels: 4096(H) x 832(V)
RAM/Rom: 1024MB / 128MB
Scanning System: Progressive
Minimum Illumination: 0.007Lux/F1.8( Color1/3s30IRE) 0.05Lux/F1.8( Color1/30s30IRE) 0Lux/F1.8(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/Manual
IR LEDs: 8
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 3.6mm
Max. Aperture: F1.8
Angle of View: H: 180 degrees V:44 degrees
Optical Zoom: N/A
Focus Control: Fixed
Close Focus Distance: N/A
DORI - Detect: 52m (171ft)
DORI - Observe: 21m (69ft)
DORI - Recognize: 10m (33ft)
DORI - Identify: 5m (16ft)
Intelligence
IVS: Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions: Heat Map, E-PTZ
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Streaming Capability: 3 Streams
Resolution: 4096 x 832 / 3840 x 780 / 2560 x 520 / 1280 x 260 / 1024 X 208
Frame Rate: Main Stream: 4096x832(1 - 25/30fps) Sub Stream: 1024X208 (1 - 25/30fps) Third Stream: 1280x260 (1 - 25/30fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.265: 4Kbps - 10Mbps H.264: 8Kbps - 16Mbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: DDNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16X
Flip: 0°/90°/180°/270°
Privacy Masking: Off / On (4 Area Rectangle)
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (100/1000Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: iOS, Android

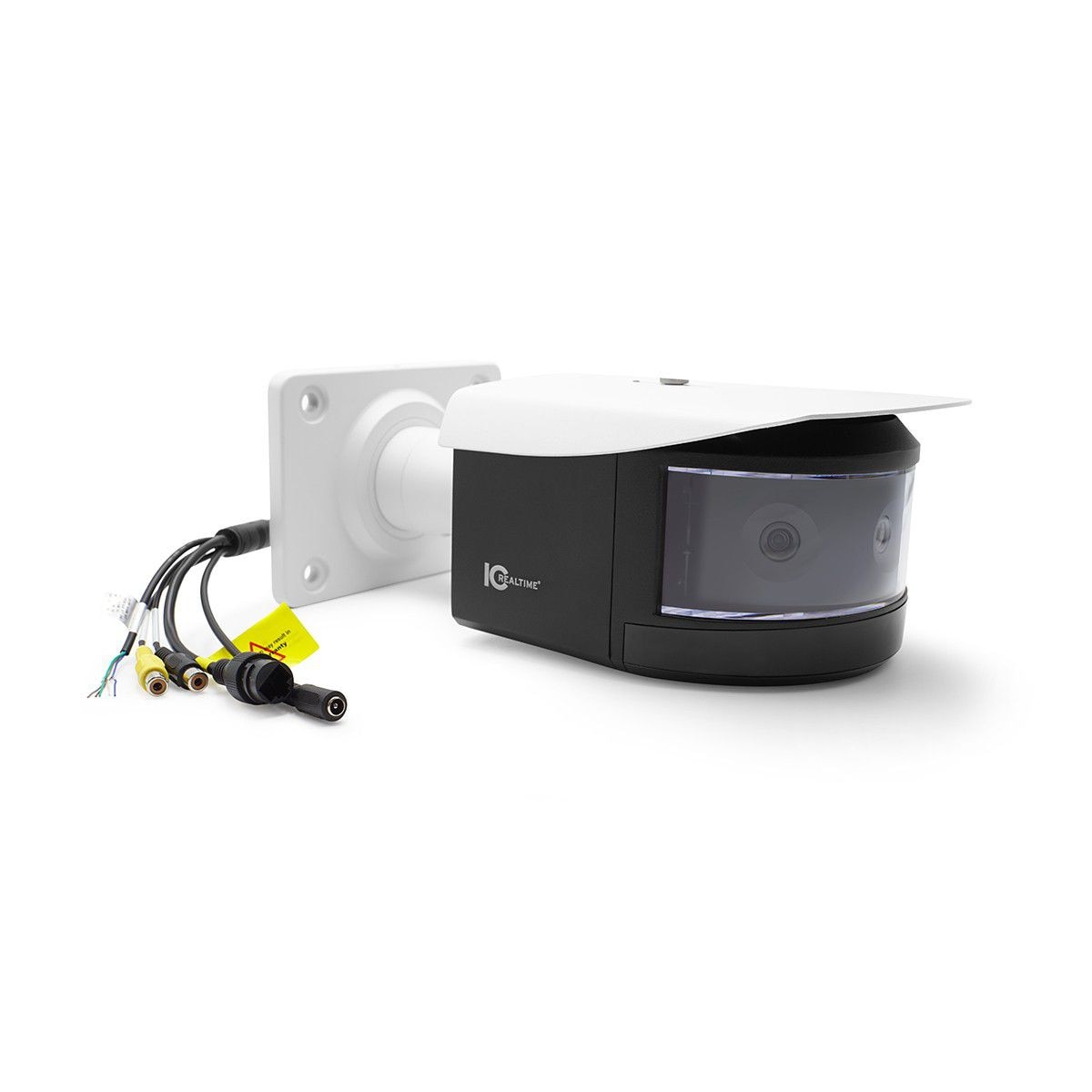

Interface
Video Interface: 1 port (For adjustment only)
Audio I/O: 1/1 channel In/Out
Alarm I/O: 2 channel In: 5mA 5VDC / 1 channel Out: 1A 30VDC or 0.5A 50VAC
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: AC24V PoE+ (802.3at)(Class 4)
Power Consumption: < 23W
Enviromental
Operating Conditions: -40 C ~ +60 C (-40 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 298.3mm x 172.5mm x 120.5mm (11.74in x 6.79in x 4.74in)
Gross Weight: 3.41 kg (7.52lb)

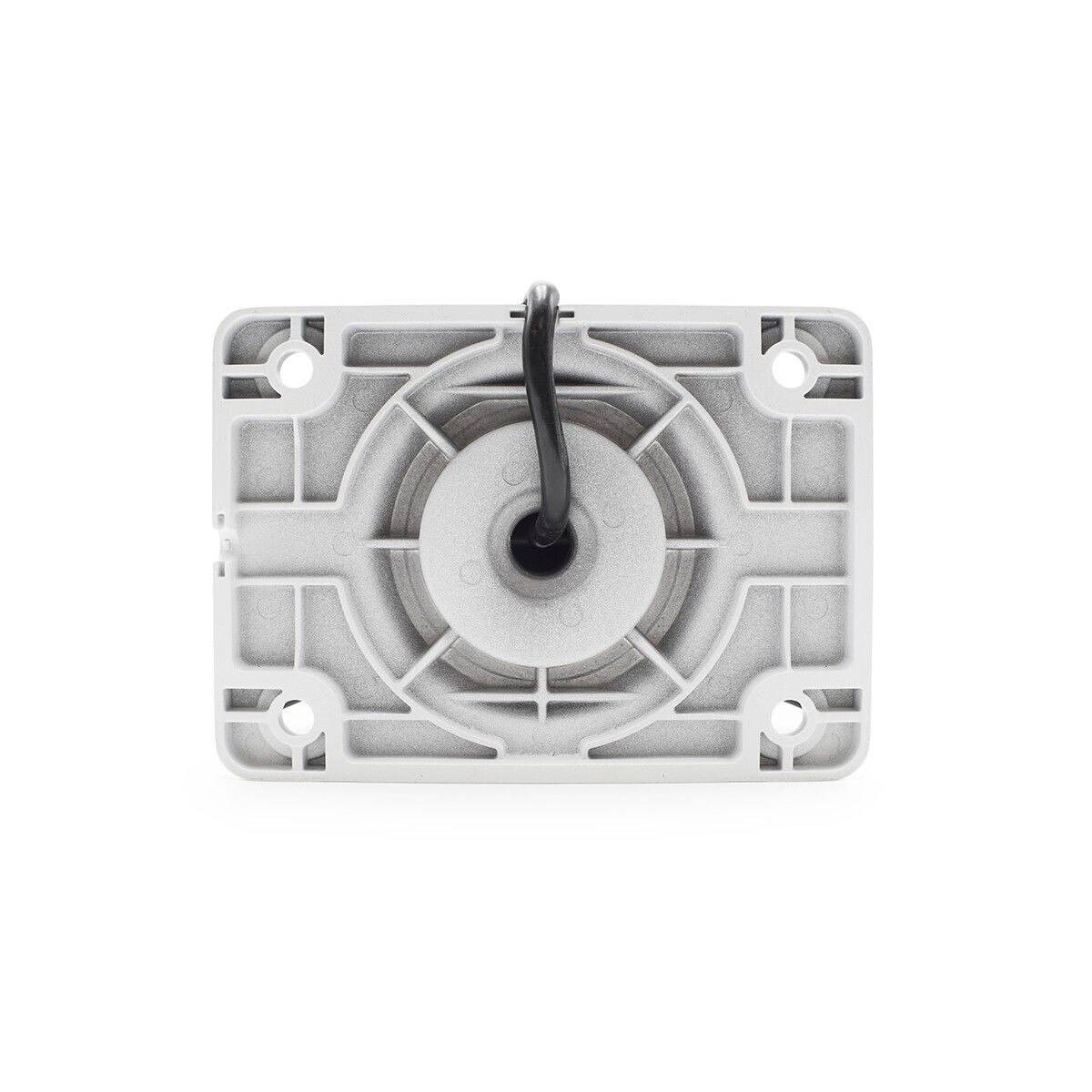

Mounting Pan/Tilt/Rotation: Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360
