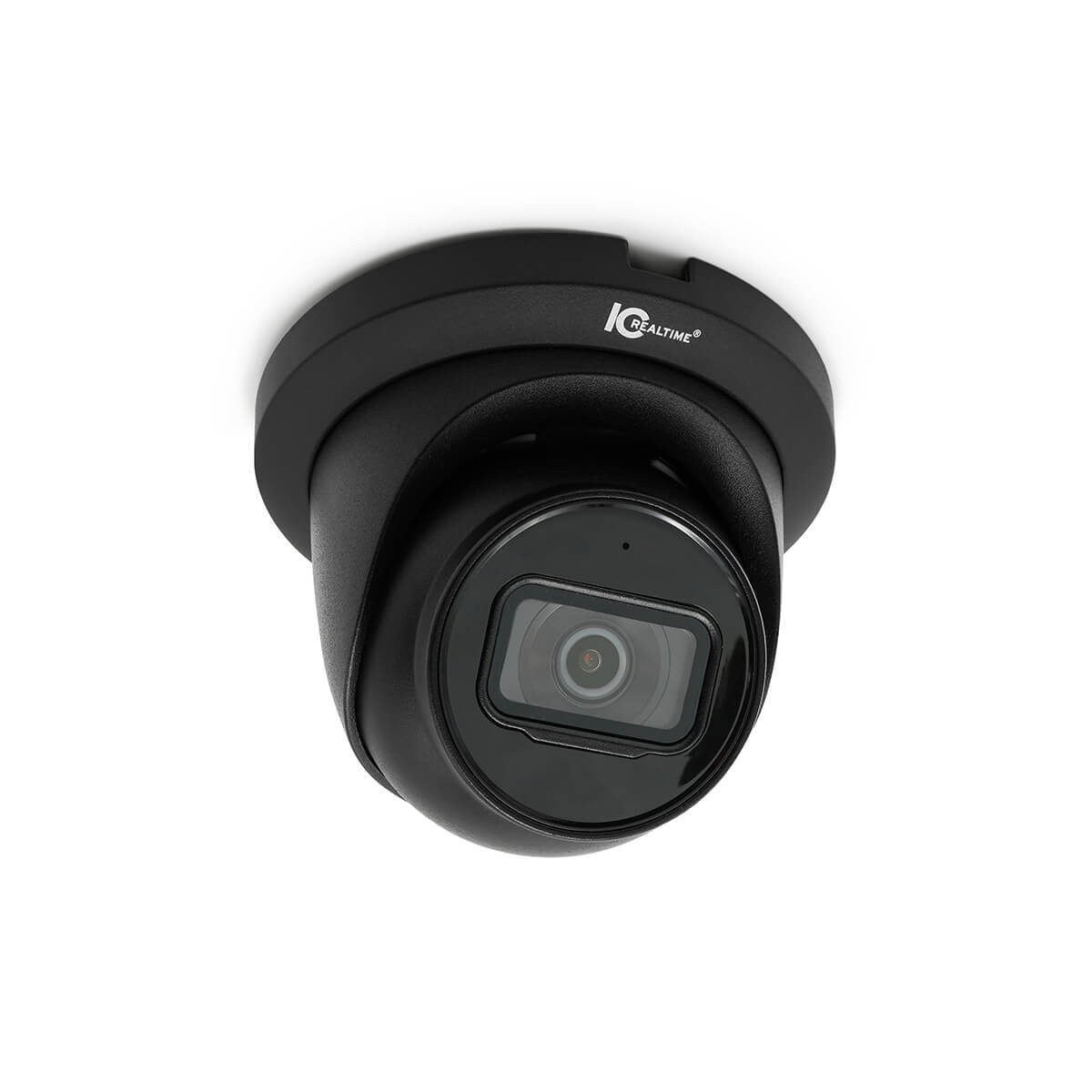

IPEL-E80F-IRB2
Details

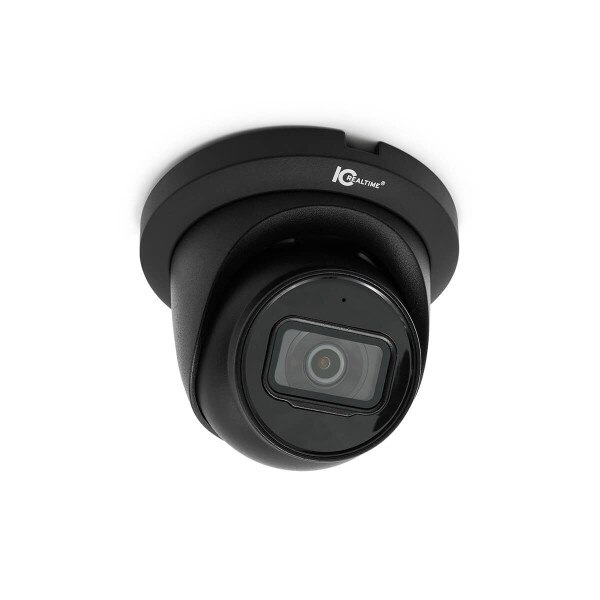

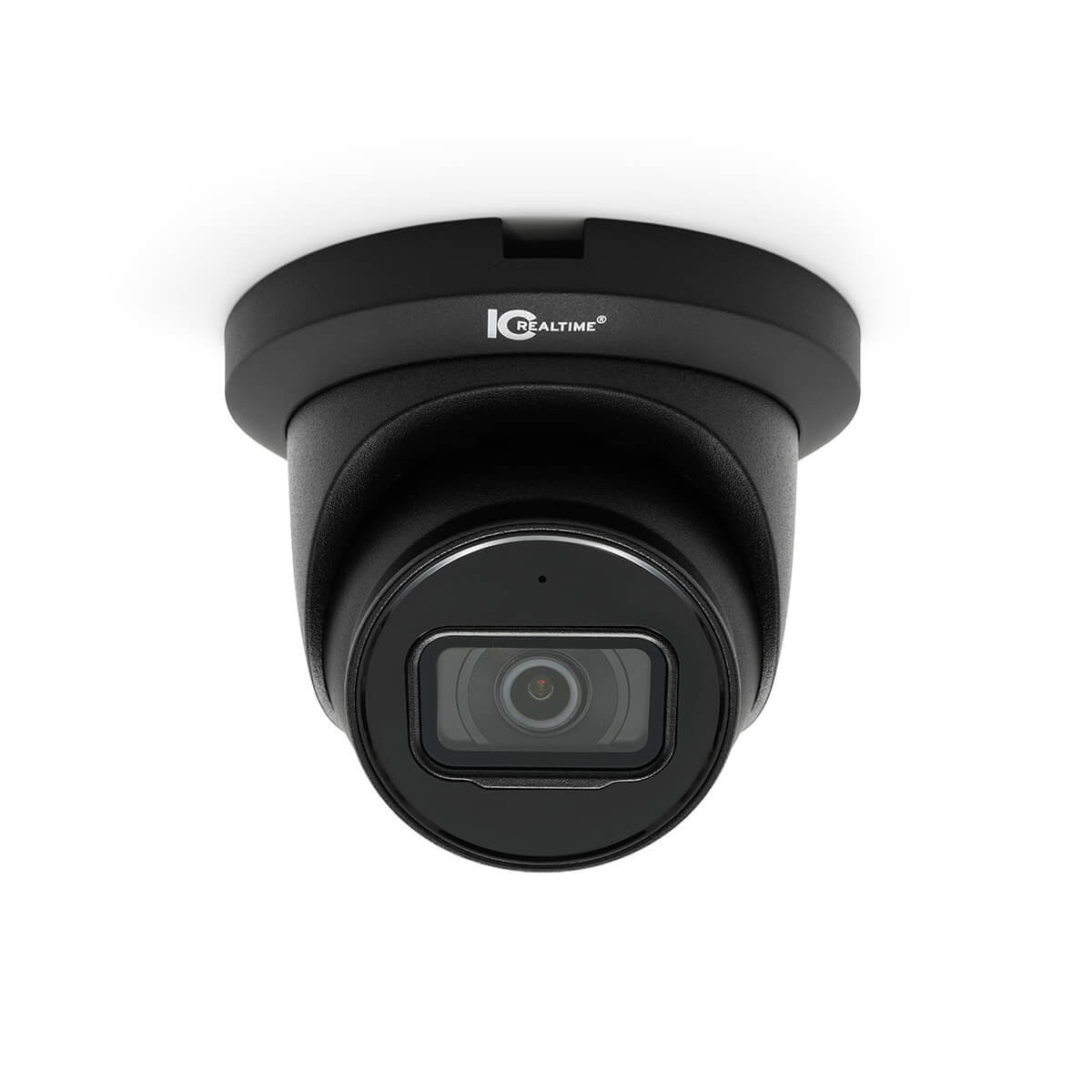

Dark installation surfaces & backgrounds can present a challenge for system designers & installation crews when doing discrete installations in homes, restaurants, bars, and even places of worship. Standard white cameras stand out in such areas and can seem distracting & obtrusive. Hence, camera integrators face the time & expense of painting cameras or choosing a custom finish like our Designer Series. Now IC Realtime offers a more efficient alternative in a black-finished, state-of-the-art 4K eyeball dome camera - IPEL-E80F-IRB2.
SMART, SLEEK, AND STURDY

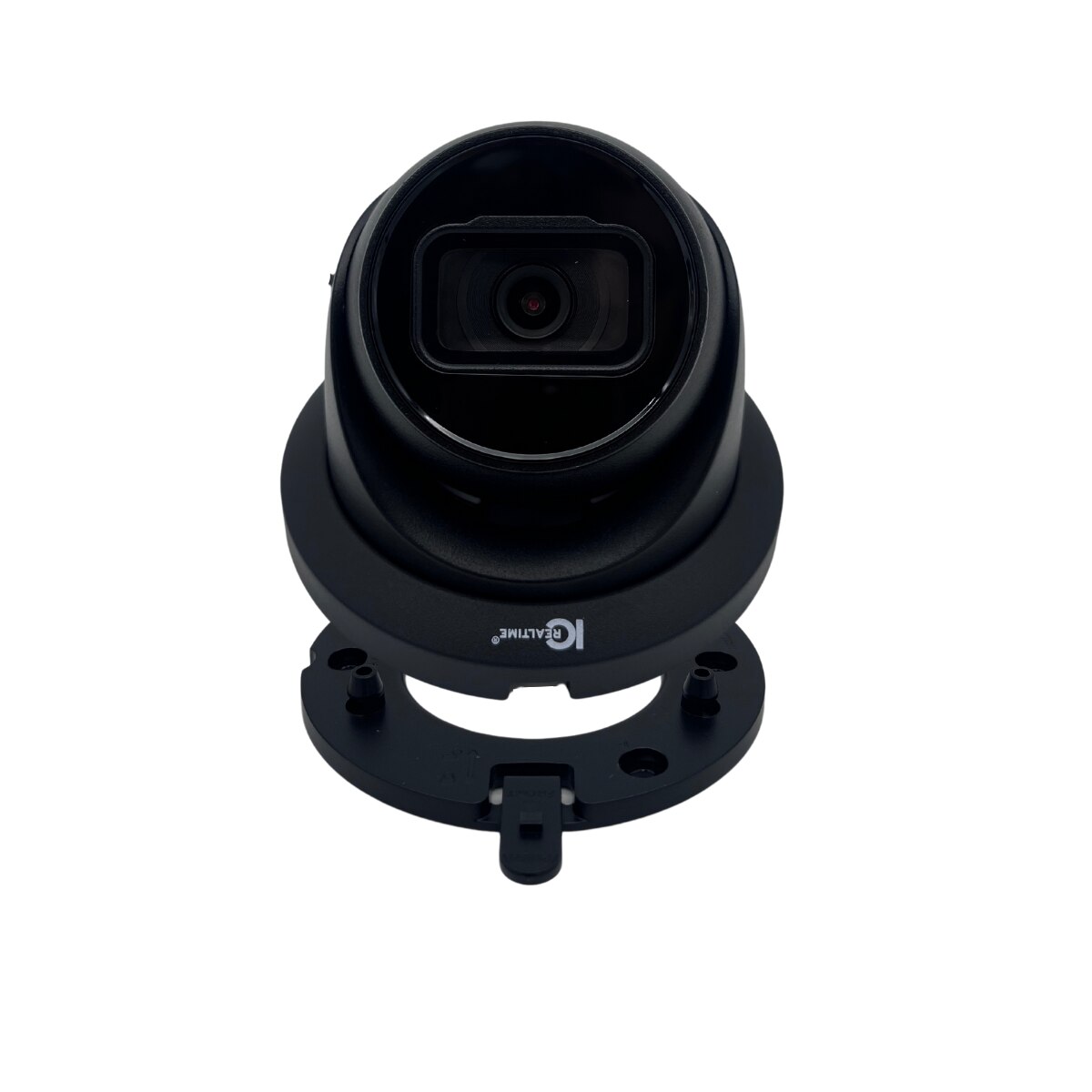

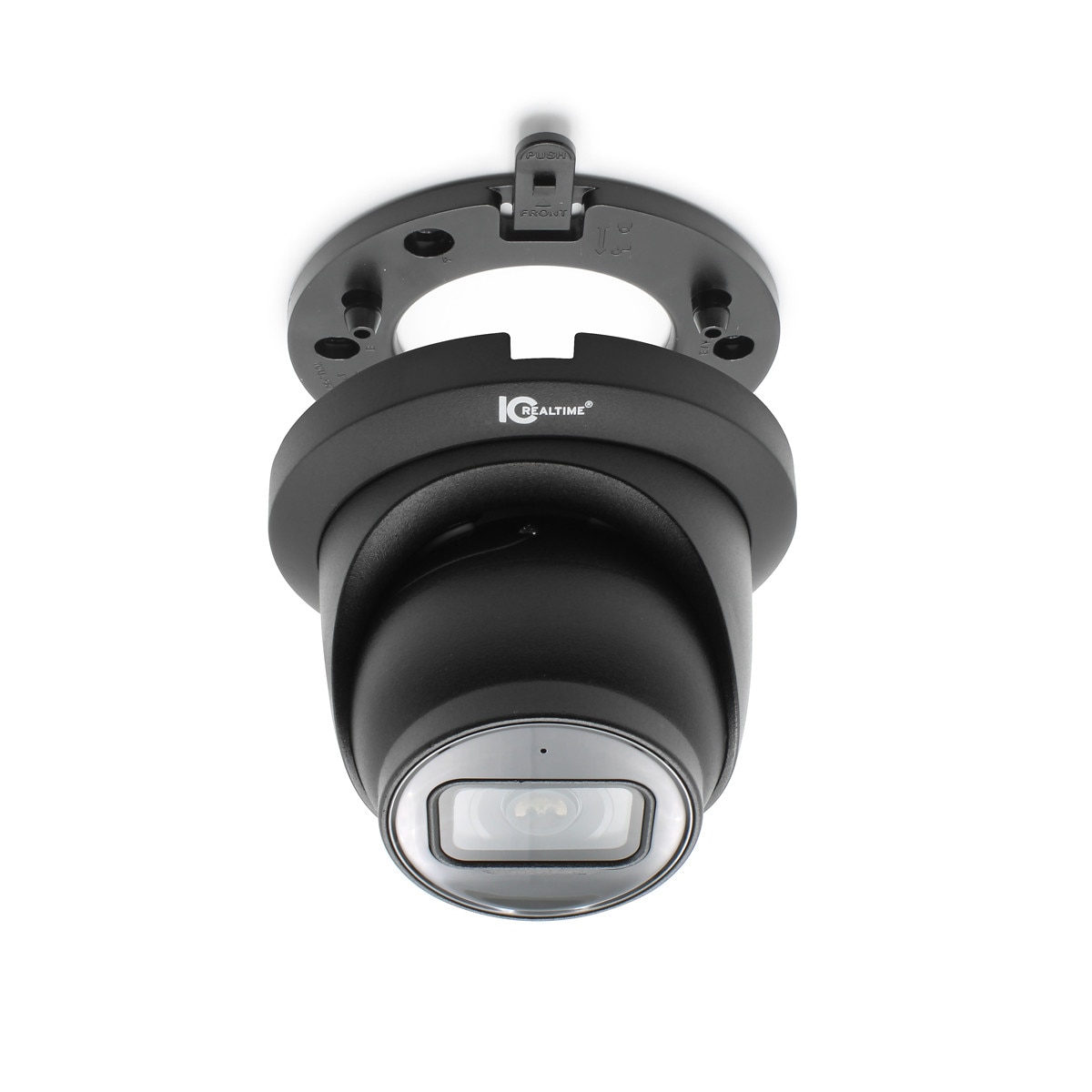

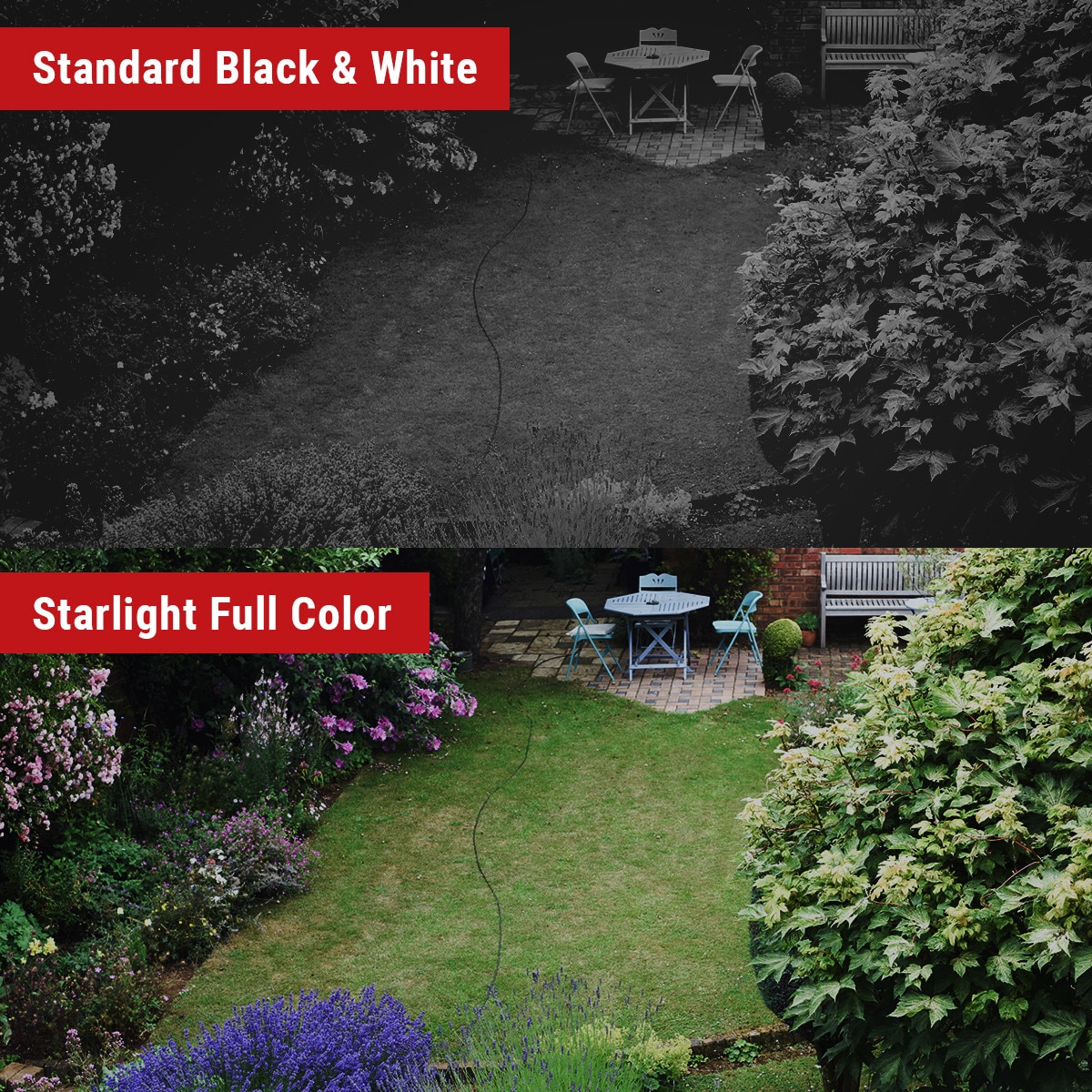

This new black finish IPEL-E80F offers easy installation & aiming of a turret dome with the 8MP/4K Starlight sensor sophisticated video systems demand. The 8mp (3840 × 2160) Starlight video sensor holds color down to 0.007 Lux, then lights the night with and 95+ft. of SmartIR illuminators. Beyond looking astonishingly clear on a 4K monitor, this ultra high definition combined with the Starlight video chip's low light performance provides the pixel density & edge detection to capture the finest details and pass them on to the industry's best video surveillance AI system - IC Realtime's FlexSmartAi.
FLEXSMARTAI DETECTION & STREAM MANAGEMENT
IPEL-E80F's rugged black aluminum casing contains not only an extraordinary Starlight video sensor system and precision 2.8mm medium wide-angle lens with a 108°h × 58°v Field Of View, it houses the camera's "brain" - IC Realtime's FlexSmartAi system. This AI utilizes deep learning algorithms and the E80F's high resolution to enable current & future detection & identification systems to work at full capacity to provide UHD video footage with digital watermarking for court-admissible video footage when needed.
4K STREAMS + AUDIO & ALARM
Once each video frame is optimized, the IPEL-E80F's FlexSmartAi compresses them into a stream using its Smart H.265+ scene-adaptive video codec, so bit rates are reduced by up to 70% compared to standard H.265 video compression. The IPEL-E80F's superior 8MP/4K clarity works hand in hand with camera & NVR based FlexSmartAi systems to deliver outstanding DORI facial recognition, intelligent IMD and IVS, and missing & abandoned object detection, and provides audio pickup with a built-in microphone. Intrusion & tripwire functions are enhanced but the FlexSmartAi systems enable the IPEL-E80F to dependably detect humans and vehicles and react to defined IVS "tripwire" rules with high accuracy to eliminate 90% of false alarms and activate the camera's Alarm I/O outputs.
SECURE & FUTURE-PROOF CAMERA CHOICE
IC Realtime's sleek new IPEL-E80F-IRW2 FlexSmartAi black 4K turret dome stands ready to future-proof your next video camera installation. Like all IC Realtime cameras & recorders, IPEL-E80F is protected from cyber threats by multiple layers of authorizations & password protections. All network traffic is encrypted in both directions, so our gear now meets the newest network UL CAP certification standards. IPEL-E80F is IP67 weather-rated and can use 12VDC power where 8w of PoE isn't available and supports a 256Gb SD card for onboard video storage.
Look up the IPEL-E80F-IRW2 on your Dealer Portal or in our new ICR Companion app, or check with your IC Realtime distributor, and an IC Realtime factory product specialist will do a no-obligation, live online demo for you or even arrange a demo camera to try yourself for a free 30-day trial. If you need a black finish 4K eyeball dome camera with cutting-edge features, IPEL-E80F-IRW2 fits the bill perfectly
*TAA compliant as of October 2022
SMART, SLEEK, AND STURDY
This new black finish IPEL-E80F offers easy installation & aiming of a turret dome with the 8MP/4K Starlight sensor sophisticated video systems demand. The 8mp (3840 × 2160) Starlight video sensor holds color down to 0.007 Lux, then lights the night with and 95+ft. of SmartIR illuminators. Beyond looking astonishingly clear on a 4K monitor, this ultra high definition combined with the Starlight video chip's low light performance provides the pixel density & edge detection to capture the finest details and pass them on to the industry's best video surveillance AI system - IC Realtime's FlexSmartAi.
FLEXSMARTAI DETECTION & STREAM MANAGEMENT
IPEL-E80F's rugged black aluminum casing contains not only an extraordinary Starlight video sensor system and precision 2.8mm medium wide-angle lens with a 108°h × 58°v Field Of View, it houses the camera's "brain" - IC Realtime's FlexSmartAi system. This AI utilizes deep learning algorithms and the E80F's high resolution to enable current & future detection & identification systems to work at full capacity to provide UHD video footage with digital watermarking for court-admissible video footage when needed.
4K STREAMS + AUDIO & ALARM
Once each video frame is optimized, the IPEL-E80F's FlexSmartAi compresses them into a stream using its Smart H.265+ scene-adaptive video codec, so bit rates are reduced by up to 70% compared to standard H.265 video compression. The IPEL-E80F's superior 8MP/4K clarity works hand in hand with camera & NVR based FlexSmartAi systems to deliver outstanding DORI facial recognition, intelligent IMD and IVS, and missing & abandoned object detection, and provides audio pickup with a built-in microphone. Intrusion & tripwire functions are enhanced but the FlexSmartAi systems enable the IPEL-E80F to dependably detect humans and vehicles and react to defined IVS "tripwire" rules with high accuracy to eliminate 90% of false alarms and activate the camera's Alarm I/O outputs.
SECURE & FUTURE-PROOF CAMERA CHOICE
IC Realtime's sleek new IPEL-E80F-IRW2 FlexSmartAi black 4K turret dome stands ready to future-proof your next video camera installation. Like all IC Realtime cameras & recorders, IPEL-E80F is protected from cyber threats by multiple layers of authorizations & password protections. All network traffic is encrypted in both directions, so our gear now meets the newest network UL CAP certification standards. IPEL-E80F is IP67 weather-rated and can use 12VDC power where 8w of PoE isn't available and supports a 256Gb SD card for onboard video storage.
Look up the IPEL-E80F-IRW2 on your Dealer Portal or in our new ICR Companion app, or check with your IC Realtime distributor, and an IC Realtime factory product specialist will do a no-obligation, live online demo for you or even arrange a demo camera to try yourself for a free 30-day trial. If you need a black finish 4K eyeball dome camera with cutting-edge features, IPEL-E80F-IRW2 fits the bill perfectly
*TAA compliant as of October 2022
Specifications
| Camera | |
| Image Sensor: | 1/2.8”8 Megapixel progressive CMOS |
| Effective Pixels: | 3840(H) x 2160(V) |
| RAM/Rom: | 512MB / 128MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.007 Lux @F1.4 |
| S/N Ratio: | >56 dB |
| Illumination Distance: | Distance up to 98.4 ft (30 m) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.4 |
| Angle of View: | H:108 degrees V:58 degrees |
| Focus Control: | Fixed |
| Close Focus Distance: | 1.4 m (4.6 ft) |
| DORI - Detect: | 280ft |
| DORI - Observe: | 112ft |
| DORI - Recognize: | 56ft |
| DORI - Identify: | 28ft |
| Intelligence | |
| IVS: | Tripwire, Intrusion (50 objects max) |
| Advanced Intelligent Functions: | Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max) Intelligent Motion Detect: Motion detection alarm for human and vehicle. Filters misinformation such as leaves and light. Works together with Smart NVRs to perform refined intelligent search, event extraction and merging to event videos |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Streaming Capability: | 3 Streams |
| Resolution: | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 3840 × 2160 @(1–20 fps by default)3840 × 2160 @(1–25/30 fps when AI function disabled) Sub Stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) Third stream:1920 × 1080 @(1–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/270° (90°/ 270° only supported at 4MP or less) |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Audio | |
| Compression: | G.711a; G.711Mu; G726 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI; P2P |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (Total bandwidth: 72 M) |
| Edge Storage: | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Video Interface: | N/A |
| Audio I/O: | Built-in Mic |
| Memory Slot: | Micro SD Card 256GB |
| Electrical | |
| Power Supply: | 12V DC/PoE (802.3af) |
| Power Consumption: | Basic power consumption: 2.6W (12V DC); 3.3W (PoE)Max. power consumption (WDR + H.265 + IR LED intensity): 6.9W (12V DC); 7.9W (PoE) |
| Environmental | |
| Operating Conditions: | –40°F to +140°F (–40°C to +60°C)/Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal+ Plastic |
| Dimensions: | 4.17in x 3.69in (106mm x 93.7mm) |
| Gross Weight: | 1.7 lb (770 g) |
