4MP IP INDOOR/OUTDOOR MID SIZE BULLET. VARIFOCAL 2.8-12MM MOTORIZED LENS iMD AND PERIMETER PROTECTION. (104° - 29°)...

1/2.9" CMOS | 4 MP@30 fps
2.8 mm | Motorized varifocal| 104°-29° AoV
Built In Mic | 256GB mSD | PoE or 12VDC
Max. IR LEDs Length 192ft | Smart IR
IVS | Perimeter Protection | Intelligent Motion Detect
120dB WDR | BLC | PoE | IP67

Details

IC Realtime pushes performance further in its Edge lineup with the introduction of the IPEG-B40V-IRW3, a robust 4MP varifocal bullet camera built for flexible deployment and high-detail coverage. Housed in a weatherproof metal body measuring just under 10 inches in length, this camera is engineered to deliver pro-grade surveillance in a cost-conscious package.

At its core is a 1/2.9" CMOS sensor capturing sharp 4MP resolution at 30fps, enhanced by a motorized 2.7–13.5mm vari-focal lens offering a horizontal field of view from 104° to 29°. Whether you're zooming out for a broad scene or focusing in on distant subjects, the IPEG-B40V-IRW3 delivers clarity across the spectrum. Smart IR illumination with a reach of up to 196 feet ensures strong low-light performance, while 120dB Wide Dynamic Range and Backlight Compensation preserve detail in difficult lighting conditions.

The camera supports both PoE and 12VDC power, includes a built-in microphone for audio capture, and offers up to 256GB of edge recording via onboard microSD. With its IP67 rating, it’s ready for extreme outdoor environments, and H.265 compression ensures optimal bandwidth and storage efficiency. Full ONVIF compliance (Profiles S, G, and T) makes integration with third-party VMS and NVR systems seamless.

Beyond hardware, the IPEG-B40V-IRW3 is loaded with intelligence. Advanced Intelligent Motion Detection (iMD) with secondary filtering distinguishes between people and vehicles, minimizing false alarms. Its Perimeter Protection features, including virtual tripwire and intrusion zones, allow smart event triggers and are fully supported by IC Realtime NVRs for quick and efficient event search.

Users can monitor and manage the camera through IC Now for desktop and the IC View+ mobile app, available for both iOS and Android. Backed by IC Realtime’s industry-best 7-year warranty and U.S.-based tech support, the IPEG-B40V-IRW3 delivers smart adaptability, long-range vision, and rock-solid reliability.

Specifications

Camera
Image Sensor: 1/2.9" CMOS
Effective Pixels: 2688 (H) ×1520 (V) (4 Megapixels)
RAM/Rom: 128 MB/ 128 MB
Scanning System: Progressive
Minimum Illumination: 0.006 lux@F1.5 (Color, 30 IRE)
0.0006 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance: 196.0 ft (60 m)
Illumination On/Off Control: Auto / Manual
Illumination LEDs: 4 (IR LED)
Camera Illumination Type: IR
Lens
Lens Type: Motorized varifocal
Mount Type: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Angle of View: Horizontal: 104°–29°, Vertical: 54°–16°
Close Focus Distance: 2.6 ft (0.8 m)
DORI - Detect: 209 ft-688 ft
DORI - Observe: 83 ft- 275 ft
DORI - Recognize: 41 ft-137 ft
DORI - Identify: 20 ft- 68 ft
Intelligence
IVS: Tripwire; Intrusion
Advanced Intelligent Functions: Perimeter Protection: Tripwire; Intrusion(These functions support the classification and detection of vehicle and human objects)

Intelligent Motion Detect
Video
Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only); Smart H.265+, Smart H.264+
Resolution: 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate: Main Stream: 4MP, 2688 × 1520@(1–20 fps )/2560 × 1440@ (1-25/30 fps)
Sub Stream: stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Bit Rate Control: CBR/VBR
Bit Rate: H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Smart IR: Supported
Flip: 0°/90°/180°/0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror: Supported
Privacy Masking: Off / On (4 Area, Rectangle)
Iris Control: Fixed
WDR: WDR (120dB)
Audio
Compression: G.711a; G.711Mu; G.726; PCM
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP;P2P
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
Max. User Access: 6 (Total bandwidth: 36 M)
Edge Storage: FTP; SFTP; Micro SD card (support max. 256 GB)
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: IC Now, IC Now Pro
Smart Phone: IOS, Android
Interface
Audio I/O: Built-in Microphone
Memory Slot: Micro SD card (support max. 256 GB)
Electrical
Power Supply: DC12V, PoE (802.3af)
Power Consumption: Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 8.7 W (12VDC); 10.1 W (PoE)
Environmental
Operating Conditions: -22° F ~ +140° F (-30° C ~ +60° C) / Less than 95% RH
Storage Conditions: -40°F to +140°F (-40°C to +60°C)
Ingress Protection: IP67
Construction
Casing: Metal

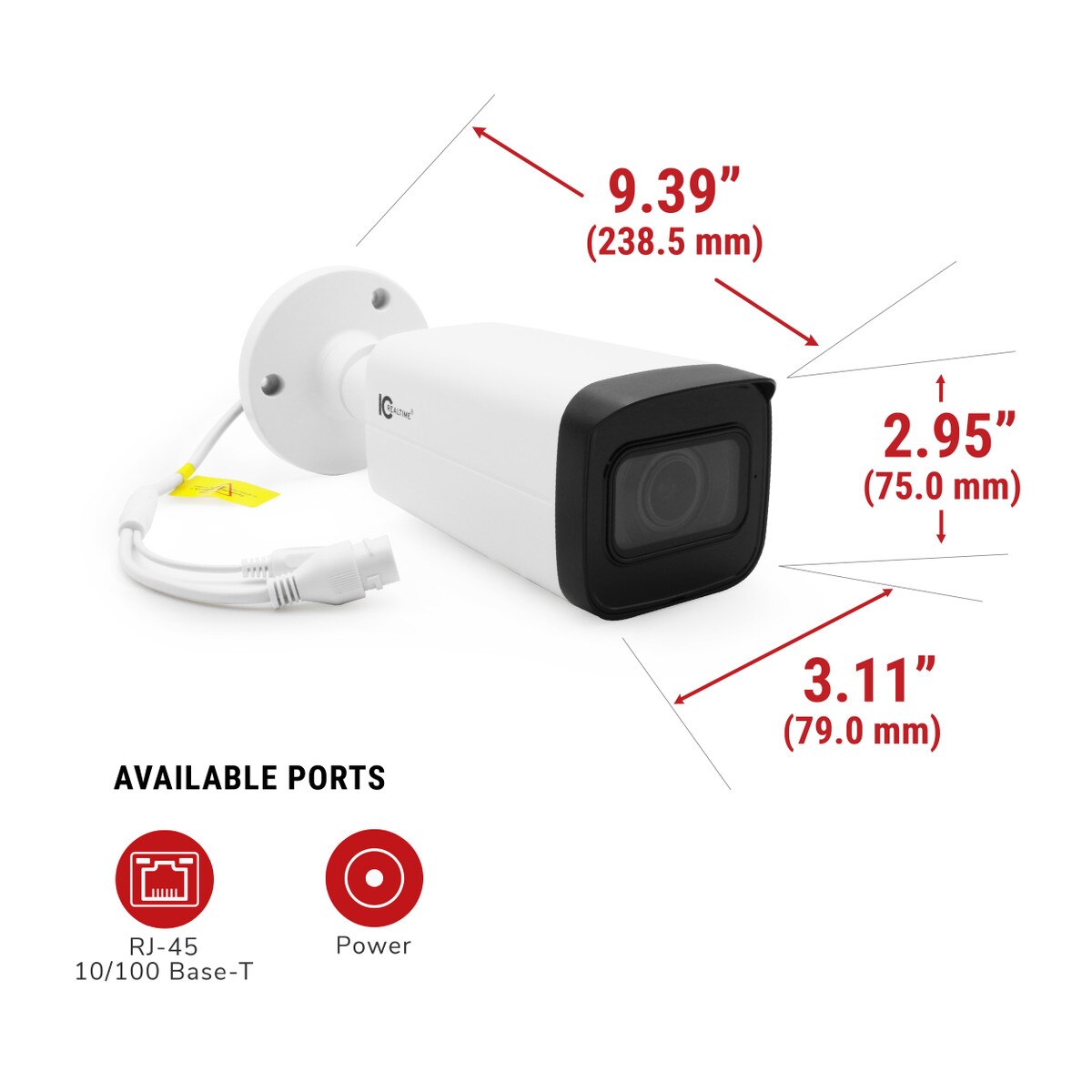

Dimensions: 9.39" × 3.57" × 3.57"
(238.5 mm × 90.7 mm × 90.7 mm)
Gross Weight: 2.2 lb (0.99 kg)
Mounting Pan/Tilt/Rotation: Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
