ICR-B4732Z

(0) No Reviews yet
SKU: ICR-B4732Z
ITEM WEIGHT: 4
4MP IP Indoor/Outdoor Mid Size Bullet Varifocal 2.8-12mm Motorized Lens (94 - 51 AOV) 197 ft Smart IR POE
1/3" CMOS | 4MP | 20fps@4MP
2.7mm to 12mm | varifocal | AoV 94 to 33
Max. IR length 98' | Smart IR | 2 IR LEDs
128GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 6.5W
AGC | DWDR | HLC | BLC | 3DNR

Details

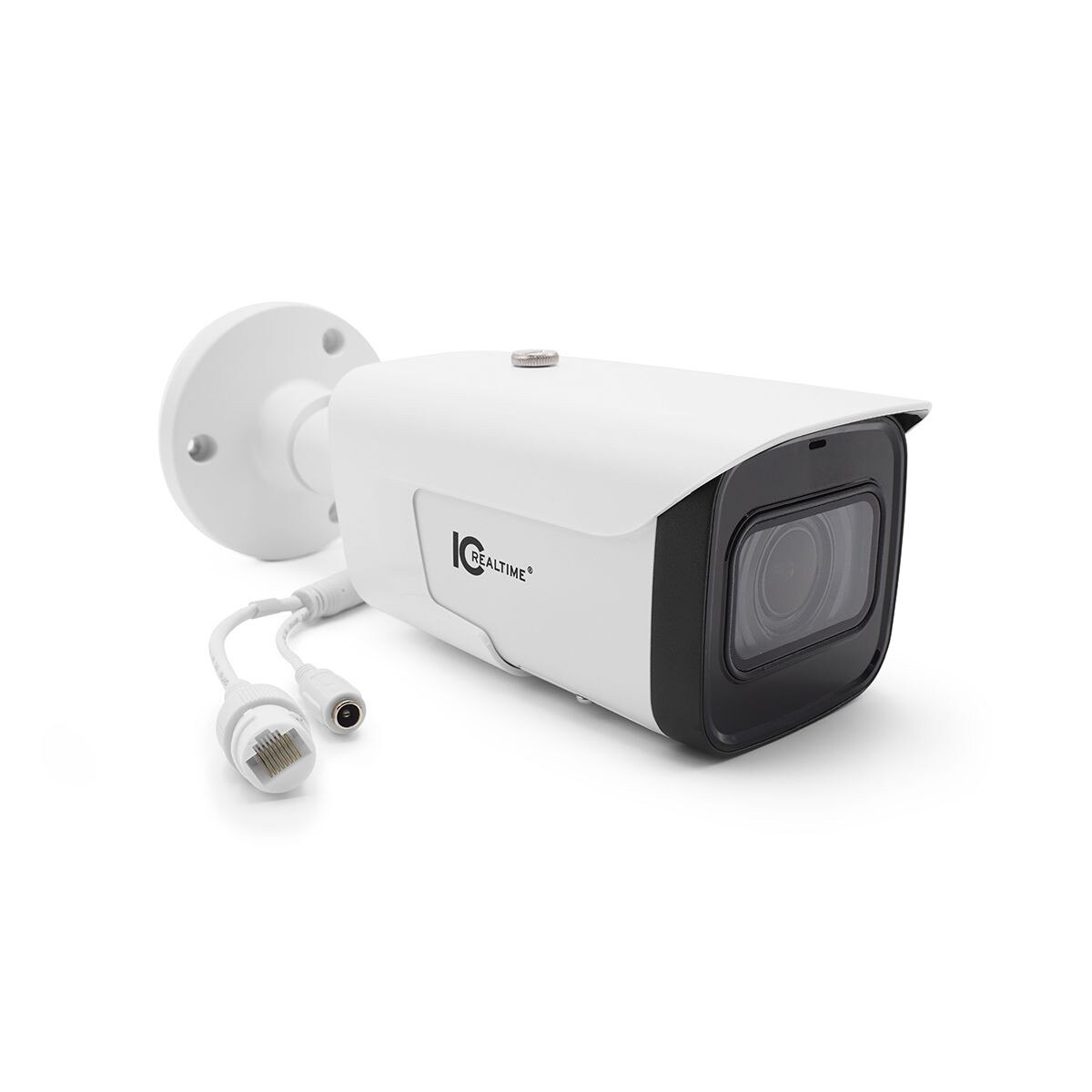

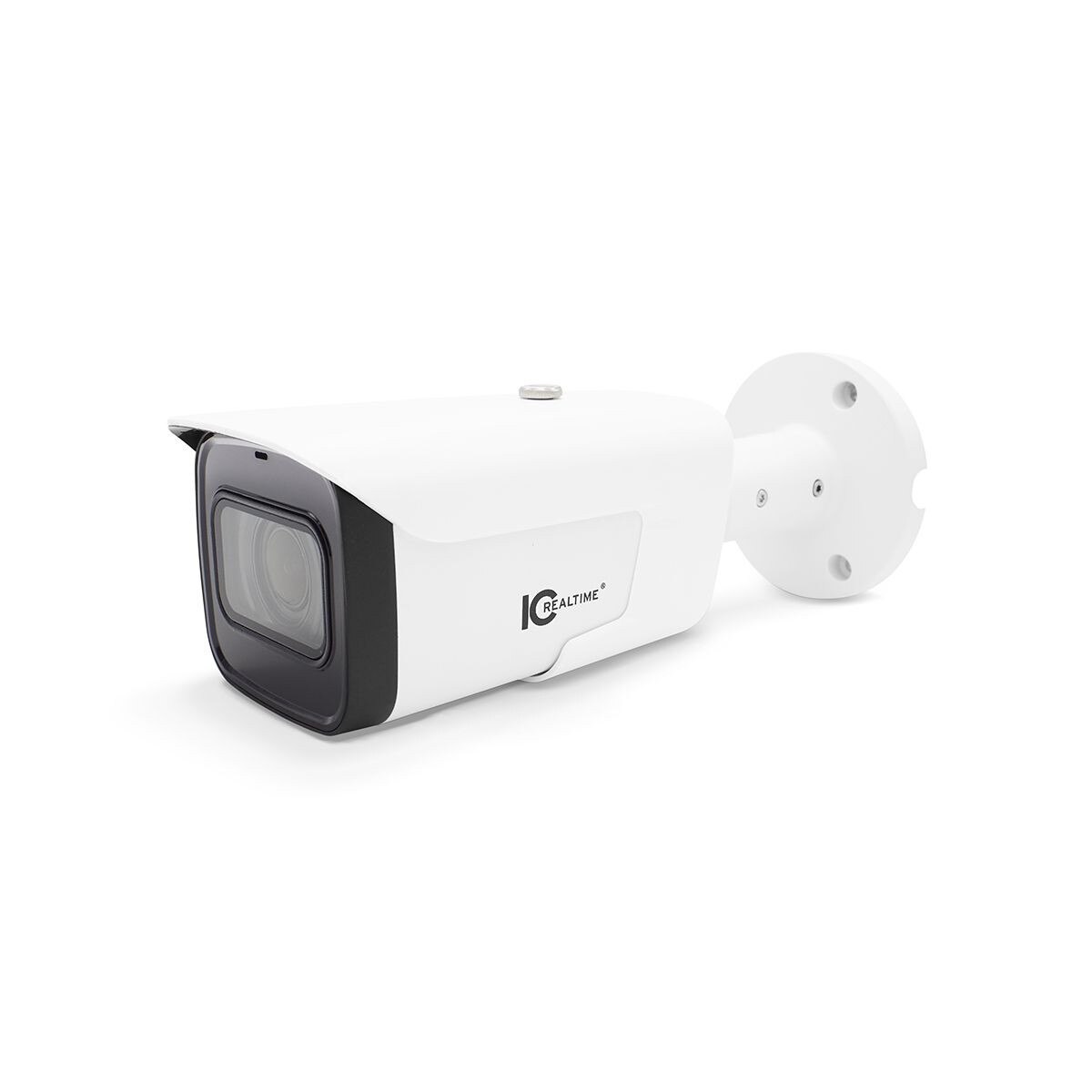

A favorite powered zoom bullet camera, now available in the EDGE lineup - the ICR-B4732Z. The ICR-B4732Z is a 4MP Day/Night with a 2.7mm ~ 12mm varifocal lens. The camera itself supports H264 and H264+ compression and True Day/Night viewing at up to 30 meters. It's IP67 weather rated as well as PoE. *All Edge series products come with a 3 year limited warranty

Specifications

Camera
Image Sensor: 1/3” 4Megapixel progresive CMOS
Effective Pixels: 2560(H)x1440(V)
RAM/Rom: Metal
Scanning System: Progressive
Electronic Shutter Speed: N/A
Minimum Illumination: 0.05Lux/F1.8( Color,1/3s,30IRE)
0.3Lux/F1.8( Color,1/30s,30IRE)
0Lux/F1.8(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 2
Lens
Lens Type: Motorized
Mount Type: Board-in
Focal Length: 2.8mm~12mm
Max. Aperture: F1.8
Angle of View: H:94°~33°, V:51°~19°
Optical Zoom: 4x
Focus Control: Fixed
Close Focus Distance: 0.2m(0.66ft)
DORI - Detect: 66m(216.5ft) - 200m(656.2ft)
DORI - Observe: 26.4m(86.6ft - 80m(262.5ft)
DORI - Recognize: 13.2m(43.3ft) - 40m(131.2ft)
DORI - Identify: 6.6m(21.7ft) - 20m(65.6ft)
Video
Compression: H.265/H.264/H.264B/MJPEG(Sub Stream)
Resolution: 4M(2560x1440)/3M(2304×1296)/1080P(1920×1080
)/1.3M(1280x960)/720P(1280×720)/VGA(640×480)/
D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate: Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate: H.264: 16K~6144K
H.265: 6K~ 6144K
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Region of Interest: Off / On (4 Zone)
Electronic Image Stabilization (EIS): N/A
Smart IR: Support
Digital Zoom: 16x
Flip: 0°/90°/180°/270°
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)
Audio
Compression: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPS / TCP / ARP / RTSP / RTP / RTCP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPoE / IPV4/V6 / QoS / UPnP / NTP / Bonjour / IEEE / 802.1X / Multicast / ICMP / IGMP / TLS / SSH
Interoperability: ONVIF Profile S&G, API
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users/20 Users
Edge Storage: NAS(Network Attached Storage)
Local PC for instant recording
Micro SD Card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS, ICRSS Pro
Smart Phone: IOS, Android
Interface
Video Interface: More than 50dB
RS232: N/A
RS485: N/A
Audio I/O: N/A
Alarm I/O: N/A
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12V, PoE (802.3af)(Class 0)
Power Consumption: DC12V: 1.8W, 8.2W(IR On)
PoE: 2.2W, 9.8W(IR On)
Enviromental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
Gross Weight: 1.05kg (2.31lb)
