ICIP-PANO-D8420

(0) No Reviews yet
SKU: ICIP-PANO-D8420
ITEM WEIGHT: 11

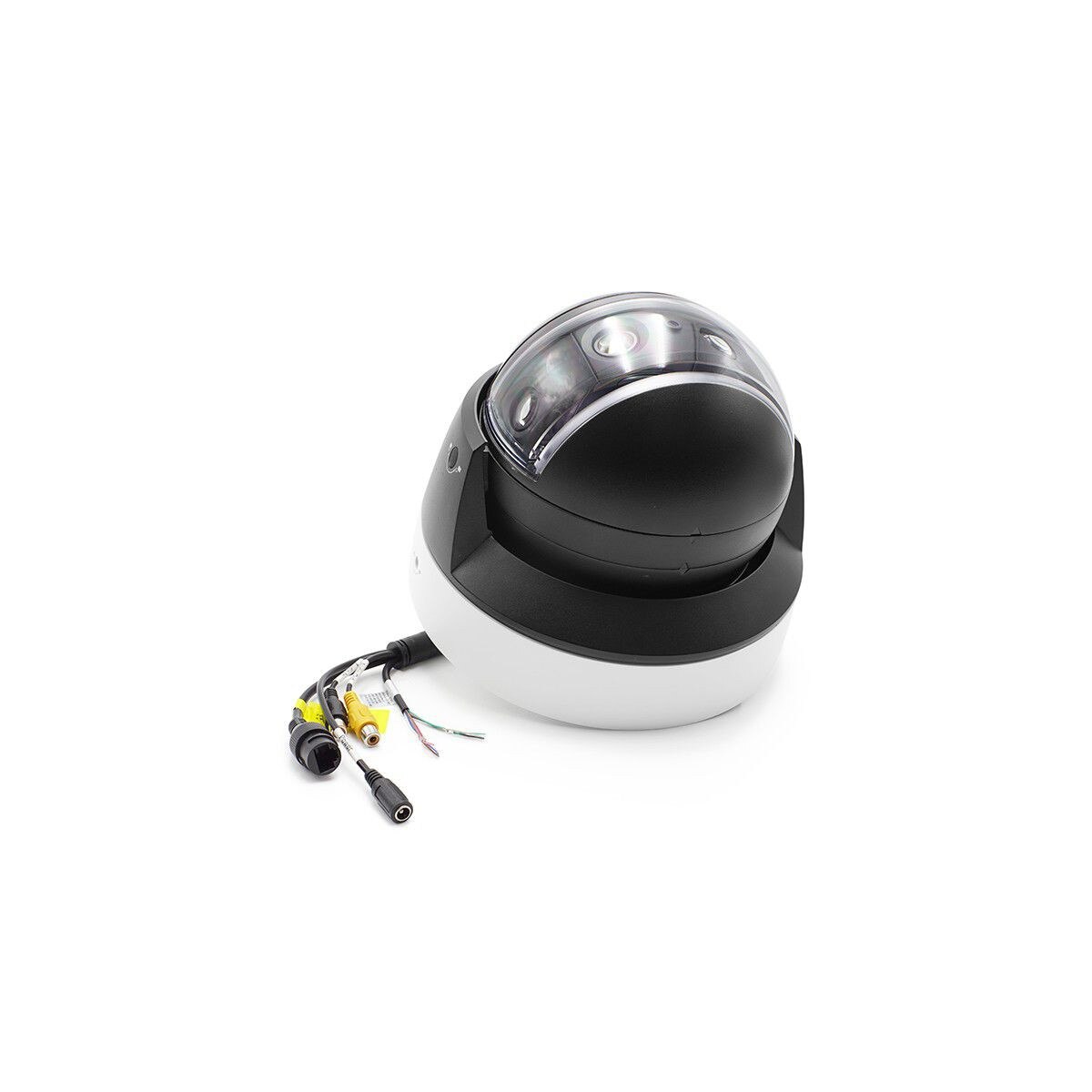

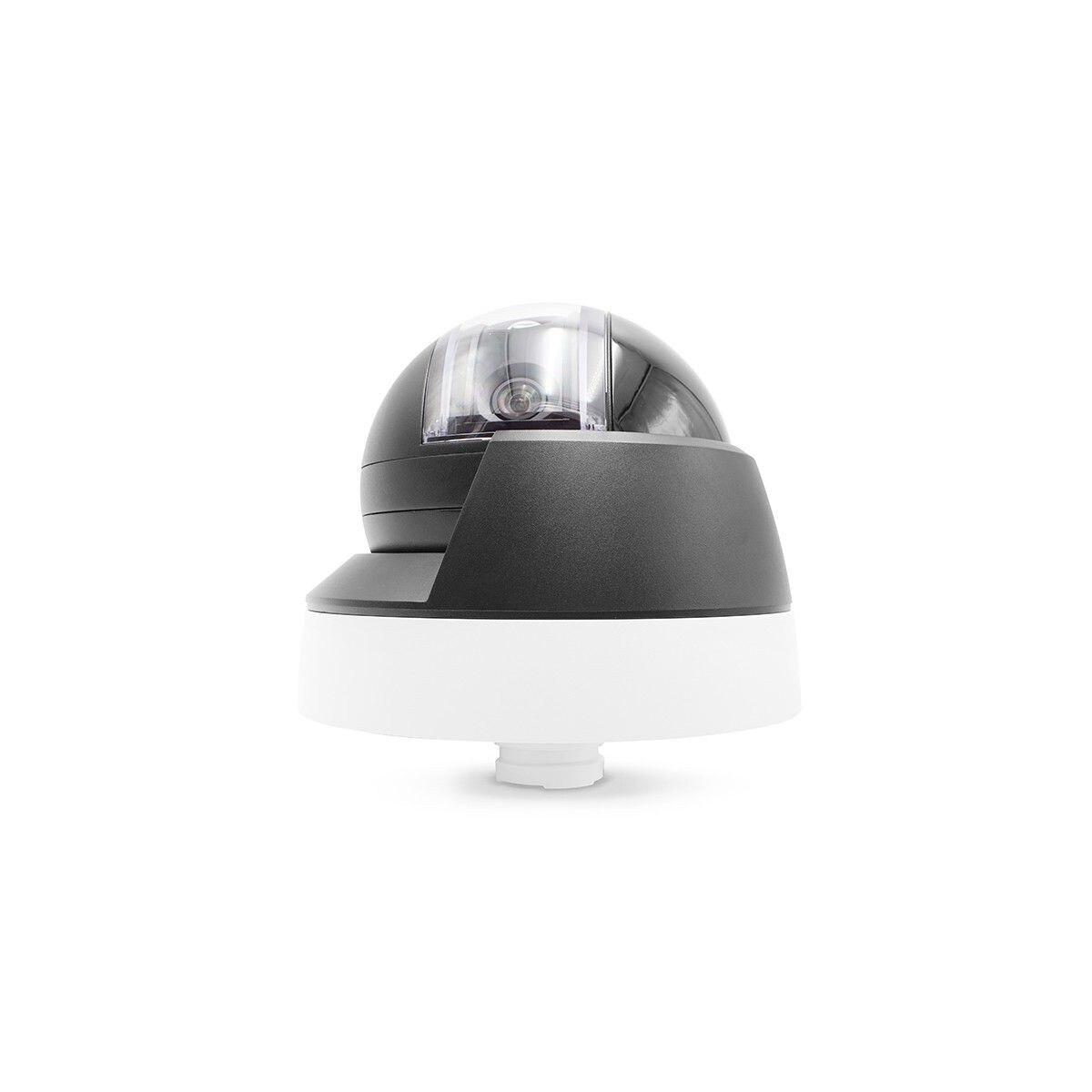

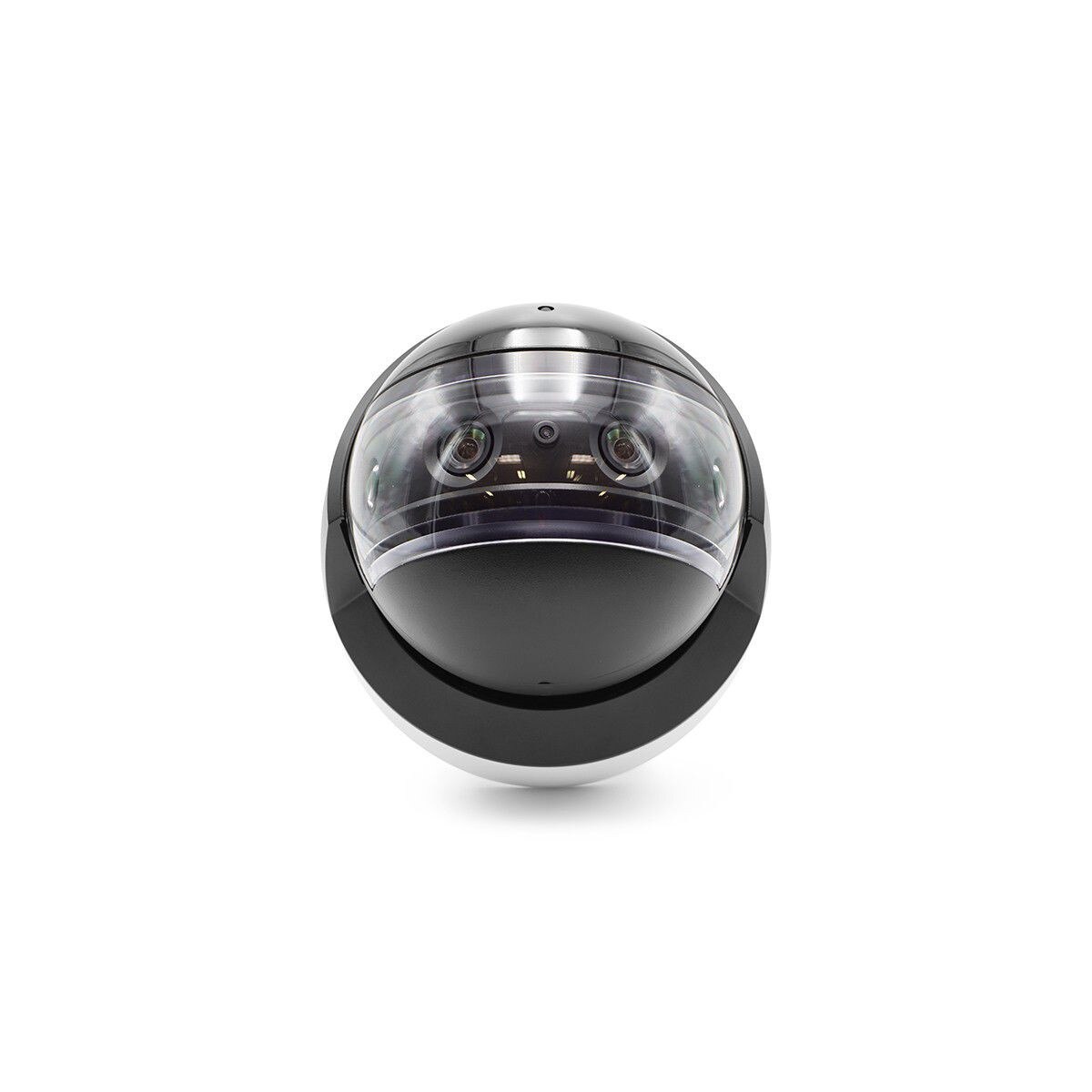

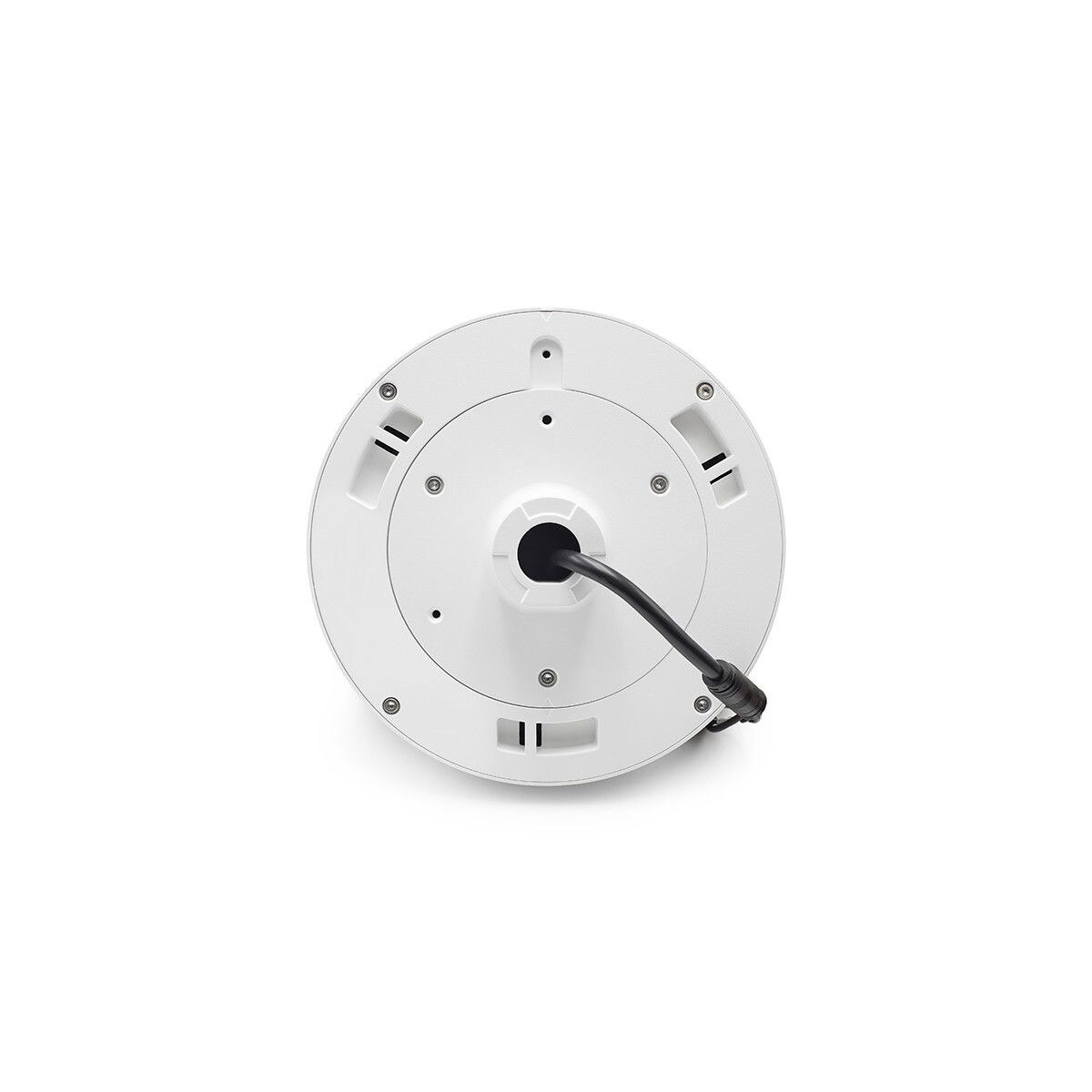

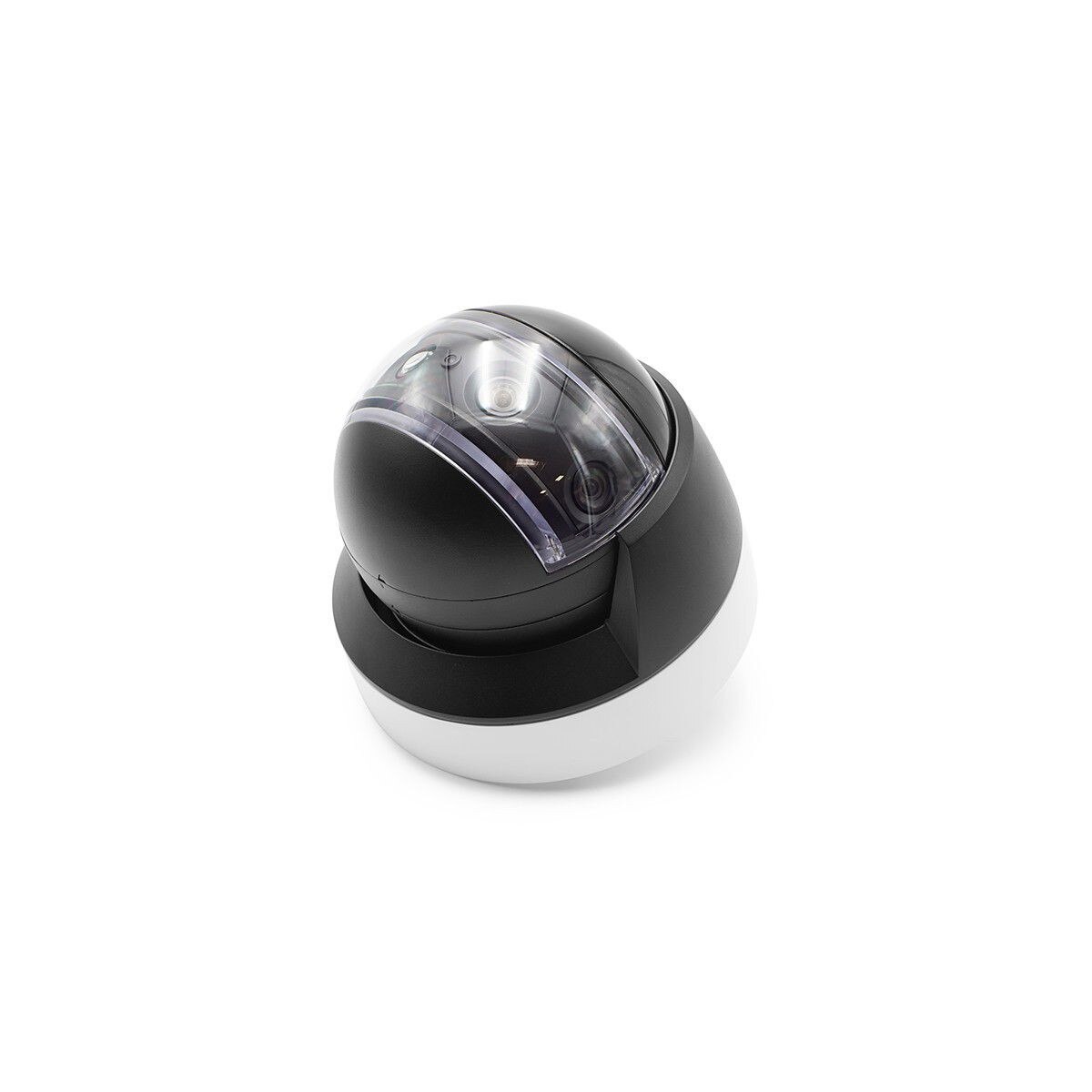

4x 2MP (8MP Total) IP 180 Panoramic Dome 4x 3.0mm Fixed Lens (180 AOV) 98 ft Smart IR POE+ (POWER SUPPLY NOT INCLUDED)
Four 1/2.8 CMOS Starvis | 5.8MP | 25fps@5.8MP
3mm | fixed | AoV 180
Max. IR length 98ft | 6 IR LEDs
1ch audio in 1ch audio out | 2ch alarm in 2ch alarm out | 128GB mSD
IP67 | IK10 | 24VAC or PoE+ | Max. 25.5W
IVS | AGC | DWDR | HLC | BLC | 3DNR

On Back Order

Details

IC Realtime's unique 4 lens camera provides added flexibility for capturing wide area surveillance. Meet the ICIP-PANO-D8420 With four 2MP I-Sniper sensors working in unison, this camera creates a panoramic, 180° overview, allowing the camera to replace multiple single sensor cameras at a lower overall cost. Each sensor is the latest I-Sniper gen2 chipset which provides vibrant color at the lowest levels of illumination, and strong WDR capabilities. Beyond this, the camera also supports the line of Advanced Intelligence notifications, including Tripwire, Intrusion, Missing and Added object. Future proof as well, this camera supports 3 video streams as well as H.264 and H.265 compression capabilities. Ideal applications for this camera include parking lots, schools, resorts and hotels.

Specifications

Camera
Image Sensor: Four 1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/Rom: 1024MB / 128MB
Scanning System: Progressive
Sync: N/A
Minimum Illumination: 0.007Lux/F2.0( Color1/3s30IRE) 0.05Lux/F2.0( Color1/30s30IRE) 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/Manual
IR LEDs: 6
PIR Sensor Range: N/A
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 3.0mm
Max. Aperture: F2.0
Angle of View: H: 180 degrees V:80 degrees
Focus Control: Fixed
DORI - Detect: 41m (135ft)
DORI - Observe: 16m (53ft)
DORI - Recognize: 8m (26ft)
DORI - Identify: 4m (13ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 75 ; / Rotation:±20
Manual Control Speed: N/A
Presets: N/A
PTZ Mode: N/A
Speed Setup: N/A
Power up Action: N/A
Idle Motion: N/A
Protocol: N/A
Time Task: N/A
OSD Menu: N/A
Wiper: N/A
Tracking Trigger Mode: N/A
Tracking Trigger Event: N/A
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object Heat Map / E-PTZ
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 4096 x 1800 / 3840 x 1680 / 2880 x 1264 / 1920 x 832 / 1280 x 560 / 1024 X 452
Frame Rate: Main Stream: 4096x1800 (1 - 25fps) Sub Stream: 1024X452 (1 - 25/30fps) Third Stream: 1920x832 (1 - 25/30fps)
Bit Rate: H.265: 9Kbps - 9472Kbps H.264: 24Kbps - 15616Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16X
Mirror: N/A
Privacy Masking: Off / On (4 Area Rectangle)
Gamma Correction: N/A
Smear Effect: N/A
Iris Control: N/A
WDR: N/A
Digital Slow Shutter: N/A
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (100/1000Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Wifi: N/A
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Smart Phone: N/A
Interface
Video Interface: 1 port (For adjustment only)
RS232: N/A
RS485: N/A
Audio I/O: 1/1 channel In/Out
Alarm I/O: 2 channel In: 5mA 5VDC / 2 channel Out: 1A 30VDC or 0.5A 50VAC
Factory Reset: N/A
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: AC24V PoE+(802.3at)(Class 4)
Power Consumption: < 25.5W
Enviromental
Operating Conditions: -40 C ~ +60 C (-40 F ~ +140 F) / Less than 95% RH
Operating Humidity: N/A
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 212mm x 169.5mm (8.35in x 6.67in)
Gross Weight: 4.6kg (10.1lb)
