ICIP-D720IR-T12
Details

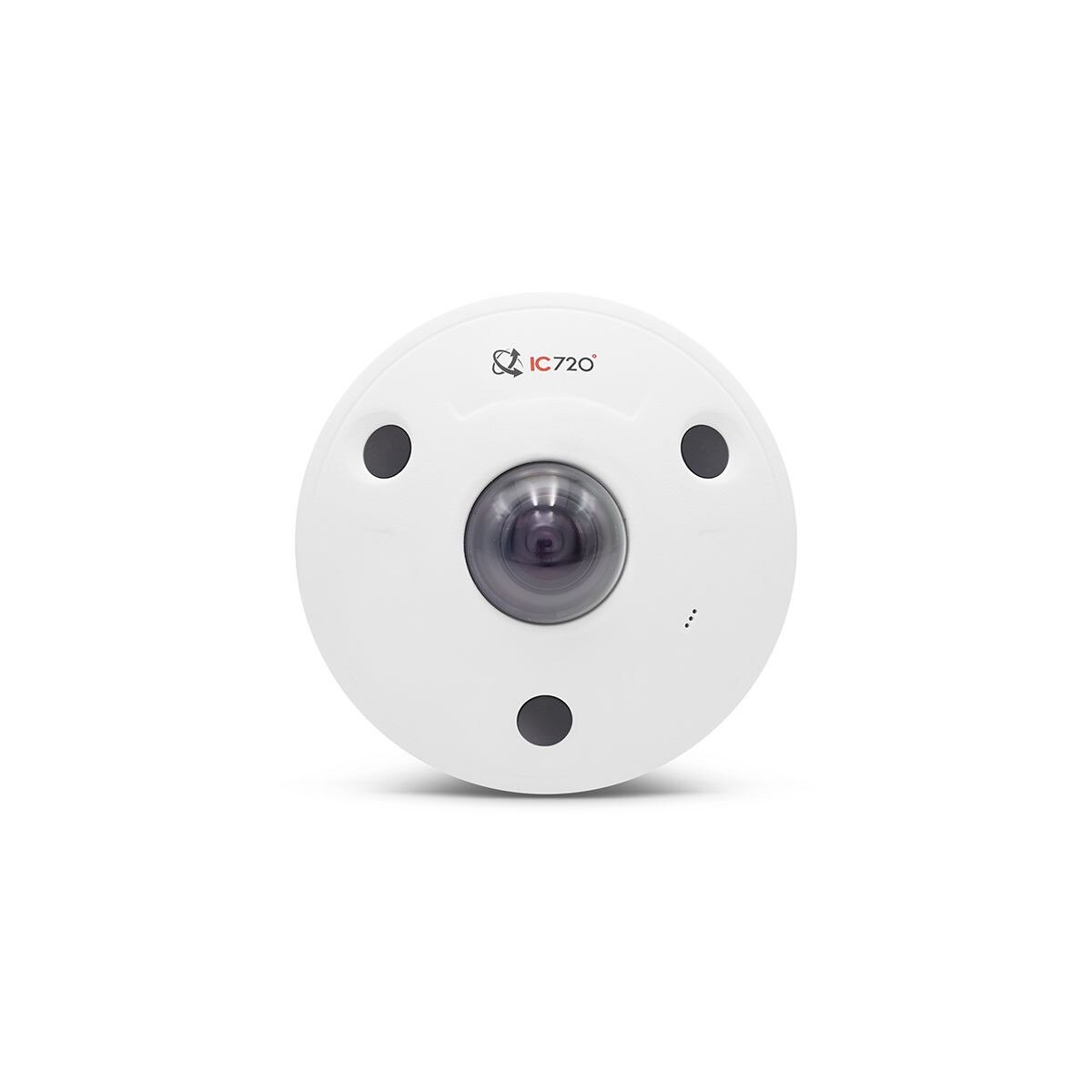

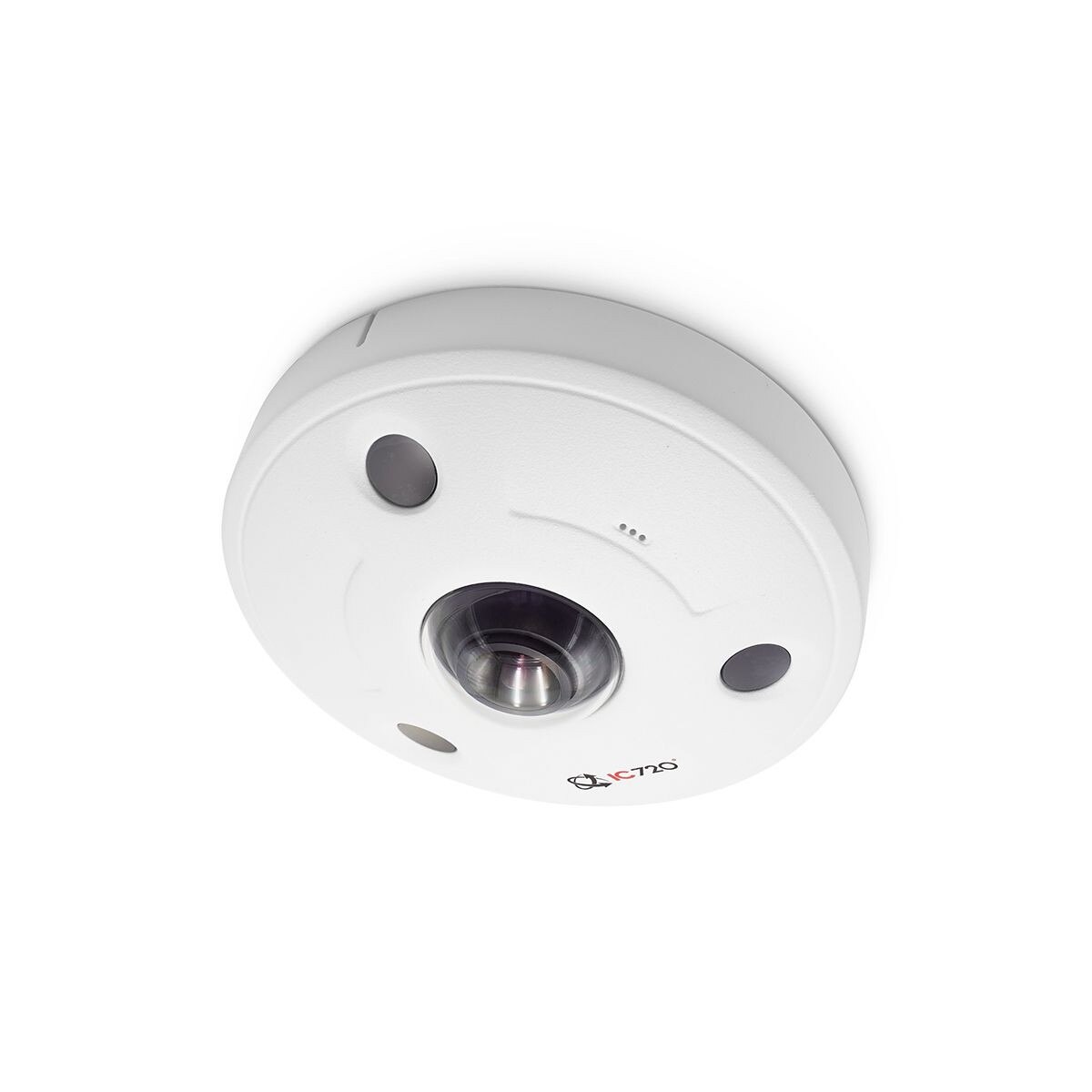

A 12.0 megapixel 360° Indoor/Outdoor Dome camera with a built in microphone. The ICIP-D720IR-T12 series camera is a real-time, 360° situational awareness camera. It is capable of recording a wide area of surveillance and de-warping the native fisheye view in order to watch a stream that is undistorted to the human eye.
Specifications
| Camera | |
| Image Sensor: | 1/1.7 12 Megapixel progressive scan STARVIS CMOS |
| Effective Pixels: | 4000(H) x 3000(V) |
| RAM/Rom: | 1024MB / 128MB |
| Scanning System: | Progressive |
| Sync: | Internal |
| Minimum Illumination: | 0.001Lux/F2.8( Color1/3s30IRE) 0.01Lux/F2.8( Color1/30s30IRE) 0Lux/F2.8(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 10m(33ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 3 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 1.98mm |
| Max. Aperture: | F2.8 |
| Angle of View: | H: 180 degrees V:180 degrees |
| Optical Zoom: | 16x |
| Focus Control: | Fixed |
| DORI - Detect: | 42m (138ft) |
| DORI - Observe: | 17m (56ft) |
| DORI - Recognize: | 8m (27ft) |
| DORI - Identify: | 4m (14ft) |
| Intelligence | |
| IVS: | Tripwire, Intrusion |
| Advanced Intelligent Functions: | Heat Map |
| Video | |
| Compression: | H.265 / H.264 |
| Streaming Capability: | 2 Streams |
| Resolution: | 12M (4000 x 3000) / 8M (2880 x 2880) / 6M (2880 x 2160) / 3M (2048 x 1536) / 1.3M (1280 x 960) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 12M(1 - 25fps) / 8M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1.3M(1 - 25/30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.265: 3Kbps - 9984Kbps H.264: 8Kbps - 16384Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16X |
| Flip: | N/A |
| Mirror: | N/A |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (100/1000Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users / 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD Card 128GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android, Windows Phone |

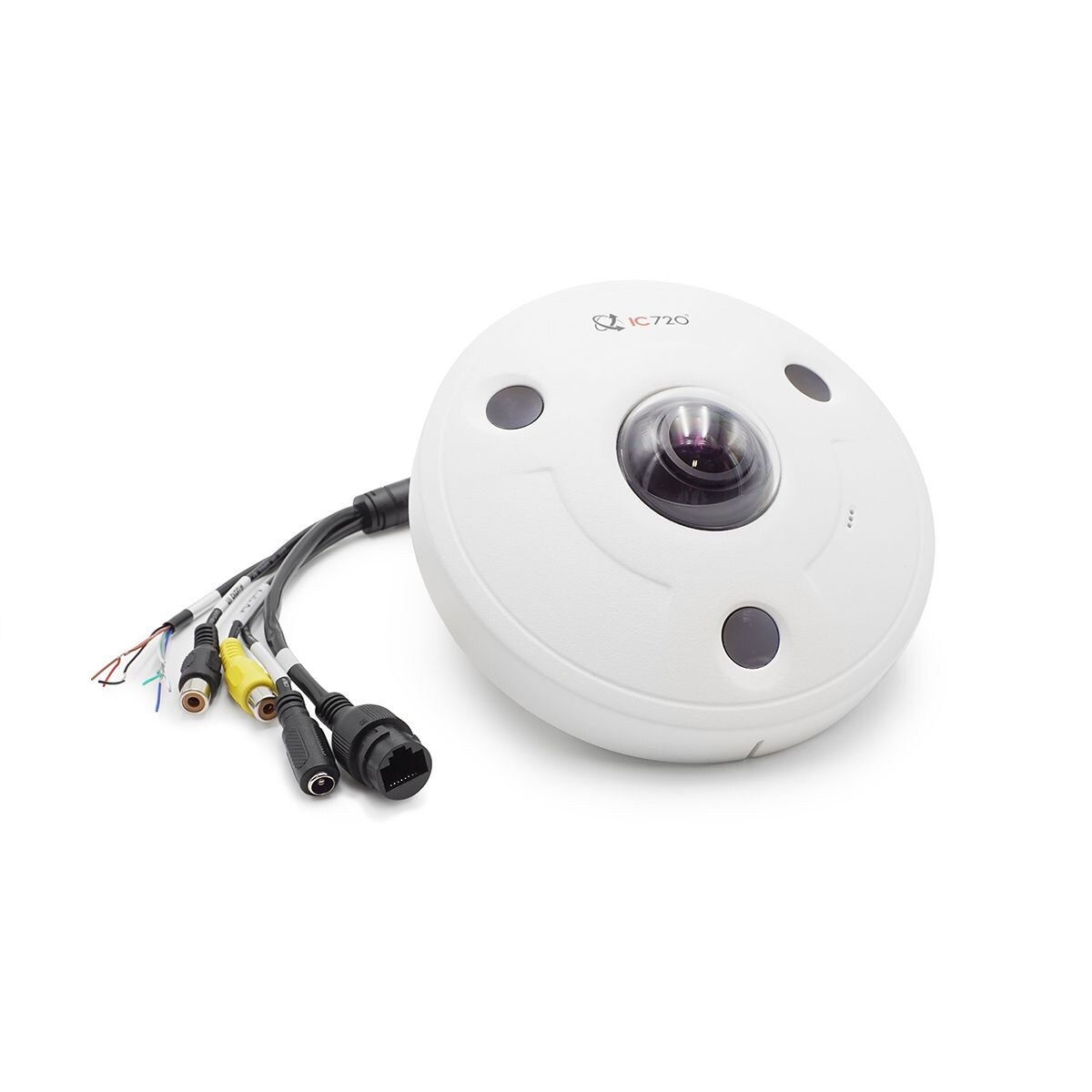

| Interface | |
| Video Interface: | N/A |
| Audio I/O: | 1/1 channel In/Out |
| Alarm I/O: | 2 channel In: 5mA 5VDC / 2 channel Out: 1A 30VDC or 0.5A 50VAC |
| Memory Slot: | Micro SD Card 128GB |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 12W |
| Environmental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Operating Humidity: | Humidity=95% |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 149.8mm x 47.7mm (5.9in x 1.88in) |
| Gross Weight: | 1.0kg (2.2lb) |
