ICIP-BW110S
Details

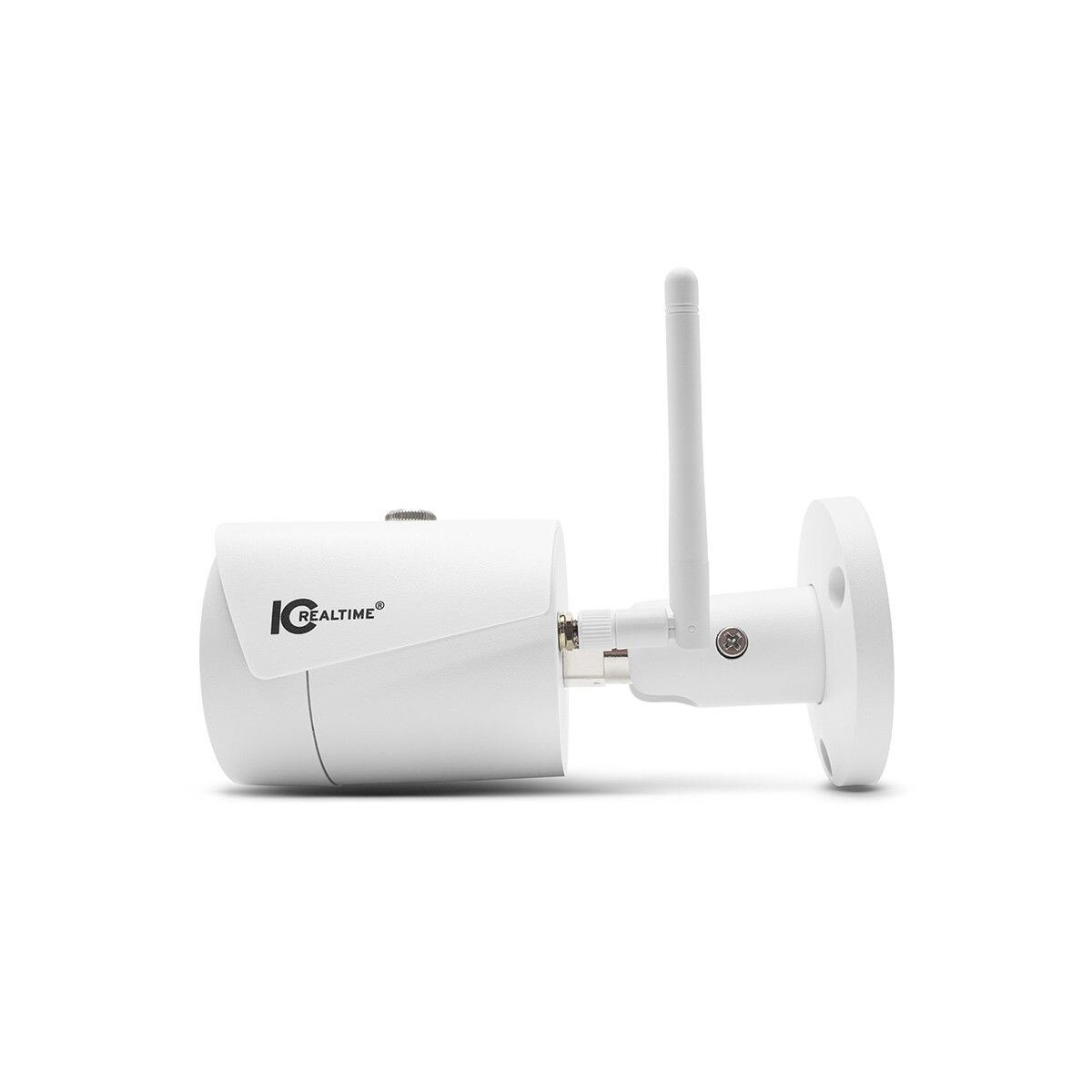

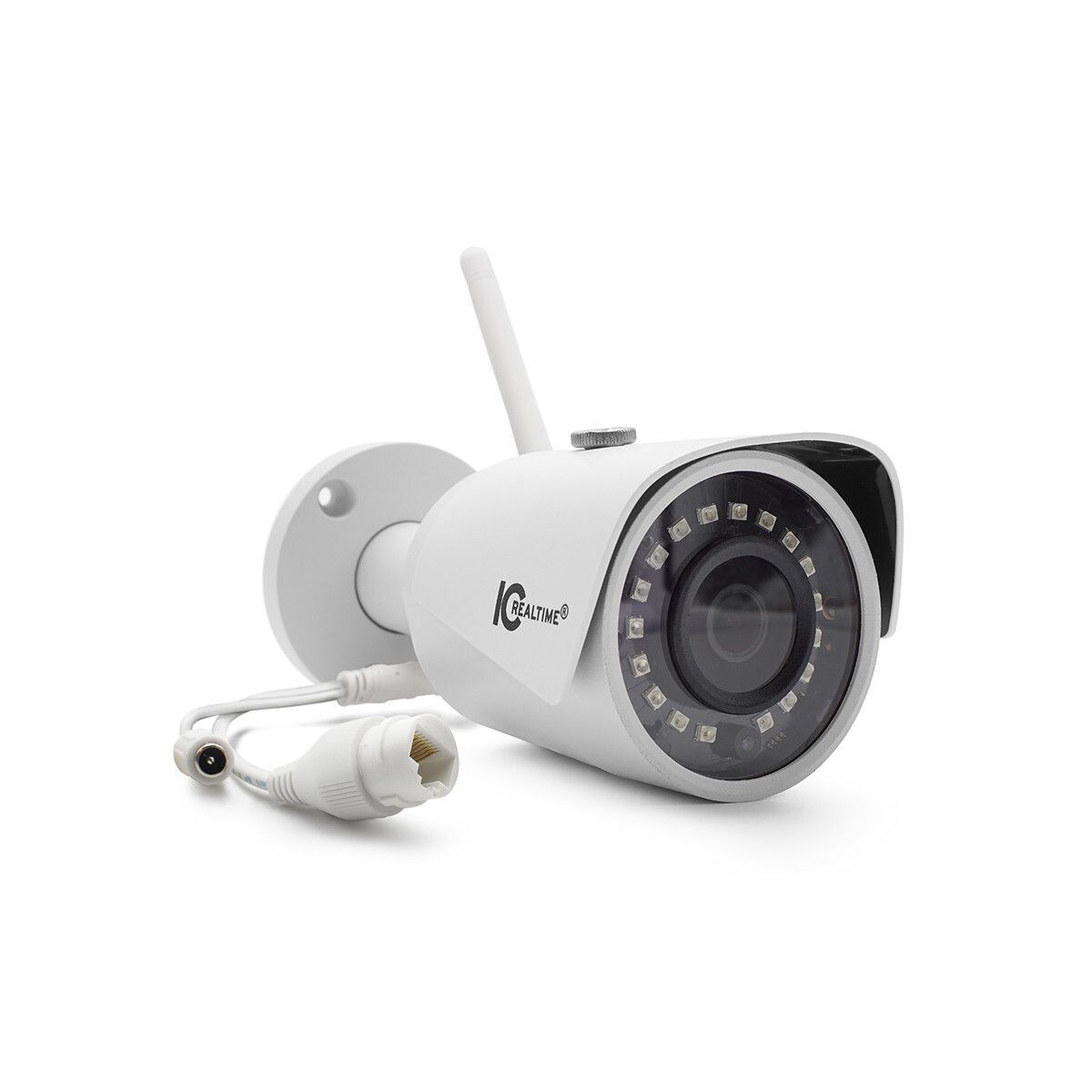

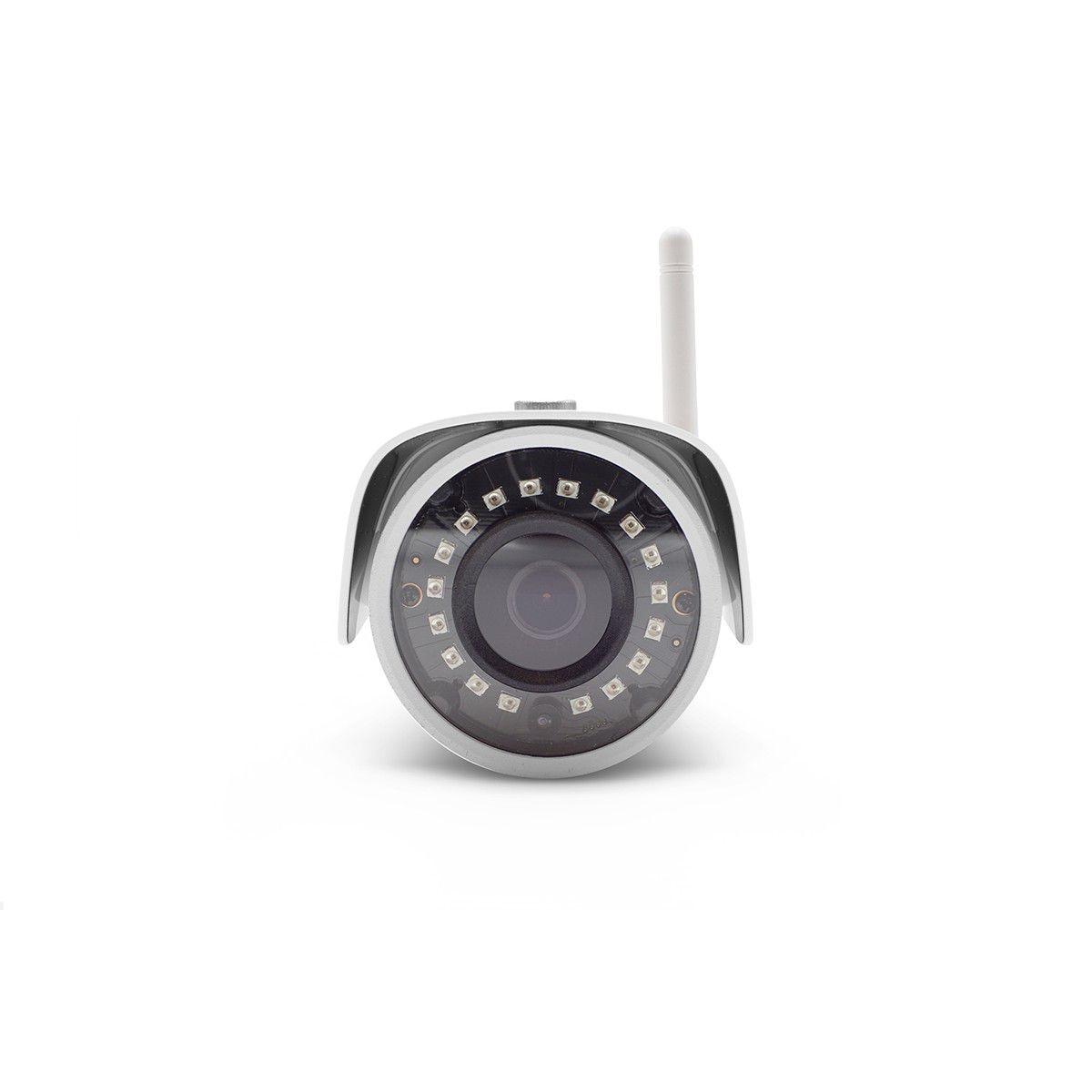

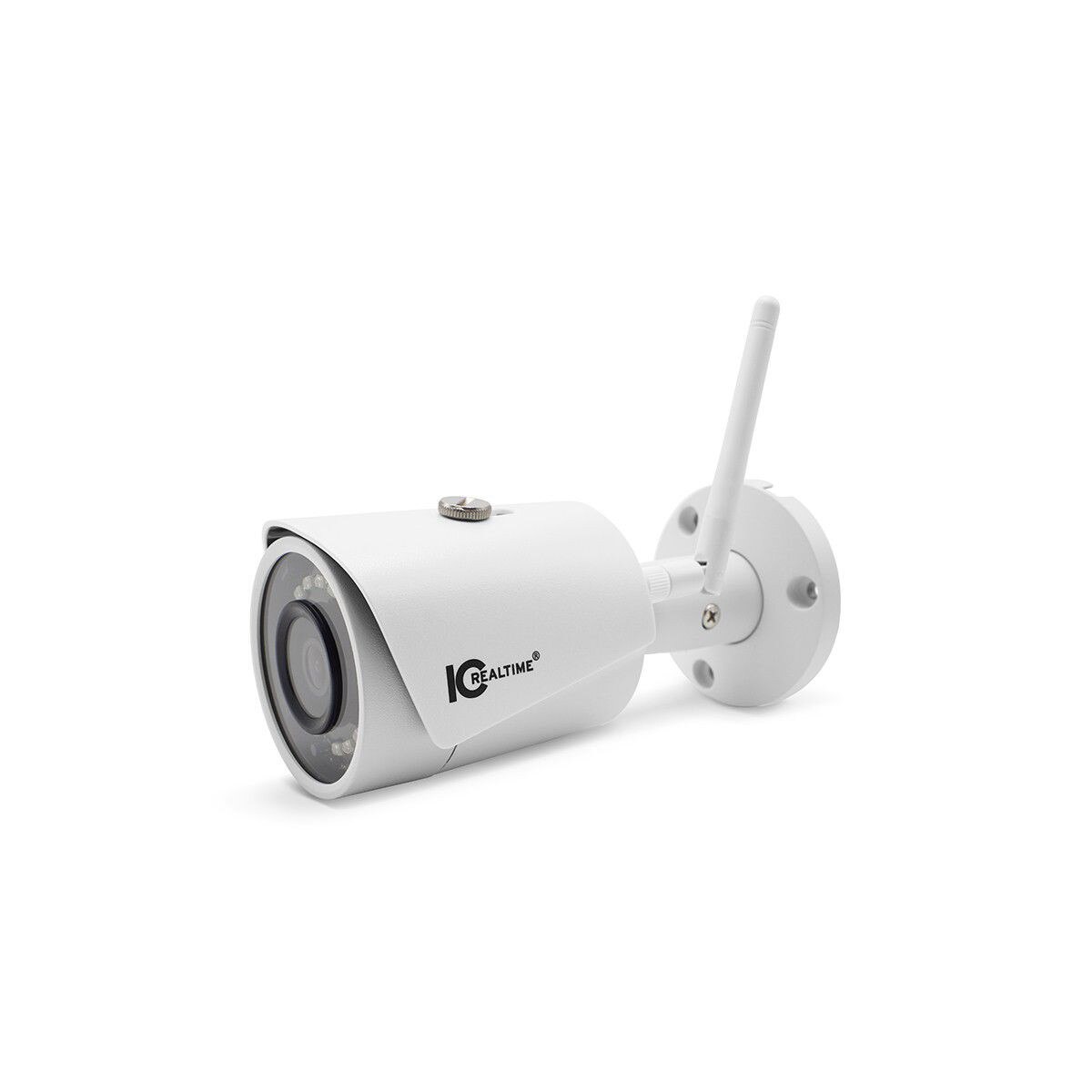

A little bullet camera with big features and WiFi capabilities, the ICIP-BW110S. This day/night bullet camera utilizes a 1/3'', 1.3MP CMOS sensor supporting DWDR and other BLC features. Atop the 1/3'' CMOS sensor sits a fixed 3.6mm lens, which offers a 71 degree horizontal field of vision. This camera is also equipped with IR illuminators which are effective up to 90'.
With a small form factor and Wireless capabilities, this camera is a great option for residential or small sized business installations, where pulling Ethernet or Coaxial cable isn't necessarily an option.
With a small form factor and Wireless capabilities, this camera is a great option for residential or small sized business installations, where pulling Ethernet or Coaxial cable isn't necessarily an option.
Specifications
| Camera | |
| Image Sensor: | 1/3 1.3 Megapixel progressive CMOS |
| Effective Pixels: | 1280(H) x 960(V) |
| RAM/Rom: | 256MB / 16MB |
| Scanning System: | Progressive |
| Electronic Shutter Speed: | Supported |
| Minimum Illumination: | 0.01Lux/F2.5(Color) 0Lux/F2.5(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 30m(98ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 24 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F2.5 |
| Angle of View: | H:92 degrees V:66 degrees |
| Focus Control: | Fixed |
| PTZ | |
| Pan/Tilt Range: | Pan:0 ~ 360 ;/ Tilt:0 ~ 90 ;/ Rotation:0 ~ 360 |
| Video | |
| Compression: | H.264 / H.264B / H.264H / MJPEG |
| Resolution: | 1.3M (1280 x 960) / 720P (1280 x 720) / VGA (640 x 480) / QVGA (320 x 240) |
| Frame Rate: | 1.3M (1 - 25/30fps)s) VGA(1 - 25/30fps) |
| Bit Rate: | H264:32K - 10Mbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Electronic Image Stabilization (EIS): | Supported |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Up to 4 areas |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / Multicast / ICMP / IGMP |
| Wifi: | Wi-Fi(IEEE802.11b/g/n),50m(open field) |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD Card 128GB |
| Interface | |
| Memory Slot: | Micro SD Card 128GB |
| Electrical | |
| Power Supply: | DC12V |
| Power Consumption: | < 3.9W |
| Environmental | |
| Operating Conditions: | -10 C ~ +50 C (14 F ~ +122 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal + Plastic |
| Dimensions: | 70mm x 164.7mm (2.76inx6.49in) |
| Gross Weight: | 0.52Kg (1.158lb) |
