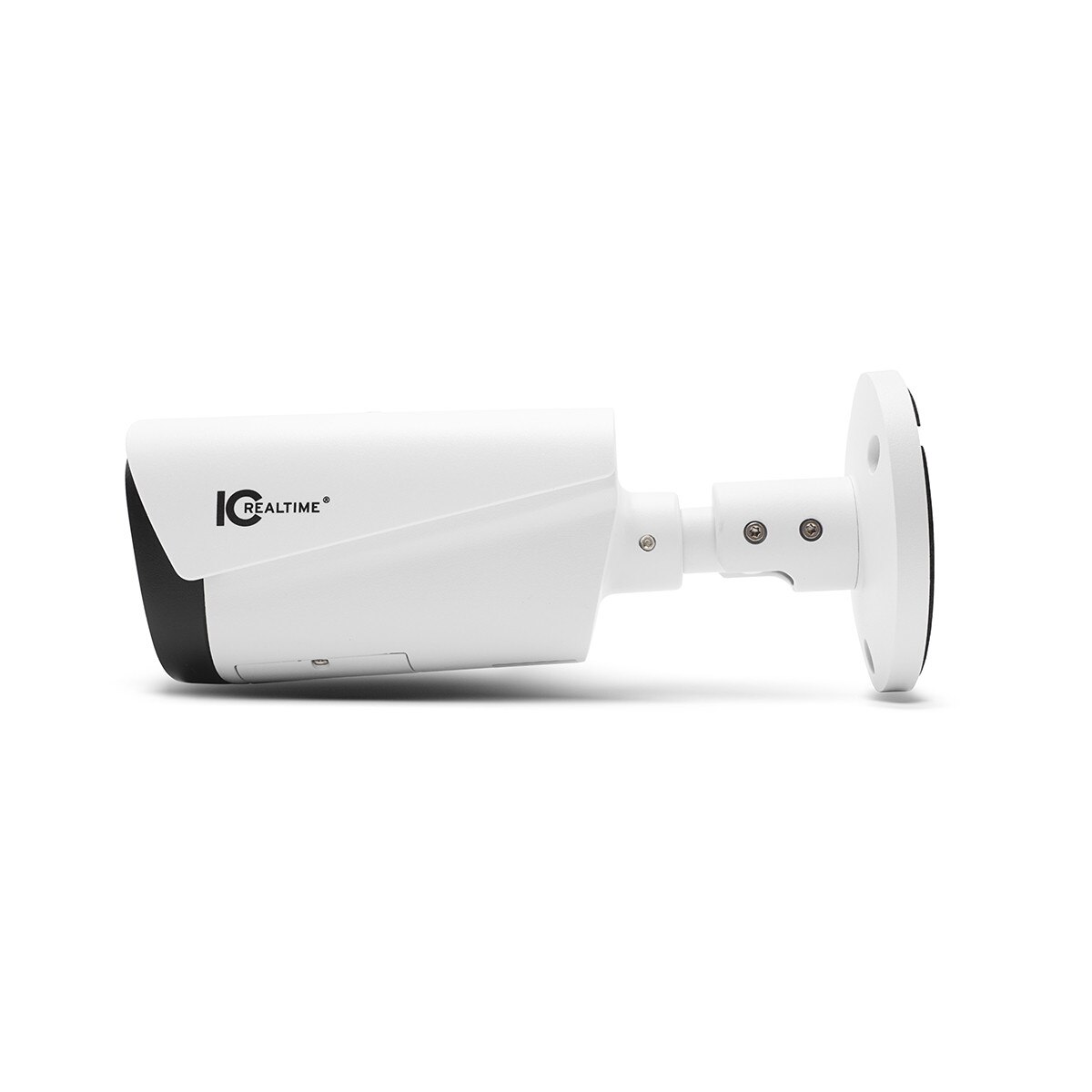

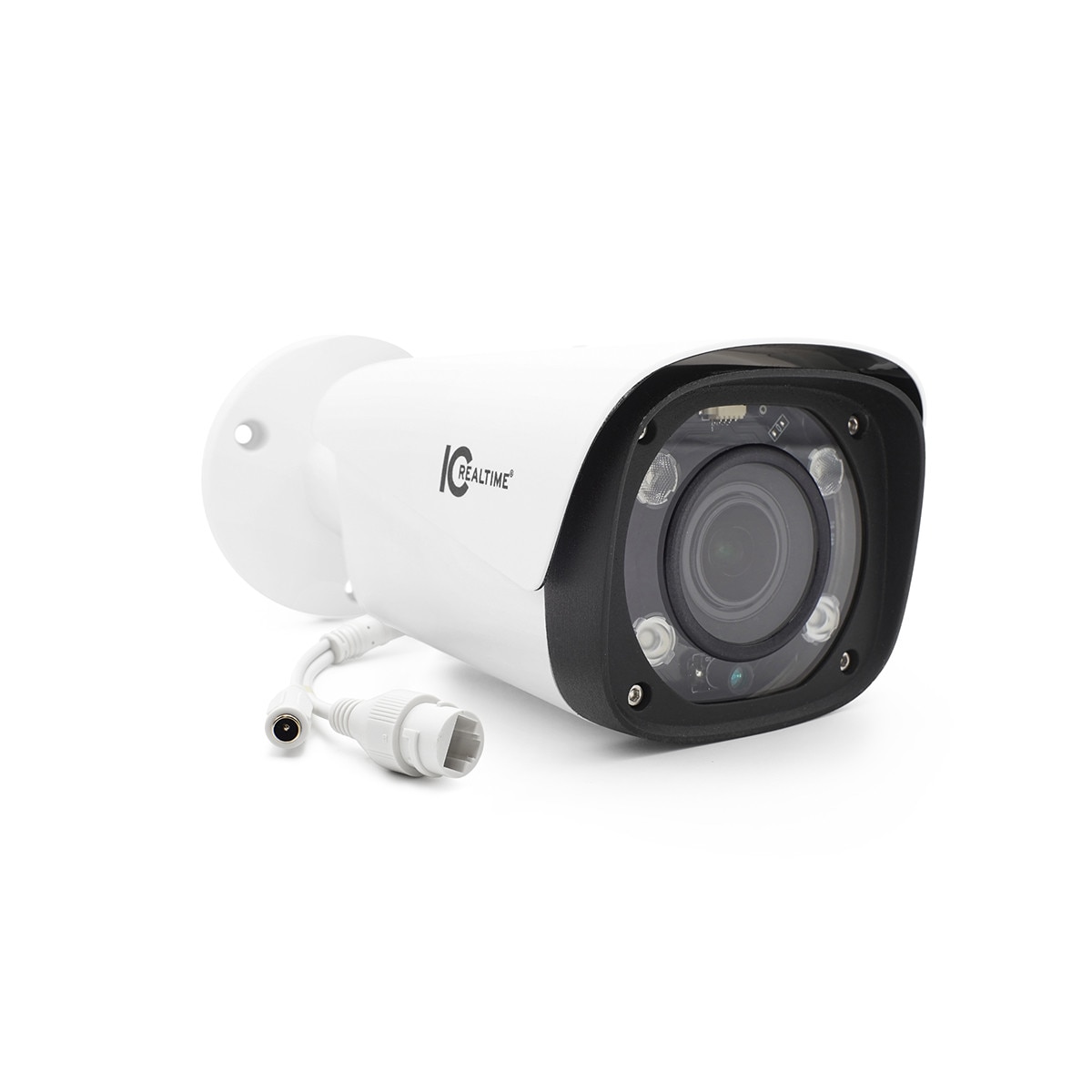

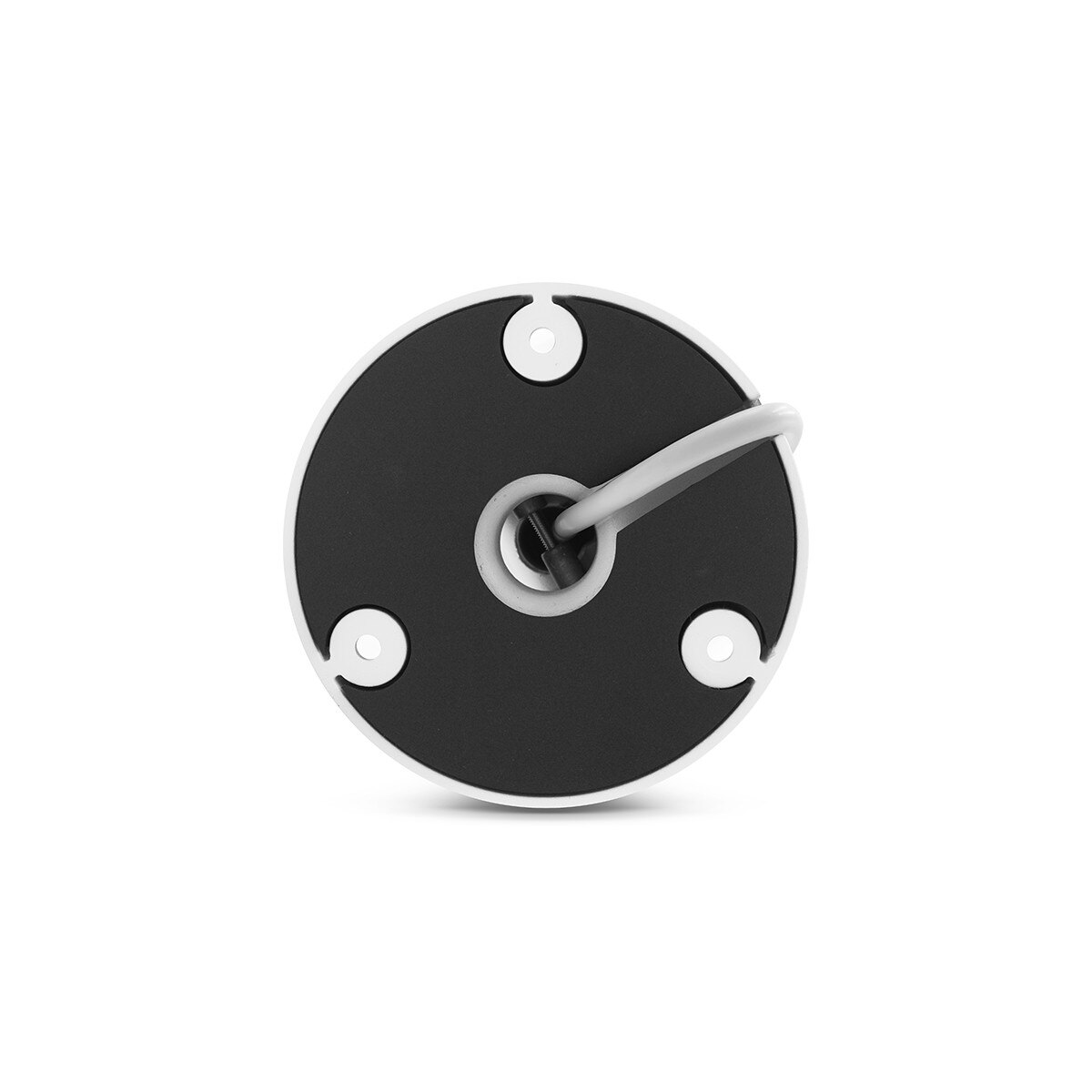

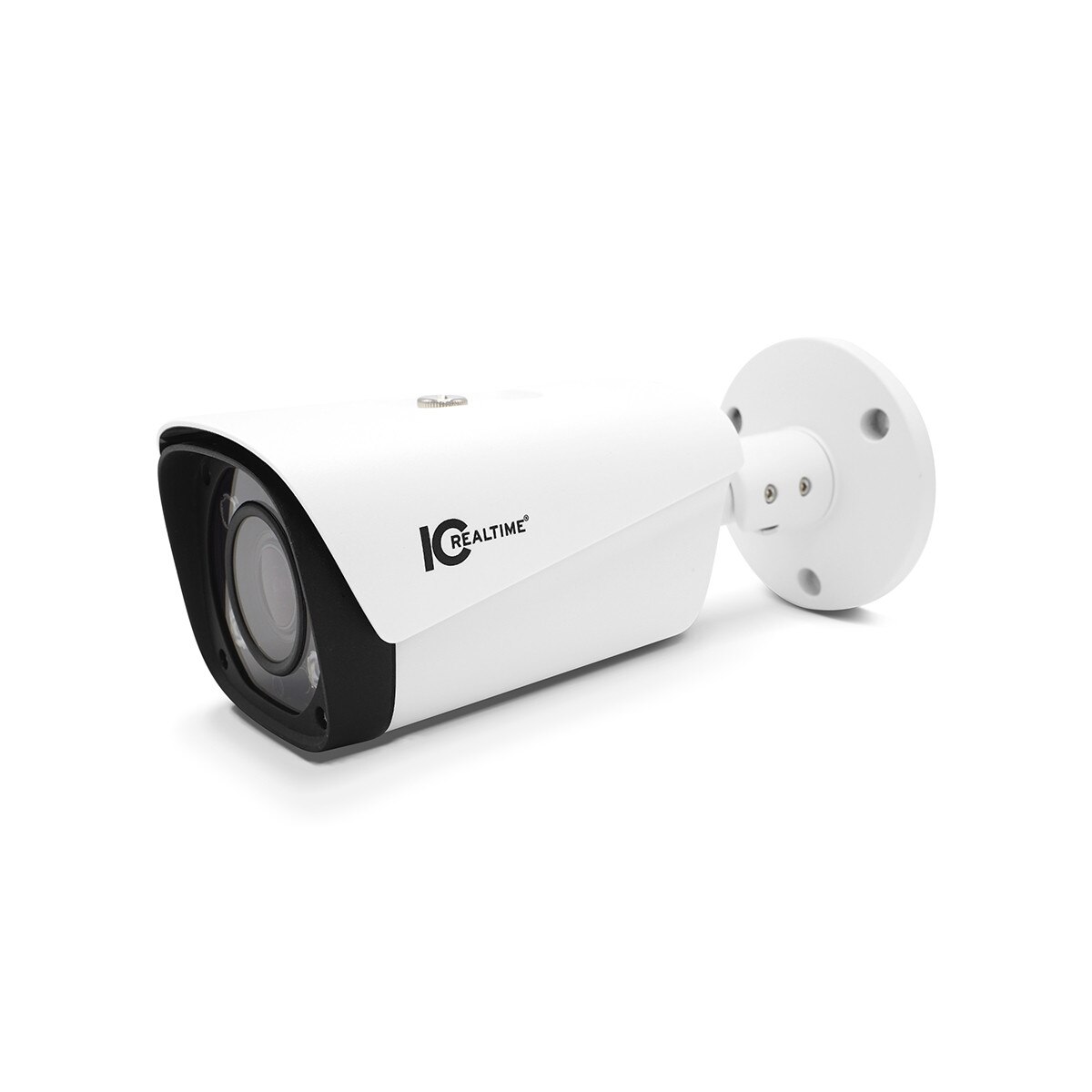

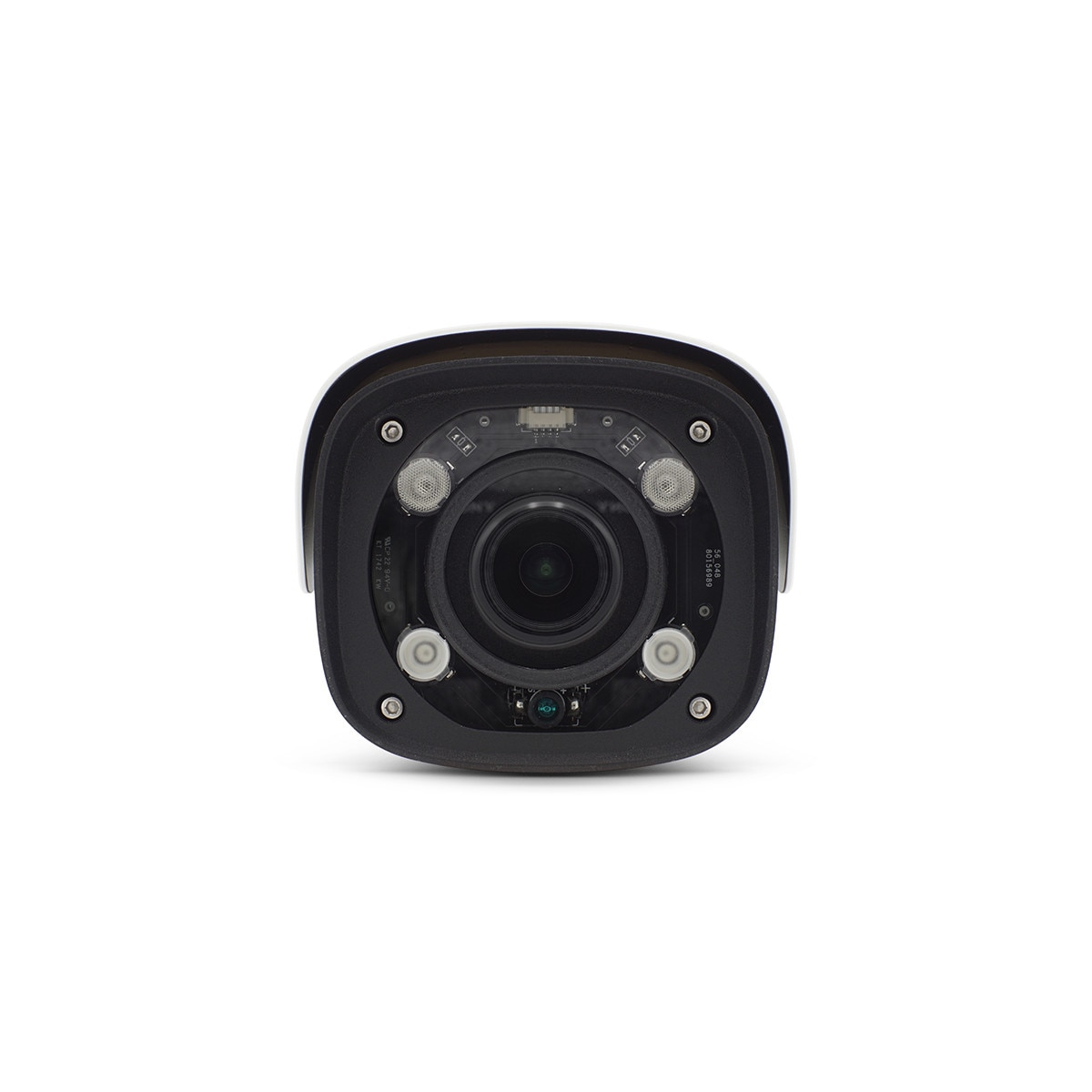

ICIP-B2732Z

(0) No Reviews yet
SKU: ICIP-B2732Z
ITEM WEIGHT: 5
2MP IP Indoor/Outdoor Mid Size Bullet Varifocal 2.8-12mm Motorized Lens (98 - 30 AOV) 180 ft Smart IR POE
1/2.8 CMOS Starvis | 2MP | 30fps@2MP
2.7mm to 13.5mm | motorized varifocal | AoV 106 to 29
Max. IR length 197ft | Smart IR | 4 IR LEDs
128GB mSD
IP67 | 12VDC or PoE | Max. 12.9W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR
Discontinued Item, USE IPFX-B20V-IRW1

Details

The ICIPB2732Z is a 2 megapixel indoor / outdoor camera with a motorized auto focus 2.8mm~12mm varifocal lens. With an IP66 weather rating and 180' IR LEDs, the ICIPB2732Z makes an excellent mid to long range camera.

Specifications

Camera
Image Sensor: 1/2.8" 2 Megapixel progressive scan Sony Exmor CMOS
Effective Pixels: 1920(H)x1080(V)
Scanning System: Progressive
Minimum Illumination: 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
IR Distance: 90' (30m)
Lens
Lens Type: Motorized/ Fixed Iris
Mount Type: Board-in Type
Focal Length: 2.8mm~12mm
Max. Aperture: F1.4
Angle of View: H: 98.1°~ 29.9°
Focus Control: Auto
Video
Compression: H.264/ H.264H/ MJPEG
Resolution: 1080P(1920x1080)/1.3M(1280x 960)/720P(1280x 720)/D1(704x 576)
Frame Rate: Main Stream - 1080P/960P/720P(1 ~ 30fps)
Sub Stream - D1/CIF(1 ~ 30fps)
Bit Rate: H.264H: 40 ~ 8192Kbps
Day/Night: Auto(ICR)/Color/B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Audio
Compression: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF, CGI, PSIA
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Smart Phone: iPhone, iPad, Android, Windows Phone
Interface
Audio I/O: N/A
Electrical
Power Supply: 12VDC / PoE (802.3af)
Power Consumption: Max 8.5W
Enviromental
Operating Conditions: -22°F~+140°F
Operating Humidity: 10%-90% RH
Ingress Protection: IP66
Construction
Dimensions: 2.83" x 3.15" x 8.38"
