IPFX-B20V-IRW1
Details

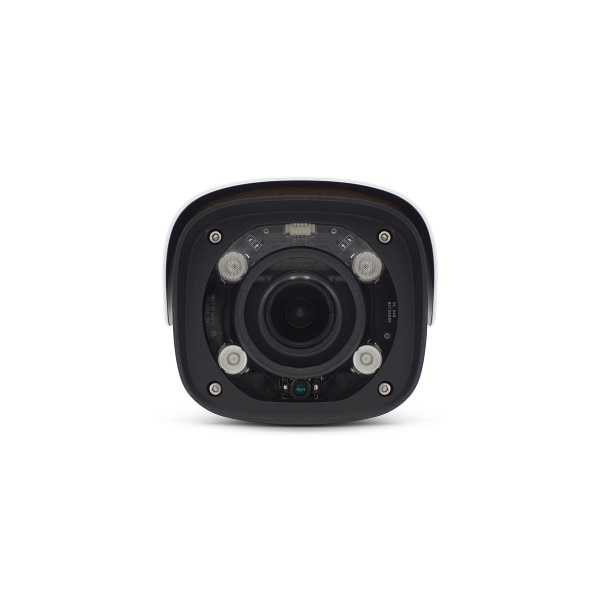

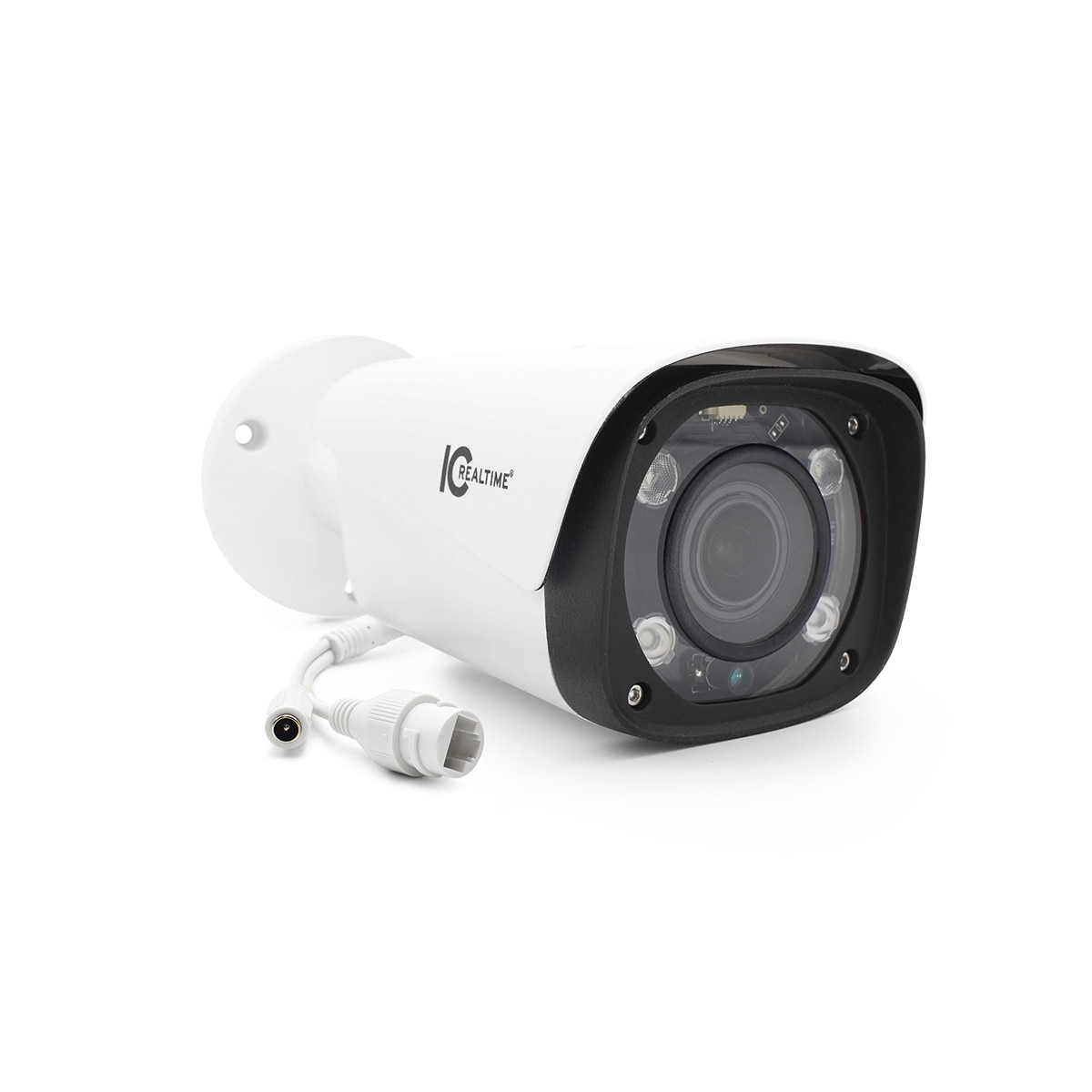

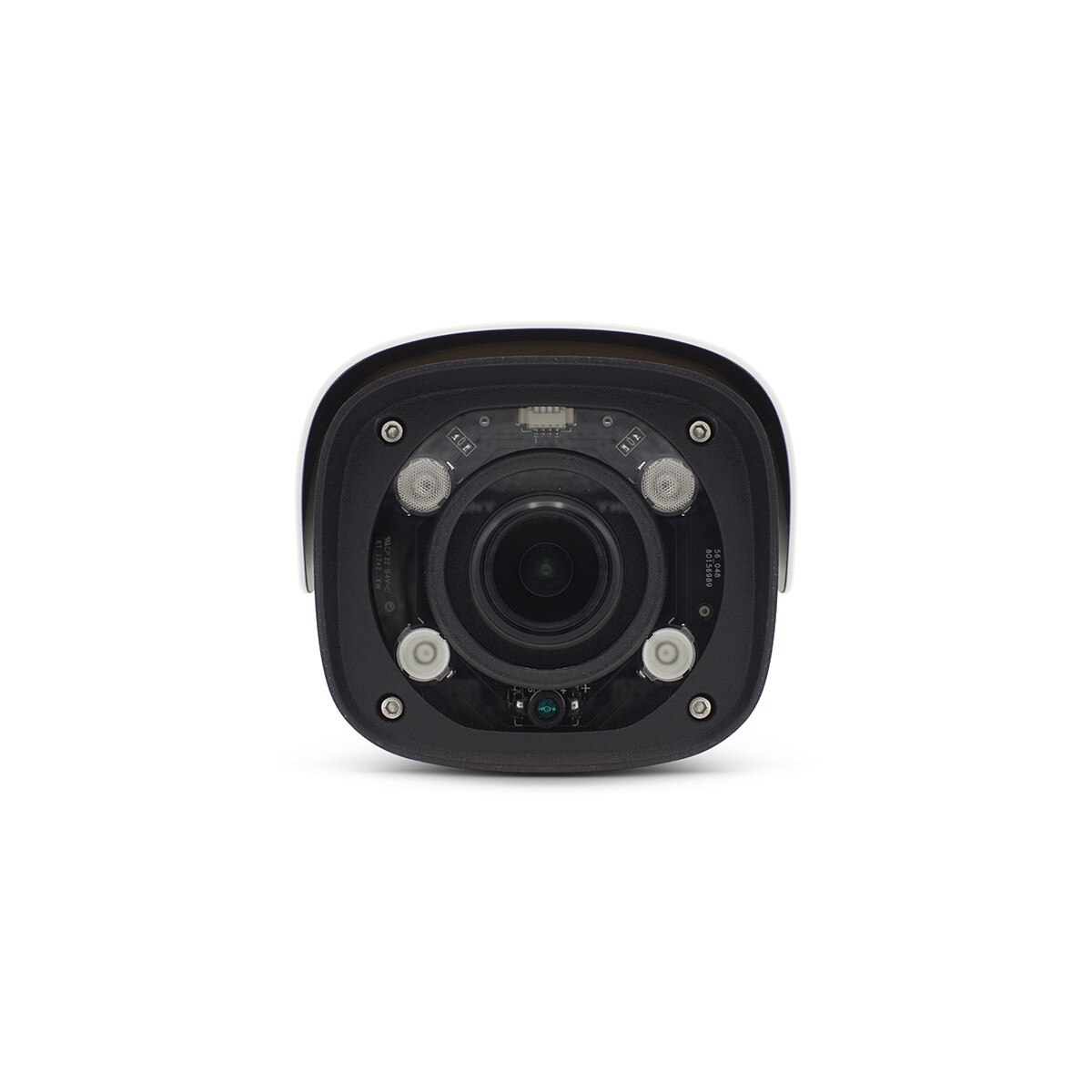

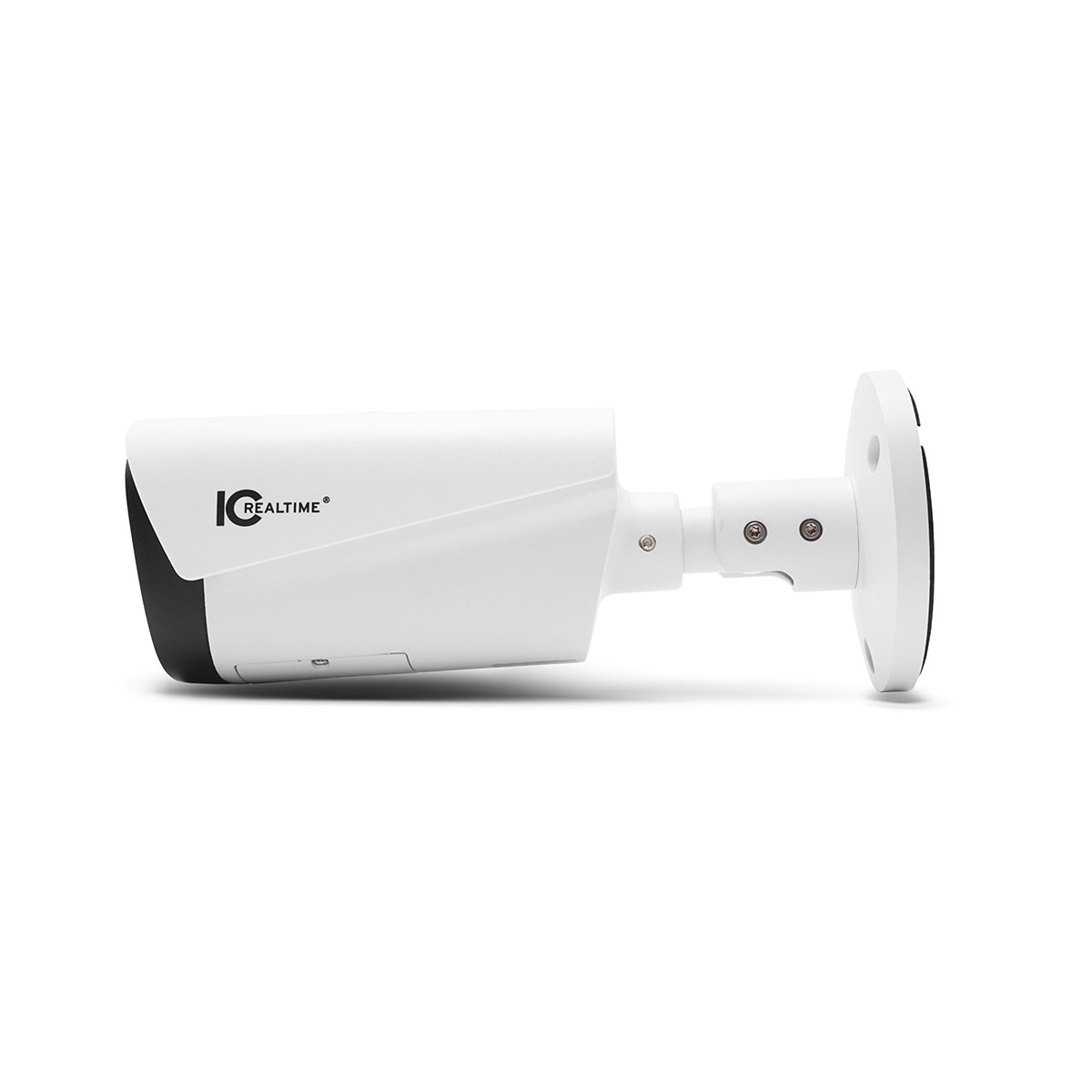

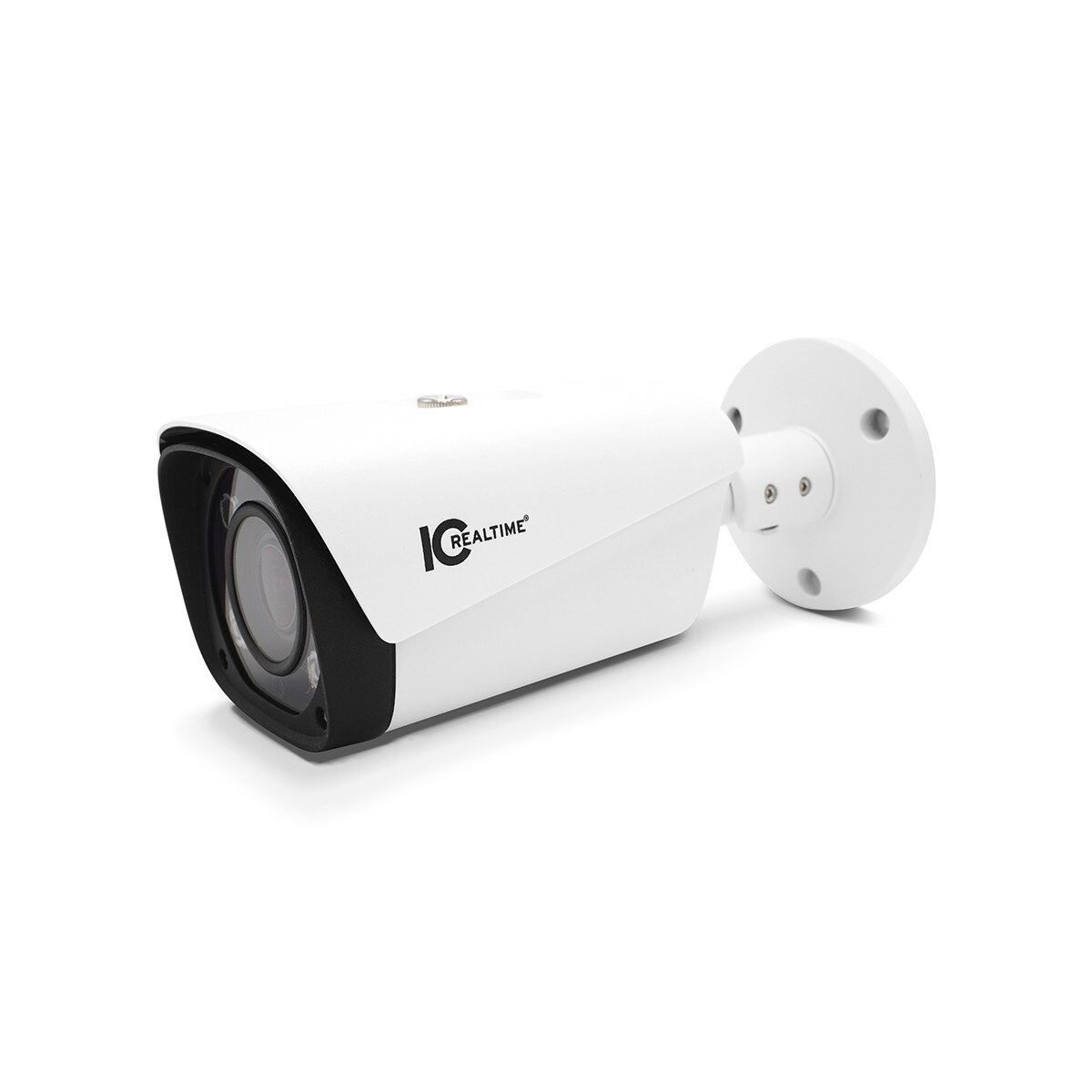

The IPFX-B20V-IRW1 is a 2MP bullet camera featuring our latest generation of 1/3’’ CMOS sensors. It adopts our vandal proof bullet style housing, and supports IR illumination up to ~196’.
The camera also features a motorized, 2.7mm-13.5mm lens which offers up a 28-104 degree horizontal field of view. The zoom level is fully controllable directly from the camera interface, enabling you to obtain the perfect shot. This makes the camera well suited for exterior applications on commercial as well as residential installations.
The camera also features a motorized, 2.7mm-13.5mm lens which offers up a 28-104 degree horizontal field of view. The zoom level is fully controllable directly from the camera interface, enabling you to obtain the perfect shot. This makes the camera well suited for exterior applications on commercial as well as residential installations.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" 2 Megapixel CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| RAM/Rom: | 128 MB/ 128 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 Lux@F1.5 |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | 60 m (196.85 ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized/ Fixed Iris |
| Mount Type: | Board-in Type |
| Focal Length: | 2.7 mm–13.5 mm |
| Max. Aperture: | F1.5 |
| Angle of View: | Horizonal: 109°–28° Vertical: 57°–16° Diagonal: 131°–33° |
| Focus Control: | Auto |
| Close Focus Distance: | 0.8 m (2.62 ft) |
| DORI - Detect: | W: 44.1 m (144.69 ft) T: 151.7 m (497.70 ft) |
| DORI - Observe: | W:17.6 m (57.74 ft) T: 60.6 m (198.82 ft) |
| DORI - Recognize: | W: 8.8 m (28.87 ft) T: 30.3 m (99.41 ft) |
| DORI - Identify: | W:4.4 m (14.44 ft) T: 15.1 m (49.65 ft) |
| Intelligence | |
| IVS: | Intrusion, Tripwire |
| Video | |
| Compression: | H.265; H.264; H.264B; MJPEG |
| Resolution: | 1080P(1920x1080)/1.3M(1280x 960)/720P(1280x 720)/D1(704x 576) |
| Frame Rate: | Main stream: 1920 × 1080 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
| Bit Rate: | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto/Manual |
| Gain Control: | Auto/Manual |
| Noise Reduction: | 3D |
| Motion Detection: | OFF/ON (4 areas, rectangular) |
| Region of Interest: | Yes (4 areas) |
| Smart IR: | Yes |
| Privacy Masking: | Up to 4 areas |
| WDR: | 120 dB |
| Audio | |
| Compression: | G.711a; G.711Mu; G.726; AAC |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF, CGI, PSIA |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Web Viewer: | IE, Safari, Chrome, Firefox |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android, Windows Phone |
| Interface | |
| Audio I/O: | Audio In (RCA port) Audio out (RCA port) |
| Alarm I/O: | 1 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC |
| Memory Slot: | Micro SD Card (support max. 256 GB) |
| Electrical | |
| Power Supply: | 12VDC / PoE (802.3af) |
| Power Consumption: | < 9.6W |
| Environmental | |
| Operating Conditions: | -22°F~+140°F |
| Operating Humidity: | 10%-90% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 2.83" x 3.15" x 8.38" |
| Gross Weight: | 1.15 kg (2.54 lb) |
